Heavy Duty Toggle Switch 250V ON/OFF — Reliable Circuit Control for DIY & Industrial Builds

Whether you're wiring a custom control panel, retrofitting a machine enclosure, or building a DIY electronics project, finding a toggle switch that handles real-world voltage without failing mid-job is non-negotiable. The E-TEN series heavy duty toggle switch is built for makers, electricians, and hobbyists who need a dependable 250V ON/OFF switch that installs cleanly and holds its position under repeated use.

Each unit is an individual E-TEN series toggle flick switch rated at 250V AC. Available models span 2-pin to 6-pin configurations (SPST, SPDT, DPST, DPDT) in 2-position or 3-position throws, plus momentary variants (E-TEN1233, E-TEN2233). A separate 12MM Waterproof Cover accessory is also available to protect the toggle lever from dust and splash. Finish options include natural (silver lever) and black. Sold in packs of 1, 2, 5, or 10 pieces.

Typical use cases include DIY control panel wiring, automotive auxiliary switches, workshop machine on/off controls, marine electrical panels, and electronics prototyping — anywhere a compact, panel-mount toggle switch rated for 250V is required.

🔌 Compatibility Note: E-TEN series switches typically fit a standard 12mm (≈15/32") round panel cutout. Verify your panel thickness and cutout diameter before ordering. Thread standard and terminal pitch vary by model — see specs below or contact us to confirm.

✅ Key Features of These Heavy Duty Toggle Switches

⚡250V AC Rated — Handles mains-voltage circuits, making these toggle switches suitable for control panels, machinery, and workshop equipment where low-voltage switches would fall short.
🔢Wide Model Range (2–6 Pin) — Choose from SPST (2-pin), SPDT (3-pin), DPST (4-pin), or DPDT (6-pin) configurations to match your exact wiring diagram without adapters or workarounds.

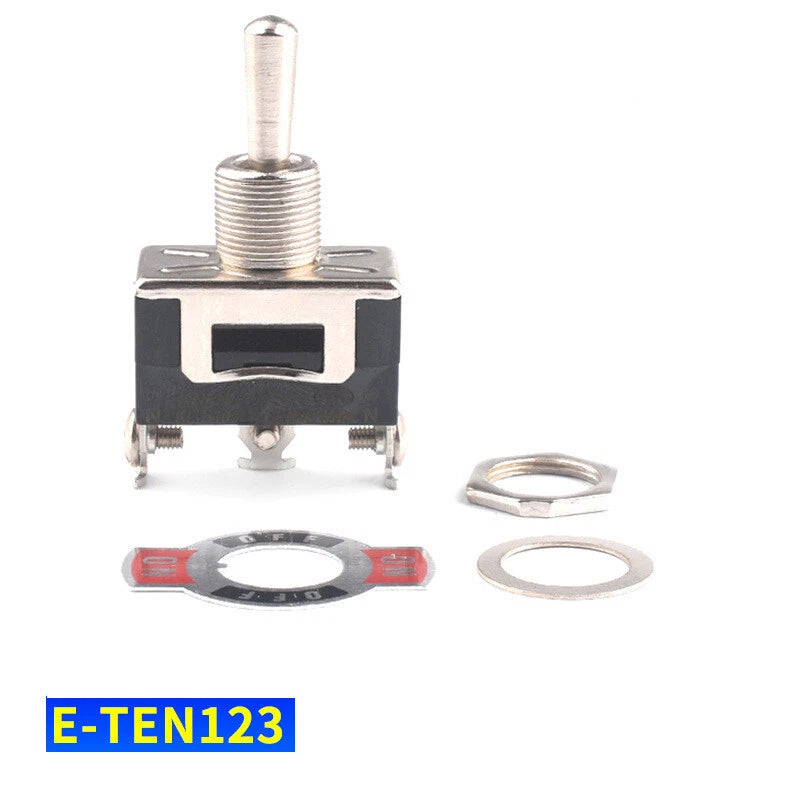

🔄Latching & Momentary Options — Standard latching models hold their position for on/off power control; momentary variants (E-TEN1233, E-TEN2233) spring back on release, ideal for horn buttons or reset triggers.

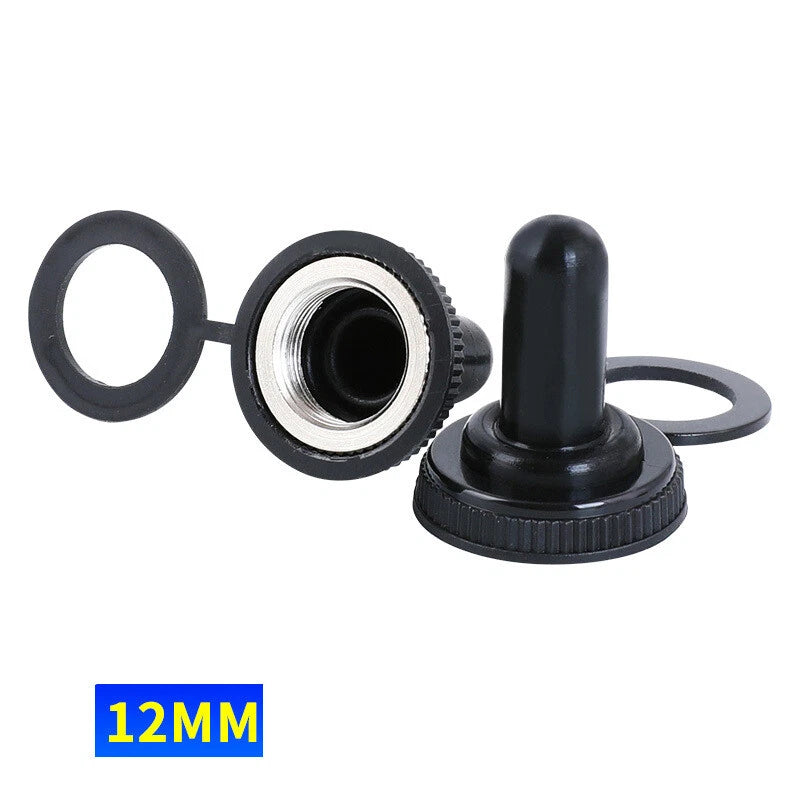

💧Waterproof Cover Available — The 12MM Waterproof Cover variant adds a rubber boot over the lever, protecting the switch from dust ingress and incidental moisture in outdoor or industrial enclosures.
🎨Natural & Black Finish — Both color options are functionally identical; choose silver for a classic look or black to match dark control panels and custom enclosure builds.
📦Flexible Pack Quantities — Available in 1, 2, 5, or 10-piece packs so you can grab a single switch for a repair or stock up for a larger panel-mount toggle switch installation project.

📐 Technical Specifications — E-TEN Series Toggle Switch

Product Type	Panel-mount toggle flick switch

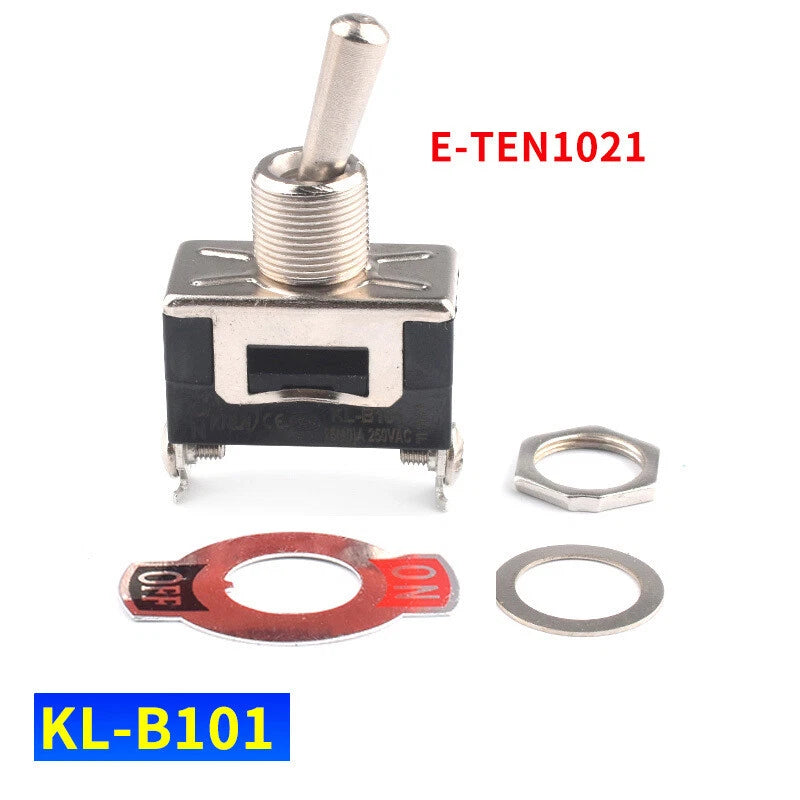

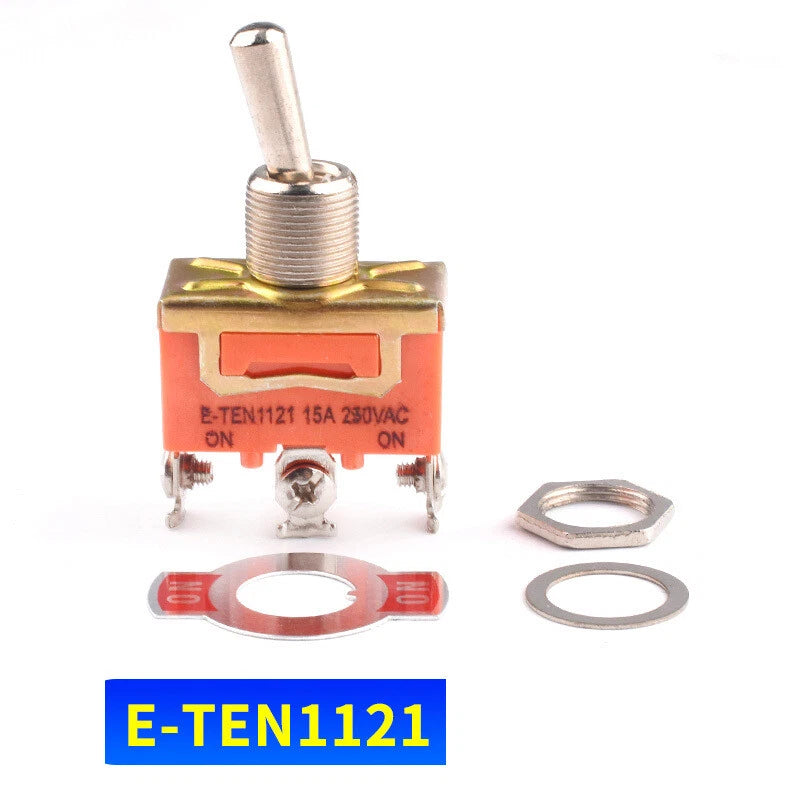

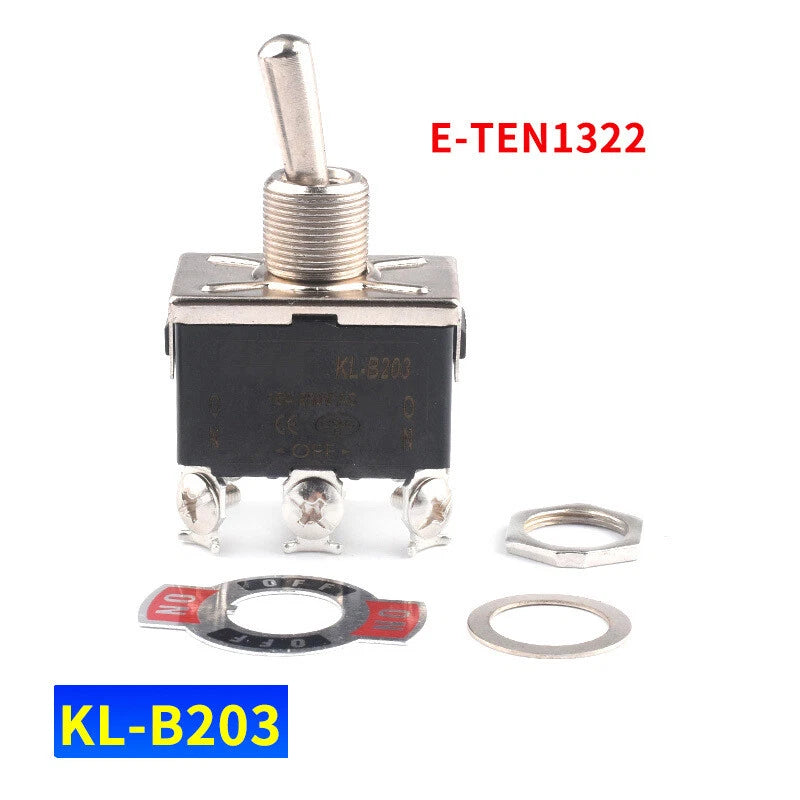

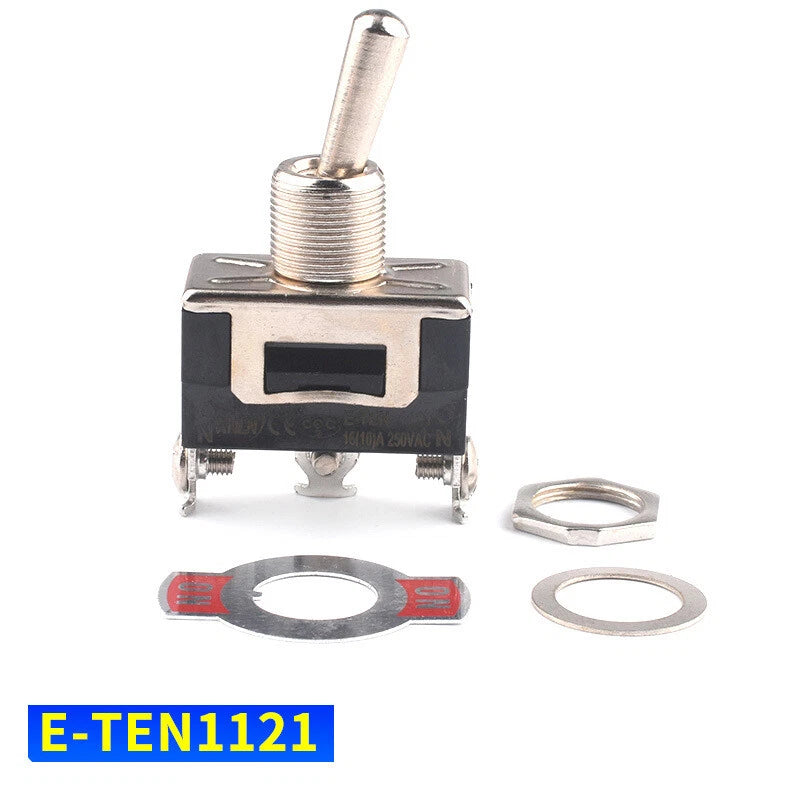

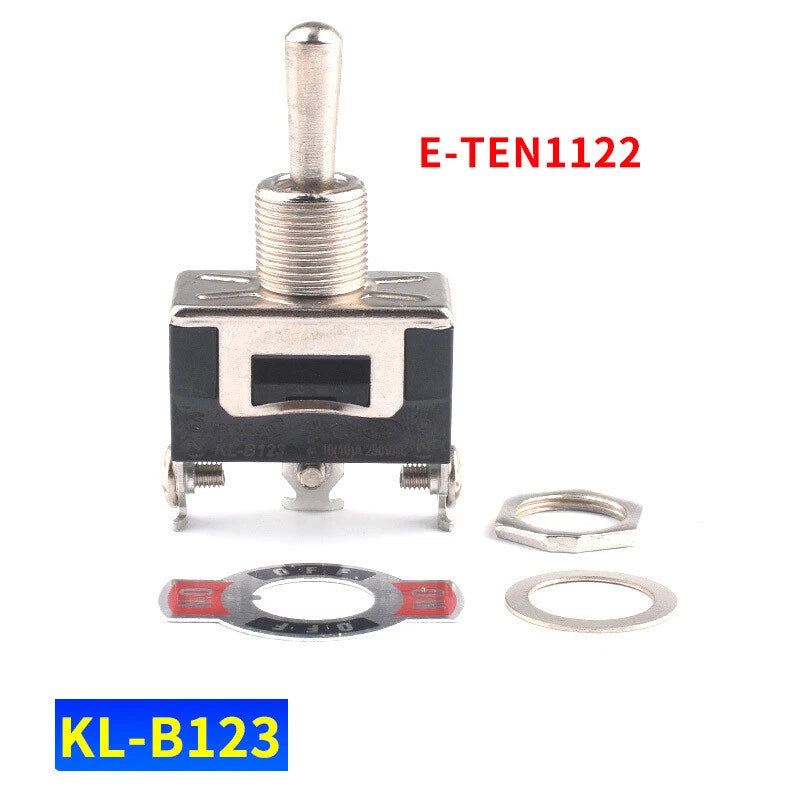

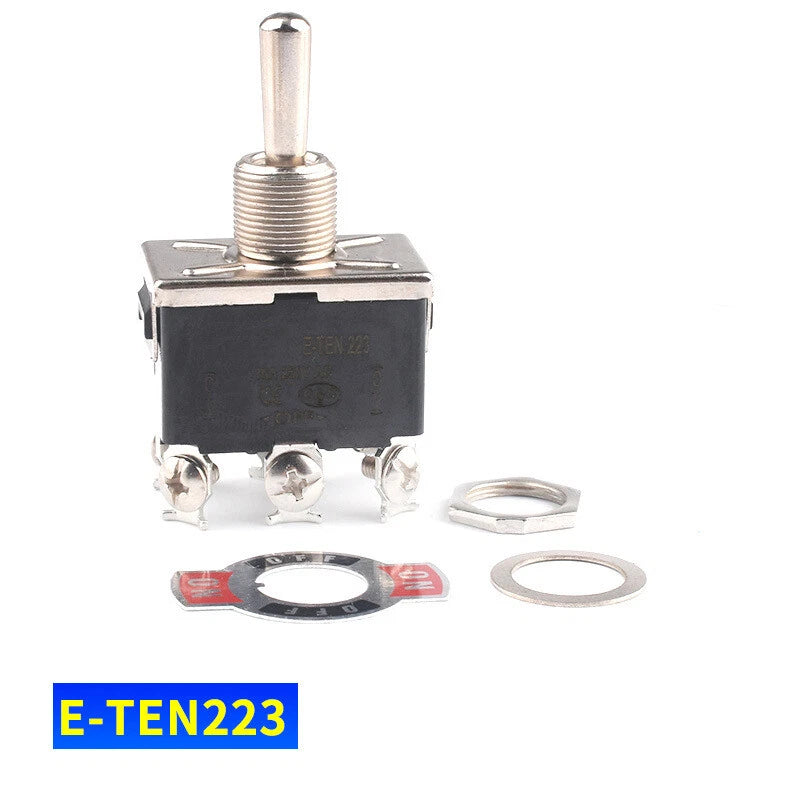

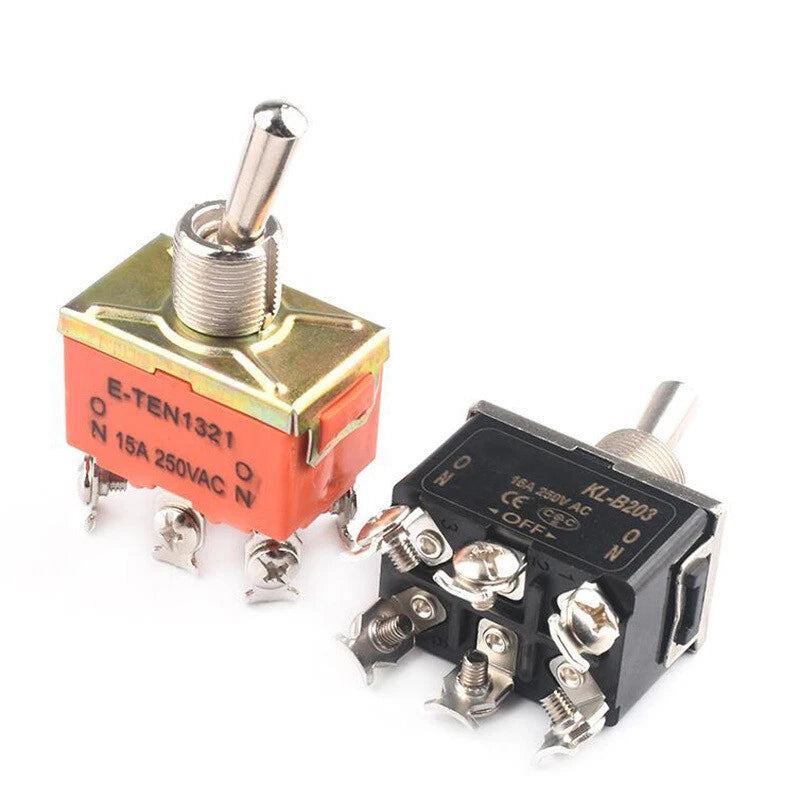

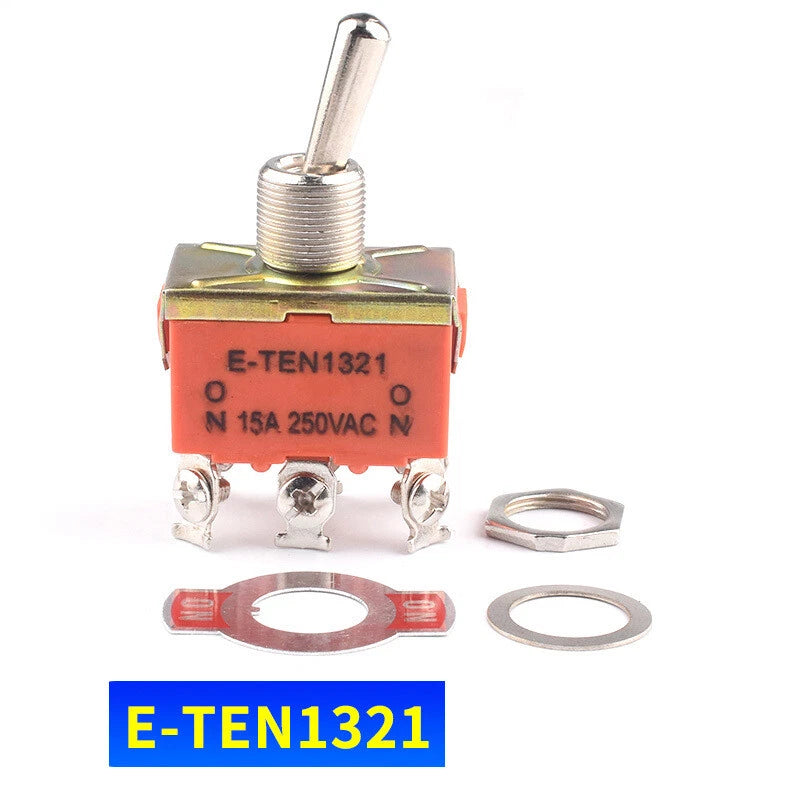

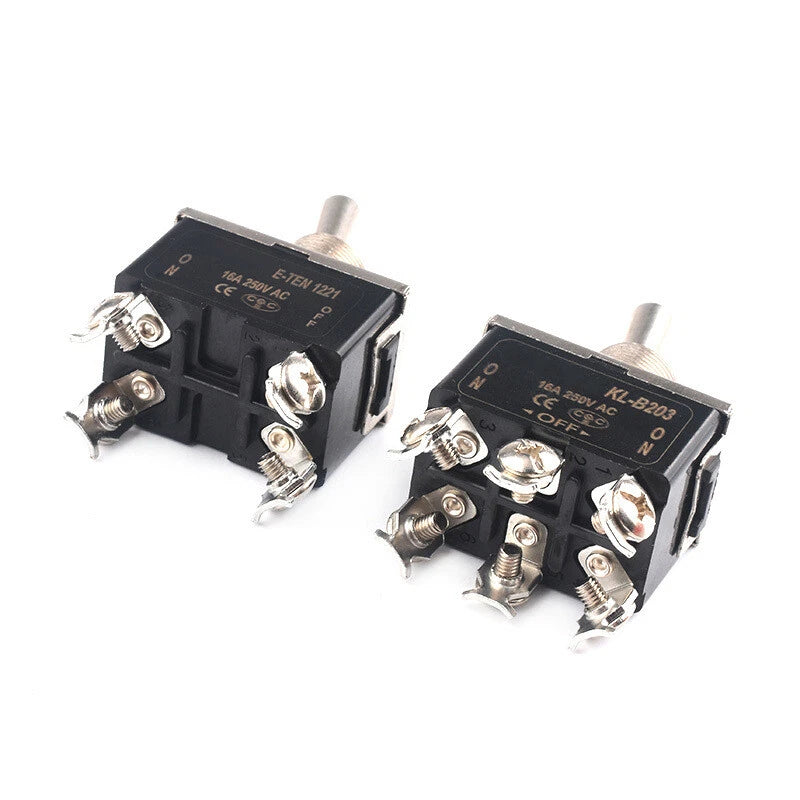

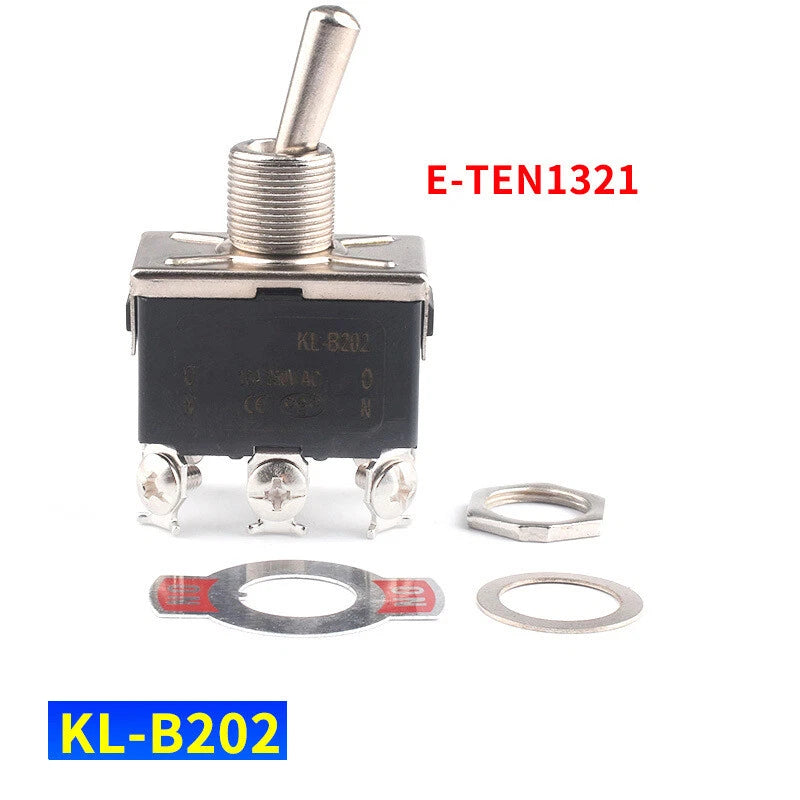

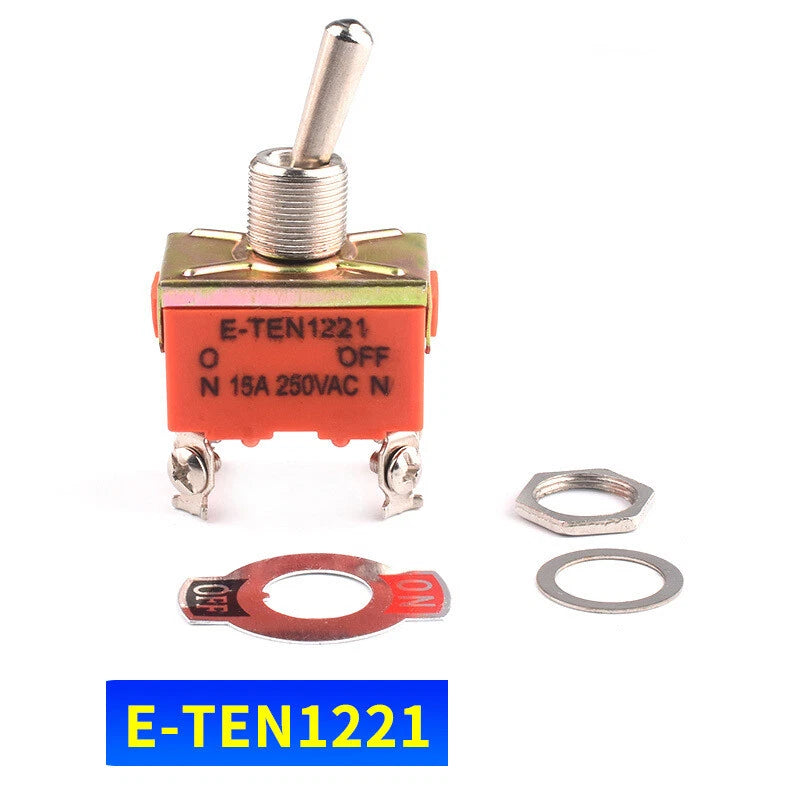

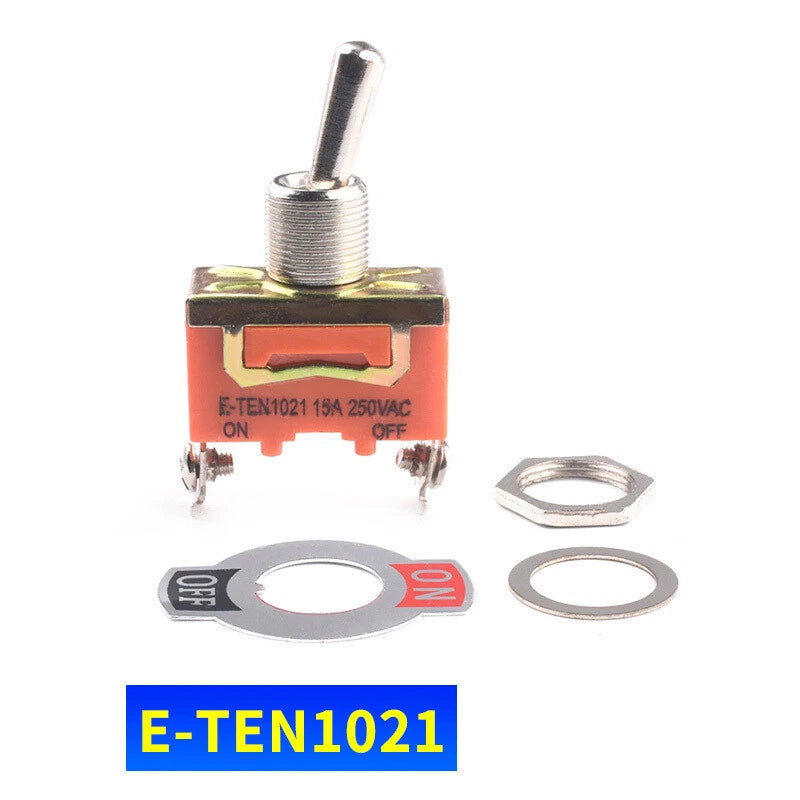

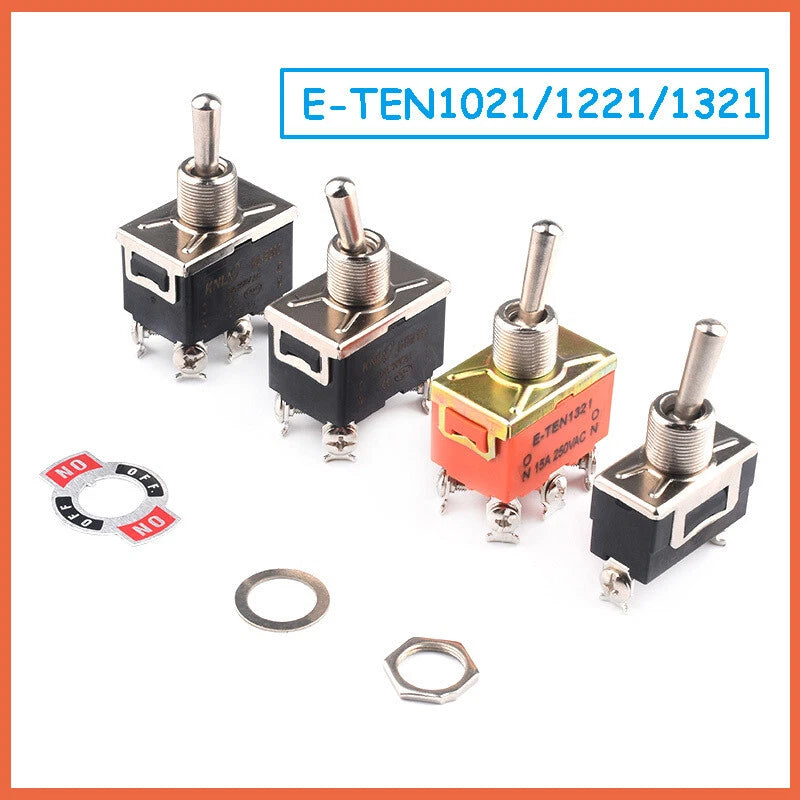

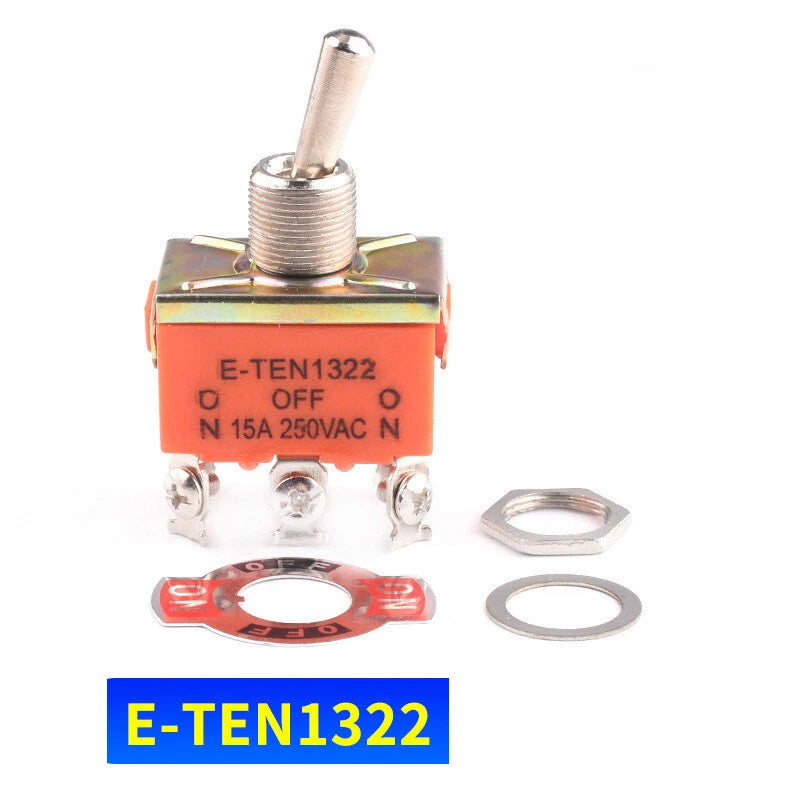

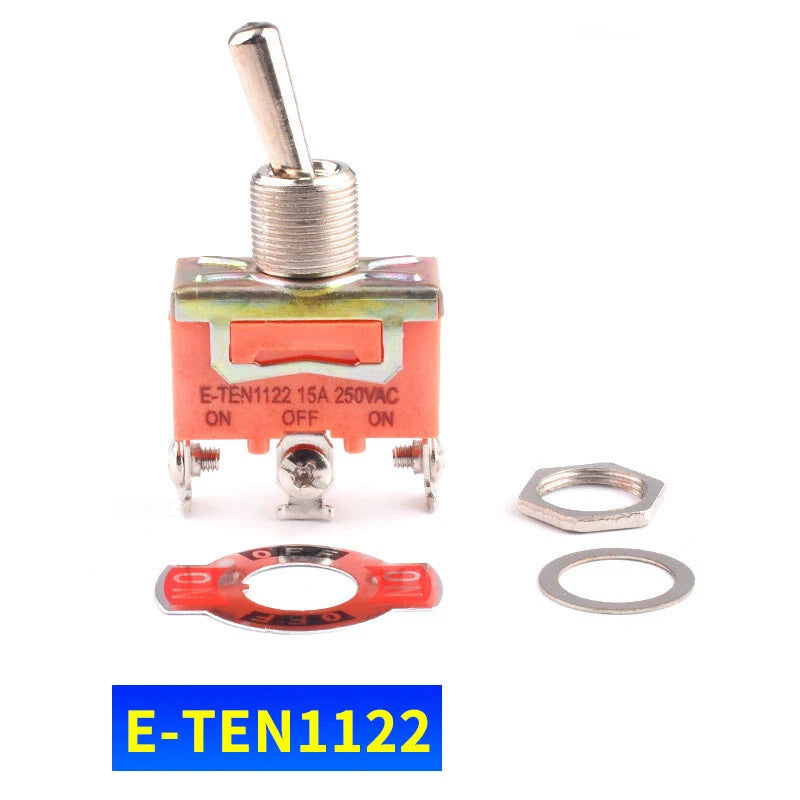

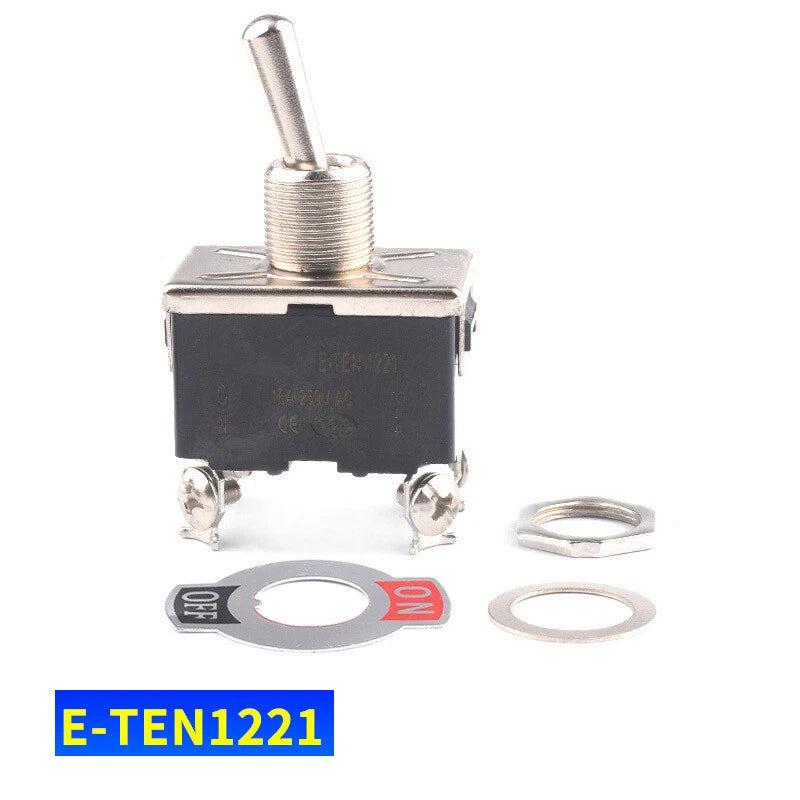

Series	E-TEN (E-TEN1021, E-TEN1121, E-TEN1122, E-TEN1221, E-TEN1321, E-TEN1322, E-TEN1233, E-TEN2233)
Voltage Rating	250V AC
Current Rating	See variant options (typically 6A–15A at 250V AC; confirm per model)

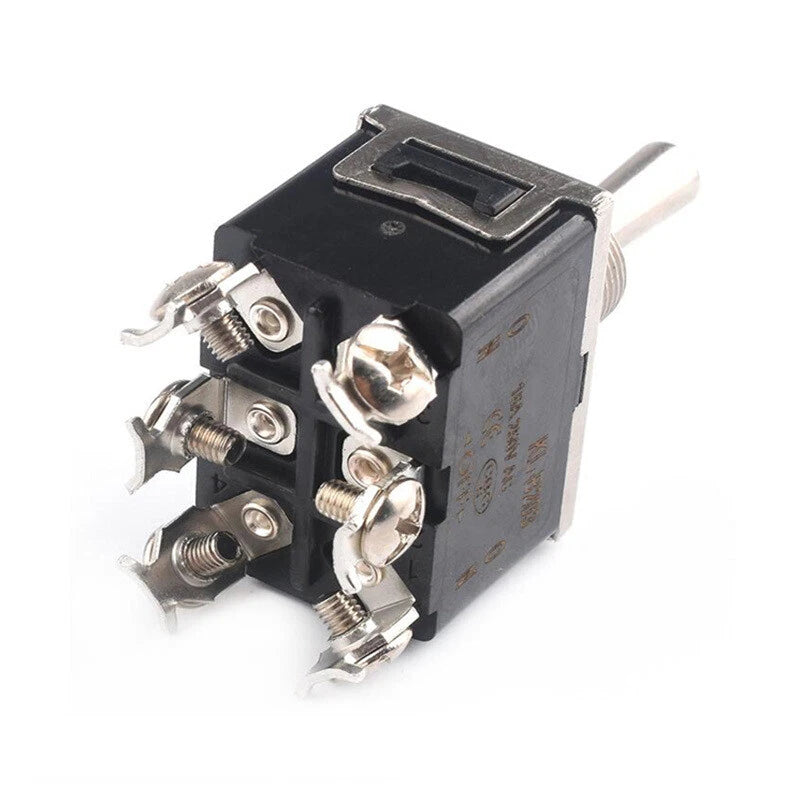

Pin / Terminal Count	2-pin (SPST), 3-pin (SPDT), 4-pin (DPST), or 6-pin (DPDT) — see selected model
Switch Positions	2-position (ON/OFF) or 3-position (ON/OFF/ON or ON/OFF/ON center) — see selected model
Switch Action	Latching (standard) or Momentary (E-TEN1233, E-TEN2233)
Panel Cutout Diameter	Typically 12mm (≈15/32") — contact us to confirm for your model

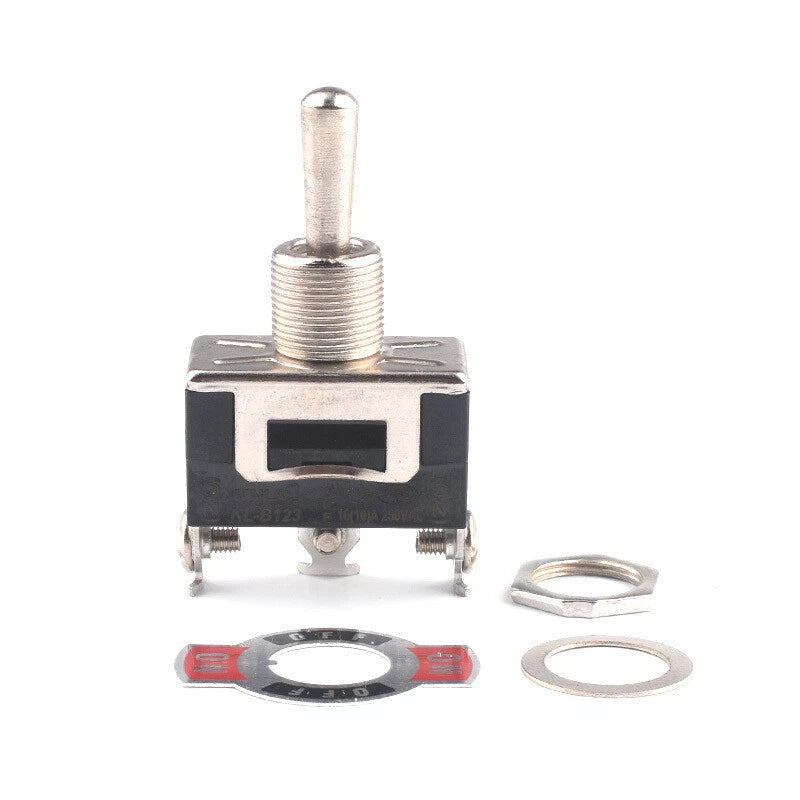

Lever Finish	Natural (silver metal) or Black — see selected variant
Waterproof Cover	Available as separate 12MM Waterproof Cover variant (rubber boot)
Mounting Style	Panel mount with threaded bushing and nut (typically included)
Pack Quantity	1 pcs / 2 pcs / 5 pcs / 10 pcs — select above
Operating Temperature	Contact us to confirm
Certifications	Contact us to confirm

⚠️ Spec Confirmation: Current ratings, terminal pitch, and certifications vary by model. If you need exact figures for a safety-critical application, please contact us before ordering.

❓ Frequently Asked Questions

How do I choose the right pin count and position for my project?

Pin count refers to the number of electrical terminals: 2-pin (SPST) controls a single circuit on/off; 3-pin (SPDT) lets you switch between two circuits; 4-pin (DPST) controls two circuits simultaneously; 6-pin (DPDT) switches two circuits between two states. Position count (2 or 3) indicates how many switch states are available — 2-position is standard on/off, 3-position adds a center-off or center-on state. Match these to your wiring diagram before ordering.

What is the voltage and current rating of these toggle switches?

The E-TEN series is rated at 250V AC. Current capacity varies by model but is typically 6A–15A at 250V AC — please confirm the specific rating for your chosen model before use in high-load applications.

Can these switches be used outdoors or in wet environments?

The 12MM Waterproof Cover variant adds a protective rubber boot over the toggle lever, making it suitable for splash-prone or dusty environments. For fully submersed or continuous outdoor rain exposure, additional enclosure protection is generally recommended.

What is the difference between latching and momentary toggle switches?

Latching (standard) switches stay in position after you flip them — ideal for on/off power control. Momentary switches (E-TEN1233, E-TEN2233) only complete the circuit while held down and spring back when released — commonly used for doorbells, horn buttons, or reset triggers.

Are these switches compatible with standard panel cutouts?

Yes. E-TEN series toggle switches typically fit a standard 12mm (≈15/32") round panel cutout, which is a common size in control panels, enclosures, and DIY project boxes. Always verify the mounting hole diameter against your panel before installation.

What is the difference between the natural (silver) and black finish versions?

Both finishes are functionally identical — the difference is purely cosmetic. The natural (silver) toggle has a standard metal lever appearance, while the black version suits darker panels or builds where a stealthy look is preferred.

How do I wire a 3-pin SPDT toggle switch?

On a 3-pin SPDT switch, the center terminal is typically the common (COM), and the two outer terminals are the normally open (NO) and normally closed (NC) contacts. Connect your power source to COM, and your two output circuits to NO and NC respectively. Always consult a wiring diagram specific to your application.

🛒 Select your model and quantity above, then add to cart — ships from our US warehouse.
