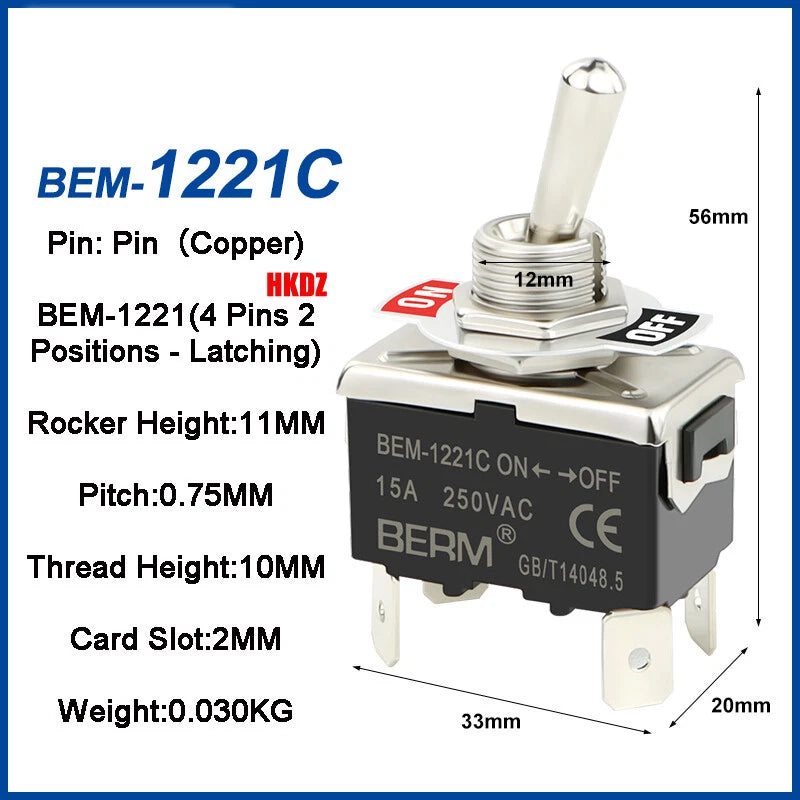

Types: BEM-1221(4 Pins 2 Positions - Latching)

Termination Types: Pin

Quantity (PCS): 1PCS

Price:

$2.84 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Heavy Duty Toggle Switch — BEM & E-TEN Series for Reliable ON/OFF Control

When a flimsy rocker switch just won't cut it — on a boat console, a custom car dash, an industrial control panel, or a DIY electronics project — you need a heavy duty toggle switch that clicks into position and stays there. Electricians, automotive builders, marine technicians, and hobbyists all reach for the BEM and E-TEN series toggle switches when they need a dependable, panel-mount solution that handles real-world loads without wobbling or failing mid-project.

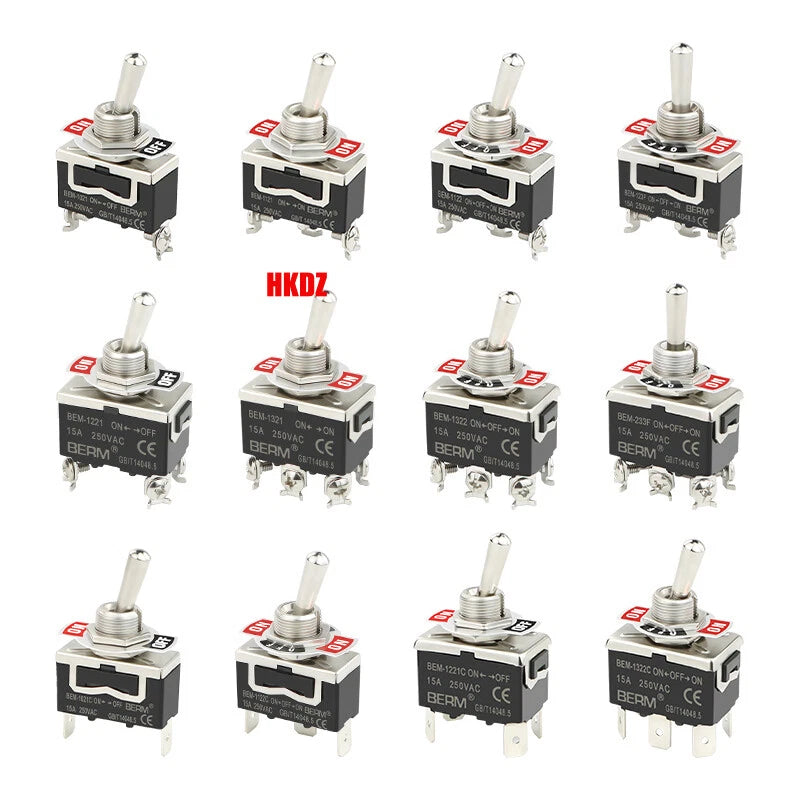

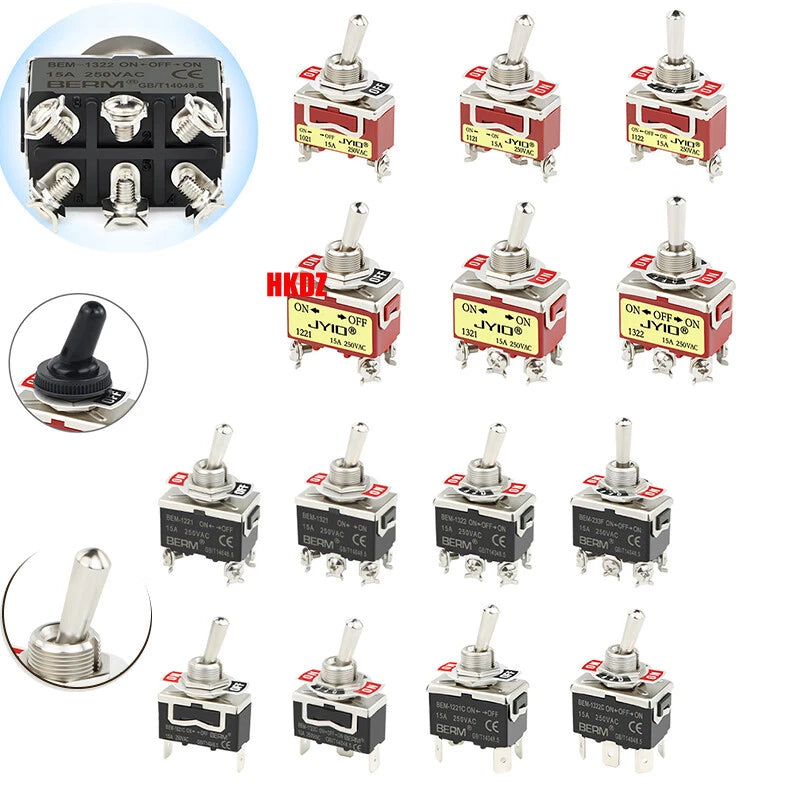

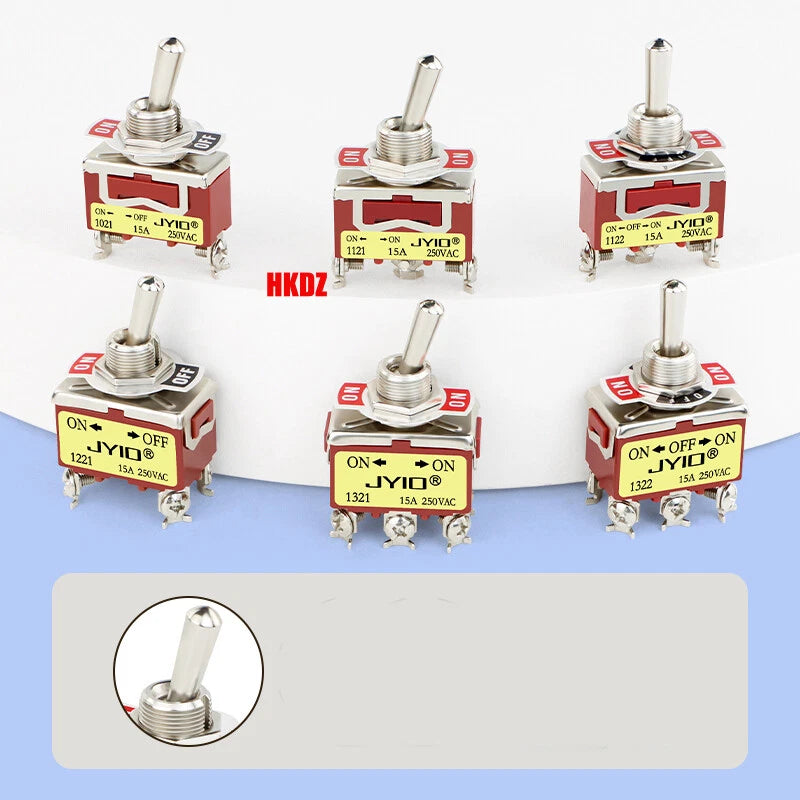

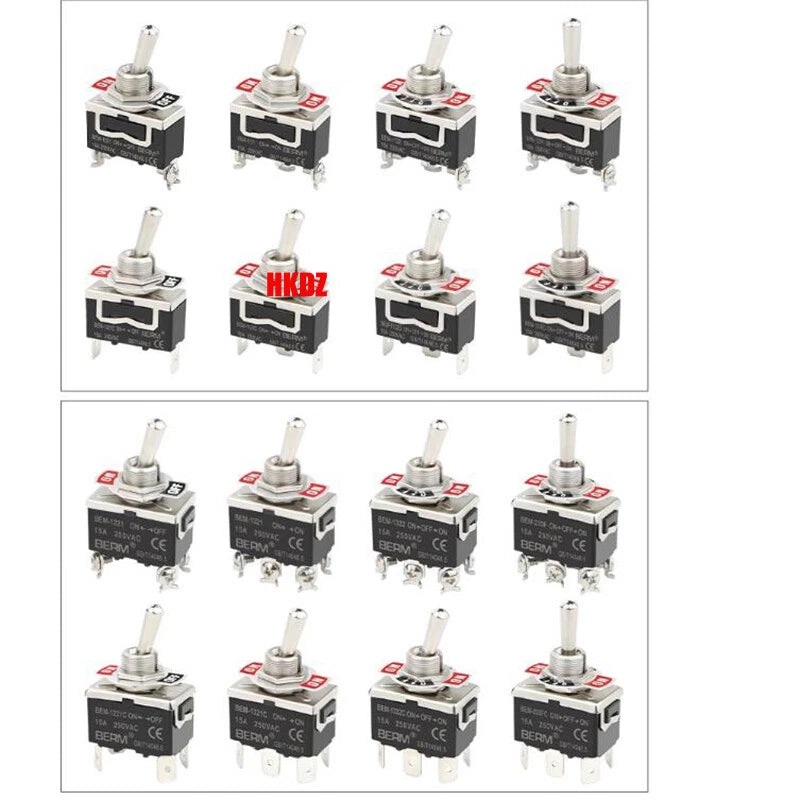

Each unit is a single toggle switch body available in 19 distinct configurations: choose from 2-pin (SPST), 3-pin (SPDT), 4-pin (DPST), or 6-pin (DPDT) layouts; 2-position (ON/OFF) or 3-position (ON/OFF/ON or center-OFF) action; and Latching or Momentary operation. Termination options include solder-lug Pin terminals for PCB and harness work, Screw terminals for tool-free panel wiring, and a Waterproof Cap accessory for splash-resistant installations. Quantities are available from 1 to 30 pieces per order.

Typical use cases include wiring auxiliary lighting circuits in off-road vehicles, controlling bilge pumps and navigation lights on boats, building custom test benches and lab power supplies, and adding manual overrides to home automation or industrial relay panels — all scenarios where a latching toggle switch with screw terminals or a momentary toggle switch with pin terminals gives you precise, tactile control.

🔌 Compatibility: Standard panel-mount toggle switch footprint — typically fits 12mm (≈15/32") round cutouts. BEM and E-TEN series share similar form factors but are not guaranteed drop-in interchangeable. Confirm model dimensions before drilling. Suitable for AC and DC circuits within rated load limits.

⚠️ Note: Exact current/voltage ratings vary by model. Always verify the datasheet for your specific switch type before installation. Derate by ≥20% for continuous-duty or high-temperature applications.

✅ Key Features of These Heavy Duty Toggle Switches

🔘Wide Configuration Range — 19 switch types covering SPST, SPDT, DPST, and DPDT layouts in 2-position and 3-position variants, so you can match the exact circuit topology your project requires without adapters or workarounds.
⚡Latching & Momentary Action — Latching types stay in position after release for persistent ON/OFF control; momentary types spring back to center, ideal for pulse-triggered circuits, horn buttons, or jog controls in automation panels.
🔩Dual Termination Options — Pin (solder lug) terminals suit PCB mounting and custom wiring harnesses; Screw terminals accept bare wire ends for fast, tool-free connections on automotive dashboards, marine consoles, and industrial enclosures.

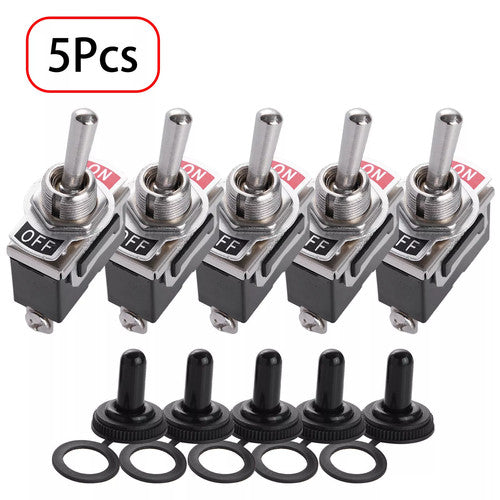

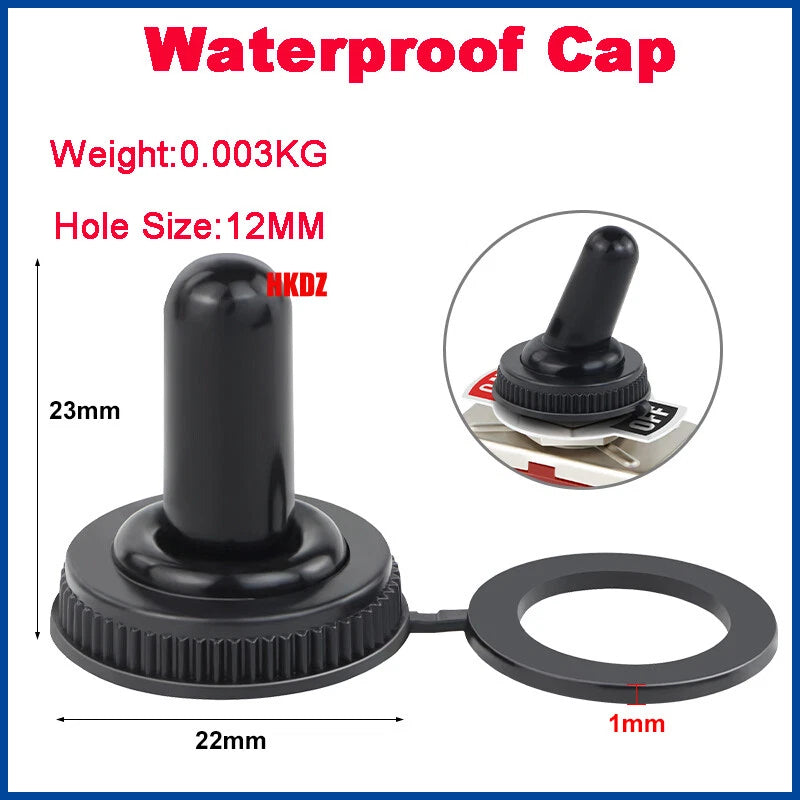

💧Waterproof Cap Accessory Included as Option — The Waterproof Cap variant adds splash resistance to the toggle lever, making it suitable for outdoor panels, boat helm stations, and off-road vehicle switch pods exposed to rain or spray.
🏭BEM & E-TEN Series Quality — Both series are established toggle switch manufacturers with consistent mechanical tolerances, positive tactile feedback, and contact materials rated for repeated switching cycles in demanding environments.
📦Flexible Quantity Packs — Order from 1 to 30 pieces in a single SKU — prototype with a single unit, stock your parts bin with a 10-pack, or fulfill a small production run with a 30-pack, all at a per-unit price that scales with quantity.

📐 Technical Specifications — BEM & E-TEN Toggle Switch Series

Product Type	Panel-Mount Toggle Switch

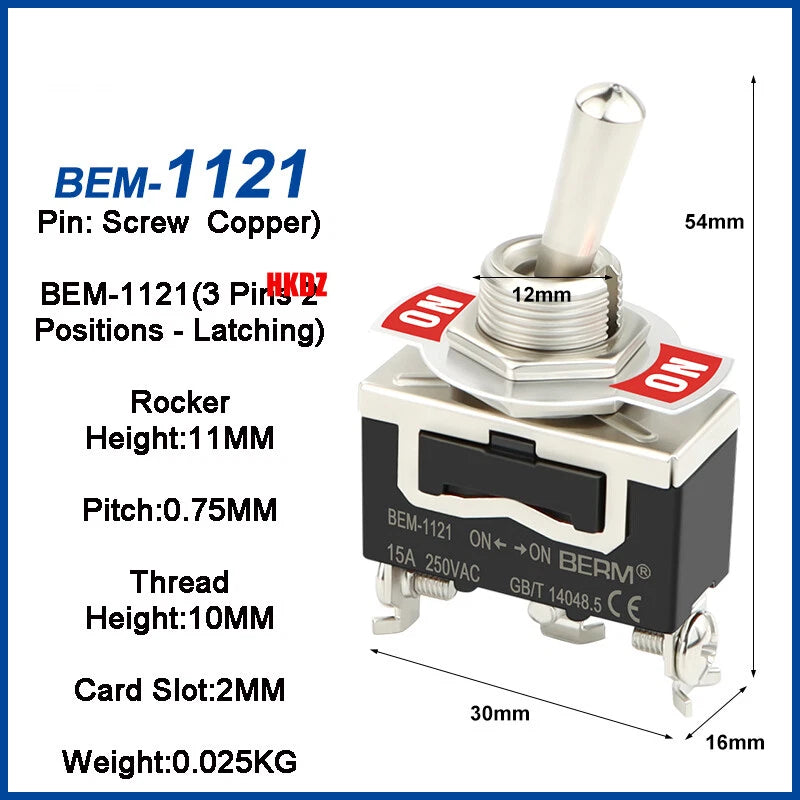

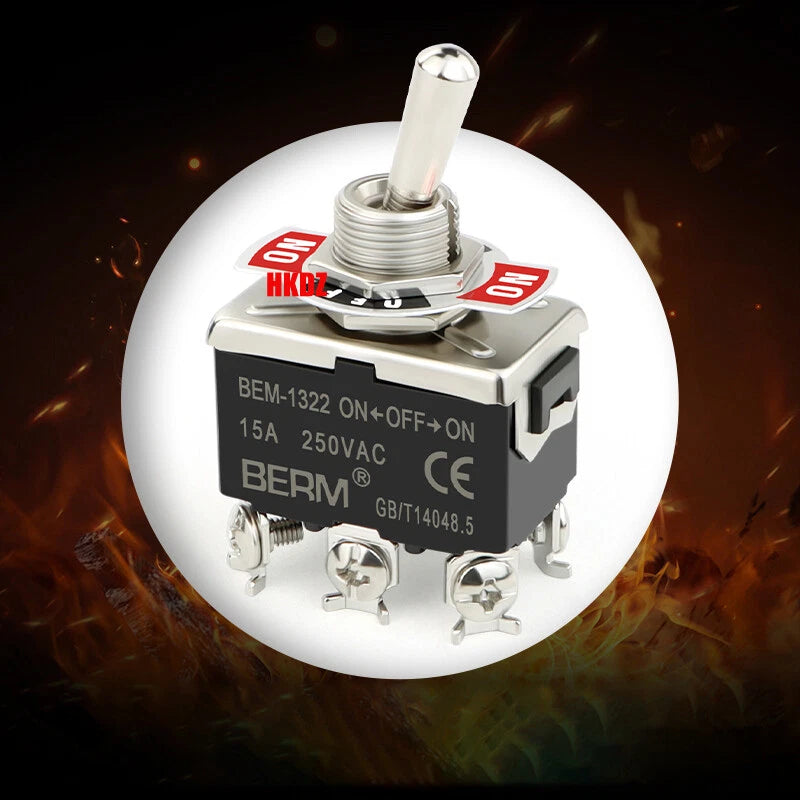

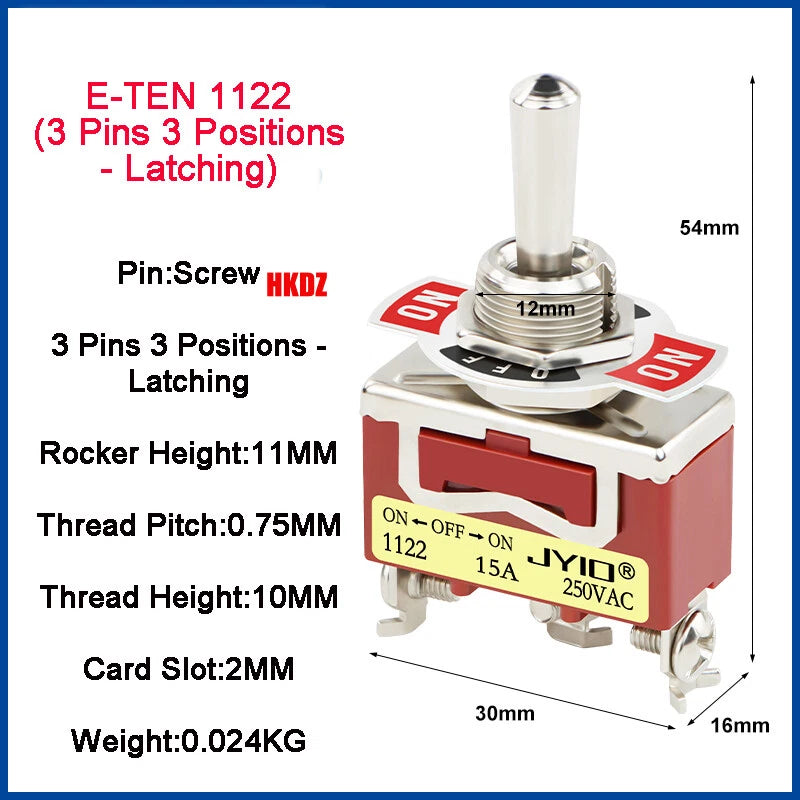

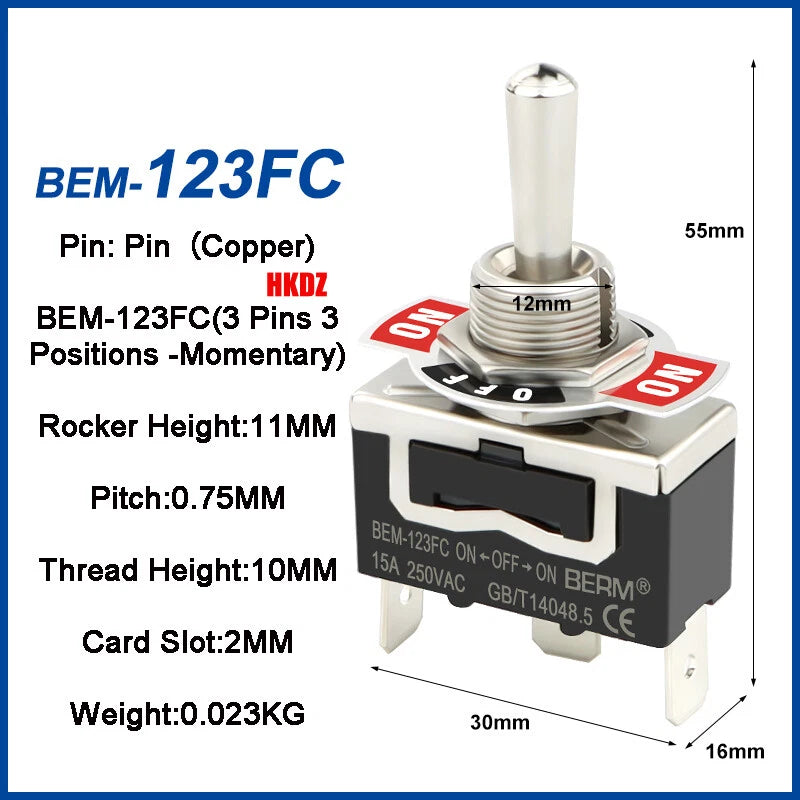

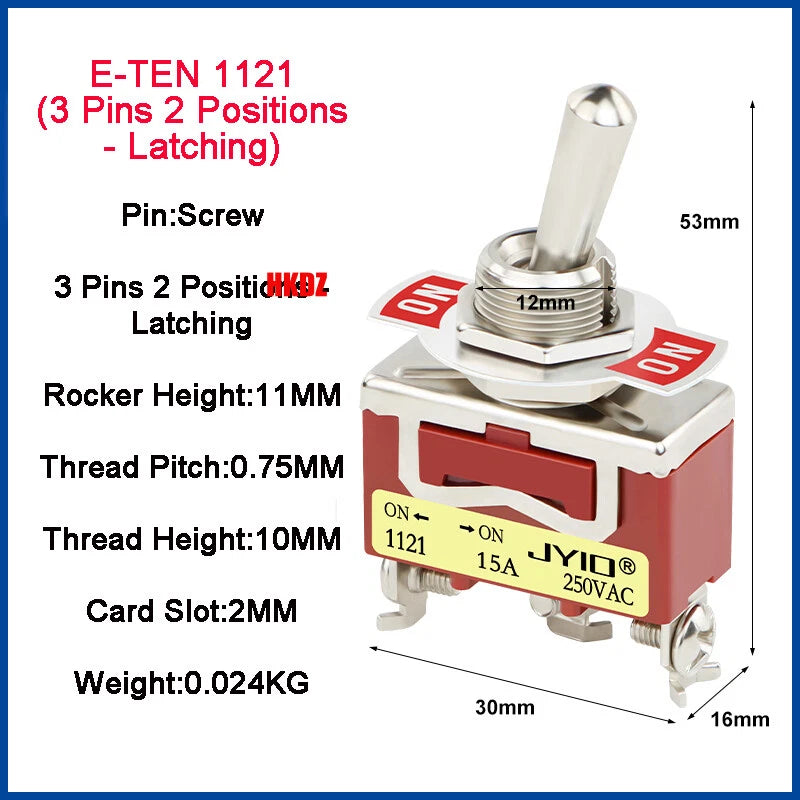

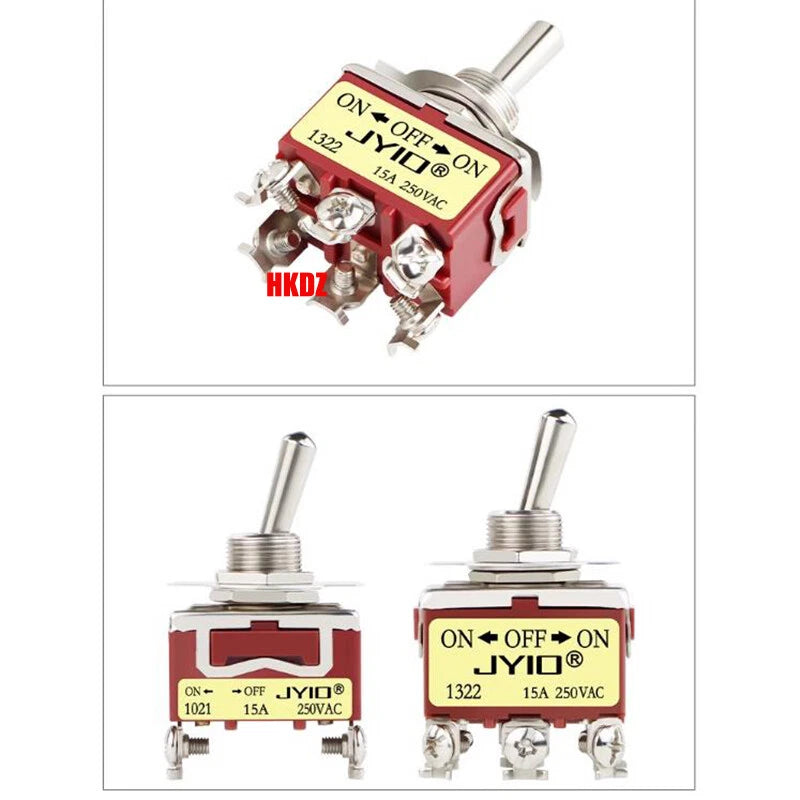

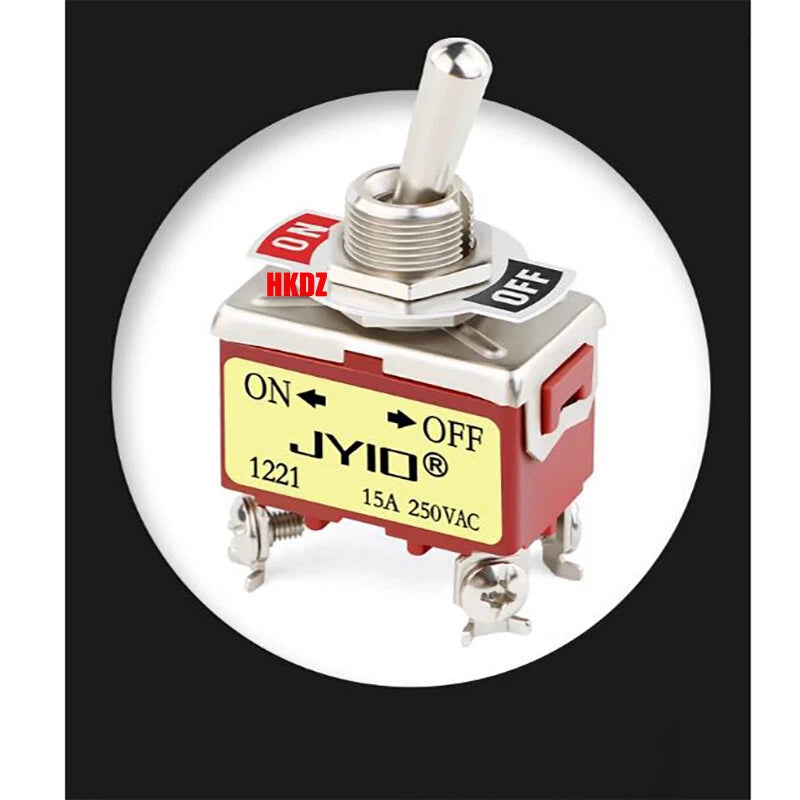

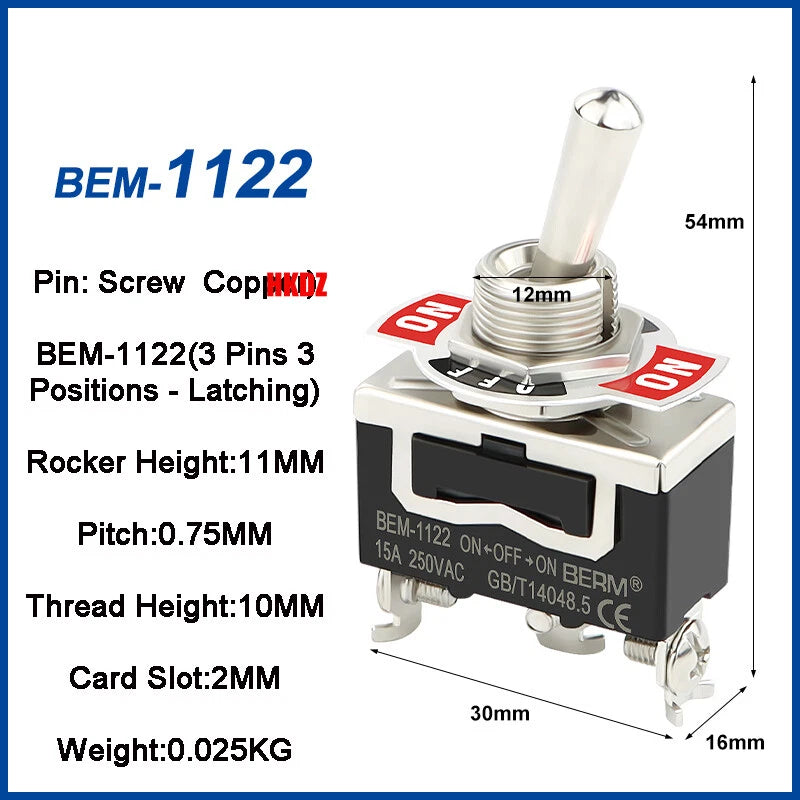

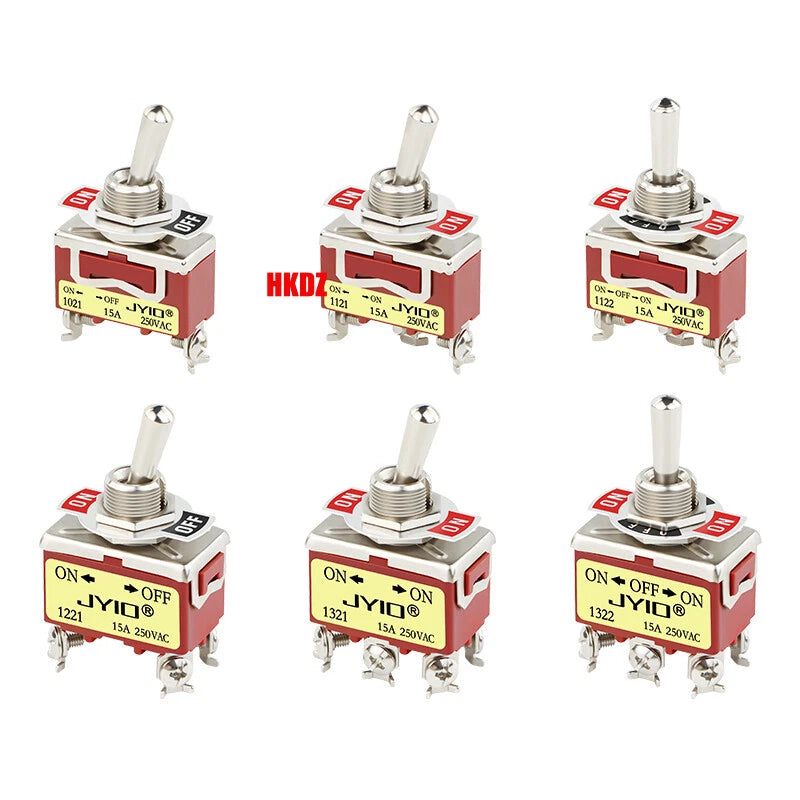

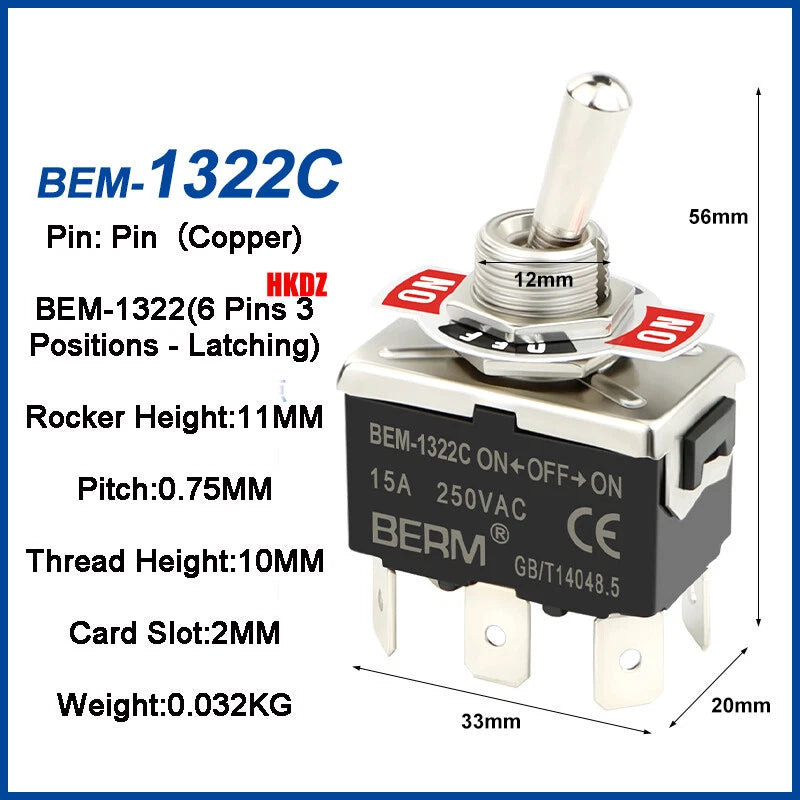

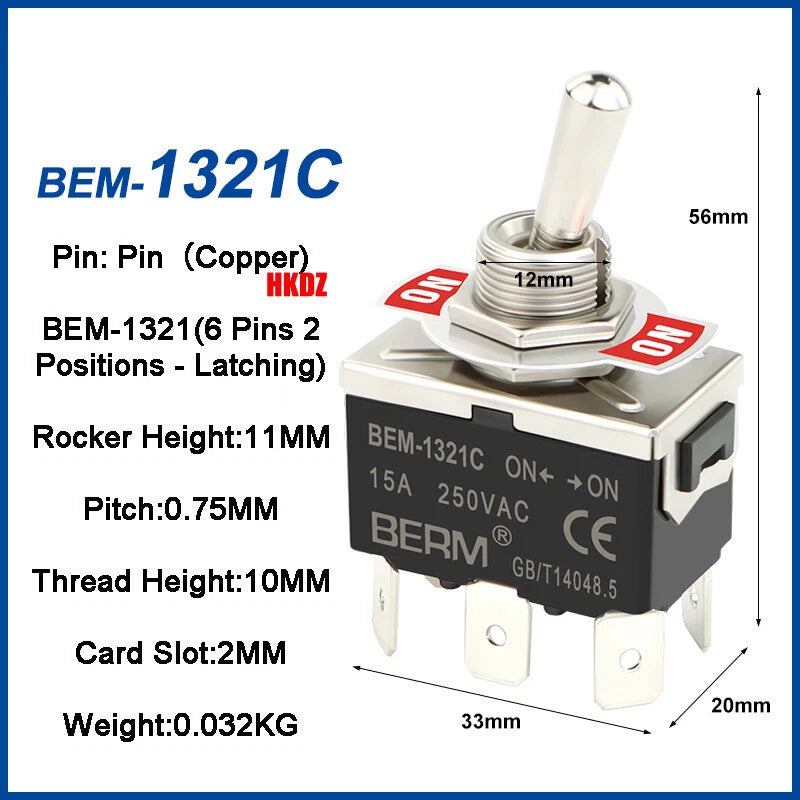

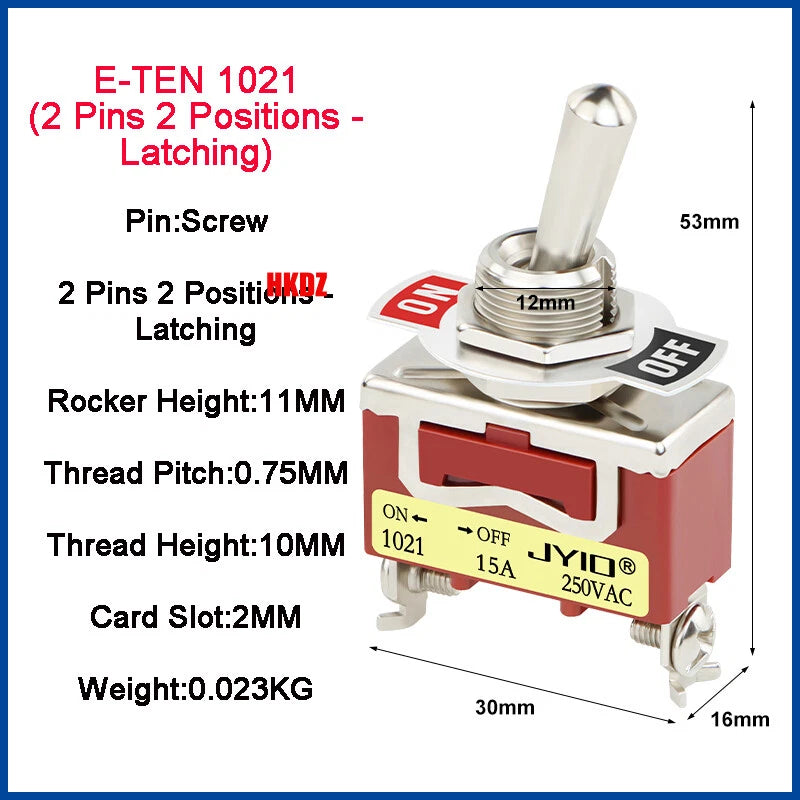

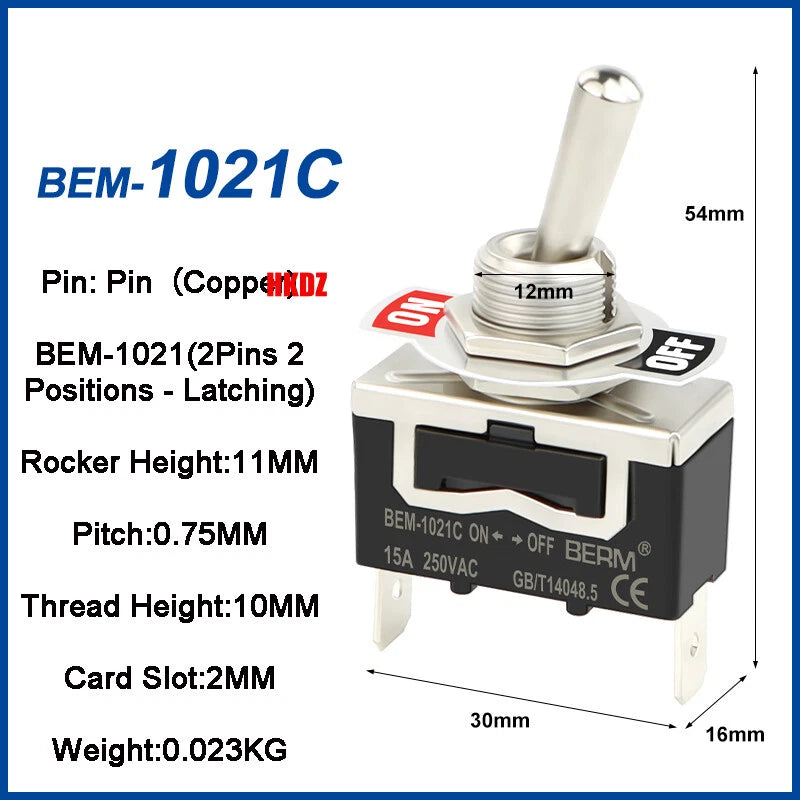

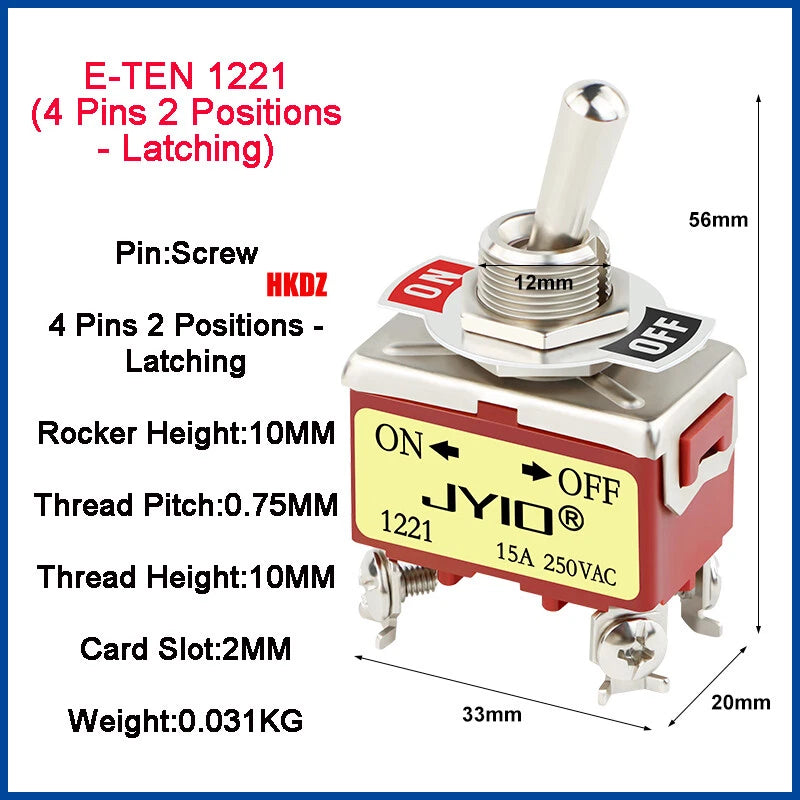

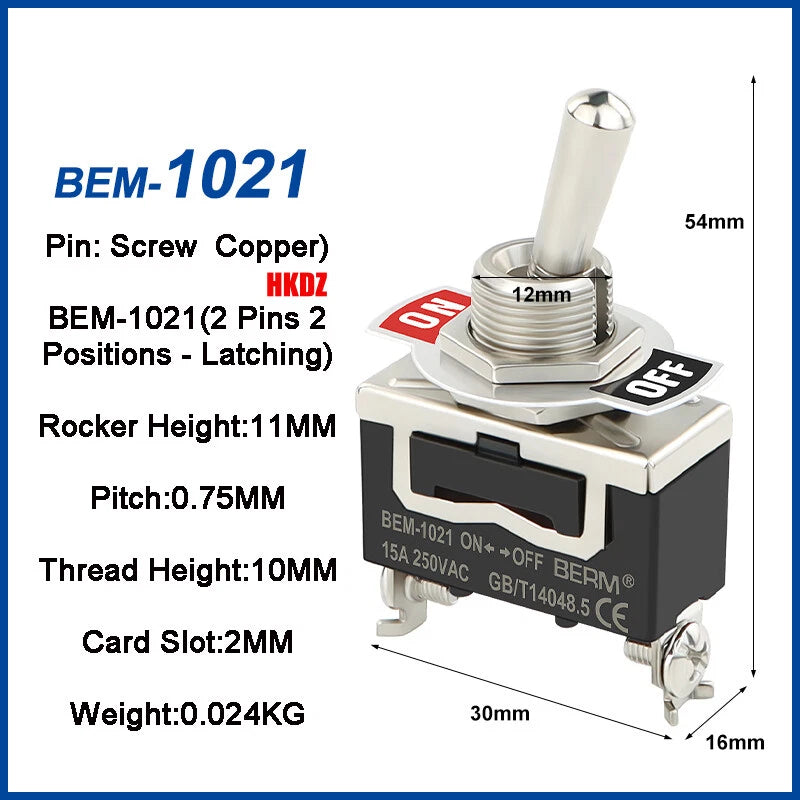

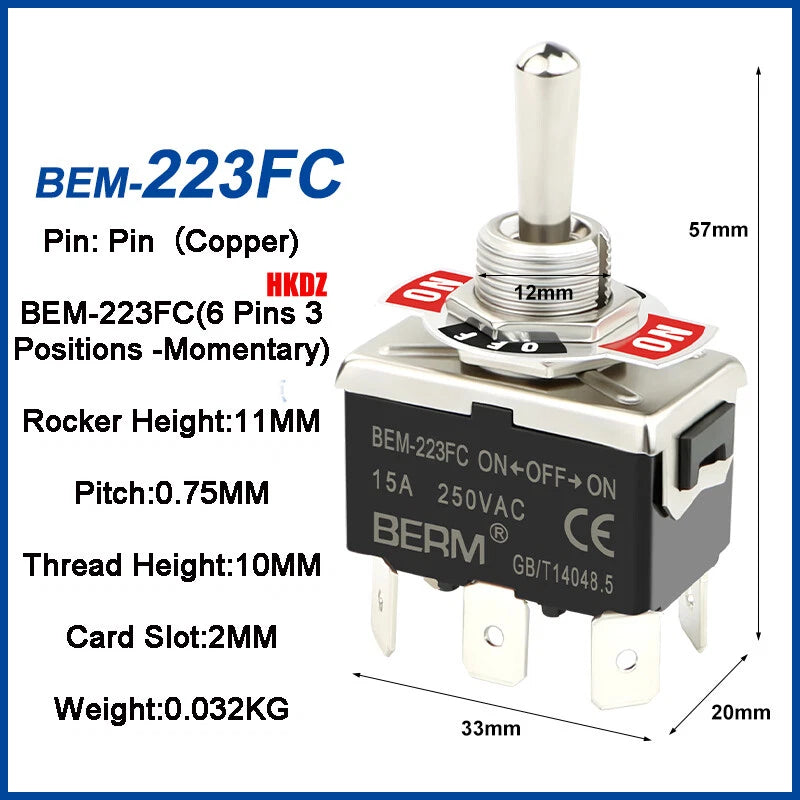

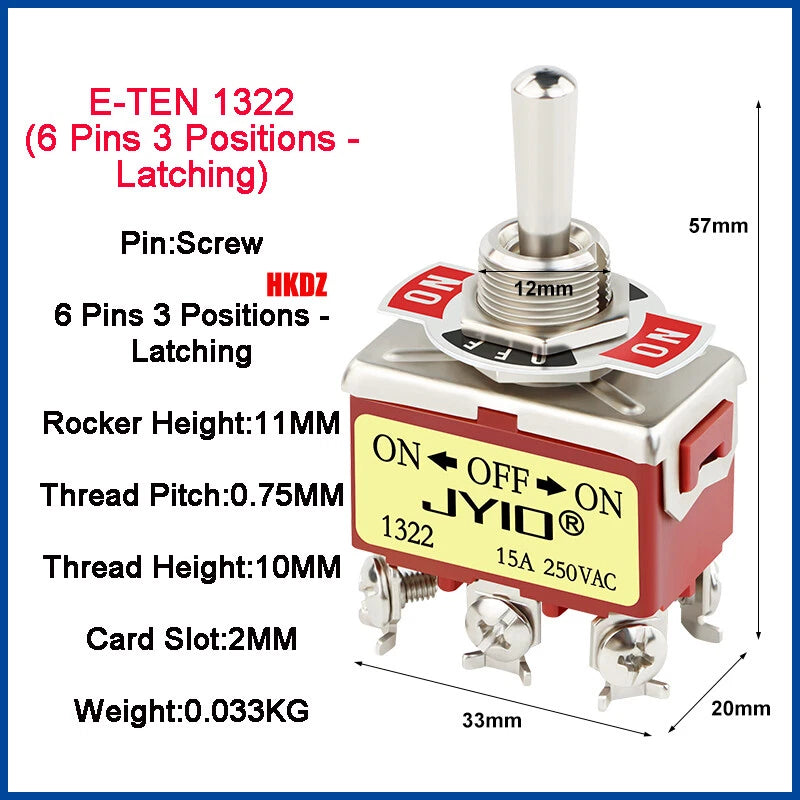

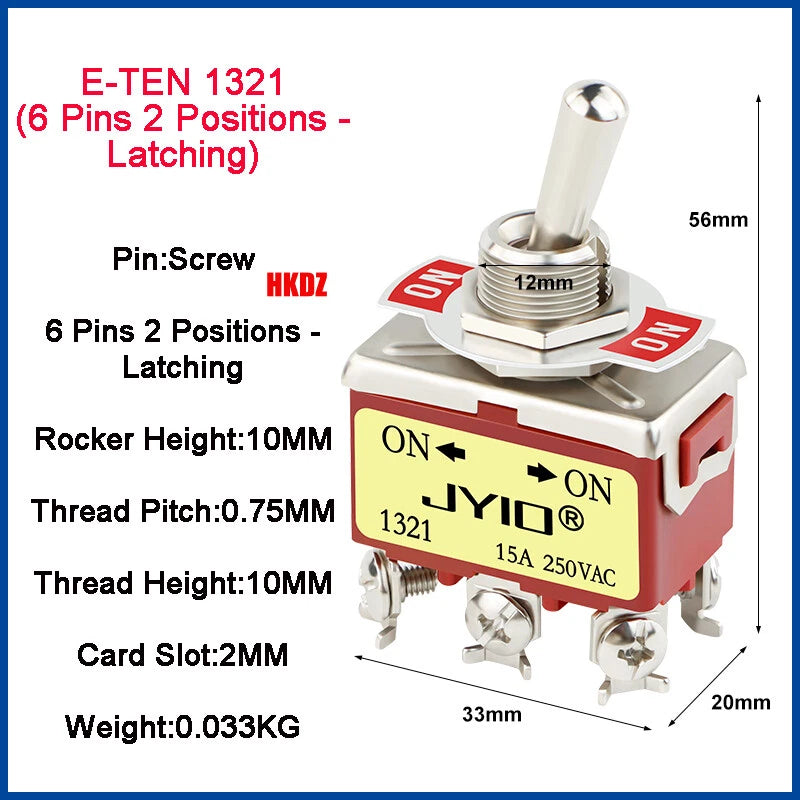

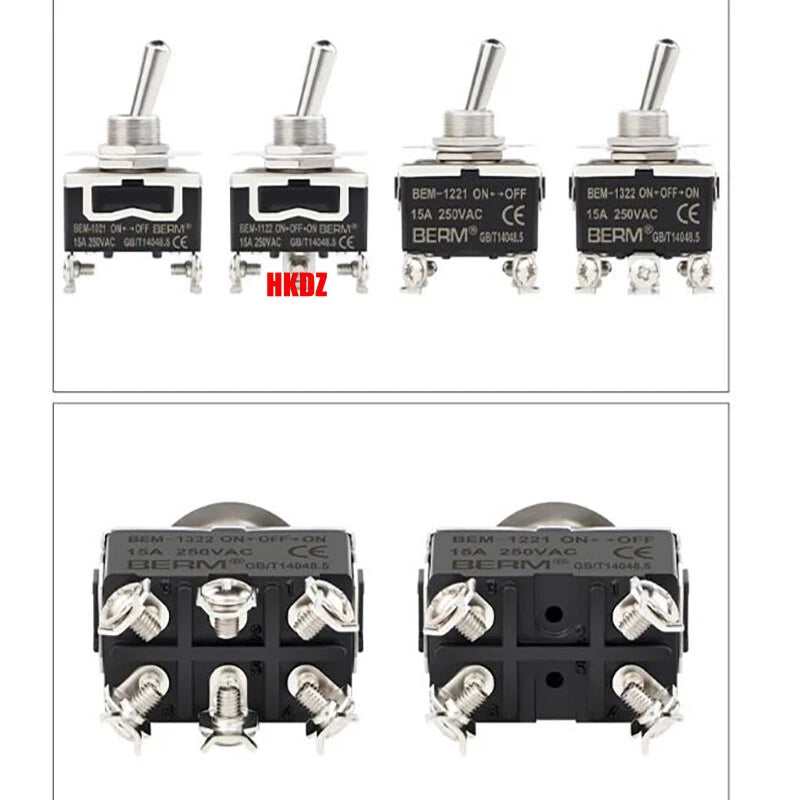

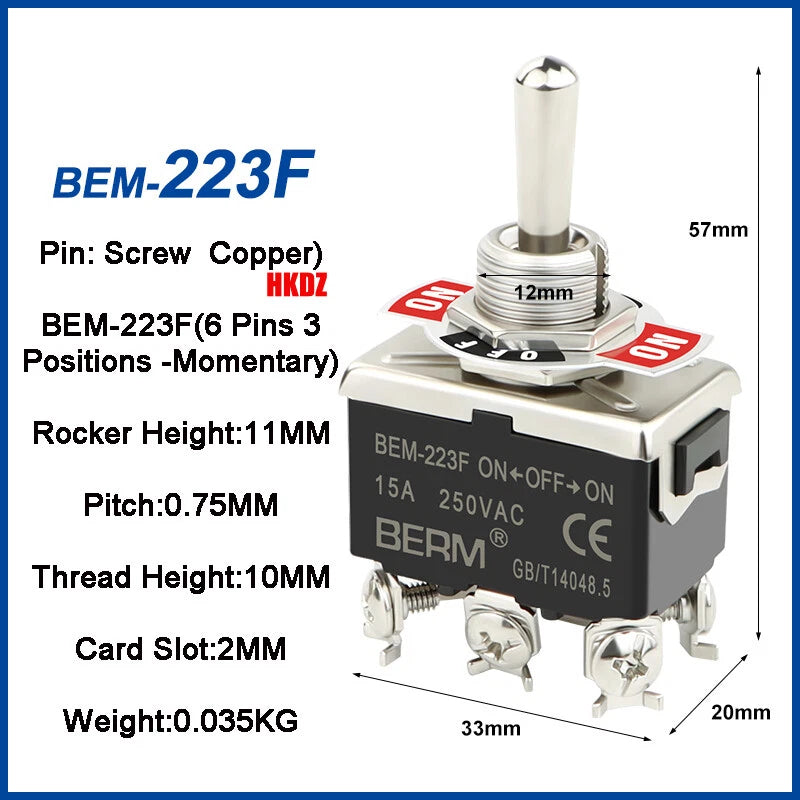

Series	BEM (BEM-1021, BEM-1121, BEM-1221, BEM-1321, BEM-1122, BEM-1322, BEM-123F, BEM-123FC, BEM-223F, BEM-223FC) & E-TEN (E-TEN 1021, E-TEN 1121, E-TEN 1221, E-TEN 1321, E-TEN 1122, E-TEN 1322)
Pin Count	2 pins / 3 pins / 4 pins / 6 pins (see variant options)
Positions	2 Positions (ON/OFF) or 3 Positions (ON/OFF/ON or center-OFF)
Action Type	Latching or Momentary (see variant options)
Termination Type	Pin (solder lug), Screw terminal, or Waterproof Cap (see variant options)
Rated Current	Typically up to 15A — see variant datasheet to confirm
Rated Voltage	Typically up to 250VAC — see variant datasheet to confirm
Panel Cutout	Typically ≈12mm (≈15/32") diameter — confirm per model
Mounting	Panel mount with threaded bushing and nut
Quantity per Order	1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 PCS
Compatible Applications	Automotive, marine, industrial control panels, DIY electronics, test benches
Country of Origin	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right toggle switch type for my project?

Start by counting how many circuits you need to control and how many positions you need. A 2-position switch is ON/OFF; a 3-position switch adds a center-OFF or center-ON state. Then match the pin count: 2 pins for SPST, 3 pins for SPDT, 4 pins for DPST, and 6 pins for DPDT. If you need the switch to spring back to center when released, choose a Momentary type; otherwise choose Latching.

What is the difference between Pin and Screw termination?

Pin (solder lug) terminals are designed for PCB mounting or direct soldering to wires — ideal for electronics projects and custom wiring harnesses. Screw terminals accept bare wire ends tightened under a screw, making them faster to connect and easier to re-wire without soldering. Choose Screw terminals for panel-mount applications like automotive dashboards, marine consoles, or industrial control boxes.

What current and voltage can these toggle switches handle?

The BEM and E-TEN series toggle switches in this listing are generally rated for up to 15A at 250VAC (or equivalent DC loads). Always verify the specific model's datasheet for your exact variant, and derate by at least 20% for continuous-duty or high-temperature environments.

Can I use these switches outdoors or in wet environments?

The standard Pin and Screw terminal variants are not rated for direct water exposure. However, the Waterproof Cap accessory (also available in this listing) fits over the toggle lever to provide splash resistance for marine, automotive, and outdoor panel applications. For fully submersible or IP67+ requirements, additional sealing measures are typically needed.

Are BEM and E-TEN switches interchangeable?

BEM and E-TEN are two different manufacturer series with similar form factors and pin configurations, but they are not guaranteed to be drop-in interchangeable in all applications. Mounting hole diameter and toggle lever height may vary slightly between series. Check the model number (e.g., BEM-1221 vs E-TEN 1221) and confirm dimensions before substituting one for the other in an existing panel cutout.

What panel cutout size do these toggle switches require?

Most standard toggle switches in the BEM and E-TEN series typically require a round panel cutout of approximately 12mm (≈15/32") in diameter. However, exact dimensions can vary by model. We recommend confirming the specific cutout requirement from the product datasheet or by contacting us before drilling.

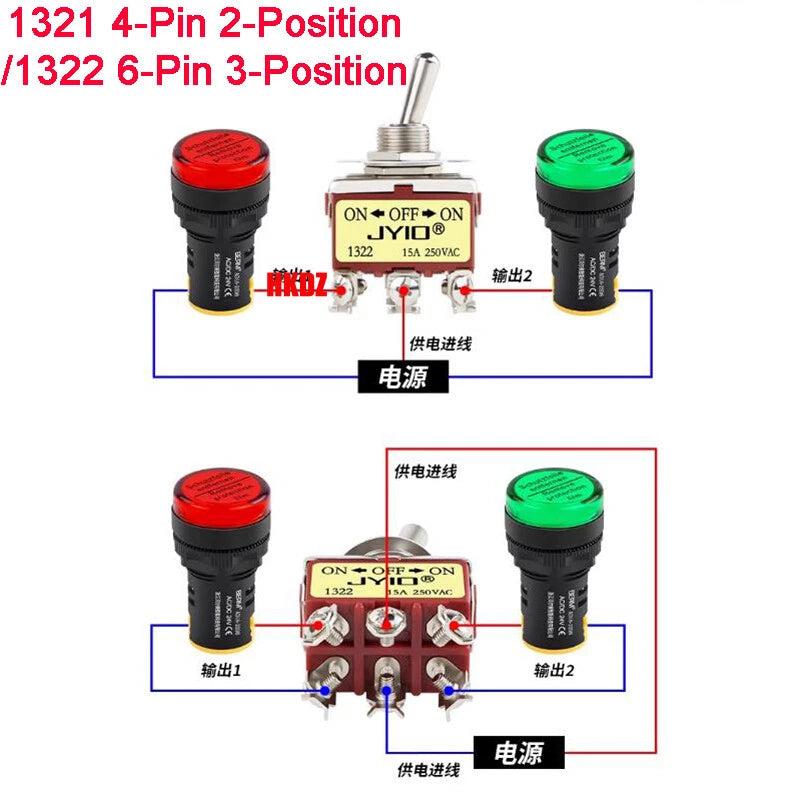

How do I wire a 3-position (center-OFF) toggle switch?

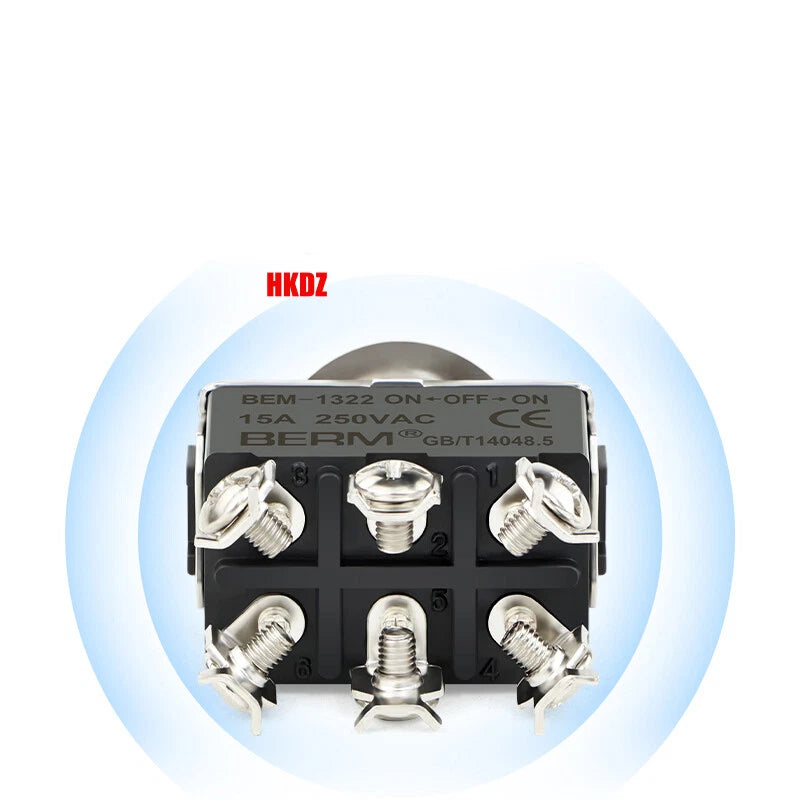

On a 3-position DPDT switch (6 pins), the center row of pins is typically the common (COM), while the top and bottom rows connect to the two output circuits. In the center position, neither output is energized. Always refer to the wiring diagram for your specific model, and use a multimeter to confirm continuity before applying power.

How many pieces should I order for a project?

This listing offers quantities from 1 to 30 pieces per order. For prototyping or single-panel builds, 1–3 PCS is typically sufficient. For production runs, small workshops, or stocking a parts bin, the 10–30 PCS packs offer a lower per-unit cost. Order a few extras — toggle switches are small and easy to misplace during installation.

🛒 Select your type, termination, and quantity above, then add to cart — ships from our US warehouse.
