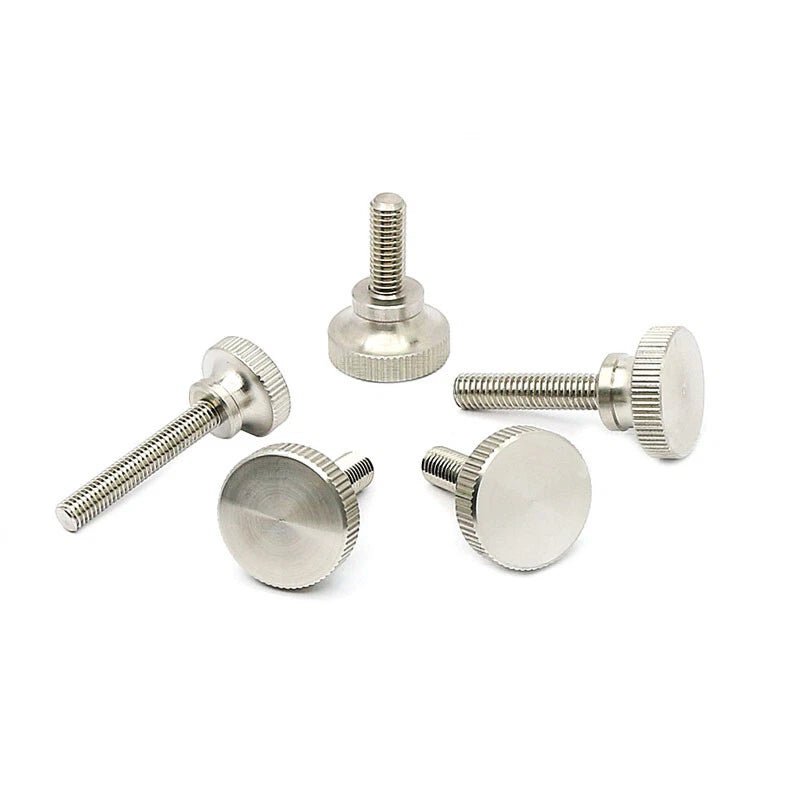

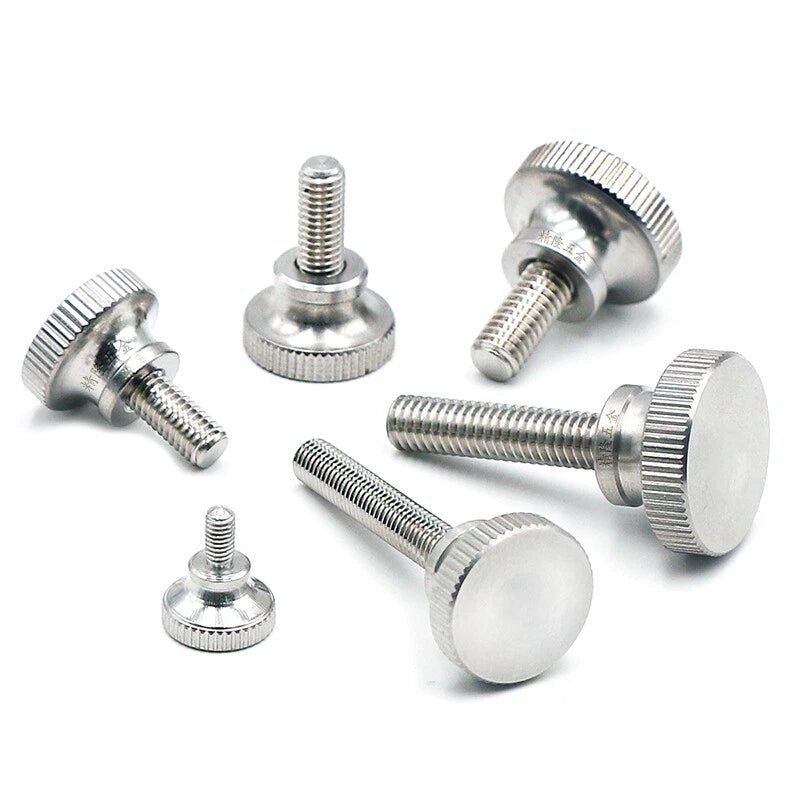

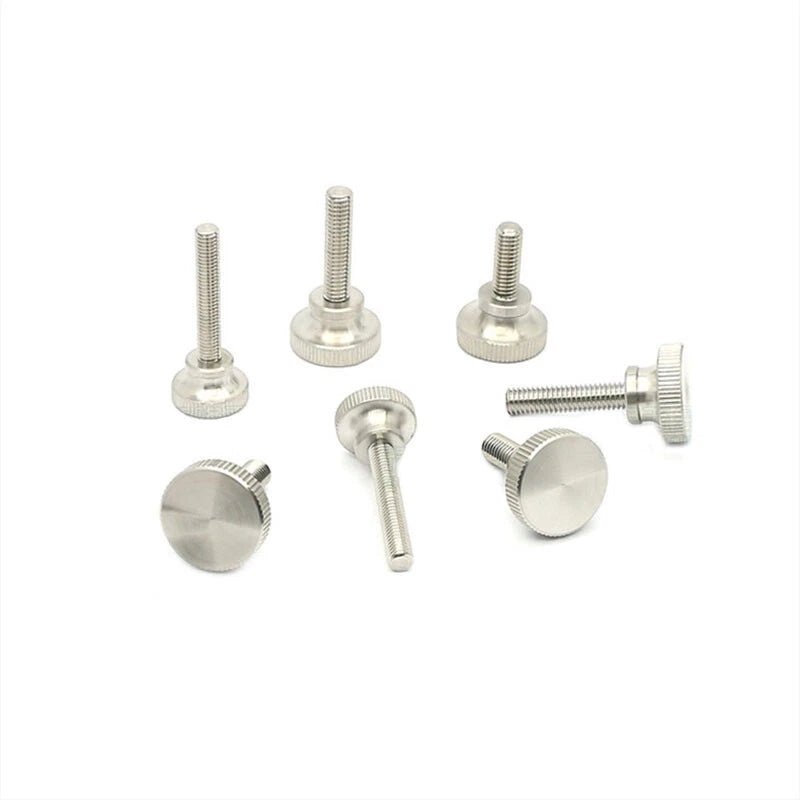

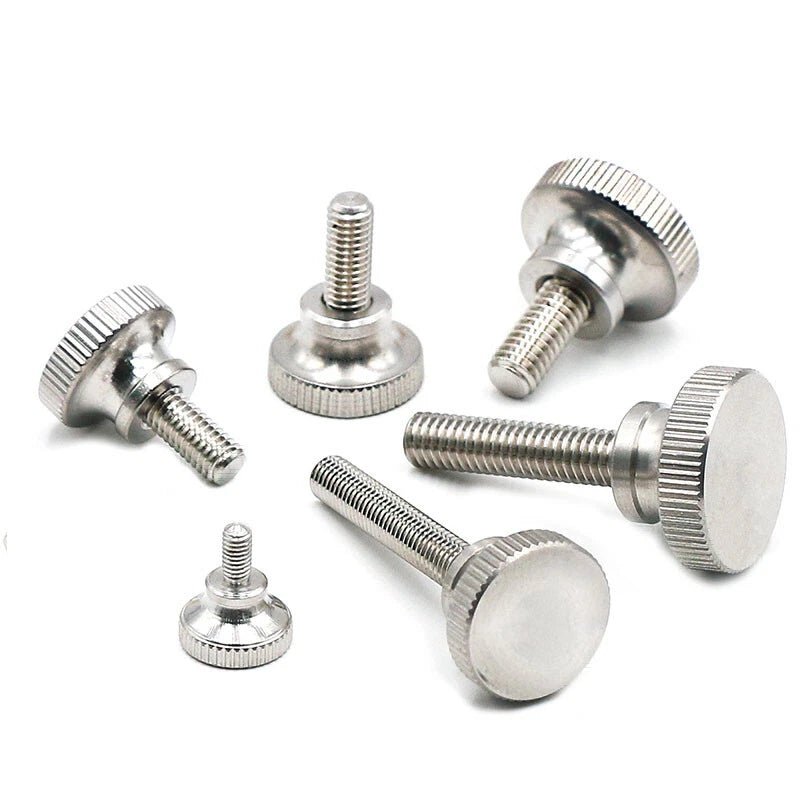

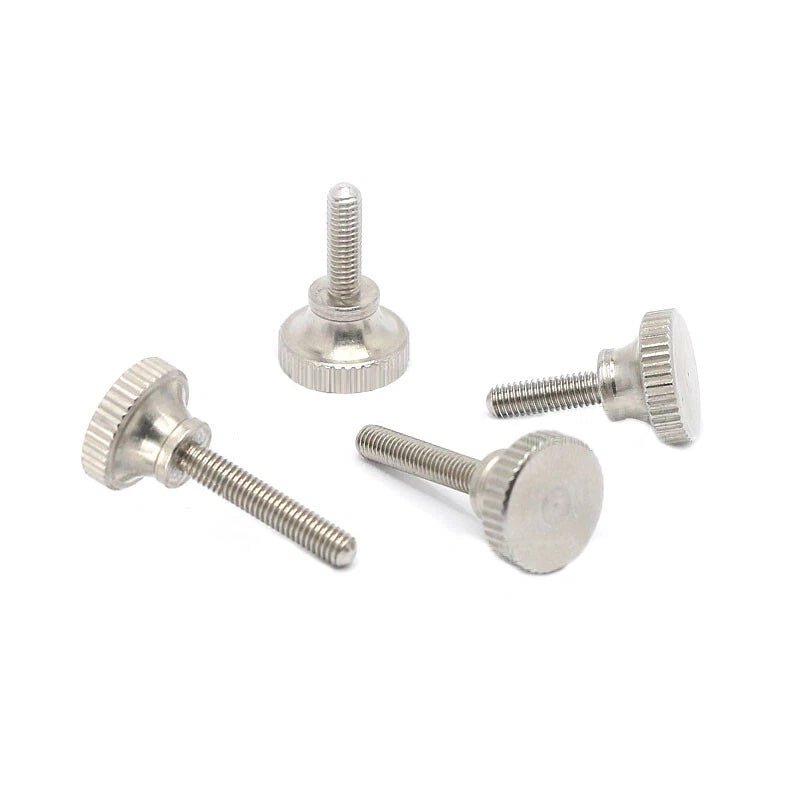

🔩 Product Overview: M2.5 & M4 Knurled Thumb Screws – High Head Type, Steel Nickel Plated Hand Grip Knob Bolts
For applications where you need a comfortable, tool‑less hand grip with a taller head for extra leverage, these high‑head knurled thumb screws are an excellent choice. Made from carbon steel with a nickel‑plated finish for corrosion resistance, they feature a tall, knurled head that provides excellent finger grip and torque for hand tightening and loosening. Available in M2.5 and M4 metric thread sizes, fully threaded with standard coarse pitch. Perfect for computer cases, electronics enclosures, 3D printers, and any equipment that requires frequent manual adjustment. The high head design makes them easy to grip even in tight spaces.
✨ Why These High‑Head Knurled Thumb Screws Are a Handy Upgrade
-
High‑head knurled grip – Taller than standard knurled thumb screws, providing more surface area for your fingers and extra leverage for tightening.
-
Nickel‑plated carbon steel – Durable, corrosion‑resistant finish with a bright silver appearance. Provides good rust protection for indoor use.
-
Tool‑less operation – No screwdriver needed. The knurled head allows easy hand tightening and loosening – ideal for frequent access panels.
-
Metric sizes M2.5 and M4 – Covers small electronics (M2.5) and medium computer components (M4). Versatile for many applications.
-
Fully threaded, coarse metric pitch – Standard threads: M2.5x0.45, M4x0.7. Threads run the entire length for maximum grip.
-
Grade 5 strength – Reliable for general fastening in electronics, computer cases, and light machinery.
-
Wide applications – Computer case side panels, graphics card brackets, 3D printer bed leveling knobs, electronics enclosures, and DIY projects.

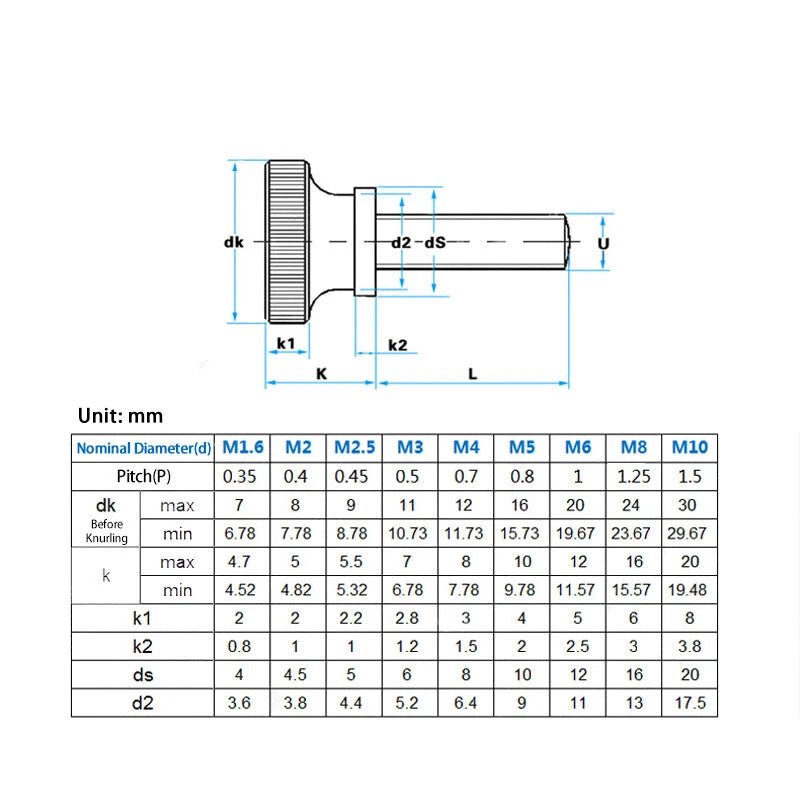

📏 Technical Specifications – High‑Head Knurled Thumb Screws (M2.5 & M4)
| Specification |
M2.5 |
M4 |
| Thread Diameter (d) |
2.5mm |
4mm |
| Thread Pitch (p) |
0.45mm |
0.7mm |
| Head Style |
High‑head knurled cylindrical (tall profile) |
| Head Diameter (dk max) |
9mm |
12mm |
| Total Head Height (k max) |
5.5mm |
8mm |
| Shoulder Diameter (ds) |
5mm |
8mm |
| Material |
Carbon steel with nickel plating |
| Thread Type |
Fully threaded, coarse pitch |
| Drive Style |
Hand grip (toolless knurled) |
| Grade |
Grade 5 |
❓ FAQs – High‑Head Knurled Thumb Screws
🔸 What is the advantage of the “high head” design?
The high head provides a taller gripping surface compared to standard knurled thumb screws. This gives you more leverage when hand tightening, making it easier to apply torque – especially useful for larger threads (M4) or when you need a secure hold.
🔸 How is thread length measured? Are these screws fully threaded?
Thread length is measured from the underside of the head to the tip (the threaded shank). The knurled head is not included. Yes – they are fully threaded from under the head to the tip. Please select your desired thread length from the dropdown options.
🔸 Will the nickel plating rust or wear off?
Nickel plating provides good corrosion resistance for indoor and light outdoor use. It holds up well for computer cases, electronics, and 3D printers. With repeated hand tightening, the knurl may show some wear over time, but the plating is durable for typical use.
🔸 Can I use these screws with nuts, or are they for threaded holes only?
These are standard machine screws – they work with matching metric nuts (M2.5 or M4) or in pre‑tapped holes. For through‑hole applications, use a nut on the back side. The knurled head is designed for hand grip only – do not use tools on the knurling.
🔸 What lengths are available for M2.5 and M4?
We offer various thread lengths – please select from the dropdown options. Typical ranges: M2.5: 4–20mm, M4: 6–30mm. If you need a specific length not listed, contact us.
🔸 Are these screws magnetic?
Yes – carbon steel is magnetic. For most computer and electronics applications, that's not an issue. If you need non‑magnetic fasteners, consider brass or stainless steel alternatives.
