HTD-14M Closed Loop Timing Belt — Reliable Synchronous Drive for CNC, 3D Printing & Industrial Motion
When your CNC router skips steps or your large-format 3D printer loses position mid-job, the culprit is often a worn or incorrectly sized drive belt. Engineers, machine builders, and serious makers who need a dependable closed loop synchronous timing belt for high-torque, long-span applications rely on the HTD-14M profile to keep their builds running true.

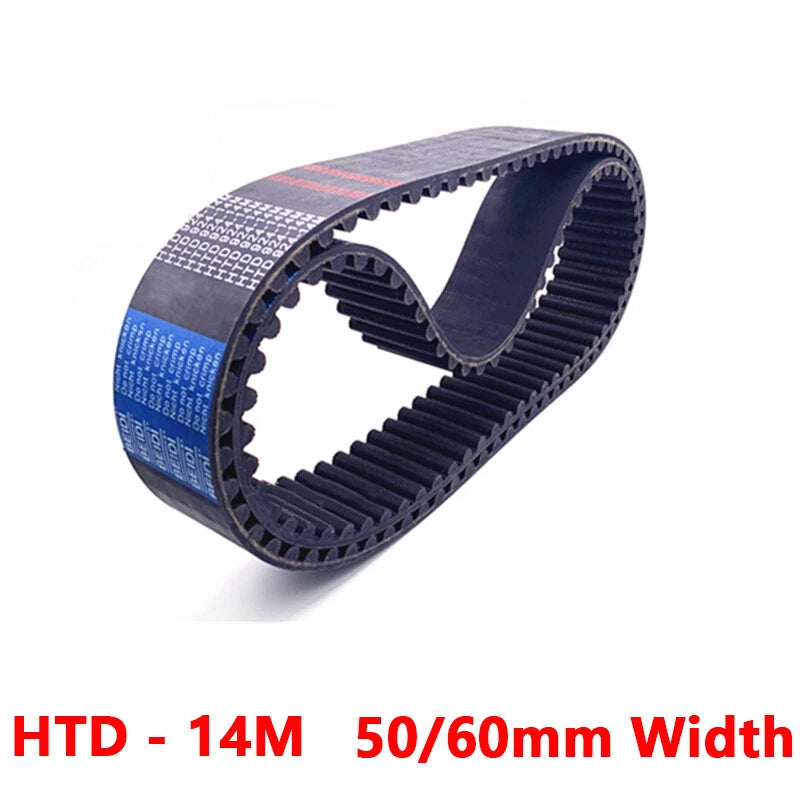

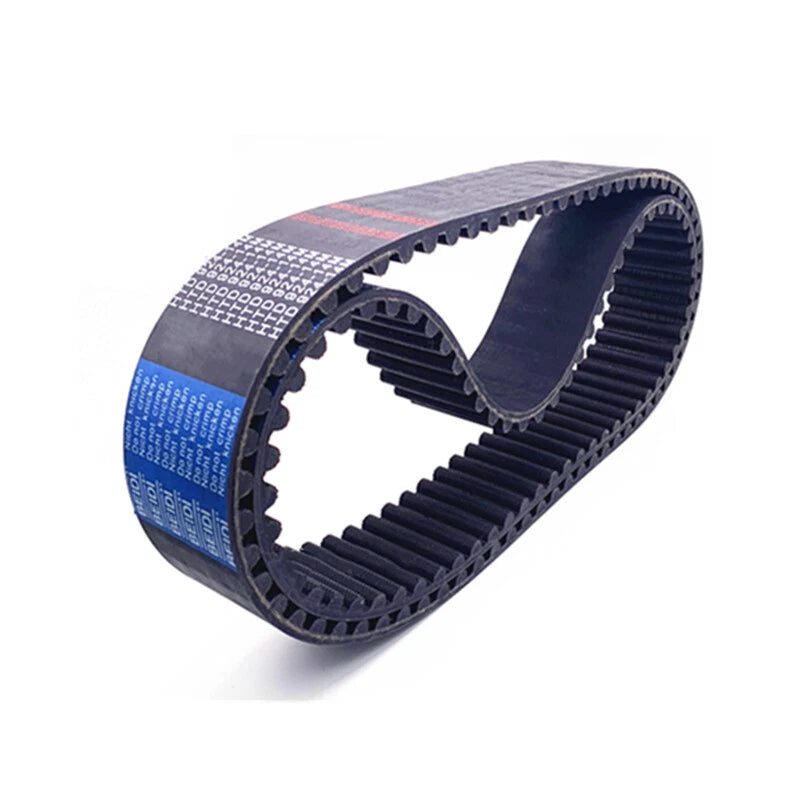

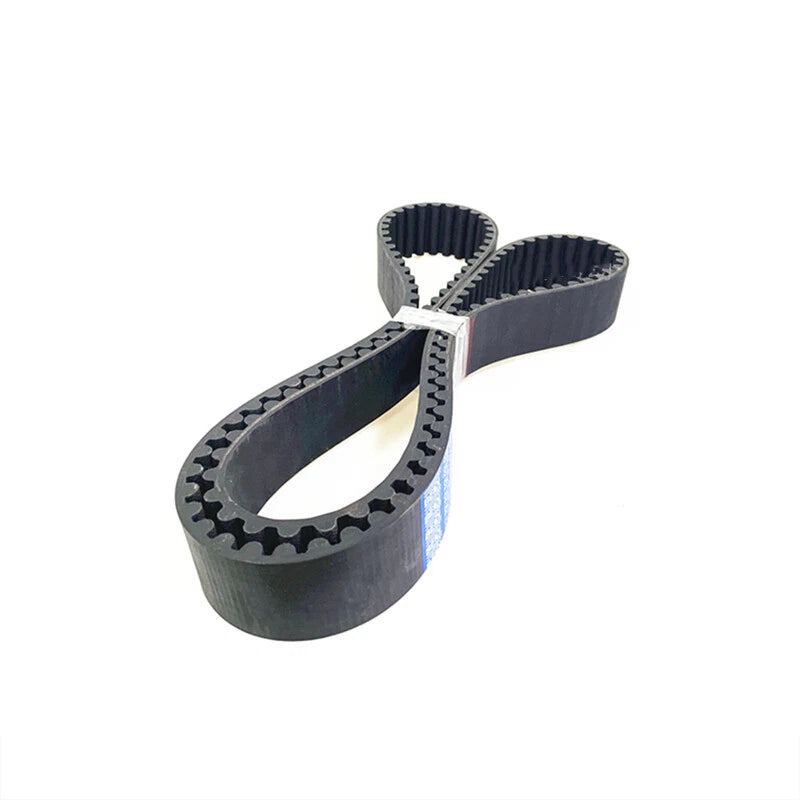

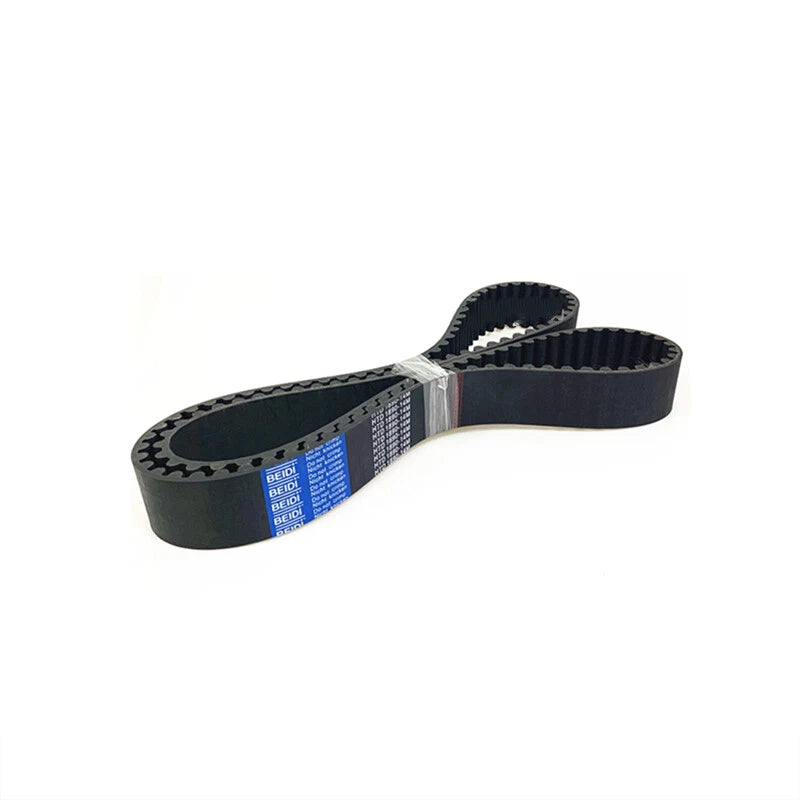

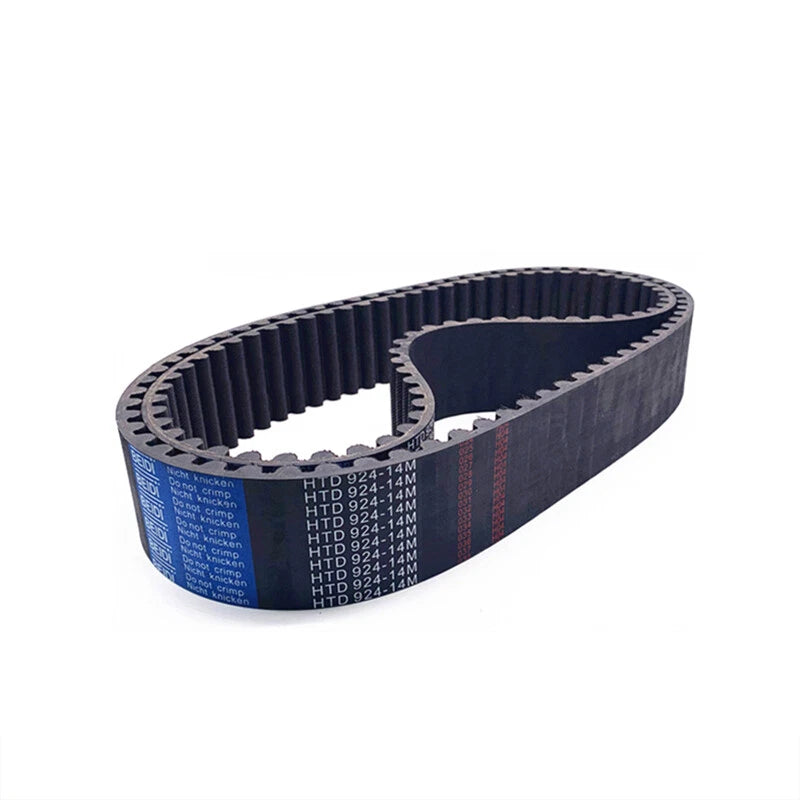

Each belt in this listing is a closed loop (endless) HTD-14M synchronous timing belt with a 14mm pitch, available in 50mm or 60mm width and a wide range of loop circumferences from 784mm (≈30.9") up to 4326mm (≈170.3"). The belt body is constructed from neoprene rubber with tensile cord reinforcement for dimensional stability under load. Tooth flanks follow the HTD (High Torque Drive) curvilinear profile for smooth engagement and reduced backlash.
Typical use cases include CNC router axis drives, large-format 3D printer motion systems, conveyor and indexing table drives, and industrial power transmission where a standard V-belt or chain would introduce too much backlash or maintenance overhead. The closed loop design eliminates the need for belt lacing or joining hardware.
ℹ️ Compatibility Note: This belt uses the HTD-14M tooth profile (14mm pitch, curvilinear tooth form). It is compatible only with HTD-14M pulleys/sprockets. It is not interchangeable with GT2, T10, T20, or other profiles. Verify your pulley pitch and profile before ordering.
✅ Key Features of These HTD-14M Closed Loop Timing Belts
-
⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress and improving torque capacity in demanding CNC and industrial drive applications.
-
📏14mm Pitch for High-Torque Spans — The 14mm tooth pitch is suited for longer center distances and higher torque requirements compared to smaller-pitch belts, making it a go-to choice for large-format machine builders and conveyor designers.
-
↔️Two Width Options: 50mm & 60mm — Select 50mm for lighter-duty or space-constrained setups, or 60mm for increased power transmission capacity. Both widths share the same tooth geometry and are interchangeable on appropriately sized pulleys.
-
🔁Closed Loop (Endless) Construction — No splices, no lacing hardware, no weak points. The seamless loop design maintains consistent tension and tooth pitch around the full circumference, critical for positional accuracy in closed-loop motion systems.
-
🧱Reinforced Tensile Cord Core — Internal tensile cords (typically fiberglass or steel) resist elongation under load, helping maintain consistent center-to-center distance and reducing the need for frequent re-tensioning in synchronous drive applications.
-
📐Wide Size Selection — 56 to 309 Teeth — With loop circumferences from 784mm (≈30.9") to 4326mm (≈170.3"), this listing covers a broad range of machine configurations without requiring custom fabrication.
📐 Technical Specifications — HTD-14M Closed Loop Synchronous Timing Belt
| Belt Type |
Closed Loop (Endless) Synchronous Timing Belt |
| Tooth Profile |
HTD (High Torque Drive) — Curvilinear |
| Pitch |
14mm (14M) |
| Available Widths |
50mm / 60mm (select via Width option) |
| Tooth Count Range |
56 Teeth – 309 Teeth (see Size variant for exact count) |
| Belt Circumference Range |
784mm (≈30.9") – 4326mm (≈170.3") |
| Belt Body Material |
Neoprene rubber (typically); confirm with product images or contact us |
| Tensile Cord |
Fiberglass or steel cord reinforcement (typically) |
| Compatible Pulley Standard |
HTD-14M pulleys only |
| Drive Type |
Synchronous (positive, no-slip) |
| Quantity per Order |
1 belt per unit |
| Operating Temperature |
See variant options / Contact us to confirm |
| Country of Origin |
See variant options |
⚠️ Size Selection Tip: The belt circumference equals the number of teeth × 14mm. For example, the 100-tooth variant = 1400mm (≈55.1"). Match this to your calculated belt path length, not just the center-to-center distance between pulleys.
❓ Frequently Asked Questions
How do I choose the right loop length for my machine?
Measure the center-to-center distance between your two pulleys, then calculate the required belt length using the standard formula: Belt Length ≈ 2 × Center Distance + (π × Pulley Pitch Diameter). For HTD-14M belts, the pitch is 14mm, so multiply the number of teeth by 14 to get the belt circumference in mm. For example, a 100-tooth belt = 1400mm (≈55.1"). Always add a small allowance for tensioner adjustment.
What is the load capacity of an HTD-14M timing belt?
HTD-14M belts are generally rated for moderate-to-heavy power transmission. The 14M pitch is typically used in applications requiring higher torque than smaller-pitch belts (such as 5M or 8M). Actual load capacity depends on belt width, pulley diameter, and operating speed — the 60mm-wide variant generally handles higher loads than the 50mm version. Contact us with your application details for specific guidance.
Can this belt be used outdoors or in wet environments?
HTD timing belts are typically constructed from neoprene rubber with reinforced tensile cords, which provides moderate resistance to moisture and temperature variation. They are generally suitable for light outdoor or damp environments. Prolonged exposure to UV radiation, petroleum-based oils, or aggressive chemicals may reduce belt life. For demanding outdoor or chemical-exposure applications, contact us to confirm material suitability before ordering.
What pulley standard is compatible with this belt?
This belt uses the HTD (High Torque Drive) tooth profile with a 14mm pitch. It is compatible with HTD-14M pulleys/sprockets only. It is not interchangeable with GT2, T10, T20, or other profiles — even if the pitch number appears similar. Always match both the pitch (14M) and the tooth profile (HTD) when selecting a pulley for your drive system.
Should I choose the 50mm or 60mm wide belt?
Choose based on your pulley width and the torque requirements of your application. The 60mm-wide belt generally offers higher power transmission capacity and is better suited for heavier-duty CNC or industrial drives. The 50mm version is a good fit for lighter-duty or space-constrained setups. Ensure your pulleys and flanges are wide enough to accommodate the belt width you select — mismatched widths can cause belt tracking issues.
How do I convert belt length from mm to inches?
Divide the length in mm by 25.4 to get inches. Quick reference examples from this listing:
- 784mm ≈ 30.9"
- 1400mm ≈ 55.1"
- 2800mm ≈ 110.2"
- 4326mm ≈ 170.3"
The full circumference for any variant = Number of Teeth × 14mm.
Is this belt suitable for 3D printers and CNC routers?
Yes. HTD-14M closed loop timing belts are commonly used in CNC routers, laser cutters, and large-format 3D printers where precise, repeatable motion over longer spans is required. The 14mm pitch provides a good balance of tooth engagement and positional accuracy. For smaller desktop 3D printers that typically use 2mm or 3mm pitch belts, this belt would generally be oversized — verify your machine's pulley pitch before ordering.
🛒 Select your size and width above, then add to cart — ships from our US warehouse.
