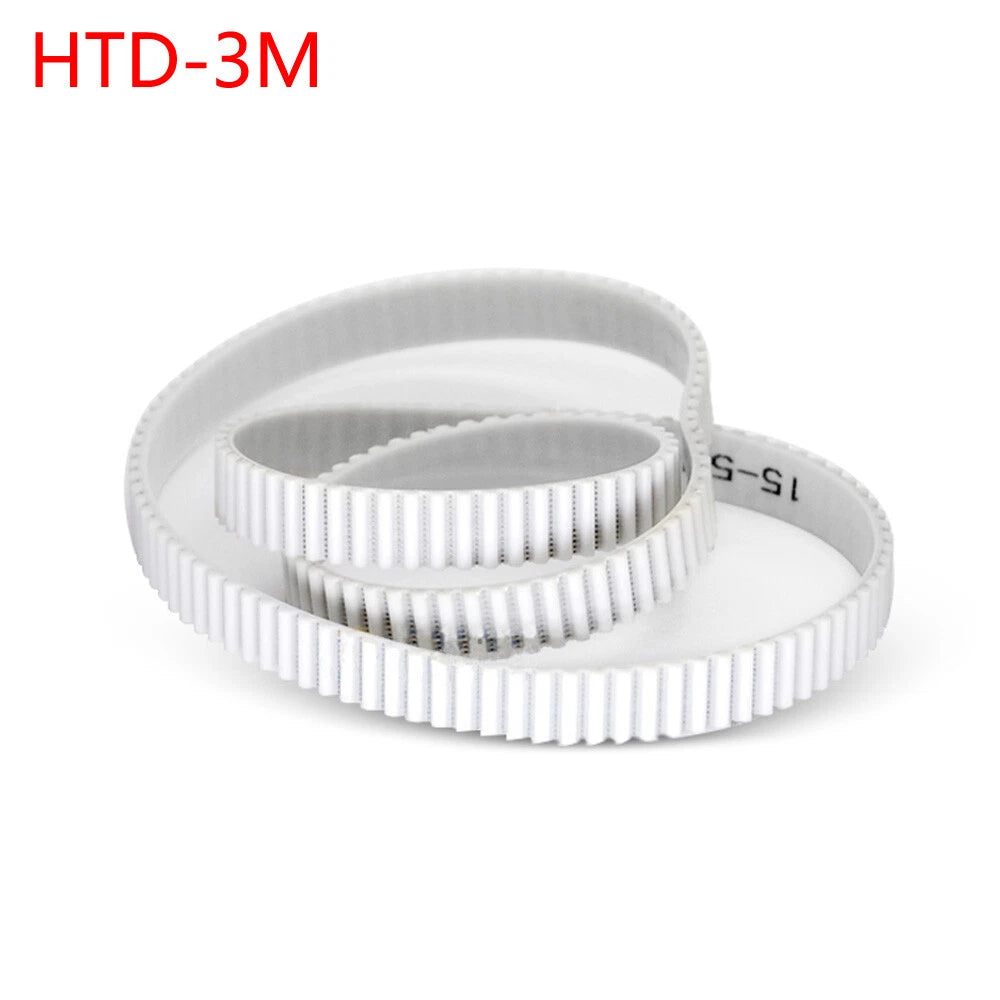

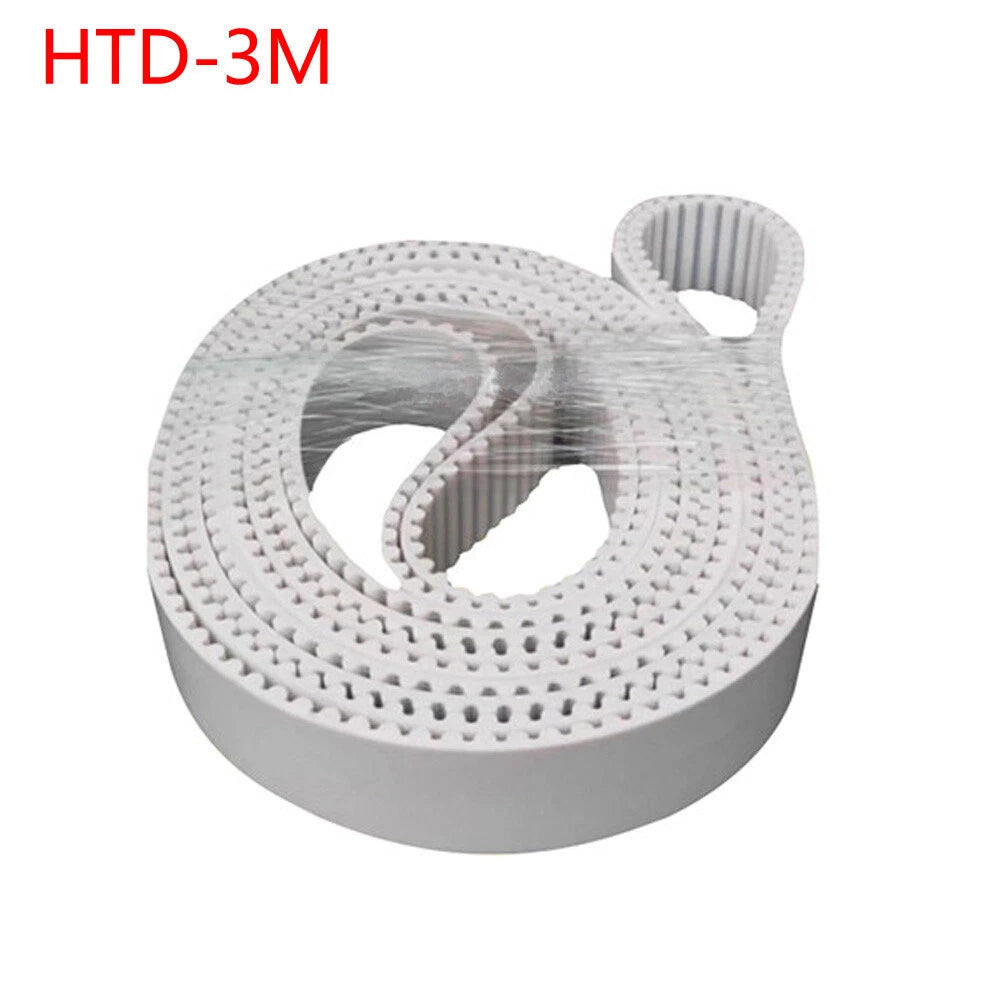

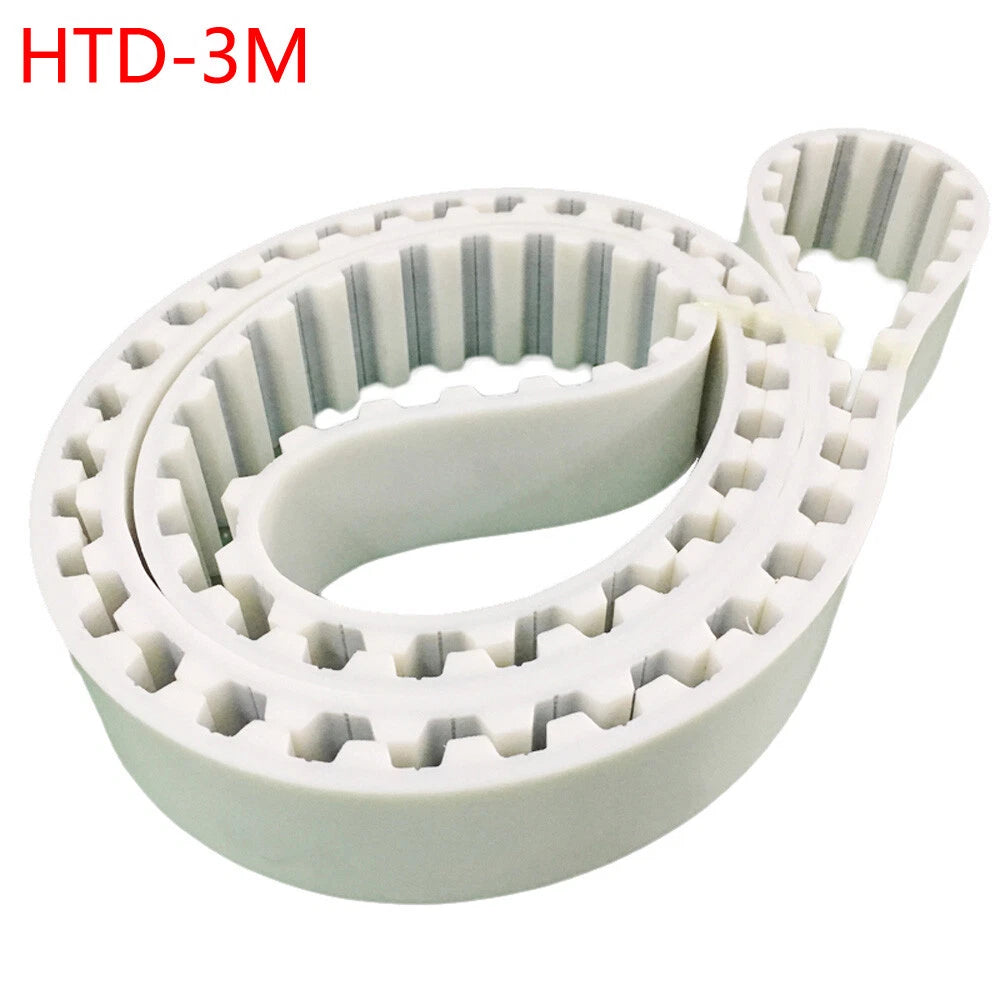

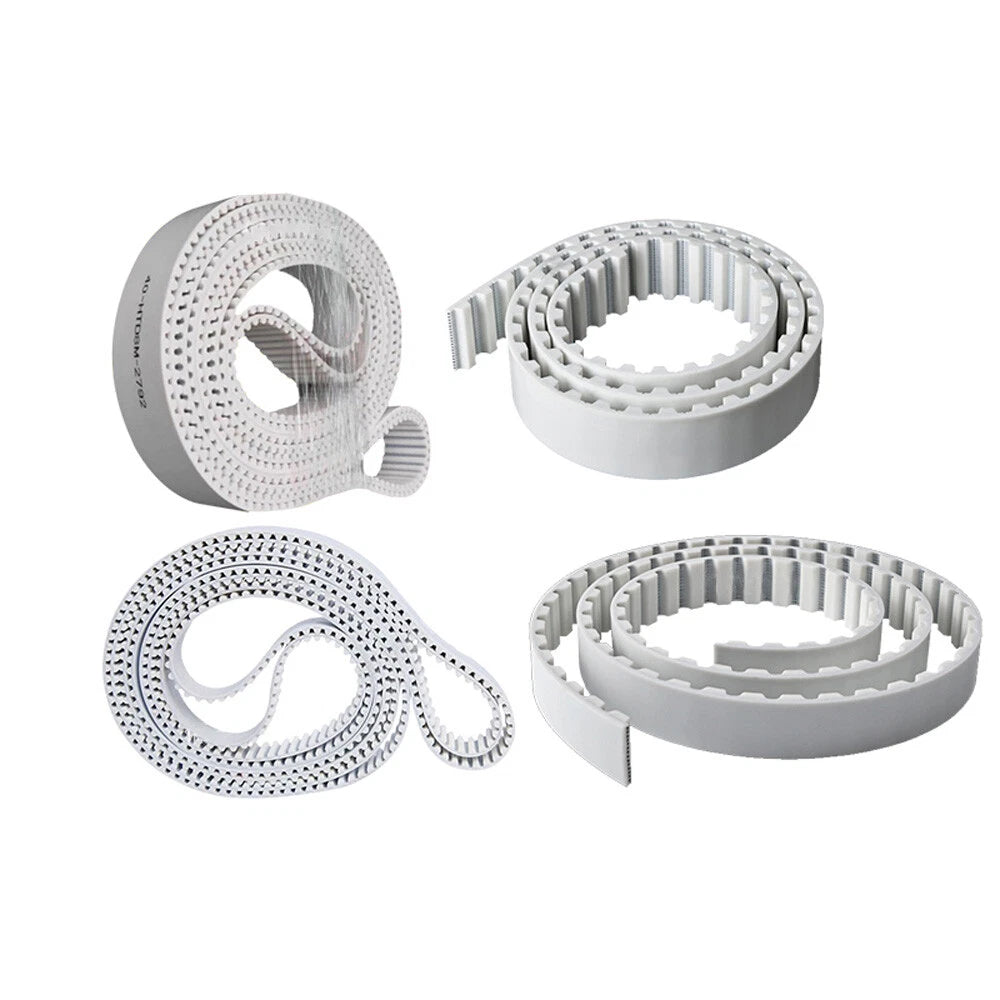

HTD 3M Closed Loop Timing Belt — Precise Drive for CNC, 3D Printers & Automation

When a slipping or mismatched drive belt causes positioning errors in your CNC router, 3D printer, or conveyor system, the entire project suffers. This HTD 3M closed loop timing belt is engineered for synchronous power transmission where accuracy and repeatability matter — making it a reliable choice for engineers, makers, and maintenance technicians who need a drop-in replacement or upgrade belt.

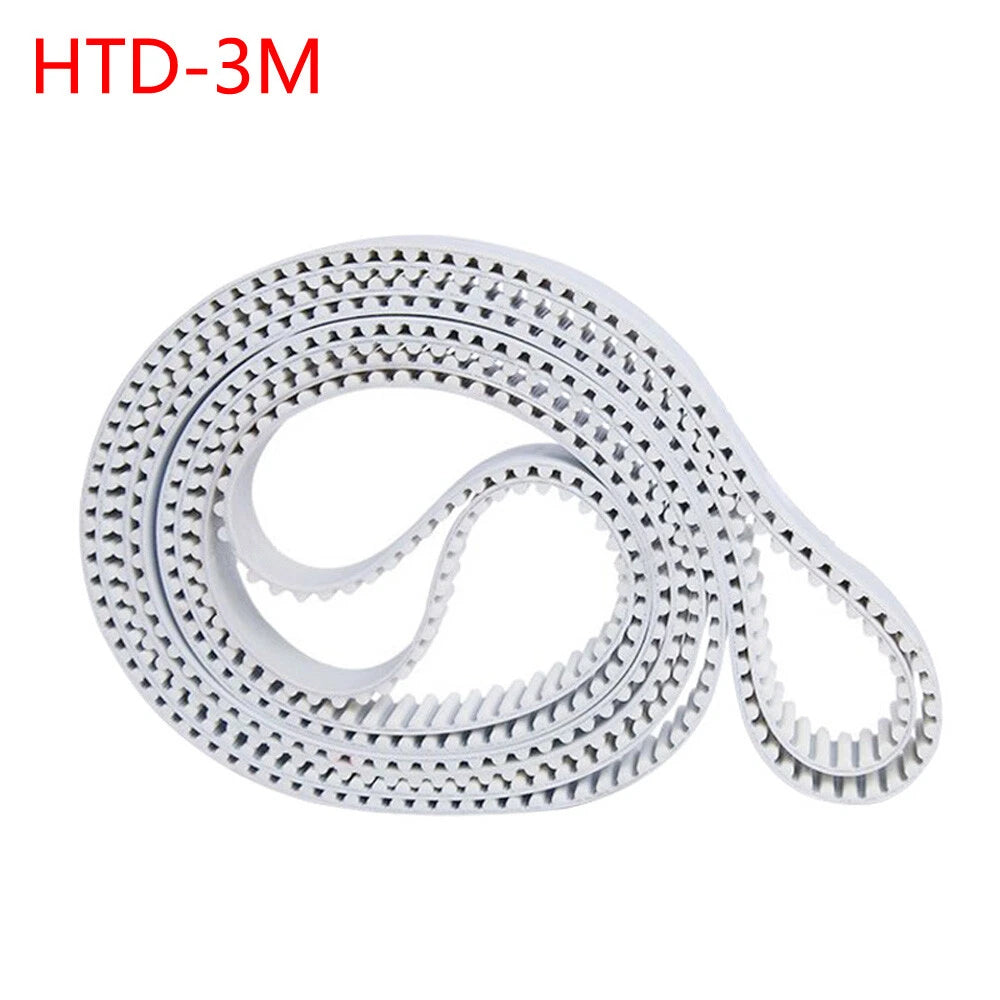

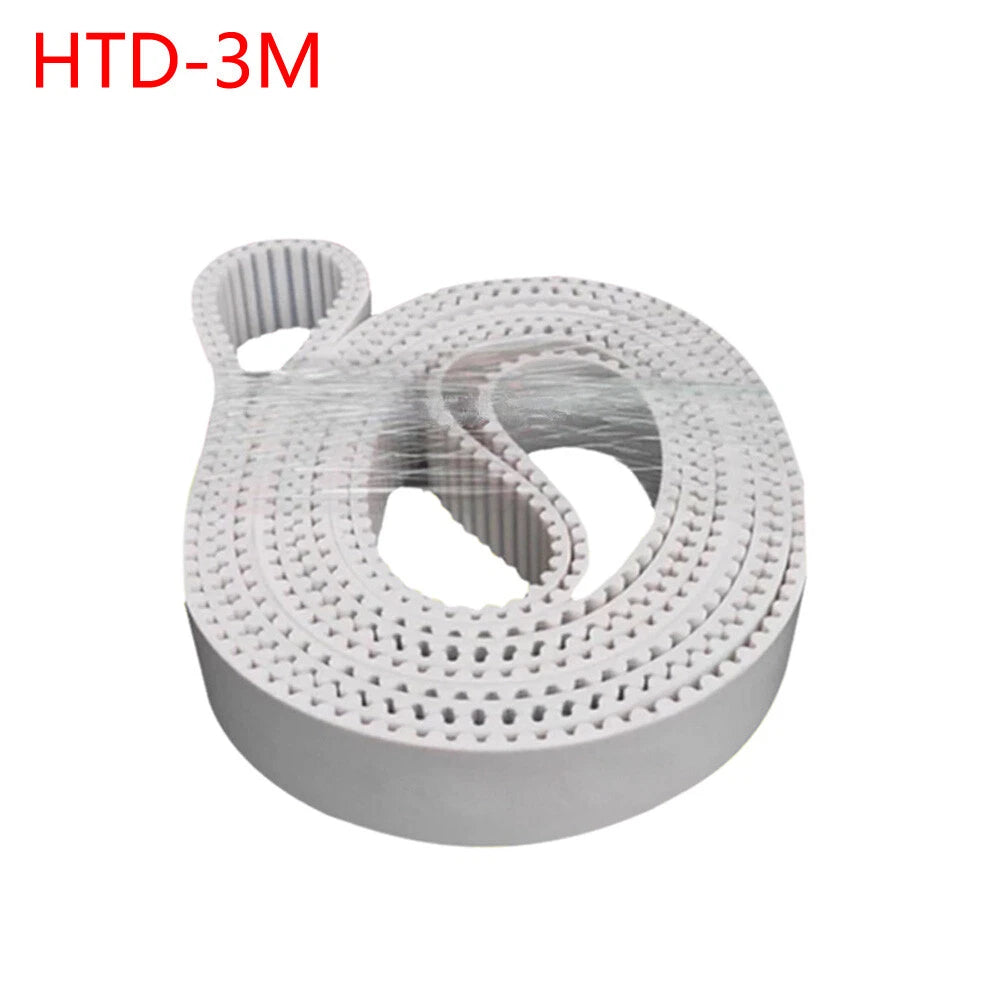

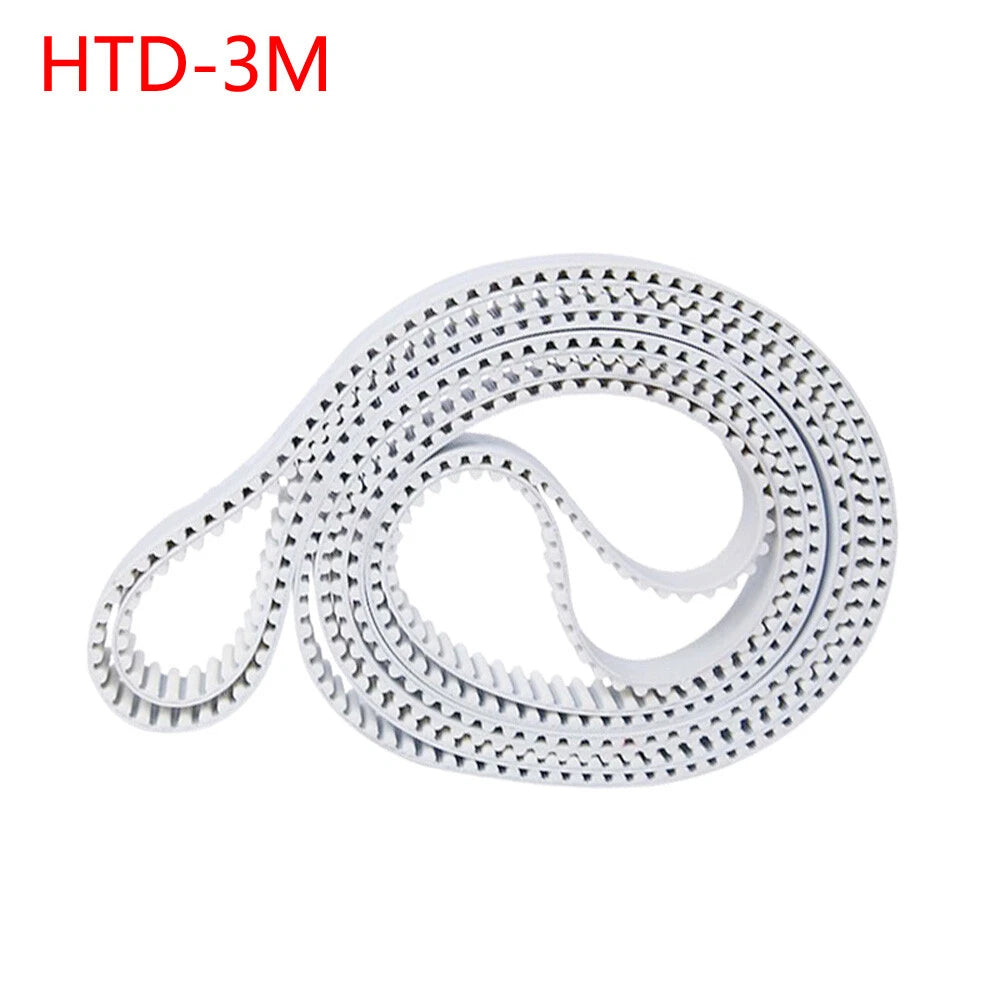

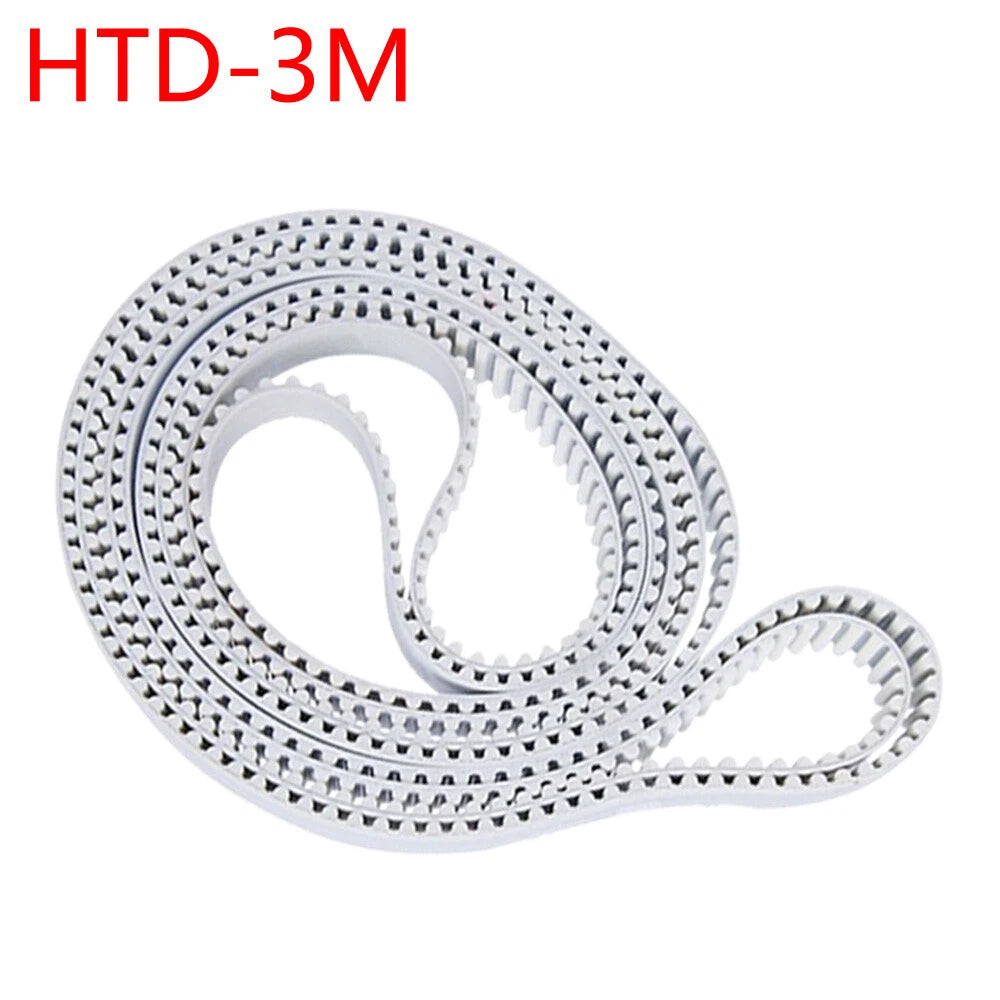

Each belt is a seamless closed loop (endless) construction in PU polyurethane with a 3mm HTD pitch and 20mm width. Perimeter options span from 2208mm (≈86.9") to 3918mm (≈154.3"), with tooth counts ranging from 736 to 1306 teeth — select the exact perimeter that matches your drive geometry. The polyurethane body is reinforced with internal tension cords for dimensional stability under load.

Typical use cases include CNC axis drives requiring precise linear positioning, 3D printer motion systems where belt stretch causes layer shifting, light conveyor and indexing systems in small-scale manufacturing, and robotics or automation rigs where synchronous motion is critical. The HTD 3M closed loop timing belt profile is widely used across these applications for its reliable tooth engagement and low backlash.

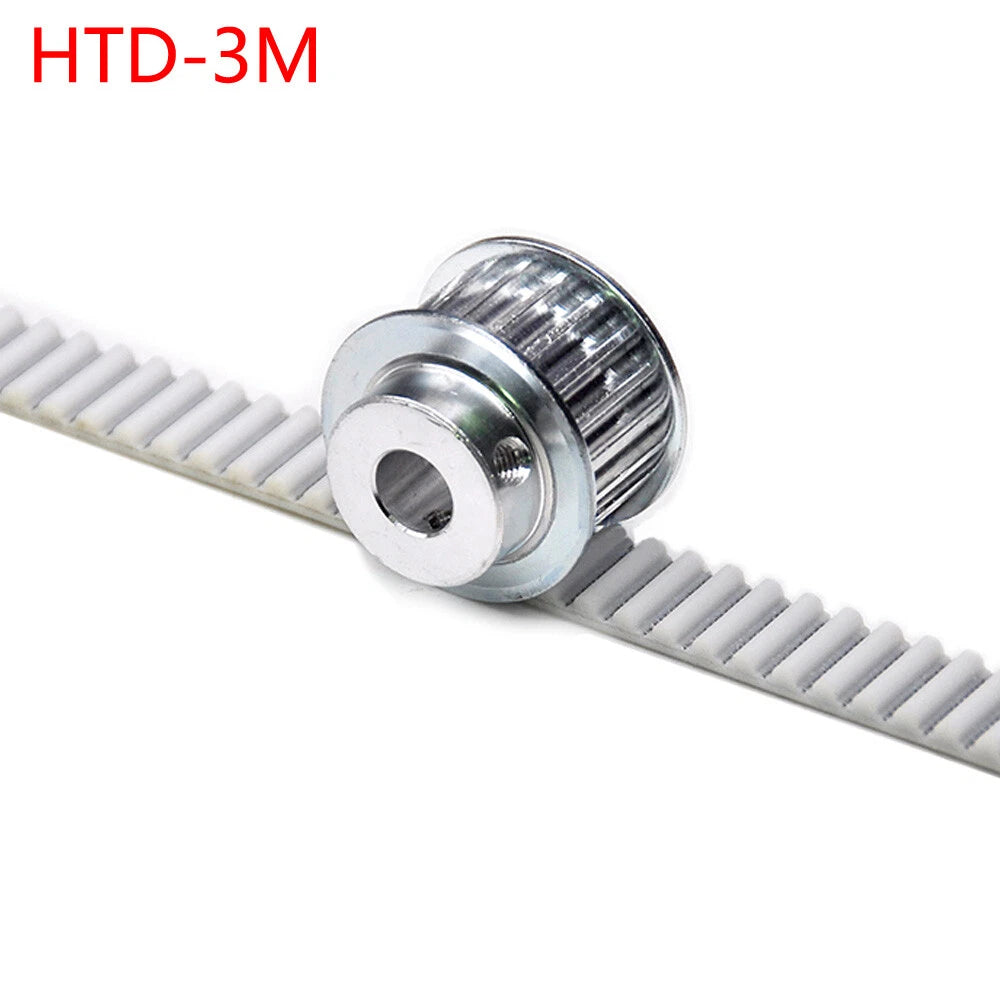

ℹ️ Compatibility: Fits all standard HTD 3M pulleys and sprockets. Verify your pulley profile is HTD 3M (3mm pitch, rounded tooth) before ordering. Not compatible with GT2, MXL, XL, or other pitch profiles.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

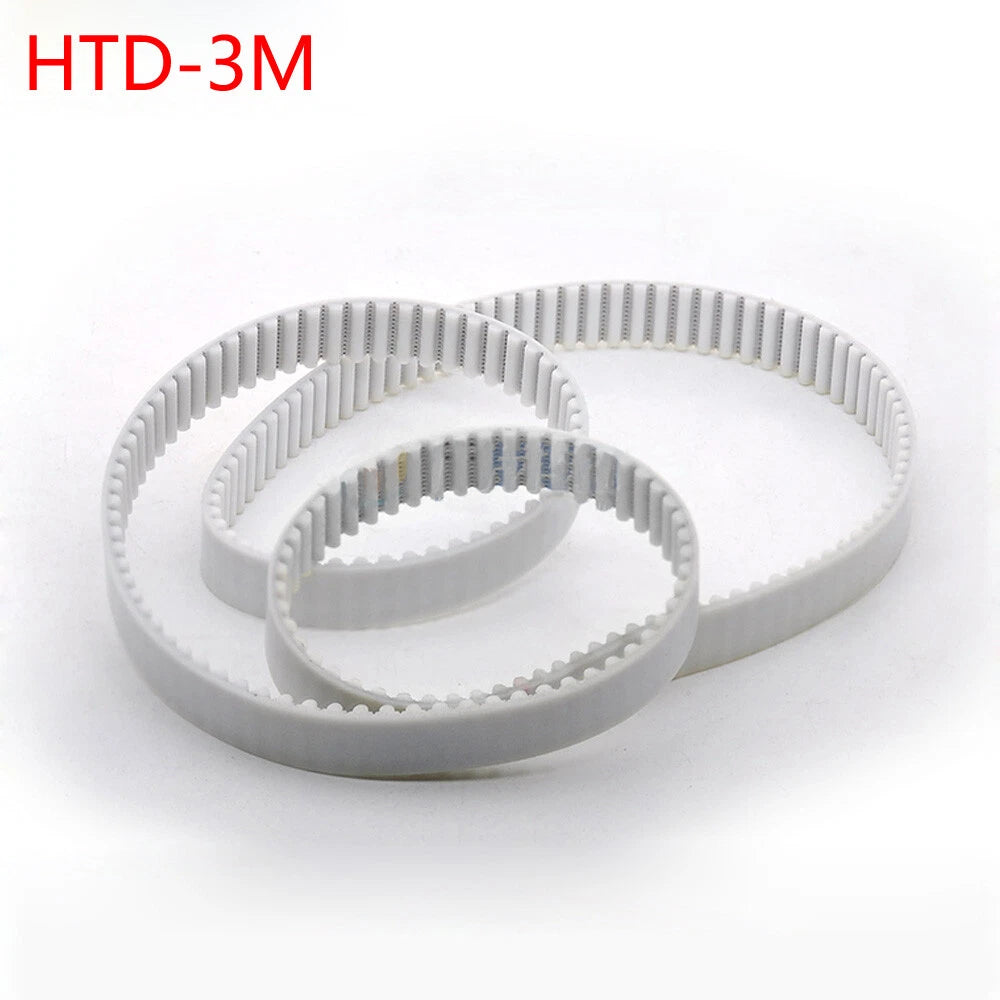

  • 🔁Seamless Closed Loop Construction — No joint or splice means no weak point; the belt runs smoothly at consistent tension throughout its full perimeter.
  • 🧱PU Polyurethane Body — More resistant to oil, abrasion, and mild chemicals than standard neoprene rubber, extending service life in demanding environments.
  • 📐3mm HTD Pitch Profile — Rounded curvilinear tooth geometry distributes load across the tooth face, reducing stress concentration compared to trapezoidal profiles in synchronous drive applications.
  • 📏20mm Belt Width — Wider than standard 6mm or 10mm HTD 3M belts, supporting higher torque capacity for medium-duty CNC and conveyor drives.
  • 🎯Wide Perimeter Selection — Available from 2208mm to 3918mm in precise 3mm increments, covering a broad range of center-distance configurations without custom cutting.
  • ⚙️Internal Tension Cord Reinforcement — Steel or fiberglass tension members (typically) maintain belt length under load, reducing elongation and preserving positioning accuracy over time.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Pitch 3mm (tooth-to-tooth distance)
Belt Width 20mm
Perimeter Range 2208mm (≈86.9") – 3918mm (≈154.3")
Teeth Count Range 736 – 1306 teeth (varies by perimeter)
Belt Type Closed loop (endless / seamless)
Body Material PU Polyurethane
Tension Member See variant options / Contact us to confirm
Compatible Pulleys HTD 3M pulleys and sprockets
Quantity per Order 1 piece (1pcs)
Color / Finish See variant options
Operating Temperature Contact us to confirm
⚠️ Sizing Note: Always verify your pulley's pitch profile is HTD 3M before ordering. Measure your existing belt's perimeter or calculate from your drive geometry. If you are between sizes, contact us — we can help confirm the right fit.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the formula: Perimeter ≈ 2 × center distance + (π × sum of pulley pitch diameters / 2). This belt is available in perimeters from 2208mm (≈87.0") to 3918mm (≈154.3") in 3mm increments. When in doubt, size up slightly — a slightly longer belt is easier to tension than one that is too short.

What is the pitch of this timing belt and what pulleys does it fit?

This belt uses the HTD 3M profile with a 3mm pitch (tooth-to-tooth distance). It is compatible with any HTD 3M pulleys or sprockets. The tooth profile is a rounded curvilinear design that generally provides better load distribution than trapezoidal (MXL/XL) profiles.

What material is this timing belt made from?

The belt body is made from PU (polyurethane), which is generally more resistant to oil, abrasion, and moderate chemicals compared to standard neoprene rubber belts. The internal tension members are typically steel or fiberglass cord, providing dimensional stability under load.

Can this belt be used outdoors or in wet environments?

Polyurethane timing belts are generally more resistant to moisture and mild environmental exposure than rubber belts. However, for prolonged outdoor or fully submerged applications, we recommend confirming suitability with your specific operating conditions. Avoid prolonged exposure to strong solvents or extreme UV without additional protection.

What is the load capacity of this HTD 3M belt?

The HTD 3M profile is typically suited for light-to-medium duty power transmission. Exact load ratings depend on belt width, speed, and pulley diameter. This belt is 20mm wide, which generally supports higher torque than narrower 6mm or 10mm variants of the same profile. For precise load calculations, consult HTD belt engineering tables or contact us to confirm.

Is this a closed loop (endless) belt or an open-ended belt?

This is a closed loop (endless) timing belt — it has no seam or joint. The perimeter listed is the total circumference of the belt. This design eliminates the weak point of a joined belt and is required for most synchronous drive applications.

What are common applications for this HTD 3M 20mm timing belt?

Common uses include CNC router and laser cutter axis drives, 3D printer motion systems, conveyor and indexing systems, robotics joints, and light industrial automation. The 20mm width makes it well-suited for applications requiring moderate torque transmission with precise positioning.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
