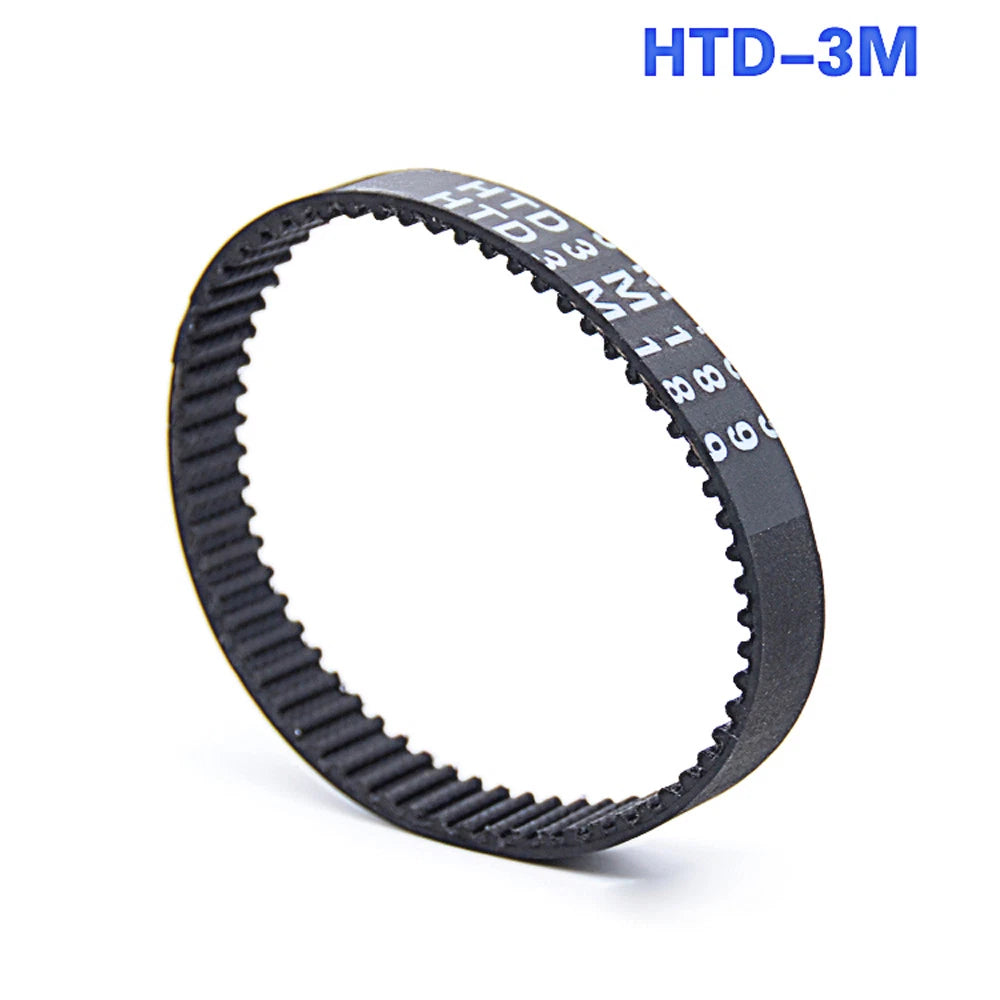

HTD 3M Closed Loop Timing Belt — Precise Synchronous Drive for 3D Printers, CNC & Robotics

A worn or incorrectly sized belt is one of the most common causes of layer shifting in 3D printers, axis drift in small CNC machines, and positioning errors in robotics builds. For makers, engineers, and repair technicians who need a reliable drop-in replacement or a new HTD 3M closed loop timing belt for a compact synchronous drive system, this listing covers the most commonly needed lengths and widths in one place.

Each order includes one closed-loop synchronous belt in the HTD 3M profile (3mm pitch, rounded tooth form). Available inner circumference lengths are 339mm (≈13.3"), 345mm (≈13.6"), 354mm (≈13.9"), 363mm (≈14.3"), and 381mm (≈15.0"). Width options are 10mm (≈0.39"), 15mm (≈0.59"), and 20mm (≈0.79"). Construction is typically neoprene rubber with a fiberglass or steel cord tensile layer for stretch resistance under cyclic load. Sold individually (1 pc per order).

Typical use cases include 3D printer drive systems (CoreXY, delta, and bed-slinger configurations), compact CNC router and laser engraver axis drives, and robotics and automation builds where a small-pitch HTD 3M synchronous belt drive is required for precise, slip-free motion control.

ℹ️ Compatibility: Fits HTD 3M profile pulleys only (3mm pitch, rounded tooth). Not compatible with GT2, MXL, XL, T2.5, T5, or other profiles. Confirm your pulley profile before ordering.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • 🔁Seamless Closed-Loop Design — Endless loop construction has no splice or joint, delivering consistent tension and smooth power transmission throughout the full belt circumference.
  • ⚙️HTD 3M Rounded Tooth Profile — The 3mm-pitch rounded HTD tooth form provides positive, slip-free engagement with HTD 3M pulleys, reducing the risk of tooth jump in compact synchronous drive applications.
  • 📏Five Length Options — Inner circumferences of 339, 345, 354, 363, and 381mm cover a range of pulley center distances, making it straightforward to find a direct replacement HTD 3M belt without custom fabrication.
  • 📐Three Width Options — Choose 10mm, 15mm, or 20mm to match your pulley face; wider belts distribute load across more tooth contact area, useful in higher-torque 3M timing belt drive setups.
  • 🧱Reinforced Tensile Core — Fiberglass or steel cord reinforcement (typical for this belt class) resists elongation under repeated loading, helping maintain positional accuracy in 3D printer and robotics belt drive systems over time.
  • 🔧Wide Application Range — Suited for 3D printers, laser engravers, small CNC routers, conveyor systems, and DIY automation projects that use standard HTD 3M synchronous pulleys.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

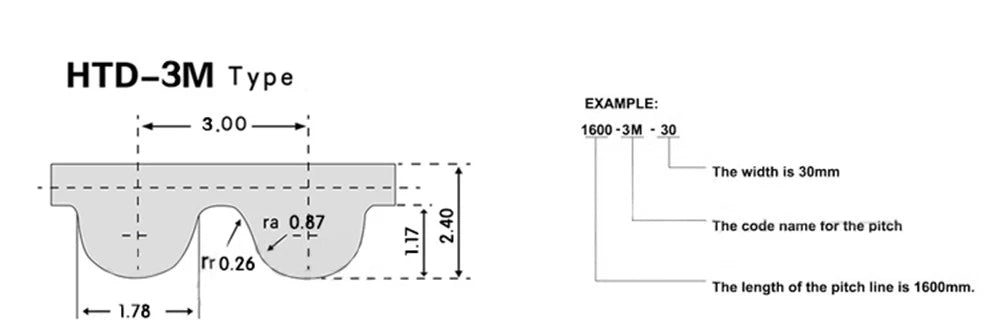

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Tooth Form Rounded (HTD standard)
Available Lengths (Inner Circumference) 339mm (≈13.3") / 345mm (≈13.6") / 354mm (≈13.9") / 363mm (≈14.3") / 381mm (≈15.0")
Available Widths 10mm (≈0.39") / 15mm (≈0.59") / 20mm (≈0.79")
Pitch 3mm
Number of Teeth 113 teeth (339mm) / 115 teeth (345mm) / 118 teeth (354mm) / 121 teeth (363mm) / 127 teeth (381mm)
Belt Type Closed loop (endless)
Material Neoprene rubber body, fiberglass or steel cord tensile layer (typical)
Color Black
Compatible Pulley Profile HTD 3M only
Pack Quantity 1 pc per order
Operating Temperature See variant options / Contact us to confirm
Max Load Rating See variant options / Contact us to confirm
⚠️ Spec Note: Operating temperature range and maximum load ratings vary by exact construction batch. Contact us if your application has specific environmental or load requirements.

❓ Frequently Asked Questions

How do I choose the right belt length and width?

The belt length is the inner circumference of the closed loop. Available lengths are 339mm (≈13.3"), 345mm (≈13.6"), 354mm (≈13.9"), 363mm (≈14.3"), and 381mm (≈15.0"). Measure your existing belt's inner circumference, or estimate from your pulley center distance: L ≈ 2C + π(D₁+D₂)/2. Choose the width — 10mm, 15mm, or 20mm — to match your pulley face width.

What load or torque can an HTD 3M timing belt handle?

HTD 3M belts are generally suited for light-to-moderate torque synchronous drive applications. Wider belts (20mm) typically carry higher loads than narrower ones (10mm). For precise torque ratings, consult your drive system's engineering specifications or contact us directly.

Can these belts be used outdoors or in damp environments?

HTD 3M belts are typically constructed from neoprene rubber, which offers reasonable resistance to moisture and mild environmental exposure. Prolonged UV exposure or contact with oils and chemicals may degrade the belt over time. For demanding outdoor use, verify the material composition with us before installation.

Are these belts compatible with standard HTD 3M pulleys?

Yes. These belts conform to the HTD 3M profile standard — 3mm pitch, rounded tooth form. They are compatible with any standard HTD 3M timing pulley. They are not interchangeable with GT2, MXL, XL, T2.5, T5, or other belt profiles.

How do I know which length — 339, 345, 354, 363, or 381mm — I need?

Measure the inner circumference of your existing belt, or use the formula L ≈ 2C + π(D₁+D₂)/2 where C is the center-to-center distance between pulleys and D₁/D₂ are the pulley pitch diameters. Select the closest available length from the five options listed above.

What machines or projects are HTD 3M closed loop belts used for?

HTD 3M closed loop timing belts are commonly used in 3D printers (CoreXY, delta, bed-slinger), small CNC machines, laser engravers, robotics, and compact DIY power transmission systems where a small belt pitch and precise synchronous motion are required.

Can I use a wider belt on a narrower pulley?

In general, the belt width should match or be slightly narrower than the pulley face width. Using a belt significantly wider than the pulley is not recommended — it can cause uneven tooth engagement and tracking issues. A belt slightly narrower than the pulley face is typically acceptable in most drive configurations.

🛒 Select your belt length and width above, then add to cart — ships from our US warehouse.
