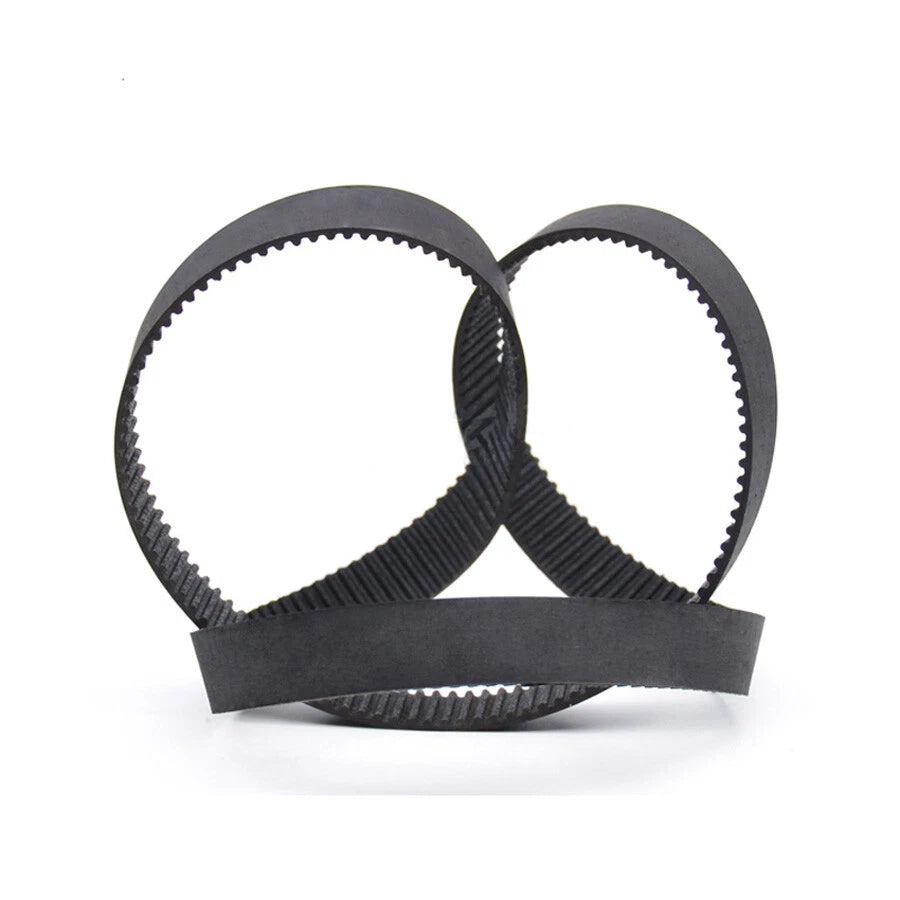

HTD 3M Closed Loop Timing Belt — 3mm Pitch, 10mm & 15mm Width, 87mm–354mm Perimeter

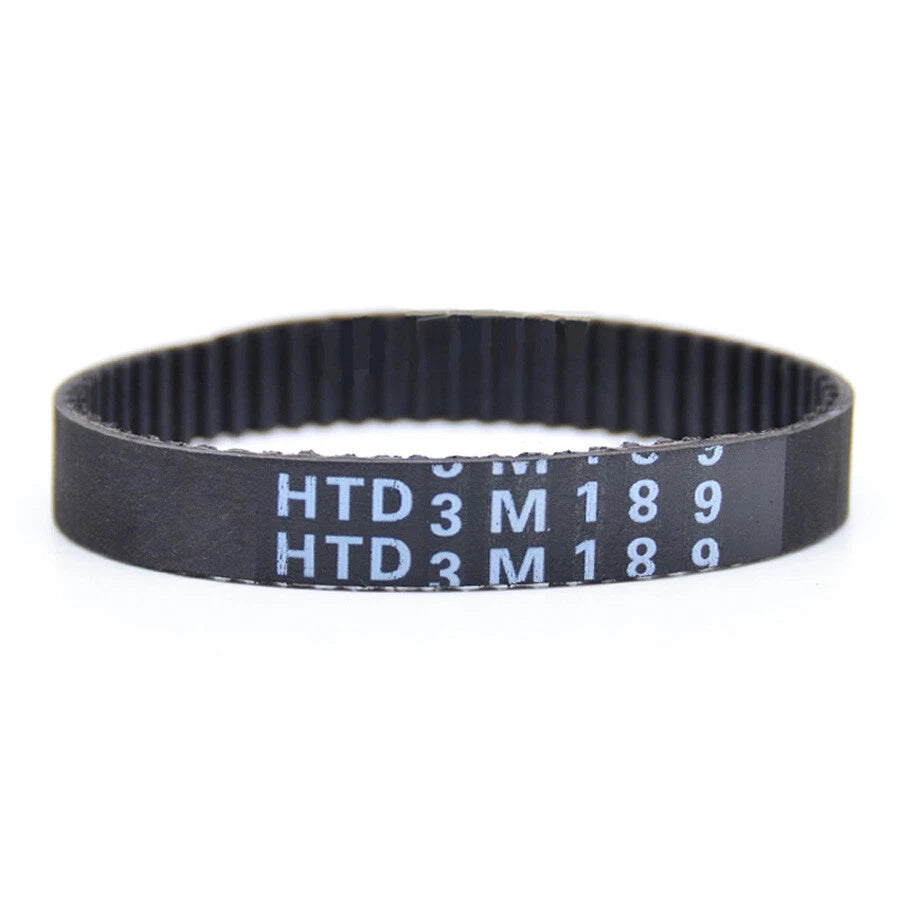

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × center distance + (sum of pulley pitch circumferences ÷ 2). The perimeter value in the model name (e.g., HTD3M-150 = 150mm ≈ 5.9") is the belt's closed-loop length. Always cross-check against your pulley tooth count. If you're replacing an existing belt, simply count the teeth on the old belt — the teeth count is listed in each variant name (e.g., "150mm & 50" means 50 teeth).

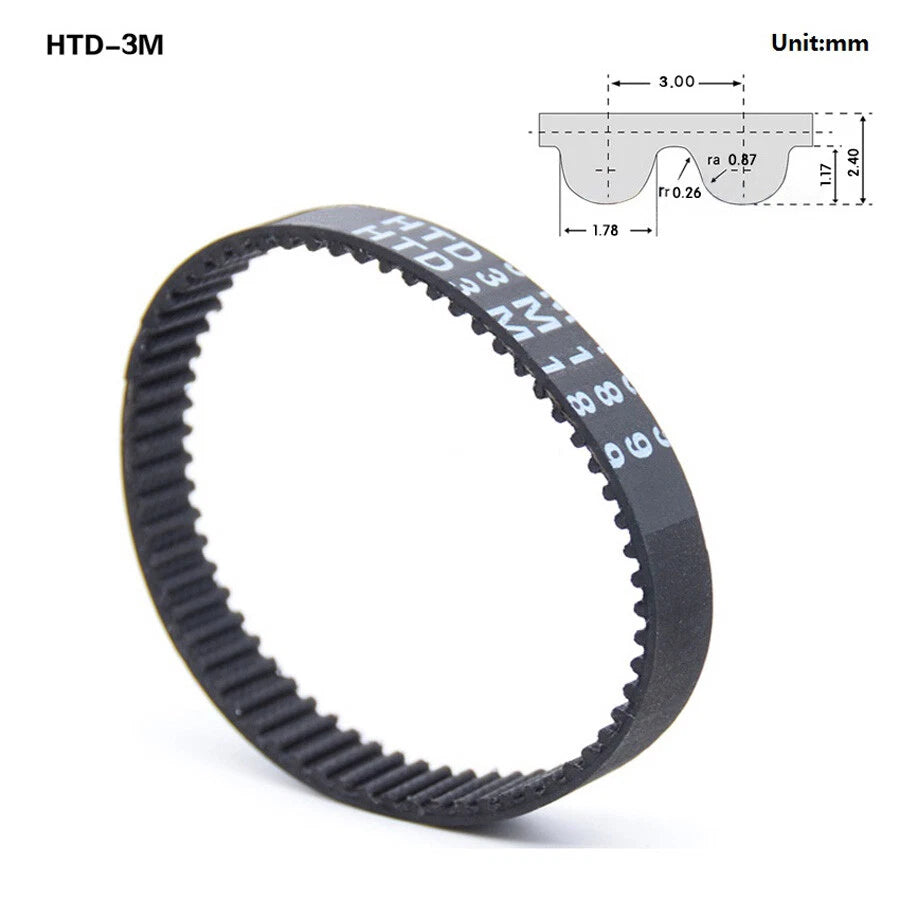

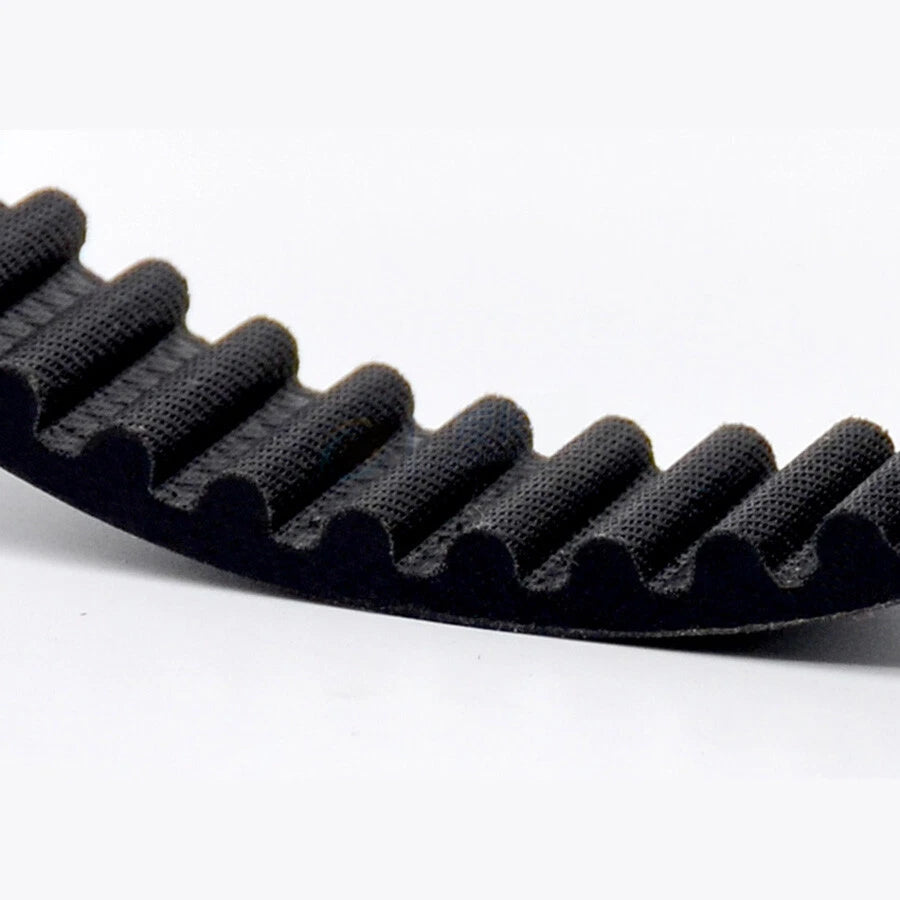

HTD stands for High Torque Drive. The "3M" indicates a 3.00mm tooth pitch — the distance from one tooth center to the next. This is a metric synchronous belt profile commonly used in motion control, robotics, and light industrial machinery. It is a distinct profile from GT2 (2mm pitch), T2.5, MXL, and other belt standards.

For light-duty applications like 3D printer X/Y axes, laser engraver gantries, or small CNC routers, 10mm width is generally sufficient. For higher torque loads — such as robotics joints, heavier CNC feed axes, or conveyor indexing systems — the 15mm width provides greater load capacity. Always match the belt width to your pulley flange width to prevent the belt from walking off the pulley.

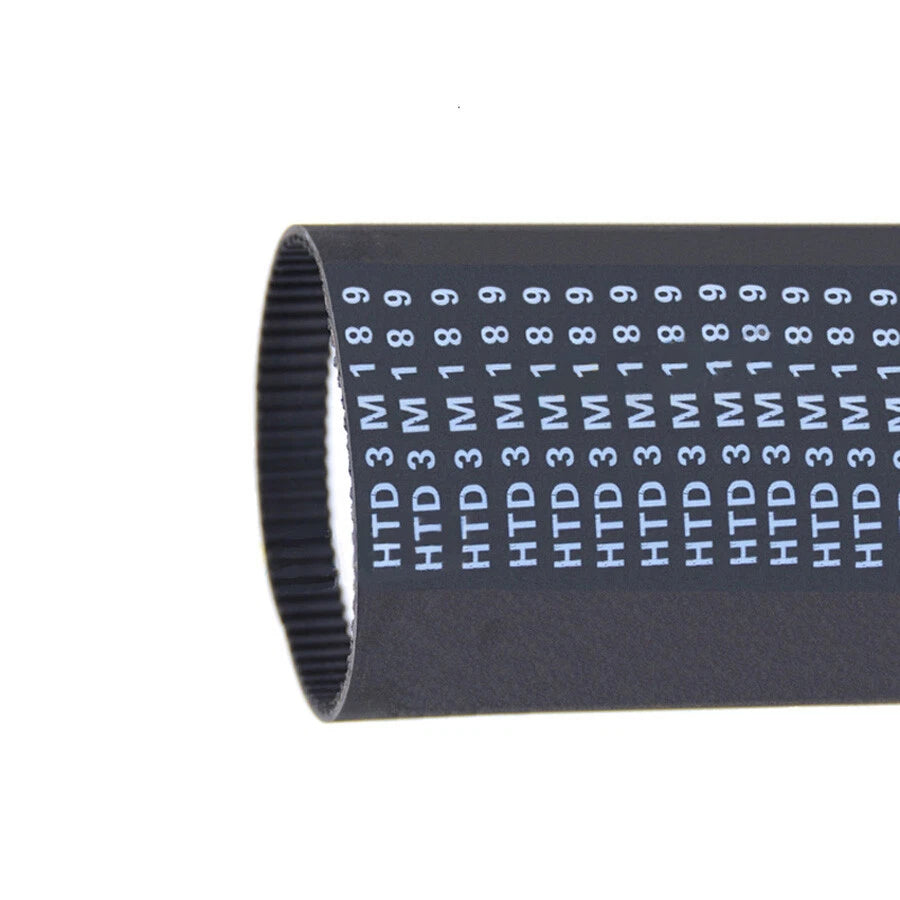

HTD 3M belts are typically reinforced with fiberglass or steel tension cords embedded in the rubber body, providing good tensile strength relative to their compact size. The 10mm width is generally suited for light-to-medium loads; the 15mm width handles higher torque. Exact load ratings vary by manufacturer and cord type. If you have specific load or torque requirements, contact us to confirm before ordering.

HTD 3M belts are typically made from neoprene rubber, which offers moderate resistance to moisture, light oils, and mild chemicals. They are generally suitable for indoor workshop and light industrial environments. For prolonged outdoor UV exposure, high-temperature settings, or aggressive chemical environments, verify material compatibility with your specific application before use.

These belts require HTD 3M profile pulleys only. The HTD tooth profile is not interchangeable with GT2, MXL, T2.5, or other belt standards — mixing profiles will cause poor engagement, noise, and premature wear. Match the pulley tooth count to the belt's teeth number listed in the variant (e.g., HTD3M-150 has 50 teeth). Pulley bore size and flange width should also match your shaft and belt width.

Common applications include: 3D printer X/Y/Z axes, desktop CNC router feed systems, laser engraver gantries, robotic arm joints, pick-and-place actuators, conveyor indexing systems, and other precision motion control equipment where synchronous, slip-free power transmission is required. The compact 3mm pitch makes HTD 3M a popular choice for space-constrained machine designs.
