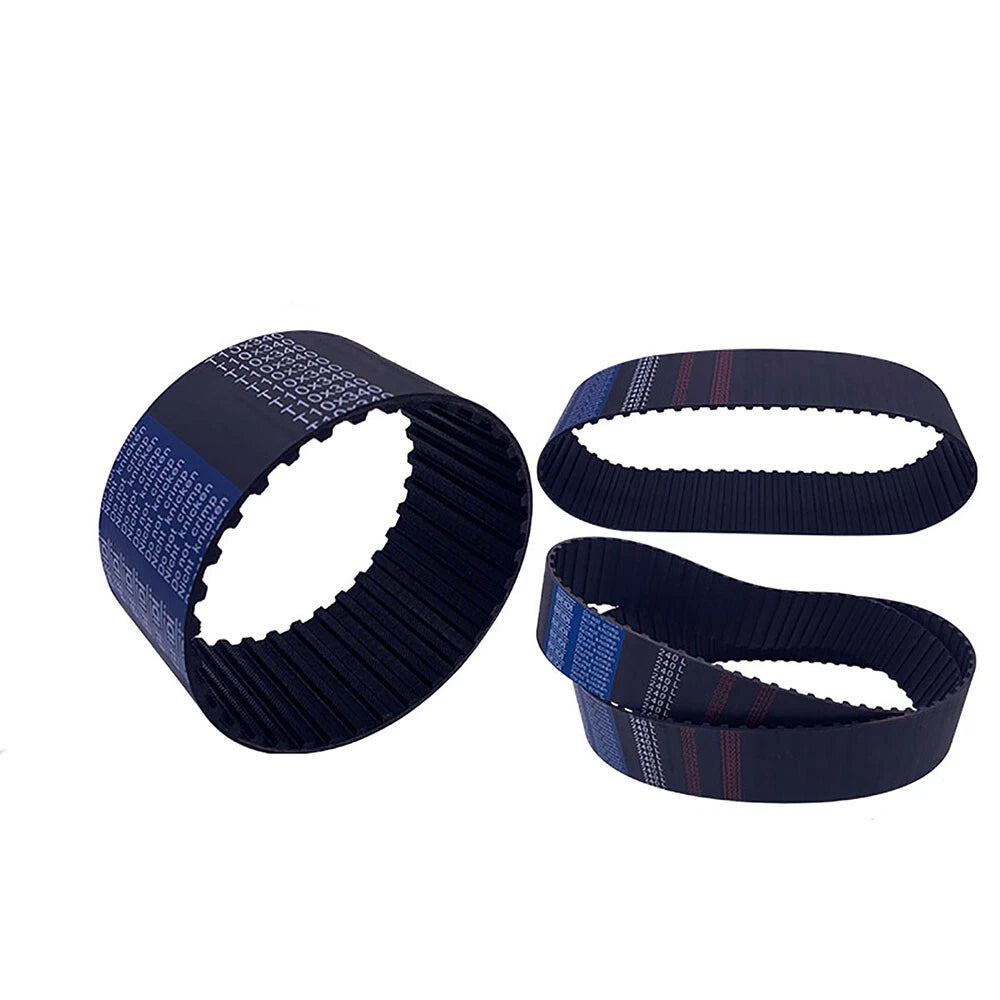

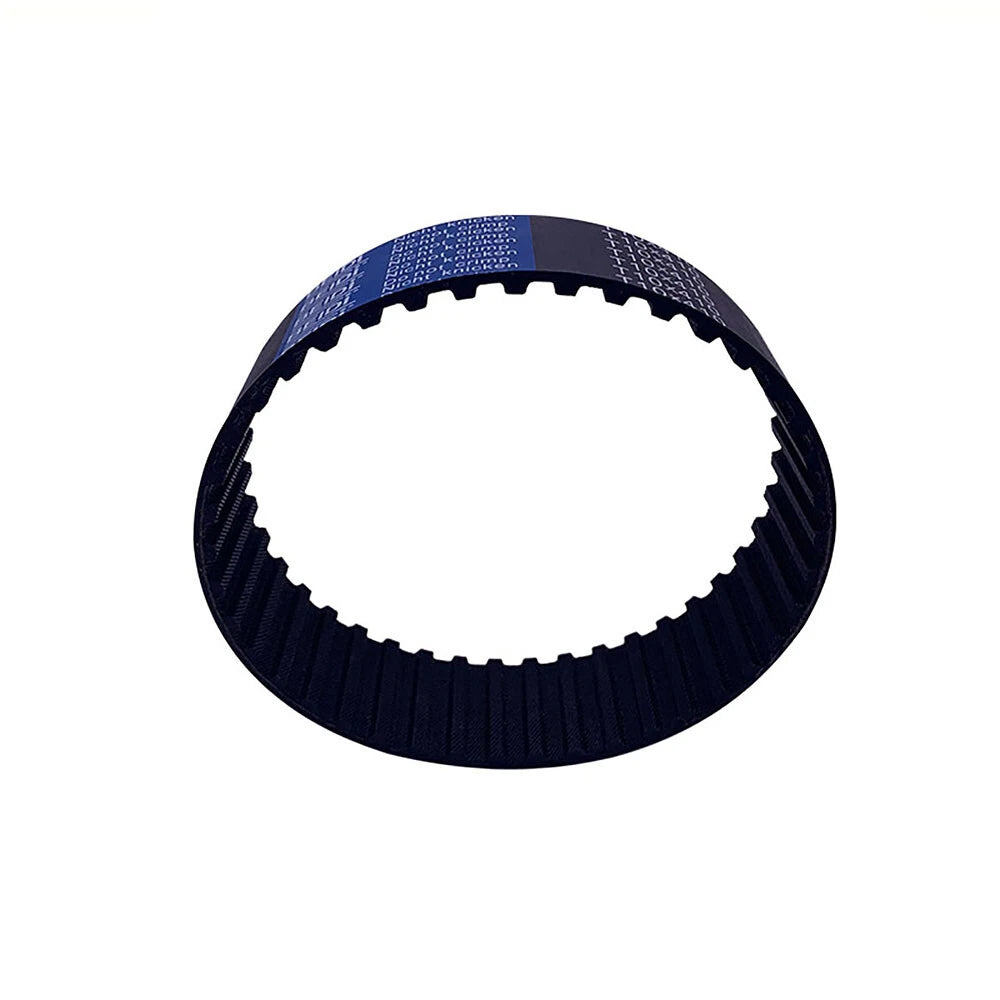

HTD 3M Pitch Closed Loop Timing Belt — 6mm Wide Rubber Synchronous Drive Belt

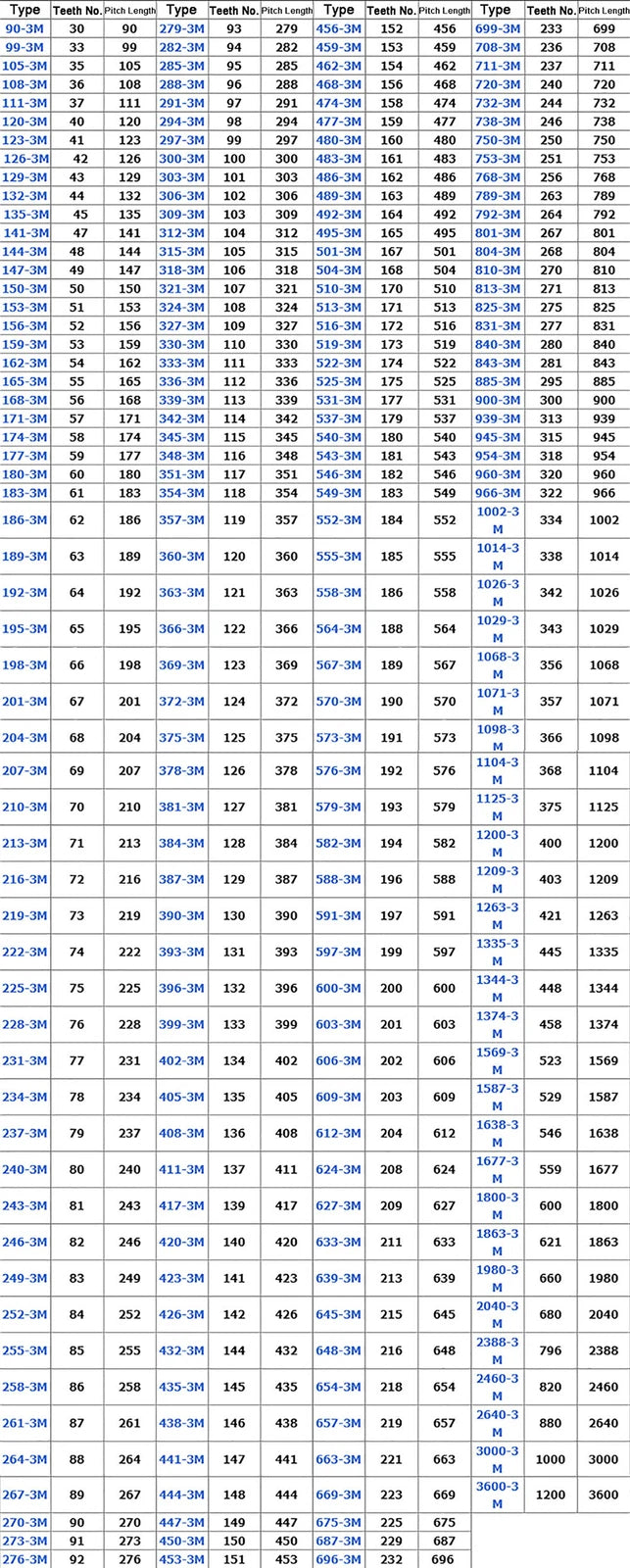

Measure the center-to-center distance between your two drive pulleys, then use the formula: Loop Circumference ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 100mm center distance with 20mm pitch-diameter pulleys gives approximately 263mm — select the next available size up. Sizes are in mm; divide by 25.4 to convert to inches (e.g., 300mm ≈ 11.8"). Always verify against your machine's service manual when available.

HTD 3M belts at 6mm width typically have a working tensile load in the range of 50–100 N, depending on the cord material and construction. For high-cycle or high-torque applications, confirm the rated tensile strength with your drive system's engineering data. This belt is generally suited for light-to-medium duty synchronous drives such as 3D printers, laser engravers, and small CNC machines.

The rubber compound in HTD timing belts is generally resistant to light moisture and incidental oil splash. However, prolonged UV exposure, standing water, or contact with aggressive chemicals can degrade the rubber over time. For outdoor or washdown environments, a polyurethane (PU) belt variant is generally more durable. Contact us to confirm material specifications for your specific application.

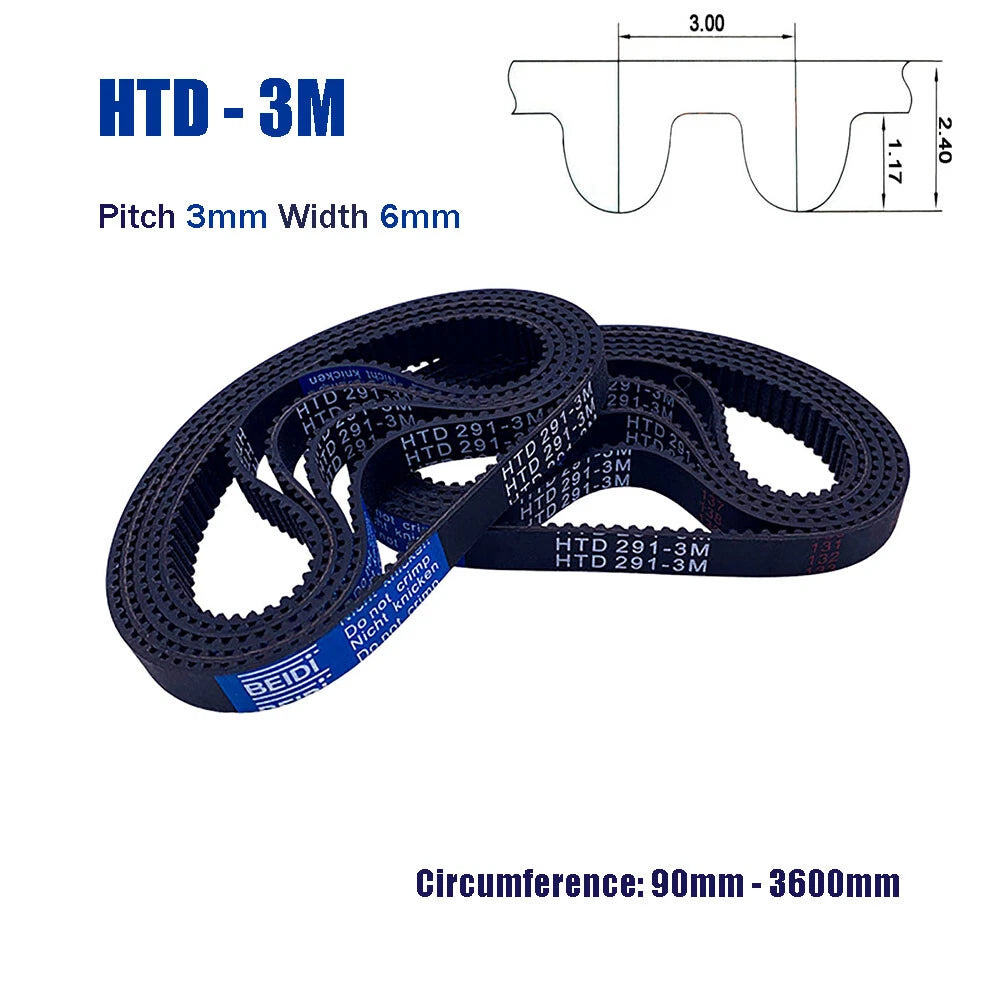

Yes. This belt follows the HTD 3M profile standard: 3mm pitch, 2.4mm tooth height, and 6mm belt width. It is compatible with any HTD 3M pulley that has a groove width of 6mm or wider. It is not interchangeable with GT2, GT3, T2.5, T3, or MXL profile pulleys — those use different tooth geometries and pitches.

HTD 3M uses a rounded (curvilinear) tooth profile optimized for higher torque transmission with good load distribution. GT2/GT3 belts use a modified curvilinear profile engineered for lower backlash and higher positional accuracy. For 3D printers where dimensional accuracy is critical, GT2 is typically the preferred choice. For general power transmission, robotics, and conveyor drives where torque capacity matters more than sub-millimeter positioning, HTD 3M is a reliable and widely available option.

Before installation, confirm three things: (1) the loop circumference matches your measured drive path length, (2) the belt width (6mm) fits within your pulley's groove without overhang, and (3) the tooth pitch (3mm) matches your pulley's tooth spacing. A belt that is too tight will cause bearing overload and premature wear; too loose will cause tooth skipping under load. Install with the manufacturer's recommended tension for your pulley diameter.

This belt is constructed from a rubber body (typically neoprene or EPDM compound) with internal tensile cord reinforcement (fiberglass or steel) running longitudinally along the belt. The tooth surface is covered with a nylon fabric facing that reduces friction during pulley engagement and extends tooth life. Contact us to confirm the exact cord material for your specific size if this is critical to your application.
