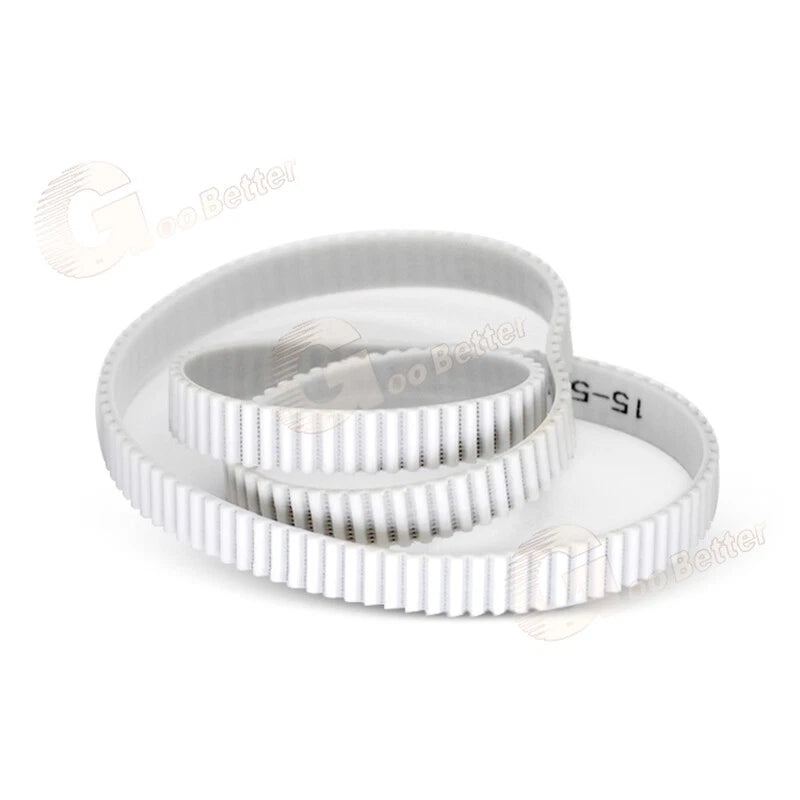

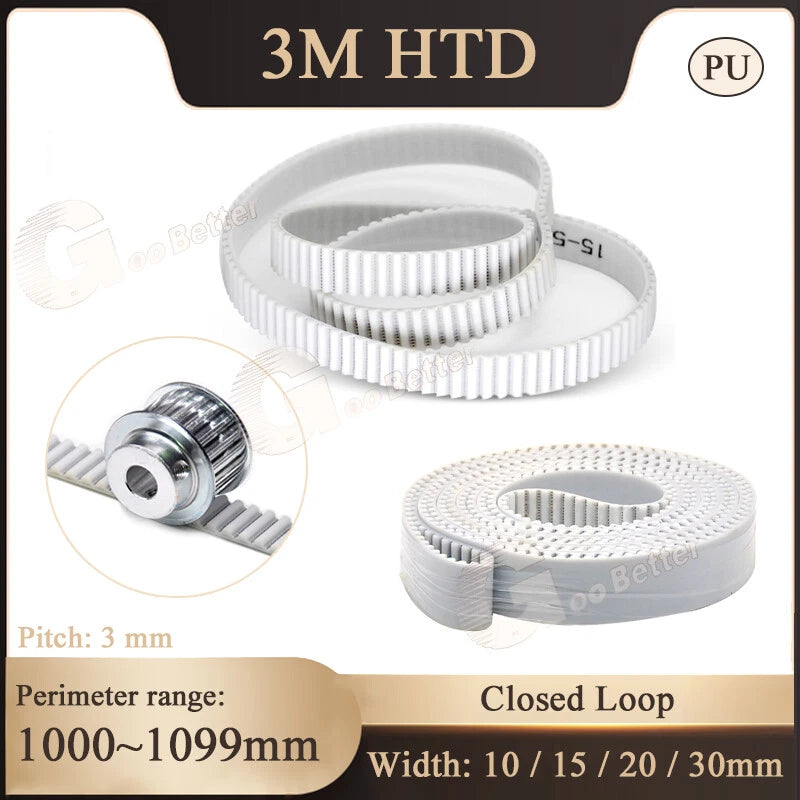

HTD 3M Closed Loop Timing Belt — PU Synchronous Drive Belt for CNC, 3D Printer & Pulley Systems

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 1020mm (≈40.2") perimeter is typically used with medium-span CNC axis drives. Always verify against your pulley tooth count and pitch diameter before ordering. If you are unsure, contact us with your machine specs and we can help you select the correct size.

Width selection depends on the torque load your drive system needs to transmit. For light-duty 3D printers and small desktop CNC routers, 10mm is generally sufficient. For medium-load applications such as laser cutters or mid-size CNC machines, 15mm or 20mm is typically recommended. For heavy-duty industrial drives or high-torque setups, 30mm provides greater load capacity. When in doubt, go one size wider — it is easier to run a wider belt on a compatible pulley than to deal with a belt that is too narrow for the load.

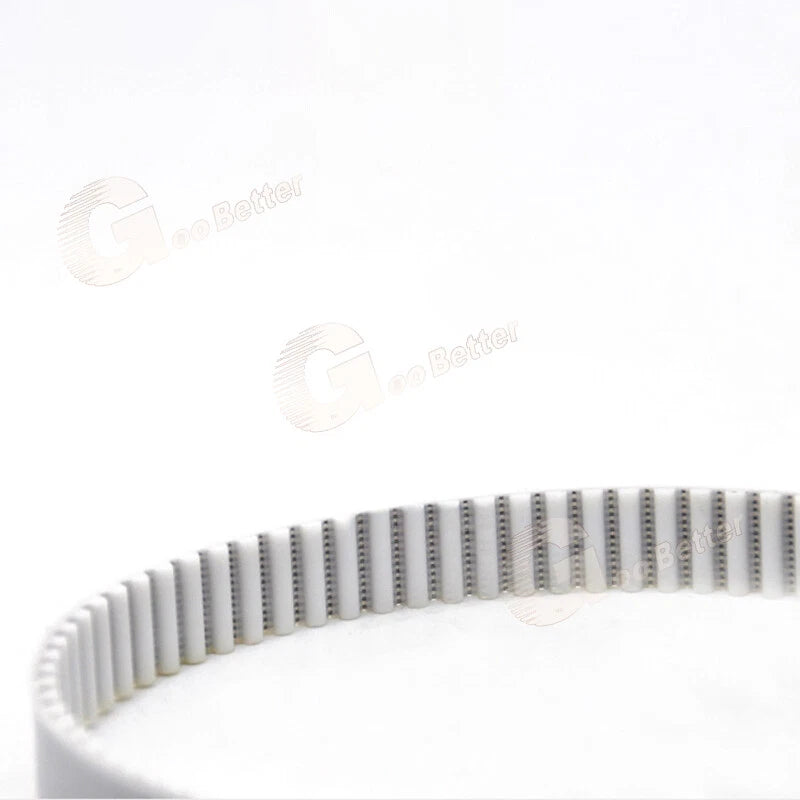

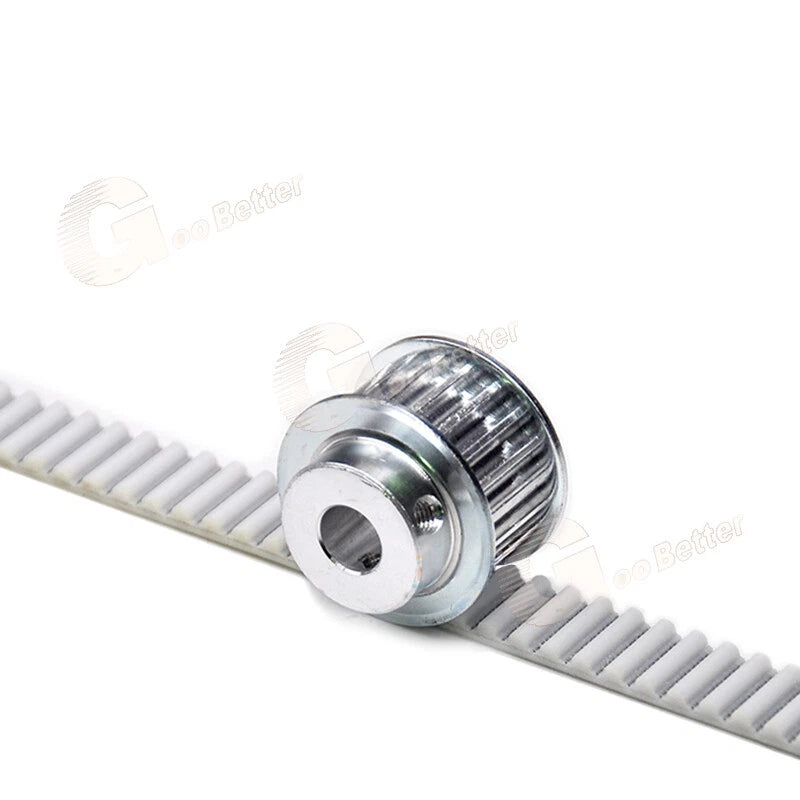

This belt uses the HTD 3M profile — each tooth is spaced 3mm apart with a curved (HTD) tooth geometry. It is designed to mesh with HTD 3M pulleys and sprockets only. Common pulley tooth counts used with HTD 3M belts include 12T, 15T, 20T, and 30T, though compatibility depends on your specific machine. Do not use with GT2, T5, MXL, or trapezoidal-profile pulleys, as the tooth shapes are not interchangeable and will cause premature wear or skipping.

Polyurethane (PU) timing belts generally offer good resistance to oils, mild chemicals, and moderate humidity — making them suitable for most indoor industrial and workshop environments. They typically outperform rubber belts in oily conditions. For prolonged outdoor UV exposure or immersion in liquids, additional protection or an alternative belt material may be advisable. Contact us to confirm suitability for your specific environment before ordering.

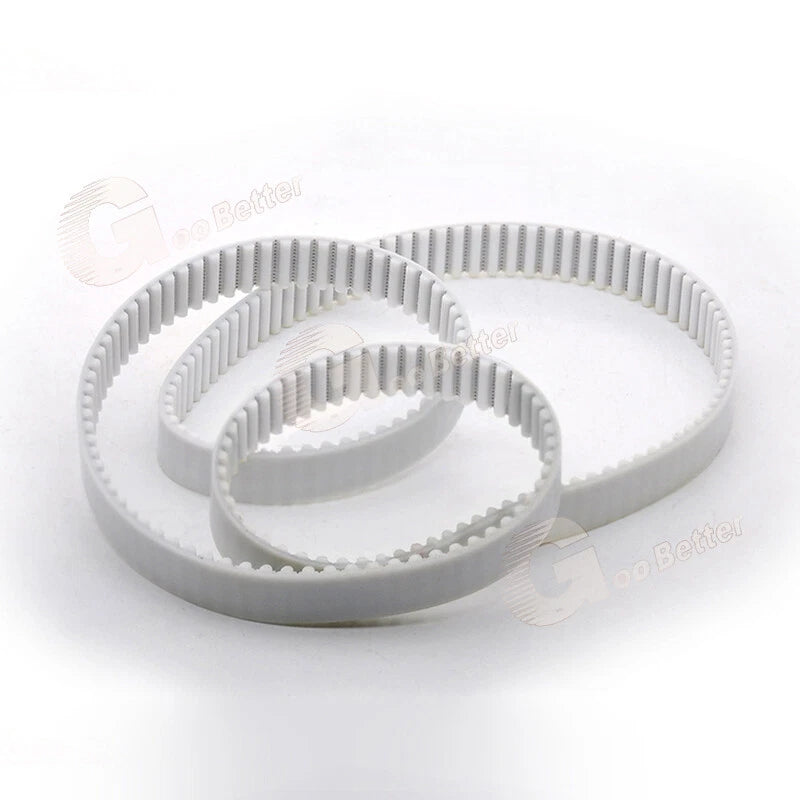

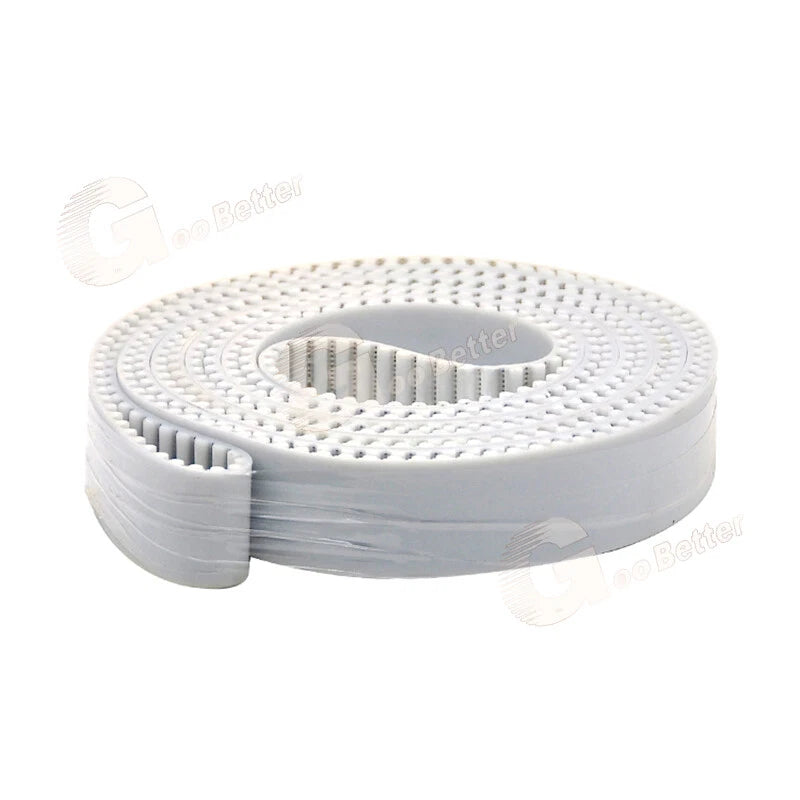

This is a closed-loop (endless) timing belt — it forms a continuous loop with no joint, splice, or fastener. This design eliminates the weak point of a joined belt and is the standard configuration for CNC axis drives, 3D printer CoreXY and Cartesian motion systems, and pulley-driven machinery where consistent tension and zero backlash are required.

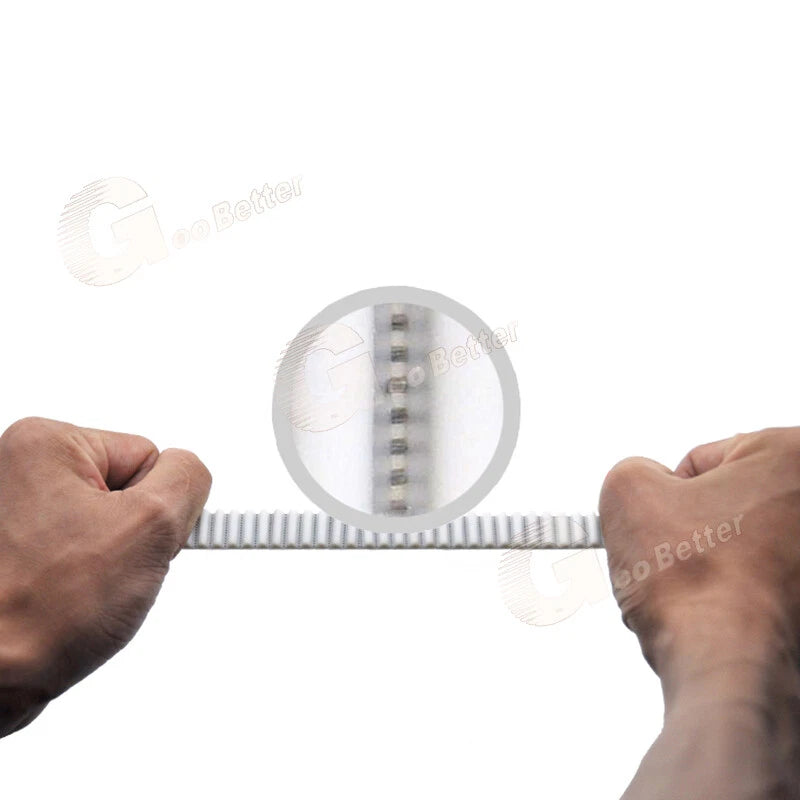

Load capacity varies by belt width and the number of teeth in mesh with the pulley. Wider belts (20mm, 30mm) generally support higher tangential forces. PU belts with internal cord reinforcement typically offer higher tensile strength than rubber belts of the same cross-section. For specific load ratings relevant to your application, please contact us with your drive speed, torque requirement, and pulley tooth count.

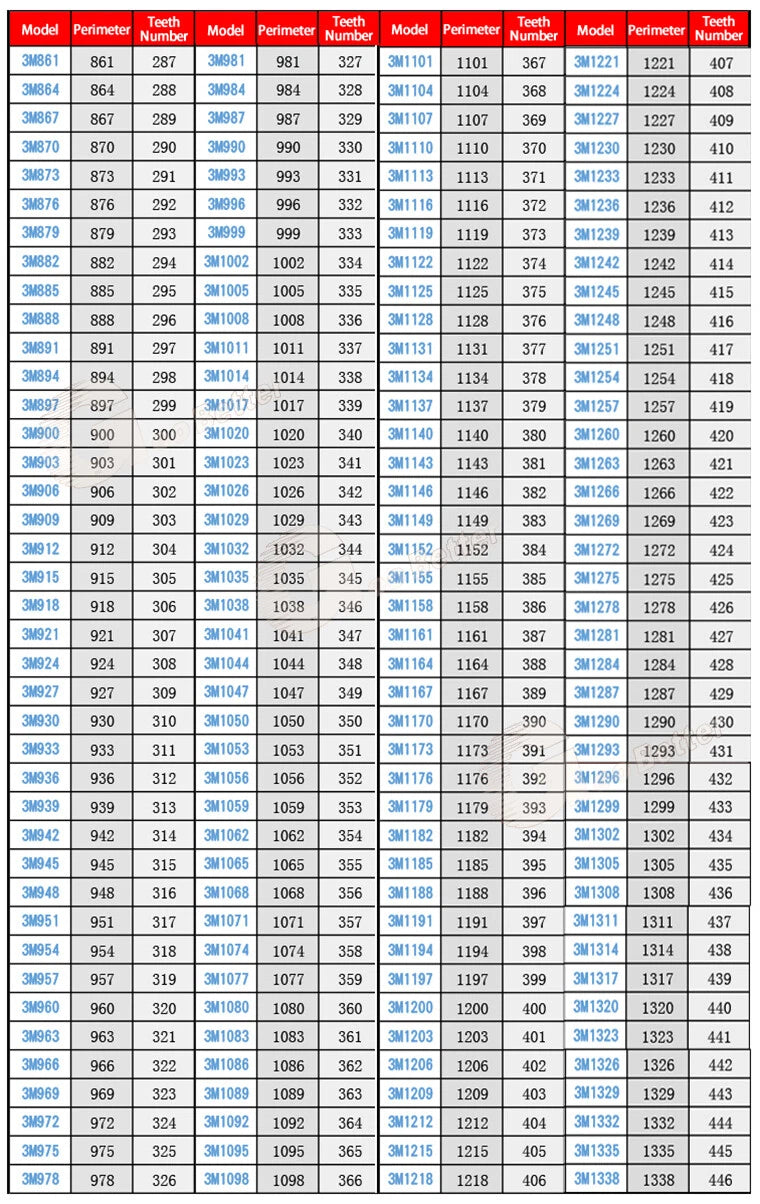

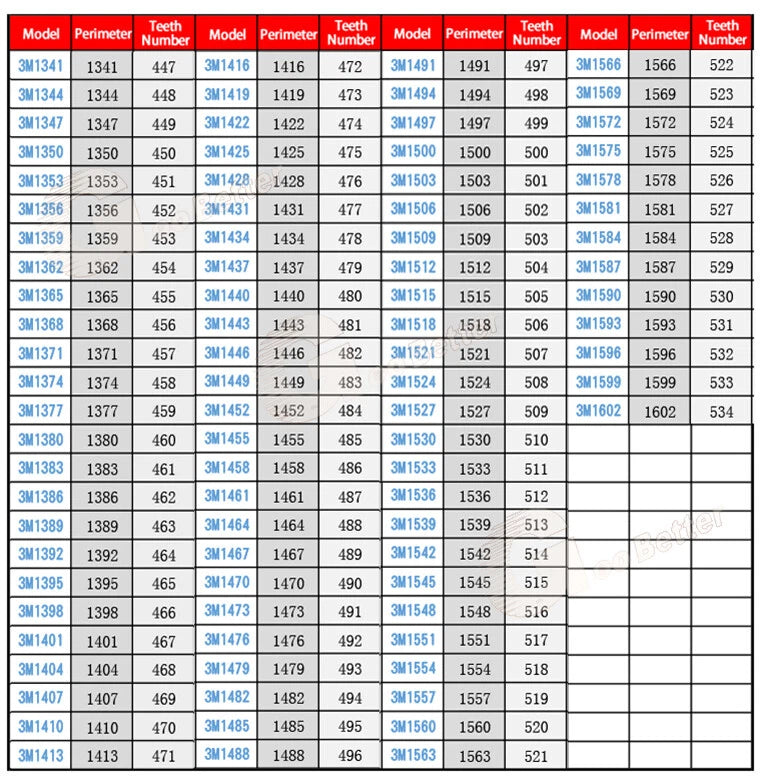

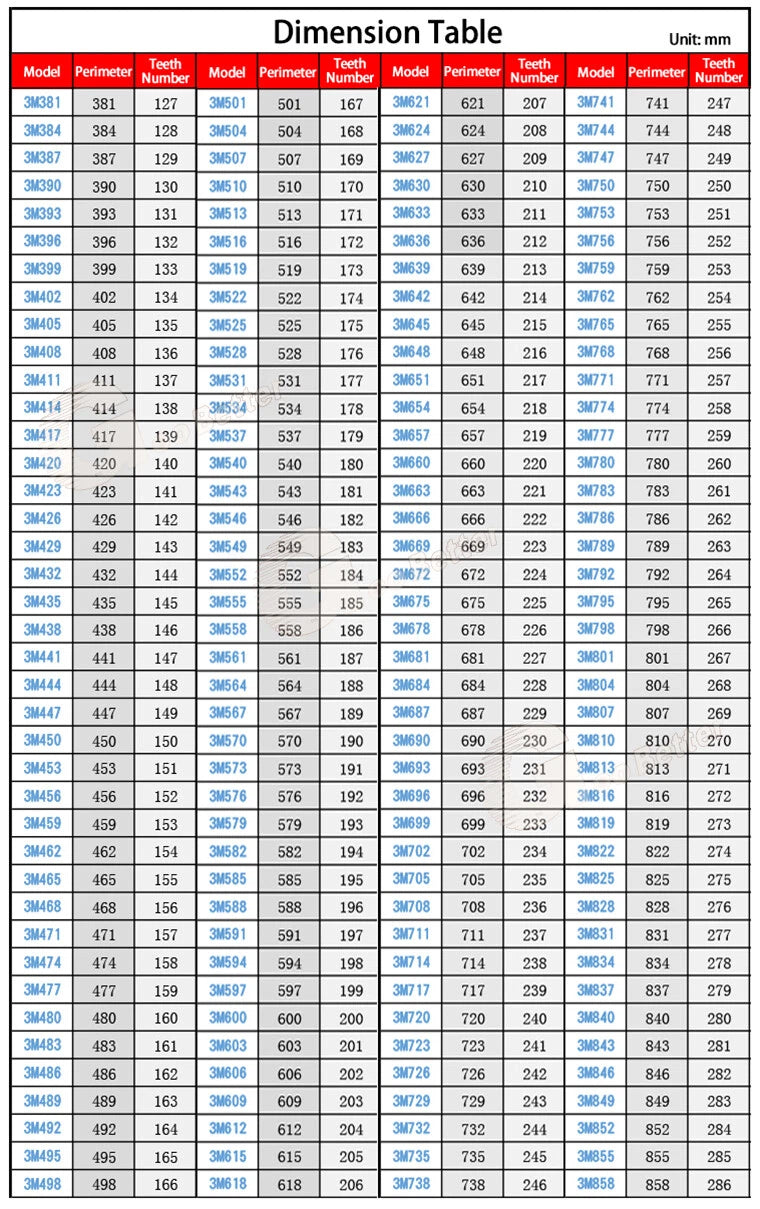

Divide the perimeter in millimeters by 25.4 to get inches. Quick reference: 1002mm ≈ 39.4", 1020mm ≈ 40.2", 1050mm ≈ 41.3", 1080mm ≈ 42.5", 1098mm ≈ 43.2". If your machine documentation lists belt length in inches, convert to mm first (multiply by 25.4) and then select the closest available perimeter from the variant options above.
