HTD 3M Timing Belt — Reliable Closed Loop Drive for Precision Motion Systems

When a slipping or stretched belt throws off your machine's positioning accuracy, every project suffers. Engineers, makers, and repair technicians who rely on 3D printers, CNC routers, robotic arms, and conveyor systems need a closed loop synchronous belt that holds tooth engagement under load without stretching out of spec. This HTD 3M timing belt delivers consistent pitch accuracy across the full drive cycle.

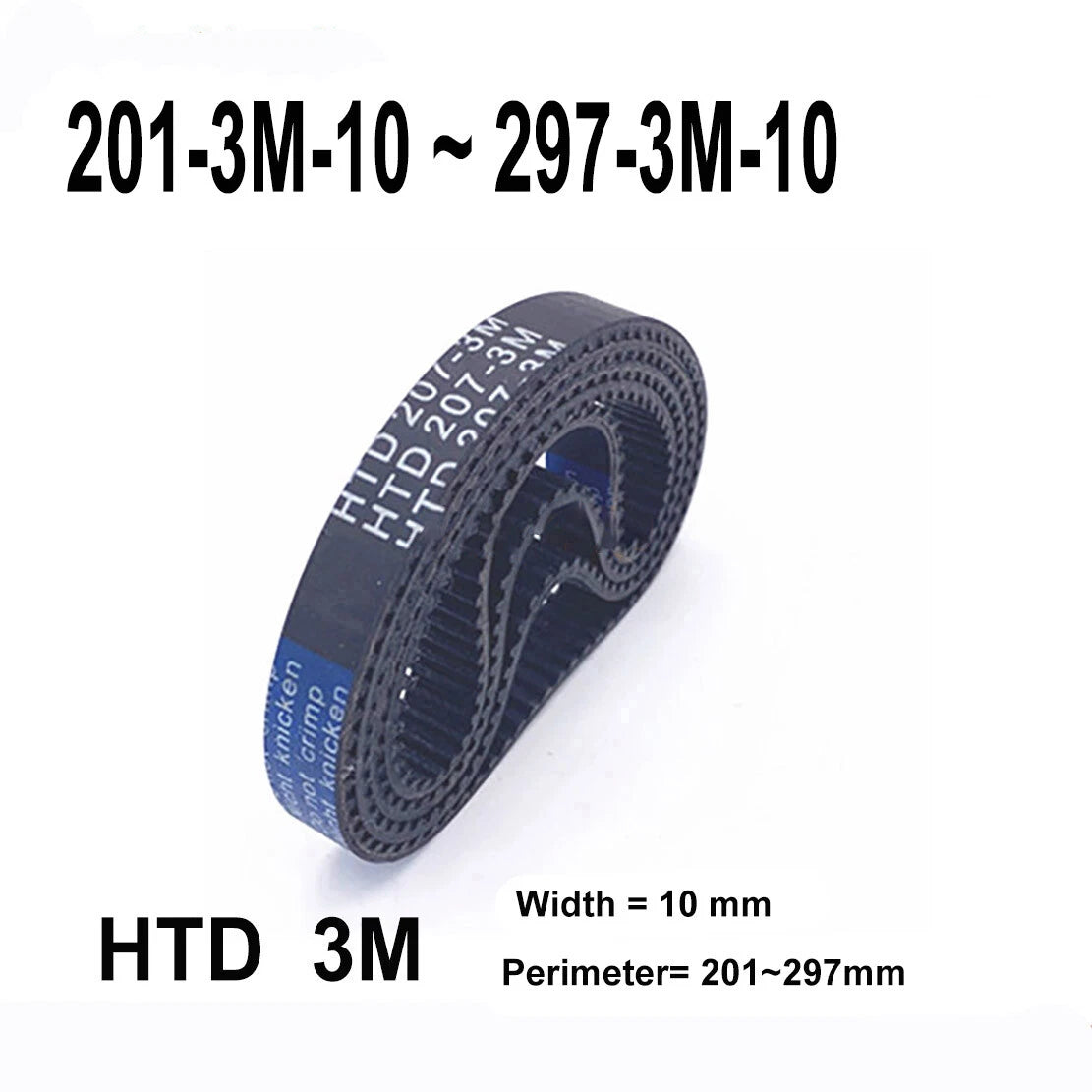

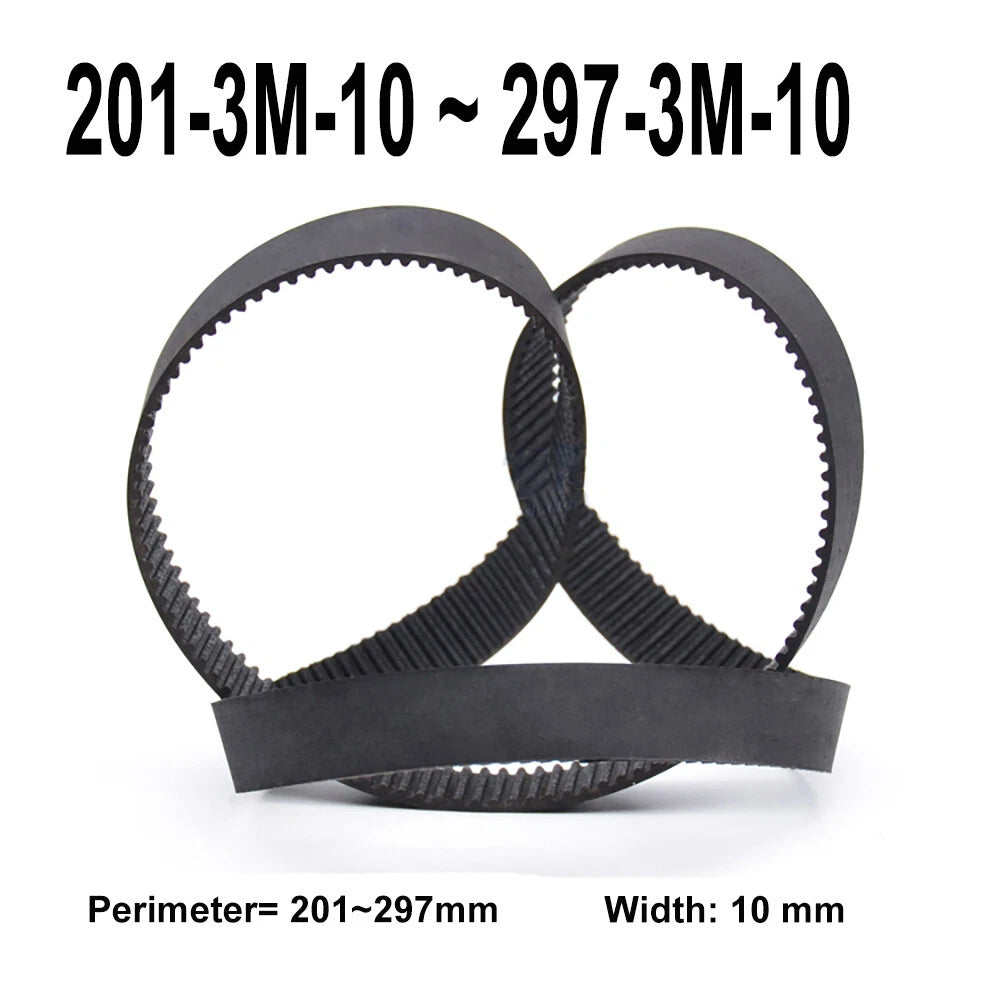

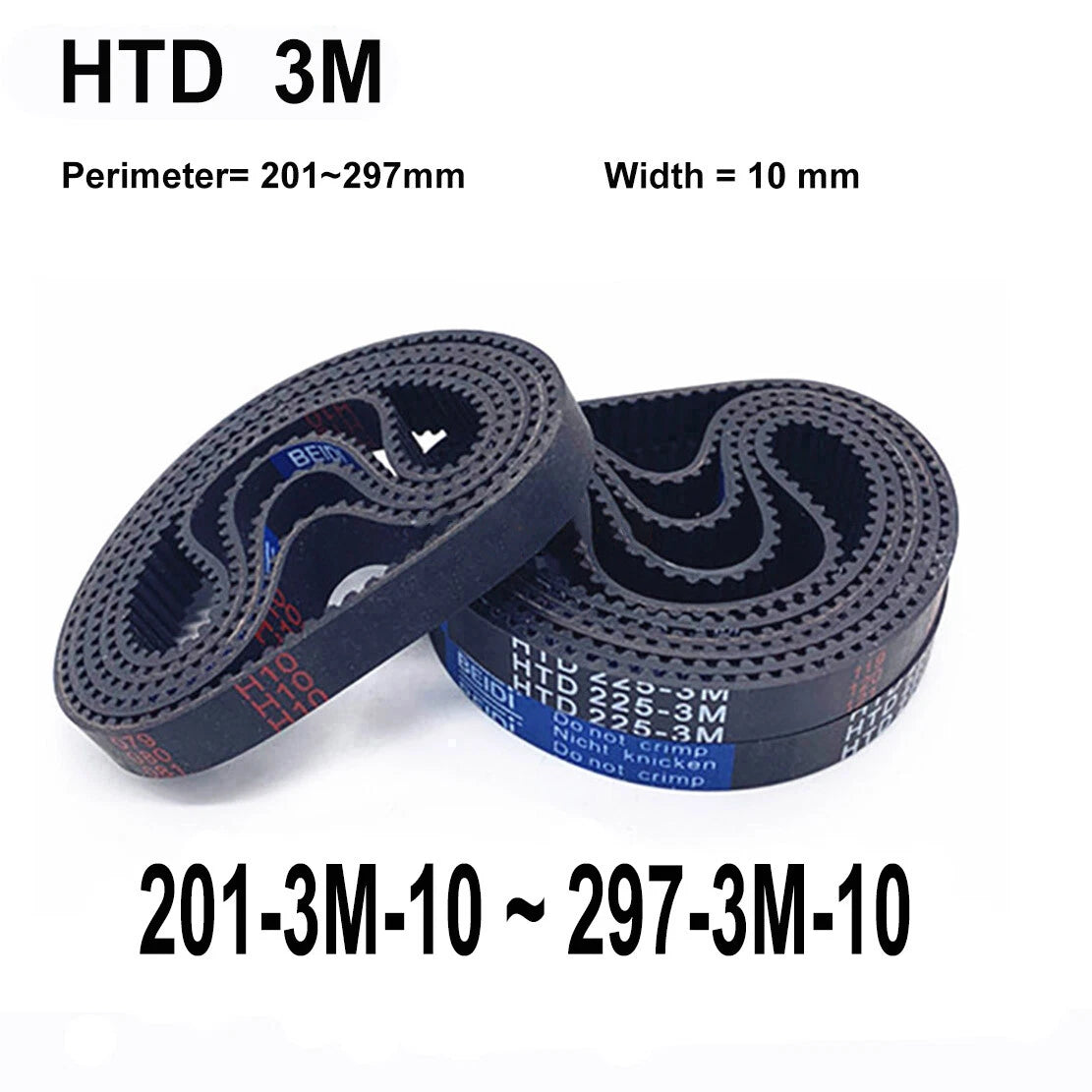

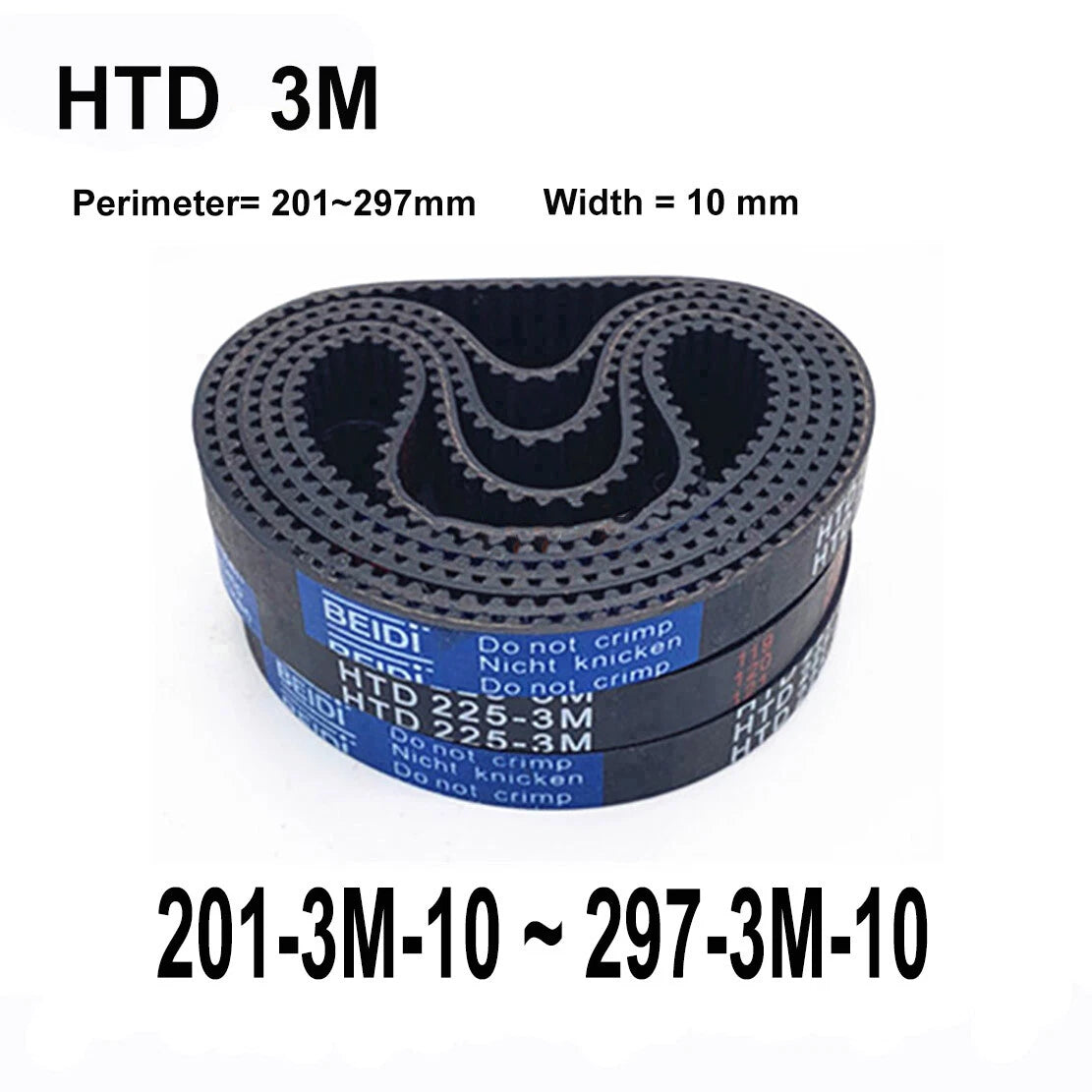

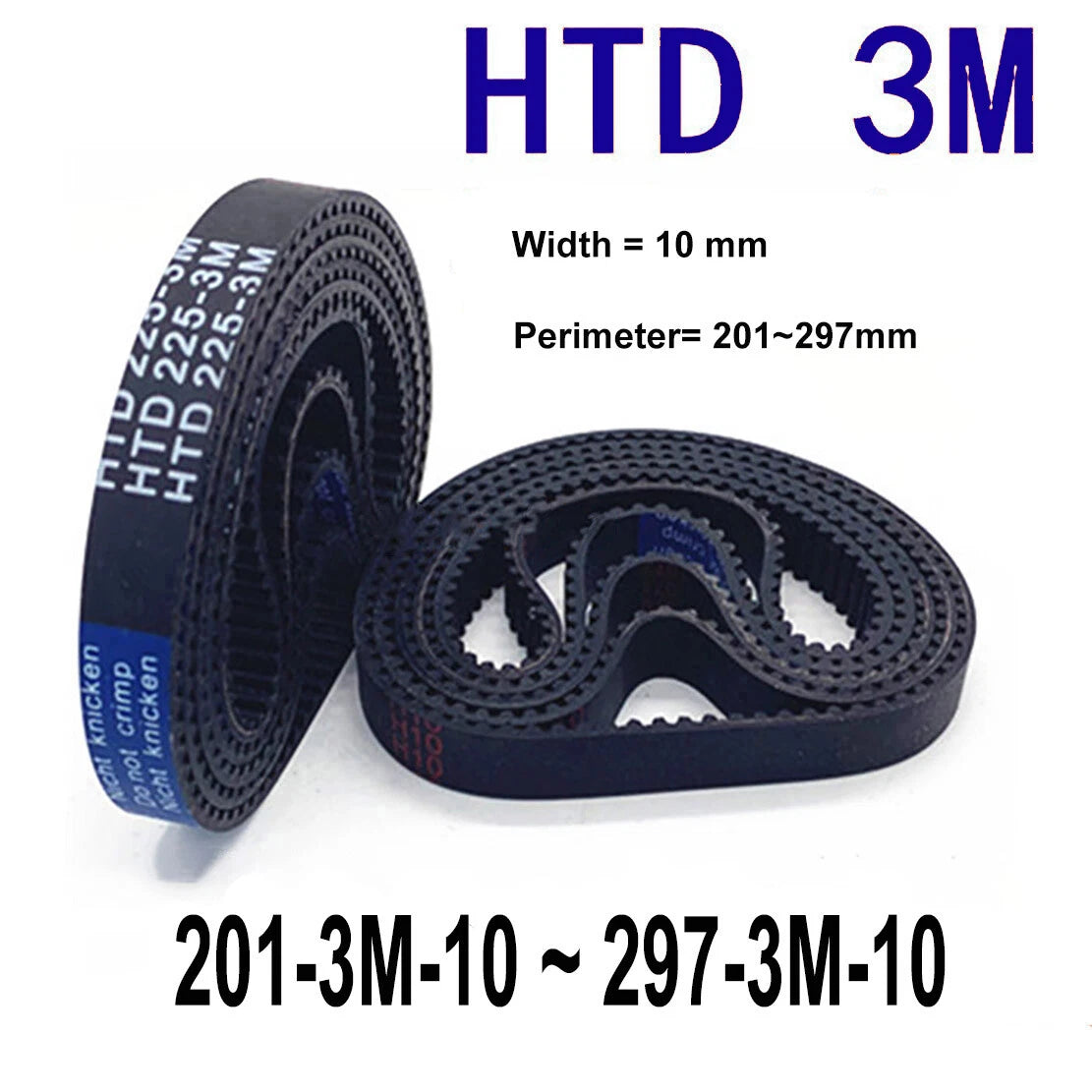

Each belt is a single closed loop with an HTD curvilinear tooth profile and a 3 mm pitch. The width is 10 mm (≈0.39 in), and perimeter sizes range from 201 mm (≈7.91 in) to 297 mm (≈11.69 in) in 3 mm increments — 33 sizes in total. Construction is typically neoprene rubber with fiberglass or steel tension cord reinforcement. Available in quantities of 1 to 5 pieces per order.

Typical applications include desktop CNC axis drives, 3D printer X/Y motion systems, small robotic joint actuators, and light-duty conveyor indexing where an HTD 3M closed loop synchronous belt is specified. The 10 mm width suits systems that need moderate lateral stiffness without the bulk of wider belt profiles.

🔗 Compatibility: Fits pulleys with HTD 3M tooth profile (3 mm pitch, curvilinear). Not compatible with GT2, MXL, XL, or T-series pulleys. Confirm pulley width ≥ 10 mm before ordering.
⚠️ Size note: Perimeter is the total closed-loop circumference. Measure your drive path or calculate from pulley center distance before selecting a size. See FAQ below for the calculation method.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

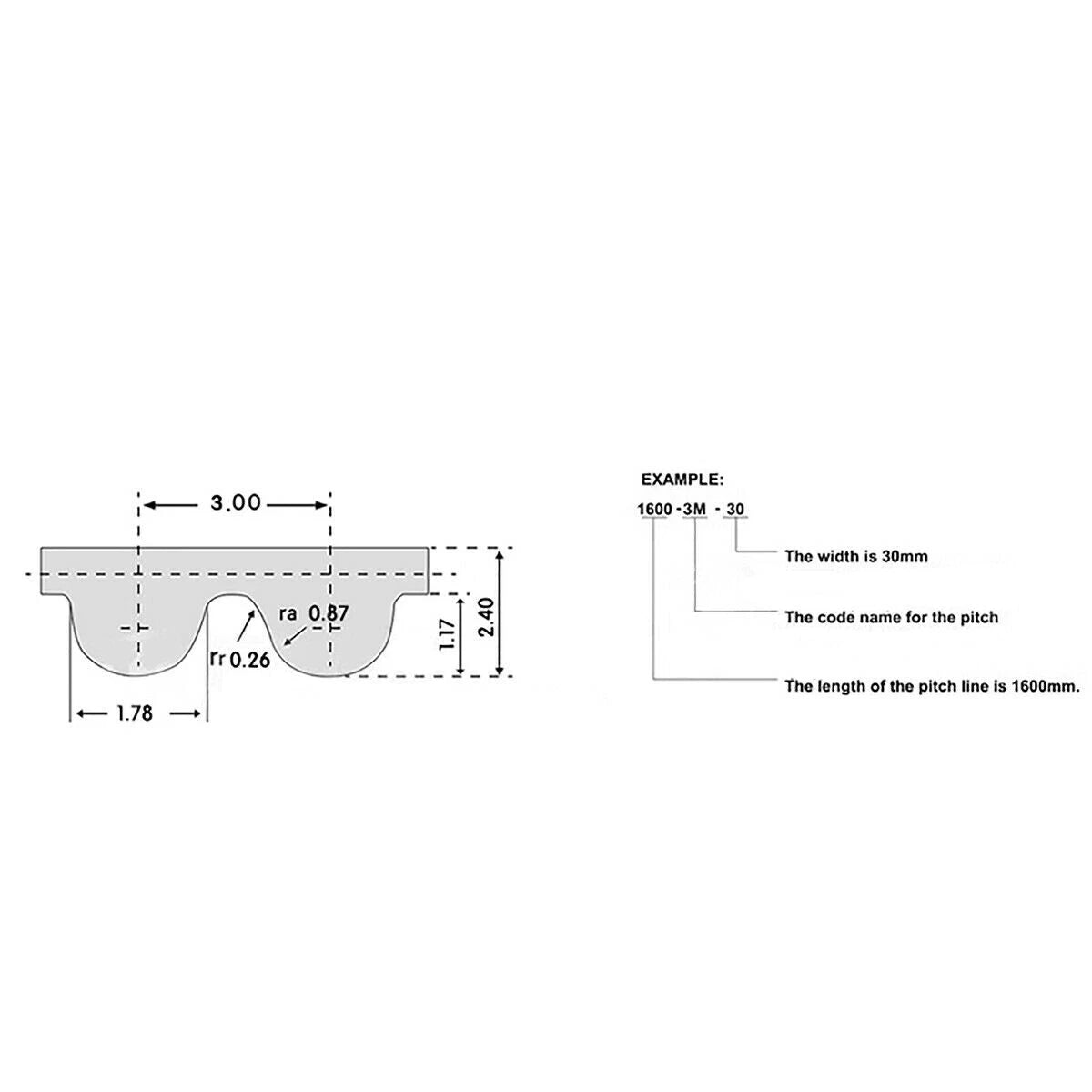

  • 🦷HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in 3M pitch drive systems.
  • 📏33 Perimeter Sizes in 3 mm Steps — From 201 mm (≈7.91 in) to 297 mm (≈11.69 in), so you can match the exact closed loop synchronous belt length your drive geometry requires.
  • ↔️10 mm Consistent Width — Uniform 10 mm (≈0.39 in) width across all sizes ensures lateral tracking stability on standard HTD 3M pulleys and flanged idlers.
  • 🔩Reinforced Tension Cord — Fiberglass or steel cord construction typically maintains pitch accuracy under cyclic loading, resisting elongation that causes positioning drift in CNC and 3D printer axes.
  • 🔄Zero-Slip Synchronous Drive — Positive tooth engagement eliminates the slip inherent in V-belts and flat belts, making these suitable for stepper and servo motor drive trains where step accuracy matters.
  • 📦Multi-Pack Ordering (1–5 pcs) — Order spare belts alongside your primary belt in a single transaction — useful for maintenance kits on multi-axis machines or small production runs.

📐 Technical Specifications — HTD 3M Timing Belt

Belt Profile HTD (High Torque Drive), curvilinear tooth
Pitch 3 mm (HTD 3M)
Width 10 mm (≈0.39 in)
Perimeter Range 201 mm (≈7.91 in) – 297 mm (≈11.69 in)
Perimeter Increment 3 mm per step (33 sizes available)
Belt Type Closed loop (endless)
Construction Neoprene rubber body, fiberglass or steel tension cord (typical)
Compatible Pulley Profile HTD 3M only
Quantity per Order 1, 2, 3, 4, or 5 pieces (select above)

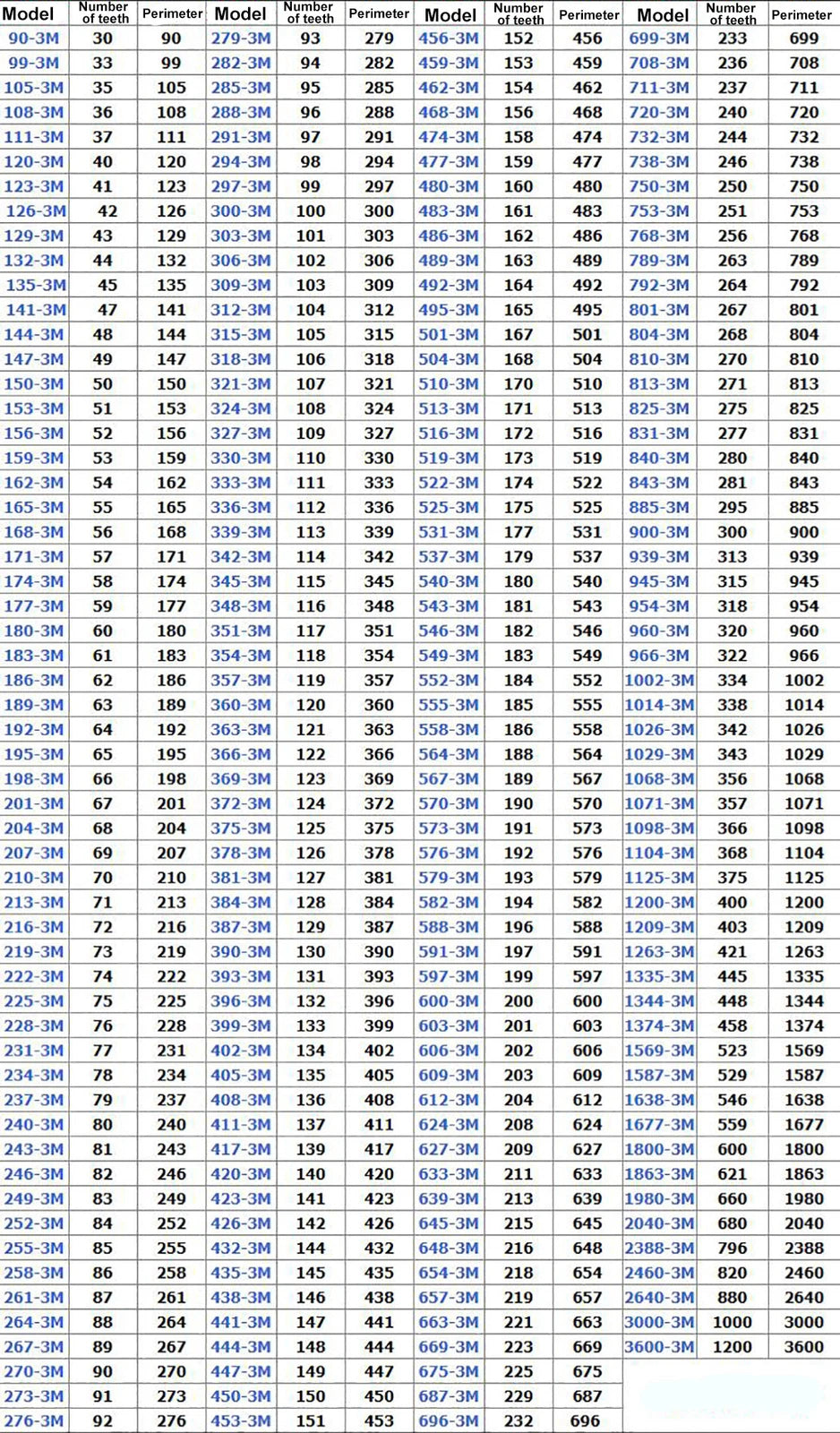

Tooth Count Range 67 teeth (201 mm) – 99 teeth (297 mm)
Operating Temperature See variant options
Color / Finish Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula:
Belt Perimeter = 2 × C + π × (D1 + D2) / 2
where C is center distance and D1, D2 are the pulley pitch diameters. Round up to the nearest available size. For example, a 201 mm belt is approximately 7.91 inches in circumference. When in doubt, size up — a slightly longer belt can be tensioned; a belt that is too short will not install.

What does HTD 3M mean, and is it compatible with standard 3M pulleys?

HTD stands for High Torque Drive. The "3M" designation means a 3 mm pitch (tooth-to-tooth distance) with the HTD curvilinear tooth profile. These belts are generally compatible with any pulley labeled HTD 3M. They are not interchangeable with MXL, XL, GT2, or T-series pulleys, even if the pitch appears similar.

What load or torque can these timing belts handle?

HTD 3M belts at 10 mm width are typically rated for light-to-medium duty applications. Actual load capacity depends on the number of teeth in mesh, pulley diameter, and operating speed. For high-torque or heavy industrial use, consider a wider belt (15 mm or 20 mm) or a larger pitch (5M or 8M). Contact us to confirm suitability for your specific application.

Can I use these belts outdoors or in wet environments?

These belts are generally made from neoprene rubber with fiberglass or steel cord reinforcement, which provides moderate resistance to moisture and mild chemicals. They are not typically rated for continuous submersion or exposure to oils and solvents. For outdoor or washdown environments, verify the specific material spec or contact us to confirm.

How do I know if this belt will fit my 3D printer or CNC machine?

Check your machine's belt specification — most 3D printers and desktop CNC routers use either GT2 (2 mm pitch) or HTD 3M (3 mm pitch) belts. If your pulleys are marked "3M" or "HTD 3M", this belt will generally fit. Confirm the width (10 mm) and perimeter match your drive path. When in doubt, measure the old belt or consult your machine's documentation.

What is the difference between the perimeter sizes listed (201 mm to 297 mm)?

Each size represents the total closed-loop circumference of the belt. Sizes are available in 3 mm increments from 201 mm (≈7.91 in) to 297 mm (≈11.69 in). Select the size that matches your drive system's required belt path length. Using the wrong perimeter will result in a belt that is either too loose to engage teeth properly or too tight to install.

Can I order multiple belts at once?

Yes. Each listing allows you to select a quantity of 1 to 5 pieces per order at a discounted per-unit rate. If you need larger quantities, contact us directly for bulk pricing.
