HTD 3M Closed Loop Timing Belt 15mm Wide — Precise Motion Control for Makers and Engineers

When a slipping or incorrectly sized drive belt causes missed steps, layer shifts, or axis drift in your 3D printer, CNC router, or robotic actuator, the entire project stalls. This HTD-3M closed loop synchronous timing belt is designed for DIYers, engineers, and repair technicians who need a reliable, drop-in replacement or upgrade belt without hunting through specialty distributors.

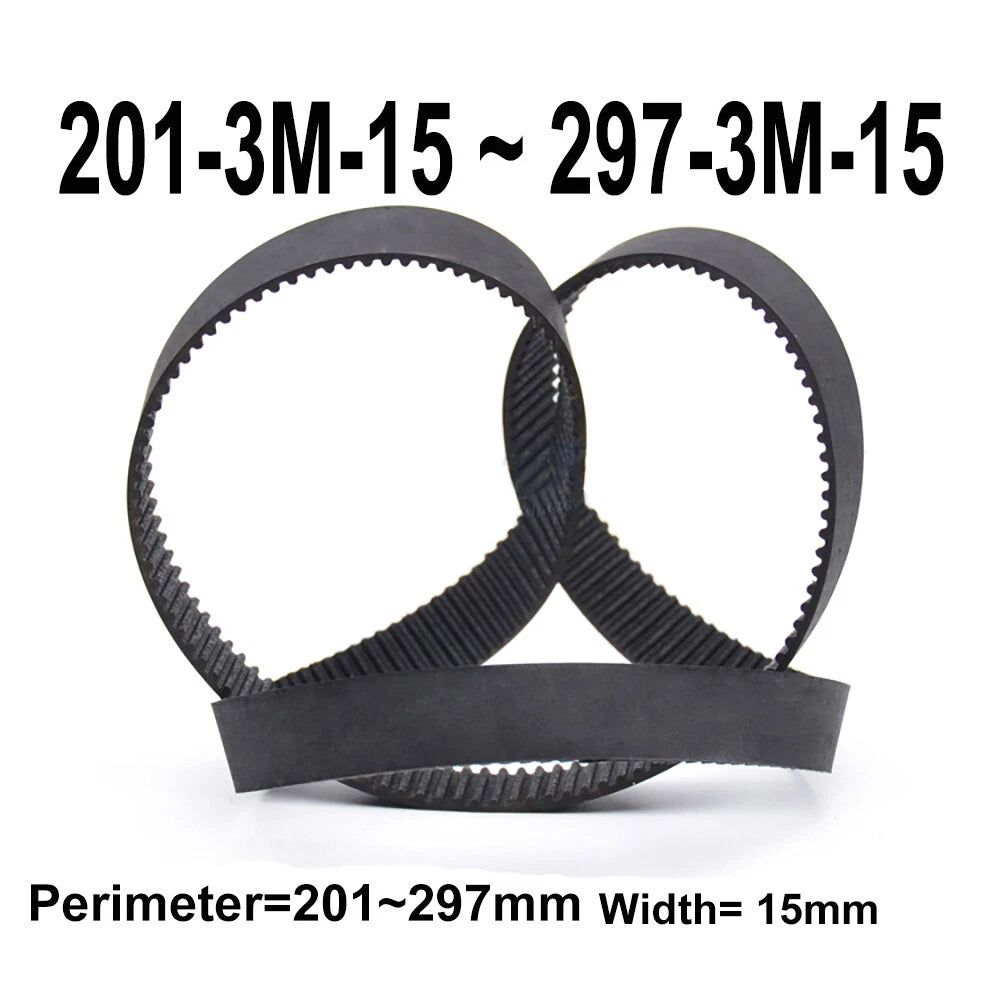

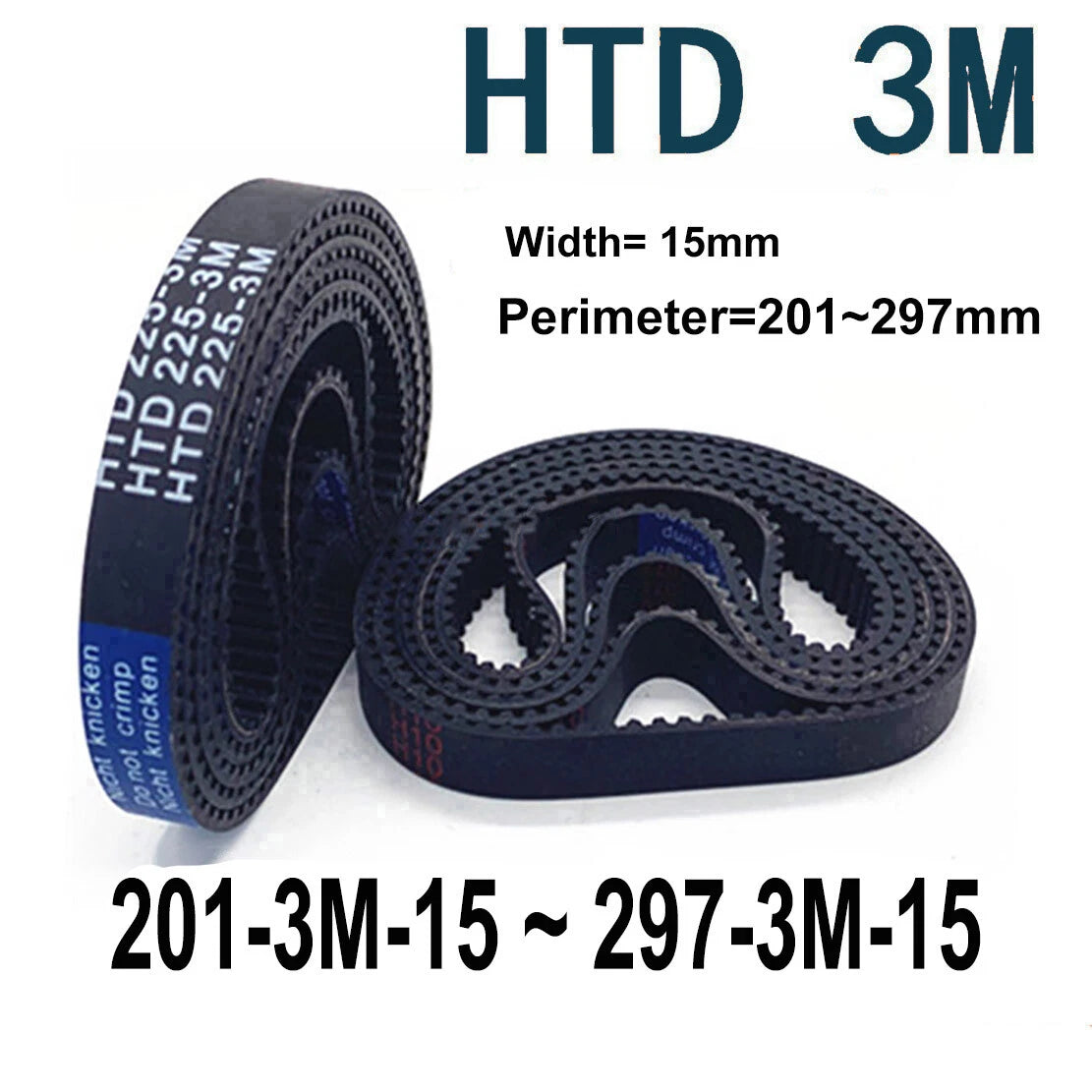

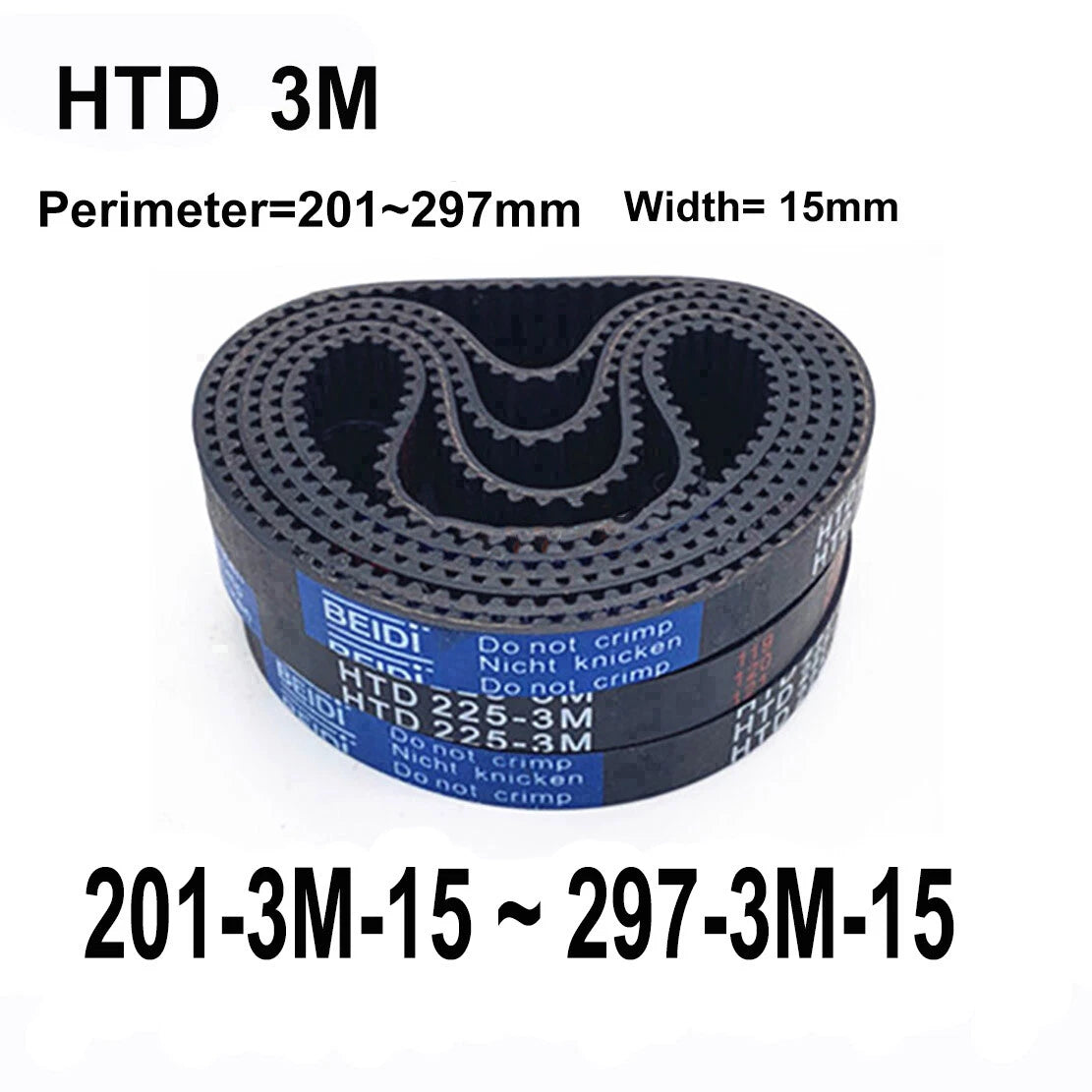

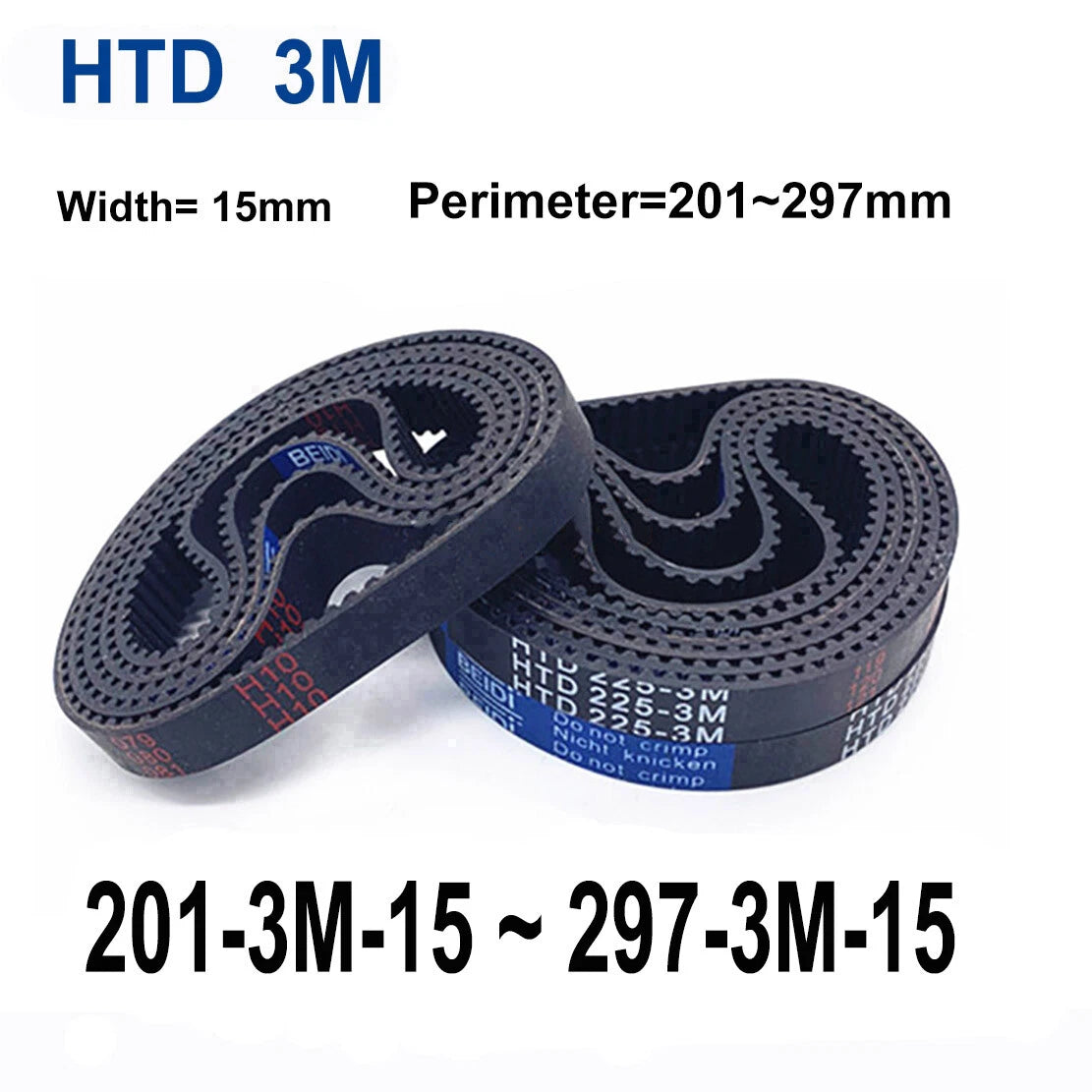

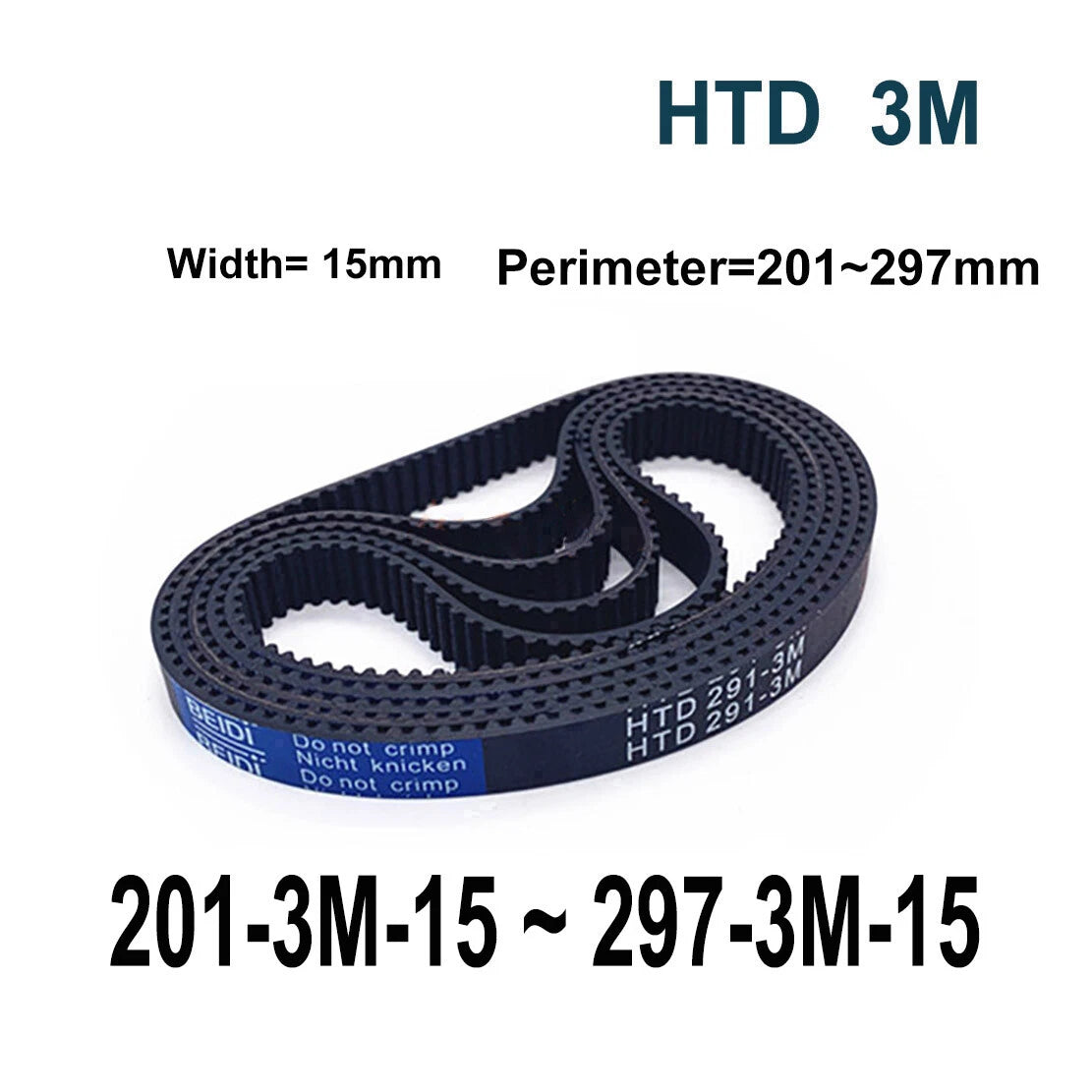

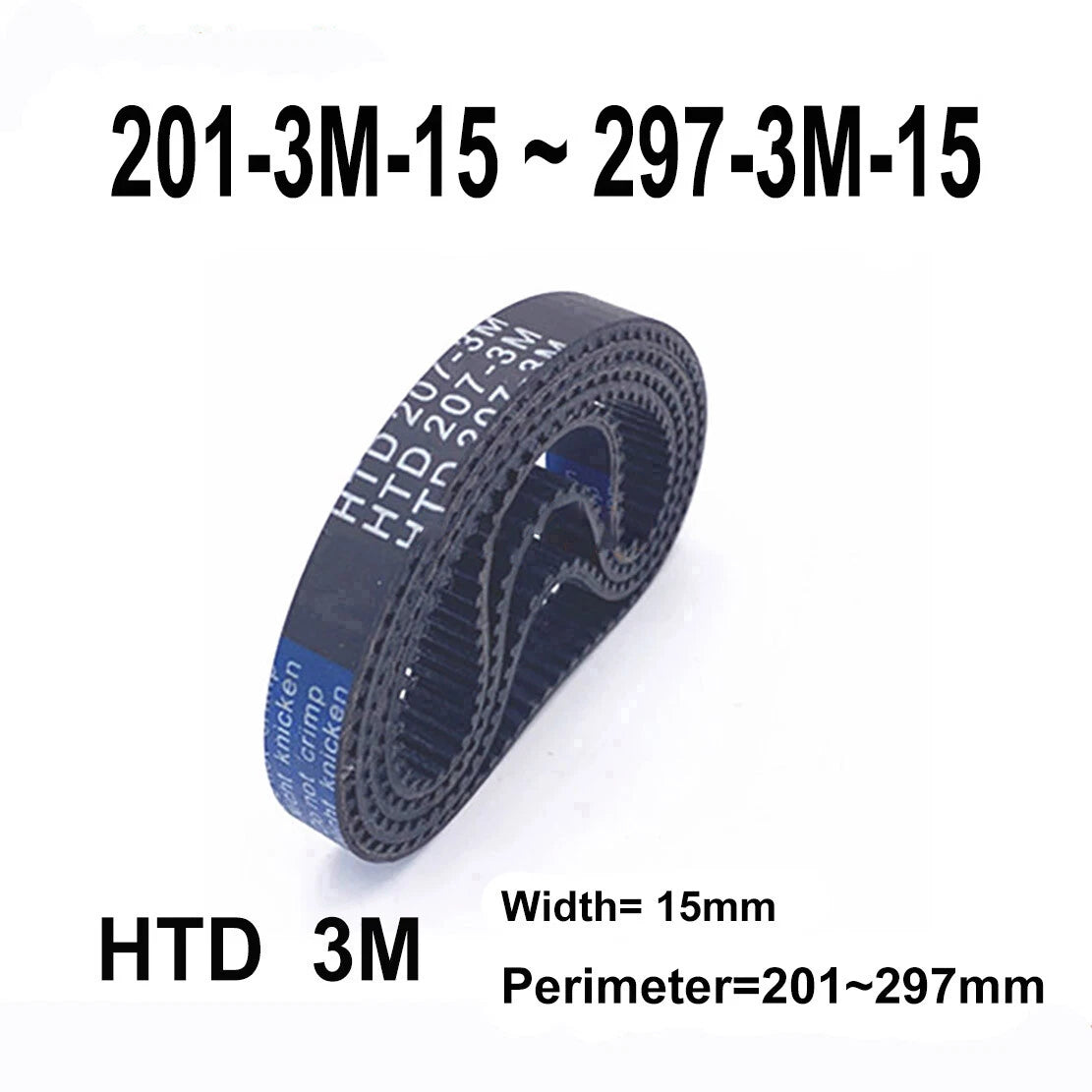

Each belt features an HTD-3M tooth profile with a 3mm pitch and a fixed width of 15mm (≈0.59"). Available perimeters range from 201mm (≈7.9") to 297mm (≈11.7") in 3mm increments, giving you precise sizing for your specific drive system. The closed-loop construction means no splicing or joining — the belt arrives ready to install. Tension members are typically fiberglass or steel cord embedded in a neoprene or polyurethane body for dimensional stability under load.

Typical use cases include 3D printer axis drive replacement (Y-axis, Z-axis, extruder), CNC router gantry drives requiring an HTD-3M 15mm synchronous belt, and light-duty robotics or automation projects where accurate positioning and low backlash are required.

ℹ️ Compatibility: Fits any HTD-3M pulley with 3mm tooth pitch and 15mm belt width. Verify your pulley profile and belt width before ordering. Tooth count = perimeter (mm) ÷ 3.

✅ Key Features of These HTD-3M Closed Loop Timing Belts

  • 🔁Closed-Loop Construction — No splicing required; the belt arrives as a continuous loop ready for immediate installation on HTD-3M pulleys.
  • 📐3mm HTD Tooth Pitch — Curvilinear HTD tooth profile distributes load across the tooth face, reducing backlash and improving positional accuracy in CNC and 3D printer drive systems.
  • 📏15mm Fixed Width — Consistent 15mm (≈0.59") belt width matches standard HTD-3M 15mm pulleys used in desktop CNC routers and mid-frame 3D printers.
  • 🔩Wide Perimeter Selection — 33 sizes from 201mm to 297mm in 3mm steps let you find the exact closed loop synchronous belt length your drive system requires without custom cutting.
  • 💪Reinforced Tension Members — Typically fiberglass or steel cord tension cords embedded in the belt body resist elongation under cyclic loading, maintaining consistent tooth engagement over time.
  • 📦Flexible Quantity Options — Order 1 to 5 belts per SKU with volume pricing; useful for stocking spares or outfitting multi-axis machines that use the same belt size.

📐 Technical Specifications — HTD-3M Synchronous Timing Belt

Belt Profile HTD-3M (High Torque Drive, curvilinear tooth)
Tooth Pitch 3 mm
Belt Width 15 mm (≈0.59")
Perimeter Range 201 mm (≈7.9") – 297 mm (≈11.7")
Size Increment 3 mm steps (33 sizes available)
Tooth Count Range 67 teeth (201mm) – 99 teeth (297mm)
Loop Type Closed loop (endless / seamless)
Body Material Typically neoprene rubber or polyurethane — contact us to confirm
Tension Member Typically fiberglass or steel cord — contact us to confirm
Compatible Pulley HTD-3M pulleys, 15 mm belt width
Quantity per Order 1, 2, 3, 4, or 5 pieces (select above)
Application 3D printers, CNC routers, robotics, light automation
⚠️ Size Tip: The "Select Size" option shows perimeter–pitch format (e.g., "201-3M" = 201mm perimeter, 3M pitch). Tooth count = perimeter ÷ 3. If your measurement falls between sizes, select the next size up.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD-3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Perimeter ≈ 2 × C-to-C + (π × pitch diameter of both pulleys ÷ 2). For HTD-3M belts, the perimeter is the total outer loop length. As a quick reference, 201mm ≈ 7.9" and 297mm ≈ 11.7". If your calculation falls between two available sizes, generally select the next size up and adjust tensioner position. Always verify against your machine's service manual or original belt markings.

What does HTD-3M mean, and how is it different from other timing belt profiles?

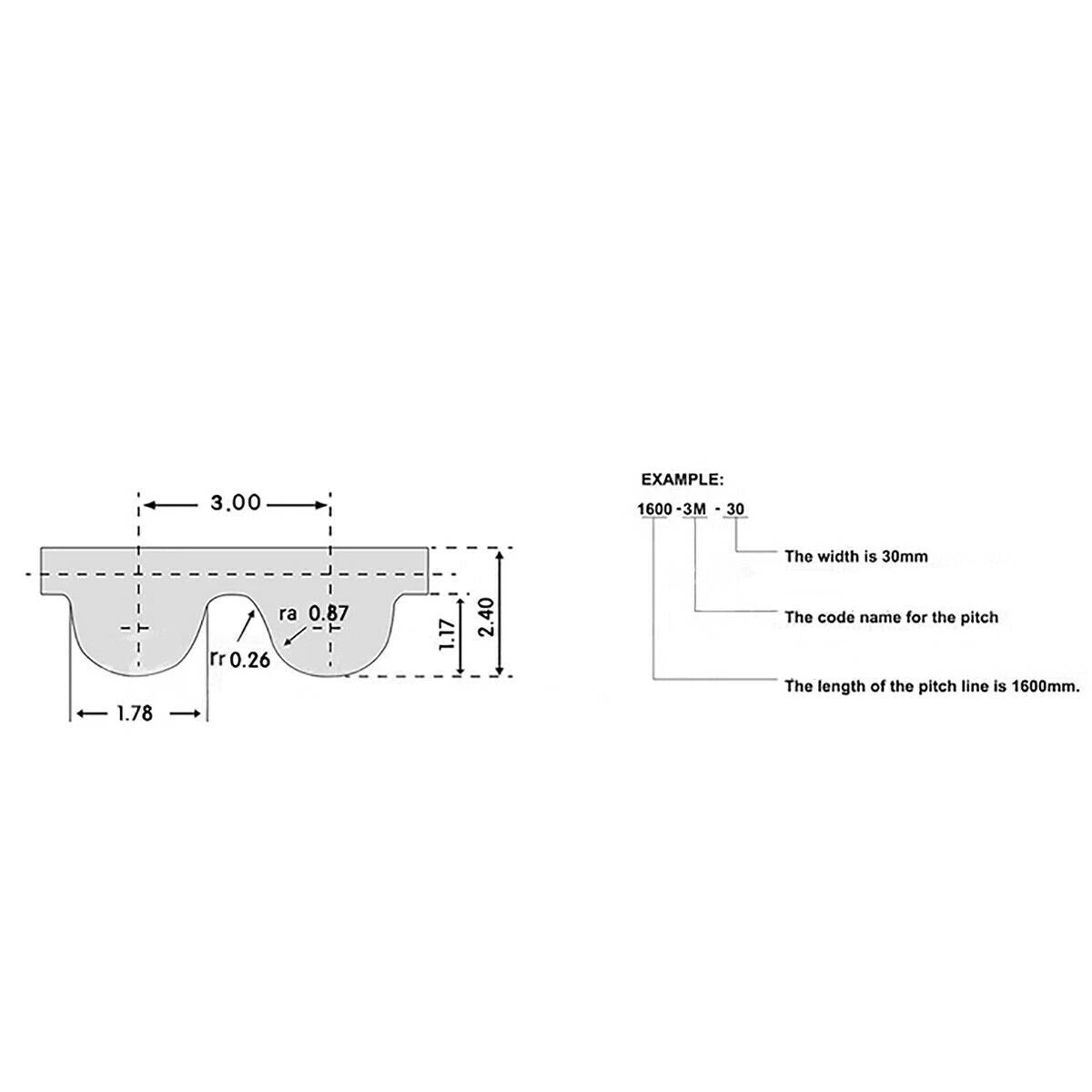

HTD stands for High Torque Drive. The 3M designation means a 3mm tooth pitch (center-to-center distance between teeth). HTD profiles feature a rounded, curvilinear tooth shape that generally provides better load distribution and reduced backlash compared to trapezoidal profiles (MXL, XL, L). This makes HTD-3M a common choice for 3D printers, CNC routers, and light robotics where positional accuracy matters. It is not interchangeable with GT2 or MXL profiles even if the pitch appears similar.

What is the tensile strength and load capacity of these timing belts?

Tensile strength varies by construction. HTD-3M belts at 15mm width are typically reinforced with fiberglass or steel cord tension members and are generally suited for light-to-medium duty motion control applications such as 3D printer axes and small CNC gantries. For specific load ratings or use in high-load or safety-critical applications, contact us to confirm the exact specification before ordering.

Can these timing belts be used outdoors or in wet environments?

HTD-3M timing belts are typically made from neoprene rubber or polyurethane, both of which offer moderate resistance to moisture, oils, and mild chemicals. They are generally suitable for indoor workshop and industrial environments. For prolonged outdoor UV exposure or submersion, contact us to confirm the specific material composition before ordering.

Will this belt fit my 3D printer or CNC machine?

This belt uses the HTD-3M tooth profile with a 3mm pitch and 15mm width. It is compatible with any HTD-3M pulley of the same pitch and width. Common compatible machines include Creality Ender-series and similar 3D printers that use HTD-3M 15mm drive belts on Y or Z axes, as well as desktop CNC routers specifying HTD-3M 15mm synchronous belts. Always verify your pulley's tooth profile marking and belt width before ordering — HTD-3M is not interchangeable with GT2 or other profiles.

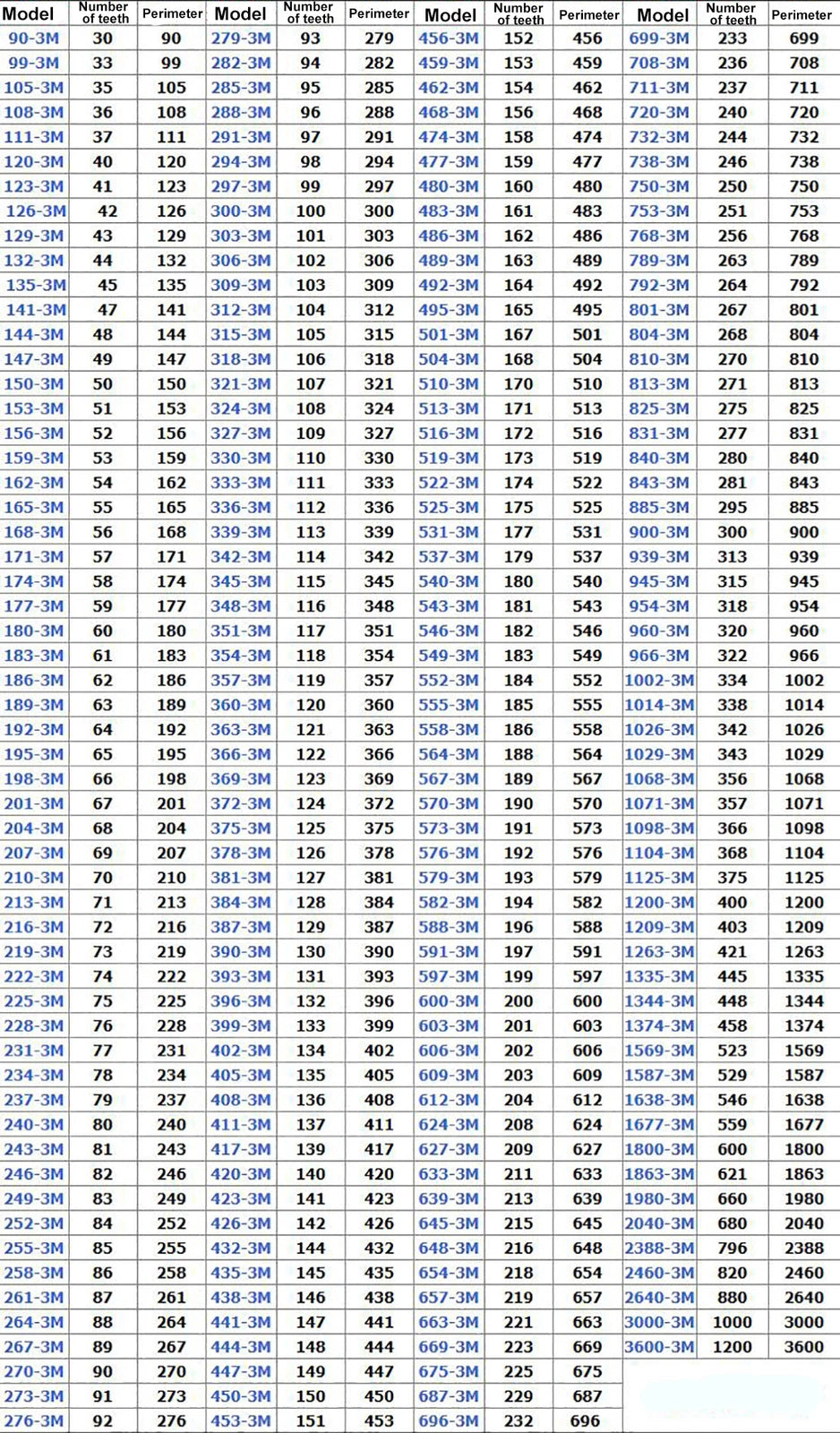

How many teeth does each belt have?

Tooth count = belt perimeter (mm) ÷ pitch (3mm). Examples:

  • 201mm belt → 67 teeth
  • 240mm belt → 80 teeth
  • 270mm belt → 90 teeth
  • 297mm belt → 99 teeth

Use this formula to match your pulley's tooth count requirements.

Can I order multiple belts at a discounted price?

Yes. Each listing allows you to select 1 to 5 pieces per order using the QTY option above. The per-unit price decreases as quantity increases, making it cost-effective to stock spares or outfit multi-axis machines using the same belt size. For quantities greater than 5, contact us directly for bulk pricing.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
