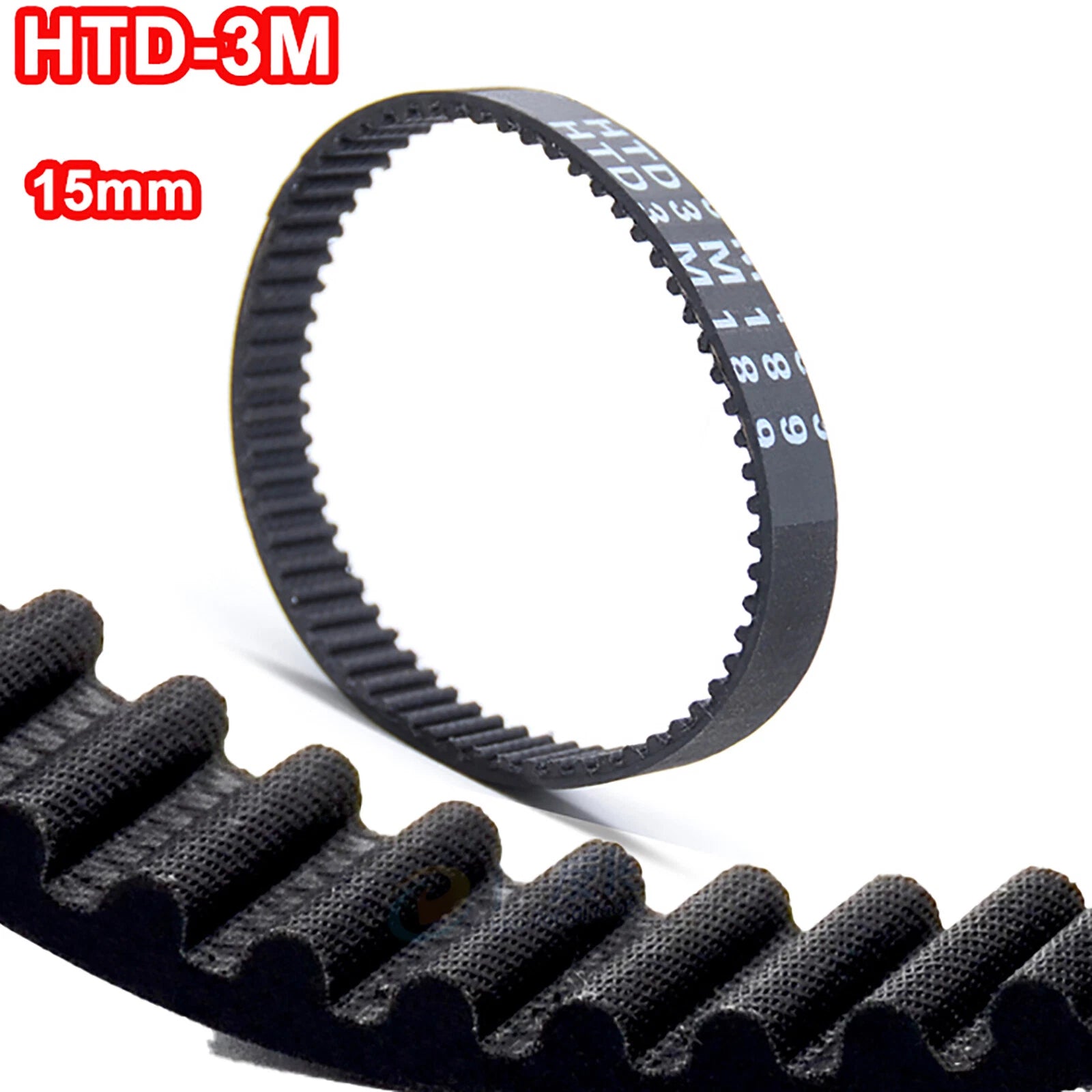

HTD 3M Timing Belt 15mm Wide — Closed-Loop Precision Drive for 3D Printers, CNC & Robotics

When a worn or incorrectly sized drive belt causes layer shifts on your 3D printer, missed steps on your CNC router, or erratic motion in your robotic arm, the entire project stalls. Engineers, makers, and machine builders who rely on precise, repeatable motion need a closed-loop HTD 3M timing belt that fits exactly right — not a generic substitute that stretches, skips teeth, or arrives in the wrong length.

Each belt in this listing is a single closed-loop (endless) HTD-3M timing belt with a 3mm pitch and 15mm width. The tooth profile follows the HTD (High Torque Drive) curvilinear standard, manufactured from neoprene rubber with internal fiber cord reinforcement for dimensional stability. Available lengths range from 87mm (≈3.4″, 29 teeth) to 3600mm (≈141.7″, 1200 teeth) — select your exact circumference and tooth count from the variant dropdown above.

Typical applications include replacement drive belts for 3D printer X/Y axes requiring wider 15mm belts, desktop CNC router feed drives, robotic joint actuators, automated conveyor systems, and custom motion platforms where the standard 6mm GT2 belt lacks the width and torque capacity needed for the job.

🔗 Compatibility: HTD-3M tooth profile only. Requires HTD-3M pulleys with 15mm belt groove width. Not compatible with GT2, MXL, T2.5, or T5 pulleys. Verify your pulley spec before ordering.
⚠️ Size confirmation: Belt length = total circumference (not center-to-center distance). Match the mm length and tooth count to your existing belt or pulley calculation. When in doubt, measure your old belt around its outer circumference.

✅ Key Features of These HTD 3M Timing Belts

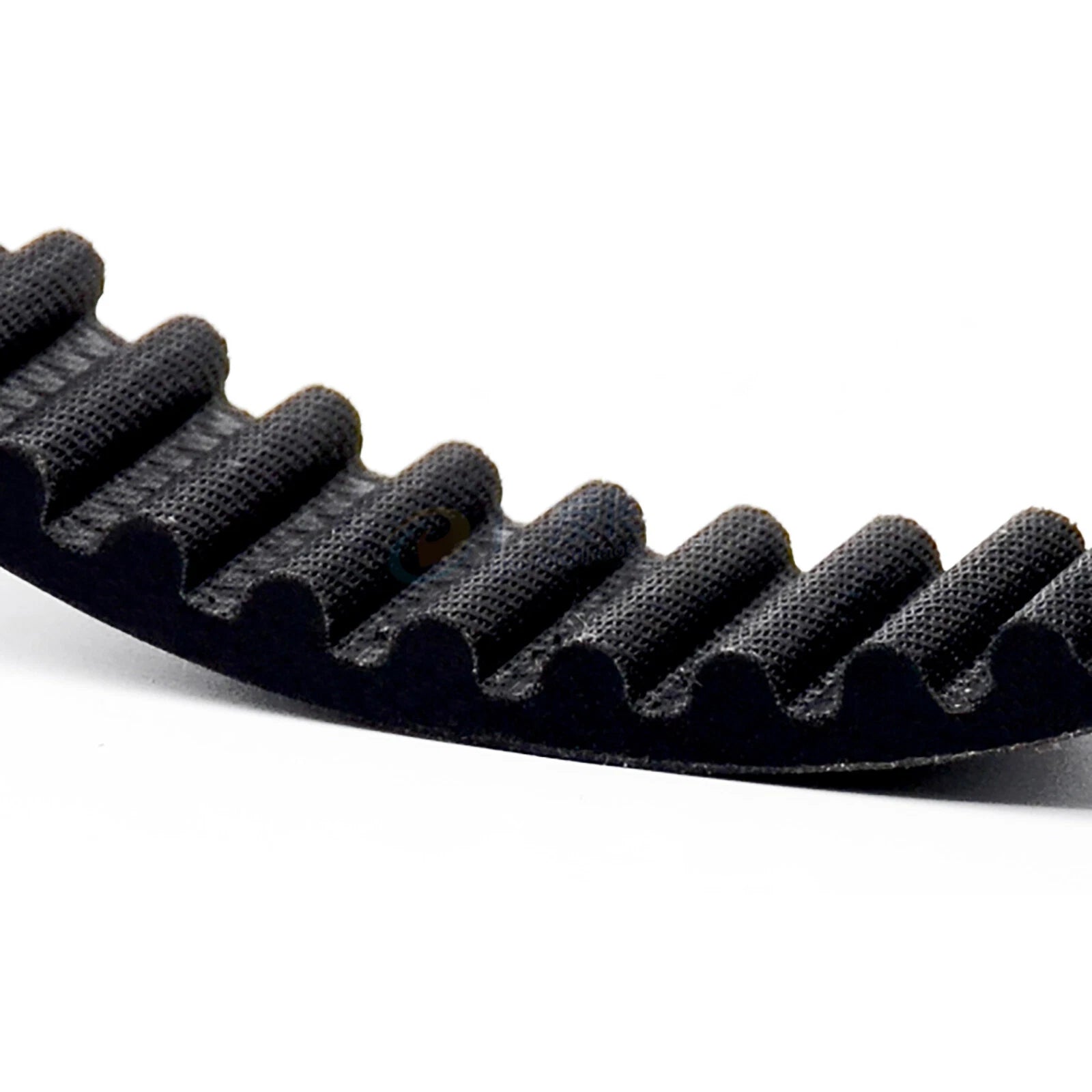

  • 🦷HTD Curvilinear Tooth Profile — The rounded HTD tooth shape distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque 3D printer and CNC drive applications.
  • 📏15mm Width for Added Torque Capacity — Wider than standard 6mm or 9mm belts, the 15mm belt width increases the number of teeth in mesh simultaneously, making it suitable for heavier gantry systems and wider-format motion platforms.

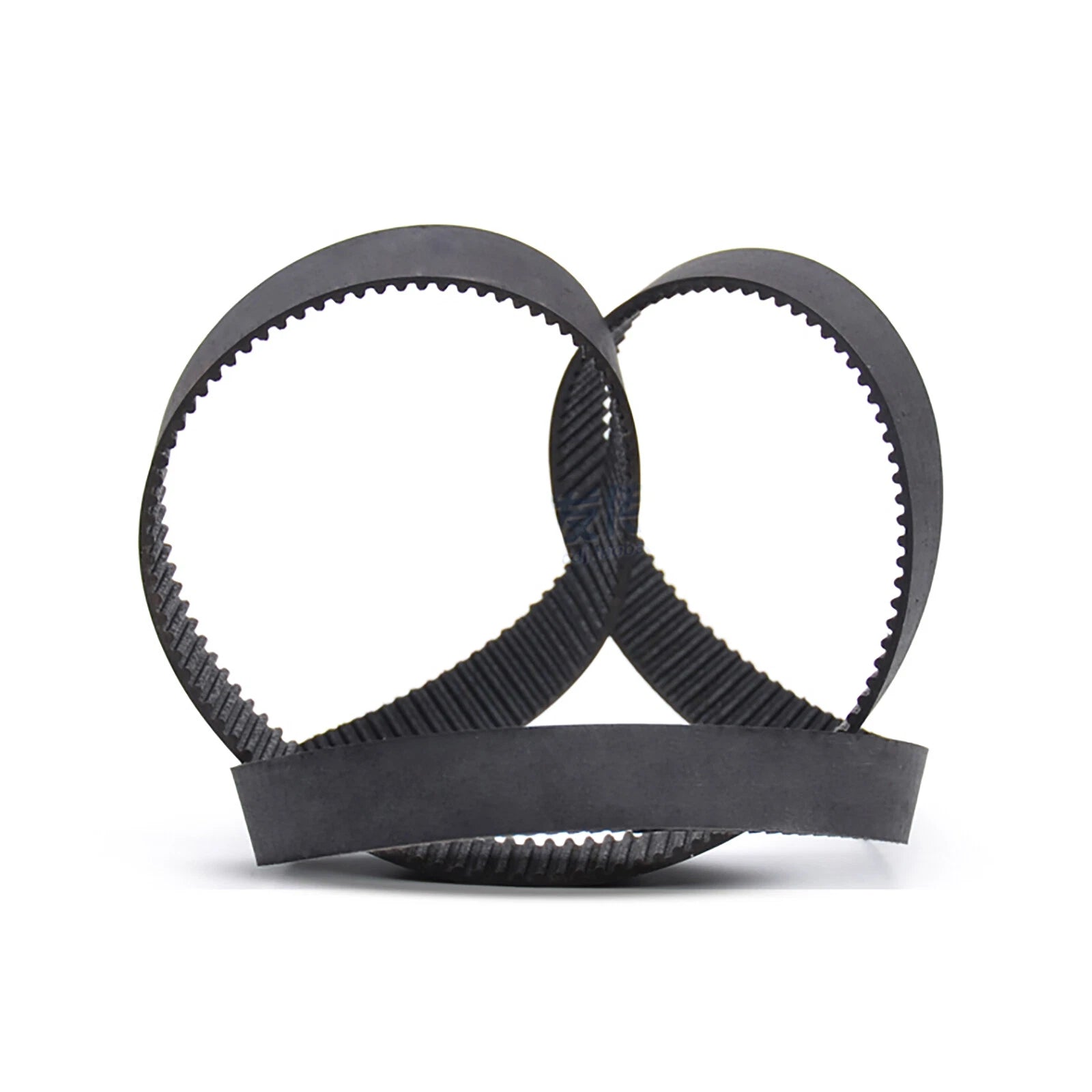

  • 🔄Closed-Loop Endless Construction — No joint, no splice, no weak point. The seamless loop design is the standard for closed-loop timing belt drives in CNC routers, robotic actuators, and automated conveyor systems.
  • 🧵Fiber Cord Reinforcement — Internal tensile cords (typically fiberglass or steel) resist elongation under load, maintaining consistent pitch spacing and preventing the belt stretch that causes positioning errors in precision motion systems.
  • 📐Wide Length Selection — 87mm to 3600mm — With over 200 length variants available in 3mm pitch increments, you can find the exact closed-loop belt length your machine requires without cutting or splicing.
  • 🔧Drop-In Replacement Fit — Manufactured to HTD-3M dimensional standards, these belts are designed as direct replacements for OEM belts in machines specifying HTD-3M 15mm drive belts — no modification required.

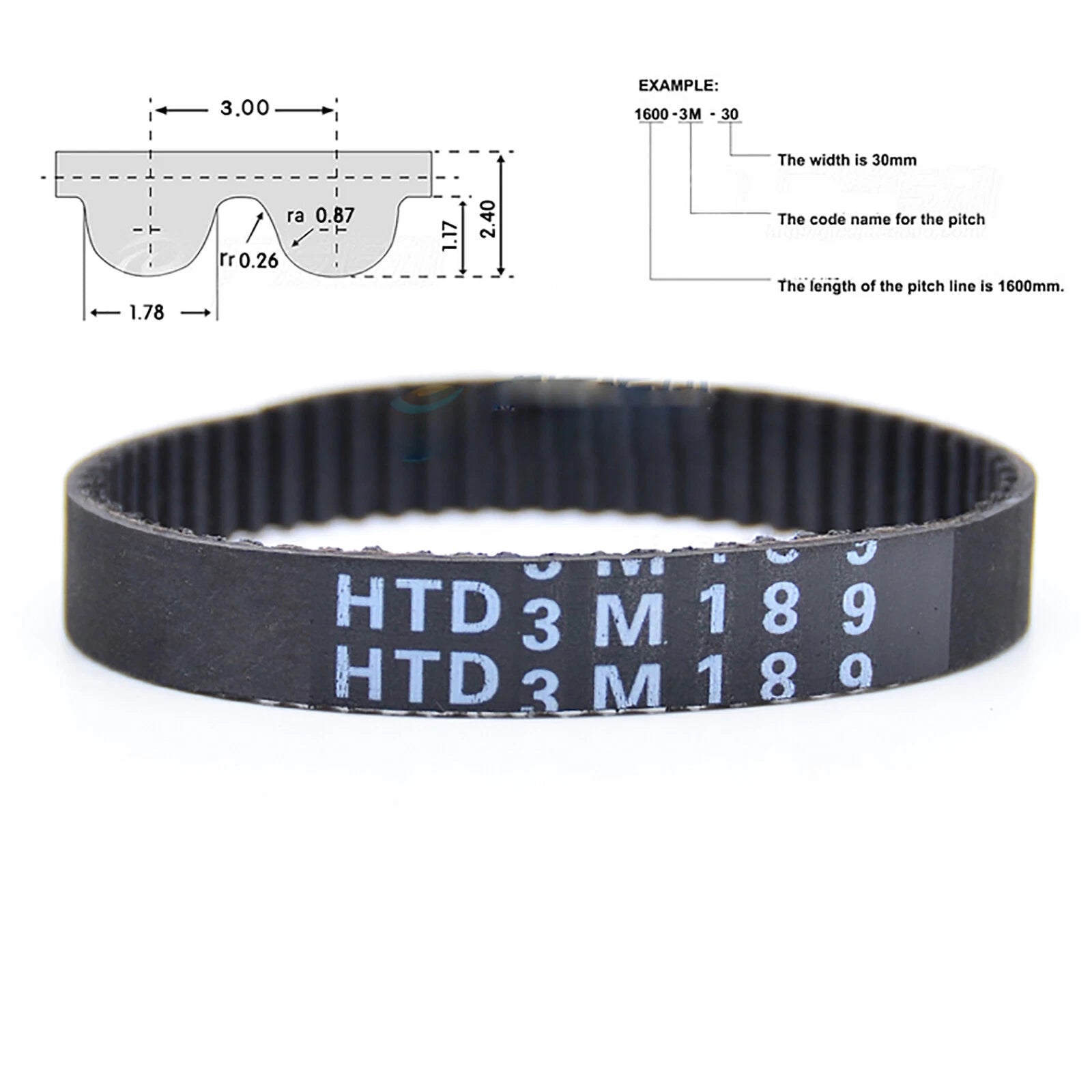

📐 Technical Specifications — HTD-3M Closed-Loop Timing Belt

Belt Type HTD (High Torque Drive) Closed-Loop Timing Belt
Tooth Profile HTD-3M (curvilinear, rounded tooth)
Pitch 3mm (0.118″)
Belt Width 15mm (≈0.59″)
Available Lengths 87mm (≈3.4″) to 3600mm (≈141.7″) — see variant options
Tooth Count Range 29 teeth to 1200 teeth — see variant options
Construction Neoprene rubber body with internal fiber cord reinforcement
Loop Type Endless (closed-loop, no joint)
Compatible Pulleys HTD-3M pulleys, 15mm groove width
Typical Applications 3D printers, CNC routers, robotics, automation drives
Operating Temperature Contact us to confirm
Color Black

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the formula: Belt Length = 2 × C-to-C + π × (D1 + D2) / 2. Each variant lists the circumference in mm and the tooth count — match these to your pulley specs. For example, a 300mm (≈11.8″) belt has 100 teeth at 3mm pitch. When in doubt, size up slightly and adjust your tensioner.

What load or torque can this belt handle?

HTD-3M belts are generally rated for light-to-medium duty applications. The 15mm width provides more surface engagement than narrower 6mm or 9mm variants, giving it higher torque capacity. Typical applications include 3D printer axes, small CNC routers, and robotic joints where loads are typically under 50 N·m. For heavy industrial loads, contact us to confirm suitability.

Can this belt be used outdoors or in wet environments?

HTD-3M timing belts are typically made from neoprene rubber with fiberglass or steel cord reinforcement, which offers moderate resistance to moisture and mild chemicals. They are generally suitable for light outdoor or damp environments, but prolonged exposure to UV, oils, or harsh chemicals may reduce belt life. For demanding outdoor use, confirm material specs before ordering.

What pulleys are compatible with this belt?

This belt uses the HTD (High Torque Drive) 3M tooth profile — a rounded, curvilinear tooth shape with 3mm pitch. It is compatible with HTD-3M pulleys only. Do not use with MXL, GT2, or T-type pulleys, as the tooth profiles differ. The 15mm belt width requires pulleys with a matching 15mm belt groove width.

How do I convert belt length from mm to inches?

Divide the mm value by 25.4 to get inches. For example: 300mm ÷ 25.4 ≈ 11.8″, 600mm ÷ 25.4 ≈ 23.6″, 1200mm ÷ 25.4 ≈ 47.2″. All variant lengths are listed in mm with tooth count — use the tooth count as a secondary reference when matching to your existing pulley setup.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) belt — it forms a continuous loop with no seam or joint. This design eliminates the weak point of a joined belt and is the standard format for 3D printer timing belts, CNC drive systems, and robotic actuators. It must be installed by sliding over the pulleys or disassembling the axis.

Which 3D printer or CNC machine models does this belt fit?

HTD-3M 15mm belts are commonly used in larger-format 3D printers, desktop CNC routers, laser engravers, and custom motion systems that require wider belts for added rigidity. They are generally not used in standard Ender or Prusa-style printers (which use GT2 6mm belts). Check your machine's belt specification — look for "3M" or "HTD-3M" in the parts list.
