HTD 3M Timing Belt Closed Loop — Reliable Synchronous Drive for Precision Motion Systems

When your CNC router, 3D printer, or robotic actuator demands slip-free, repeatable motion, a worn or mismatched timing belt is the last thing you want. Engineers, makers, and machine builders who need a dependable HTD 3M closed-loop timing belt in longer circumferences — without hunting through industrial distributors — will find exactly what they need here. This belt is designed for synchronous power transmission where positional accuracy matters.

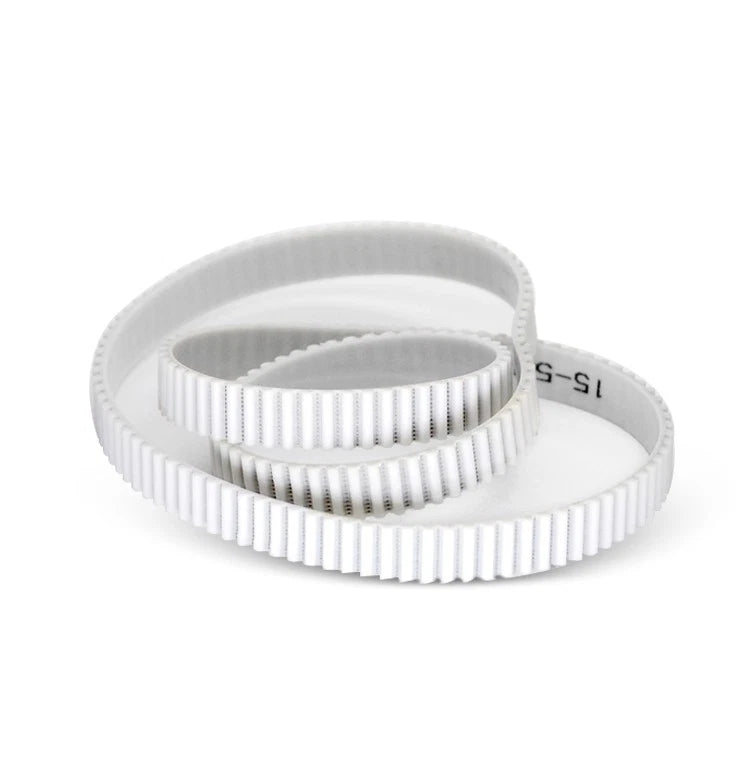

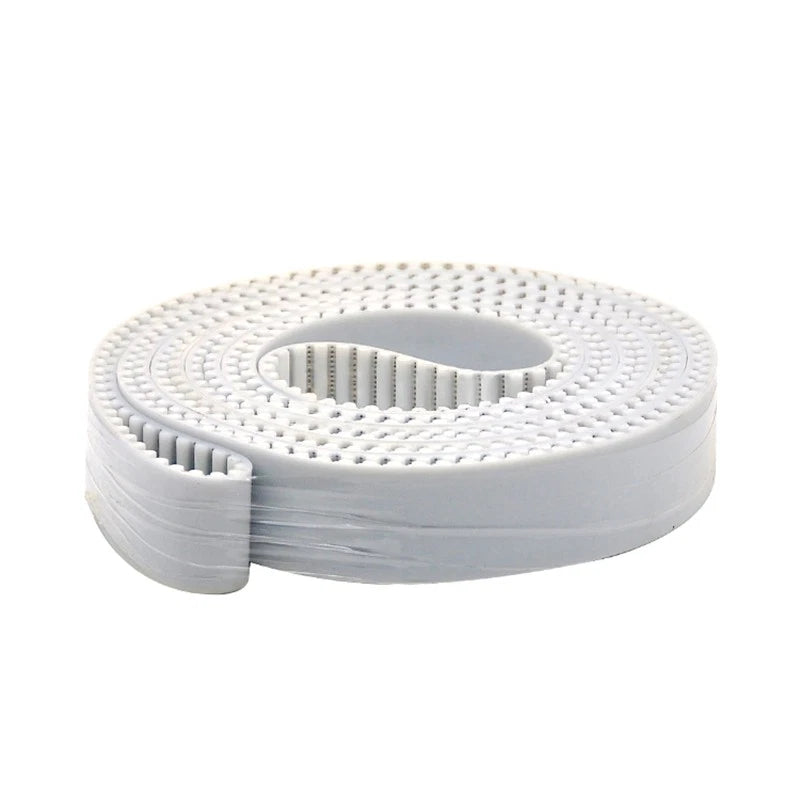

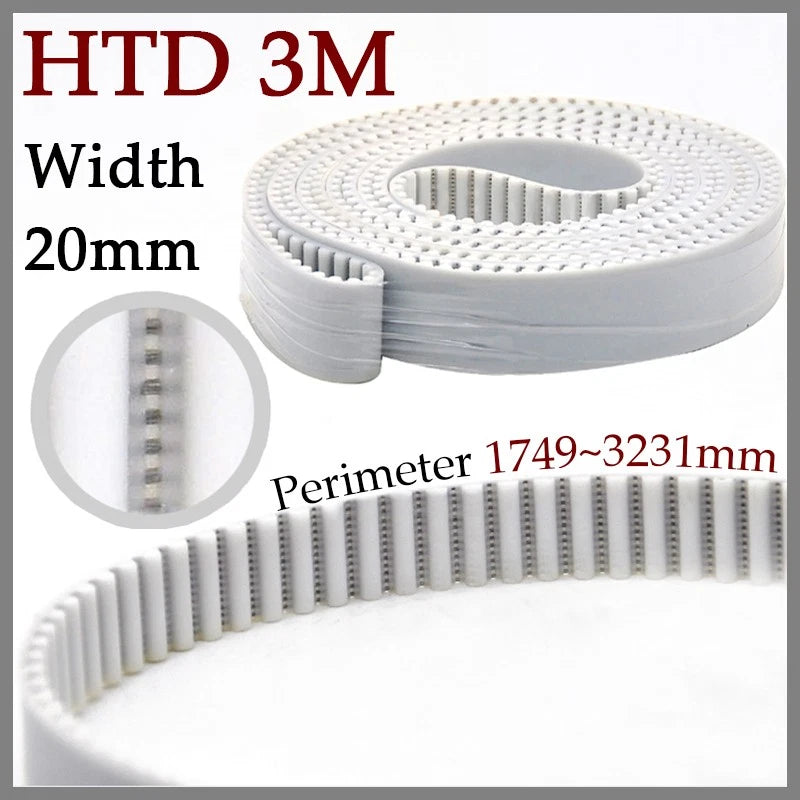

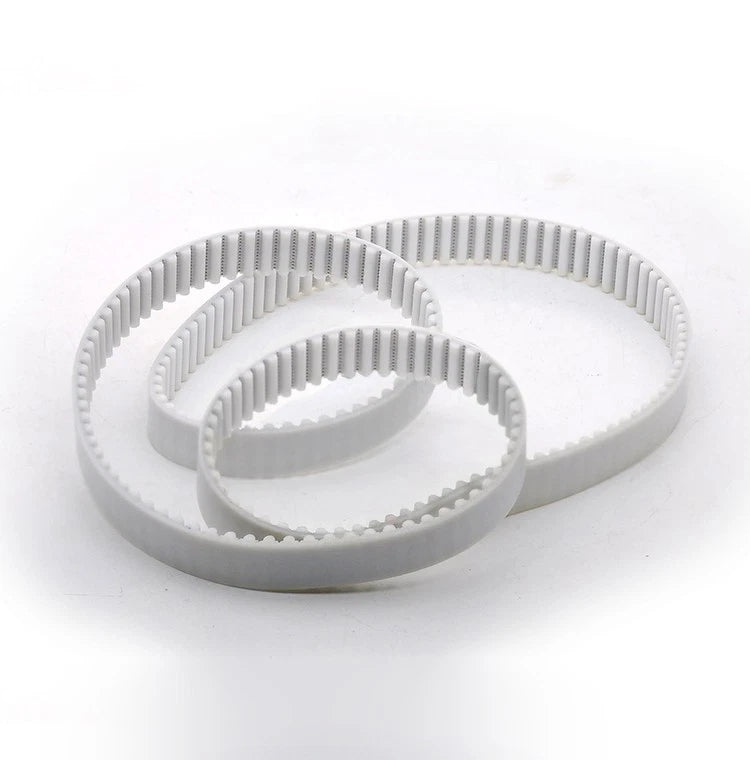

Each belt is a single closed-loop (endless) construction made from polyurethane (PU) with a steel wire tension cord core. The belt width is 20mm, and the HTD 3M tooth profile has a 3mm pitch. Available circumferences range from 1749mm (≈68.9") to 3231mm (≈127.2"), covering a wide span of drive configurations. Select your exact model number — formatted as HTD3M-[circumference]mm — from the variant dropdown above.

Typical use cases include large-format 3D printer Y/X axes, CNC gantry drives, laser cutter motion systems, conveyor indexing, and custom robotics joints where an HTD 3M synchronous belt drive with steel wire reinforcement is specified. The 20mm width provides greater load capacity than the more common 6mm or 10mm widths used in desktop printers.

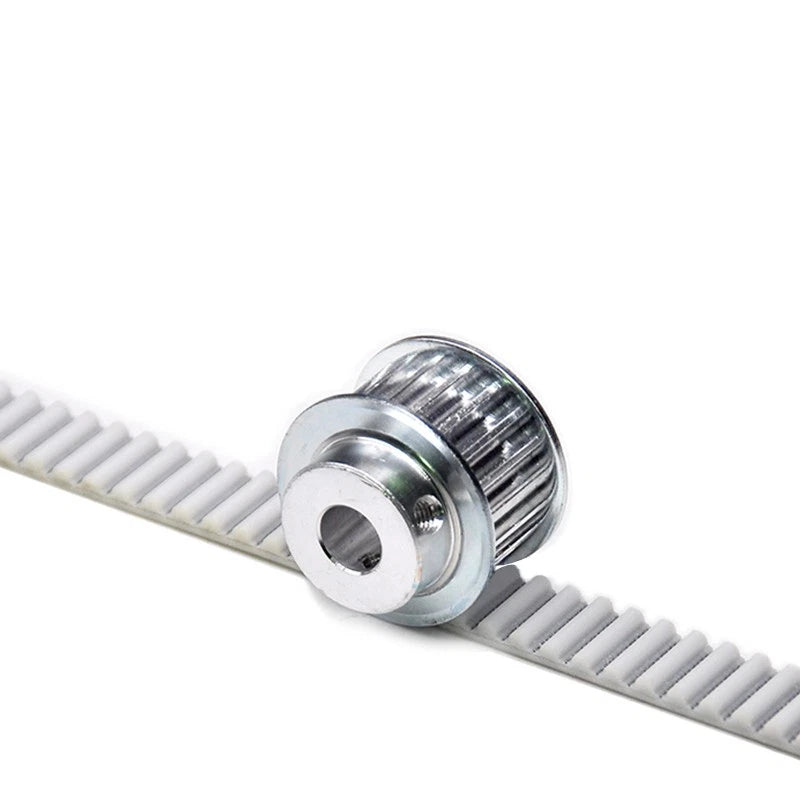

ℹ️ Compatibility: Designed for standard HTD 3M pulleys with a 20mm belt groove. Verify pulley groove width before ordering. HTD 3M profile is not interchangeable with GT2, GT3, T2.5, or MXL profiles.
⚠️ Size confirmation: The model number (e.g., HTD3M-2400mm) indicates the pitch circumference of the closed loop — not the outer length. Calculate your required belt length from your pulley center distance before selecting a variant.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

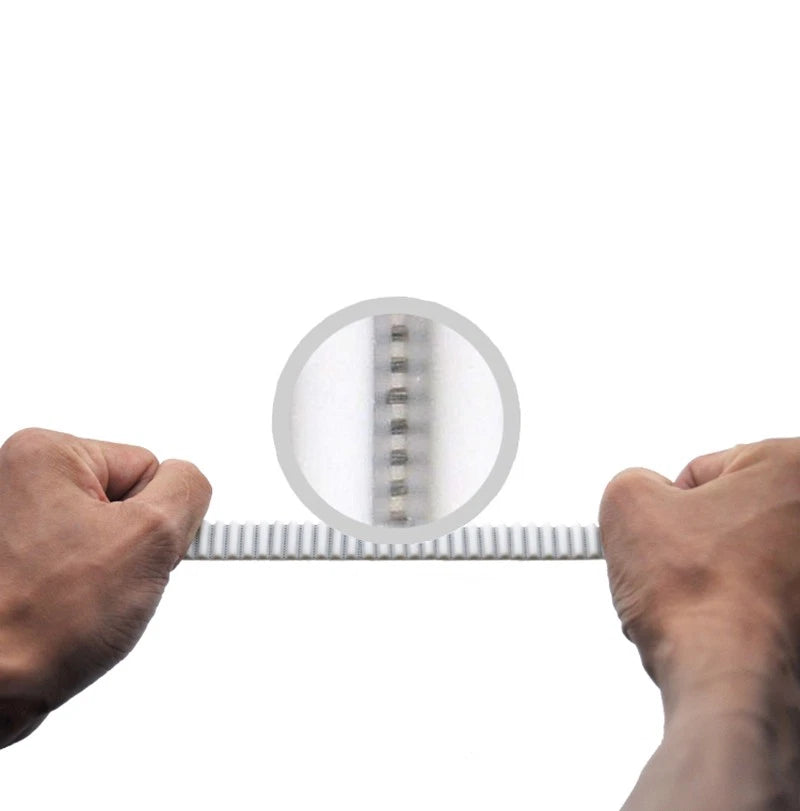

  • 🔩Steel Wire Tension Cord — Embedded steel wire core provides low elongation under load, maintaining consistent tooth pitch and positional accuracy in synchronous belt drive applications.
  • 🧱Polyurethane (PU) Body — PU construction offers better resistance to oils, mild chemicals, and abrasion compared to standard neoprene rubber timing belts, extending service life in demanding environments.
  • 📐HTD 3M Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in HTD 3M pulley drive systems.
  • 📏20mm Belt Width — Wider than standard desktop-printer belts, the 20mm width supports higher lateral load capacity, making it suitable for heavier gantry and conveyor indexing applications.
  • 🔄Closed-Loop (Endless) Construction — Factory-formed endless loop eliminates the splice joint weakness of open-ended belts, delivering uniform tension distribution around the full circumference.
  • 📦Wide Circumference Selection — Available in circumferences from 1749mm to 3231mm in 3mm increments, covering a broad range of large-format CNC and automation drive configurations without custom fabrication.

📐 Technical Specifications — HTD 3M Synchronous Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Tooth Pitch 3mm (0.118")
Belt Width 20mm (≈0.79")
Pitch Circumference Range 1749mm (≈68.9") — 3231mm (≈127.2")
Belt Construction Closed-loop (endless)
Body Material Polyurethane (PU)
Tension Member Steel wire cord
Tooth Profile Curvilinear (HTD standard)
Compatible Pulley Type HTD 3M, 20mm groove width
Typical Applications CNC gantry drives, large-format 3D printers, laser cutters, conveyor indexing, robotics
Operating Temperature See variant options / Contact us to confirm
Color See variant options
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right HTD 3M belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pitch diameters of your pulleys. For example, a 2400mm (≈94.5") belt typically suits a drive with roughly 750–800mm center distance on equal-diameter pulleys. When in doubt, size up slightly — a belt that is a few millimeters long can be tensioned with an idler; a belt that is too short cannot be installed.

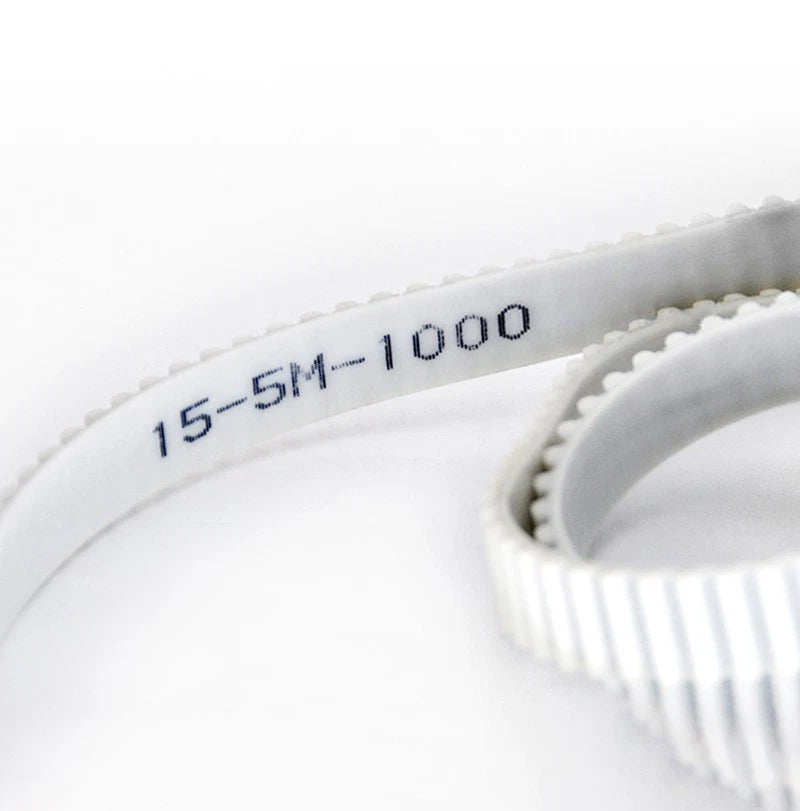

What does the model number HTD3M-2400mm mean?

The model number encodes the belt specification: HTD = High Torque Drive profile, 3M = 3mm tooth pitch, 2400mm = pitch circumference of the closed loop. The pitch circumference is measured at the tooth pitch line (not the outer surface), and is the dimension you should match to your drive system calculation. 2400mm converts to approximately 94.5 inches.

What load or torque can this HTD 3M belt handle?

HTD 3M belts with a steel wire core are generally suited for light-to-medium power transmission. They are typically used in applications such as 3D printer motion axes, small CNC gantries, laser cutter carriages, and robotics joints operating at low-to-moderate torque and speed. For heavier industrial power transmission, HTD 5M or 8M profiles are generally more appropriate. Contact us to confirm suitability for your specific torque, speed, and duty cycle requirements.

Can this belt be used outdoors or in wet/oily environments?

The polyurethane (PU) body generally offers better resistance to oils, mild chemicals, and moisture compared to neoprene rubber timing belts. However, prolonged exposure to standing water, direct UV radiation, or aggressive chemicals is not recommended. For outdoor installations or washdown environments, verify compatibility with your specific conditions before committing to installation.

Is this belt compatible with standard HTD 3M pulleys?

Yes. These belts follow the standard HTD 3M tooth profile and are generally compatible with any pulley labeled HTD 3M or 3M-HTD. Before ordering, confirm that your pulley's belt groove width is 20mm — pulleys designed for 6mm, 9mm, or 15mm wide belts will not properly seat a 20mm belt.

What is the difference between HTD 3M and GT2 or GT3 belts?

HTD 3M uses a rounded curvilinear tooth profile optimized for power transmission efficiency. GT2 and GT3 (Gates Tooth) profiles use a modified curvilinear shape that typically delivers lower backlash and is widely used in precision motion applications such as desktop 3D printers. These profiles are not interchangeable — always match the belt profile to the pulley profile. If your machine specifies GT2 pulleys, you need GT2 belts, not HTD 3M.

How do I convert belt circumference from mm to inches?

Divide the millimeter value by 25.4. Common conversions for this product range: 1749mm ≈ 68.9", 2400mm ≈ 94.5", 3000mm ≈ 118.1", 3231mm ≈ 127.2". The full circumference range available is 1749mm (≈68.9") to 3231mm (≈127.2").

🛒 Select your model (circumference) above, then add to cart — ships from our US warehouse.
