HTD 3M Timing Belt — Reliable Closed-Loop Drive for CNC, Robotics & Automation

When a slipping or mismatched drive belt causes your CNC router to lose steps, your 3D printer to skip layers, or your automation axis to drift out of position, the fix starts with the right belt. This HTD 3M timing belt is designed for makers, engineers, and small-shop builders who need a dependable closed-loop drive solution without sourcing from overseas with long lead times.

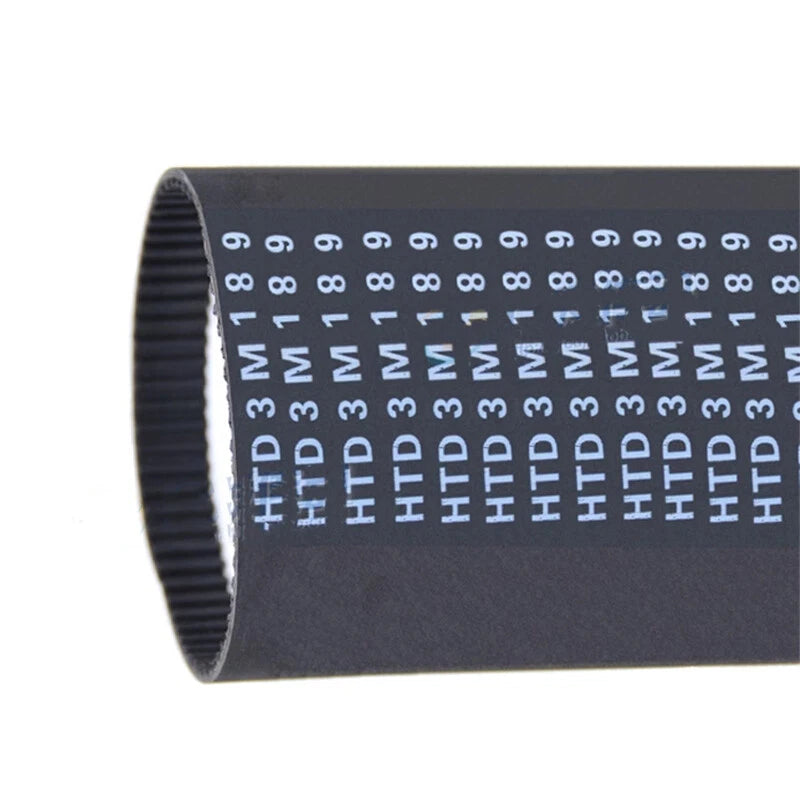

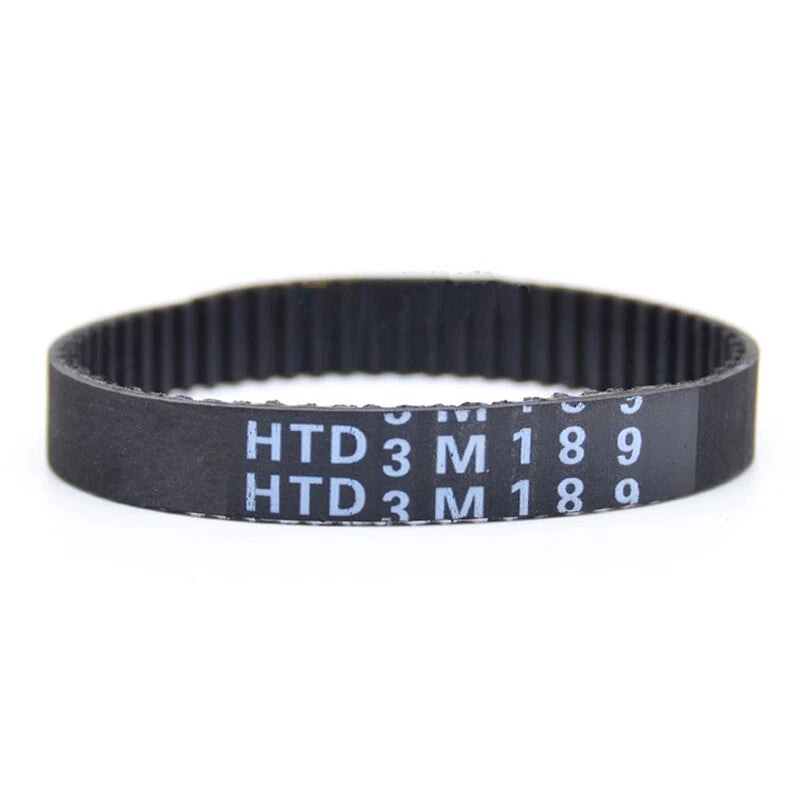

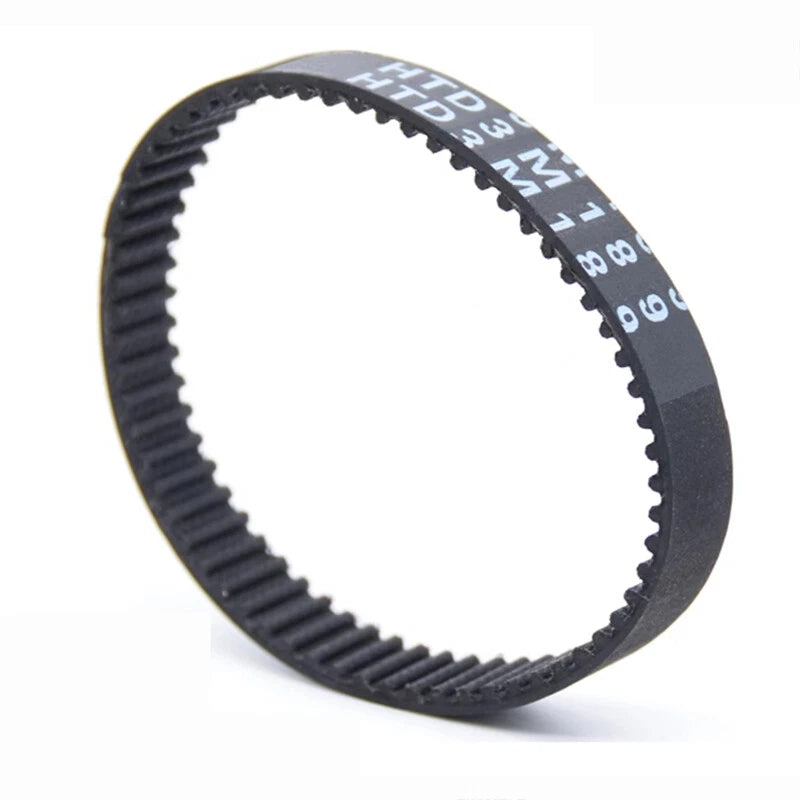

Each belt is a single closed-loop unit in the HTD 3M profile — 3mm pitch with rounded tooth geometry. Available in 10mm (≈3/8") or 15mm (≈19/32") width, with perimeter lengths ranging from 501mm (≈19.7") to 999mm (≈39.3"), covering 167 to 333 teeth. The belt body is typically constructed from neoprene rubber reinforced with fiberglass tension cord for dimensional stability under load.

Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, 3D printer motion platforms, pick-and-place robotics, and light conveyor or indexing mechanisms where precise tooth engagement and repeatable positioning are required.

🔗 Compatibility: Requires HTD 3M profile pulleys (3mm pitch, rounded tooth). Not compatible with GT2, MXL, T2.5, or T5 pulleys. Verify your pulley profile before ordering.

✅ Key Features of These HTD 3M Timing Belts

  • ⚙️HTD 3M Tooth Profile — Rounded HTD tooth geometry provides smooth engagement and reduces stress concentration compared to trapezoidal profiles, making it well-suited for CNC router and robotics drive systems.
  • 📏Wide Size Selection — Available in 75 length variants from 501mm (167T) to 999mm (333T) in 3mm tooth increments, covering a broad range of center-distance requirements for motion control builds.
  • ↔️Two Width Options — Choose 10mm wide for lightweight 3D printer and small CNC axes, or 15mm wide for heavier gantry drives and servo-controlled systems that demand greater belt load capacity.
  • 🧵Fiberglass Cord Reinforcement — The tension member is typically fiberglass cord, which resists elongation under cyclic loading and helps maintain positional accuracy over extended run times.
  • 🌡️Neoprene Rubber Construction — Neoprene body offers moderate resistance to oils, moisture, and temperature variation, making these belts suitable for enclosed machine enclosures and workshop environments.
  • 🚀Ships from US Warehouse — Stocked domestically for fast delivery. No extended overseas shipping wait — get your replacement or upgrade belt quickly and keep your build moving.

📐 Technical Specifications — HTD 3M Closed-Loop Timing Belt

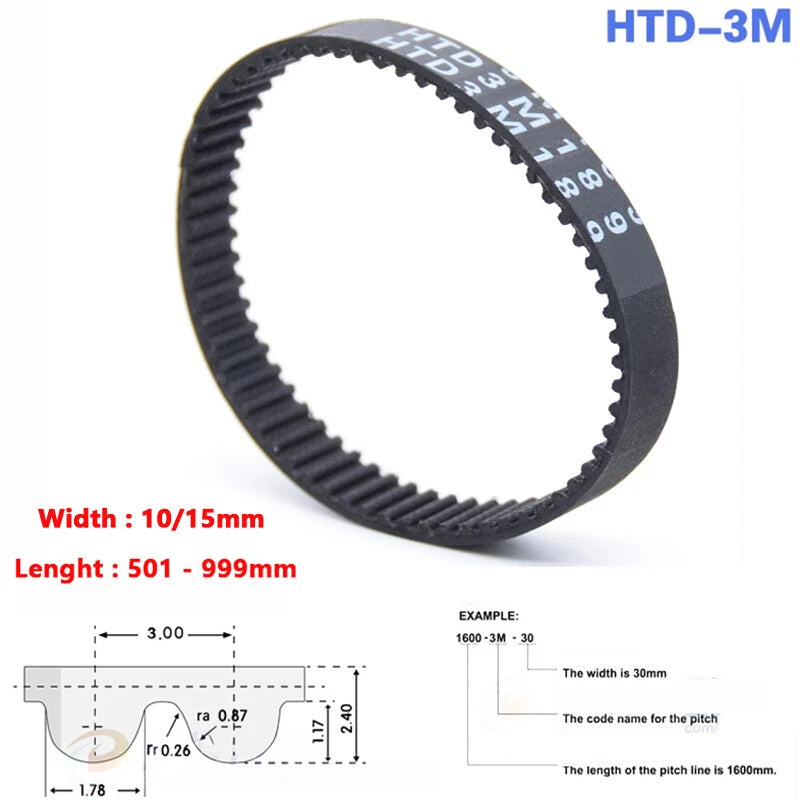

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Tooth Pitch 3mm (0.118")

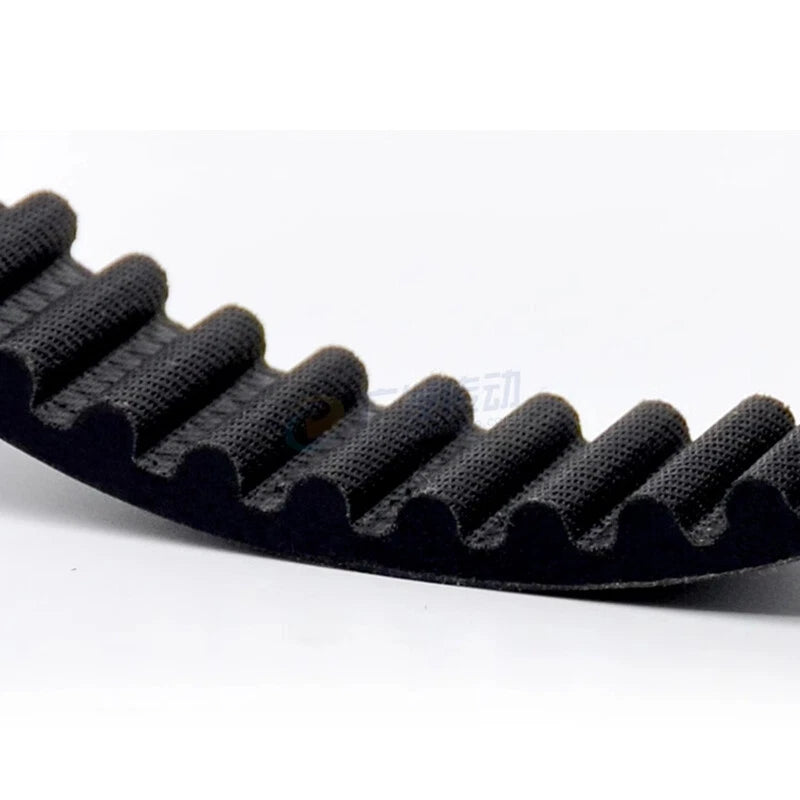

Tooth Profile Rounded HTD (curvilinear)
Width Options 10mm (≈3/8") / 15mm (≈19/32")
Perimeter Range 501mm (≈19.7") — 999mm (≈39.3")
Tooth Count Range 167 teeth — 333 teeth
Belt Type Closed loop (endless)
Body Material Neoprene rubber (typically)
Tension Member Fiberglass cord (typically)
Compatible Pulley Profile HTD 3M only
Typical Applications CNC routers, 3D printers, laser cutters, robotics, light automation
Operating Temperature See variant options / Contact us to confirm
Color Black
Sold As 1 belt per order
⚠️ Before ordering: Confirm your pulley is HTD 3M profile. Measure your required belt perimeter carefully — closed-loop belts cannot be cut or spliced. If you are unsure of your size, contact us before purchasing.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the standard formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. The perimeter listed in each variant (e.g., 600mm ≈ 23.6") is the closed-loop circumference. When in doubt, size up — a slightly longer belt is easier to tension than one that is too short. You can also use an online belt length calculator for quick results.

What width should I choose — 10mm or 15mm?

10mm wide belts are generally sufficient for light-duty CNC routers, 3D printers, and small automation systems. 15mm wide belts offer greater load capacity and are typically preferred for heavier gantries, servo-driven axes, or applications where belt stretch must be minimized. If your machine originally used a 15mm belt, replace with 15mm.

What is the load capacity of an HTD 3M timing belt?

HTD 3M belts are generally rated for moderate power transmission. Exact load ratings depend on pulley diameter, operating speed, and belt width. The 15mm wide variant typically handles higher loads than the 10mm. For precise load calculations, consult engineering belt tables or contact us to confirm suitability for your specific application.

Can this belt be used outdoors or in wet environments?

These belts are typically constructed from neoprene rubber with fiberglass cord reinforcement, which offers moderate resistance to moisture and mild chemicals. They are not rated for continuous submersion or prolonged direct UV exposure. For outdoor installations, adding a protective cover over the drive system is generally recommended to extend belt service life.

What pulleys are compatible with HTD 3M belts?

HTD 3M belts require HTD 3M profile pulleys — 3mm pitch with a rounded (curvilinear) tooth form. They are not interchangeable with GT2, MXL, T2.5, T5, or other trapezoidal-tooth pulleys. Common pulley tooth counts for this pitch range from 12T to 60T depending on your drive ratio. Always verify the pulley profile stamped on the flange or listed in your machine's BOM.

Is this belt suitable for 3D printers and CNC routers?

Yes. HTD 3M timing belts are widely used in CNC routers, laser cutters, 3D printers, and pick-and-place machines. The 3mm pitch provides a good balance of positional accuracy and torque capacity for most DIY and light industrial motion control applications. Confirm your machine's original belt specification matches HTD 3M before ordering.

How do I convert the belt perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples: 501mm ÷ 25.4 ≈ 19.7", 600mm ÷ 25.4 ≈ 23.6", 750mm ÷ 25.4 ≈ 29.5", 900mm ÷ 25.4 ≈ 35.4", 999mm ÷ 25.4 ≈ 39.3". The tooth count is also listed in each variant name for quick cross-reference with pulley specifications.

🛒 Select your length and width above, then add to cart — ships from our US warehouse.
