HTD 3M Closed-Loop Timing Belt — Precise Motion Control for CNC, 3D Printers & Pulley Drives

When a slipping or stretched drive belt throws off your CNC router's axis accuracy or causes layer shifts in your 3D printer, the entire project is compromised. Makers, machine builders, and automation engineers who rely on repeatable, synchronous motion need a belt that holds its pitch under load — not one that stretches out after a few hours of use. This HTD 3M closed-loop synchronous timing belt is built for exactly those applications.

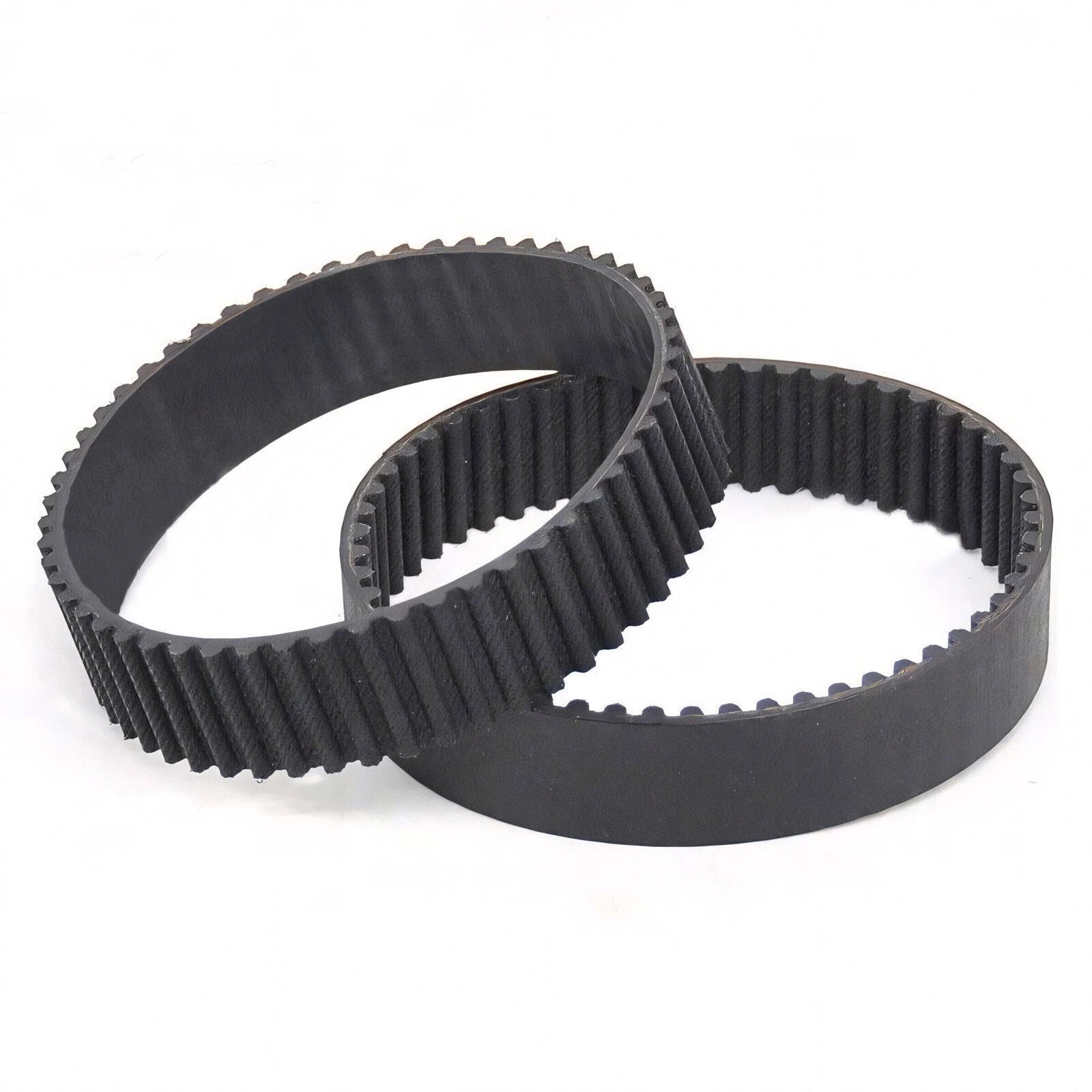

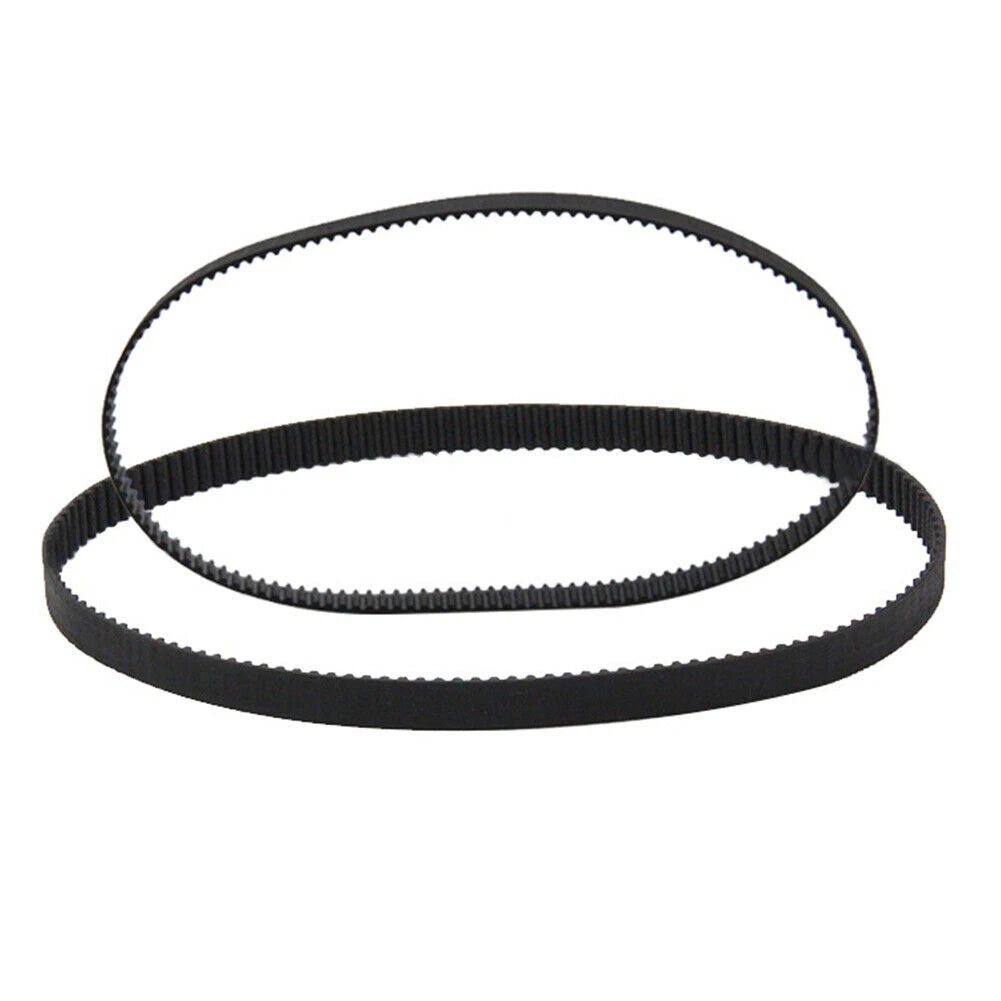

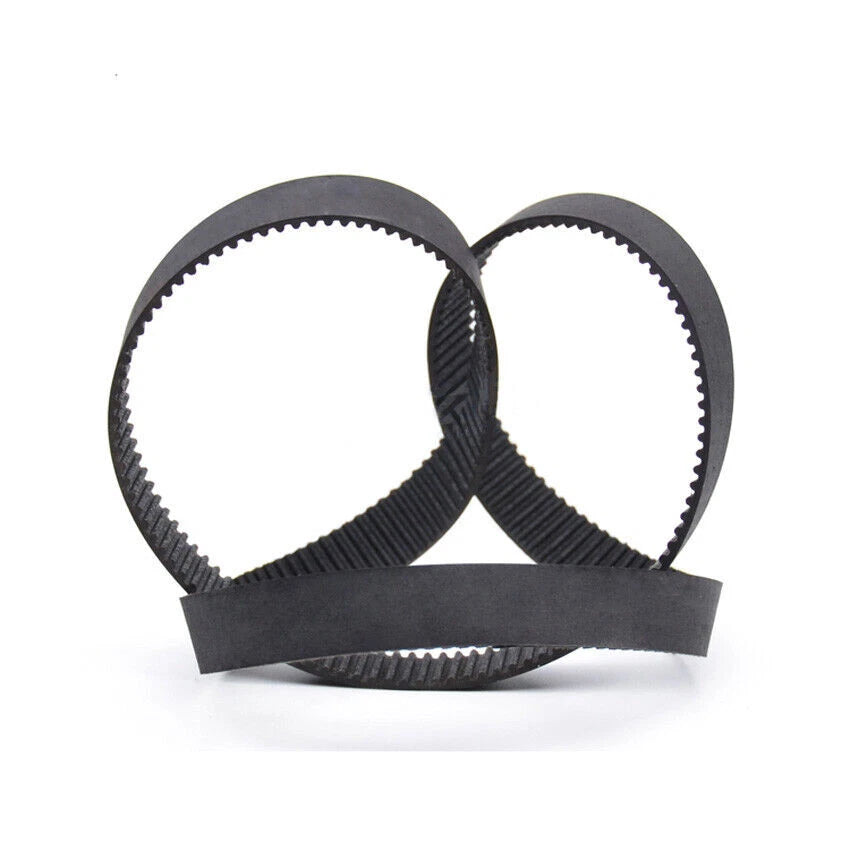

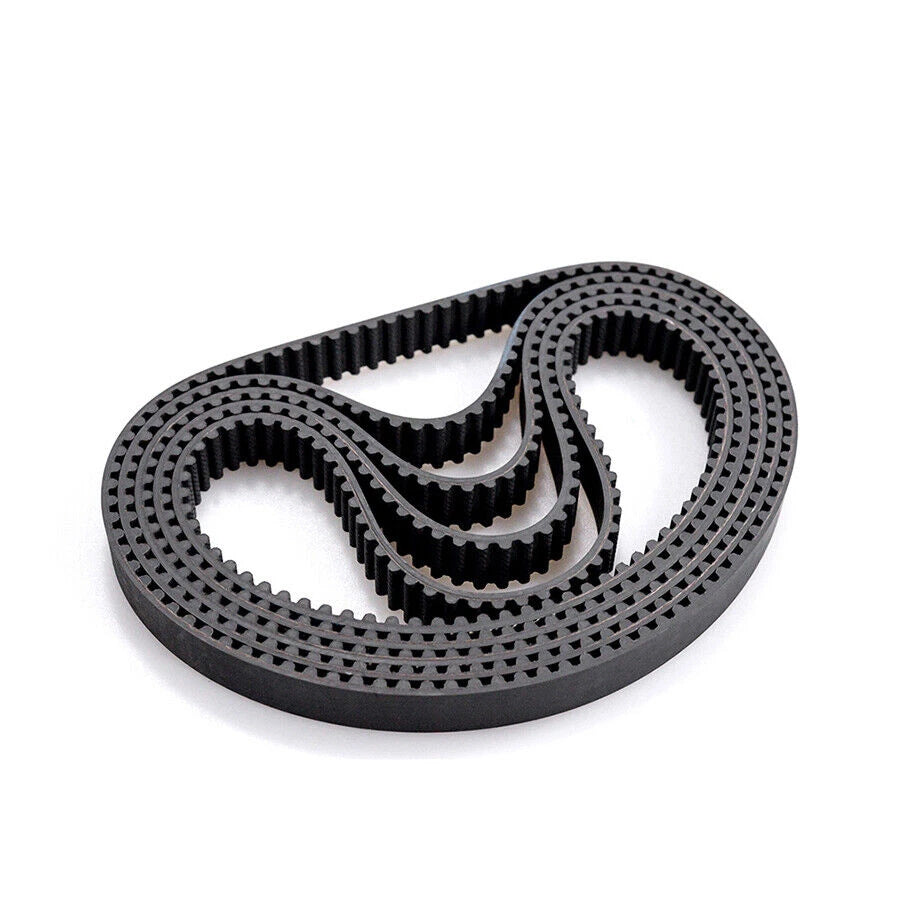

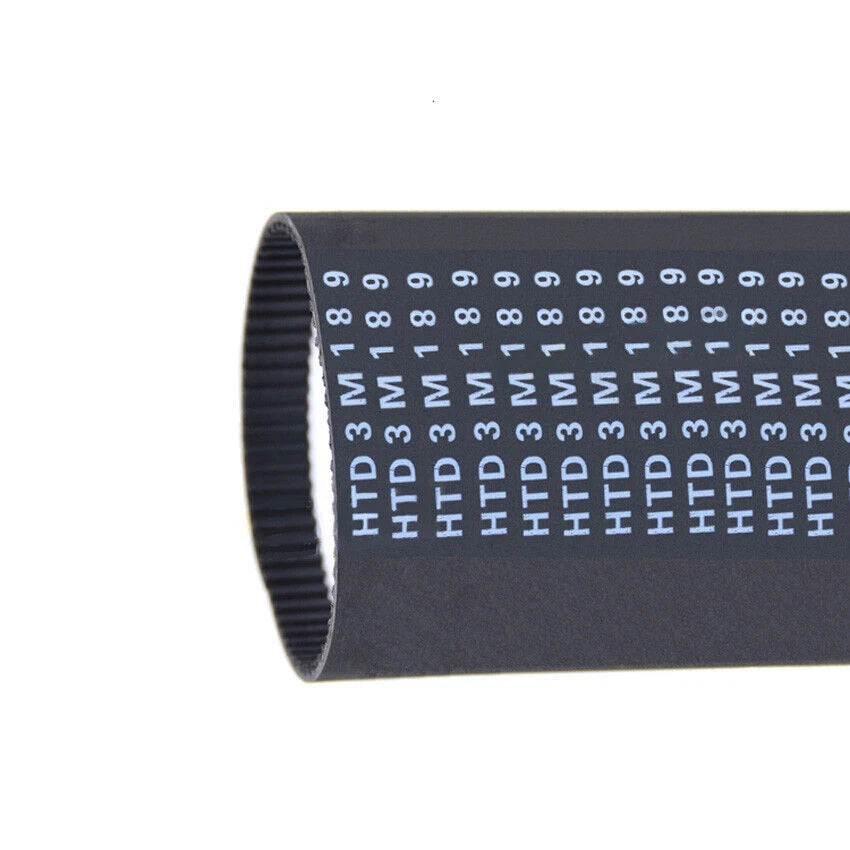

Each belt is a single closed loop with an HTD (High Torque Drive) 3mm tooth pitch and 15mm belt width. The rounded HTD tooth profile engages pulleys with lower stress concentration than trapezoidal profiles, making it well-suited for moderate-torque drives. Available in a wide range of perimeter sizes from 87mm (≈3.4") to 5100mm (≈200.8"), with tooth counts ranging from 29 to 1,700 teeth — select your exact size from the variant options above.

Typical use cases include CNC router X/Y/Z axis drives, 3D printer extruder and bed carriage belts, laser engraver gantry systems, conveyor and indexing mechanisms, and DIY automation projects requiring synchronous power transmission without slippage.

🔗 Compatibility: Designed for HTD 3M profile pulleys with 3mm pitch and 15mm groove width. Not interchangeable with GT2 (2mm pitch), T5, or MXL belts. Verify your pulley model accepts 15mm belt width before ordering.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

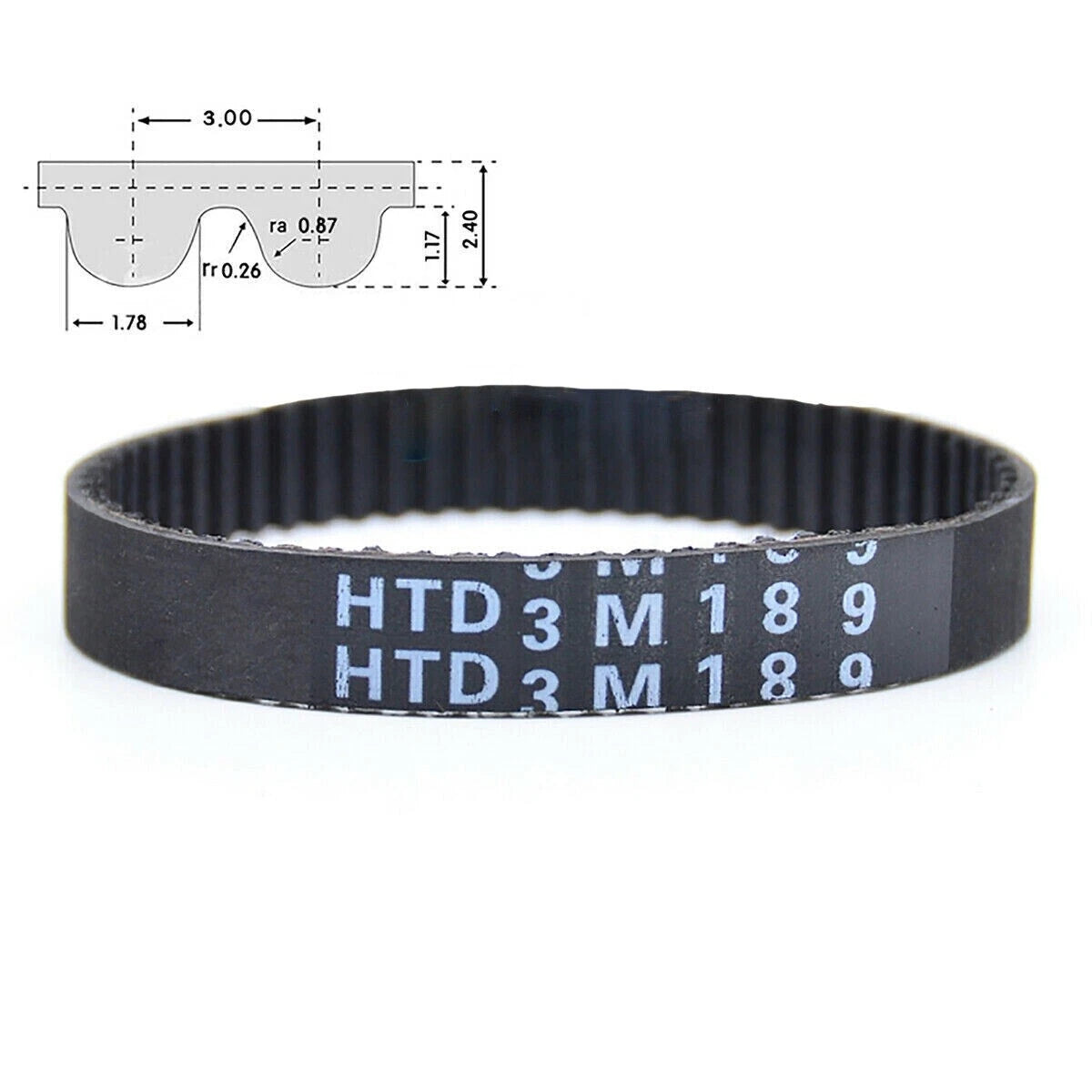

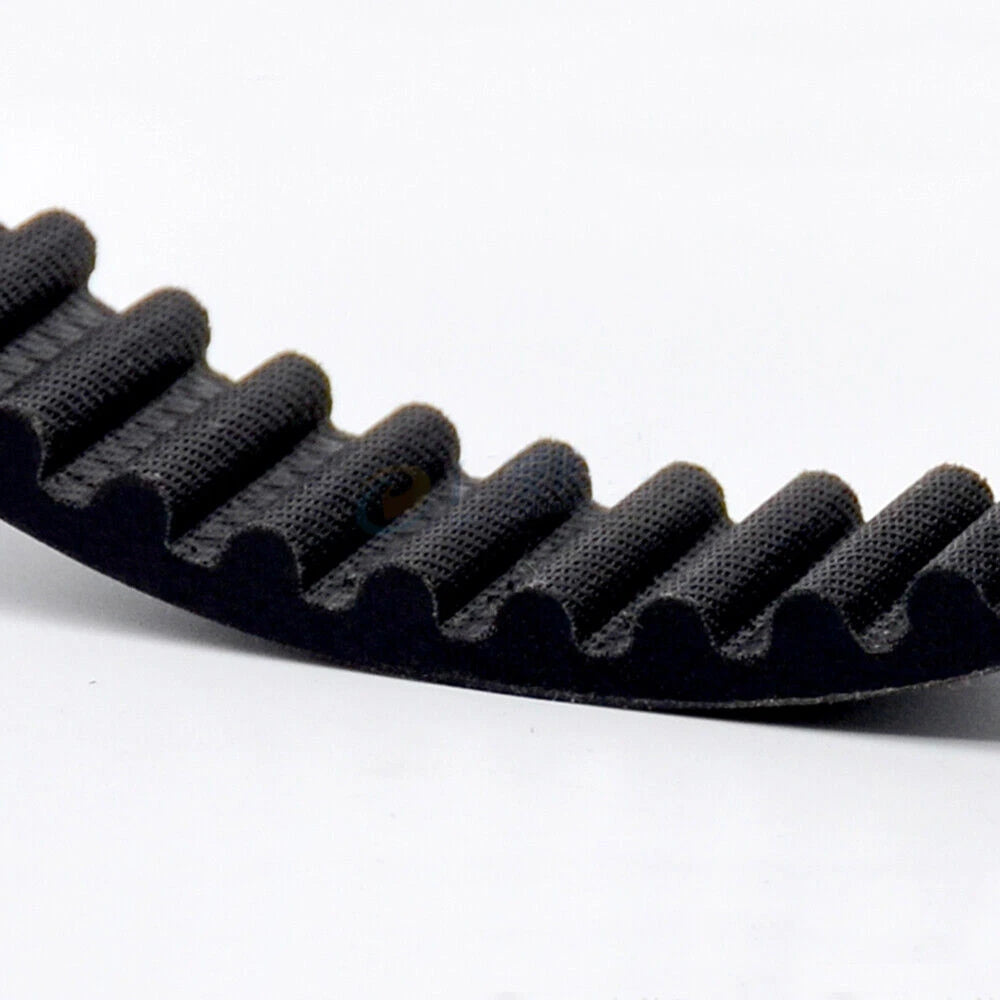

  • ⚙️HTD 3mm Pitch Tooth Profile — The rounded High Torque Drive tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth wear and improving torque transmission in CNC router and pulley drive applications.
  • 📏Wide Size Selection — Available in perimeter sizes from 87mm to 5100mm (≈3.4" to ≈200.8"), covering the most common closed-loop timing belt sizes for 3D printer drives, CNC axis belts, and custom automation builds.
  • 🔄Closed-Loop Construction — Seamless loop design eliminates the splice point weakness found in cut-to-length belts, providing consistent tension and tooth engagement around the full perimeter.
  • 📐15mm Belt Width — Wider than standard 6mm or 9mm belts, the 15mm width increases the contact area per tooth, supporting higher lateral loads and reducing the risk of belt tracking off narrow pulleys.
  • 🔩Cord-Reinforced Core — Internal tensile cords (typically fiberglass) resist elongation under dynamic loads, helping maintain consistent tooth pitch over time in synchronous drive systems.
  • 🏭Broad Application Compatibility — Suitable for CNC router axis drives, 3D printer carriage and extruder belts, laser engraver gantry systems, and light industrial conveyor or indexing mechanisms requiring slip-free synchronous motion.

📐 Technical Specifications — HTD 3M Synchronous Timing Belt

Belt Type Closed-Loop Synchronous Timing Belt
Profile HTD (High Torque Drive)
Tooth Pitch 3mm (0.118")
Belt Width 15mm (≈0.59")
Perimeter Range 87mm (≈3.4") – 5100mm (≈200.8")
Tooth Count Range 29 teeth – 1,700 teeth (see variant options)
Compatible Pulley Profile HTD 3M (3mm pitch, rounded tooth)
Material See variant options — typically neoprene rubber with cord reinforcement
Tensile Reinforcement Contact us to confirm
Operating Temperature Contact us to confirm
Color / Finish See variant options
Quantity per Order 1 belt per unit
⚠️ Size Tip: The perimeter listed is the full closed-loop circumference, not the center-to-center distance. To find your belt size, measure the loop length around both pulleys with a flexible tape, or calculate using your pulley center distance and diameters. When between sizes, select the next larger perimeter and adjust your tensioner.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. Alternatively, wrap a flexible tape around both pulleys to get the approximate loop length. Our variants range from 87mm (≈3.4") to 5100mm (≈200.8"). When in doubt, size up — a slightly longer belt can typically be accommodated by adjusting your tensioner position.

What does HTD 3M mean, and how is it different from GT2 or MXL belts?

HTD stands for High Torque Drive. The 3M designation means a 3mm tooth pitch (center-to-center distance between teeth). HTD 3M belts use a rounded tooth profile that generally provides higher torque capacity than MXL or T2.5 belts of similar width. GT2 belts use a 2mm pitch with a modified curvilinear tooth — they are not interchangeable with HTD 3M. Always match belt profile and pitch to your pulley specification.

What load or torque can this 15mm wide HTD 3M belt handle?

Tensile strength and dynamic load capacity depend on the specific belt compound and reinforcement cord. HTD 3M belts with 15mm width typically handle moderate torque loads suitable for CNC router axis drives, 3D printer carriage belts, and light automation. For applications requiring precise load ratings, please contact us to confirm specifications before ordering.

Can this timing belt be used outdoors or in wet/oily environments?

HTD 3M timing belts are generally made from neoprene rubber with fiberglass cord reinforcement, which offers reasonable resistance to moisture and mild temperature variation. However, prolonged exposure to UV radiation, petroleum-based oils, or harsh chemicals can degrade the rubber compound over time. For outdoor, wash-down, or oil-splash environments, we recommend contacting us to verify material compatibility before purchase.

Will this belt fit my existing HTD 3M pulleys?

Yes — as long as your pulleys are rated for HTD 3M profile (3mm pitch, rounded tooth) and accept a 15mm belt width, this belt will mesh correctly. Confirm your pulley's groove width accommodates 15mm; some pulleys are designed for narrower belts (6mm or 9mm) and will not properly guide a 15mm belt. The tooth count on the belt equals the perimeter ÷ 3mm.

How do I convert the perimeter size from mm to inches?

Divide the perimeter in mm by 25.4 to get inches. Quick reference examples:

  • 150mm ÷ 25.4 ≈ 5.9"
  • 300mm ÷ 25.4 ≈ 11.8"
  • 600mm ÷ 25.4 ≈ 23.6"
  • 900mm ÷ 25.4 ≈ 35.4"
  • 1200mm ÷ 25.4 ≈ 47.2"

Use the variant selector above to find your exact perimeter size.

How does tooth count relate to the belt perimeter?

The number of teeth equals the belt perimeter divided by the pitch: Teeth = Perimeter (mm) ÷ 3mm. For example, a 150mm belt has 50 teeth; a 300mm belt has 100 teeth. Each variant listing shows both the perimeter and the tooth count so you can cross-reference with your pulley and drive system specifications.

🛒 Select your model, perimeter size, and tooth count above, then add to cart — ships from our US warehouse.
