HTD 3M Closed-Loop Timing Belt — Precise Synchronous Drive for Long-Span Applications

When your CNC router, large-format 3D printer, or robotic actuator demands consistent, slip-free motion across spans exceeding 2 meters, a standard open-end belt simply won't cut it. Engineers and makers who need a ready-to-run closed-loop HTD 3M timing belt — without splicing, without guesswork — reach for this series.

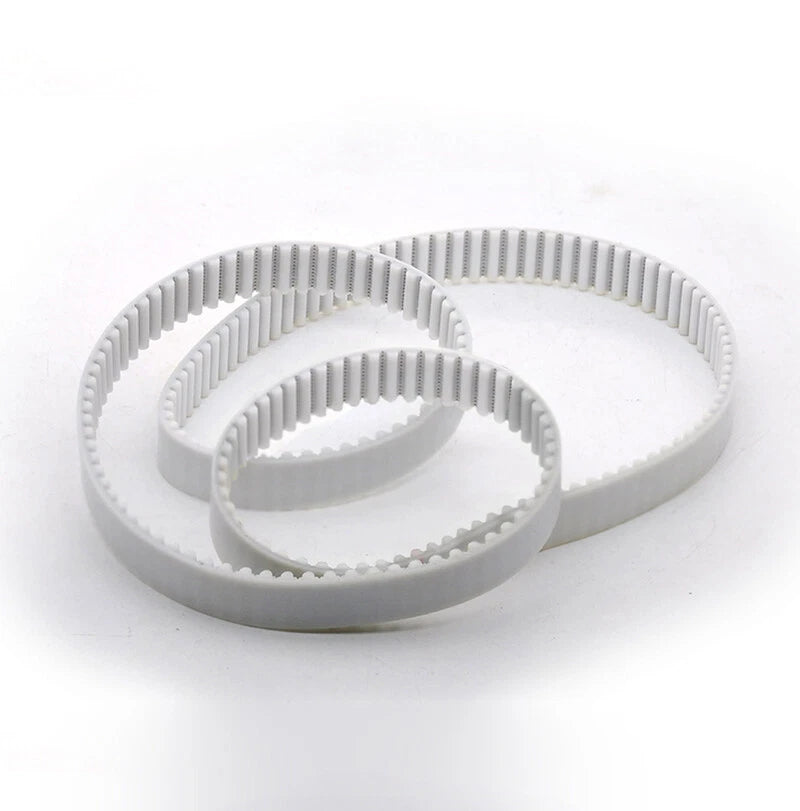

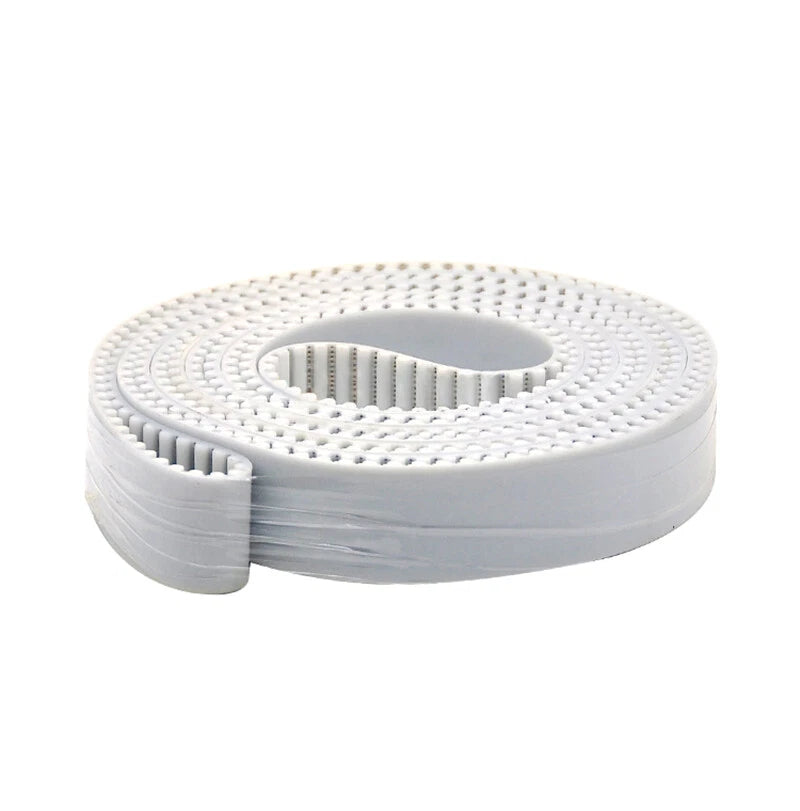

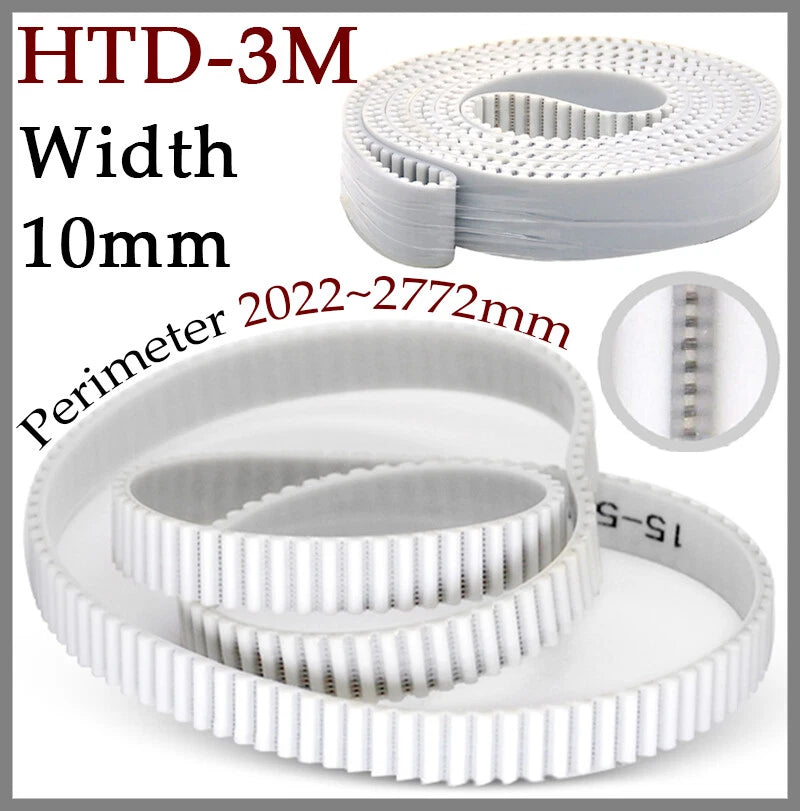

Each belt is a single continuous loop in the HTD 3M tooth profile (3mm pitch, rounded curvilinear tooth form), constructed from polyurethane (PU) with an embedded steel wire tensile cord. Belt width is 10mm (≈3/8"). Available lengths range from 2022mm (≈79.6") to 2772mm (≈109.1") in 3mm increments, giving you precise fitment across a wide range of drive configurations.

Typical applications include large-format CoreXY and Cartesian 3D printers requiring HTD 3M closed-loop drive belts, CNC router axis drives, laser cutter gantry systems, and custom robotic linear actuators where low-stretch synchronous motion is critical.

ℹ️ Compatibility Notice: This belt uses the HTD 3M tooth profile (3mm pitch, rounded tooth). It is compatible only with HTD 3M pulleys. It is not interchangeable with GT2, T3, MXL, or other profiles — verify your pulley spec before ordering.

✅ Key Features of These HTD 3M Closed-Loop Timing Belts

  • 🔁Factory-Closed Loop — No splicing or joining required; each belt ships as a seamless continuous loop ready for immediate installation on HTD 3M pulleys.

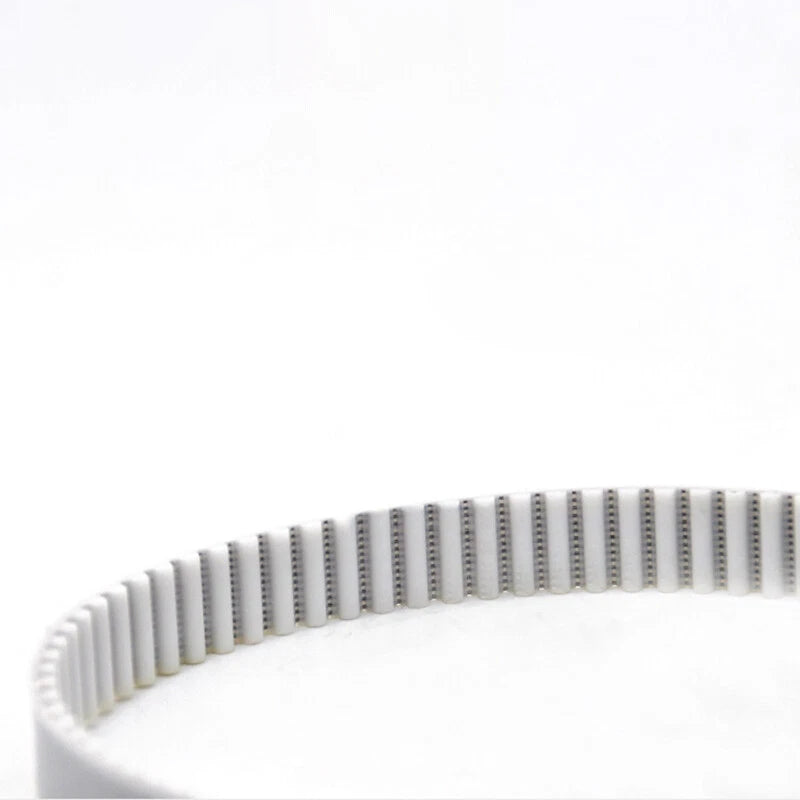

  • 🧲Steel Wire Tensile Core — Embedded steel cord minimizes elongation under load, maintaining accurate tooth engagement and repeatable positioning in CNC and 3D printer drive systems.
  • 🧪Polyurethane Construction — PU body offers better resistance to oils, mild chemicals, and abrasion compared to standard rubber belts, extending service life in workshop environments.
  • 📐HTD 3M Tooth Profile — Rounded curvilinear tooth geometry distributes load across multiple teeth simultaneously, reducing tooth shear stress in synchronous drive applications.
  • 📏Wide Length Selection — 249 length options from 2022mm (≈79.6") to 2772mm (≈109.1") in 3mm steps; select the exact circumference your drive geometry requires without custom fabrication.
  • ⚙️10mm Belt Width — Standard 10mm (≈3/8") width balances torque capacity with compact pulley width, suitable for most light-to-medium duty synchronous drive applications.

📐 Technical Specifications — HTD 3M Closed-Loop Timing Belt

Belt Type HTD 3M Closed Loop (Synchronous)
Tooth Profile HTD 3M (3mm pitch, rounded curvilinear)
Belt Width 10mm (≈3/8")
Available Lengths 2022mm (≈79.6") – 2772mm (≈109.1"), in 3mm increments
Body Material Polyurethane (PU)
Tensile Cord Steel wire
Loop Type Seamless closed loop (no joint)
Compatible Pulleys HTD 3M pulleys only
Typical Applications 3D printers, CNC routers, laser cutters, robotic actuators
Operating Temperature See variant options
Color See variant options
Quantity per Order 1 belt per unit
⚠️ Sizing Tip: If you are unsure of your required belt length, measure your drive path (center-to-center distance + pulley circumferences) before ordering. Contact us to confirm if your calculated length falls between available increments.

❓ Frequently Asked Questions

How do I choose the correct belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: L = 2C + π(D1 + D2)/2, where C is center distance and D1/D2 are the pitch diameters of your pulleys. Round up to the nearest available 3mm increment in our selection. For reference: 2022mm ≈ 79.6", 2400mm ≈ 94.5", 2772mm ≈ 109.1". If your calculated length falls between sizes, generally select the next larger size and adjust your tensioner.

What tensile strength and load capacity does this belt have?

The steel wire tensile cord typically provides load capacity suitable for light-to-medium duty synchronous drive applications such as 3D printer axes and small CNC gantries. Exact tensile ratings depend on the specific length and pulley wrap angle. For high-load or continuous-duty industrial applications, contact us to confirm suitability before ordering.

Can I use this belt outdoors or in wet/oily environments?

Polyurethane (PU) belts are generally more resistant to oils, mild solvents, and incidental moisture than standard rubber belts. However, prolonged UV exposure or immersion in water is not recommended. For outdoor installations or wash-down environments, contact us to confirm the belt's suitability for your specific conditions.

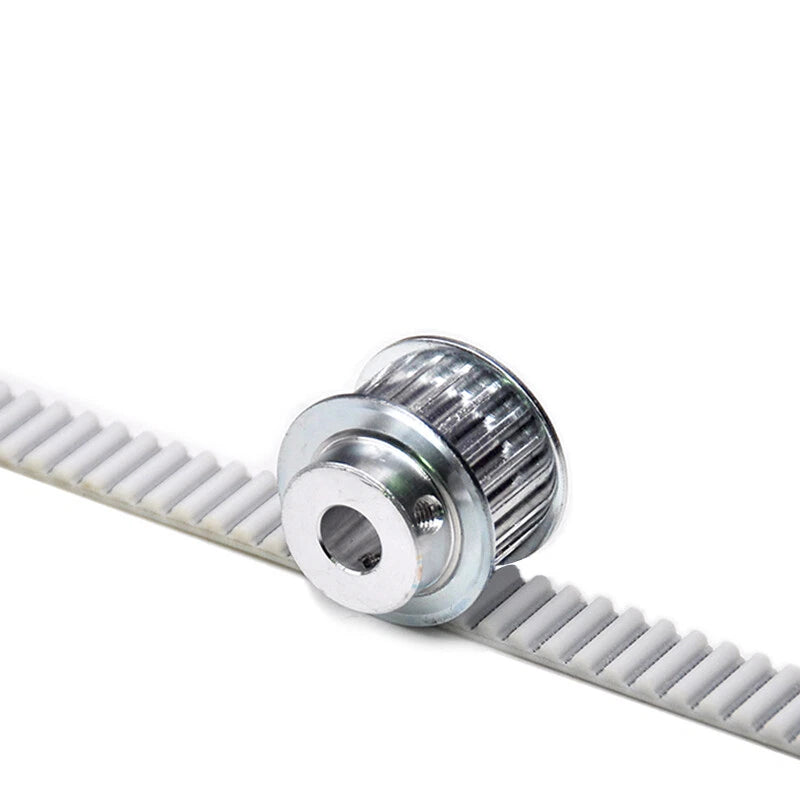

What pulleys are compatible with this HTD 3M belt?

This belt is designed exclusively for HTD 3M pulleys (3mm pitch, rounded tooth profile). It is not compatible with GT2, GT3, T3, MXL, or XL profile pulleys, even though some share a 3mm pitch. Always verify the tooth profile designation on your pulley before ordering. Mismatched profiles will cause premature wear and skipping.

How do I convert the belt length from mm to inches?

Divide the millimeter value by 25.4 to get inches. Quick reference examples from our range:

  • 2022mm ÷ 25.4 ≈ 79.6"
  • 2100mm ÷ 25.4 ≈ 82.7"
  • 2400mm ÷ 25.4 ≈ 94.5"
  • 2700mm ÷ 25.4 ≈ 106.3"
  • 2772mm ÷ 25.4 ≈ 109.1"
Is this belt suitable for 3D printers and CNC machines?

Yes. HTD 3M closed-loop timing belts are commonly used in large-format CoreXY and Cartesian 3D printers, CNC router axis drives, laser cutter gantry systems, and custom robotic linear actuators. The steel wire core minimizes stretch for accurate, repeatable positioning. Verify that your machine's pulleys use the HTD 3M tooth profile before purchasing.

What is the difference between HTD 3M and GT2 belts?

Both HTD 3M and GT2 belts have a 3mm pitch, but their tooth profiles differ and they are not interchangeable. HTD 3M uses a rounded curvilinear tooth optimized for higher torque transmission. GT2 uses a modified curvilinear profile designed for low backlash in precision positioning applications. Always match your belt and pulley to the same profile designation.

🛒 Select your model (belt length) above, then add to cart — ships from our US warehouse.
