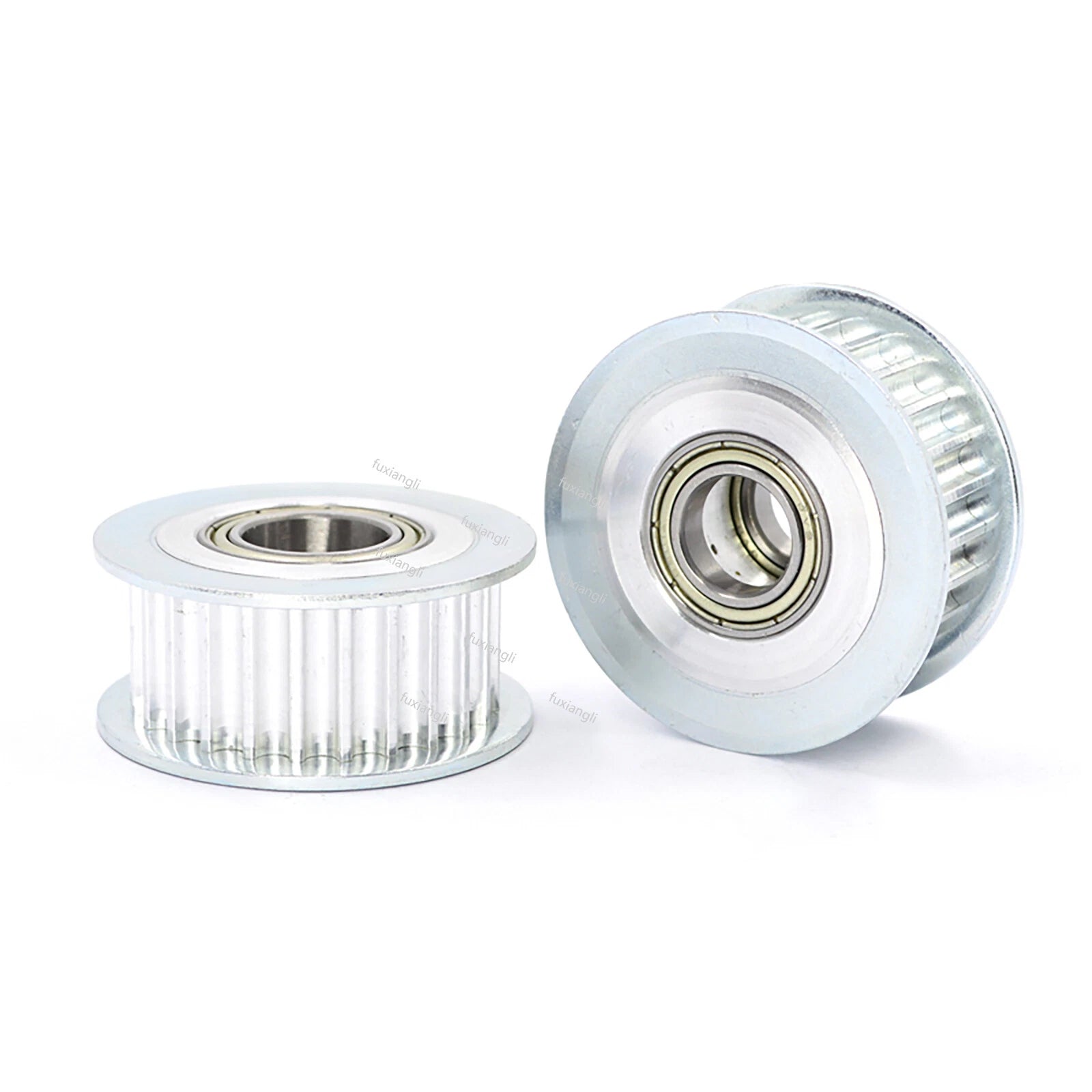

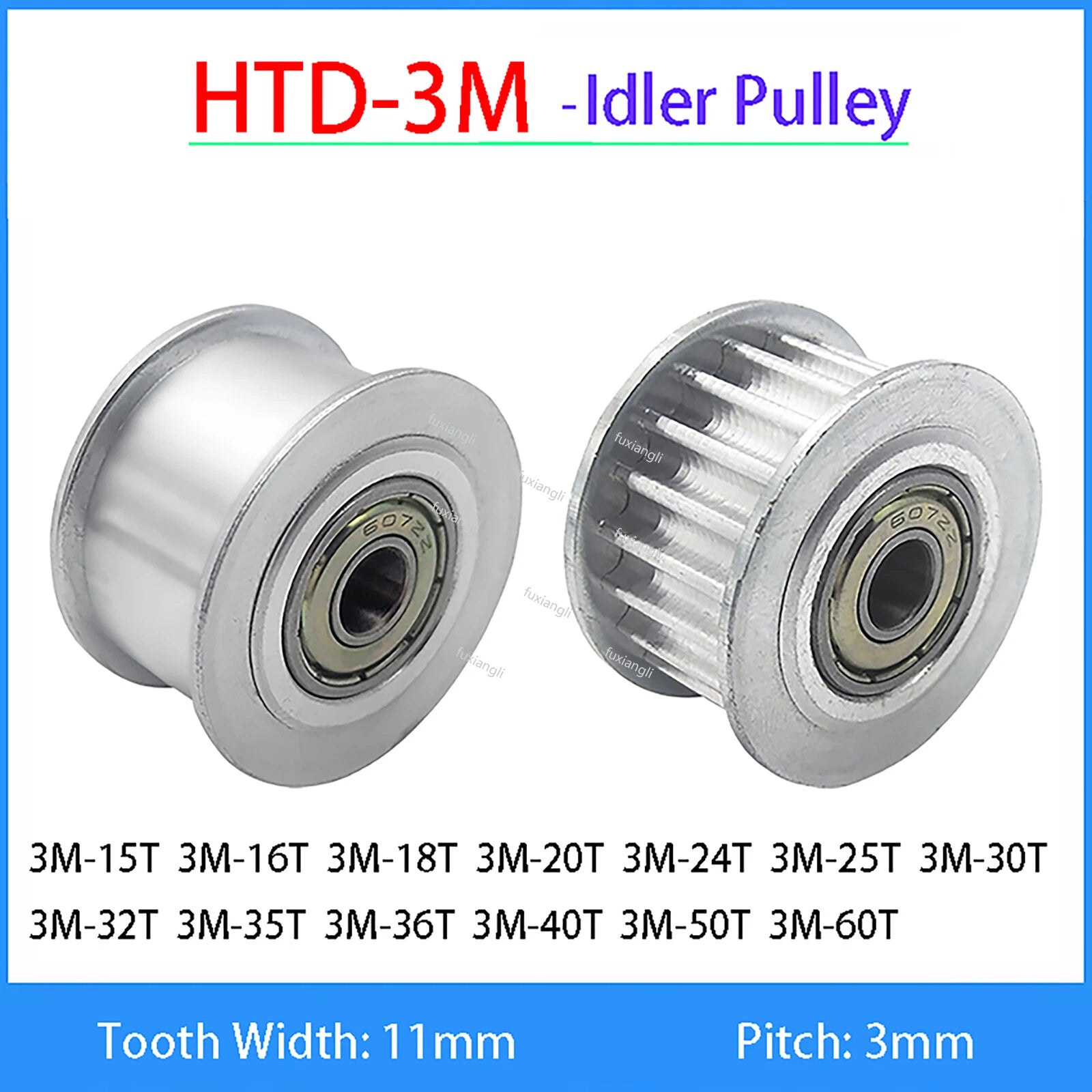

HTD-3M Timing Belt Idler Pulley — Reliable Tensioning for DIY Automation

When your timing belt loses tension mid-project, the entire motion system suffers — skipped steps, misaligned axes, and failed prints. Makers, hobbyists, and small-workshop engineers building CNC routers, 3D printers, or custom conveyor systems need an idler or tensioner pulley they can count on. These HTD-3M timing belt idler pulleys are engineered to maintain consistent belt tension across a wide range of drive configurations.

Each pulley is machined from aluminum alloy with a hard-anodized or natural finish, featuring an HTD-3M tooth profile (3 mm pitch). The pulley body width is 11 mm, accommodating standard 10 mm wide HTD-3M belts with lateral clearance. Tooth counts range from 15T to 60T, and bore diameters span 3 mm to 15 mm (~0.12 in to ~0.59 in), covering the most common shaft sizes in hobby and light-industrial automation.

Typical use cases include tensioner idlers on CoreXY and Cartesian 3D printer belt paths, belt-driven CNC axis tensioning for routers and laser cutters, and custom DIY conveyor or pick-and-place systems requiring precise HTD-3M belt engagement. Both smooth-tooth (idler) and toothed variants are available, letting you choose the correct engagement style for your drive layout.

⚙️ Compatibility: Designed for HTD-3M timing belts (3 mm pitch, 10 mm width). Verify your shaft diameter and tooth count before ordering. Smooth-tooth variants are used as non-driving idlers; toothed variants engage the belt directly.

✅ Key Features of These HTD-3M Timing Belt Idler Pulleys

🔩 Wide Tooth Count Range (15T–60T)

Choose from 15, 16, 18, 20, 24, 25, 30, 32, 35, 36, 40, 50, or 60 teeth to match your belt path geometry and wrap angle requirements.

📏 Multiple Bore Sizes (3–15 mm)

Available in 3, 4, 5, 6, 7, 8, 10, 12, and 15 mm bore diameters to fit standard motor shafts, idler pins, and tensioner bolts used in DIY automation builds.

🔄 Smooth Tooth & Toothed Variants

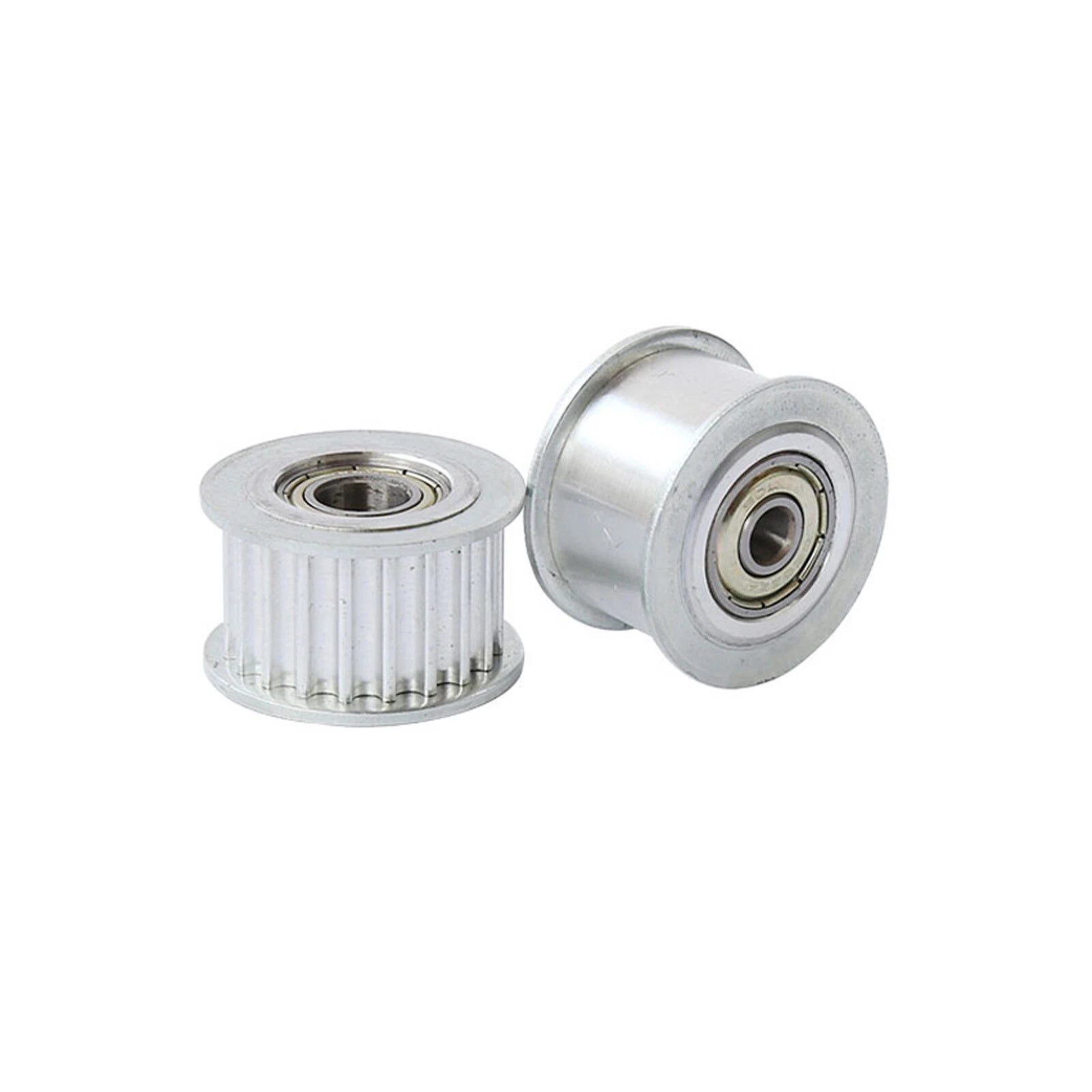

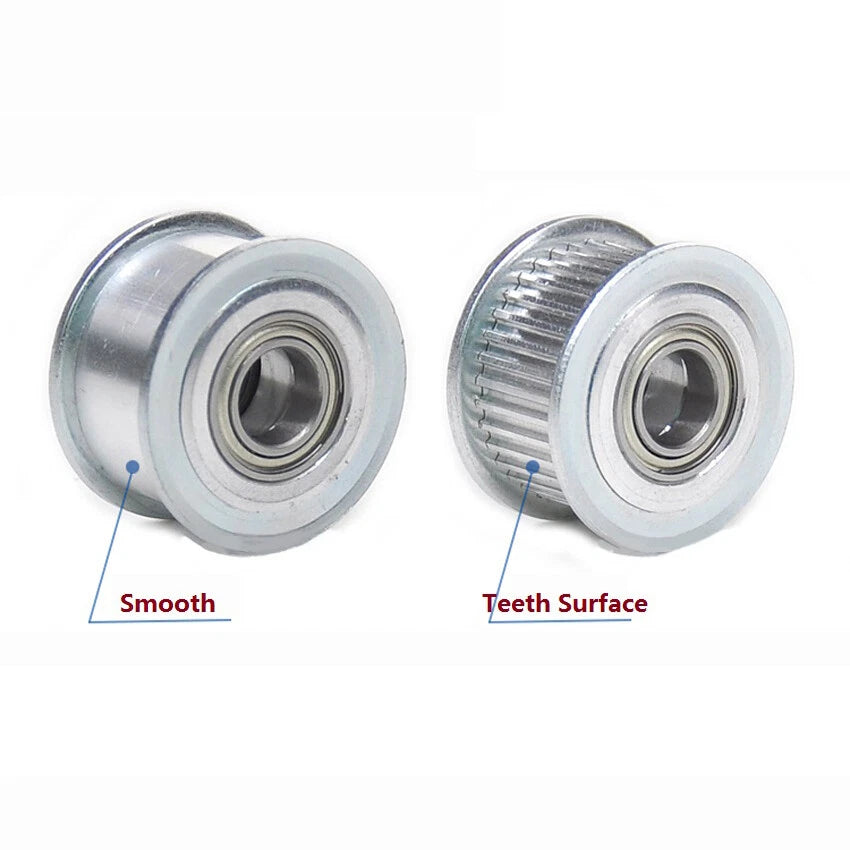

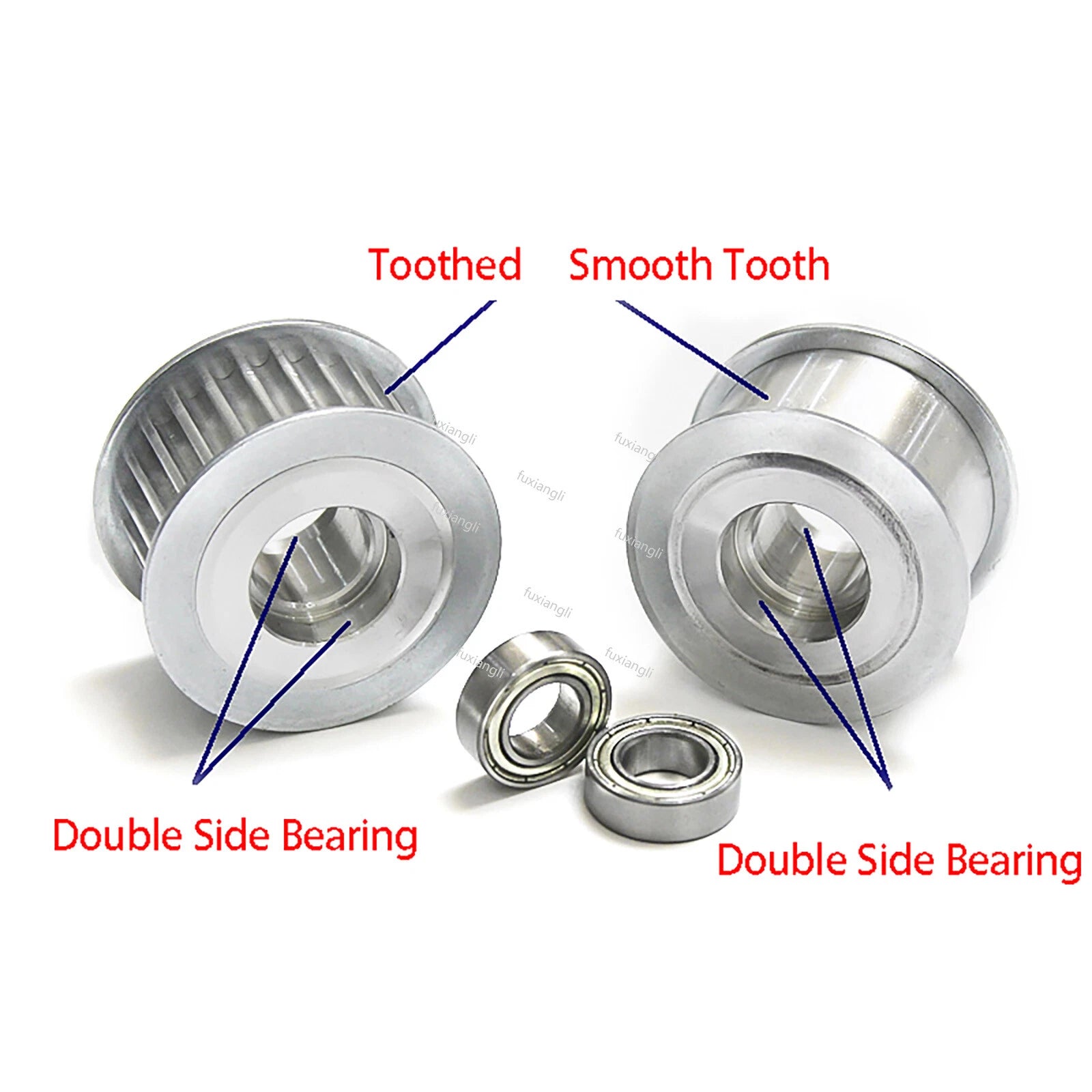

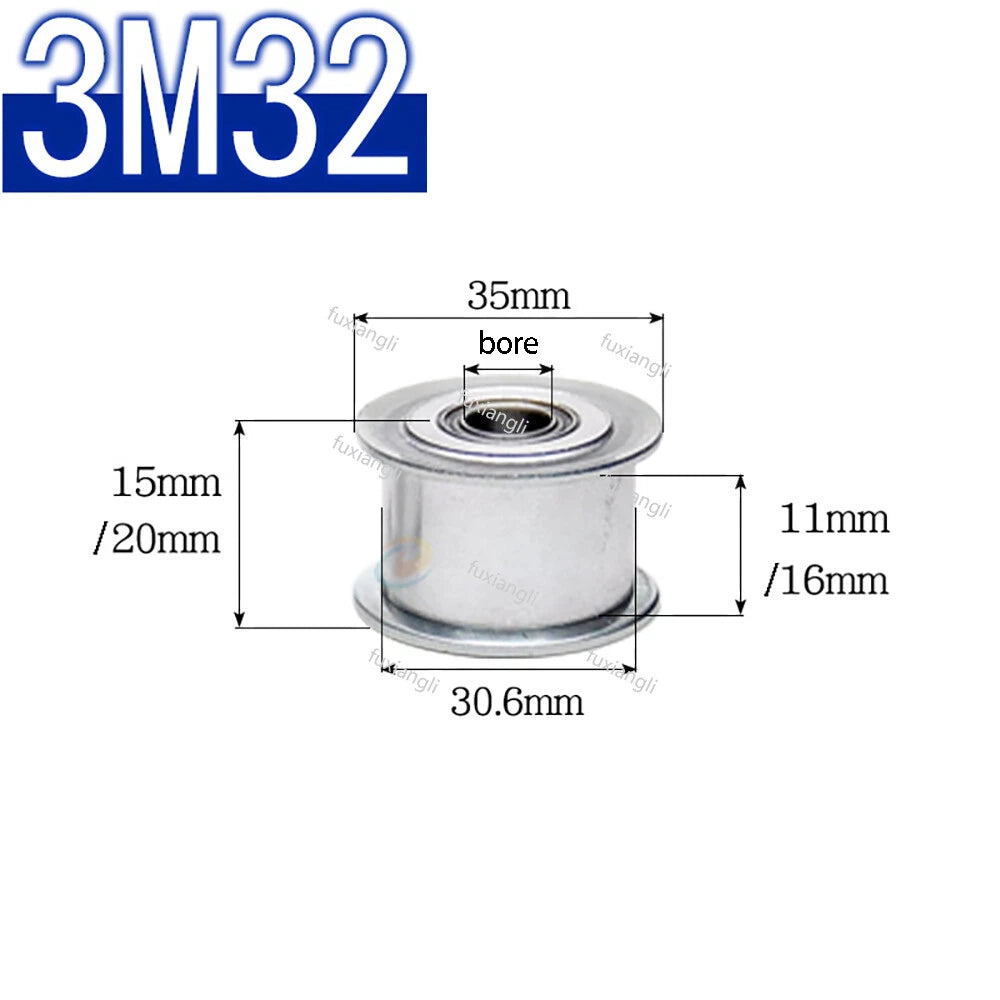

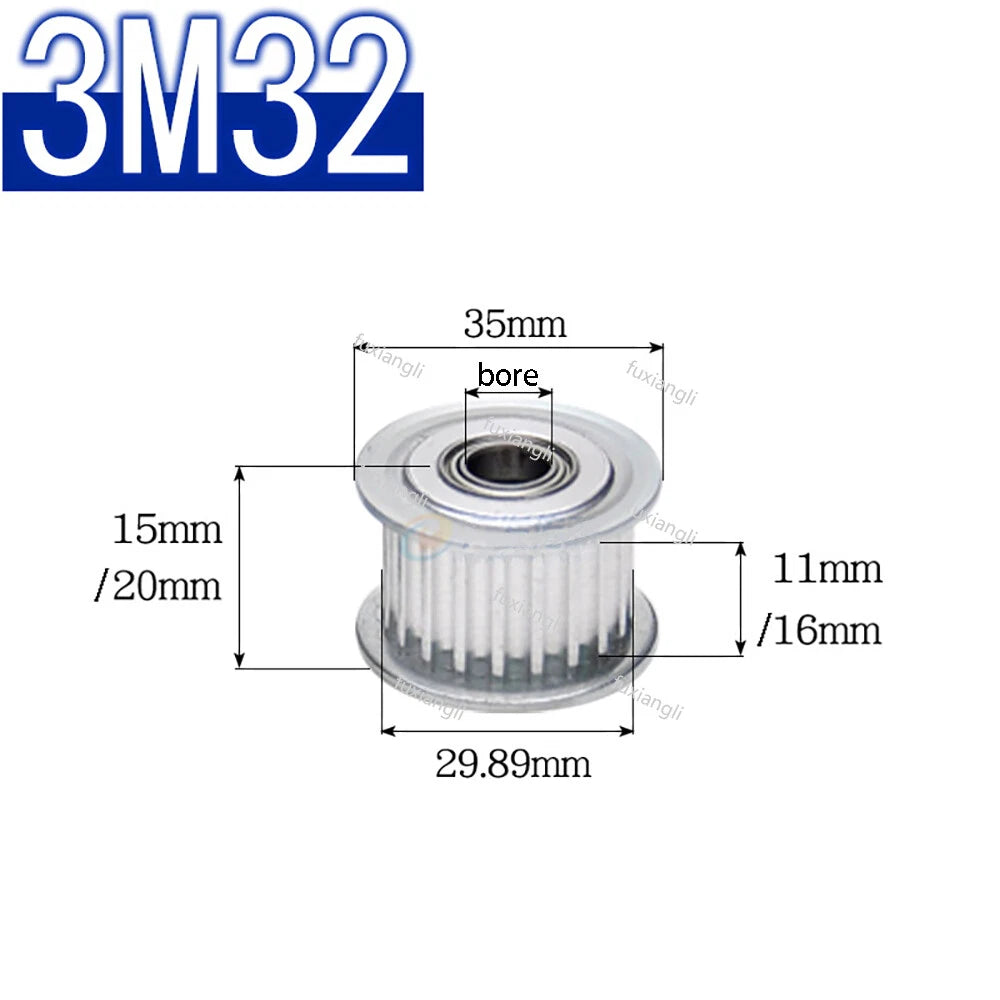

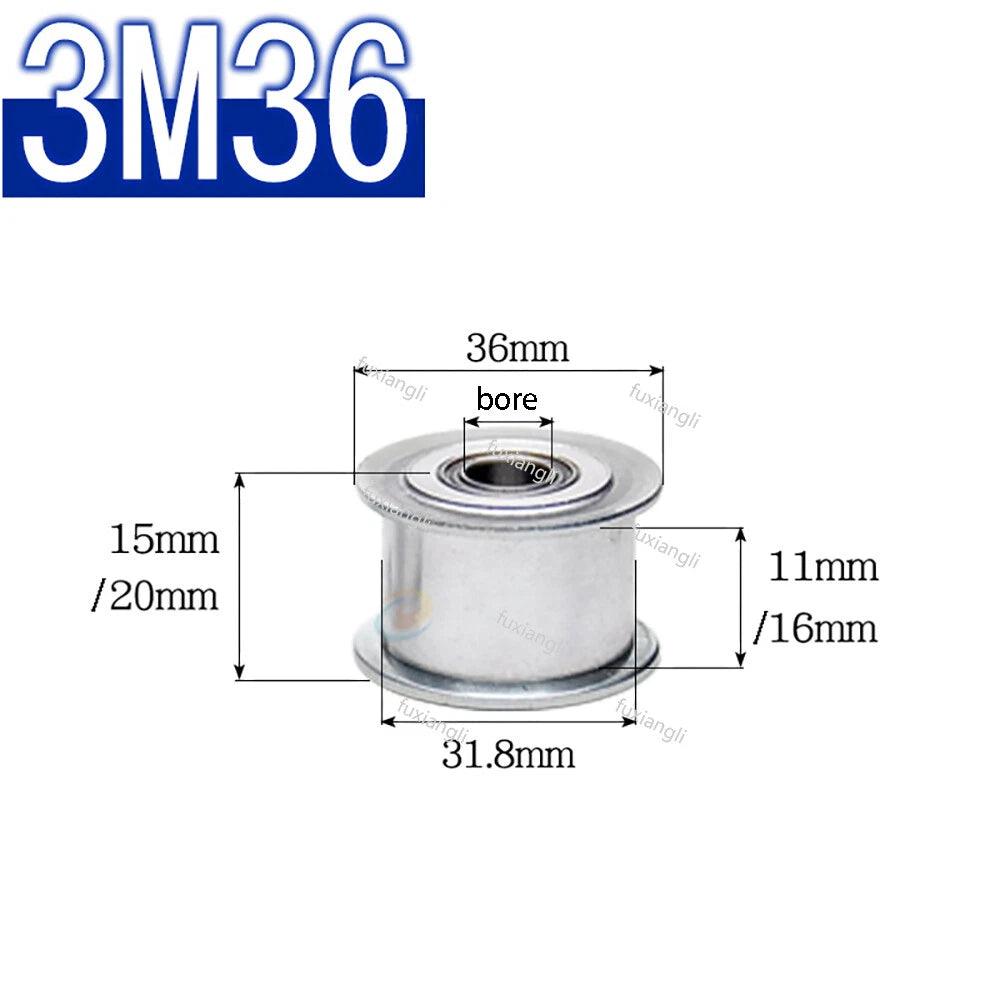

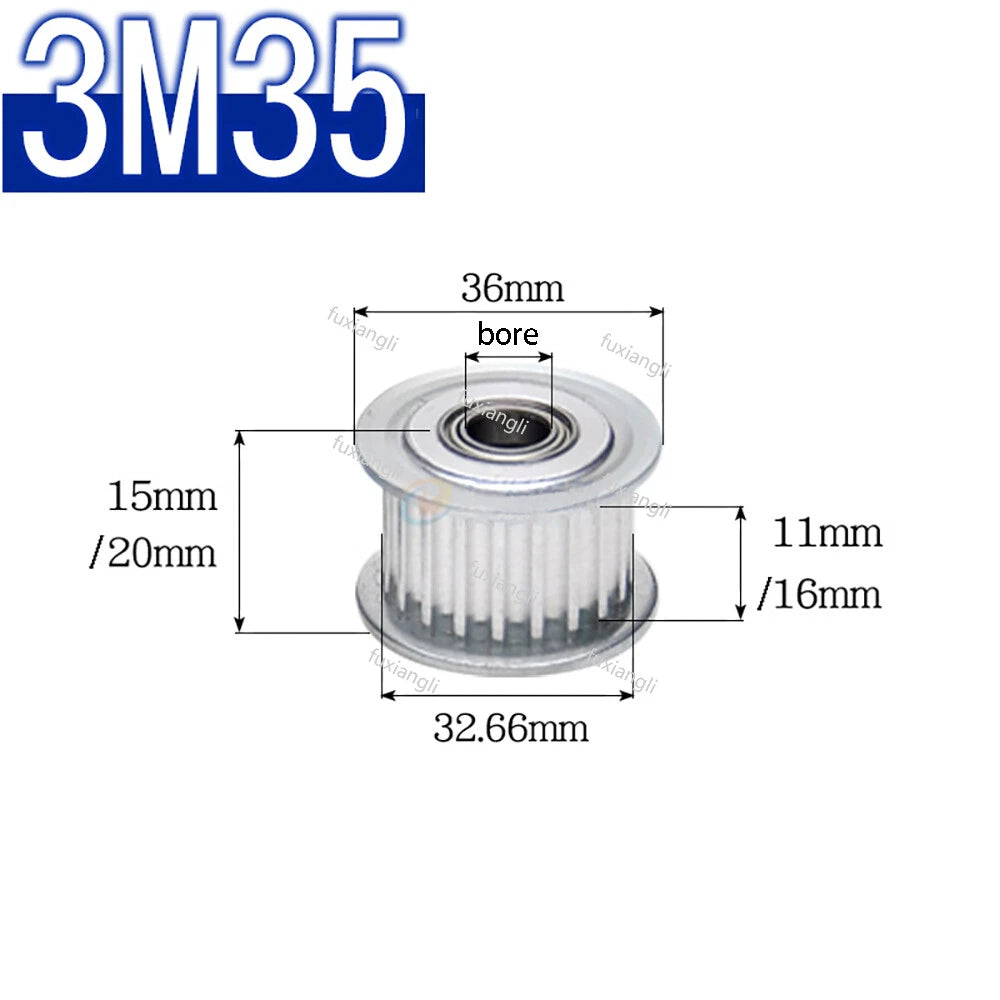

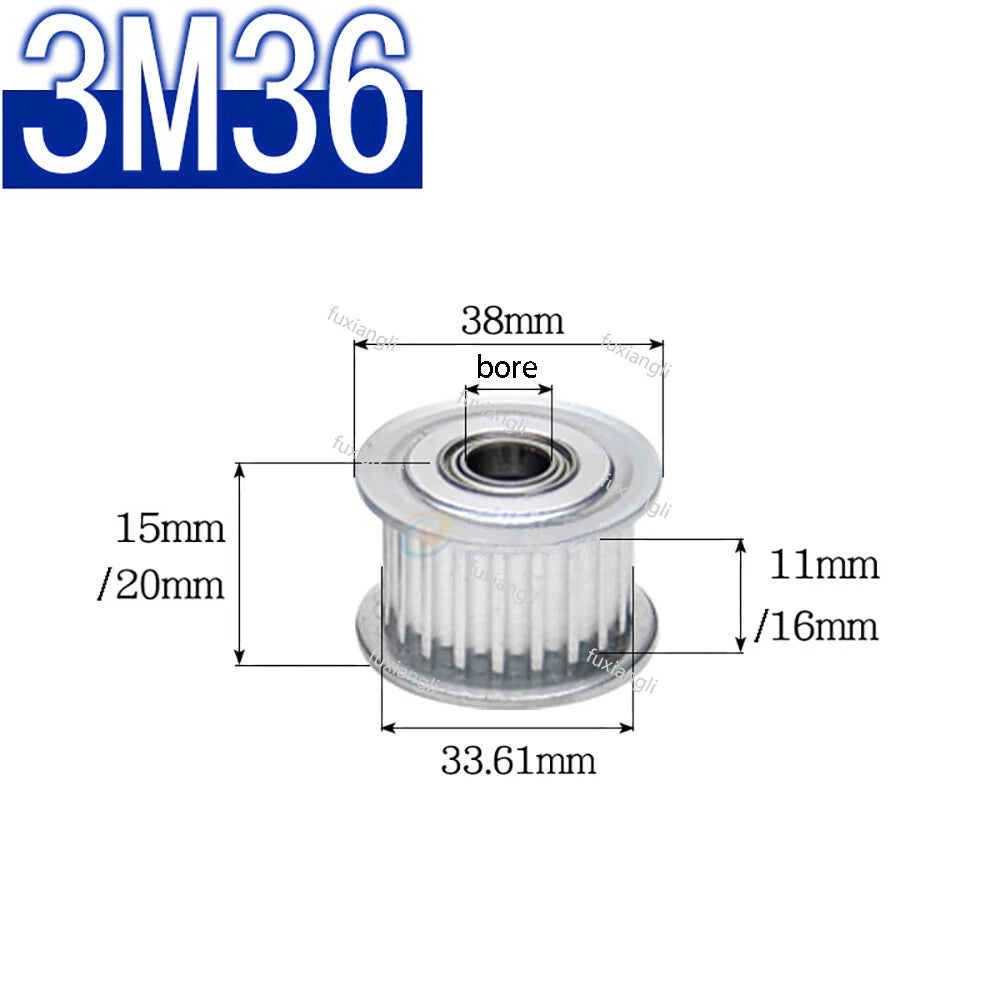

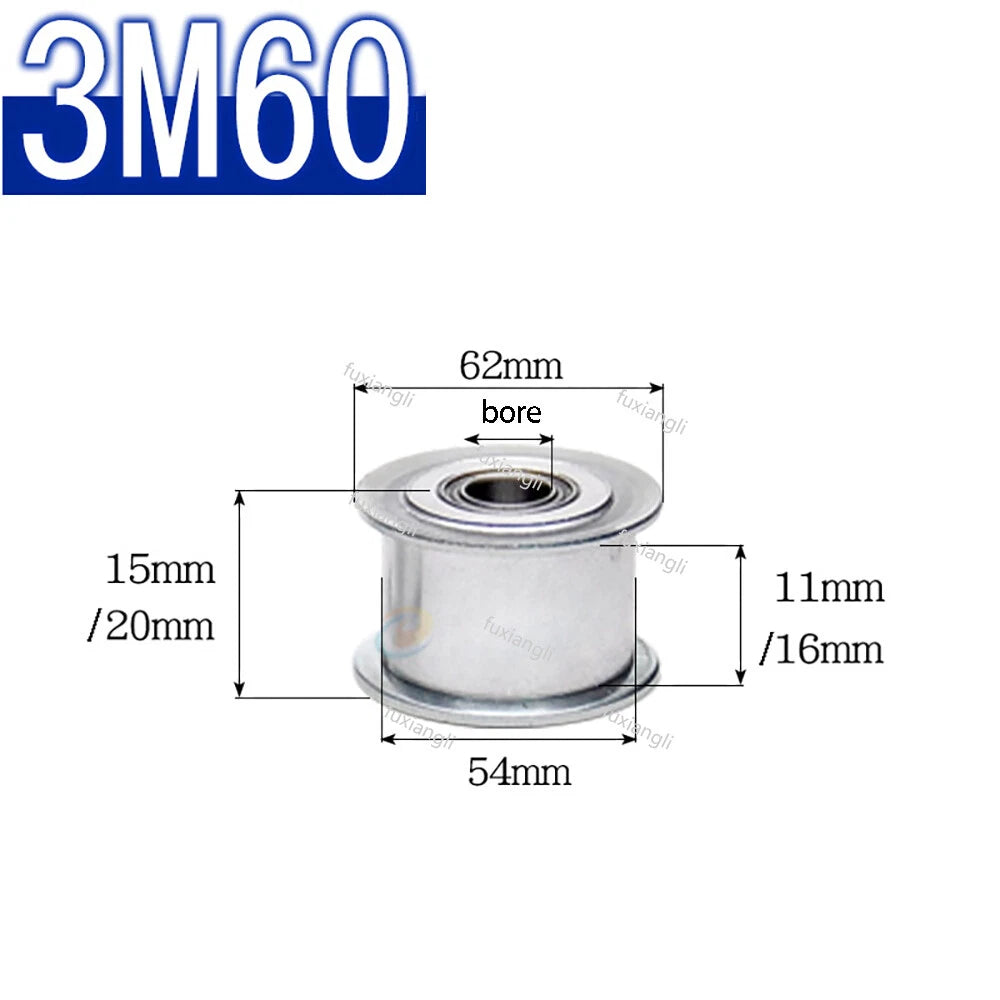

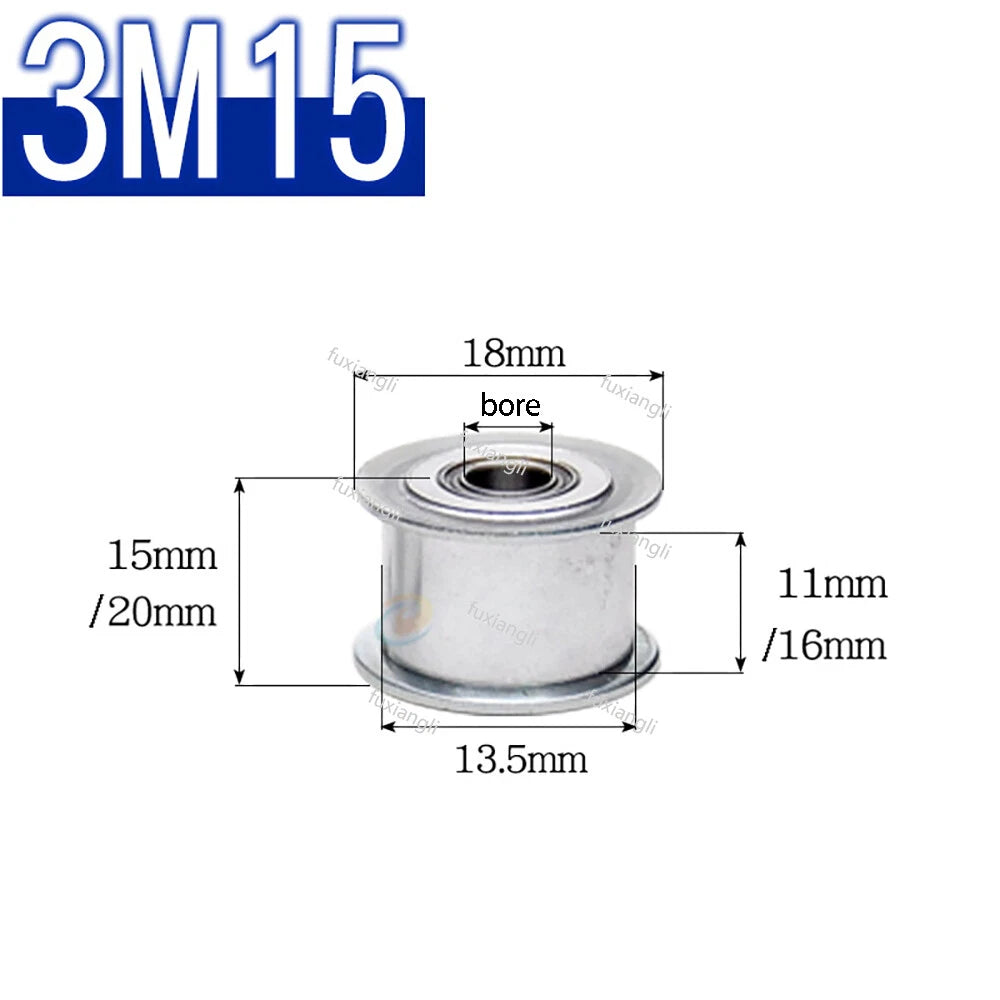

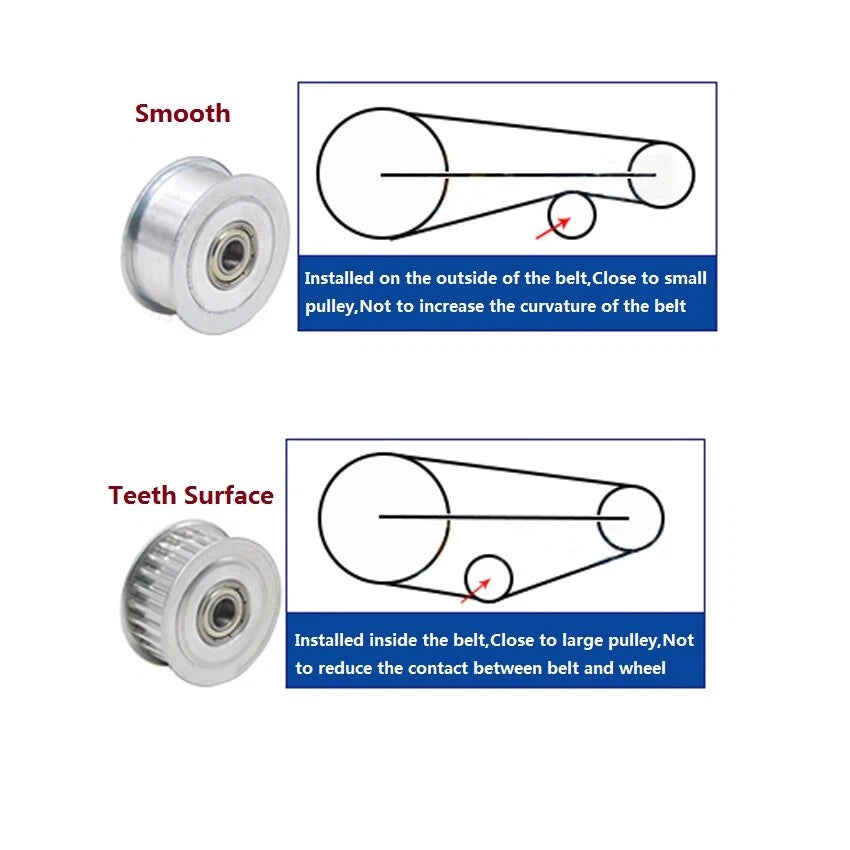

Smooth-tooth (flanged idler) versions redirect the belt without engagement; toothed versions provide positive belt engagement for driving or tensioning with tooth contact.

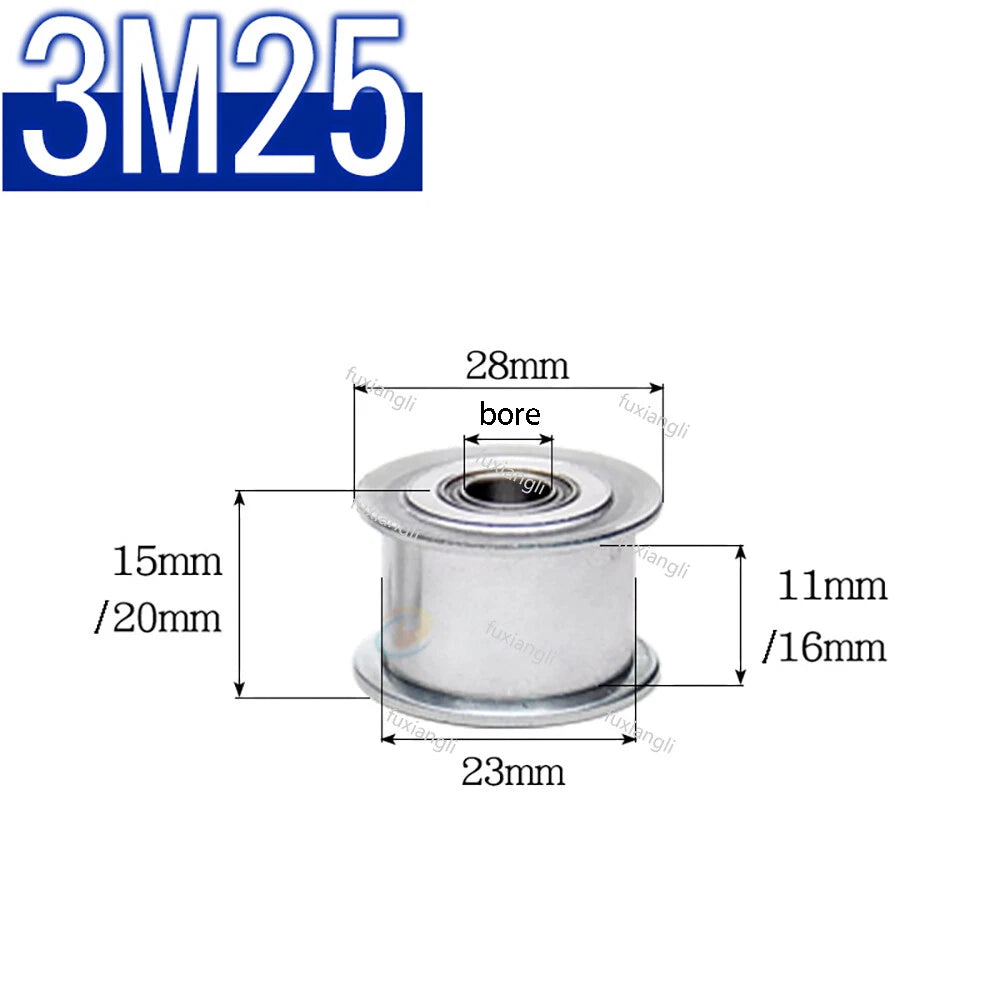

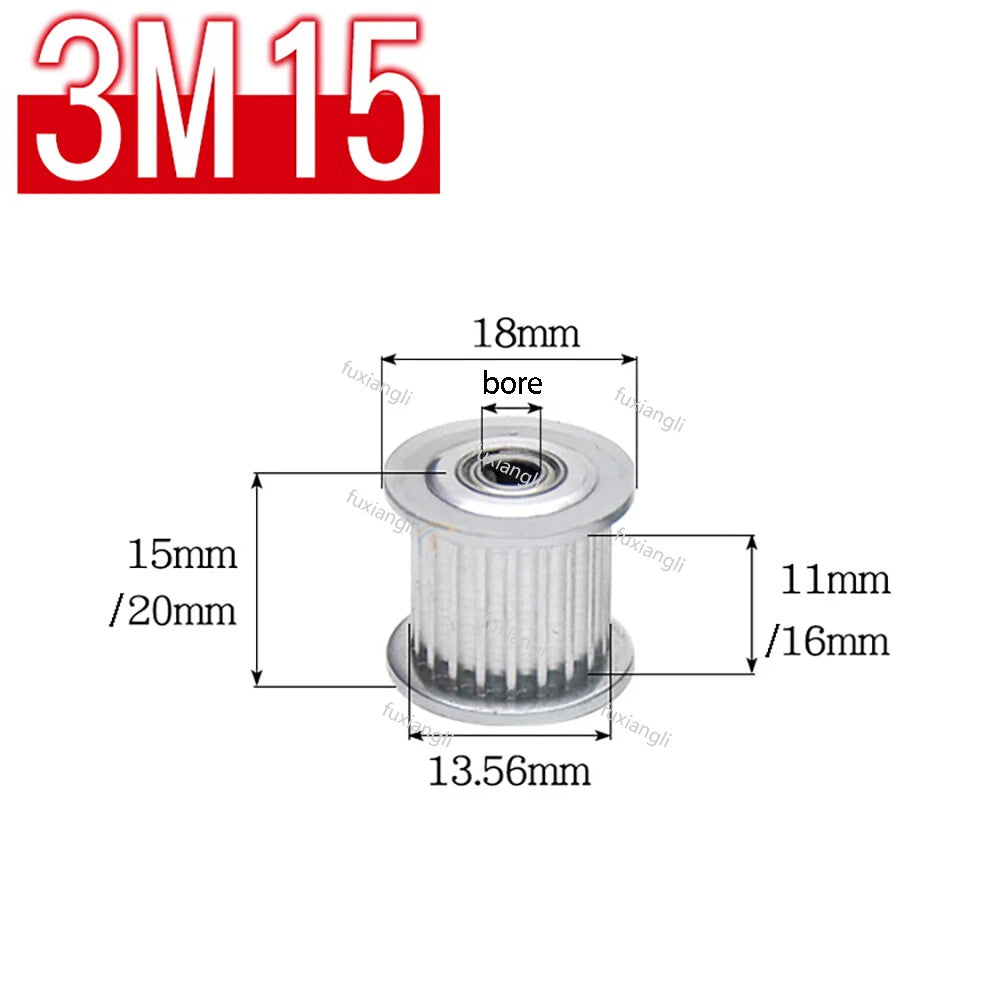

🏗️ 11 mm Pulley Body Width

The 11 mm body width provides lateral guidance for standard 10 mm HTD-3M belts, reducing belt walk and maintaining alignment in high-cycle applications.

⚡ HTD-3M Tooth Profile

The curvilinear HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing belt stress and extending service life in continuous-duty motion systems.

🛠️ Drop-In Fit for Common DIY Platforms

Dimensionally compatible with widely used 3D printer and CNC motion systems including CoreXY, Cartesian, and H-bot architectures that use HTD-3M belt drives.

📐 Technical Specifications — HTD-3M Timing Belt Idler Pulley

Belt Profile HTD-3M (3 mm pitch, curvilinear tooth)
Pulley Width 11 mm (~0.43 in)
Tooth Count 15T, 16T, 18T, 20T, 24T, 25T, 30T, 32T, 35T, 36T, 40T, 50T, 60T (see variant options)
Bore Diameter 3, 4, 5, 6, 7, 8, 10, 12, 15 mm (see variant options)
Compatible Belt Width 10 mm
Tooth Style Smooth Tooth (idler) or Toothed (see variant options)
Material Aluminum alloy
Finish See variant options
Quantity per Order 1 piece

❓ Frequently Asked Questions

What is the difference between the Smooth Tooth and Toothed variants?

The Smooth Tooth variant has a flat or flanged outer surface with no teeth — it acts as a passive idler that redirects the belt without engaging it. The Toothed variant has a full HTD-3M tooth profile and meshes directly with the belt, making it suitable for use as a driven or tensioning pulley where positive engagement is required.

How do I choose the correct bore diameter?

Measure the outer diameter of your shaft, idler pin, or tensioner bolt. Select the bore size that matches — available options are 3, 4, 5, 6, 7, 8, 10, 12, and 15 mm. A bore that is too large will require a set screw or adapter; a bore that is too small cannot be installed without machining.

Which tooth count should I choose for my 3D printer or CNC build?

For idler pulleys on CoreXY or Cartesian 3D printers, 20T is the most common choice as it matches the drive pulley tooth count and maintains consistent belt geometry. For tensioner applications where the pulley does not affect the drive ratio, any tooth count that fits your bracket geometry is acceptable. Larger tooth counts (30T–60T) are typically used in lower-speed, higher-torque conveyor or industrial tensioner applications.

Is this pulley compatible with standard HTD-3M timing belts?

Yes. These pulleys are machined to the HTD-3M tooth profile standard (3 mm pitch, curvilinear tooth form) and are compatible with any HTD-3M timing belt up to 10 mm wide. They are not compatible with GT2, MXL, T5, or other belt profiles.

How strong is the pulley — can it handle continuous-duty operation?

The aluminum alloy construction provides a good strength-to-weight ratio suitable for light-industrial and hobby automation loads. For continuous-duty applications, ensure the pulley is properly supported on both sides of the bore (e.g., with flanged bearings or shoulder bolts) to prevent side-loading the bore wall. Maximum load capacity depends on shaft support and belt tension — contact us to confirm suitability for high-load applications.

Does the pulley include a bearing or set screw?

The pulley body itself does not include a pre-installed bearing or set screw unless explicitly stated in the variant listing. For smooth-tooth idler applications, you will typically press-fit or bolt a flanged bearing into the bore. For toothed drive applications, a set screw or keyway arrangement on your shaft is recommended to prevent slipping.

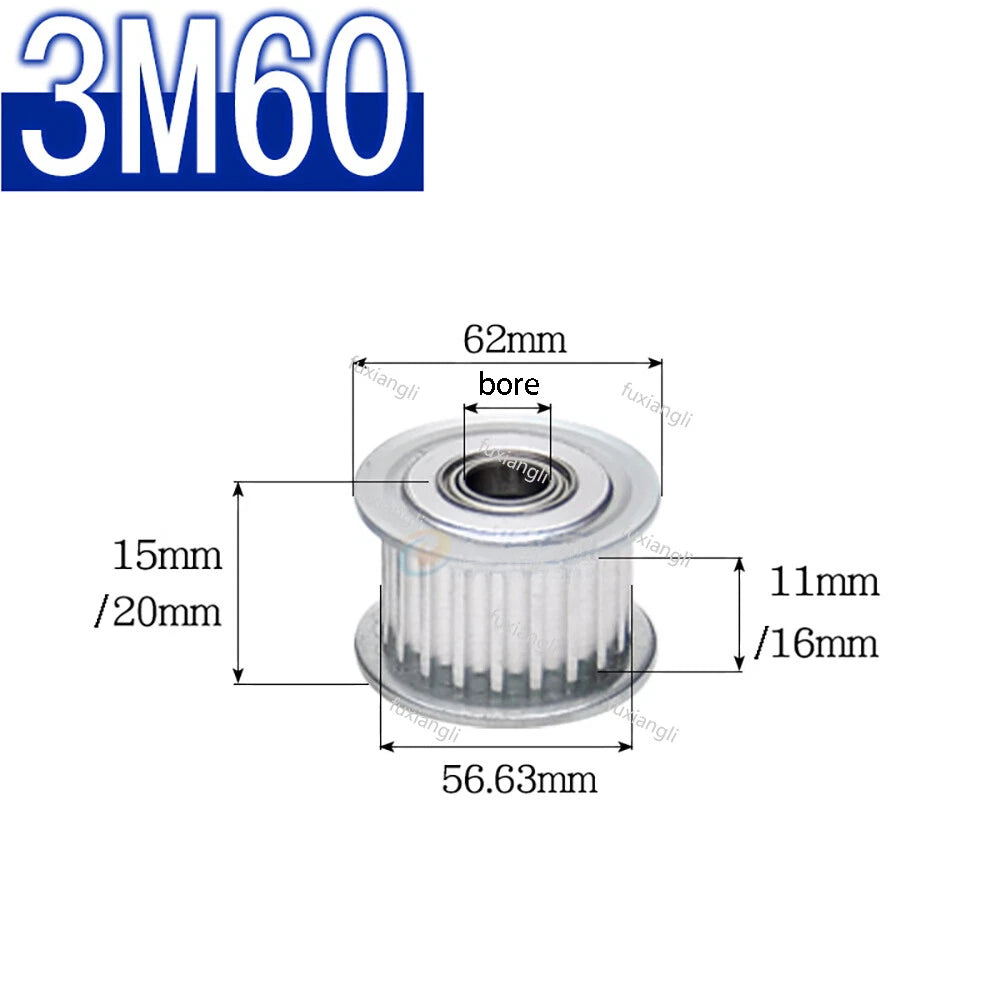

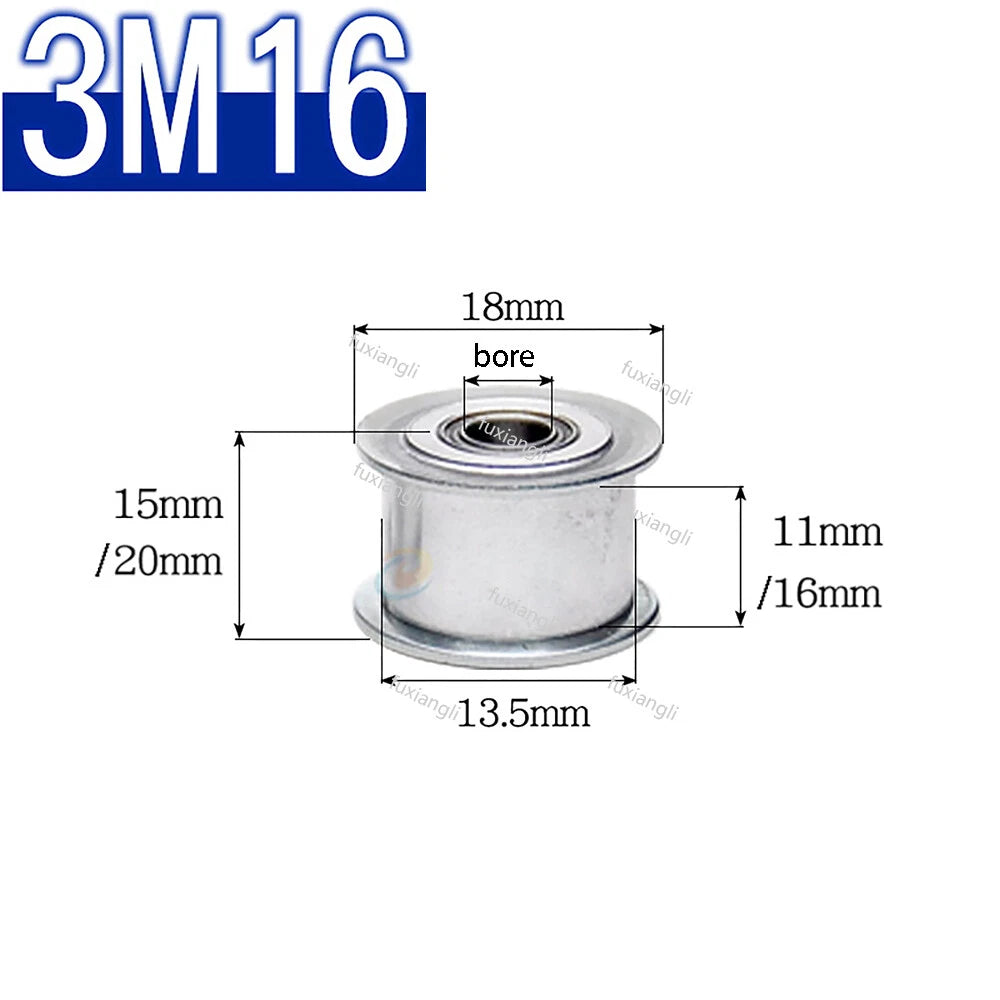

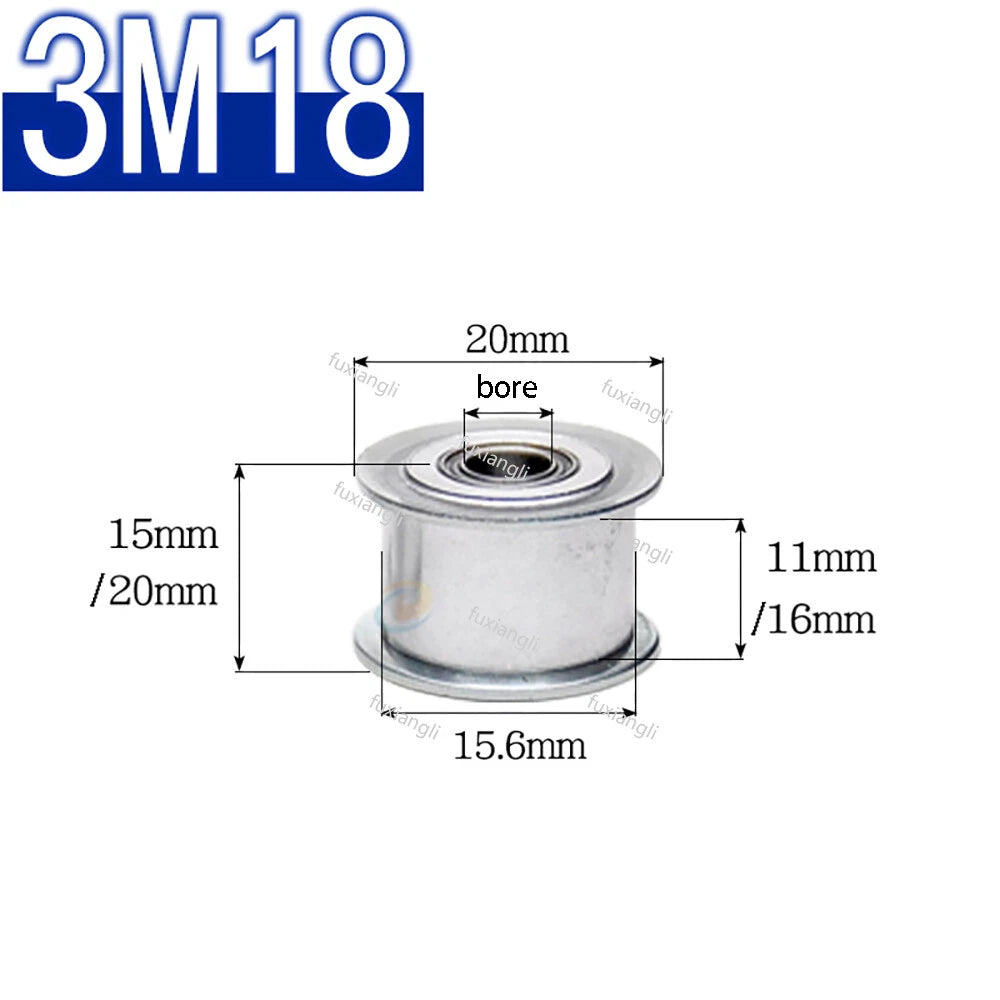

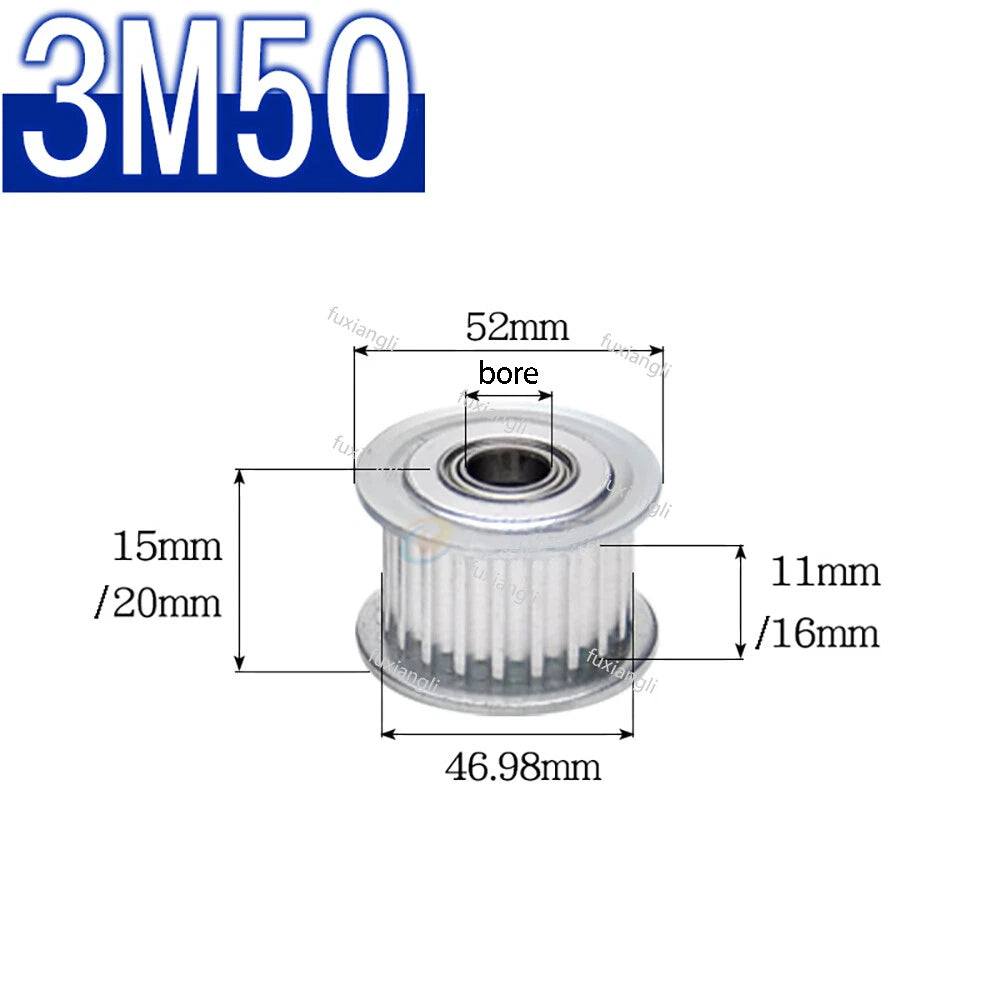

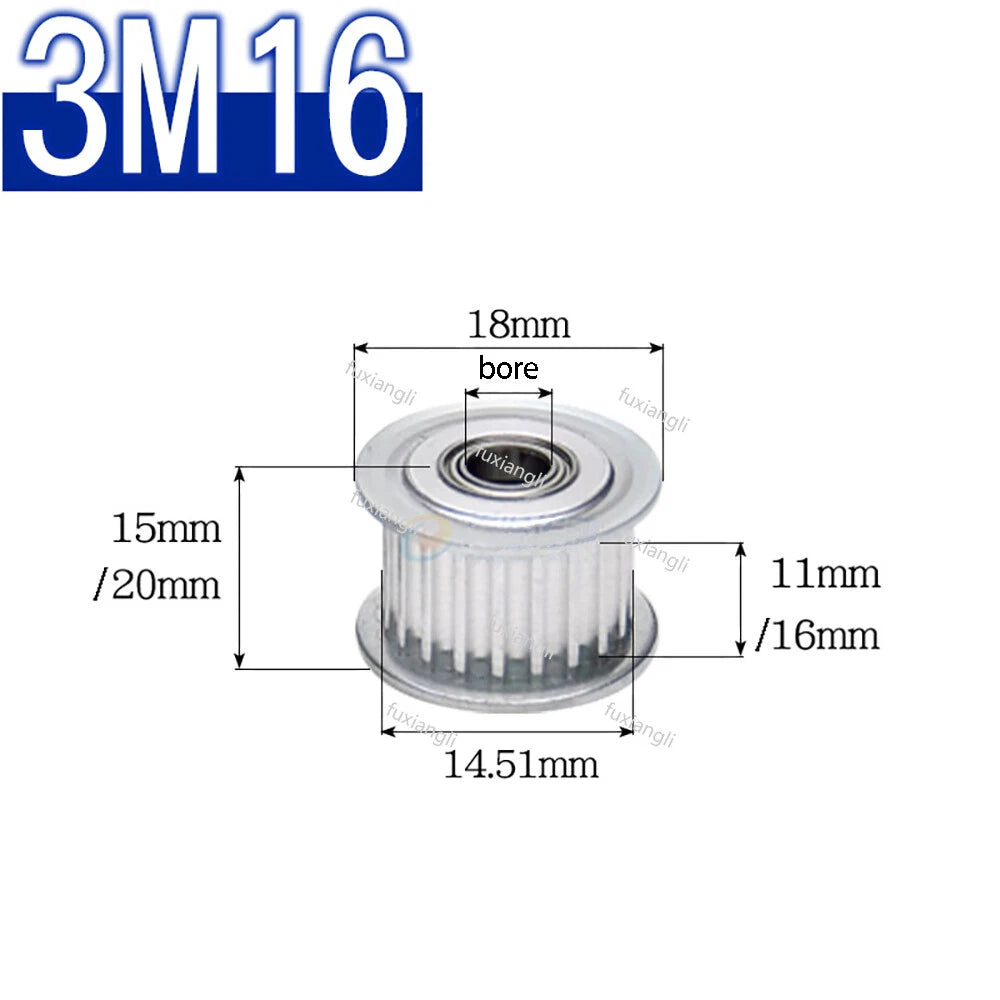

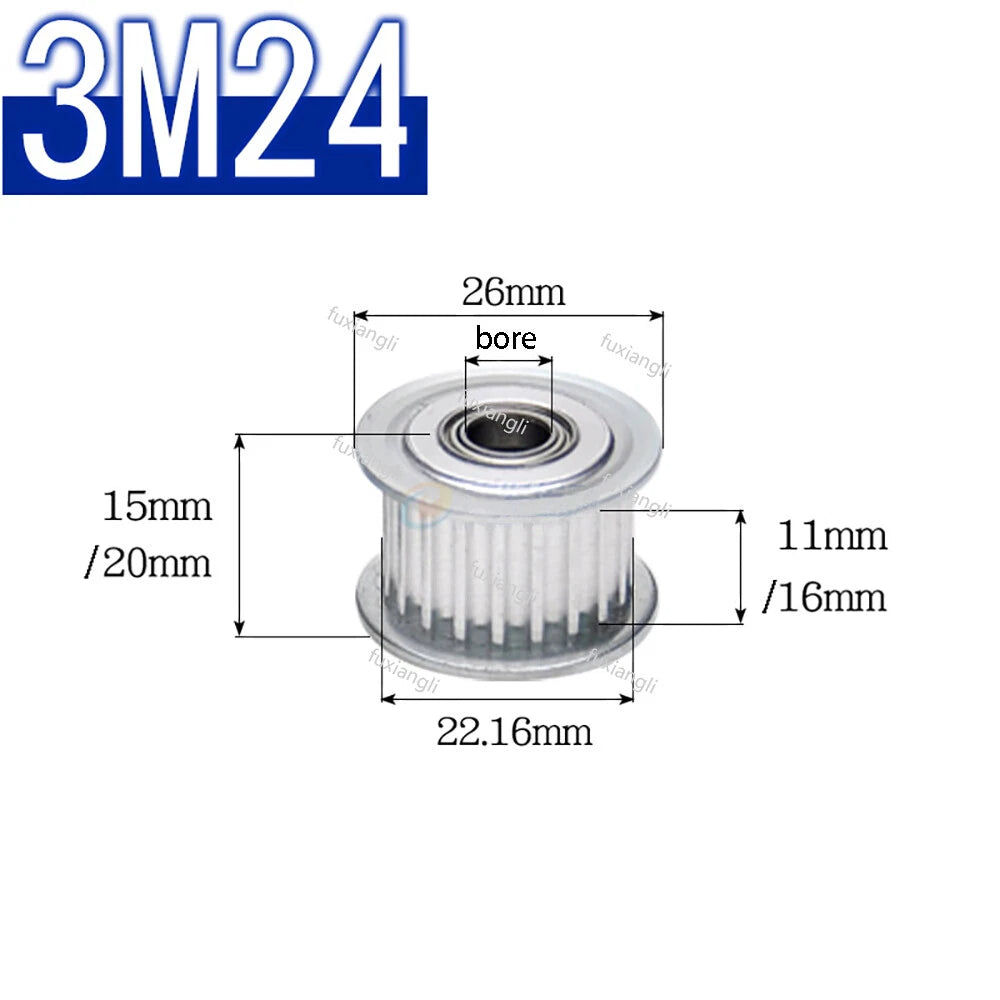

What is the outer diameter of the pulley for a given tooth count?

The pitch diameter of an HTD-3M pulley is calculated as: PD = (Tooth Count × Pitch) ÷ π. For example, a 20T pulley has a pitch diameter of approximately 19.1 mm (~0.75 in), and a 30T pulley is approximately 28.6 mm (~1.13 in). The outer diameter is slightly larger than the pitch diameter. Contact us to confirm exact outer dimensions for your specific tooth count.

🛒 Select your Type (tooth count & style) and Bore Dia. above, then add to cart.
