When your motion-control build demands slip-free synchronization and repeatable positioning, a mismatched or worn pulley becomes the weakest link in the entire drivetrain. Engineers, makers, and small-batch manufacturers who rely on stepper or servo motors need HTD-3M timing belt pulleys that hold tight tolerances across thousands of cycles without backlash or belt skip.

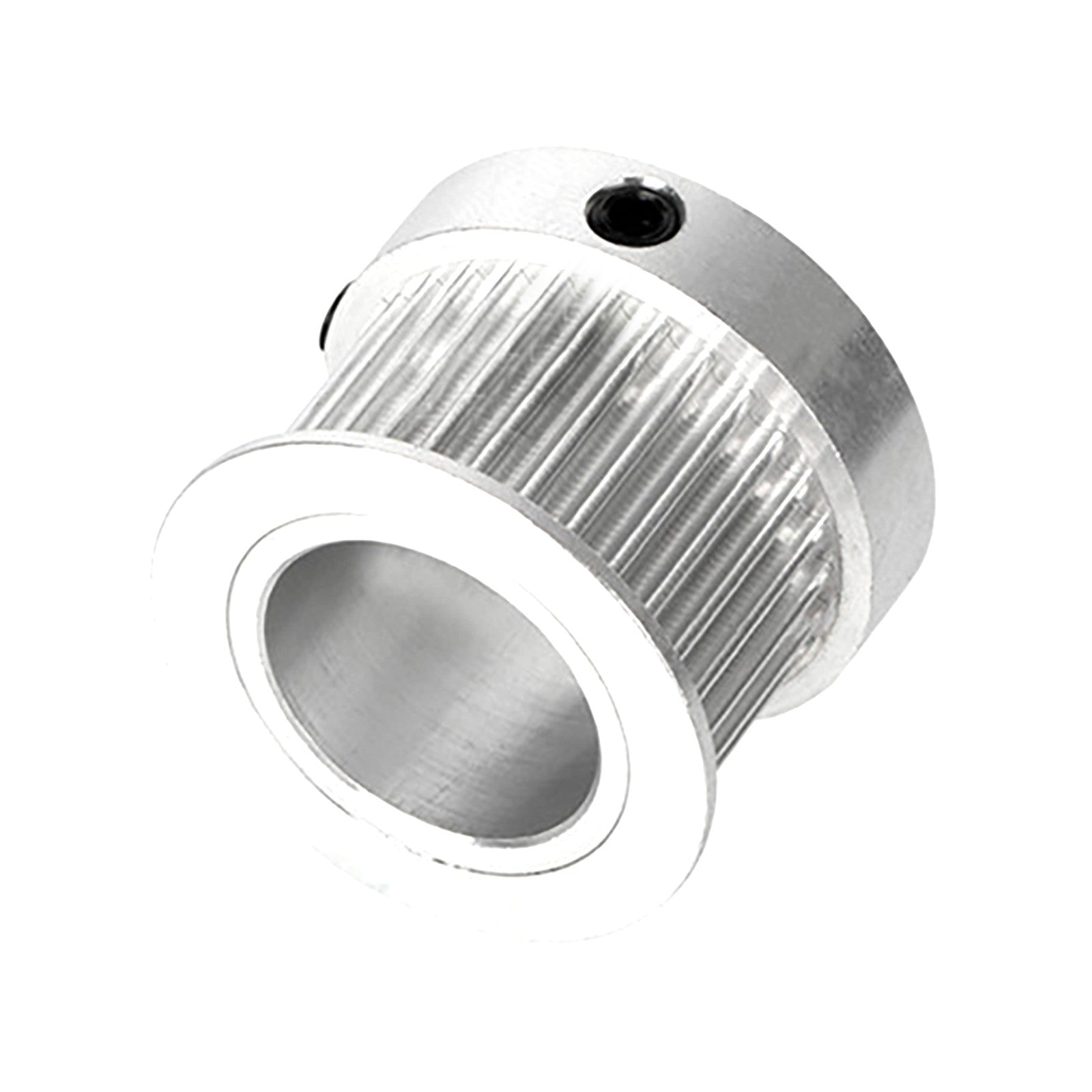

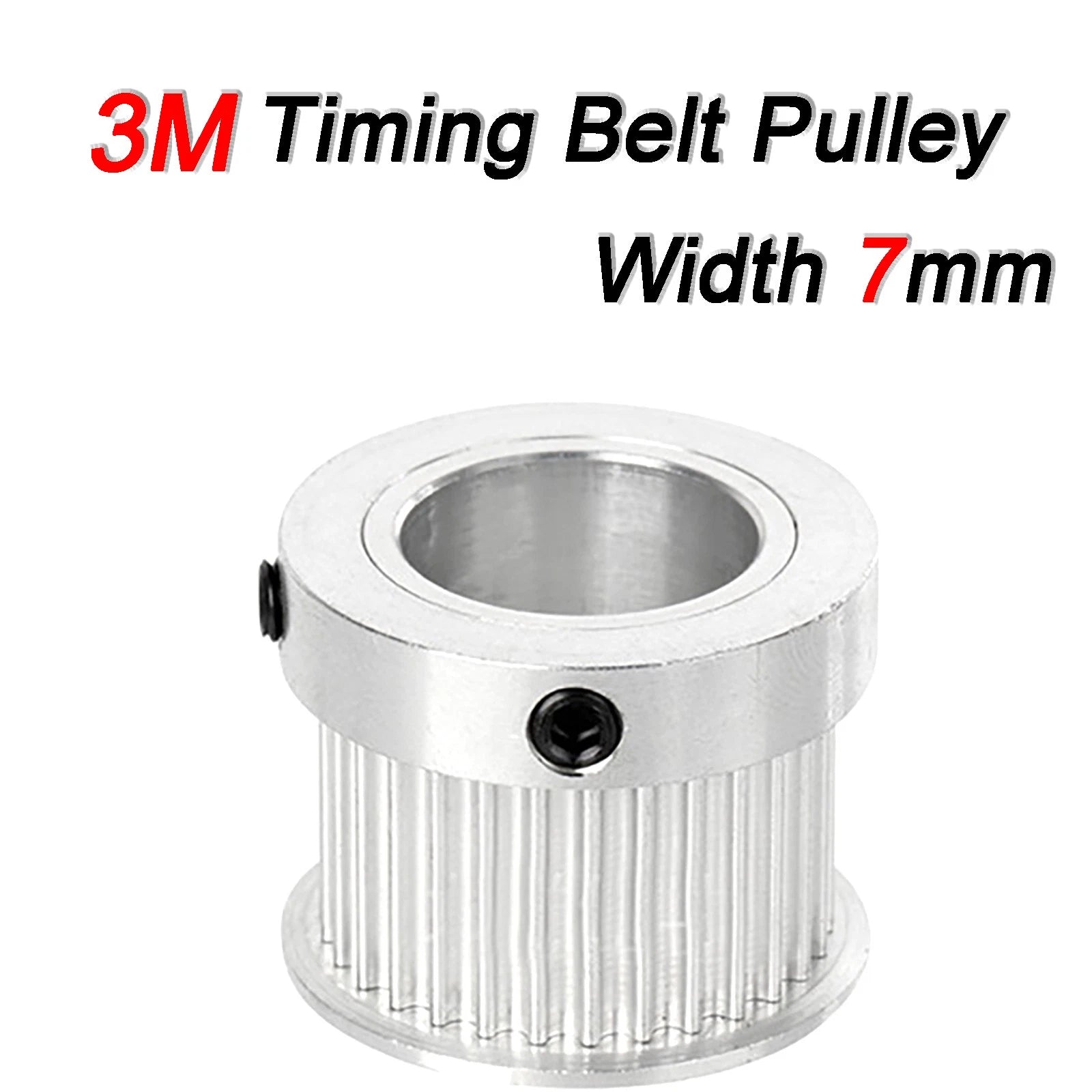

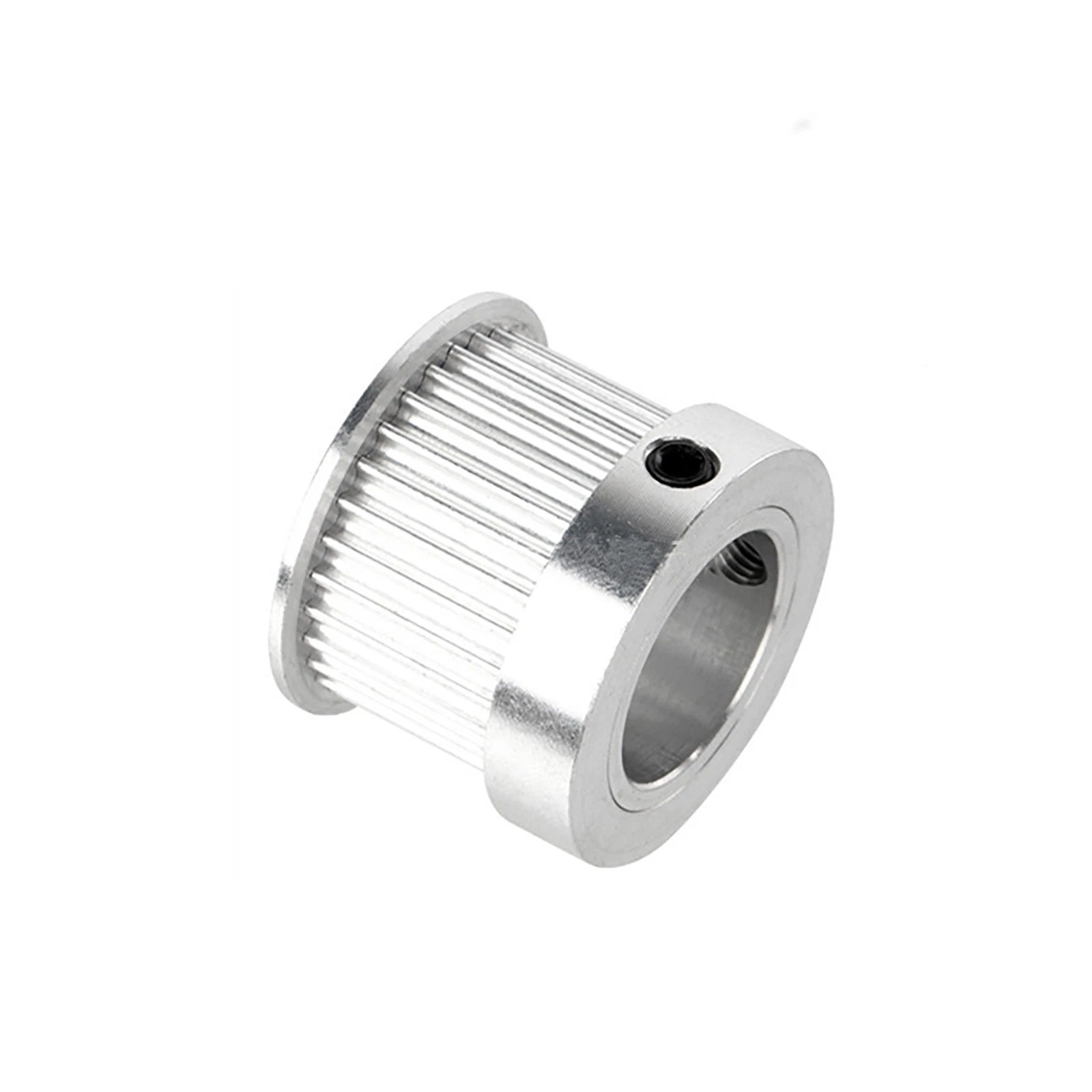

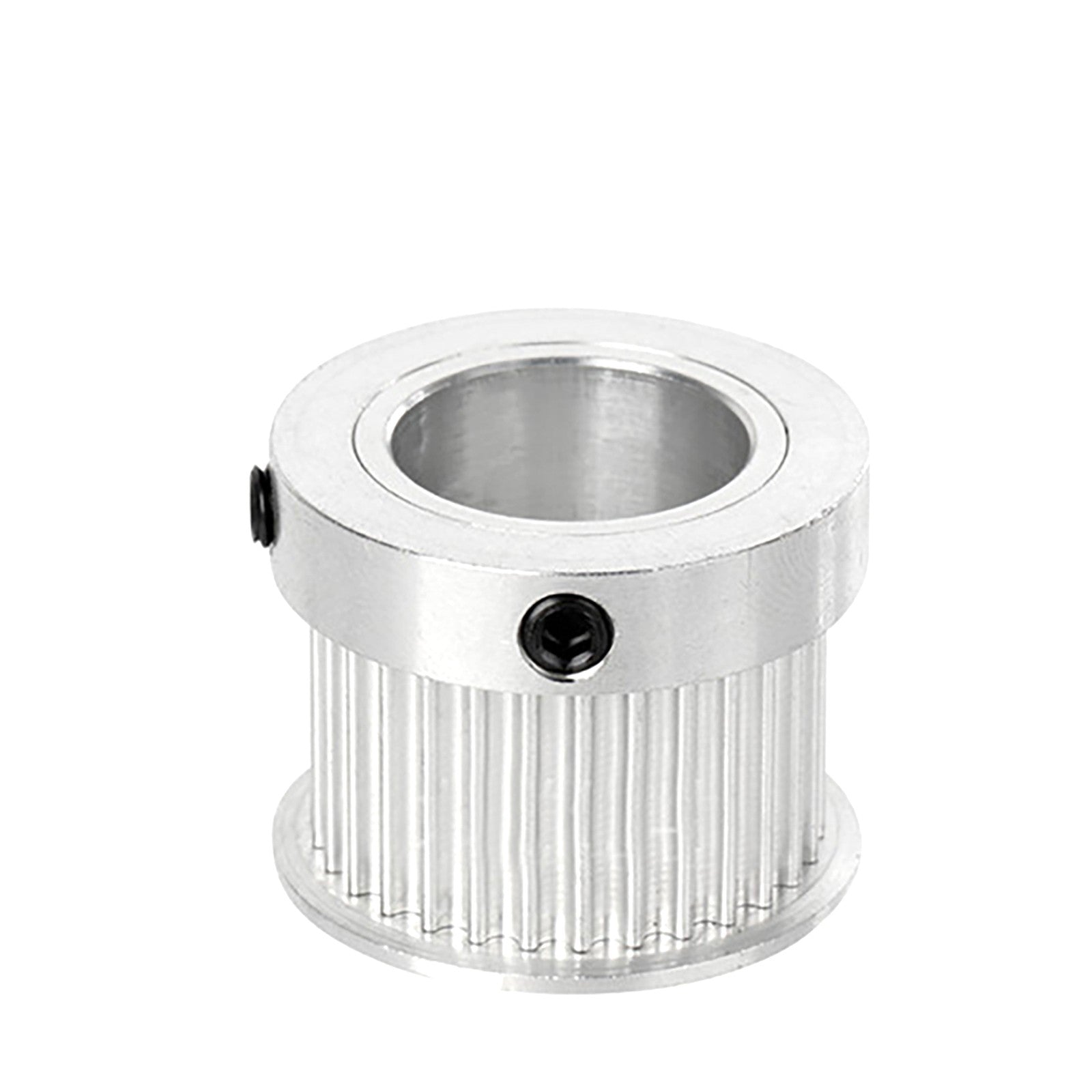

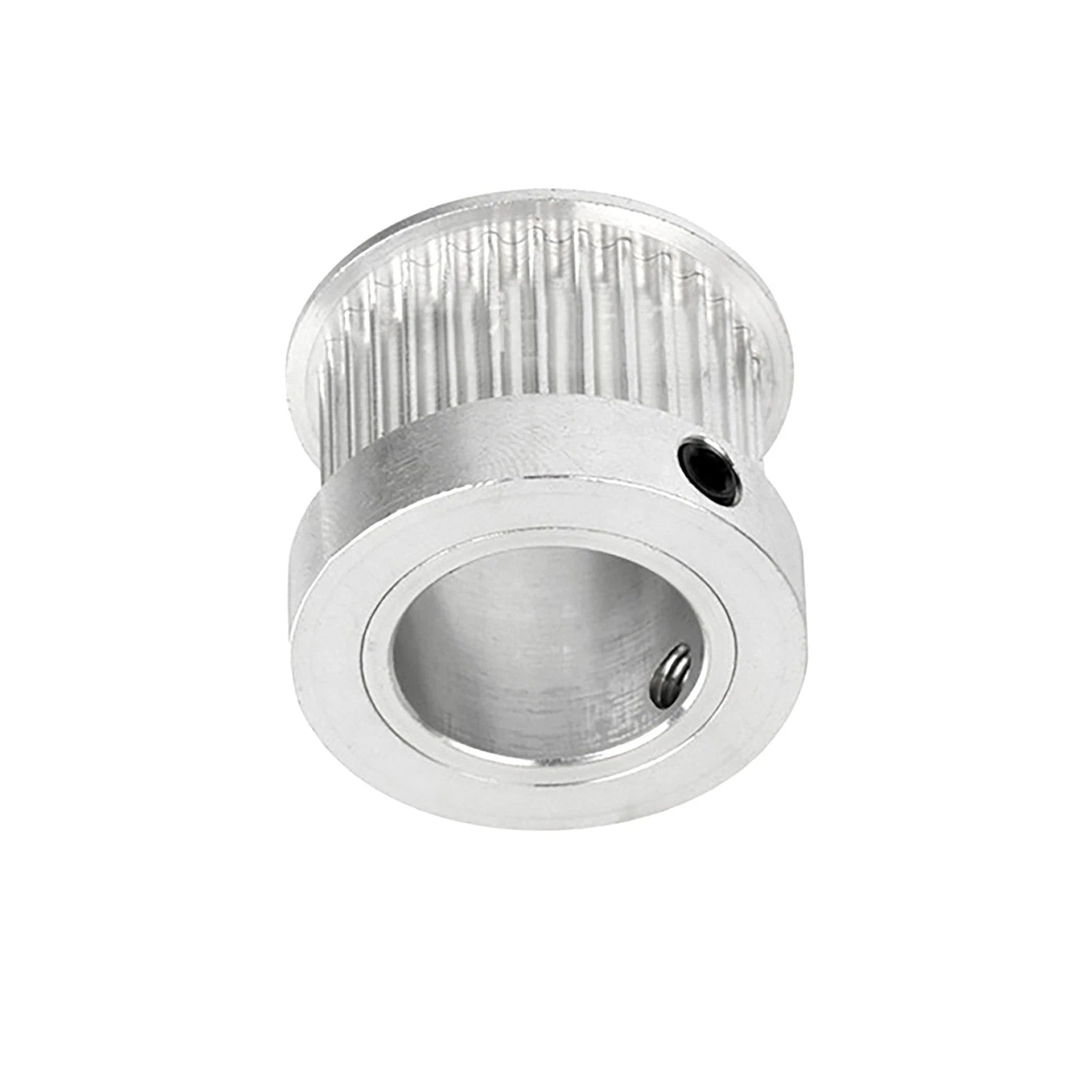

These HTD-3M timing belt pulleys feature a 3 mm pitch (0.118 in) and a 7 mm belt-contact width, machined from aluminum alloy with an anodized finish for corrosion resistance. The tooth profile follows the HTD (High Torque Drive) curvilinear standard, distributing load evenly across multiple teeth. Available in 12 to 30 teeth configurations with bore options from 4 mm (0.157 in) to 14 mm (0.551 in), covering the most common motor shaft sizes used in desktop CNC and robotics platforms.
Typical use cases include: CNC router X/Y axis drives requiring HTD-3M synchronous pulley replacements, 3D printer extruder and motion-system upgrades needing 3mm pitch timing pulleys, and lightweight robotic arm joints or conveyor indexing systems where a compact 7mm wide timing pulley minimizes frame width while maintaining torque capacity.
| Belt Profile | HTD-3M (High Torque Drive) |
|---|---|
| Pitch | 3 mm (0.118 in) |
| Belt Width | 7 mm (0.276 in) |
| Teeth Range | 12 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 22 Teeth |
| Bore Options | 4 / 5 / 6 / 6.35 / 8 / 10 / 12 / 12.7 / 14 mm |
| Material | Aluminum Alloy |
| Surface Treatment | Anodized |
| Flange | See variant options |
| Hub / Set Screw | See variant options |
| Outer Diameter | See variant options |
| Package Quantity | 1 Piece per order |
The tooth count determines the pitch diameter and, combined with the mating pulley, sets your drive ratio. For a 1:1 ratio use identical tooth counts on both pulleys. For speed reduction, use a larger tooth count on the driven pulley; for speed increase, use a smaller count. Common CNC and 3D printer setups use 20-tooth pulleys on the motor side paired with a matching belt loop.
Standard NEMA 17 stepper motors have a 5 mm output shaft. Select the 5 mm bore variant. If your motor has a D-cut shaft, the set screw in the pulley hub will lock onto the flat. For NEMA 23 motors with an 8 mm shaft, choose the 8 mm bore variant.
Yes. 6.35 mm is the metric equivalent of exactly 1/4 inch (0.250 in), making this bore variant a direct fit for imperial motor shafts and drive rollers commonly found in North American equipment. Similarly, the 12.7 mm bore fits 1/2-inch shafts.

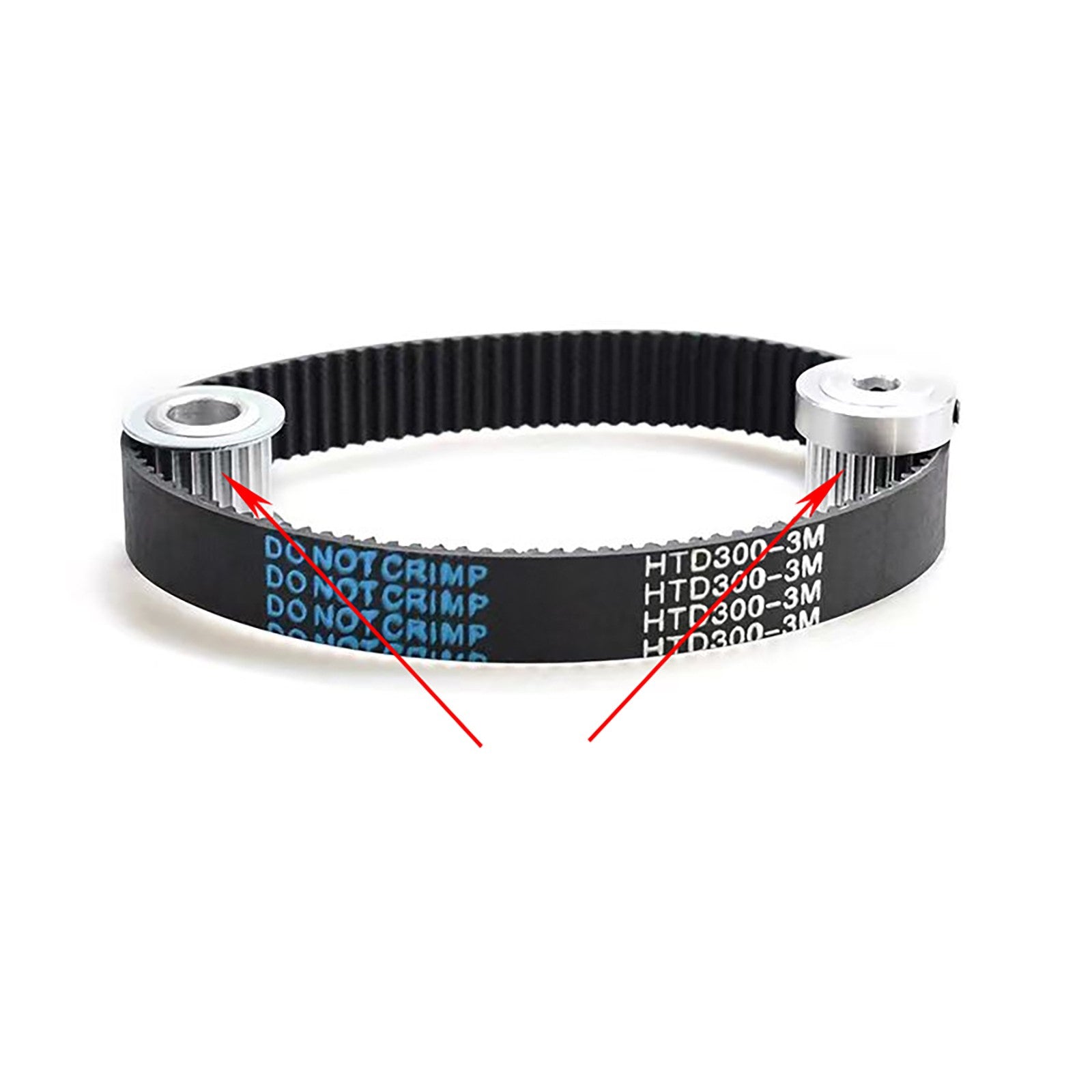

These pulleys conform to the standard HTD-3M tooth geometry (3 mm pitch, curvilinear profile) and are compatible with any HTD-3M timing belt of 7 mm width, regardless of brand. Ensure the belt width matches — using a 6 mm or 9 mm wide belt on a 7 mm pulley will cause misalignment or reduced load capacity.
Aluminum alloy pulleys are well-suited for the torque levels produced by NEMA 17 and NEMA 23 stepper motors in desktop CNC and 3D printer applications. The lower mass reduces rotational inertia, which improves acceleration and deceleration response. For very high-torque industrial drives or abrasive environments, steel pulleys may be preferred, but for typical maker and light-industrial use, aluminum provides an excellent balance of strength and weight.
These pulleys include a hub with a set screw for shaft retention. No additional keyway machining is required for standard round or D-cut shafts. If your application requires a keyed connection for high-torque or reversing loads, contact us to confirm availability of keyed bore variants.
Yes. HTD-3M pulleys are widely used in 3D printer motion systems, particularly for extruder drives and CoreXY or Cartesian axis belts. The 3 mm pitch provides a good balance between resolution and torque capacity. Pair with an HTD-3M closed-loop or open-end belt of 7 mm width for a complete drive assembly.
