When a slipping or misaligned pulley derails your CNC router mid-job or causes layer shifts on your 3D printer, the root cause is almost always an undersized or poorly matched drive component. Engineers, makers, and small-batch manufacturers who demand repeatable, backlash-free motion need a pulley they can spec with confidence — and that is exactly what this HTD 3M timing belt pulley delivers.

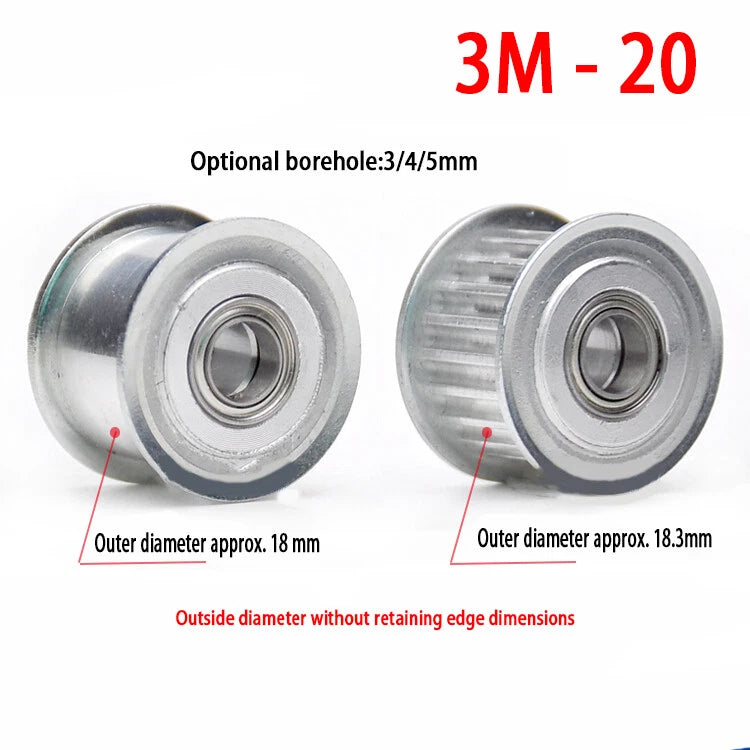

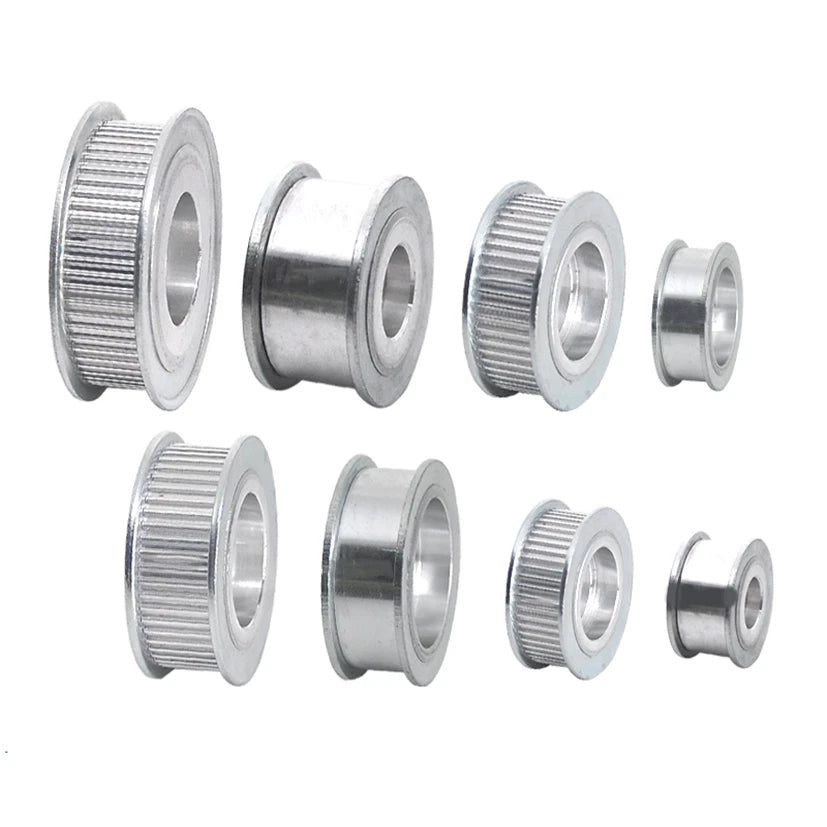

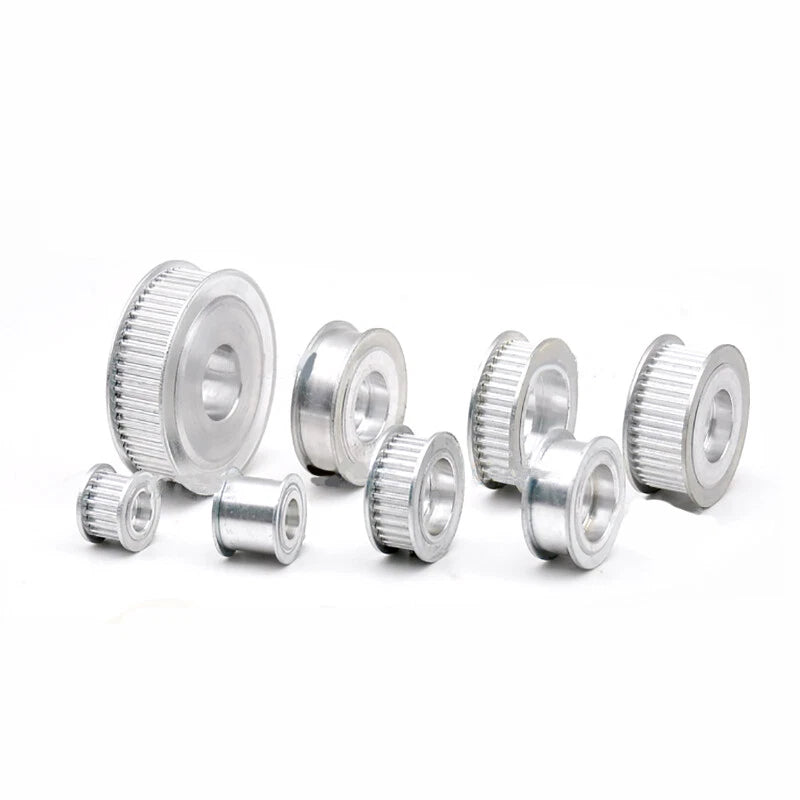

This HTD 3M timing belt pulley is machined from aluminum alloy and is available in tooth counts from 15T to 35T, with bore diameters ranging from 3 mm to 17 mm (approximately 0.12 in to 0.67 in). Belt width compatibility spans 6 mm, 10 mm, and 15 mm, depending on the variant selected. Both toothed (drive) and smooth (idler) styles are offered, letting you configure complete belt drive systems from a single product family.
Typical use cases include CNC router X/Y axis drives, 3D printer extruder and motion systems, laser engraver gantry assemblies, and light-duty conveyor or automation rigs where an HTD 3M timing belt pulley with consistent tooth pitch is required for synchronous power transmission.
Nine tooth-count options — 15T, 16T, 18T, 20T, 24T, 25T, 30T, 32T, and 35T — let you dial in the exact gear ratio your drive system requires without compromise.

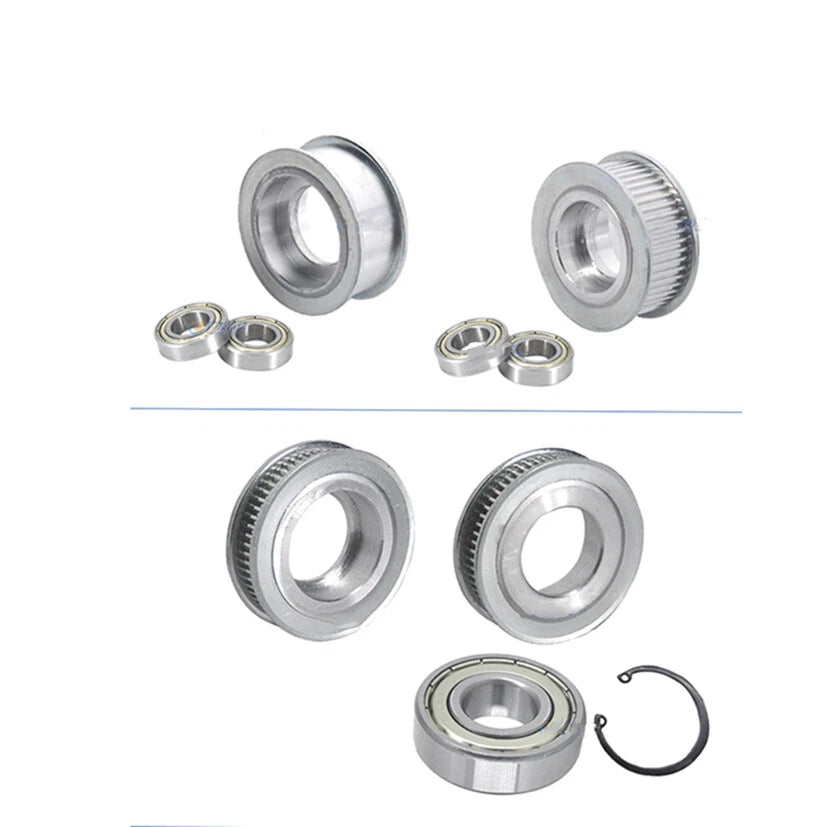

Bore options from 3 mm to 17 mm cover the most common motor and idler shaft diameters used in CNC, 3D printing, and light automation, reducing the need for custom machining.
Choose the toothed variant for positive drive engagement or the smooth idler variant for belt tensioning and path routing — both share the same dimensional envelope for easy system design.
Lightweight aluminum alloy body keeps rotating inertia low while providing sufficient rigidity for continuous-duty motion applications in CNC and 3D printing environments.
Machined to the HTD 3M standard (3 mm pitch, curvilinear tooth profile), ensuring full engagement with standard HTD 3M belts and minimizing tooth jump under load.
Three applicable belt widths are available across the variant matrix, allowing you to match pulley flange width to your belt for stable tracking and reduced edge wear.

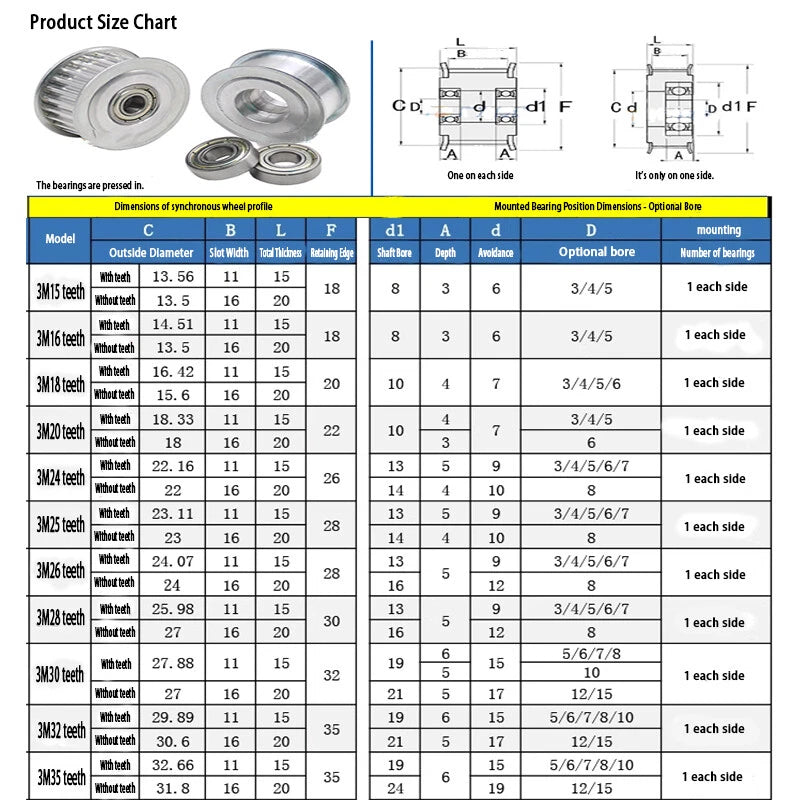

| Belt Standard | HTD 3M (3 mm pitch, curvilinear profile) |
|---|---|
| Tooth Count Options | 15T, 16T, 18T, 20T, 24T, 25T, 30T, 32T, 35T |
| Style | With teeth (drive) / Without teeth (idler) |
| Bore Diameter Range | 3 mm – 17 mm (approx. 0.12 in – 0.67 in) |
| Applicable Belt Width | 6 mm, 10 mm, or 15 mm (see variant options) |
| Material | Aluminum alloy |
| Finish | See variant options |
| Outer Diameter | See variant options |
| Hub / Flange | See variant options |
| Set Screw | See variant options |
| Typical Applications | CNC router, 3D printer, laser engraver, light automation |

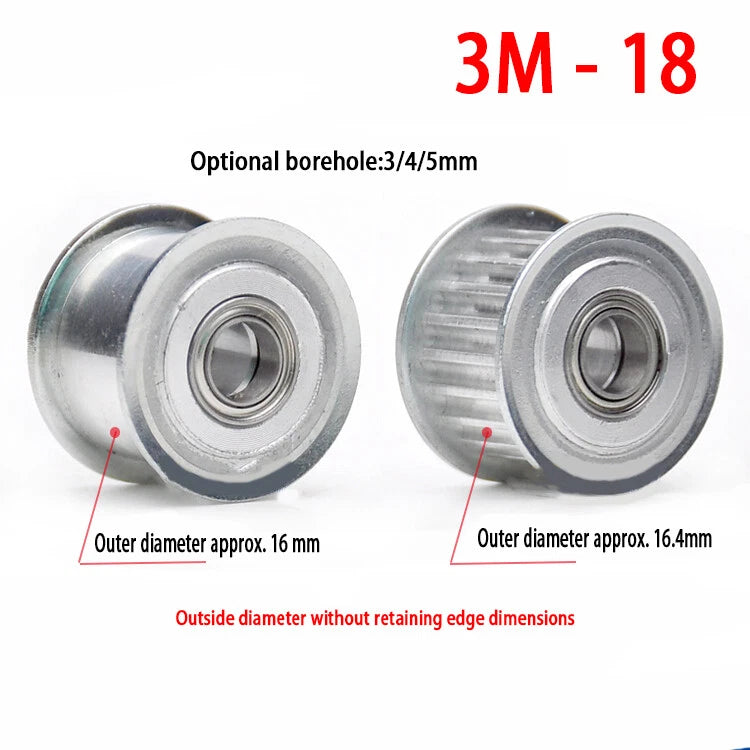

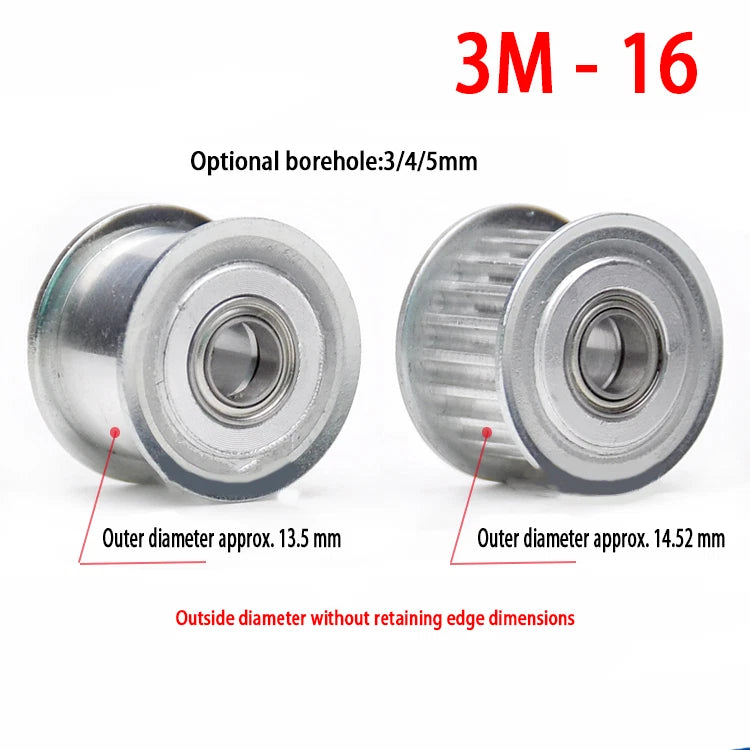

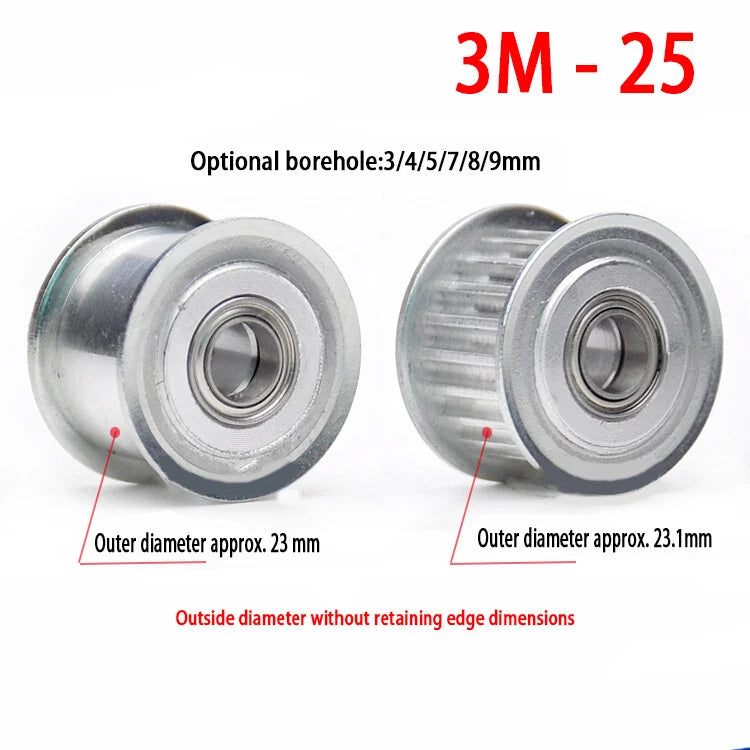

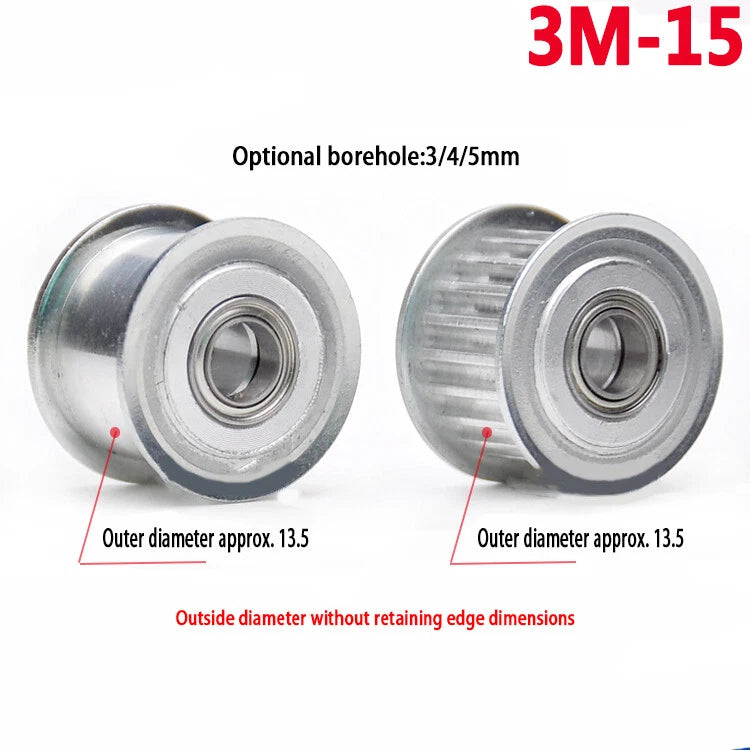

Tooth count determines the pulley's pitch diameter and, combined with the tooth count on the mating pulley, sets your drive ratio. For CNC and 3D printer motion systems, common pairings are 20T drive with 20T driven for 1:1 ratio, or 16T/32T for 1:2 reduction. Calculate the required ratio first, then select tooth counts that achieve it within your available center distance.

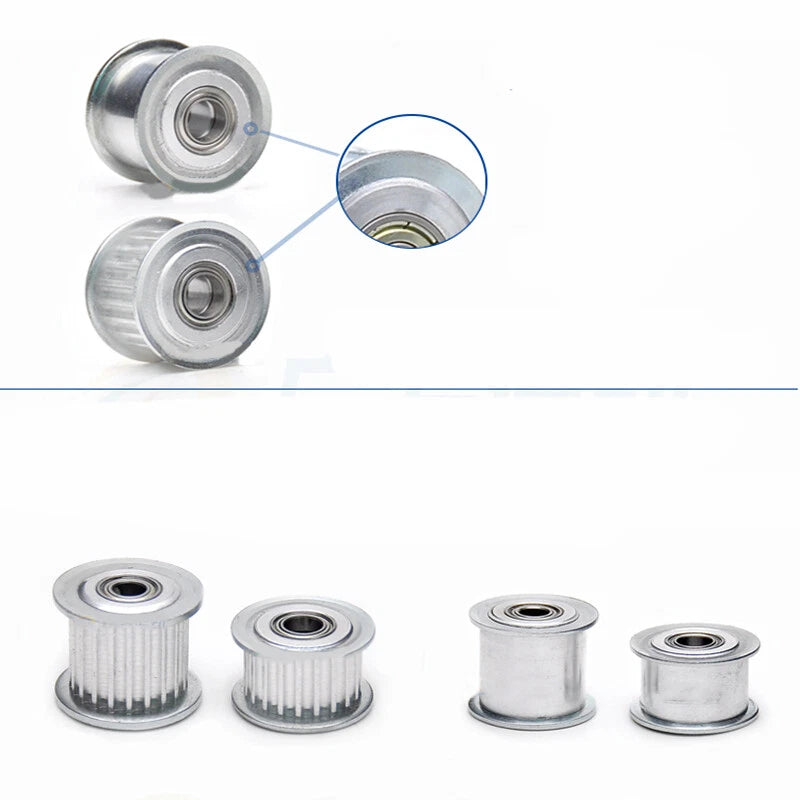

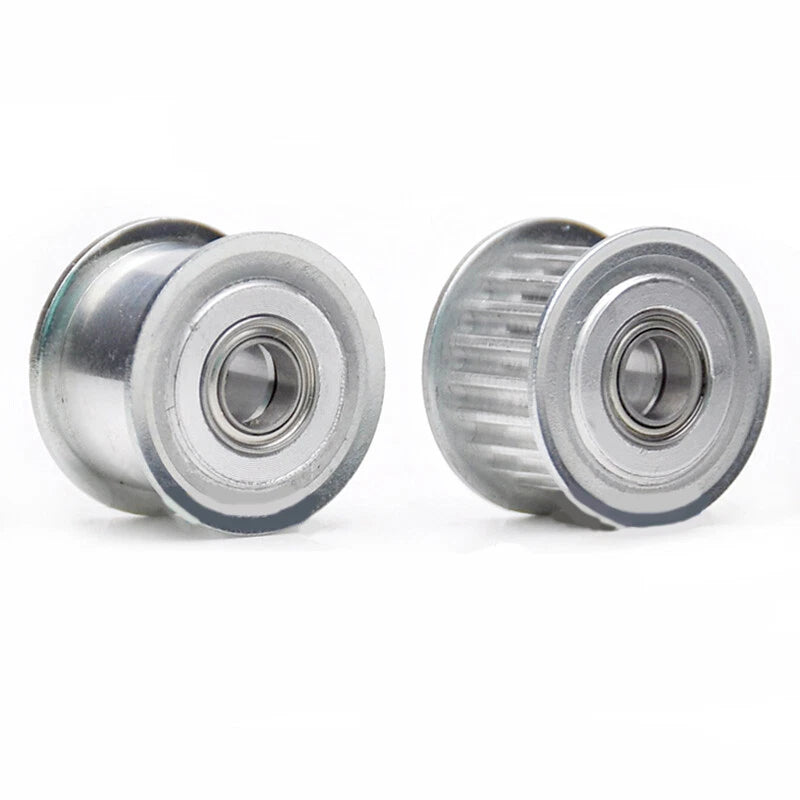

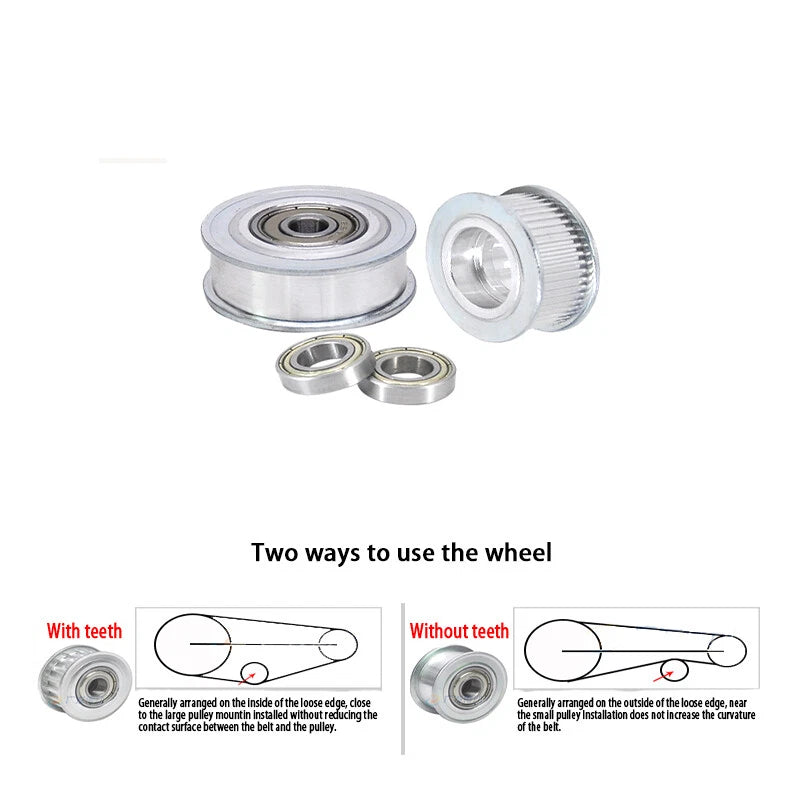

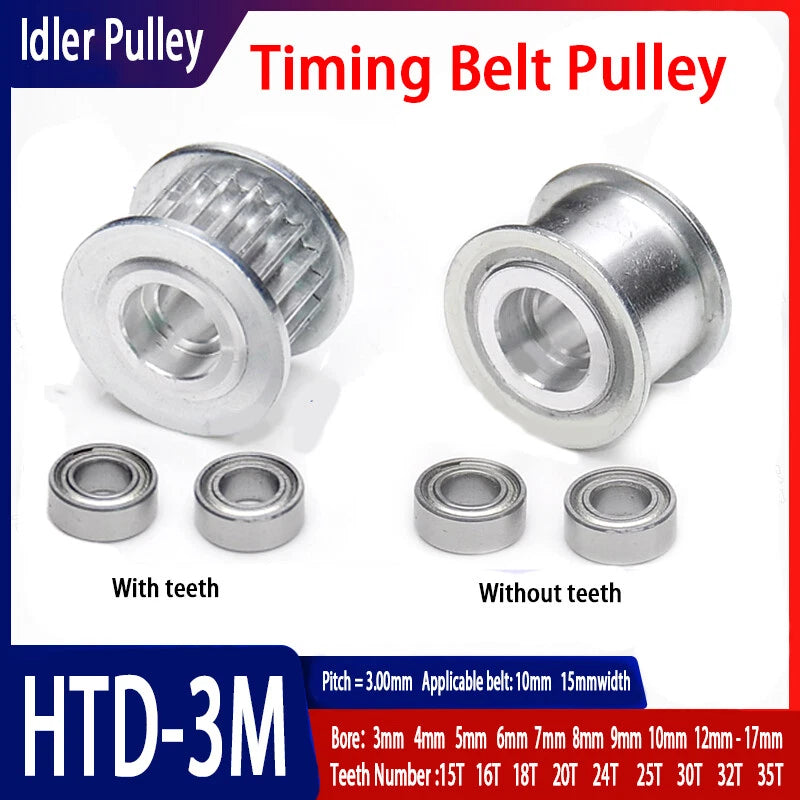

The "With teeth" variant is a standard drive pulley that meshes directly with the HTD 3M timing belt to transmit torque. The "Without teeth" (smooth) variant is an idler pulley used to tension the belt or redirect its path without driving it. Both styles share the same bore and belt-width options so you can mix them in the same system.
Measure your motor or idler shaft diameter with a caliper. The bore diameter of the pulley must match the shaft diameter exactly — a loose fit will cause runout and belt skip. If your shaft has a flat (D-cut), ensure the set screw in the pulley hub aligns with it for positive locking.
Yes. HTD 3M is an internationally standardized belt profile (3 mm pitch, curvilinear tooth form). These pulleys are machined to that standard and will engage correctly with any HTD 3M timing belt of the matching width, regardless of belt brand.
Belt width affects load capacity and tracking stability. Wider belts carry more torque and resist lateral drift better. For light-duty 3D printer extruder drives, 6 mm is often sufficient. For CNC router axes or heavier automation loads, 10 mm or 15 mm is recommended. Match the pulley's applicable belt width to the belt already in your system or to the width specified in your machine's BOM.
Aluminum alloy pulleys are well-suited for continuous-duty CNC and 3D printing applications at typical operating speeds and loads. The HTD tooth profile distributes belt load across multiple teeth, reducing stress concentration. For very high-torque or abrasive environments, consider whether a steel pulley would be more appropriate, but for the vast majority of hobbyist and light-industrial CNC and 3D printing use cases, aluminum is the standard choice.
Set screw inclusion varies by variant. Please check the variant detail or contact us to confirm whether a set screw is included with your specific bore size and tooth count combination before ordering.
