HTD 3M Closed Loop Timing Belt — Precise Drive for 3D Printers, CNC & Robotics

If your 3D printer is skipping layers, your CNC router is losing position, or your motion system keeps slipping under load, the culprit is often a worn or incorrectly sized drive belt. Makers, engineers, and repair technicians who need a reliable HTD 3M timing belt with a 6mm width will find this closed loop synchronous belt a straightforward drop-in solution for a wide range of light-to-medium duty drive systems.

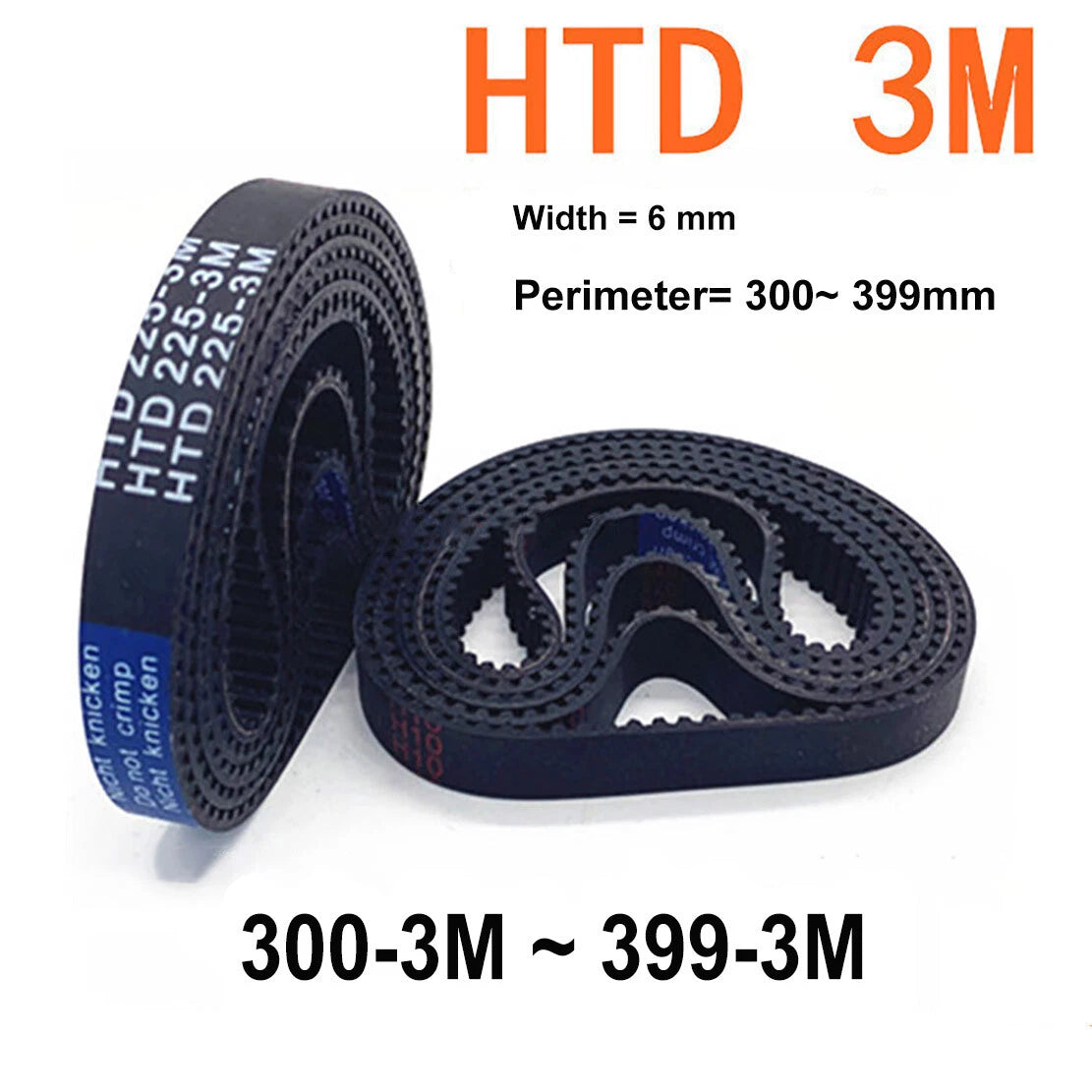

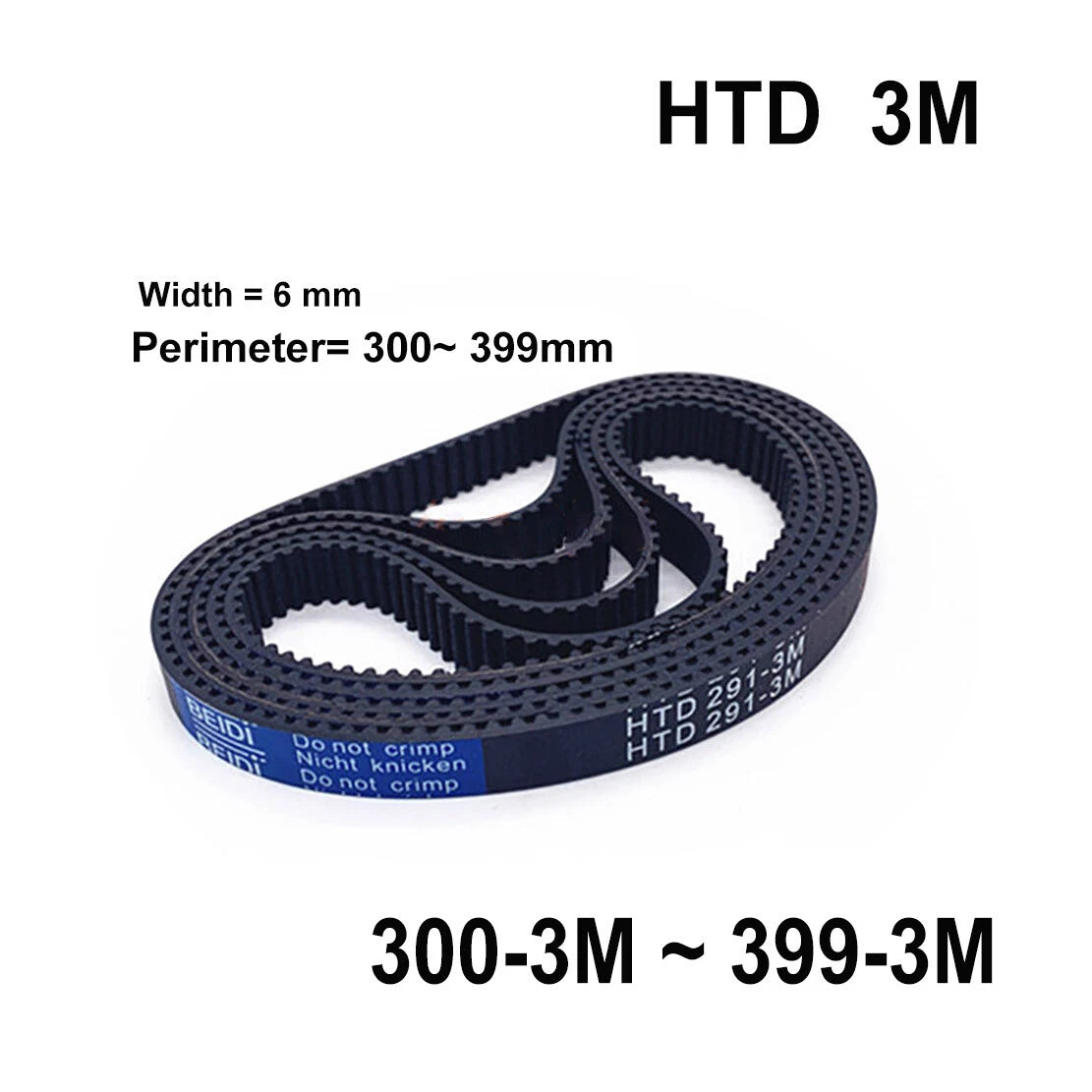

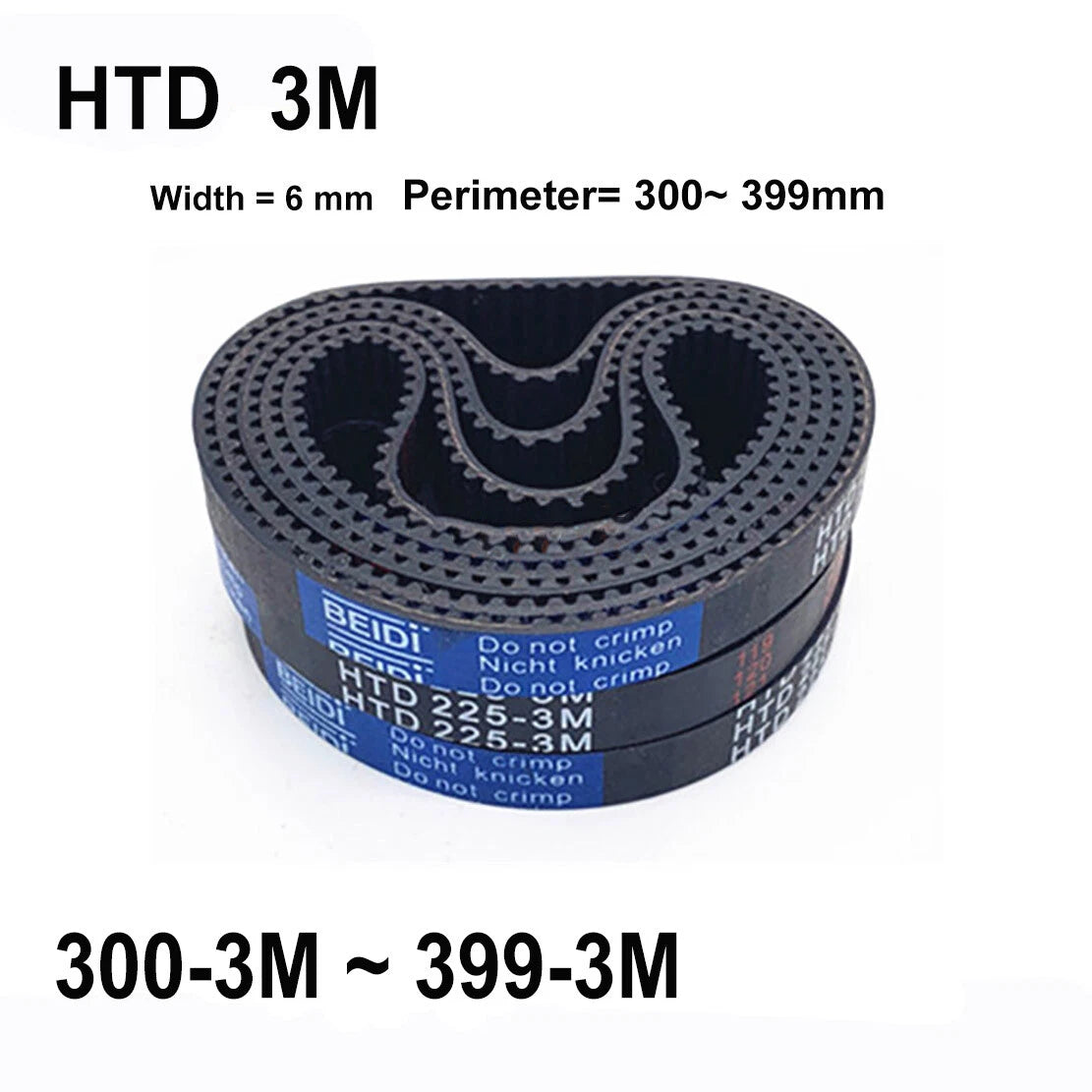

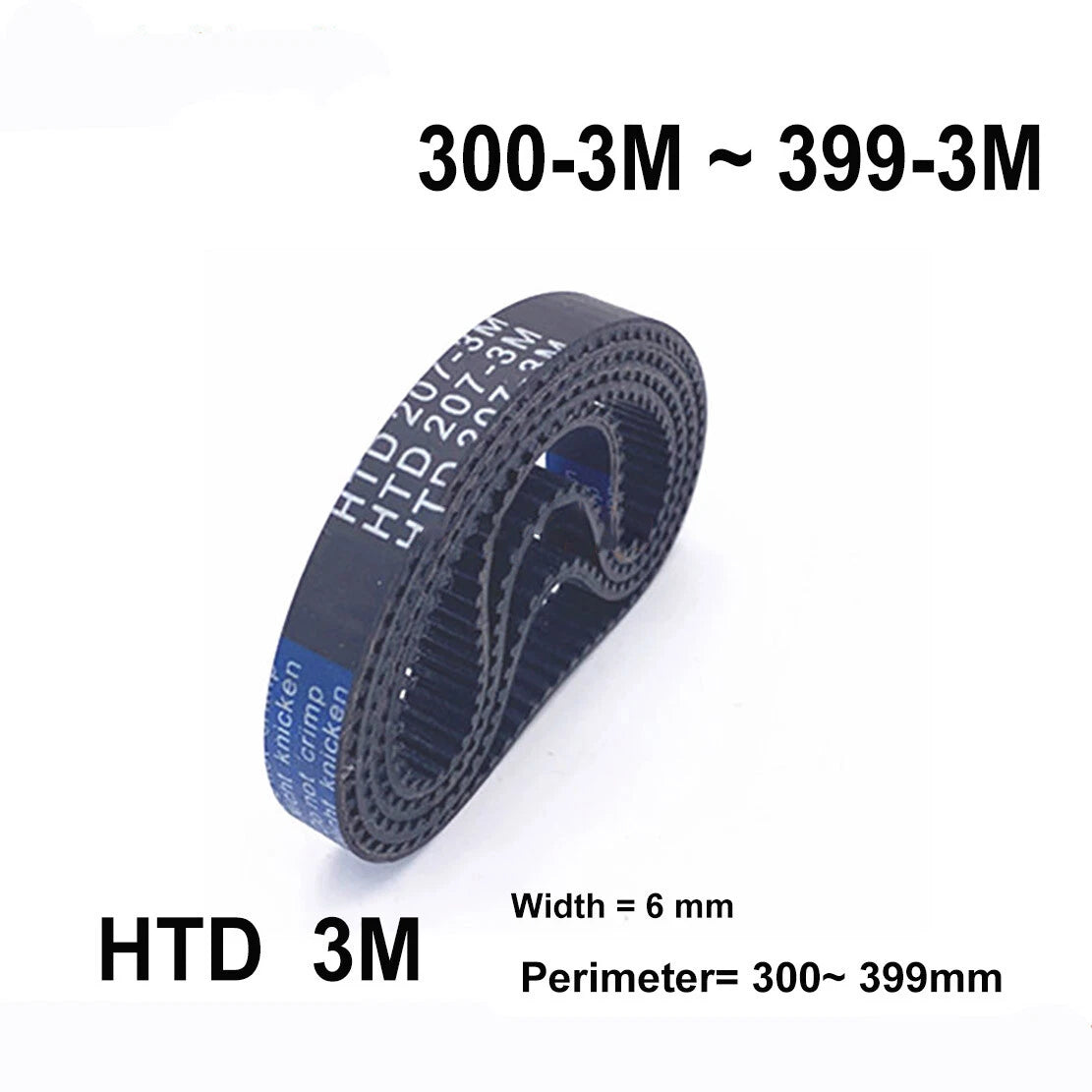

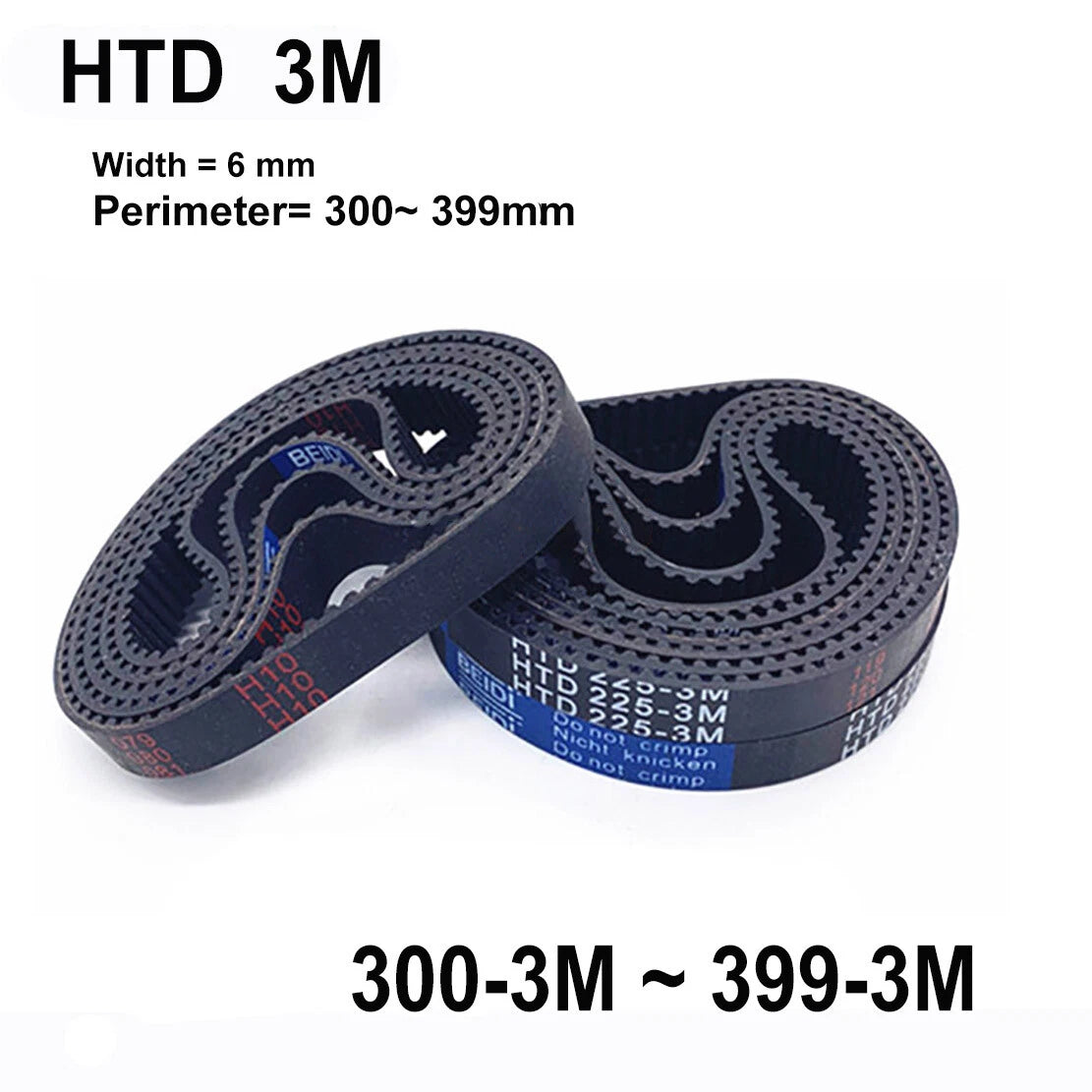

Each belt in this listing is a single closed loop HTD 3M synchronous belt, 6mm (≈1/4") wide, available in perimeter sizes from 300mm (≈11.8") to 399mm (≈15.7") in 3mm increments — 34 sizes in total. The tooth pitch is 3mm with an HTD (High Torque Drive) curvilinear profile. Construction is typically neoprene rubber with fiberglass tensile cord reinforcement, providing dimensional stability under cyclic loading. Quantity options of 1–6 pieces per order are available for each size.

Typical use cases include CoreXY and delta-style 3D printer drive systems, desktop CNC router axis drives, laser engraver gantry belts, robotic joint actuators, and DIY linear motion projects where a backlash-free HTD 3M closed loop synchronous belt is required. The 6mm width suits compact drive designs where space is limited but positional accuracy matters.

ℹ️ Compatibility Note: These belts use the HTD 3M tooth profile (3mm pitch, rounded curvilinear teeth). They are not interchangeable with GT2 (2mm pitch), T2.5, T5, or MXL belts. Confirm your pulley profile before ordering.

⚠️ Size Tip: Select your perimeter from the dropdown above. If you are between sizes, choose the next size up — a slightly longer belt can be tensioned; a belt that is too short cannot be installed. Contact us if you need help confirming your size.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

🔁Closed Loop Design — Seamless construction eliminates the splice point found on open-ended belts, reducing the risk of failure at the joint during continuous cyclic operation in 3D printers and CNC drives.

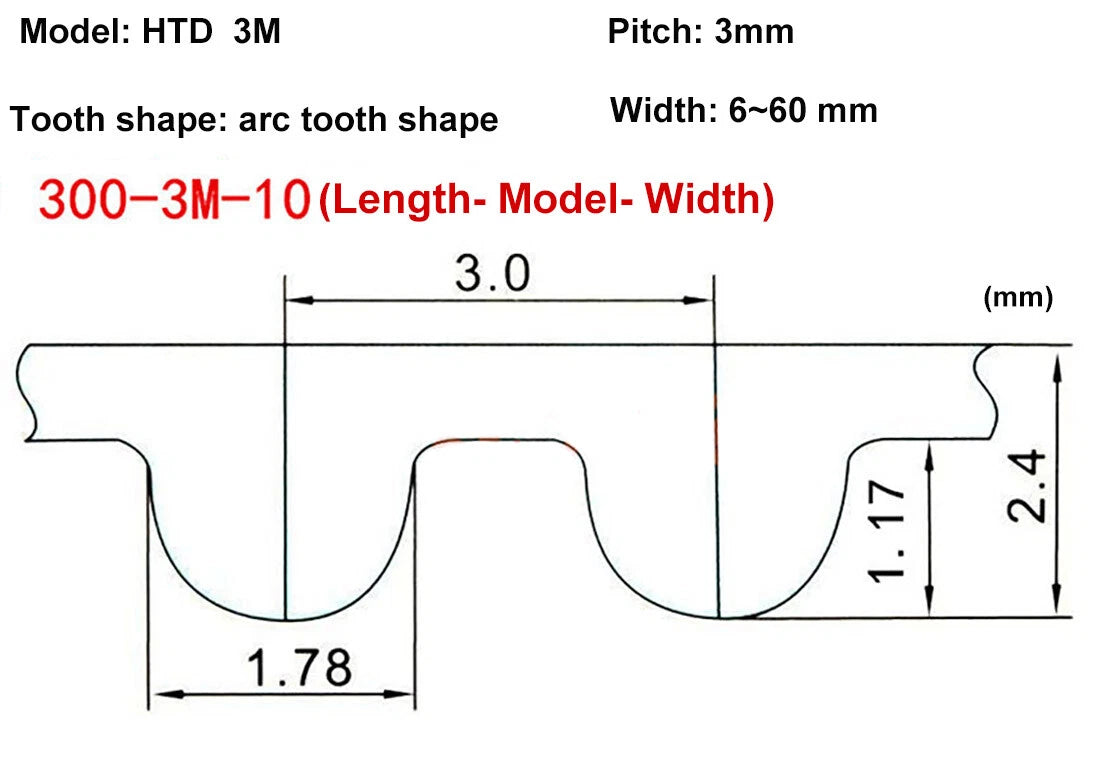

📐HTD 3M Tooth Profile — The 3mm pitch curvilinear tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth stress and improving positional accuracy in motion control applications.
📏6mm Belt Width — Compact width suits space-constrained drive designs in desktop CNC routers, laser engravers, and robotic arms without sacrificing adequate tensile capacity for light-to-medium duty loads.
🧵Fiberglass Tensile Cord — Fiberglass reinforcement cords generally provide low elongation under load, helping maintain consistent belt tension and axis positioning accuracy over time.
🔢34 Perimeter Sizes Available — Sizes from 300mm to 399mm in 3mm steps mean you can find the exact loop length for your drive geometry without cutting or splicing an open belt.
📦Flexible Quantity Options — Order 1 to 6 belts per size in a single transaction, useful for stocking spares for multi-axis machines or workshop inventory without committing to large bulk quantities.

📐 Technical Specifications — HTD 3M Timing Belt

Belt Type	HTD (High Torque Drive) Closed Loop Synchronous Belt
Tooth Pitch	3mm
Tooth Profile	HTD Curvilinear (not compatible with GT2, T2.5, T5, or MXL)
Belt Width	6mm (≈1/4")
Perimeter Range	300mm (≈11.8") to 399mm (≈15.7"), in 3mm increments
Number of Sizes	34 (300, 303, 306 … 396, 399mm)
Construction	Typically neoprene rubber body with fiberglass tensile cord
Color / Finish	See variant options
Operating Temperature	Contact us to confirm
Max Transmitted Power	Contact us to confirm (application-dependent)
Quantity per Order	1, 2, 3, 4, 5, or 6 pieces (select above)
Compatible Pulleys	HTD 3M profile pulleys (verify tooth count for your perimeter)

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For a quick estimate, wrap a string around both pulleys and measure its total length. Sizes here range from 300mm (≈11.8") to 399mm (≈15.7") in 3mm increments. When in doubt, size up — a slightly longer belt can be tensioned; a short belt cannot be installed.

What does HTD 3M mean, and is it compatible with GT2 or MXL belts?

HTD 3M means High Torque Drive with a 3mm tooth pitch. The tooth profile is a rounded curvilinear shape, which is not interchangeable with GT2 (2mm pitch) or MXL (2.032mm pitch) belts or pulleys. Always match belt profile and pitch to your existing pulleys.

What load or torque can this belt handle?

Specific load ratings depend on pulley diameter, speed, and installation tension. Generally, a 6mm-wide HTD 3M belt is suited for light-to-medium duty applications — typically up to a few hundred watts of transmitted power at moderate speeds. For high-torque or continuous industrial use, contact us to confirm suitability for your specific drive design.

Can this timing belt be used outdoors or in humid environments?

These belts are generally made from neoprene rubber with fiberglass cord reinforcement, which offers reasonable resistance to moisture and mild temperature variation. However, they are not rated for prolonged UV exposure, oil immersion, or extreme temperatures. For outdoor or harsh-environment use, verify material compatibility or contact us to confirm.

What pulley tooth count do I need for an HTD 3M belt?

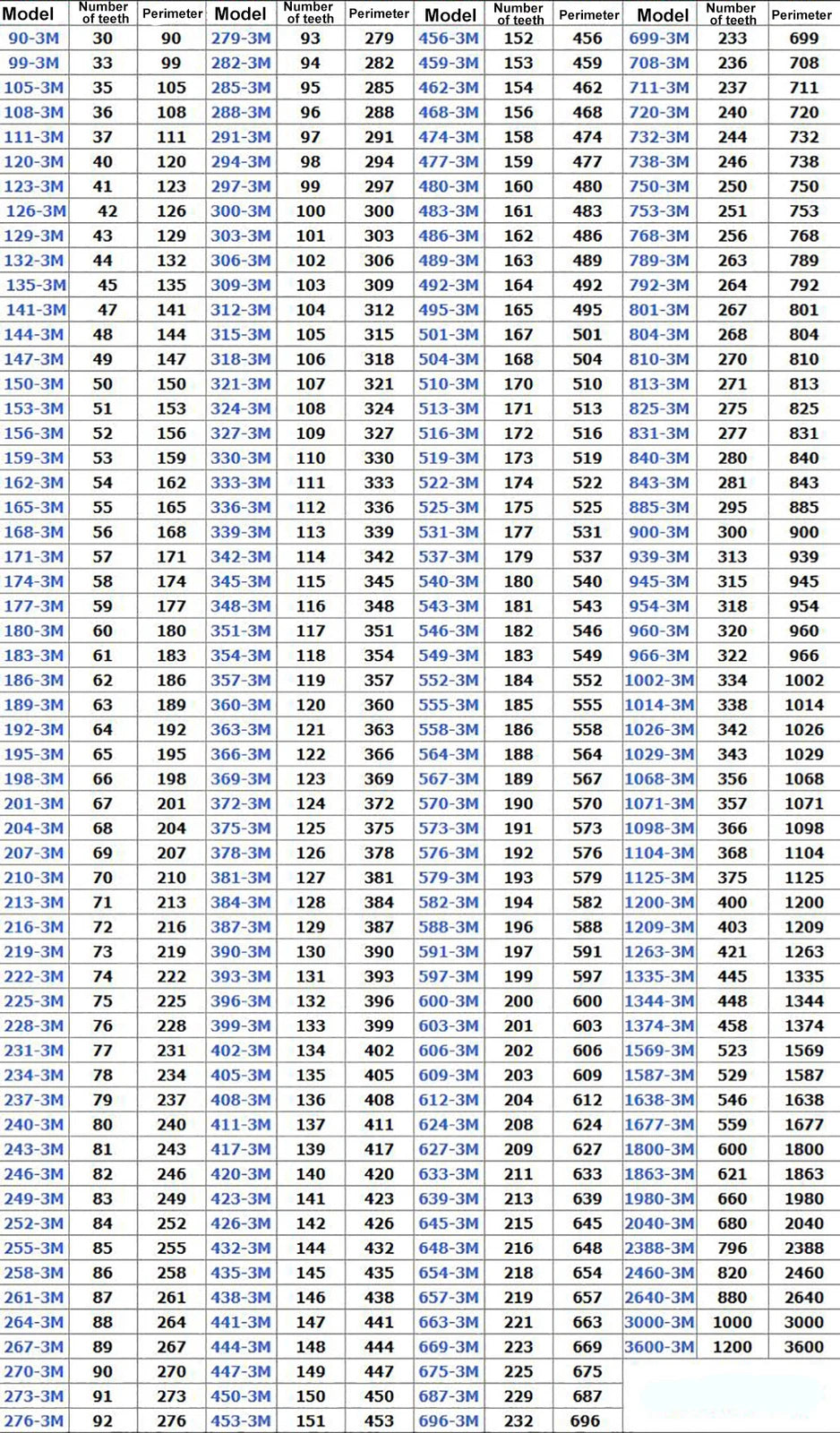

Divide the belt perimeter by the tooth pitch (3mm) to get the total tooth count. For example, a 300mm belt has 100 teeth total. Your pulley tooth count determines the pitch diameter; common HTD 3M pulleys range from 12T to 60T. Match the pulley profile to HTD 3M — do not use GT2 or T-type pulleys.

Which machines commonly use HTD 3M 6mm-wide timing belts?

HTD 3M belts with 6mm width are commonly found in 3D printers (delta and CoreXY styles), desktop CNC routers, laser engravers, robotic arms, camera sliders, and small automation equipment. They are also used in DIY motion control projects where precise, backlash-free power transmission is needed.

How do I know if my belt is worn and needs replacement?

Signs of wear include visible cracking or fraying on the belt back, tooth shear or deformation, loss of print or cut accuracy in CNC or 3D printing applications, or audible slipping under load. Generally, inspect belts every 6–12 months under regular use and replace if any physical damage is visible.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
