When your CNC router, 3D printer, or automated conveyor demands consistent, slip-free motion, a mismatched or worn pulley becomes the weakest link in your entire drivetrain. Engineers, makers, and machine builders who need repeatable positioning accuracy rely on HTD-5M timing belt pulleys with a confirmed tooth profile and a secure bore fit to keep their systems running without interruption.

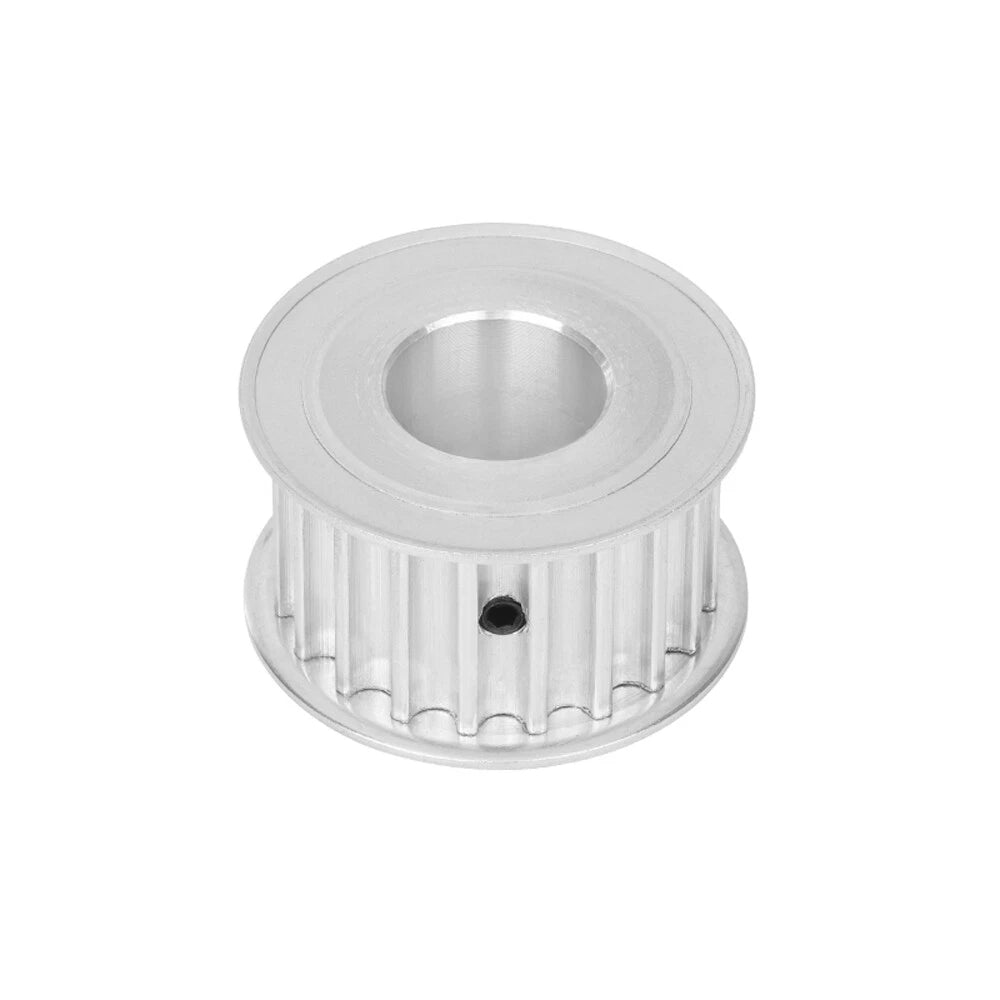

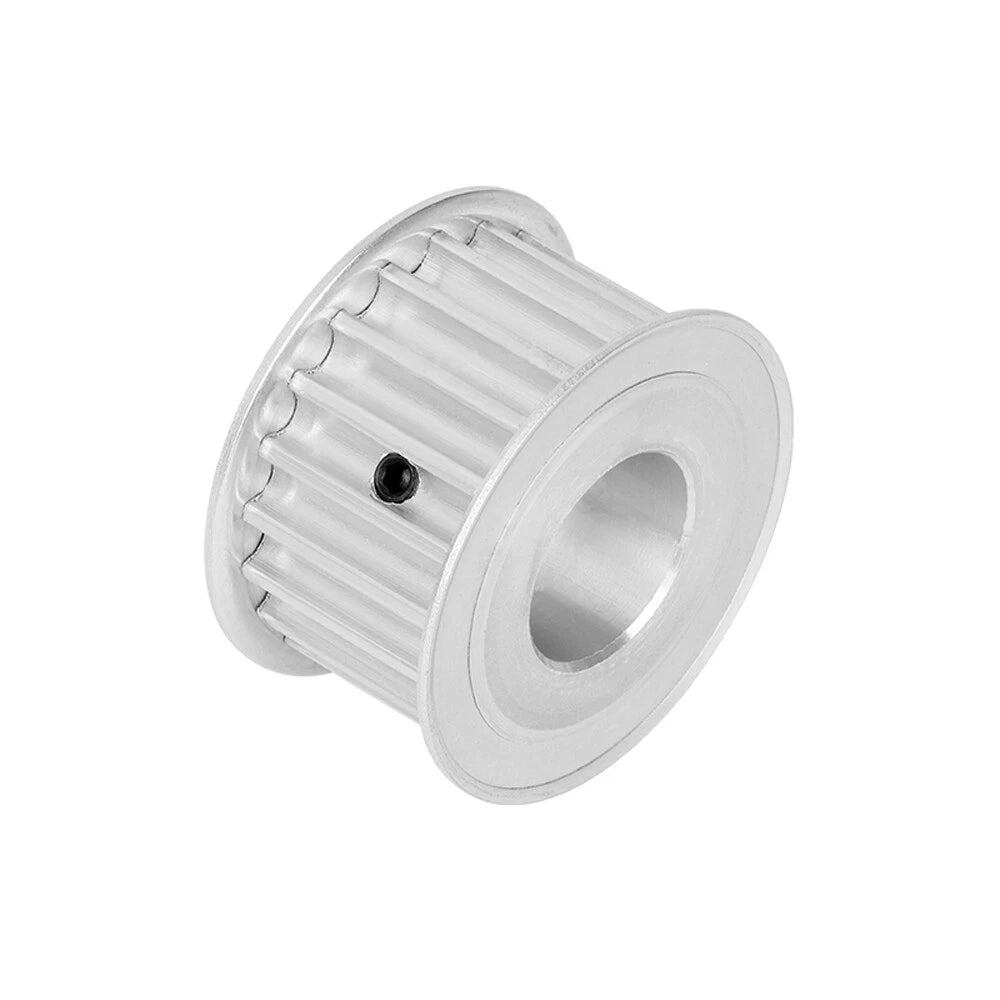

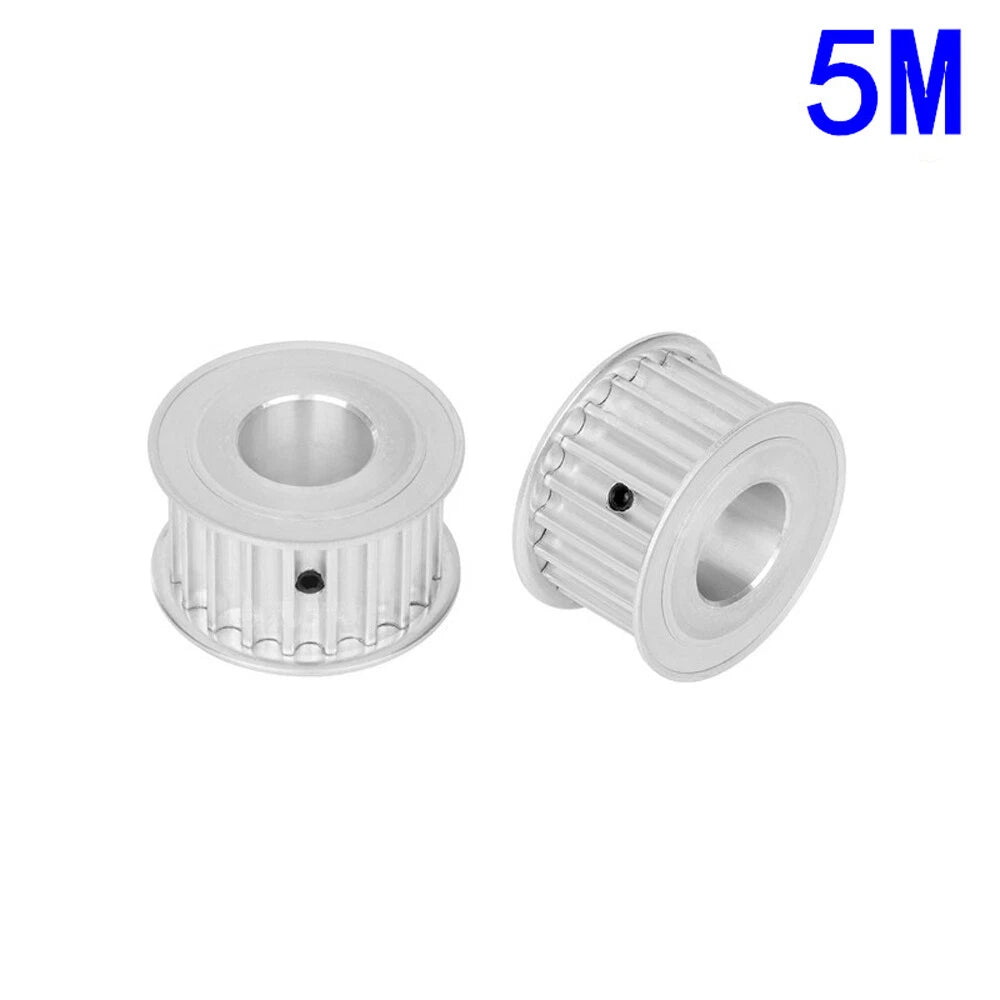

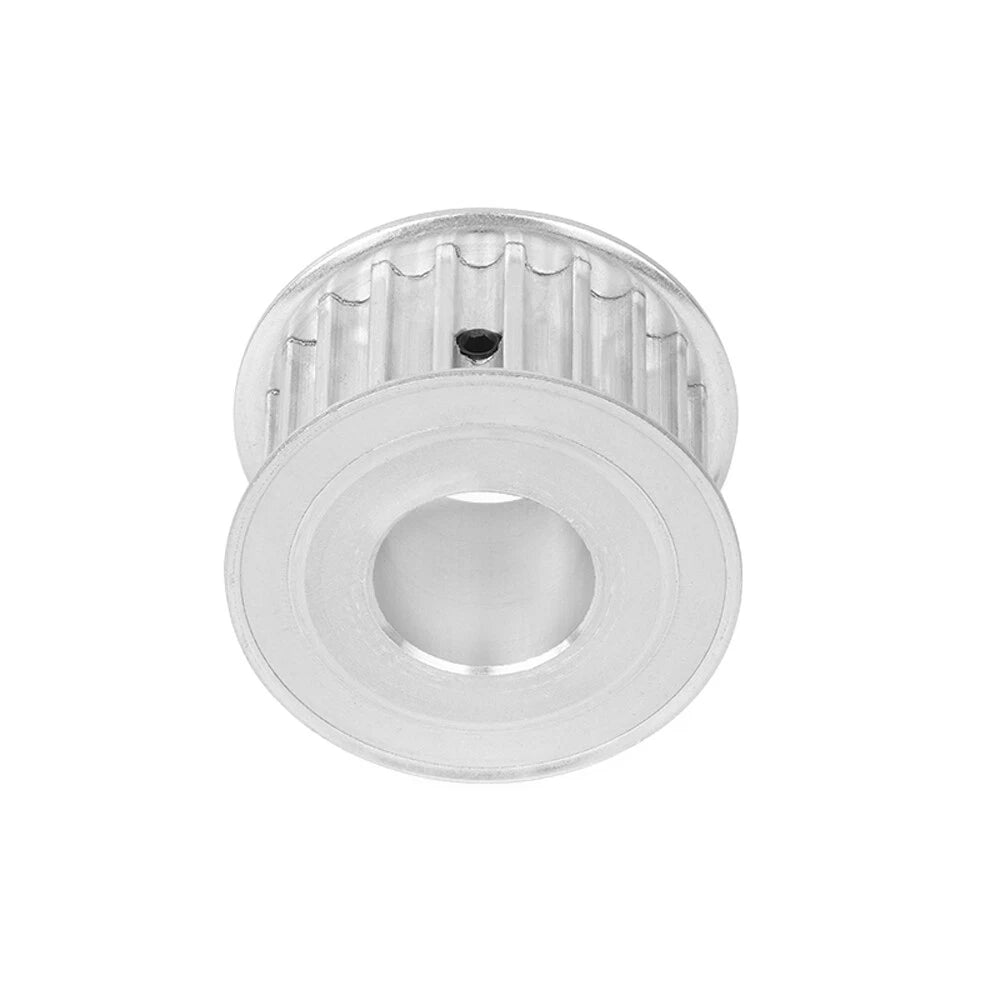

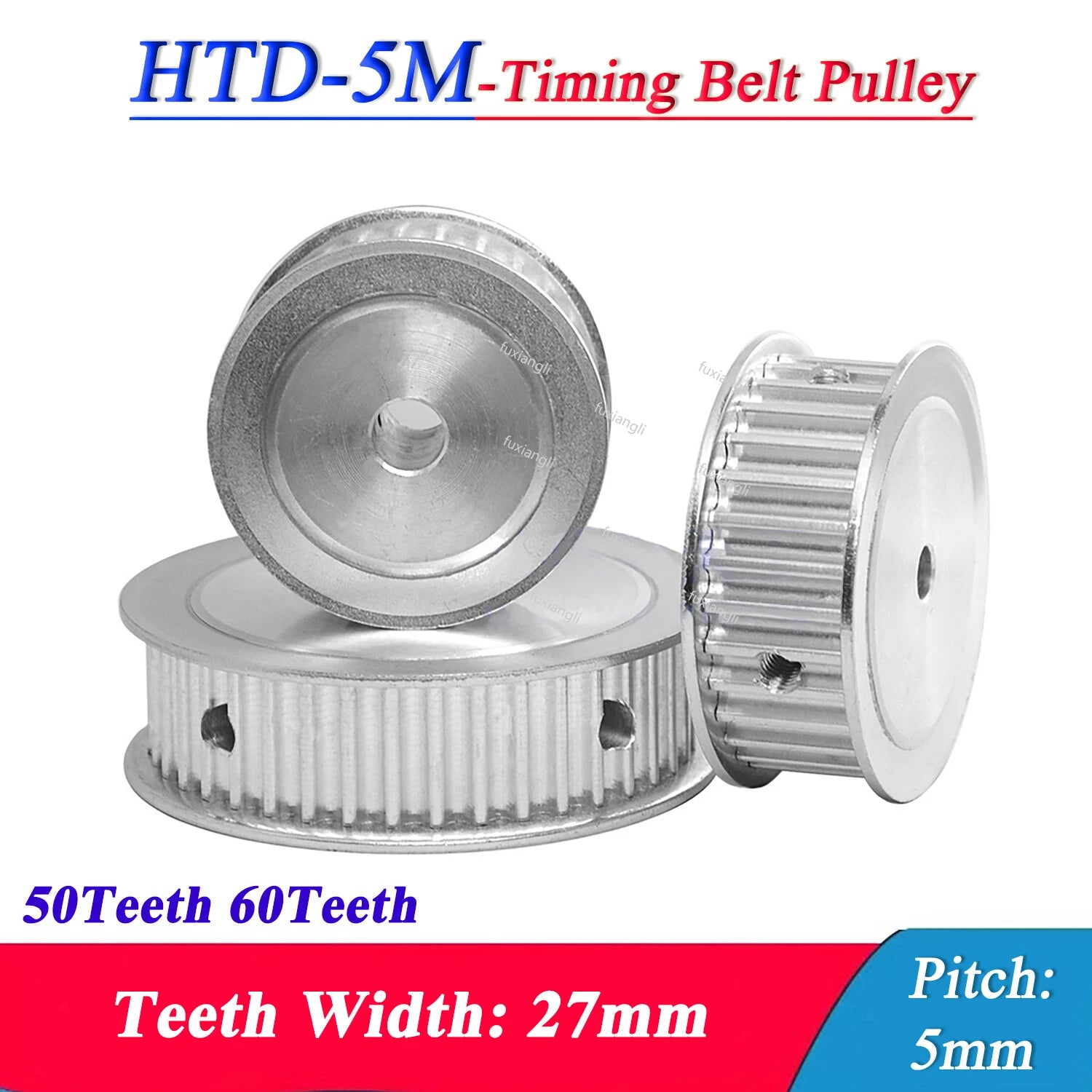

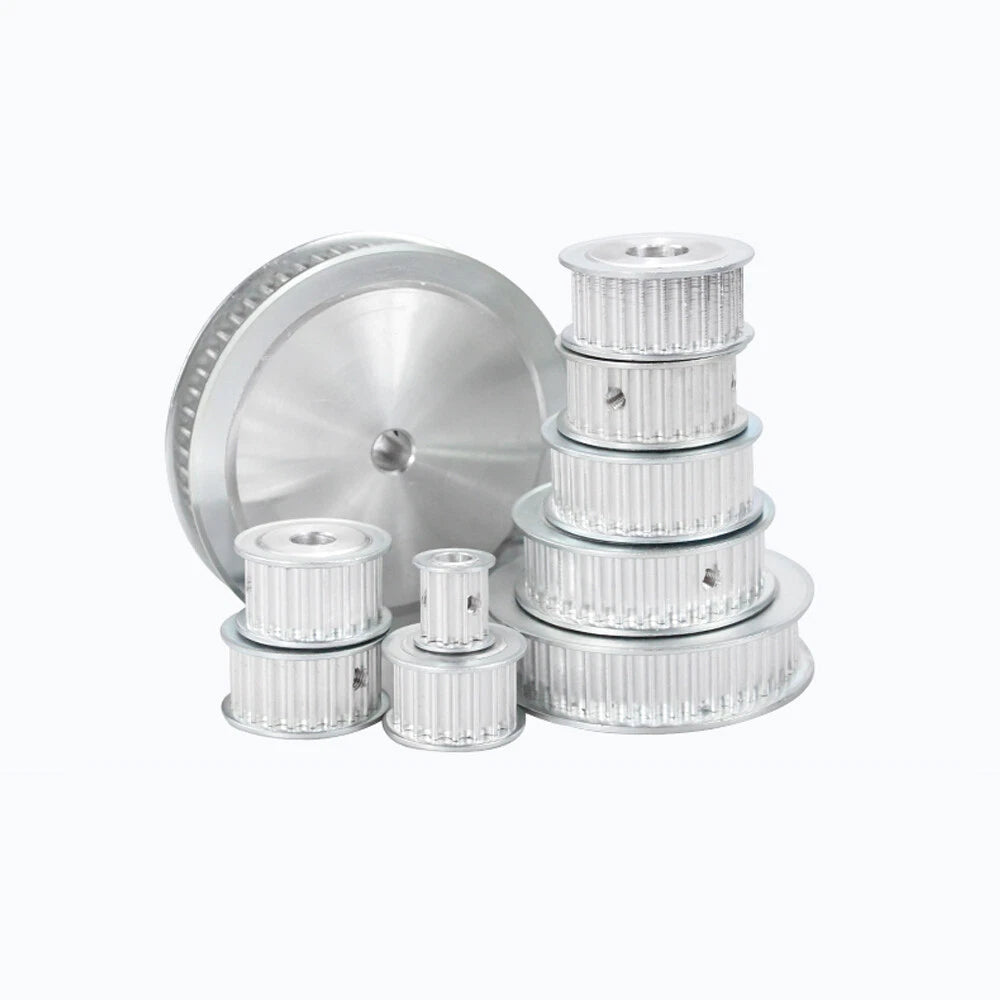

These HTD-5M drive pulleys feature a 5 mm pitch HTD tooth profile machined from aluminum alloy, with a 27 mm belt-contact width (approximately 1.06 in). Available in two tooth counts — 50 teeth and 60 teeth — and bore diameters ranging from 10 mm to 30 mm (approximately 0.39 in to 1.18 in), the AF-type through-bore design accepts a set-screw for secure shaft clamping without additional machining.
Typical applications include CNC router X/Y axis drives requiring precise linear positioning, 3D printer extruder and motion systems using HTD 5M belts, and light-duty robotic arm joints or automated pick-and-place mechanisms where consistent tooth engagement and low backlash are critical.

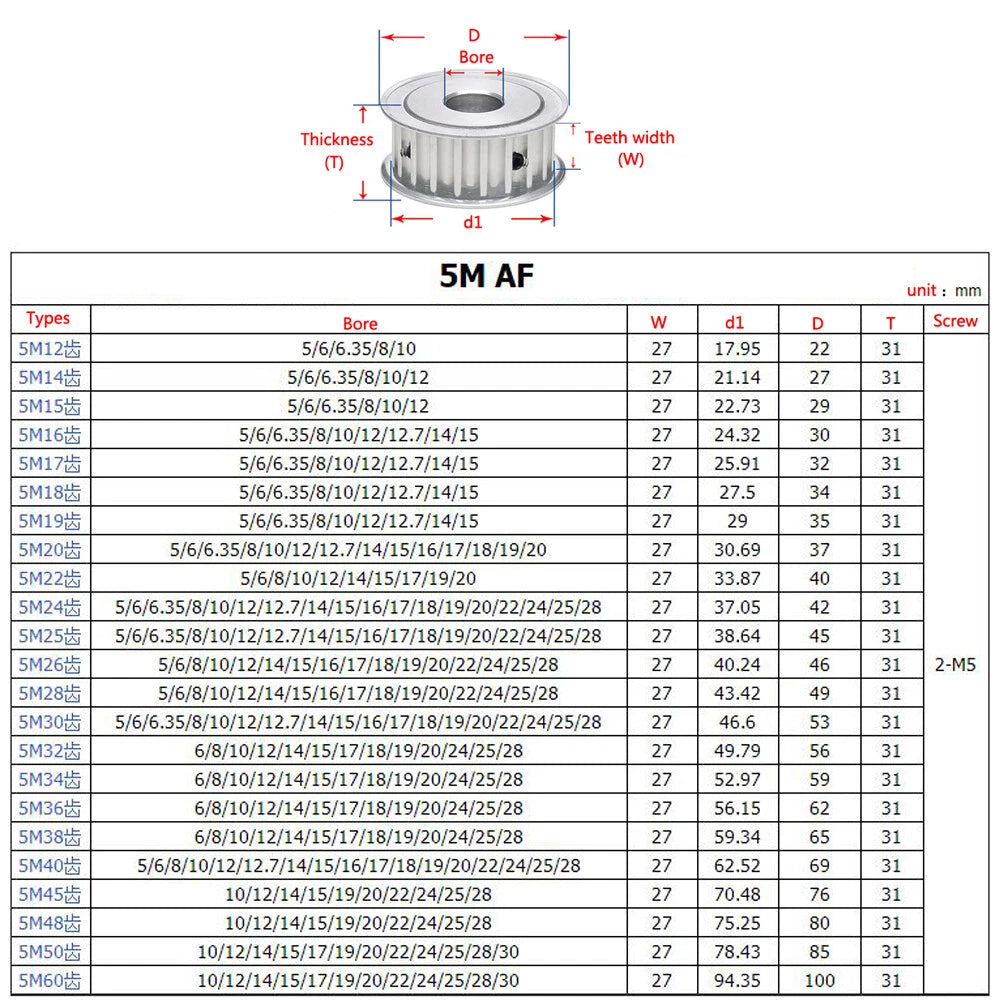

| Belt Profile | HTD (High Torque Drive) |
|---|---|
| Pitch | 5 mm |
| Number of Teeth | 50T / 60T (see variant options) |
| Bore Type | AF-type (through-bore with set-screw) |
| Bore Diameter | 10 / 12 / 14 / 15 / 17 / 19 / 20 / 22 / 24 / 25 / 28 / 30 mm (see variant options) |
| Belt Width (Pulley Face) | 27 mm (≈1.06 in) |
| Material | Aluminum alloy |
| Finish | Natural / anodized (see variant options) |
| Pitch Diameter (50T) | ≈79.6 mm (≈3.13 in) |
| Pitch Diameter (60T) | ≈95.5 mm (≈3.76 in) |
| Quantity per Order | 1 piece |
Choose 50T if you need a higher output speed relative to your motor RPM, or when space constraints require a smaller pulley diameter (≈79.6 mm pitch diameter). Choose 60T when you need more torque multiplication or a larger pitch diameter (≈95.5 mm) to reduce belt wrap angle on long center-distance drives. Both use the same 5 mm HTD pitch and are compatible with standard HTD 5M belts.
Measure your motor or drive shaft diameter with a caliper and select the matching bore size from the variant options (10 mm through 30 mm). The AF-type through-bore is secured with a set-screw, so the bore should match the shaft diameter closely — avoid selecting a bore larger than your shaft, as the set-screw alone cannot compensate for significant clearance.
The pulley tooth face is 27 mm wide, so it is compatible with HTD 5M belts up to 27 mm in width. Common compatible belt widths include 9 mm, 15 mm, 20 mm, and 25 mm. Using a belt narrower than 27 mm is acceptable; using a belt wider than 27 mm is not recommended as the belt edges will overhang the pulley face.
Yes. The aluminum alloy construction provides a good strength-to-weight ratio suitable for CNC router axis drives, 3D printer motion systems, and light-duty robotic applications. The HTD tooth profile distributes load across multiple teeth simultaneously, reducing stress concentration compared to trapezoidal (MXL/T-type) profiles. For heavy industrial loads exceeding the rated belt tension, consult the belt manufacturer's load tables.
No keyway is required. The AF-type design uses a radial set-screw to clamp directly onto a smooth shaft. If your shaft has a flat (D-cut) or keyway, the set-screw will engage it for even more positive retention. No additional machining is needed for standard smooth-shaft installations.
No. This pulley is designed specifically for the HTD 5M tooth profile. GT2 (2 mm pitch) and T5 (5 mm trapezoidal pitch) belts have different tooth geometries and will not mesh correctly with HTD 5M pulleys. Always match the pulley tooth profile and pitch to your belt specification.
Each order includes 1 piece (1Pcs). If your application requires a matched pair (e.g., driver and driven pulley), please add the required quantity to your cart.
