HTD-5M Closed Loop Timing Belt 25mm Wide — Reliable Synchronous Drive for CNC, Automation & More

When a slipping or mismatched drive belt causes positioning errors in your CNC router, laser cutter, or conveyor system, the entire project stalls. Engineers, makers, and machine builders who need a dependable HTD-5M closed loop timing belt with a 25mm width will find this belt delivers consistent tooth engagement and repeatable motion across a wide range of perimeter sizes.

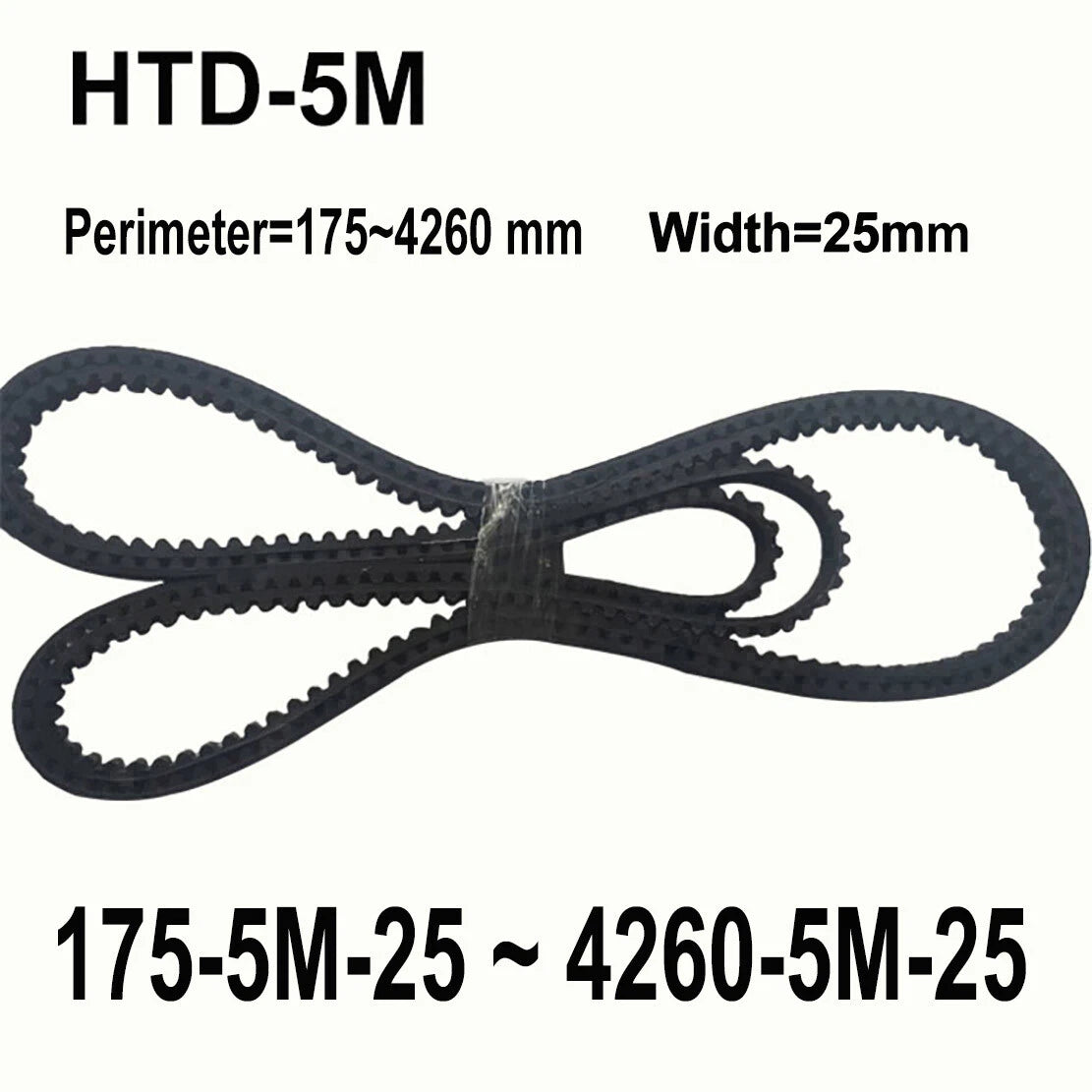

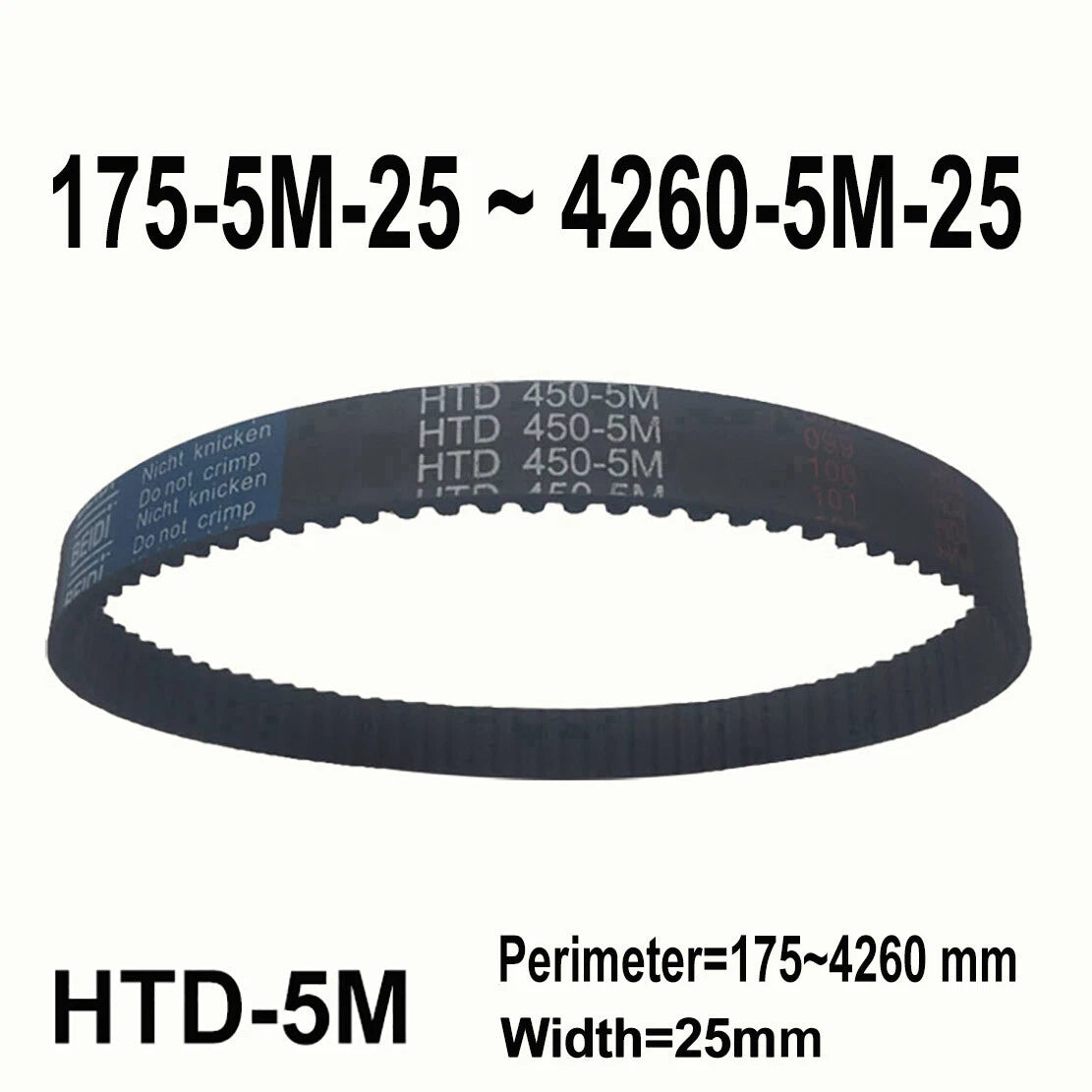

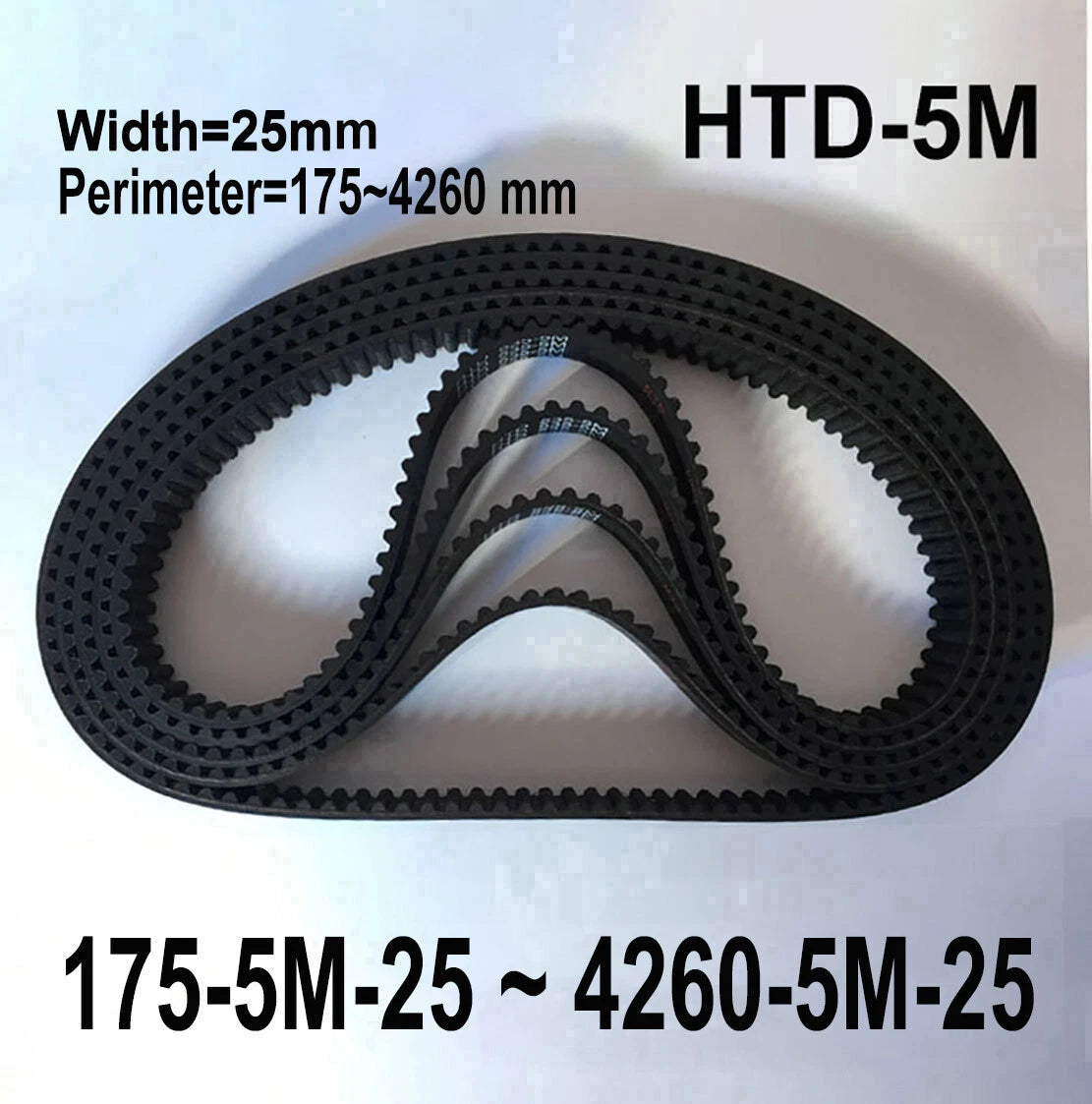

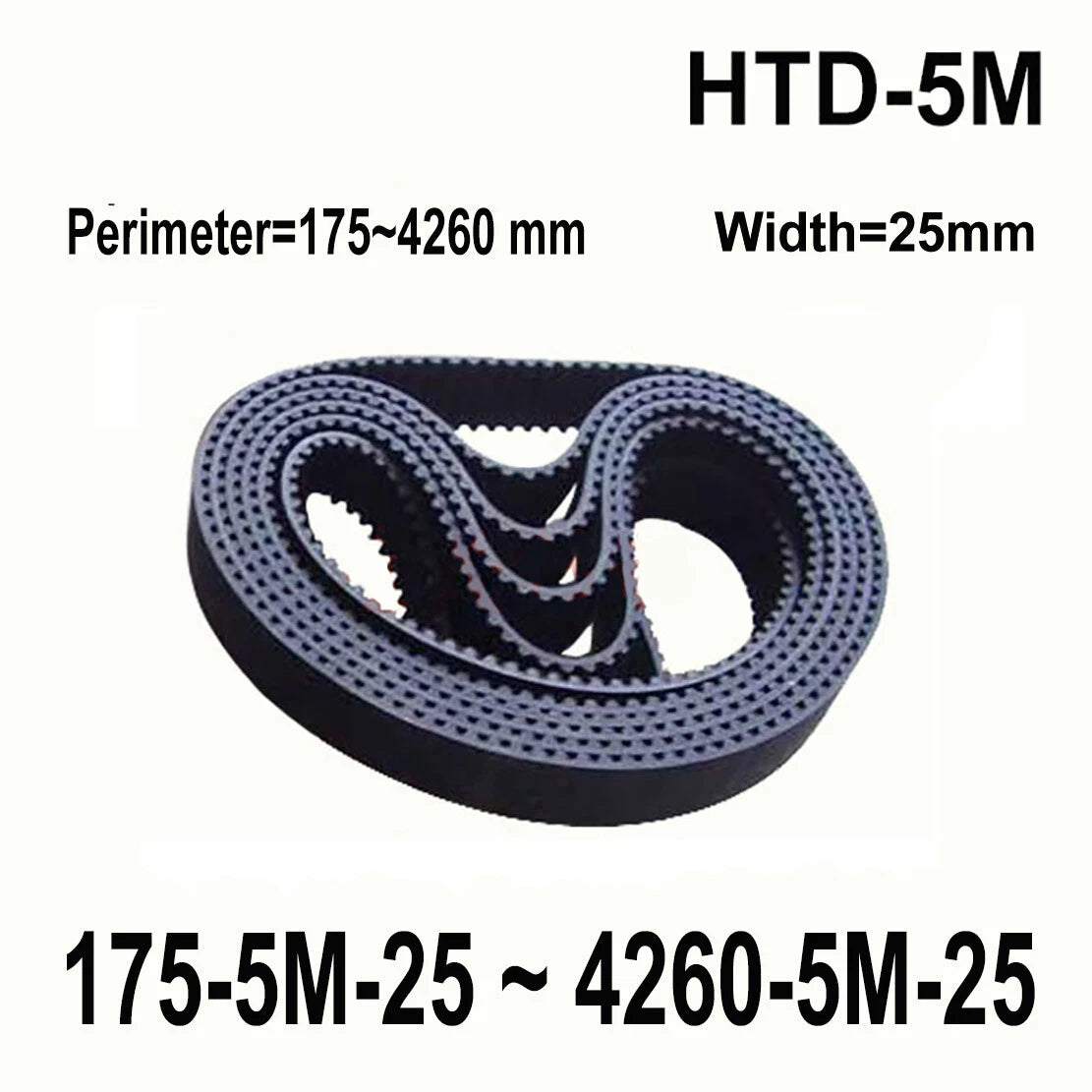

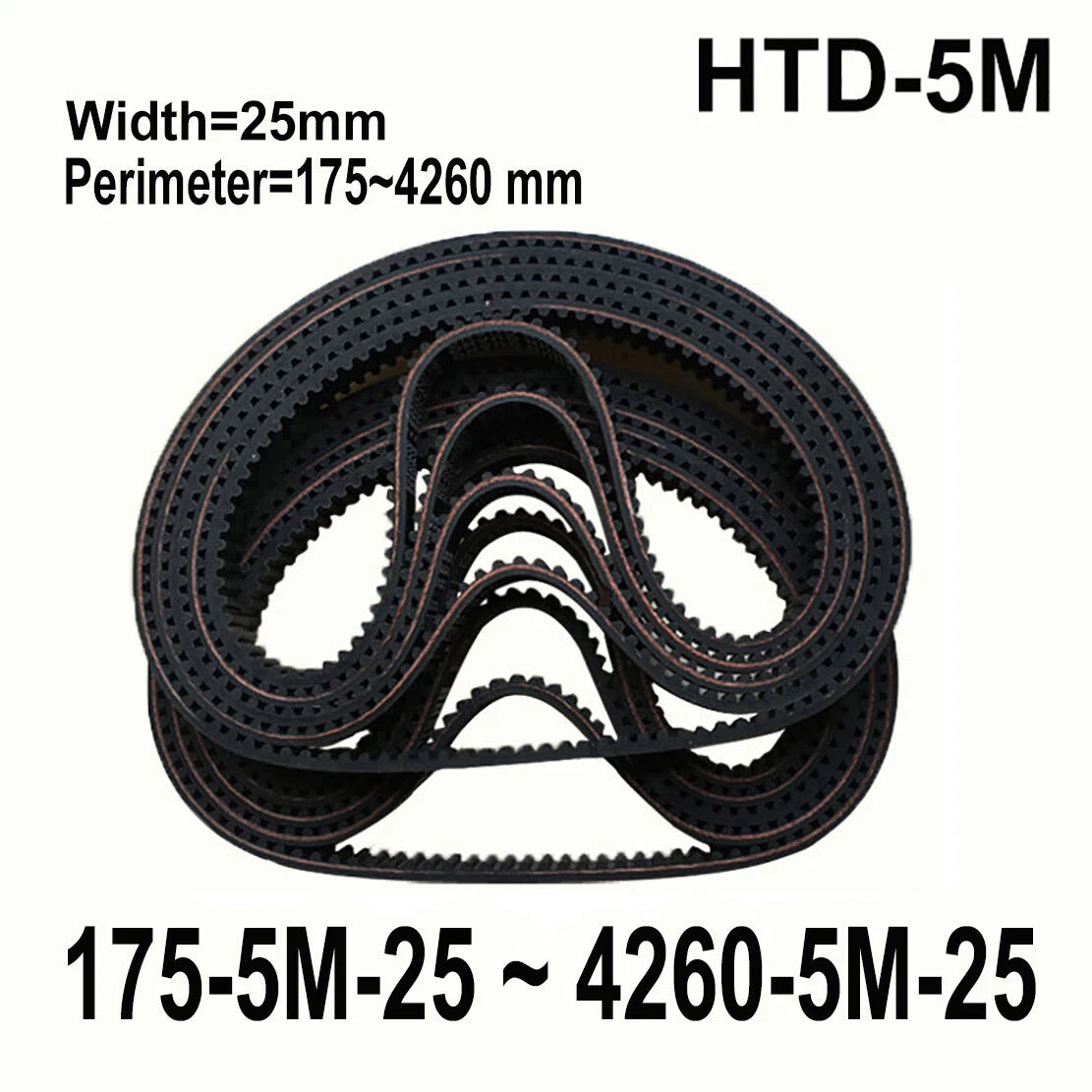

Each belt is a single closed-loop synchronous drive belt with an HTD-5M tooth profile (5mm pitch, rounded curvilinear tooth form). The belt body is constructed from rubber (typically neoprene) reinforced with a fiberglass tension cord for dimensional stability. Width is 25mm (≈0.98"). Available perimeters range from 175mm (≈6.9") to 4260mm (≈167.7"), sold individually (1 pc) or in pairs (2 pcs) for select sizes.

Typical use cases include CNC router X/Y axis drives, laser engraver gantry systems, 3D printer Z-axis or extruder drives, conveyor belt mechanisms, and general industrial automation where synchronous power transmission with no slip is required.

🔗 Compatibility: Requires HTD-5M profile pulleys with a minimum 25mm face width. Common pulley tooth counts: 12T, 15T, 20T, 24T, 30T, 36T, 40T. Verify your machine's required perimeter length before ordering.

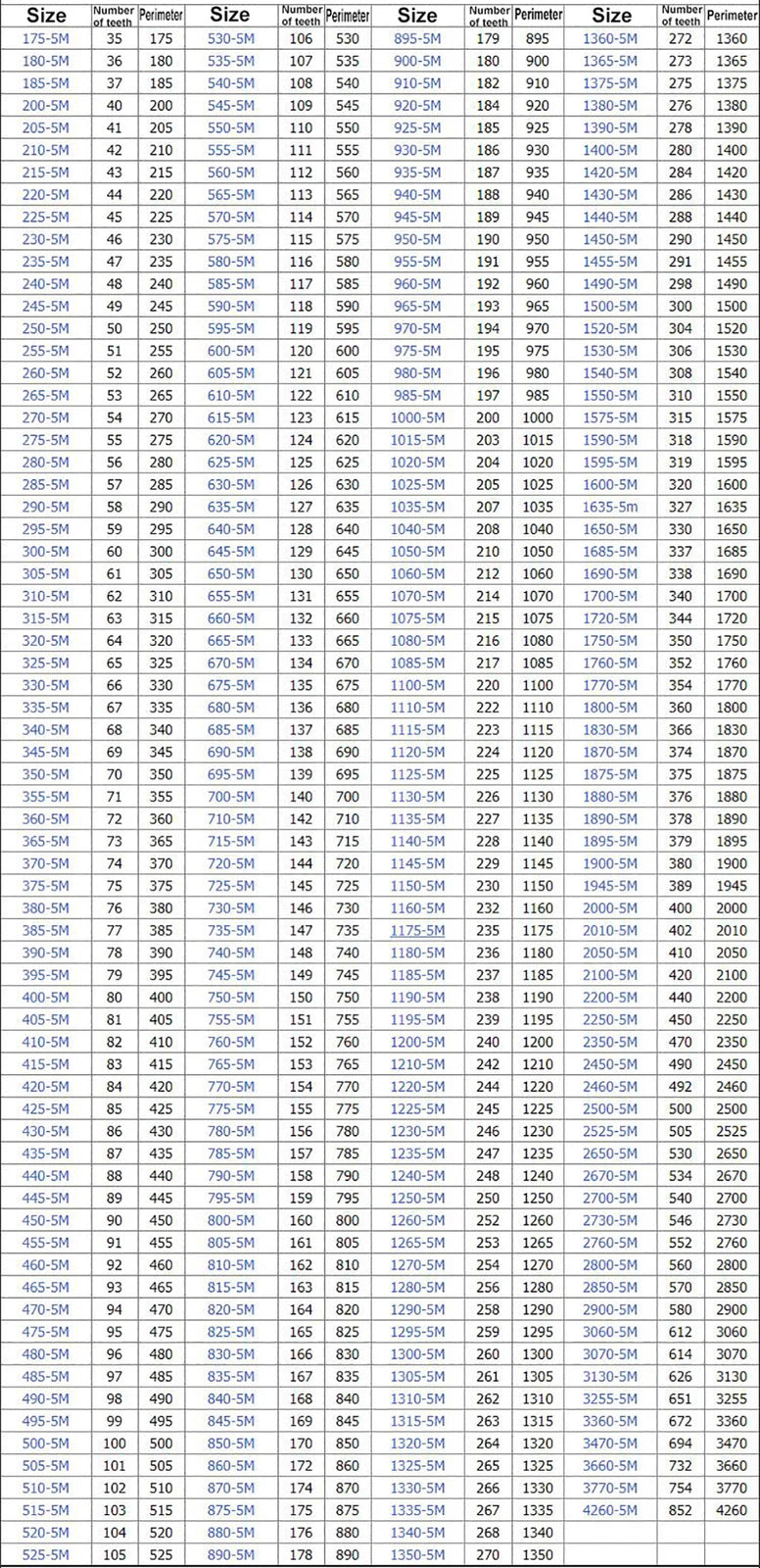

⚠️ Size Note: Perimeter sizes are listed in the "Select Size" dropdown (e.g., "500-5M" = 500mm perimeter, HTD-5M profile). If your required size is not listed, contact us to confirm availability.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

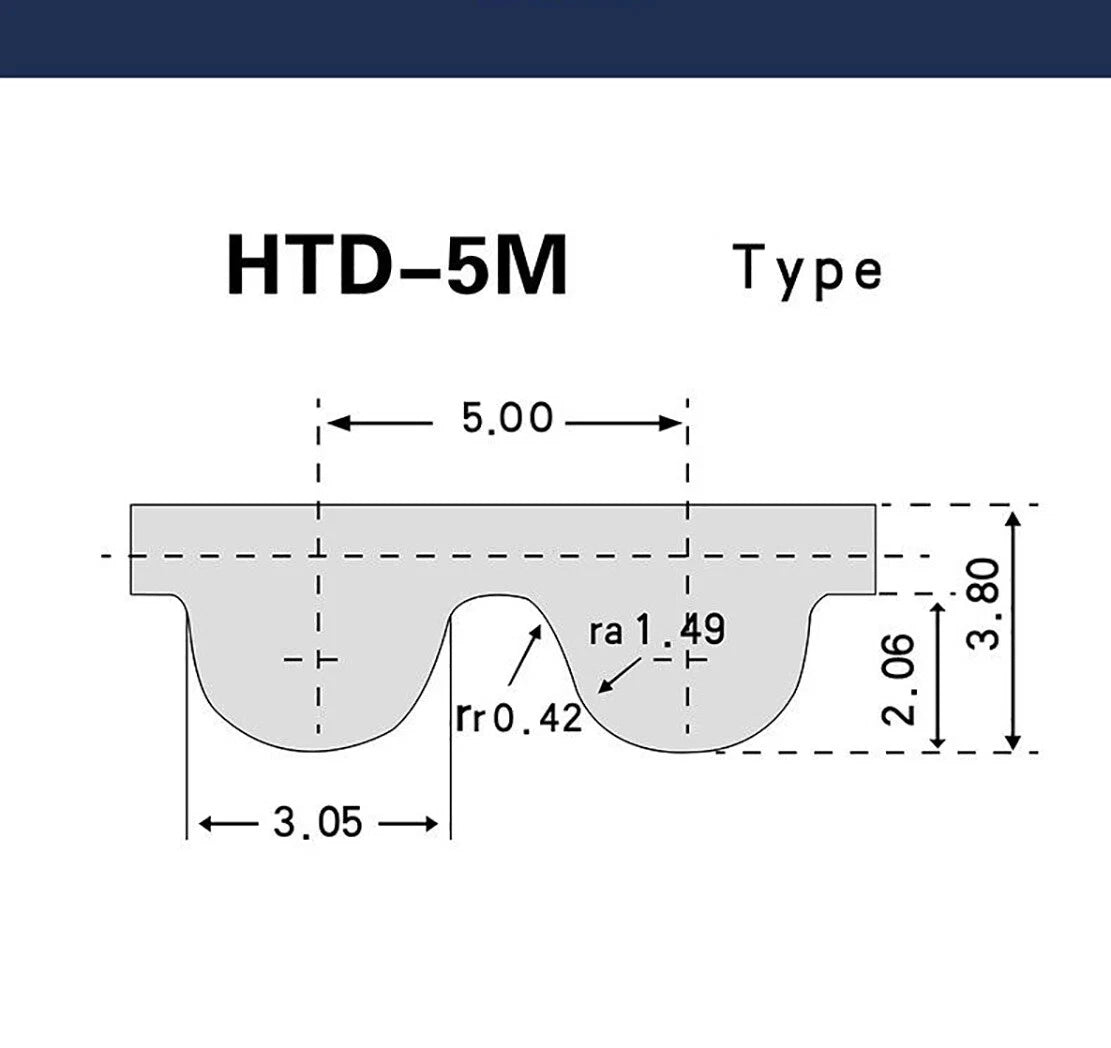

  • ⚙️HTD-5M Tooth Profile — Rounded curvilinear 5mm pitch teeth distribute load more evenly than trapezoidal profiles, reducing tooth stress in synchronous drive applications.
  • 📏25mm Belt Width — Wider than standard 15mm or 20mm variants, this 25mm wide HTD-5M timing belt supports higher torque transmission for demanding CNC and automation drives.
  • 🔄Closed Loop Construction — Seamless closed-loop design eliminates splice points, providing uniform tension and consistent tooth pitch around the full perimeter.

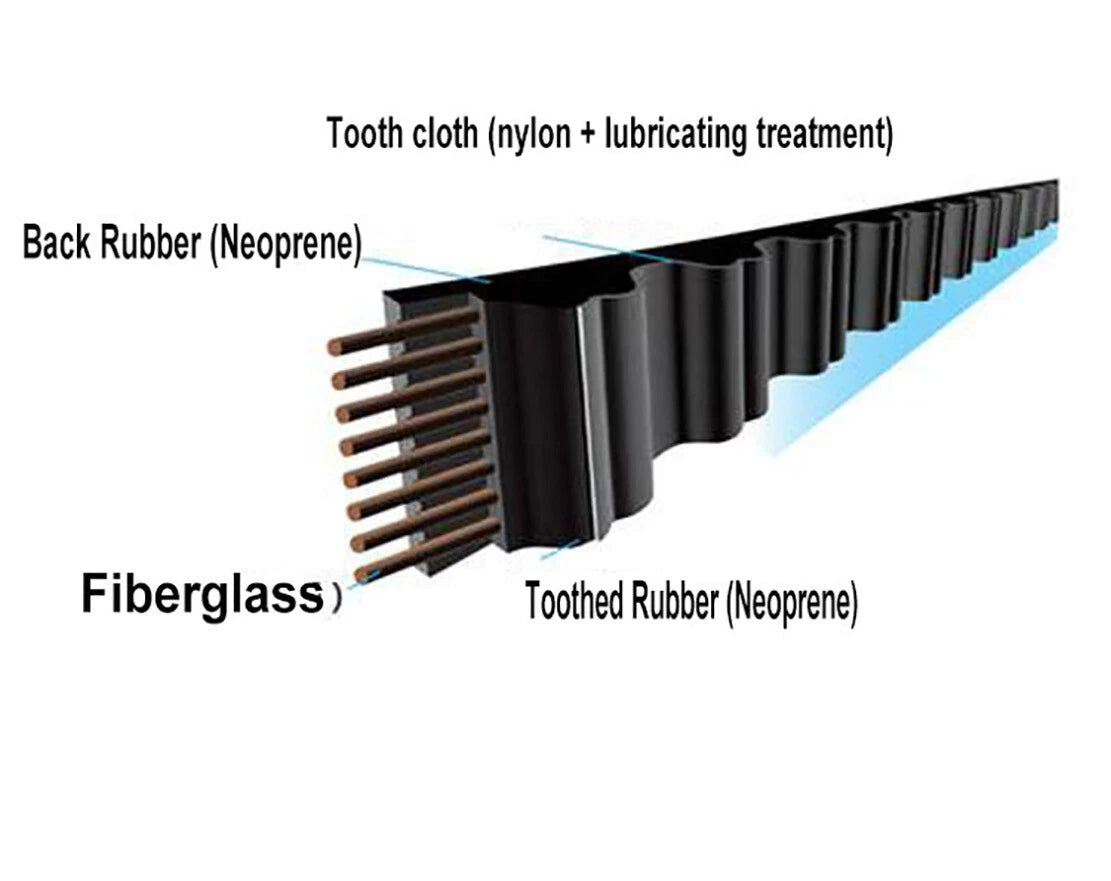

  • 🧵Fiberglass Tension Cord — Embedded fiberglass cords resist elongation under load, maintaining accurate positioning in CNC router and laser cutter drive systems.
  • 🌡️Rubber Body Construction — Neoprene-type rubber body offers flexibility across a range of operating temperatures and provides moderate resistance to oils and moisture.
  • 📦Wide Perimeter Selection — Available in perimeters from 175mm to 4260mm, covering a broad range of machine configurations without custom fabrication.

📐 Technical Specifications — HTD-5M Closed Loop Timing Belt

Belt Profile HTD-5M (5mm pitch, curvilinear tooth)
Belt Width 25mm (≈0.98")
Tooth Pitch 5mm
Perimeter Range 175mm (≈6.9") to 4260mm (≈167.7")
Belt Type Closed loop (seamless)
Body Material Rubber (neoprene-type)
Tension Member Fiberglass cord
Compatible Pulleys HTD-5M profile, minimum 25mm face width
Quantity per Order 1 pc or 2 pcs (see variant options)
Operating Temperature See variant options / Contact us to confirm
Color/Finish See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD-5M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt path length. A general formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 500mm perimeter belt is approximately 19.7". Always verify against your machine's spec sheet when possible. If you're replacing an existing belt, measure the old belt's outer perimeter or count the teeth and multiply by 5mm.

What is the pitch of an HTD-5M timing belt?

HTD-5M belts have a 5mm tooth pitch — the distance between the centers of adjacent teeth. The "HTD" (High Torque Drive) profile features a rounded, curvilinear tooth shape that generally reduces stress concentration compared to older trapezoidal (MXL, XL, L) profiles, making it well-suited for higher-torque synchronous drive applications.

What load or torque can this 25mm wide HTD-5M belt handle?

A 25mm wide HTD-5M belt typically handles higher torque than narrower 15mm or 20mm variants of the same profile. Exact load ratings depend on the number of teeth in mesh, pulley diameter, operating speed, and service conditions. For most light-to-medium CNC routing, laser cutting, and automation applications, a 25mm HTD-5M belt is generally sufficient. Consult your drive system's engineering specifications for precise load calculations.

Is this timing belt suitable for outdoor or wet environments?

HTD-5M timing belts with a rubber body offer moderate resistance to moisture and mild chemicals. They are not typically rated for continuous submersion or highly corrosive environments. For outdoor installations, shield the belt from direct UV exposure and standing water where possible. Contact us to confirm specific environmental ratings for your application.

What pulleys are compatible with an HTD-5M 25mm wide timing belt?

This belt requires HTD-5M profile pulleys (also labeled "5M"). The pulley face width should be at least 25mm, or use flanged pulleys rated for 25mm belts to prevent the belt from walking off. Common tooth counts include 12T, 15T, 20T, 24T, 30T, 36T, and 40T. Ensure the pulley bore matches your shaft diameter and that the pulley is rated for your operating speed.

How do I decide between a 25mm and a narrower HTD-5M belt?

Choose belt width based on the torque and power requirements of your application. A 25mm wide belt generally handles higher loads than 15mm or 20mm versions of the same HTD-5M profile. If your machine already uses a specific width, match that width to maintain compatibility with existing pulleys and flanges. Wider belts also tend to run more stably at higher speeds.

Can I use this belt on a 3D printer or CNC router?

Yes. HTD-5M closed loop timing belts are widely used in CNC routers, laser cutters, plasma tables, and larger-format 3D printers where higher torque transmission is needed compared to GT2 or smaller-pitch belts. Verify the perimeter length matches your machine's drive system before ordering, and confirm your pulleys are HTD-5M compatible.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
