HTD 5M Closed Loop Timing Belt — Reliable Synchronous Drive for 3D Printers, CNC & Robotics

When a slipping or stretched belt throws off your machine's precision — whether it's a 3D printer skipping layers, a CNC router losing position, or a DIY conveyor drifting out of sync — the fix starts with the right HTD 5M closed loop timing belt. Makers, engineers, and repair technicians who need a drop-in replacement or upgrade for standard HTD 5M drive systems will find this belt a straightforward, dependable choice.

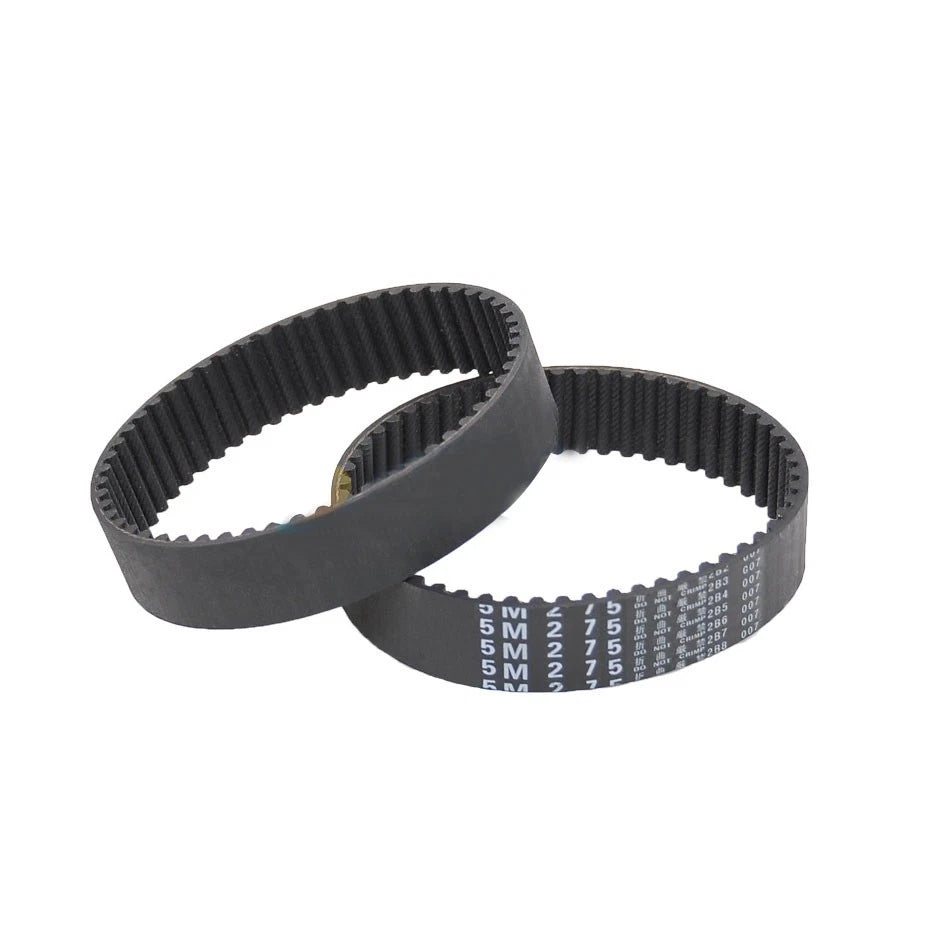

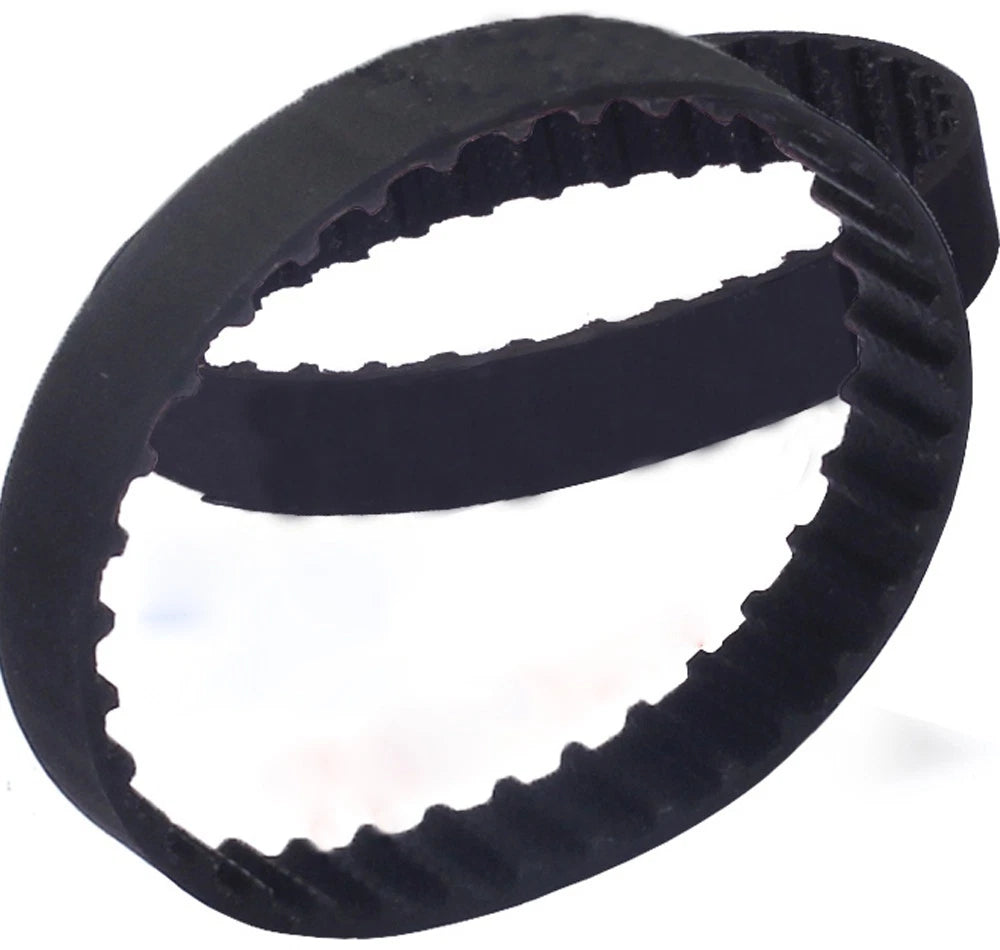

Each belt is a single closed-loop synchronous drive belt in the HTD 5M profile (5mm pitch, rounded tooth form). Available lengths are 385mm (≈15.2"), 390mm (≈15.4"), and 395mm (≈15.6"), with width options of 15mm (≈0.59"), 20mm (≈0.79"), and 25mm (≈0.98"). Construction is typically neoprene rubber with fiberglass or steel cord tensile members for dimensional stability under load. Sold individually (1 pc per order).

Typical applications include 3D printer drive systems (CoreXY, bed-slinger, delta), CNC router and laser engraver axis drives, robotics and automation power transmission, and general-purpose DIY synchronous belt drive projects where slip-free motion and repeatable positioning are required.

ℹ️ Compatibility: Fits standard HTD 5M profile pulleys only (5mm pitch, rounded tooth). Not compatible with MXL, XL, T5, GT2, or other profiles. Verify your pulley profile before ordering.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

  • 🔁Closed-Loop Construction — Seamless endless loop design eliminates splice points, ensuring consistent tension and smooth operation throughout the belt's full circumference.
  • ⚙️HTD 5M Tooth Profile — Rounded HTD tooth form provides positive engagement with HTD 5M pulleys, reducing tooth jump risk in high-torque or high-speed synchronous drive applications.
  • 📐Three Width Options — Choose 15mm, 20mm, or 25mm to match your pulley face width; wider belts distribute load across more tooth contact area for demanding CNC timing belt drive setups.
  • 📏Three Length Options — 385mm, 390mm, and 395mm inner circumferences cover a range of center-to-center distances, making it easier to find a direct replacement timing belt without custom cutting.
  • 🧱Reinforced Tensile Layer — Fiberglass or steel cord reinforcement (typical for this belt class) resists elongation under cyclic load, helping maintain positional accuracy in 3D printer and robotics belt drive systems.
  • 🔧Broad Application Fit — Suited for 3D printers, laser engravers, CNC routers, conveyor drives, and DIY automation projects that use standard HTD 5M synchronous pulleys.

📐 Technical Specifications — HTD 5M Closed Loop Timing Belt

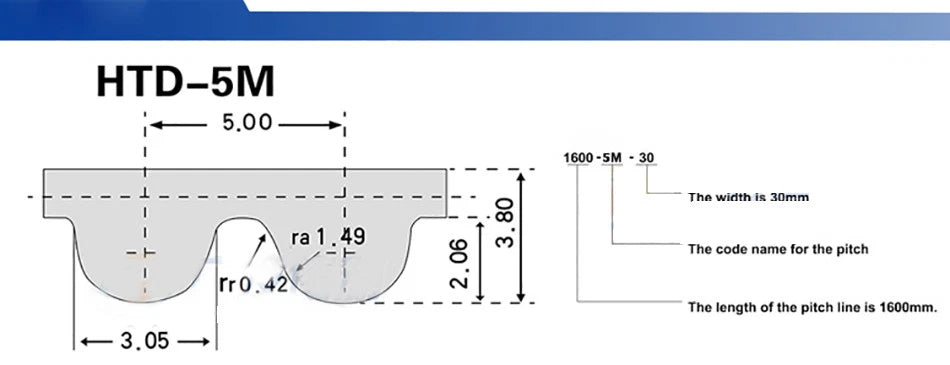

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)
Tooth Form Rounded (HTD standard)
Available Lengths (Inner Circumference) 385mm (≈15.2") / 390mm (≈15.4") / 395mm (≈15.6")
Available Widths 15mm (≈0.59") / 20mm (≈0.79") / 25mm (≈0.98")
Pitch 5mm
Number of Teeth 77 teeth (385mm) / 78 teeth (390mm) / 79 teeth (395mm)
Belt Type Closed loop (endless)
Material Neoprene rubber body, fiberglass or steel cord tensile layer (typical)
Color Black
Compatible Pulley Profile HTD 5M only
Pack Quantity 1 pc per order
Operating Temperature See variant options / Contact us to confirm
Max Speed / Load Rating See variant options / Contact us to confirm
⚠️ Spec Note: Operating temperature range and maximum load ratings vary by exact construction. Contact us to confirm if your application has specific environmental or load requirements.

❓ Frequently Asked Questions

How do I choose the right belt length and width?

Match the belt length to your center-to-center pulley distance. This product is available in 385mm (≈15.2"), 390mm (≈15.4"), and 395mm (≈15.6"). Width should match or be narrower than your pulley face — choose 15mm, 20mm, or 25mm accordingly. When in doubt, measure your existing belt's inner circumference or consult your machine's bill of materials.

What tensile strength can an HTD 5M timing belt handle?

HTD 5M belts are generally rated for moderate-to-high torque synchronous drive applications. Exact load capacity depends on width and pulley diameter — wider belts (25mm) typically carry higher loads than narrower ones (15mm). Consult your drive system's engineering specs for precise torque limits.

Can these timing belts be used outdoors or in damp environments?

HTD 5M belts are typically made from neoprene rubber, which offers reasonable moisture resistance for light outdoor or damp environments. However, prolonged UV exposure or chemical contact may degrade the belt over time. For harsh outdoor use, verify the specific material composition with us before installation.

Are these belts compatible with standard HTD 5M pulleys?

Yes. These belts follow the HTD (High Torque Drive) 5M profile standard — 5mm pitch, rounded tooth profile. They are compatible with any standard HTD 5M timing pulley. They are not interchangeable with MXL, XL, T5, GT2, or other profile pulleys.

How do I know if I need 385mm, 390mm, or 395mm?

The belt length refers to the inner circumference of the closed loop. Measure your existing belt's circumference, or estimate from your pulley center distance using: L ≈ 2C + π(D₁+D₂)/2, where C is center distance and D₁/D₂ are pulley pitch diameters. Choose the closest available length — 385, 390, or 395mm.

What machines or projects are HTD 5M closed loop belts typically used for?

HTD 5M closed loop timing belts are commonly used in 3D printers (CoreXY, bed-slinger, delta), CNC routers, laser engravers, robotics and automation systems, and general DIY power transmission projects where precise, slip-free synchronous motion is required.

Can I use a wider belt on a narrower pulley?

Generally, the belt width should match the pulley face width as closely as possible. Using a belt significantly wider than the pulley is not recommended, as it can cause uneven wear and tracking issues. A belt slightly narrower than the pulley face is typically acceptable in most drive configurations.

🛒 Select your belt length and width above, then add to cart — ships from our US warehouse.
