HTD 5M Closed Loop Timing Belt — Precise Drive for CNC Machines & 3D Printers

When your CNC router skips steps or your 3D printer's Z-axis loses position mid-print, a worn or incorrectly sized timing belt is often the culprit. Makers, machinists, and repair technicians who need a reliable closed-loop HTD 5M timing belt with consistent tooth engagement will find this belt a straightforward drop-in solution for a wide range of motion control builds.

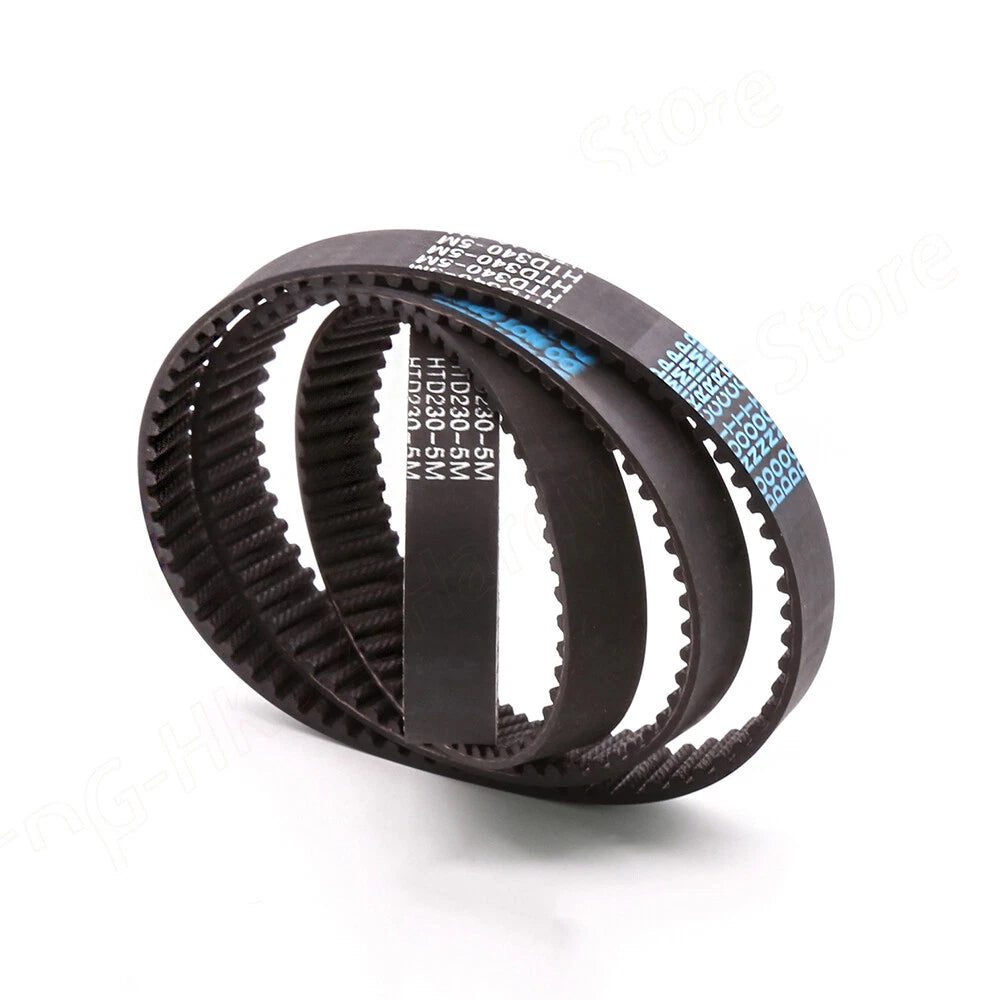

Each belt is a closed-loop (endless) design with a 5mm pitch and 10mm (≈3/8") width, available in 162 length options ranging from 175mm (≈6.9") to 1050mm (≈41.3"). The belt body is typically constructed from neoprene rubber with fiber cord reinforcement and a nylon tooth face — a standard construction for HTD drive belts used in light-to-medium duty power transmission.

Typical use cases include CNC router Z-axis and rotary axis drives, Reprap and Rostock delta 3D printer carriage loops, desktop laser engraver feed systems, and DIY automation projects where a compact closed-loop drive is needed. The HTD 5M tooth profile is a common standard in the maker and light-industrial CNC community, making replacement pulleys and hardware easy to source.

ℹ️ Compatibility: Fits HTD 5M pulleys only (5mm pitch, curvilinear tooth profile). Common pulley tooth counts: 15T, 20T, 30T, 36T with 10mm belt width. Not compatible with GT2, T5, XL, or MXL profiles.
⚠️ Size confirmation: The listed length is the inner circumference of the closed loop. Measure your existing belt or calculate from pulley center distance before ordering. See FAQ below for the formula.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

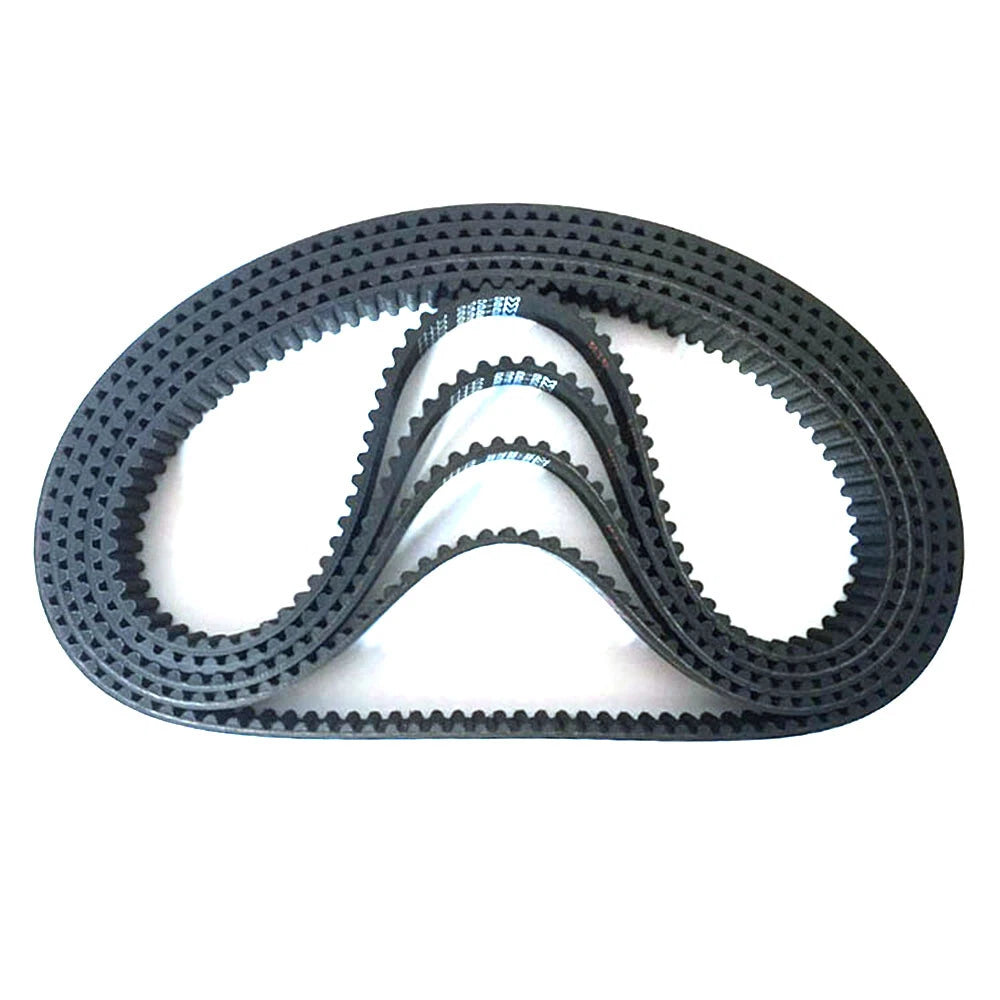

  • 📐162 Length Options — From 175mm (≈6.9") to 1050mm (≈41.3") in 5mm increments, covering the most common closed-loop belt lengths for CNC and 3D printer timing belt replacement.

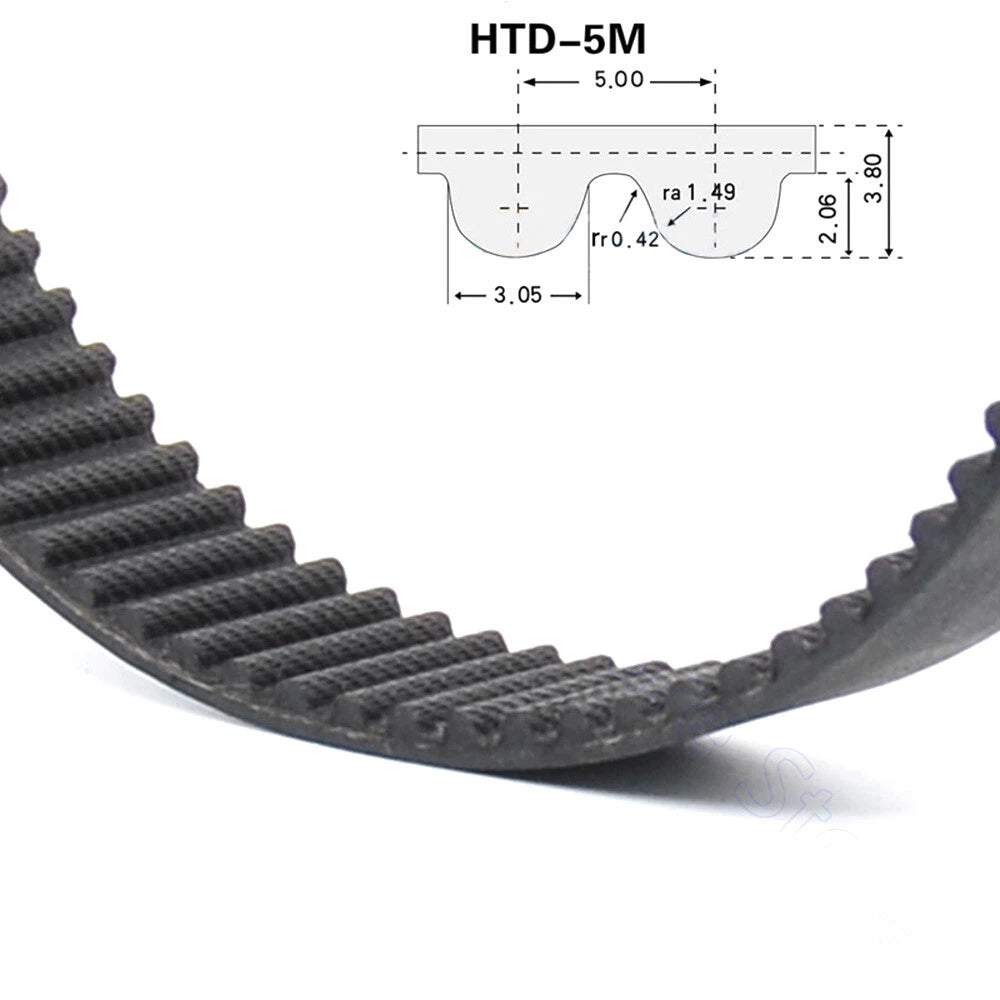

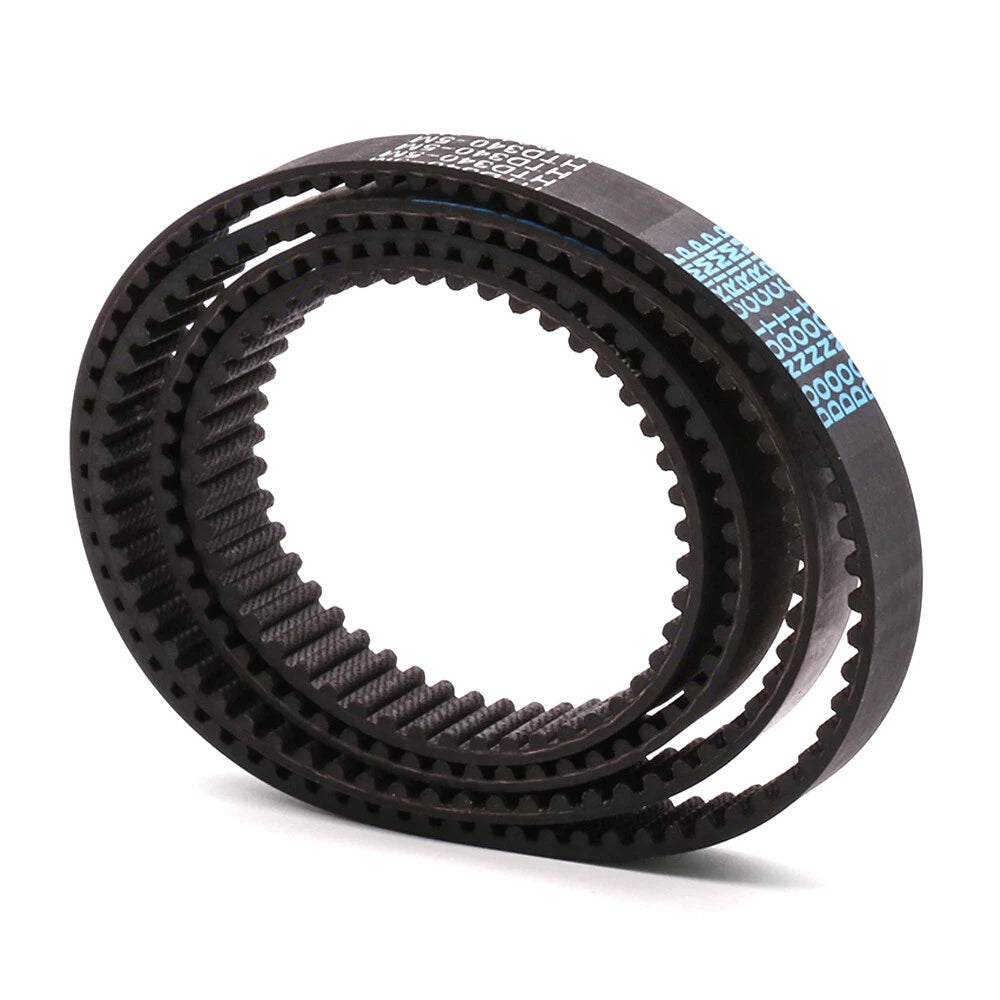

  • 🔩HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque drive applications.
  • 🧵Fiber Cord Reinforcement — Internal tensile cords (typically fiberglass) limit belt stretch under load, helping maintain positional accuracy in CNC axis and 3D printer carriage drives.
  • 🦷Nylon Tooth Face — The nylon facing on the tooth surface reduces friction and wear against pulley teeth, extending service life in continuous-duty motion control systems.

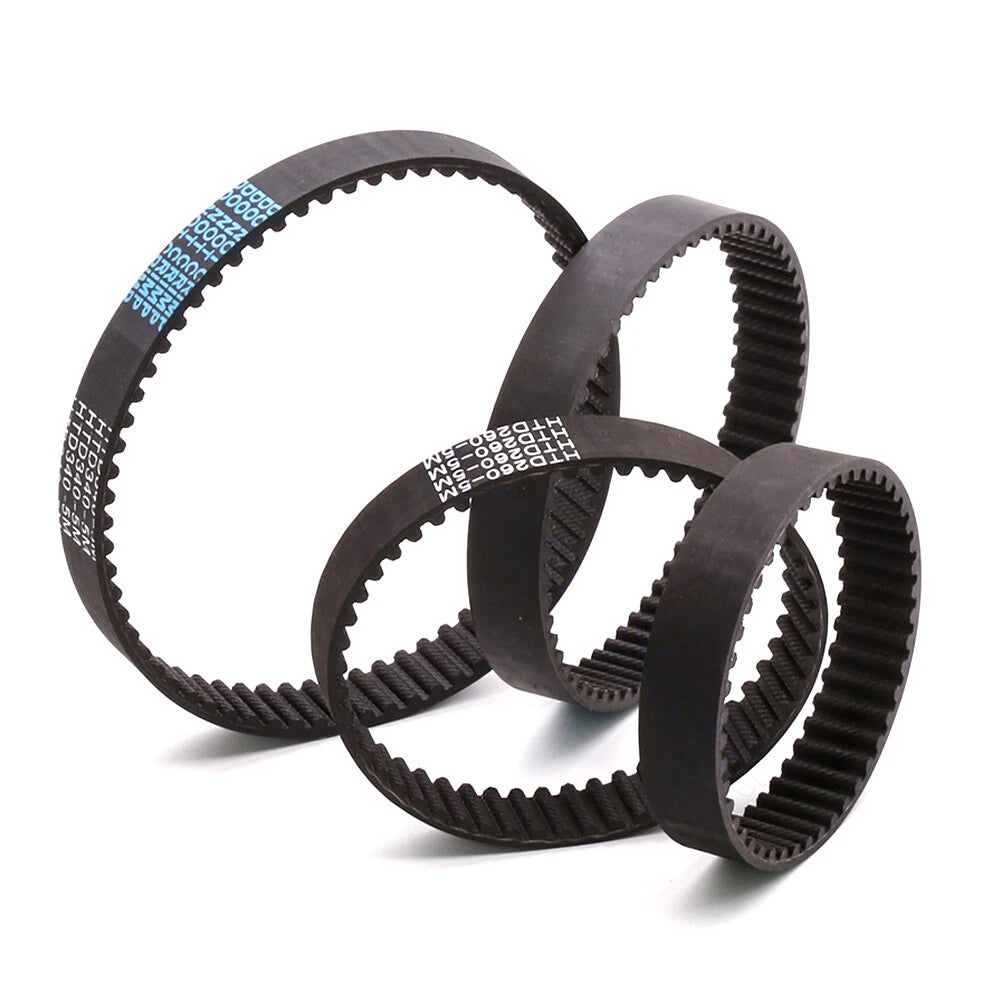

  • 🔄Closed-Loop (Endless) Construction — No splice or joint — the belt runs as a seamless loop, eliminating the vibration and wear point that spliced belts can introduce in precision drive systems.
  • 🏭Broad Machine Compatibility — Fits Reprap, Rostock delta, and most HTD 5M-based CNC router and laser engraver designs that use a closed-loop belt on rotary or Z-axis drives.

📐 Technical Specifications — HTD 5M Closed Loop Timing Belt

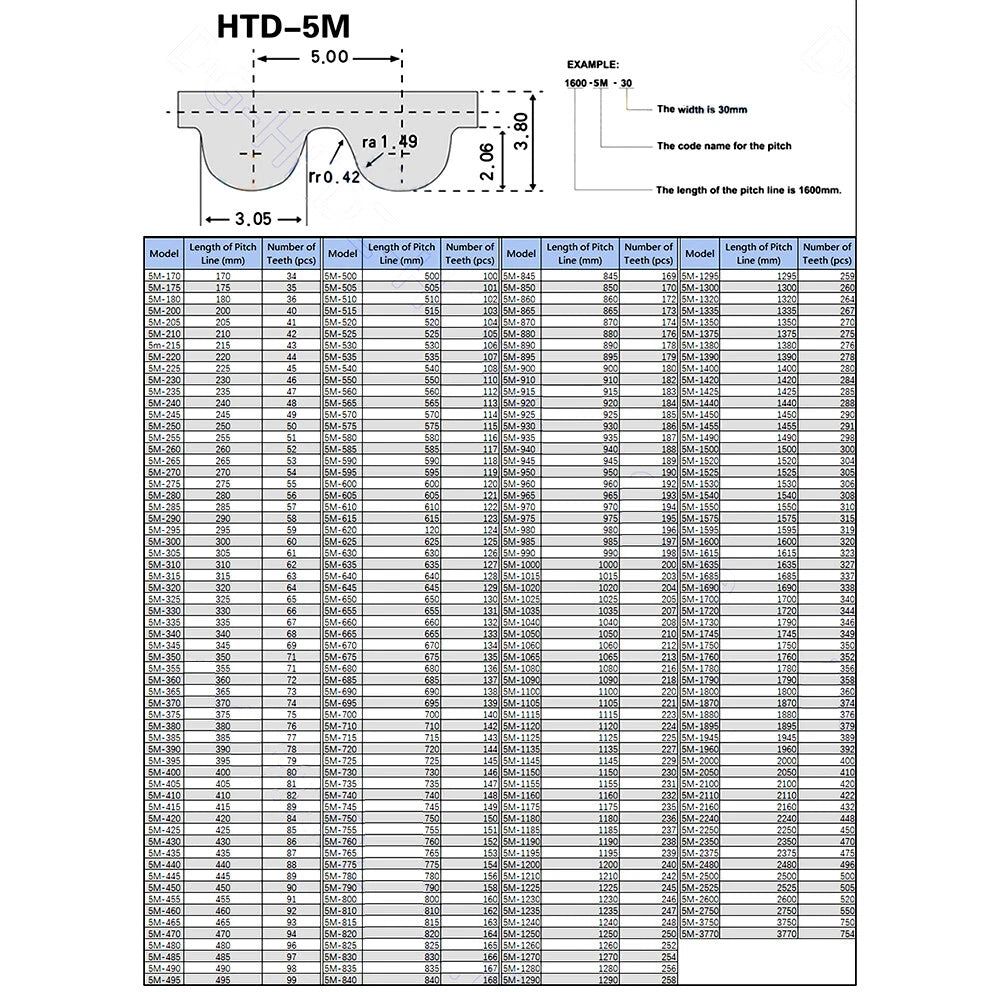

Belt Profile HTD 5M (High Torque Drive, curvilinear tooth)
Pitch 5mm (0.197")
Belt Width 10mm (≈3/8")

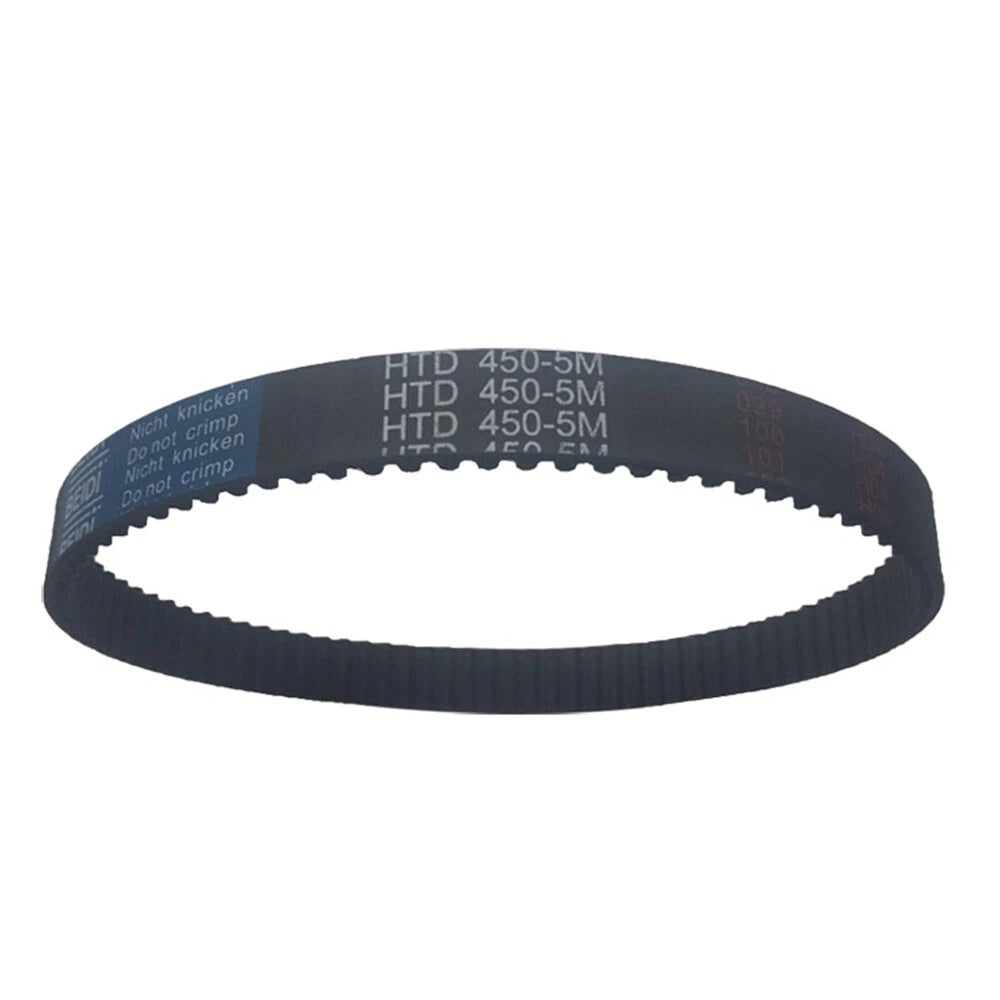

Belt Type Closed loop (endless / seamless)
Available Lengths (Inner Circumference) 175mm–1050mm (≈6.9"–41.3"), 162 options in 5mm steps
Tooth Height Typically 2.06mm (standard HTD 5M)
Belt Body Material Typically neoprene rubber with fiber cord reinforcement
Tooth Face Material Typically nylon fabric
Compatible Pulley Profile HTD 5M only
Recommended Pulley Width 10mm or wider (flanged recommended)
Operating Temperature See variant options / Contact us to confirm
Color / Finish Black (standard)
Quantity per Order 1 PCS

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length = 2 × C + π × (D1 + D2) / 2. For closed-loop belts, the listed length is the inner circumference. For example, a 500mm belt has an inner loop of 500mm (≈19.7"). Always verify against your machine's spec sheet or the markings on your existing belt before ordering. If you're replacing a worn belt, measure the old belt laid flat and double that figure.

What does HTD 5M mean, and how is it different from GT2?

HTD stands for High Torque Drive. The "5M" means a 5mm pitch (tooth-to-tooth distance). HTD uses a curvilinear (rounded) tooth profile designed for higher torque loads. GT2 is a different profile standard (2mm pitch, modified curvilinear) commonly used in lighter-duty 3D printer X/Y axes. HTD 5M and GT2 pulleys are not interchangeable — always match belt and pulley profiles.

What is the load capacity of this belt?

HTD 5M belts with 10mm width are generally suited for moderate-to-high torque applications in light machinery — including CNC axis drives, 3D printer Z-axis loops, and small conveyor systems. Exact load ratings depend on pulley diameter, RPM, and operating conditions. For critical load calculations, contact us to confirm specifications for your application.

Can this belt be used outdoors or in wet/oily environments?

Standard neoprene HTD timing belts are generally not recommended for prolonged outdoor UV exposure or continuous contact with water, oils, or solvents. For occasional light moisture, performance is typically acceptable. For harsh environments, a polyurethane (PU) belt may be more appropriate. Contact us to confirm suitability before ordering for outdoor or chemical-exposure applications.

What pulleys are compatible with this belt?

This belt requires HTD 5M pulleys (5mm pitch, curvilinear tooth profile). Common tooth counts used with 10mm-wide HTD 5M belts include 15T, 20T, 30T, and 36T. Ensure your pulley is rated for 10mm belt width (or use a flanged pulley to keep the belt tracked). This belt is not compatible with GT2, T5, XL, or MXL profile pulleys.

How do I know if I need a closed-loop or open-ended belt?

Closed-loop belts (this product) form a continuous seamless loop and are used where the belt runs in a fixed circuit — common in 3D printer Z-axis drives, rotary tables, and conveyor loops. Open-ended belts are cut to length and clamped at both ends, typically used for linear motion on CNC X/Y axes. Check your machine's design documentation or the existing belt to confirm which type you need before ordering.

What material is this timing belt made from?

HTD 5M timing belts are typically constructed from neoprene rubber with fiberglass or steel cord tensile reinforcement and a nylon tooth face to reduce wear. Exact material composition may vary by production batch. Contact us if material certification or a specific compound is required for your application.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
