HTD 5M Rubber Timing Belt — Reliable Power Transmission for CNC, 3D Printers & Motor Drives

When a worn or incorrectly sized drive belt causes your CNC router to skip steps, your 3D printer Z-axis to slip, or your conveyor motor to lose sync, the entire project stalls. Engineers, makers, and machine builders who need a dependable closed-loop drive solution turn to the HTD 5M rubber timing belt — a workhorse profile trusted across industrial and DIY automation alike.

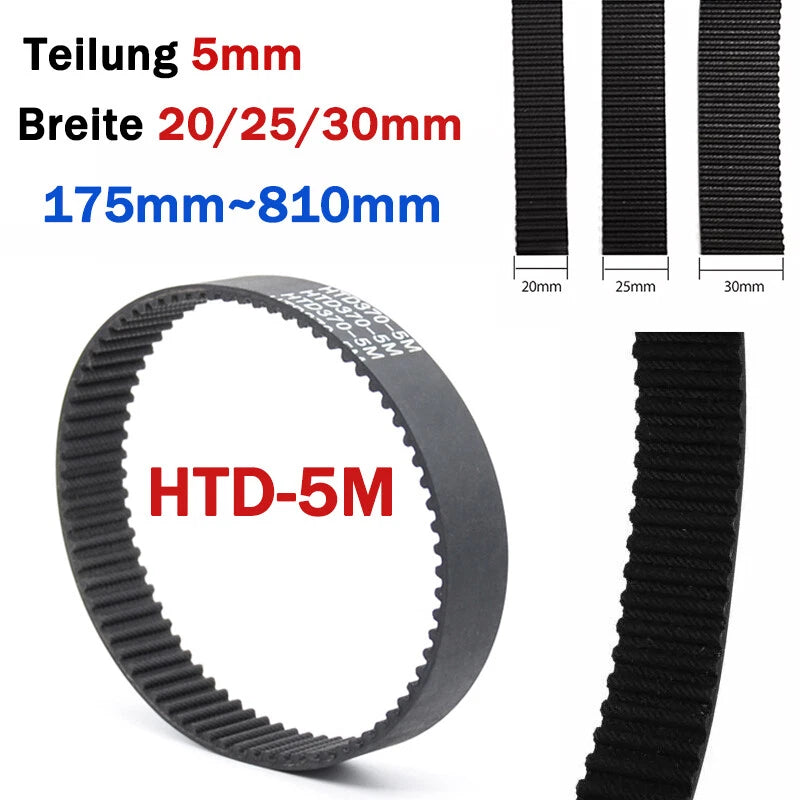

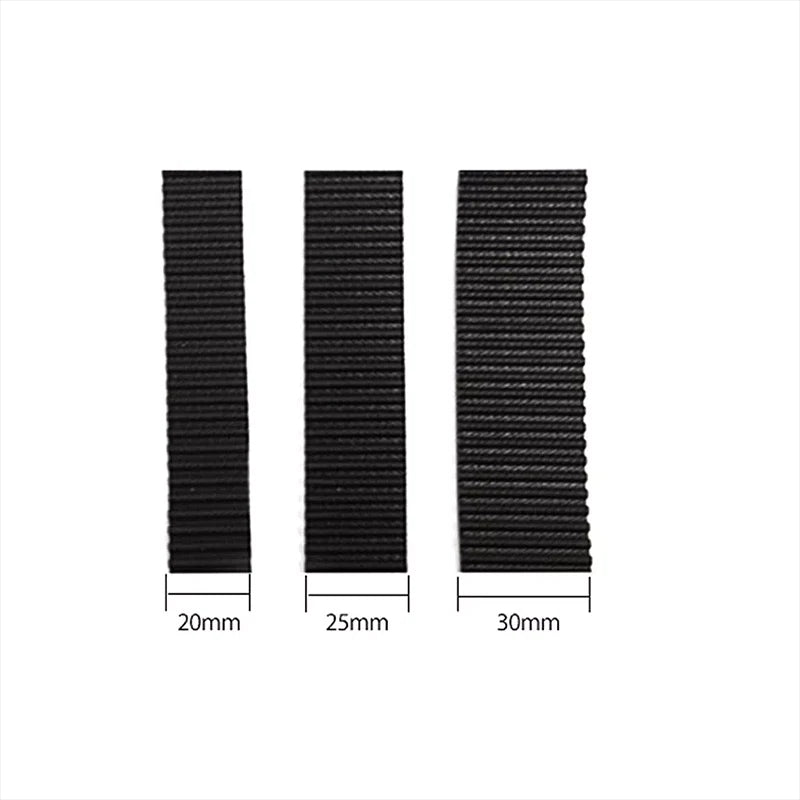

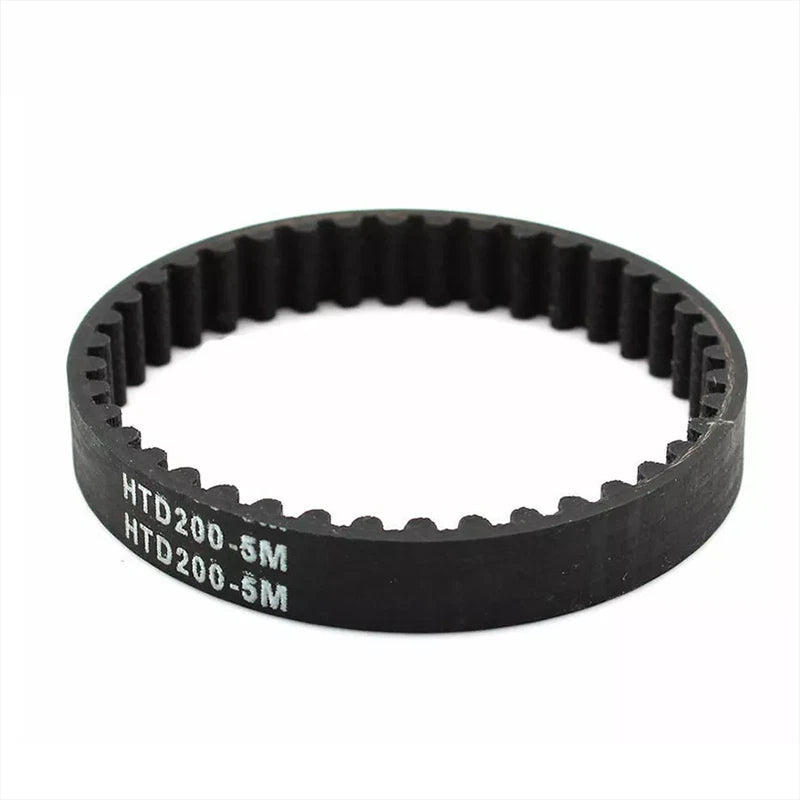

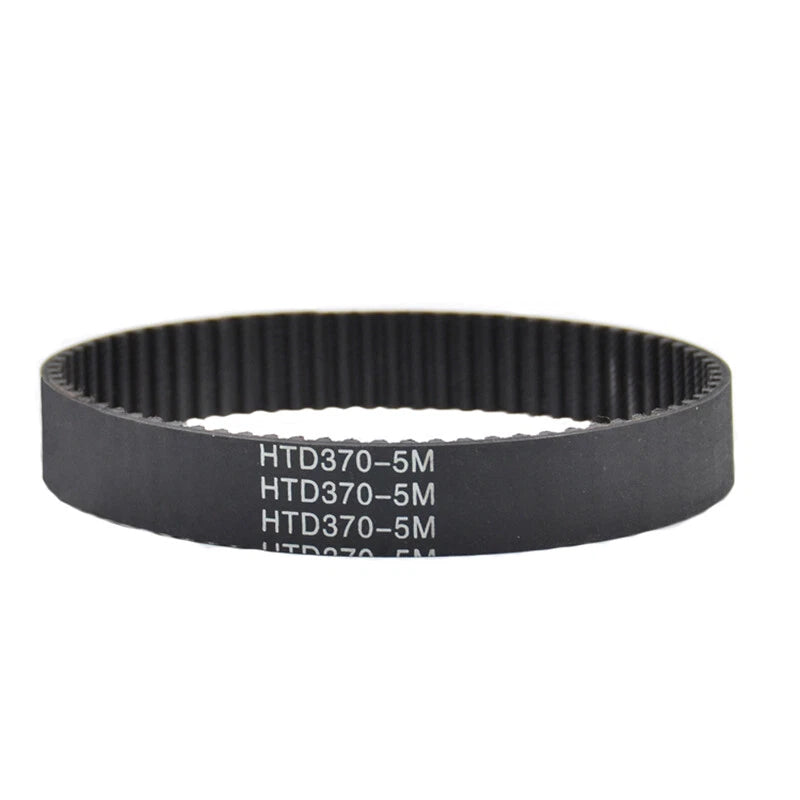

Each belt is a single closed-loop rubber synchronous belt with a 5mm HTD pitch (curvilinear tooth profile). Available in three widths — 20mm (≈0.79"), 25mm (≈0.98"), and 30mm (≈1.18") — and loop circumferences ranging from 175mm (≈6.9") to 810mm (≈31.9"). The rubber body is reinforced with tensile cords (typically fiberglass or steel) to resist stretch under load. Select your exact width and circumference from the variant options above.

Typical applications include CNC router axis drives and spindle synchronization, 3D printer Z-lead and auxiliary drives, conveyor belt motor coupling, laser cutter gantry systems, and general-purpose power transmission where a toothed synchronous belt replaces chain or V-belt drives.

🔗 Compatibility: Fits all standard HTD 5M pulleys (5mm pitch, curvilinear tooth). Select belt width equal to or narrower than your pulley's usable tooth width. Not compatible with T5, GT2, or HTD 3M/8M profiles.
⚠️ Size tip: The circumference listed (e.g., 250mm) is the total loop length, not the span between pulleys. Measure your drive geometry carefully before ordering. When unsure, size up — contact us to confirm.

✅ Key Features of These HTD 5M Rubber Timing Belts

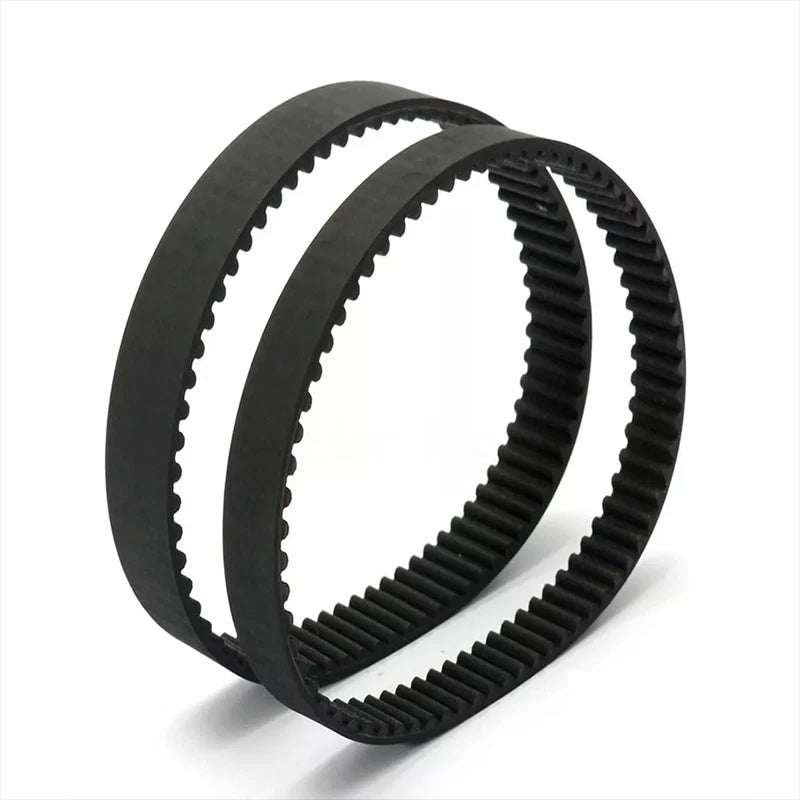

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across more tooth surface area than trapezoidal profiles, reducing tooth shear stress and making this rubber timing belt suitable for medium-to-high torque CNC and motor drive applications.
  • 📏Wide Size Range — Available in 20mm, 25mm, and 30mm widths with loop circumferences from 175mm to 810mm, covering the majority of CNC router, 3D printer, and conveyor drive configurations without custom cutting.
  • 🔩Reinforced Tensile Core — Internal tensile cords (typically fiberglass) resist elongation under cyclic load, maintaining consistent pitch spacing and reducing the re-tensioning intervals common with unreinforced rubber belts.
  • 🔄Closed-Loop Synchronous Design — As a closed-loop synchronous belt, there is no slip between belt and pulley teeth, ensuring the drive ratio stays constant — critical for stepper motor positioning in CNC and 3D printing applications.
  • 🛠️Drop-In Replacement Fit — Manufactured to HTD 5M dimensional standards, this belt installs directly onto any HTD 5M pulley system without modification, making it a straightforward replacement for worn or broken drive belts.
  • 🌡️Workshop-Ready Rubber Compound — The rubber formulation handles typical workshop temperature ranges and light moisture exposure, making it suitable for indoor CNC machines, laser cutters, and semi-protected automation equipment.

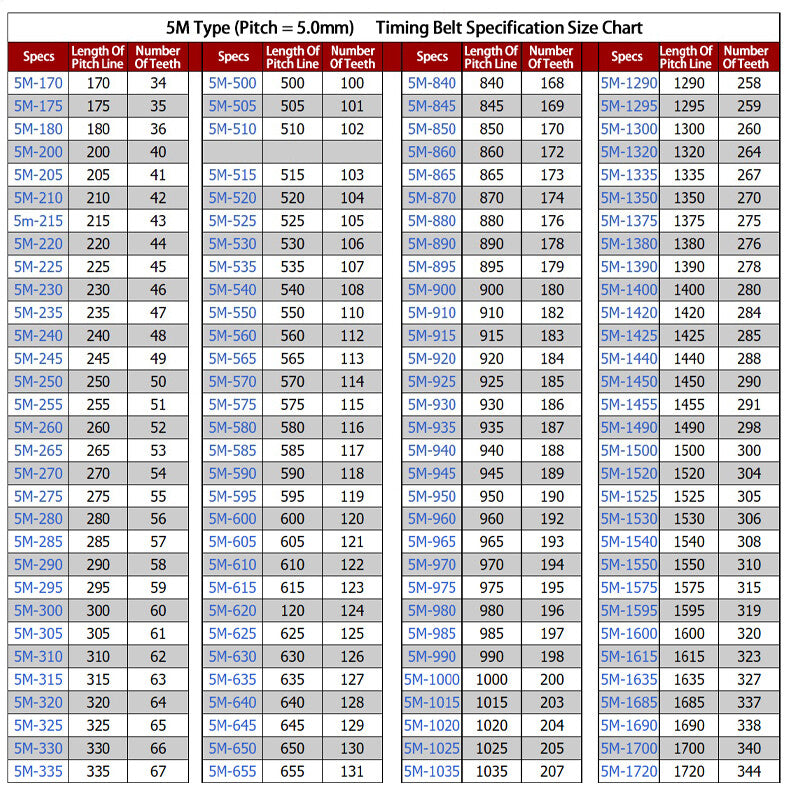

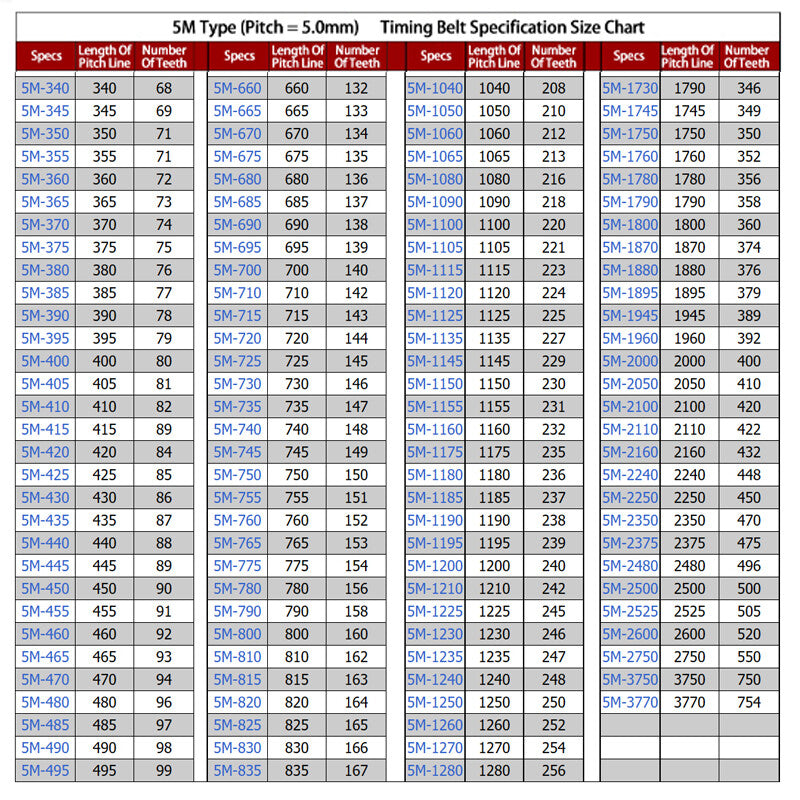

📐 Technical Specifications — HTD 5M Rubber Timing Belt

Belt Profile HTD 5M (High Torque Drive, curvilinear tooth)
Pitch 5mm (0.197")
Available Widths 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18")
Loop Circumference Range 175mm (≈6.9") – 810mm (≈31.9")
Tooth Height Typically 2.06mm (HTD 5M standard)
Belt Material Rubber with reinforced tensile cord (fiberglass or steel — see variant options)
Tooth Profile Curvilinear (rounded), HTD standard
Compatible Pulleys HTD 5M pulleys only (5mm pitch, curvilinear)
Quantity per Order 1 piece (1 Stk) — select quantity at checkout
Typical Applications CNC routers, 3D printers, conveyor drives, laser cutters, motor synchronization
Operating Temperature Contact us to confirm for your specific application

❓ Frequently Asked Questions

How do I measure the correct HTD 5M belt length for my machine?

The belt length listed (e.g., 250mm) refers to the total loop circumference, not the span between pulleys. To find the right size, measure the center-to-center distance between your two pulleys, add the pulley pitch diameters, and match to the nearest available circumference. For example, 250mm ≈ 9.8", 400mm ≈ 15.7", 600mm ≈ 23.6". When in doubt, size up — a slightly longer belt can typically be tensioned, while a short belt cannot be stretched.

What torque load can an HTD 5M timing belt handle?

HTD 5M belts are designed for medium-to-high torque drive applications. The actual load capacity depends on belt width, pulley tooth count, and operating speed. Generally, a 20mm-wide HTD 5M belt handles significantly more torque than a standard T5 or GT2 belt of the same width. For precise load ratings, consult your machine's engineering specs or contact us to confirm.

Can this timing belt be used outdoors or in wet environments?

The rubber compound used in HTD 5M belts is generally resistant to light moisture and humidity, making it suitable for semi-protected outdoor or workshop environments. However, prolonged exposure to standing water, UV radiation, or harsh chemicals can degrade the rubber over time. For fully outdoor or chemically aggressive environments, a polyurethane (PU) timing belt may be a better choice.

Is this belt compatible with standard HTD 5M pulleys?

Yes. This belt follows the HTD 5M standard: 5mm pitch, rounded curvilinear tooth profile. It is compatible with any HTD 5M pulley regardless of brand, as long as the pulley width matches or is narrower than the belt width you select. Do not use with T5, GT2, or other non-HTD profiles — the tooth geometry is not interchangeable.

What is the difference between HTD 5M and GT2 or T5 belts?

HTD (High Torque Drive) 5M belts have a rounded, curvilinear tooth profile optimized for high-torque, lower-backlash power transmission. GT2 belts use a modified curvilinear profile with even lower backlash, popular in 3D printers for precision positioning. T5 belts use a trapezoidal tooth profile suited for lighter loads. HTD 5M is typically chosen for CNC routers, conveyor drives, and motor-to-shaft power transfer where torque matters more than ultra-fine positioning.

Which width should I choose — 20mm, 25mm, or 30mm?

Wider belts carry more torque and are more resistant to lateral tracking issues. Choose 20mm for light-to-medium duty applications like small CNC axes or 3D printer auxiliary drives. Choose 25mm or 30mm for heavier loads, longer spans, or applications where belt slip or stretch is a concern. Always match the belt width to your pulley's usable tooth width.

Does the belt come with pulleys or tensioners?

This listing is for the timing belt only. Matching HTD 5M pulleys, idlers, and tensioners are sold separately. Please check our store for compatible HTD 5M pulley sets.

🛒 Select your width and circumference above, then add to cart — ships from our US warehouse.
