HTD 5M Closed Loop Synchronous Timing Belt — 10mm Wide, 175–695mm Perimeter

When a slipping or stretched drive belt causes your CNC router, 3D printer, or automated conveyor to lose position accuracy, the entire project suffers. Makers, engineers, and repair technicians who rely on precise motion control need a closed loop synchronous timing belt that stays in sync — lap after lap, shift after shift. This HTD 5M timing belt is built for exactly that kind of dependable, repeatable performance.

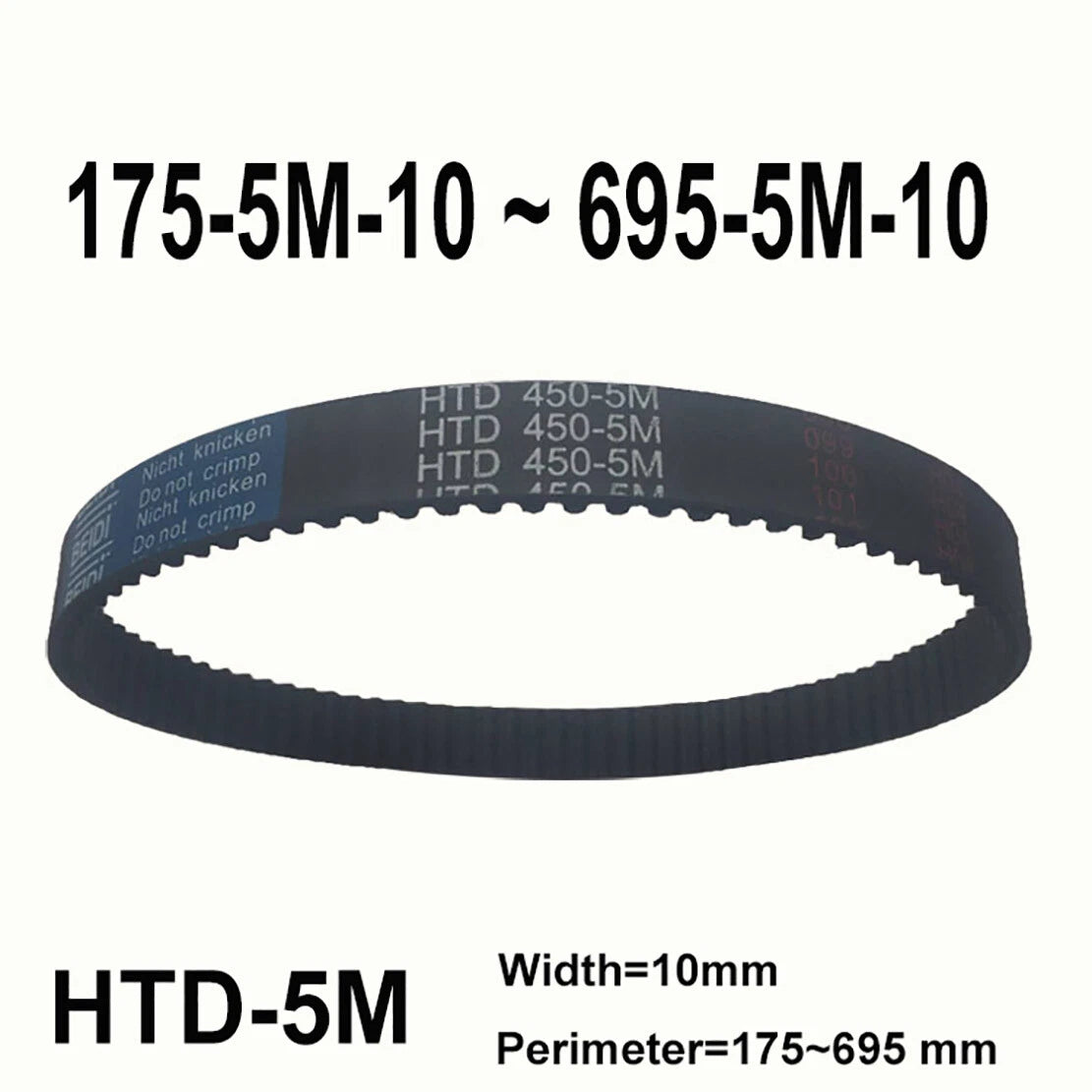

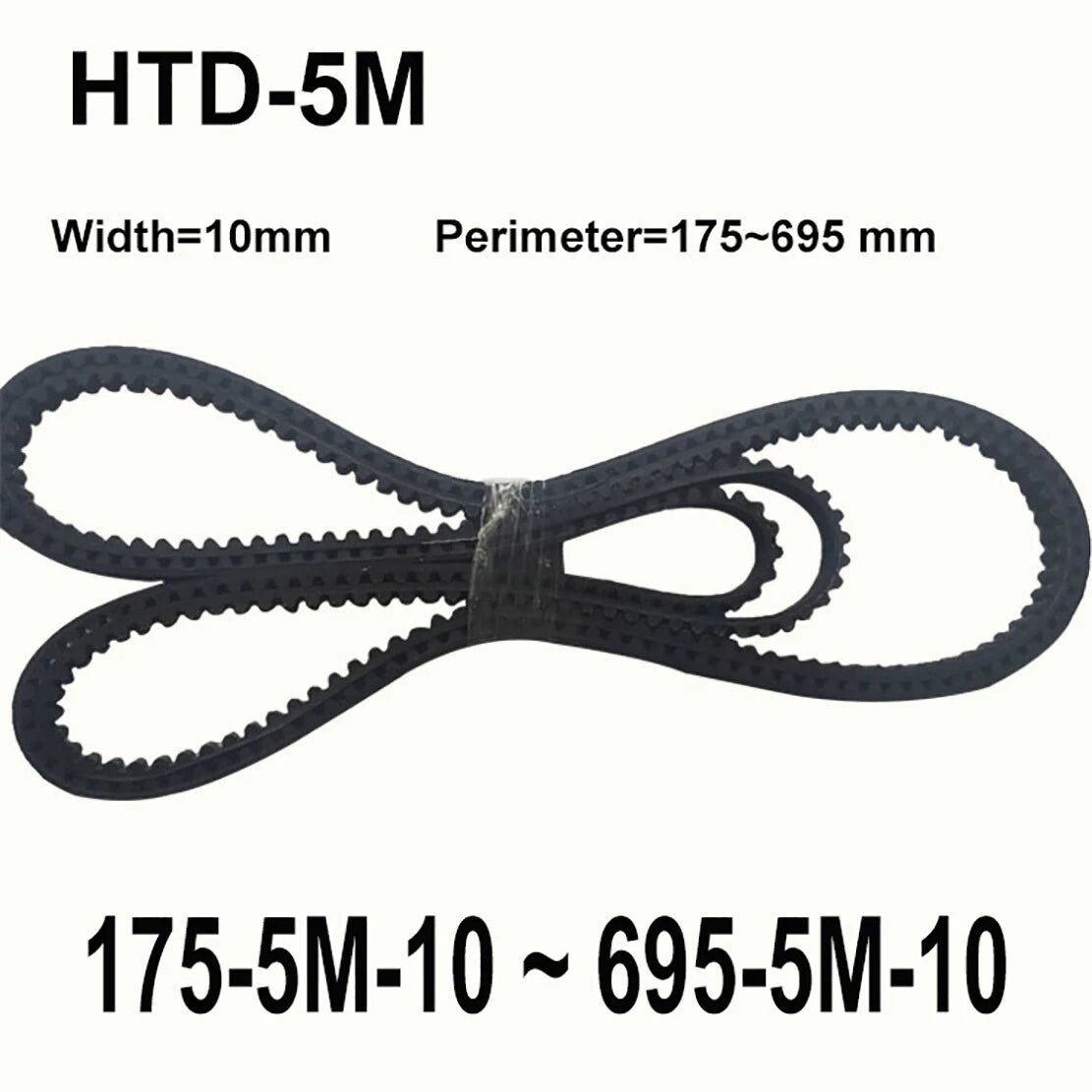

Each belt in this listing features the HTD 5M tooth profile — a 5mm pitch with a rounded curvilinear tooth form — and measures 10mm (≈3/8") in width. Perimeter options span from 175mm (≈6.9") to 695mm (≈27.4"), available in 5mm increments so you can match your exact drive geometry. The belt body is constructed from neoprene rubber reinforced with a fiberglass tension cord for dimensional stability under load. Quantity options of 1, 2, 3, or 4 pieces per order let you stock spares without overpaying.

Typical use cases include desktop CNC machines requiring accurate axis drive, FDM 3D printers using HTD 5M drive systems, small robotic arms and pick-and-place mechanisms, and light-duty conveyor or indexing table drives. The closed loop synchronous belt design eliminates the slip and stretch associated with V-belts, making it a reliable choice for any application where positional accuracy matters.

🔗 Compatibility: Designed for standard HTD 5M pulleys (5mm pitch, rounded tooth profile). Not interchangeable with GT2, T5, or MXL profiles. Confirm your pulley tooth profile before ordering.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

  • ⚙️HTD 5M Tooth Profile — The 5mm pitch rounded curvilinear tooth form provides smooth engagement with HTD 5M pulleys, reducing noise and vibration compared to trapezoidal profiles in light-to-medium duty synchronous drive applications.

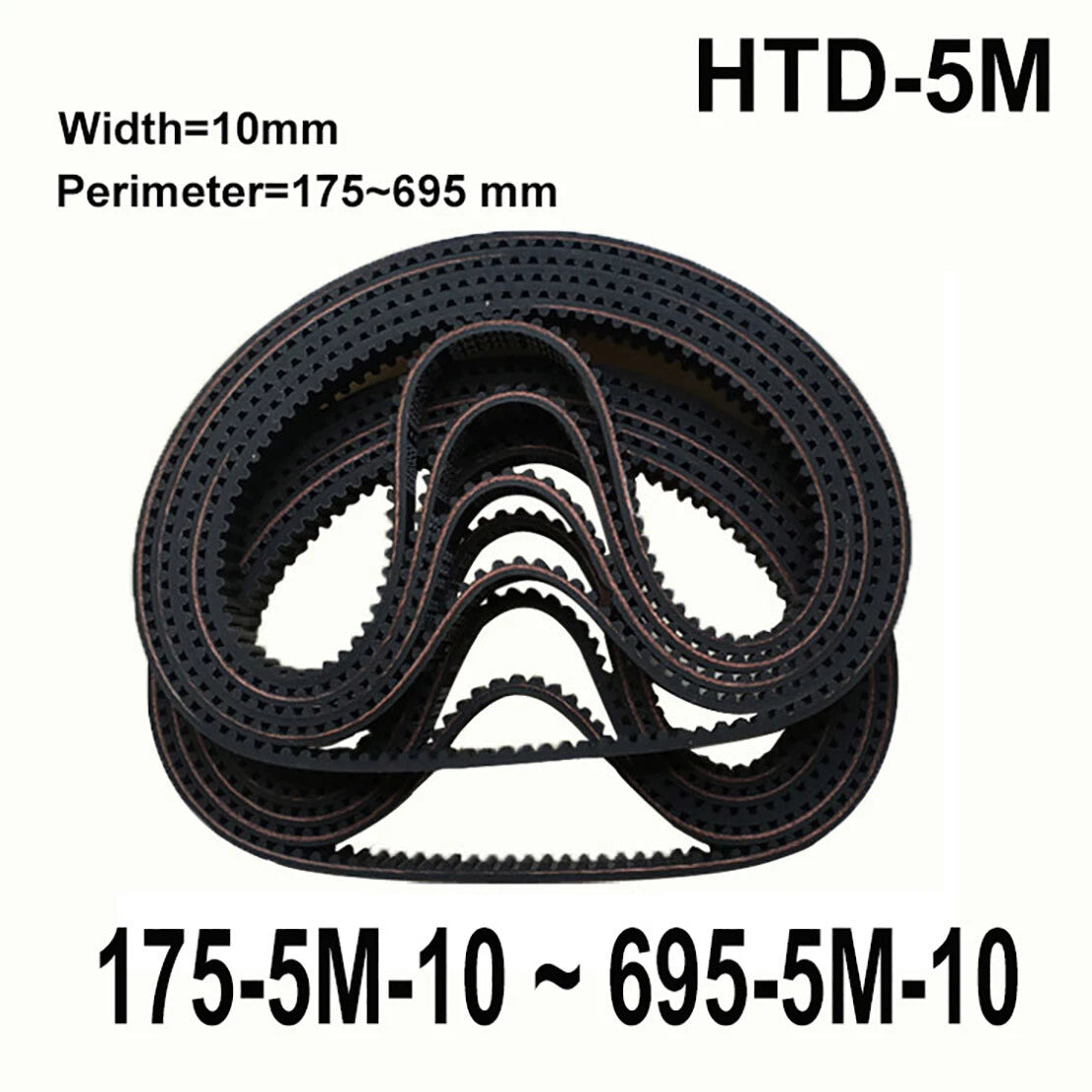

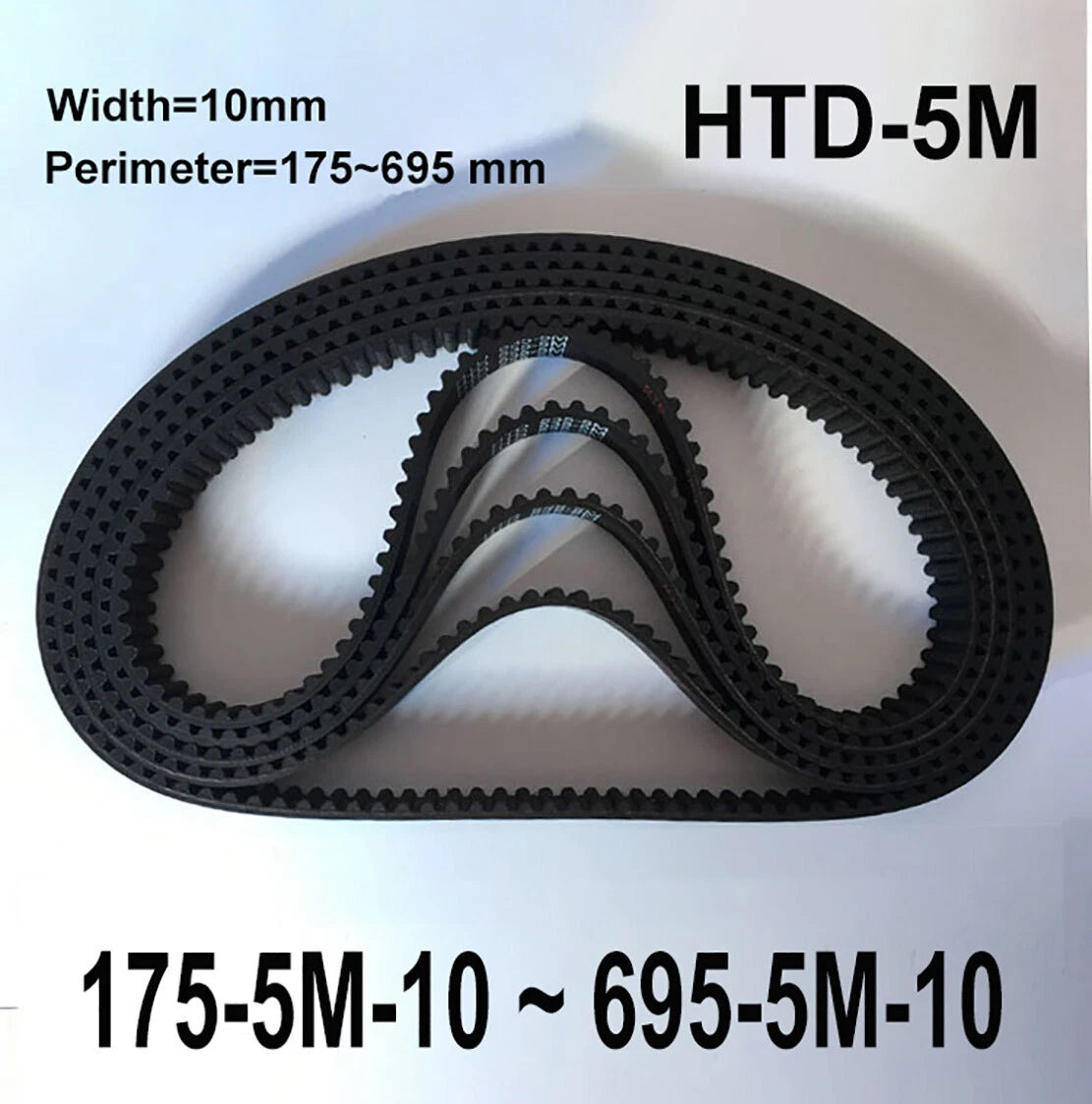

  • 📏Wide Size Selection — Available in perimeters from 175mm (≈6.9") to 695mm (≈27.4") in 5mm steps, covering the most common closed loop synchronous belt sizes used in desktop CNC, 3D printing, and automation builds.

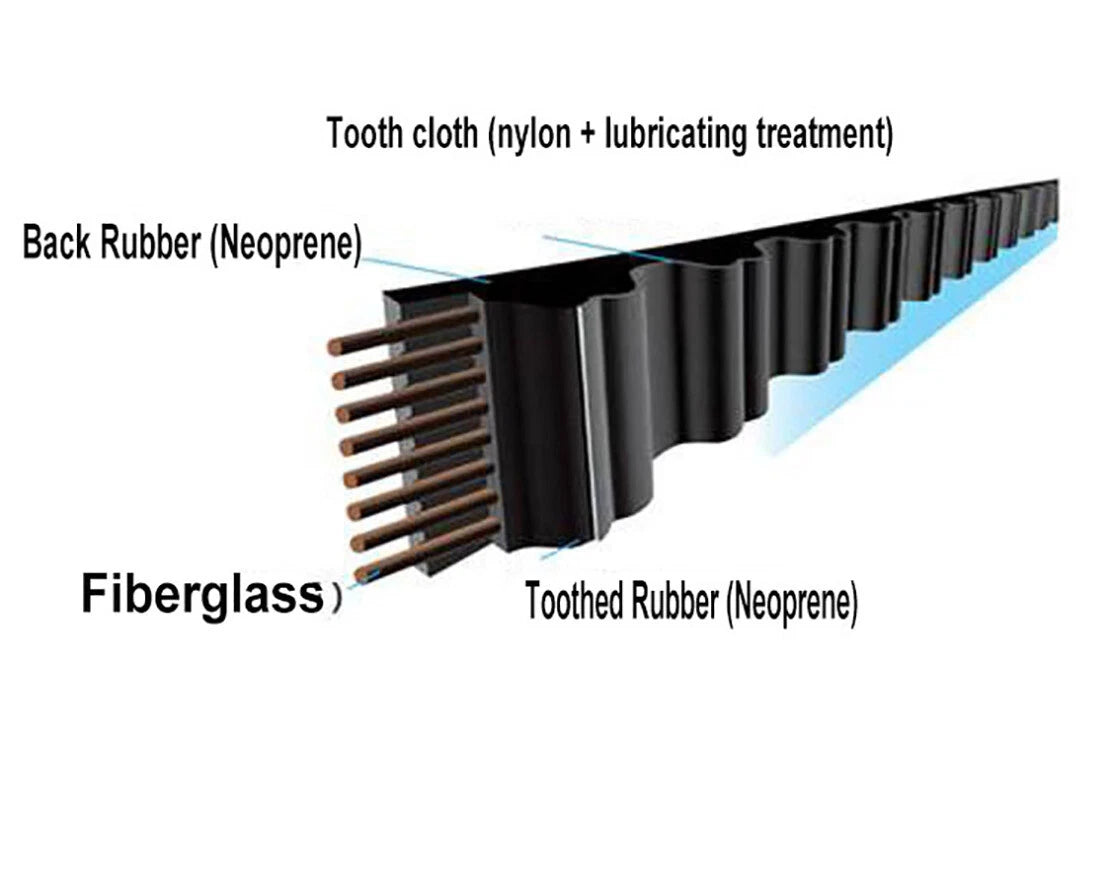

  • 🧵Fiberglass Tension Cord — The embedded fiberglass cord resists elongation under cyclic loading, helping the belt maintain consistent pitch length over time — a key factor in positional repeatability for CNC axis drives.
  • 🔄Closed Loop Construction — Fully joined loop with no seam gap means consistent tooth engagement around the full perimeter, eliminating the vibration and position error that open-ended belts can introduce when spliced.
  • 🛠️10mm Belt Width — The 10mm (≈3/8") width is a widely used standard for HTD 5M drive systems in desktop machines and small automation equipment, balancing load capacity with compact pulley width requirements.
  • 📦Flexible Quantity Options — Order 1, 2, 3, or 4 belts per transaction to stock spares for ongoing projects or production maintenance without committing to large minimum quantities.

📐 Technical Specifications — HTD 5M Synchronous Timing Belt

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)

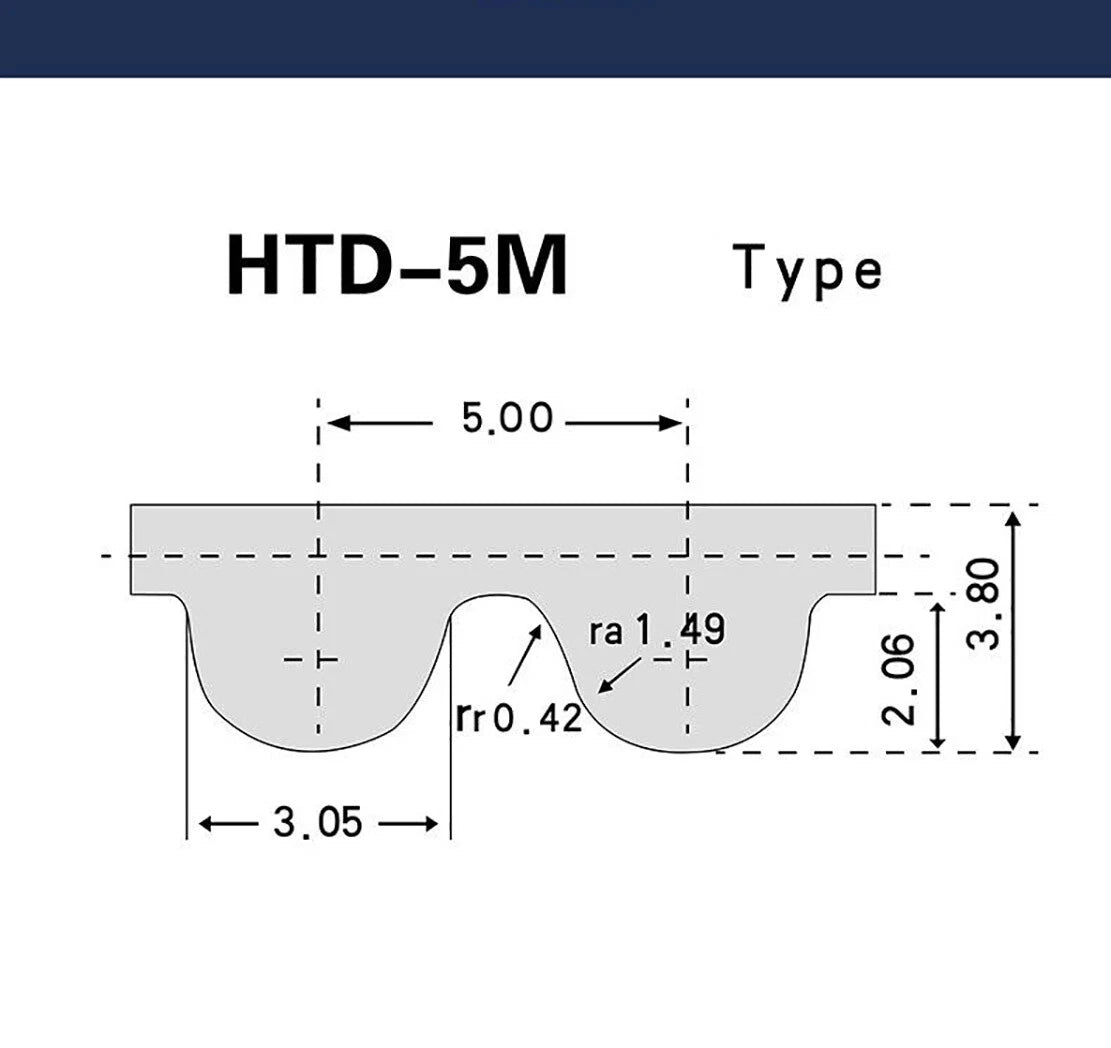

Tooth Pitch 5mm (0.197")
Tooth Form Rounded curvilinear (HTD standard)
Belt Width 10mm (≈3/8")
Perimeter Range 175mm (≈6.9") – 695mm (≈27.4"), in 5mm increments
Belt Body Material Neoprene rubber
Tension Member Fiberglass cord
Loop Type Closed loop (endless)
Compatible Pulley Profile HTD 5M only (not GT2, T5, or MXL)
Quantity per Order Select variant options (1, 2, 3, or 4 pcs)
Typical Applications CNC routers, 3D printers, robotics, light conveyor drives
Color See variant options
⚠️ Size Tip: The size option format is Perimeter-Profile (e.g., "300-5M" = 300mm perimeter, HTD 5M profile). Measure your existing belt's outer circumference or calculate from your pulley center distance before selecting.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt path length. A general formula: Belt Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 300mm perimeter belt is approximately 11.8" around. Always verify against your pulley specs before ordering. If replacing an existing belt, measure the old belt's outer circumference directly.

What load can an HTD 5M timing belt with 10mm width typically handle?

HTD 5M belts at 10mm width generally handle light-to-medium power transmission loads. The fiberglass tension cord provides good tensile strength for applications such as 3D printers, desktop CNC machines, and small robotic arms. For heavy industrial loads or high-speed continuous duty, contact us to confirm suitability for your specific application.

Can this timing belt be used outdoors or in wet environments?

HTD 5M neoprene rubber timing belts are generally resistant to light moisture and dust. However, they are not typically rated for continuous submersion or prolonged exposure to harsh chemicals or direct UV radiation. For outdoor or high-humidity applications, shielding the belt from standing water and direct sunlight will help maximize service life.

Is this belt compatible with standard HTD 5M pulleys from any brand?

Yes. This belt follows the HTD 5M profile standard — 5mm pitch with a rounded curvilinear tooth form. It is compatible with any standard HTD 5M pulley regardless of brand. Always confirm your pulley's tooth profile is HTD 5M (not GT2, GT3, T5, or MXL) before purchasing, as these profiles are not interchangeable.

How do I convert the belt perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

  • 175mm ÷ 25.4 ≈ 6.9"
  • 300mm ÷ 25.4 ≈ 11.8"
  • 500mm ÷ 25.4 ≈ 19.7"
  • 695mm ÷ 25.4 ≈ 27.4"

The full range of this product spans approximately 6.9" to 27.4".

What is the difference between HTD 5M, GT2, and T5 belt profiles?

These are three distinct, non-interchangeable tooth profiles:

  • HTD 5M — Rounded curvilinear tooth, 5mm pitch. Designed for higher torque with reduced backlash vs. trapezoidal profiles.
  • GT2 — Modified curvilinear profile, typically 2mm pitch. Common in precision 3D printers. Different tooth geometry from HTD.
  • T5 — Trapezoidal tooth, 5mm pitch. Older standard, higher backlash than HTD at the same pitch.

Always match belt and pulley profiles exactly. Mixing profiles will cause poor engagement and accelerated wear.

How many belts should I order to have spares on hand?

For most DIY and light-duty applications, keeping 1–2 spare belts is generally sufficient. For production environments or machines running continuously, ordering a pack of 3–4 is recommended to minimize downtime. This listing offers quantity options of 1, 2, 3, or 4 pieces per order so you can choose what makes sense for your situation.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
