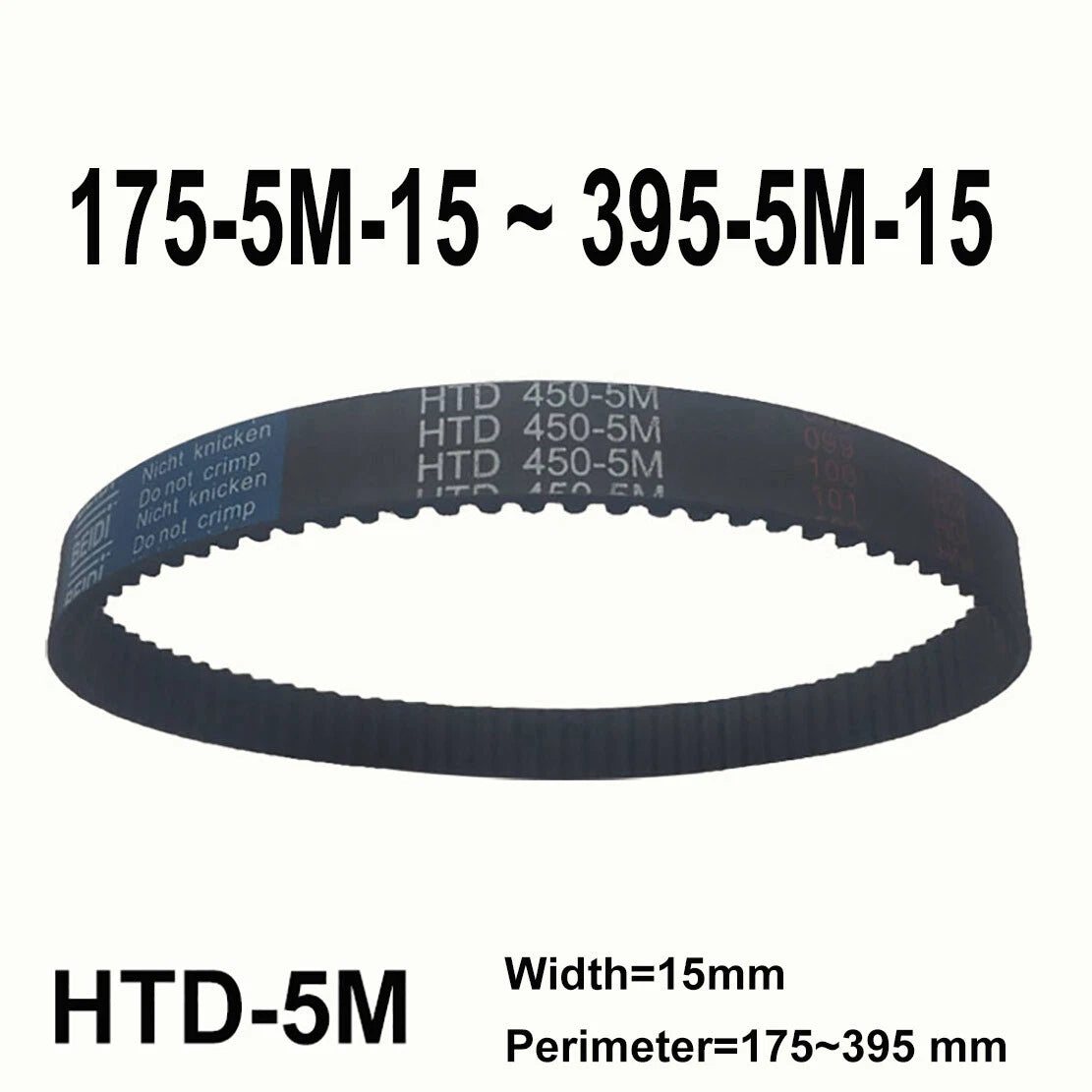

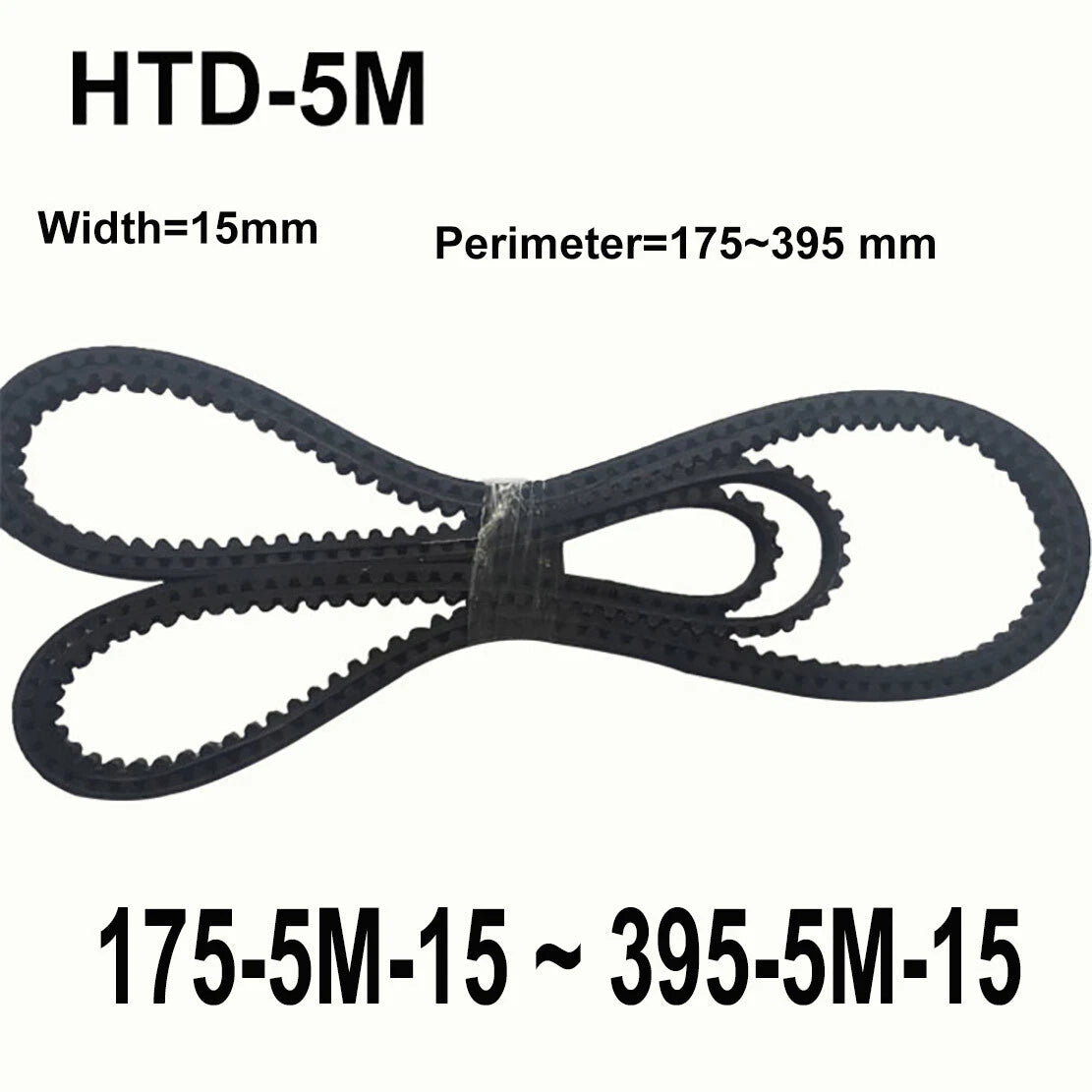

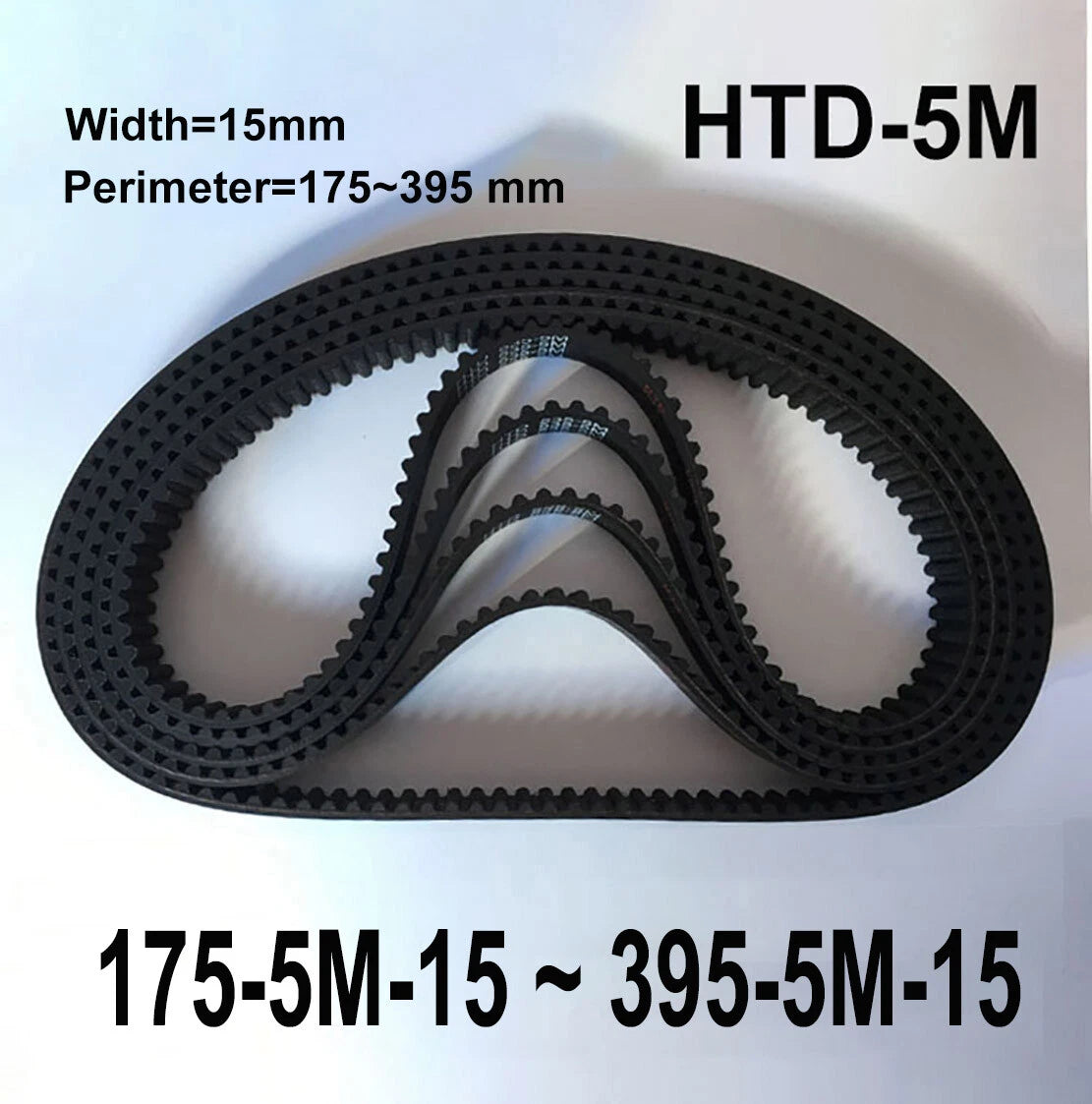

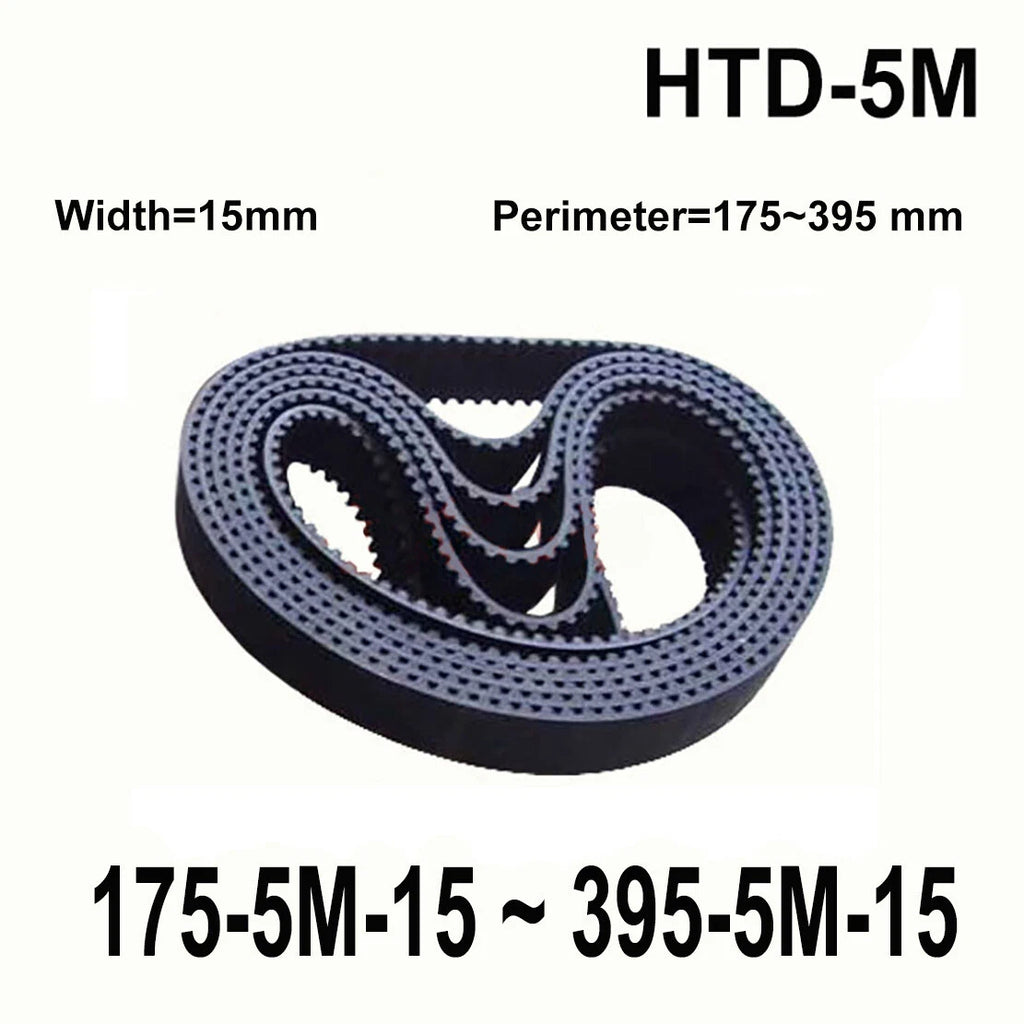

HTD 5M Closed Loop Timing Belt — Precise Drive for 15mm-Wide Power Transmission Systems

When a slipping or stretched belt throws off your CNC axis, stalls your 3D printer mid-print, or causes positioning errors in your automation rig, the fix starts with the right replacement. This HTD 5M closed loop timing belt is built for makers, engineers, and machine builders who need reliable, slip-free synchronous drive in compact mechanical systems.

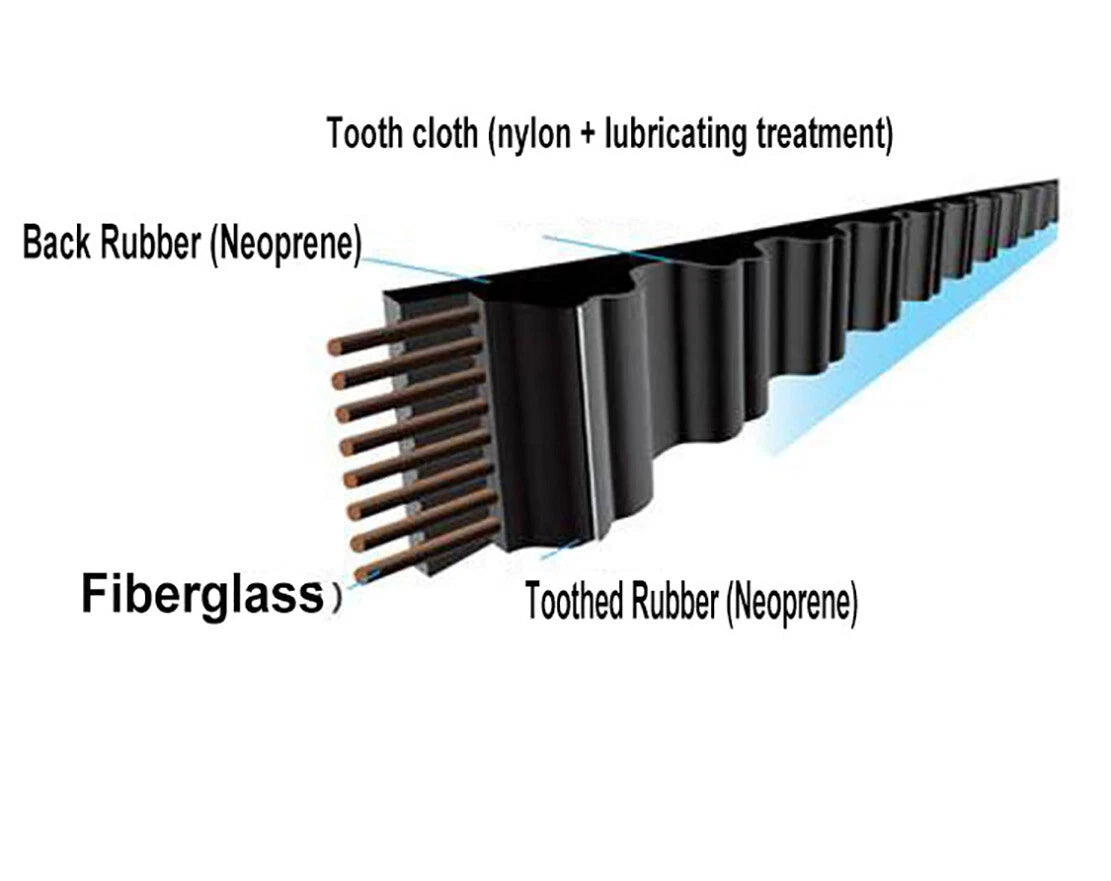

Each belt features the HTD (High Torque Drive) curvilinear tooth profile with a 5mm pitch and a 15mm (≈0.59") width. Available in perimeter sizes from 175mm (≈6.9") to 395mm (≈15.6") in 5mm increments — sold individually or in sets of 2 or 3. The belt body is typically constructed from neoprene rubber with a fiberglass or steel tension cord core for dimensional stability under load.

Typical use cases include CNC router X/Y axes, laser cutter gantry drives, high-torque 3D printer motion systems, robotic arm joints, and DIY conveyor or indexing mechanisms — anywhere you need a closed loop synchronous belt for precise linear or rotary positioning.

🔗 Compatibility: Designed for HTD 5M pulleys only. This belt uses a curvilinear tooth profile and is not compatible with GT2, GT3, MXL, XL, or L trapezoidal pulleys — even at the same pitch. Confirm your pulley tooth profile before ordering.
⚠️ Size tip: The perimeter listed (e.g., 200mm) is the total outer circumference of the closed loop, not the span between pulleys. Measure your drive system carefully or refer to your machine's BOM before selecting a size.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

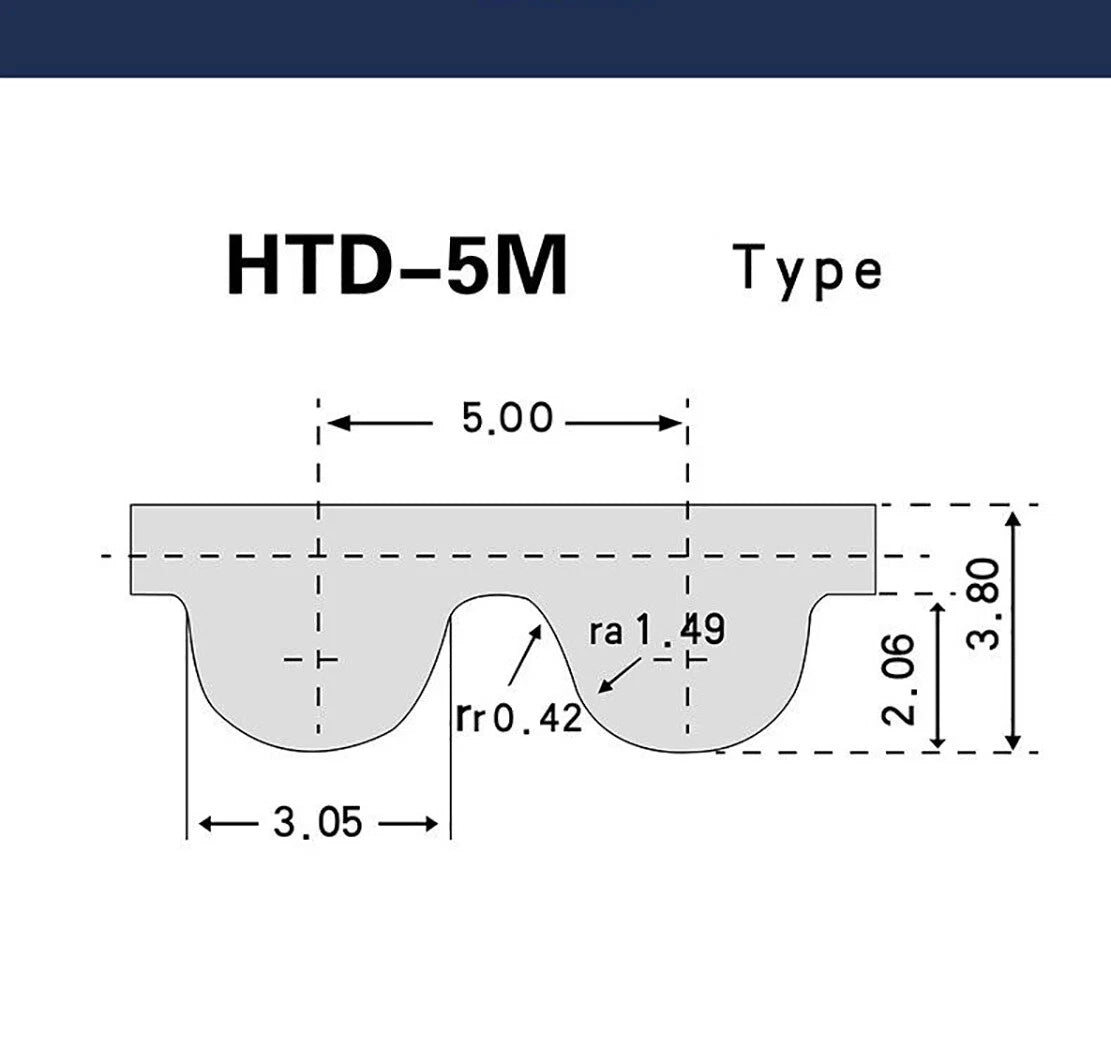

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque synchronous drive applications.
  • 📏Wide Size Selection (175–395mm) — Available in 43 perimeter sizes in 5mm steps, making it straightforward to find an exact fit for CNC machines, 3D printers, and custom automation builds without resorting to custom fabrication.
  • ↔️15mm Belt Width for Higher Load Capacity — Wider than standard 6mm or 9mm HTD 5M belts, the 15mm width increases the tooth engagement area, supporting greater torque transfer in demanding closed loop drive systems.
  • 🔄Closed Loop Construction — Seamless endless loop design eliminates the splice point weakness found in open-ended belts, maintaining consistent tension and tooth pitch around the full perimeter.
  • 🧵Reinforced Tension Cord Core — Fiberglass or steel cord reinforcement (typical for this belt class) resists elongation under cyclic loading, helping maintain positional accuracy in repetitive motion systems like laser cutters and pick-and-place machines.
  • 📦Multi-Pack Options (1, 2, or 3 pcs) — Order the exact quantity you need — a single replacement, a matched pair for dual-axis drives, or a set of three for multi-belt systems or to keep a spare on the shelf.

📐 Technical Specifications — HTD 5M Synchronous Timing Belt

Belt Profile HTD (High Torque Drive) — Curvilinear tooth
Pitch 5mm (tooth-to-tooth center distance)
Belt Width 15mm (≈0.59")

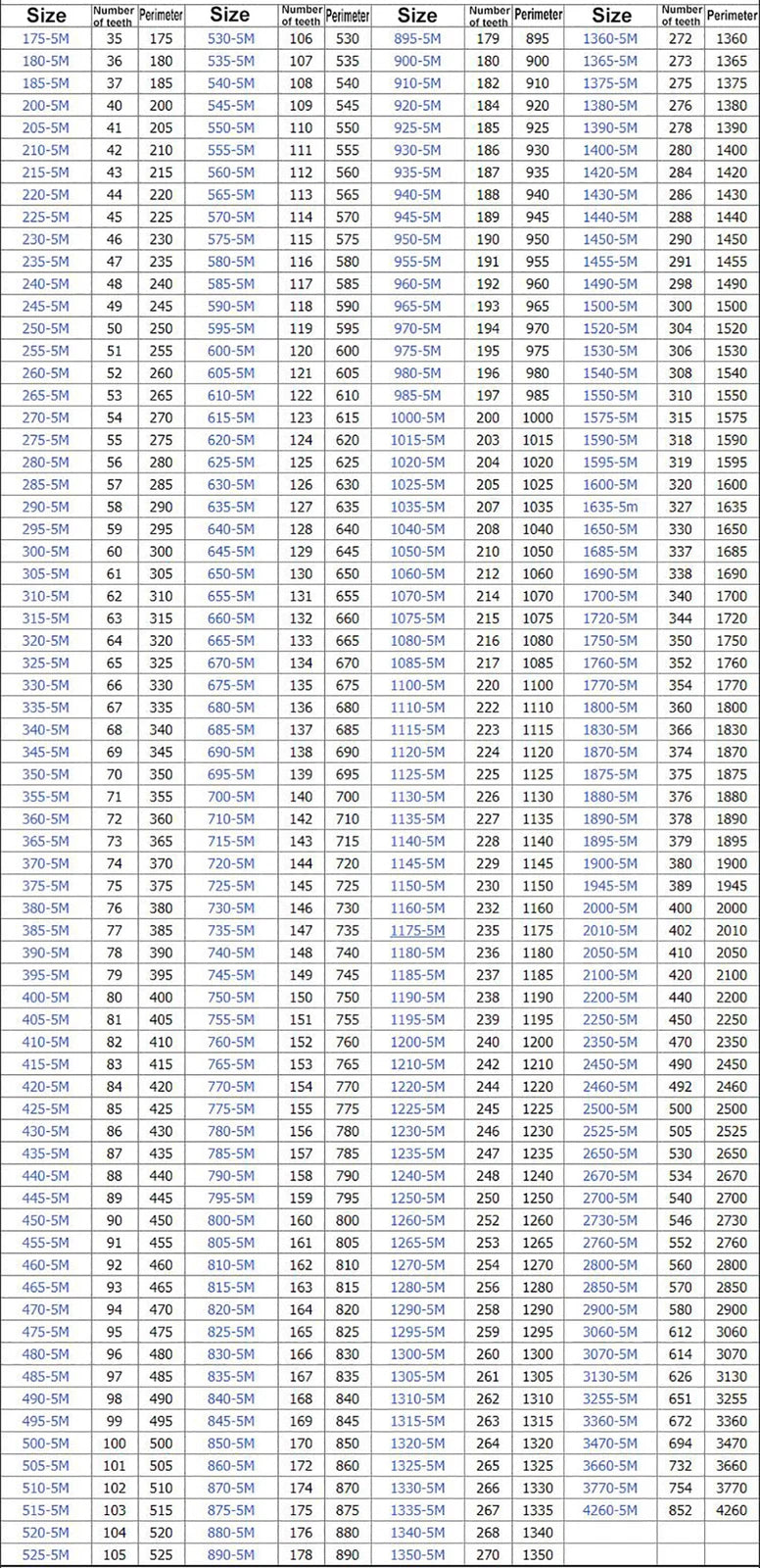

Perimeter Range 175mm (≈6.9") – 395mm (≈15.6"), in 5mm steps
Loop Type Closed loop (endless / seamless)
Belt Body Material Neoprene rubber (typical for HTD 5M class)
Tension Member Fiberglass or steel cord (typical for HTD 5M class)
Tooth Facing Nylon fabric (typical for HTD 5M class)
Compatible Pulley Profile HTD 5M only — not compatible with GT2/GT3 or trapezoidal profiles
Quantity Options 1 pc / 2 pcs / 3 pcs (select above)
Operating Temperature See variant options / Contact us to confirm
Max Recommended Speed See variant options / Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For quick reference: 175mm ≈ 6.9", 250mm ≈ 9.8", 300mm ≈ 11.8", 395mm ≈ 15.6". When in doubt, size up — a slightly longer belt is easier to tension than one that's too short.

What torque and load can an HTD 5M belt handle at 15mm width?

HTD 5M belts are generally rated for moderate-to-high torque applications. At 15mm width, they typically handle greater loads than narrower 6mm or 9mm versions of the same pitch, because more teeth are engaged across the wider contact surface. Exact power ratings depend on pulley tooth count, operating speed, and tension — consult your drive system's engineering specs or the belt manufacturer's load tables to confirm suitability for your application.

Can I use this timing belt outdoors or in humid environments?

HTD 5M belts are typically constructed from neoprene rubber, which offers reasonable resistance to moisture, mild oils, and moderate temperature variation. They are generally suitable for indoor and semi-protected environments. For prolonged outdoor exposure, direct UV, or chemically aggressive conditions, verify the specific belt compound and consider a protective enclosure for the drive system.

What pulley tooth profile is compatible with HTD 5M belts?

These belts require HTD 5M pulleys — the curvilinear (rounded) tooth profile with a 5mm pitch. They are not interchangeable with GT2 or GT3 pulleys (different tooth geometry), nor with trapezoidal profiles like MXL, XL, or L, even if the pitch appears similar. Always confirm your pulley is labeled HTD 5M before ordering.

How do I decide between ordering 1, 2, or 3 belts?

Order 1 belt for a single-axis replacement. Order 2 belts if your machine uses dual-belt drives (e.g., CoreXY 3D printers, dual-gantry CNC setups) or if you want a spare on hand. Order 3 belts for multi-axis systems or to stock extras for a production environment where downtime is costly. Buying in a multi-pack here is more economical per belt than ordering separately.

What machines commonly use HTD 5M 15mm timing belts?

Common applications include: CNC routers and plasma cutters (X/Y axis drives), laser engravers and cutters (gantry motion), high-torque 3D printer motion systems, robotic arm joints and actuators, conveyor indexing systems, and custom DIY automation projects. The 15mm width is particularly popular in builds that need more torque capacity than a standard 6mm or 9mm belt can provide.

Is the "5M" in HTD 5M the same as a 5mm pitch?

Yes. The "5M" designation means the belt has a 5mm tooth pitch — the center-to-center distance between adjacent teeth. "HTD" refers to the curvilinear (rounded arc) tooth shape, which is the defining characteristic that separates it from older trapezoidal-tooth belts. Always specify both the pitch (5M) and the profile (HTD) when sourcing replacement pulleys or belts.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
