Description

HTD-5M Closed Loop Timing Belt — Precise 5mm Pitch Drive for 3D Printers, CNC & Robotics

When a slipping or mismatched drive belt causes positioning errors in your 3D printer, CNC router, or automation rig, the entire project suffers. Engineers, makers, and machine builders who need reliable, repeatable motion transmission rely on a correctly sized closed loop synchronous belt — one that meshes cleanly with the pulley and holds tension without stretching under load.

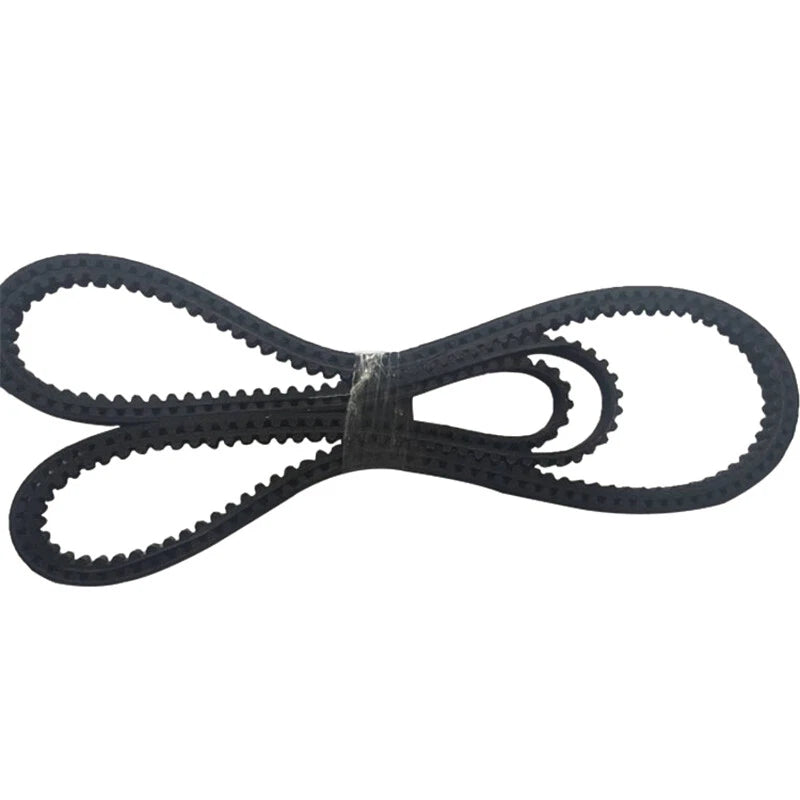

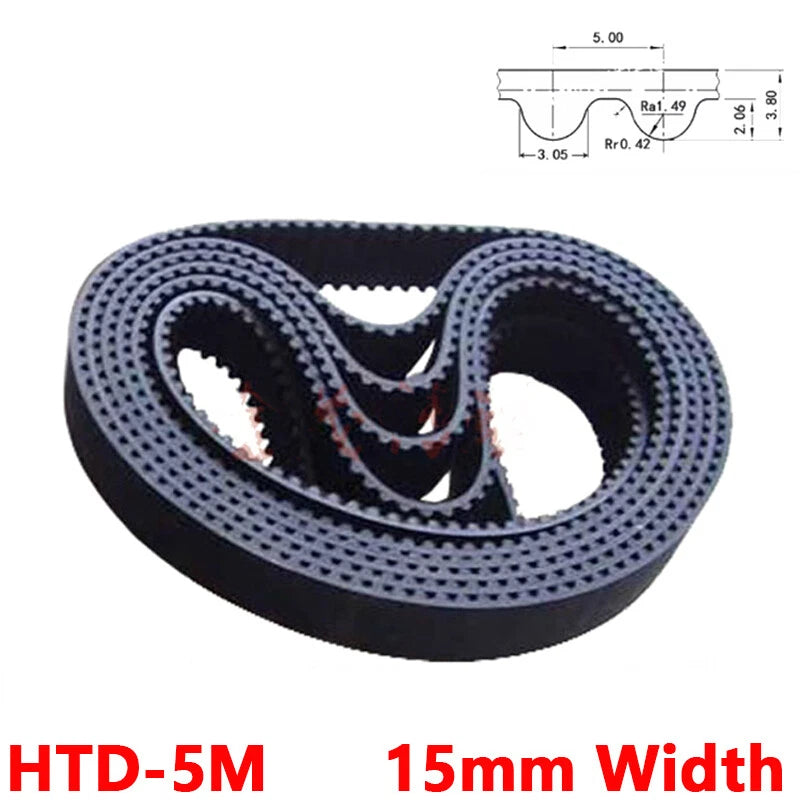

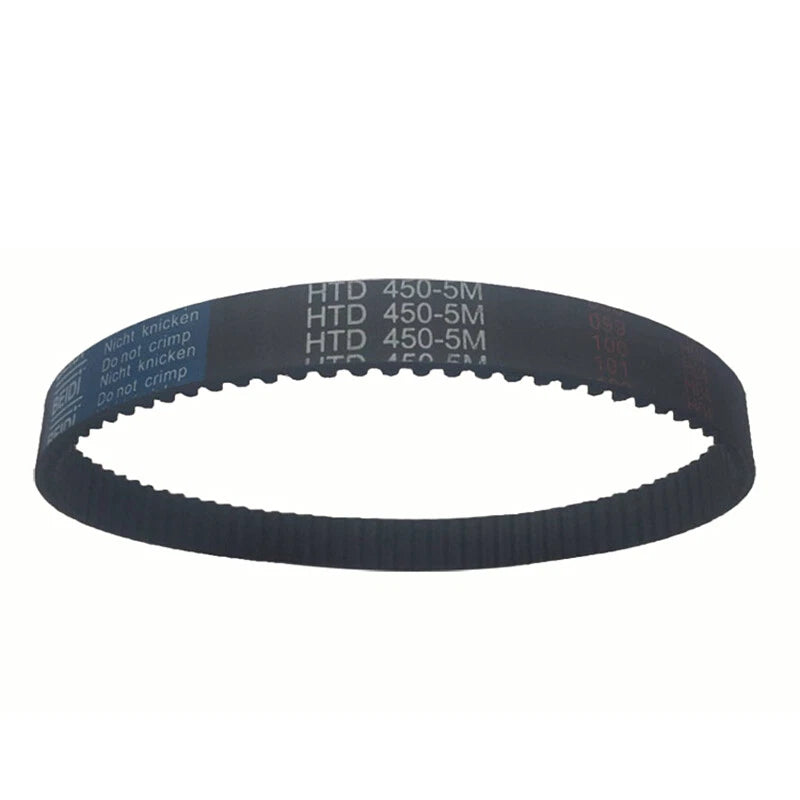

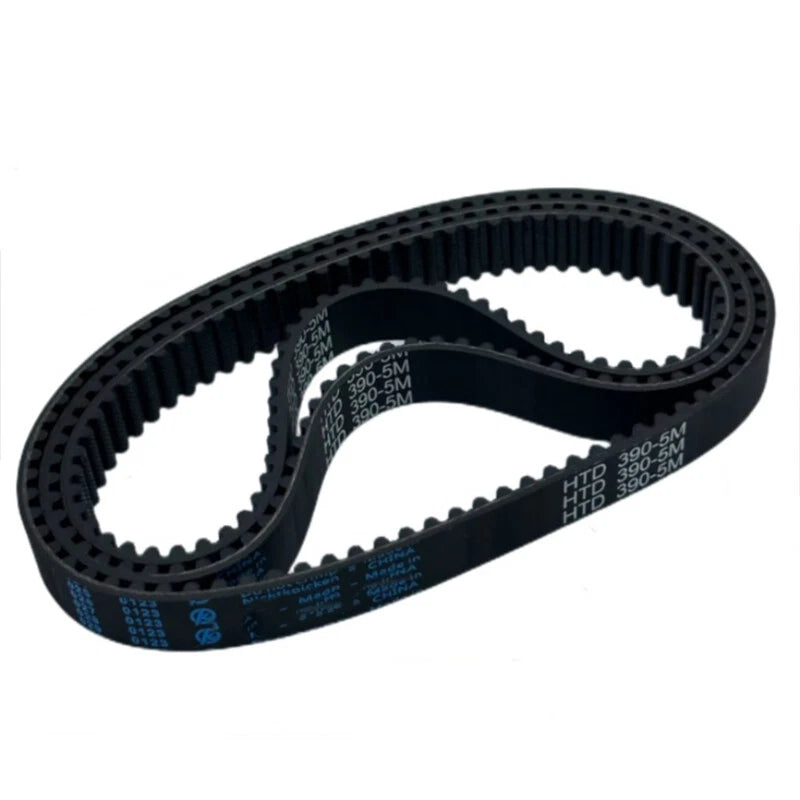

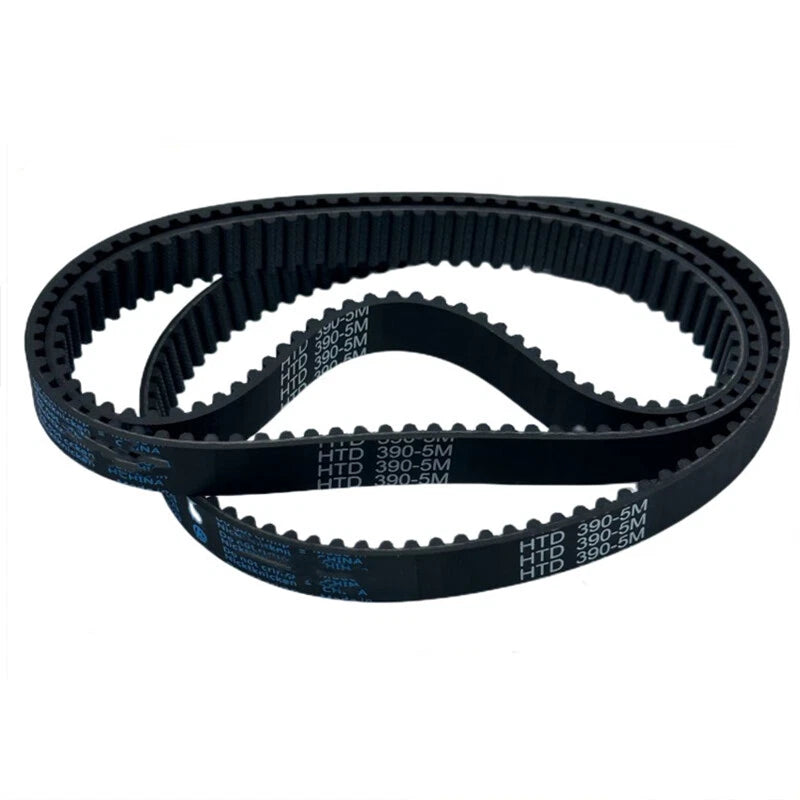

Each listing covers one HTD-5M closed loop timing belt with a 5mm pitch and 15mm (≈0.59") width. The belt body is constructed from neoprene rubber reinforced with fiberglass or steel tension cord, giving it dimensional stability across a wide temperature range. Available in 35 to 197 teeth, corresponding to pitch lengths from 175mm (≈6.9") to 985mm (≈38.8") — select your exact tooth count and circumference from the variant dropdown above.

Typical applications include closed loop belt drives for 3D printers (CoreXY, Cartesian, delta), CNC router axis drives, laser cutter gantry systems, robotic arm joints, and pick-and-place machine linear stages where synchronous, slip-free motion is essential.

🔗 Compatibility: Requires HTD-5M pulleys (5mm pitch, curvilinear tooth profile). Not compatible with GT2, MXL, XL, or T5 pulleys. Verify pulley width ≥ 15mm and bore size before ordering.
⚠️ Size Tip: Belt length = number of teeth × 5mm. Example: 60 Teeth = 300mm (≈11.8"). Count your pulley teeth and measure center-to-center distance to confirm the correct variant before purchasing.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque synchronous belt drive applications.
  • 📏5mm Pitch Precision — Each tooth is spaced exactly 5mm apart, enabling accurate step-to-distance calibration on 3D printer axes and CNC linear drives without backlash compensation.
  • 🔄Closed Loop Construction — Seamless endless loop design eliminates the weak joint found in cut-and-clip belts, providing uniform tension and consistent performance throughout the belt's circumference.
  • 🧱Reinforced Tension Cord — Internal fiberglass or steel cord resists elongation under dynamic loads, maintaining belt pitch accuracy over extended duty cycles in CNC router and automation equipment.
  • 📐Wide Size Selection — 35 to 197 teeth (175mm–985mm pitch length) covers the majority of desktop and benchtop machine drive configurations without custom fabrication.
  • 🔧Tool-Free Belt Installation — Slip the closed loop over matching HTD-5M pulleys, adjust motor position or tensioner, and lock in place — no belt lacing, rivets, or adhesive required.

📐 Technical Specifications — HTD-5M Timing Belt

Belt Type HTD-5M Closed Loop Synchronous Timing Belt
Pitch 5mm (HTD profile)
Width 15mm (≈0.59")
Tooth Count Range 35 – 197 teeth (see variant options)
Pitch Length Range 175mm (≈6.9") – 985mm (≈38.8")
Belt Material Neoprene rubber with reinforced tension cord
Tooth Profile HTD (High Torque Drive) curvilinear
Compatible Pulley HTD-5M pulleys, 15mm+ face width
Operating Temperature Contact us to confirm
Quantity per Order 1 belt

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. Each variant lists the pitch length in mm — for example, 300mm (≈11.8"). Divide the belt length by 5mm to get the tooth count. When in doubt, size up slightly and use a tensioner to take up slack.

What load can an HTD-5M belt handle?

HTD-5M belts are generally rated for moderate power transmission. At 15mm width, they typically handle up to 200–400W depending on operating speed and pulley diameter. For heavier industrial loads, consider a wider belt or a higher-pitch HTD series (e.g., HTD-8M).

Can this belt be used outdoors or in wet environments?

Neoprene rubber timing belts generally offer moderate resistance to oil, water, and mild chemicals. For prolonged outdoor or high-humidity use, a polyurethane (PU) belt with steel cord is typically more durable. Check your specific application requirements before installing in harsh environments.

What pulleys are compatible with HTD-5M belts?

HTD-5M belts require HTD-5M pulleys — the curvilinear tooth profile is not interchangeable with GT2, MXL, XL, or T5 profiles. Ensure your pulley face width is at least 15mm and that the tooth count matches your selected belt variant.

Is this belt suitable for 3D printers and CNC machines?

Yes. HTD-5M closed loop timing belts are widely used in 3D printers (CoreXY, Cartesian, delta), CNC routers, laser cutters, and pick-and-place machines where precise, repeatable motion is required. The 5mm pitch provides a good balance of torque capacity and positioning accuracy for desktop and benchtop builds.

How do I install a closed loop timing belt?

Closed loop belts slip directly onto matching pulleys — no joining or cutting needed. Loosen the motor mount or tensioner, slide the belt over both pulleys, then re-tension until the belt deflects approximately 1–2mm under light finger pressure at the midspan. Over-tensioning can accelerate bearing wear; under-tensioning causes tooth skipping.

What is the difference between HTD-5M and GT2 belts?

HTD-5M uses a rounded curvilinear tooth profile designed for higher torque transmission with reduced backlash compared to trapezoidal profiles. GT2 (Gates Tooth 2mm pitch) is a different pitch entirely and is not interchangeable with HTD-5M. Always match belt and pulley profiles — mixing profiles causes premature wear and tooth skipping.

🛒 Select your size (tooth count / belt length) above, then add to cart — ships from our US warehouse.
