HTD 5M Timing Belt — Reliable Closed-Loop Drive for CNC, 3D Printing & Robotics

When a slipping or incorrectly sized drive belt causes missed steps, positioning errors, or unexpected downtime, the entire project stalls. Whether you are building a CNC router, tuning a 3D printer motion system, or designing a custom robotics drive train, having the right HTD 5M timing belt on hand — in the exact length and width you need — makes the difference between a machine that runs true and one that constantly needs recalibration.

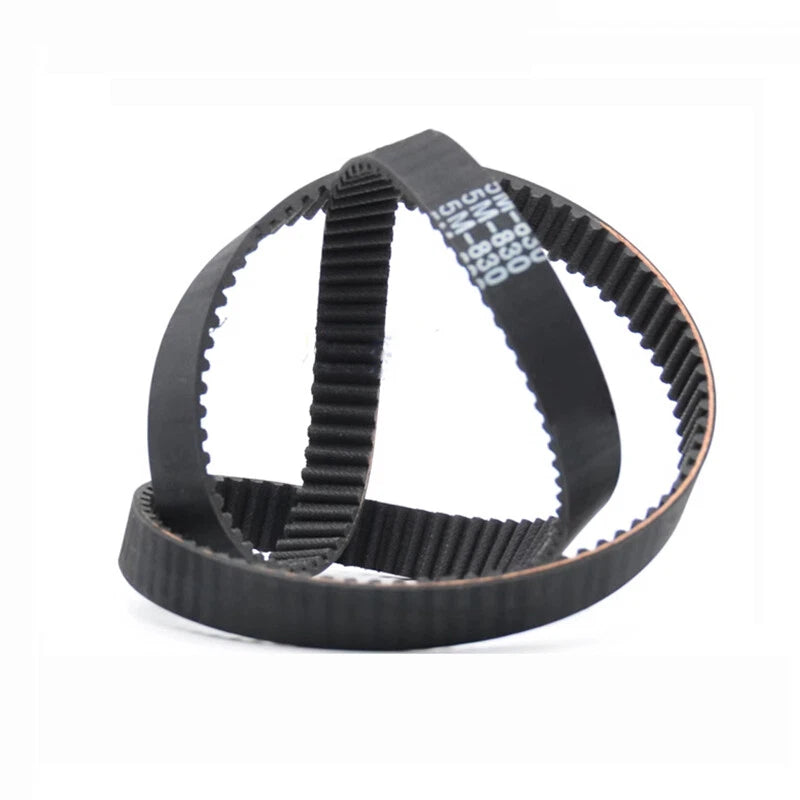

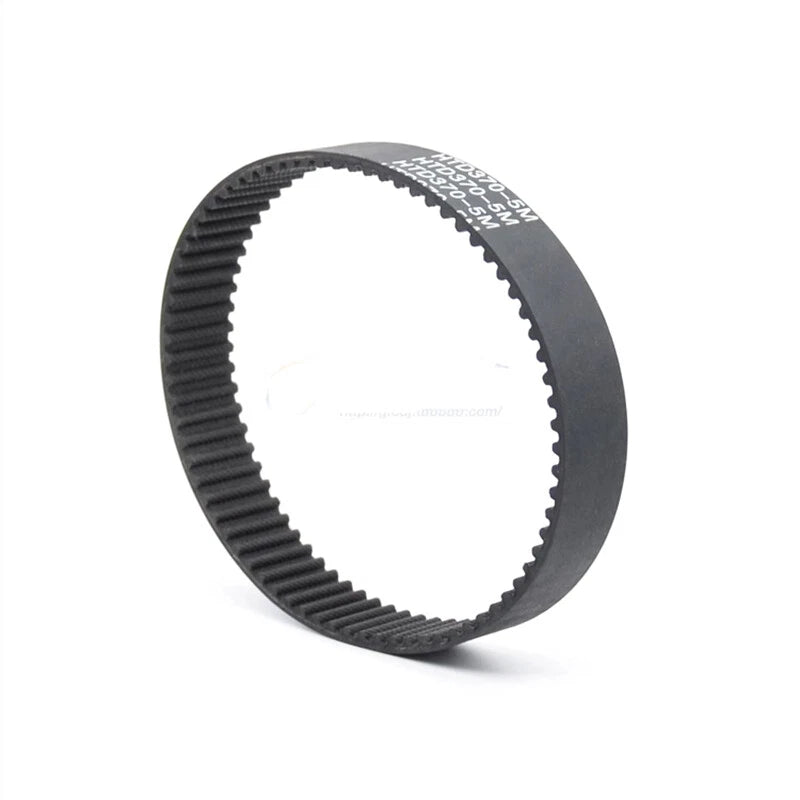

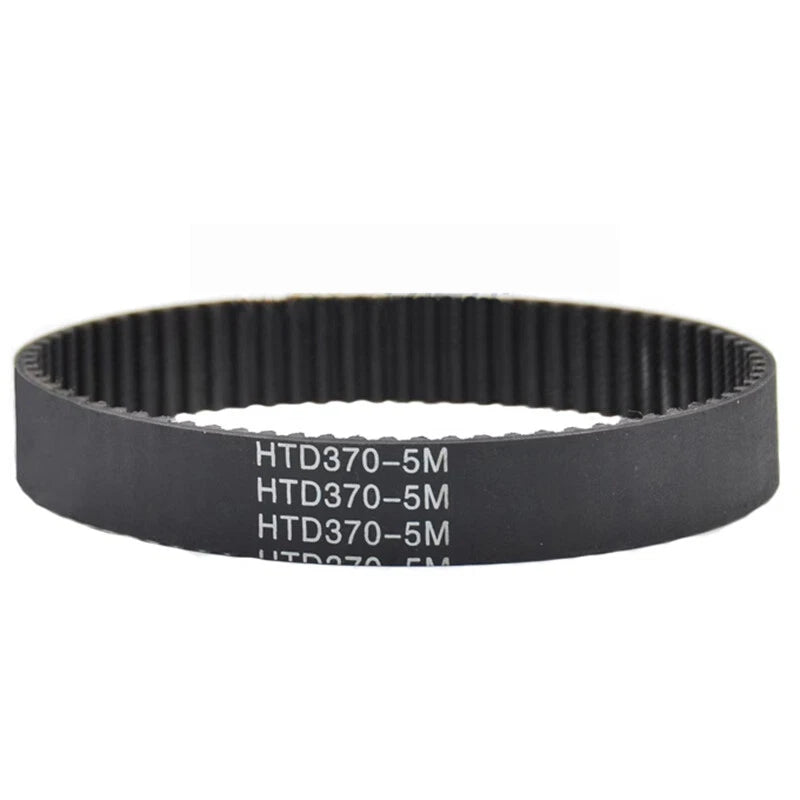

Each belt in this listing is a closed-loop HTD 5M timing belt with a 5mm pitch (tooth-to-tooth spacing). Available circumference lengths range from 810mm (≈31.9") to 990mm (≈39.0"), covering 162 to 198 teeth, in five width options: 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), and 30mm (≈1-3/16"). The belt body is constructed from neoprene rubber reinforced with fiberglass tensile cords, providing dimensional stability under load and resistance to stretching over time.

These HTD 5M drive belts are well suited for CNC router axis drives, RepRap and cartesian 3D printer motion systems, robotic arm and actuator assemblies, automated conveyor and indexing systems, and DIY power transmission projects where synchronous, slip-free motion is required.

🔗 Compatibility: Fits any standard HTD 5M pulley with matching width (10, 15, 20, 25, or 30mm). Tooth pitch: 5mm. Profile: HTD curvilinear. Not compatible with GT2/GT3 or trapezoidal (MXL/XL/L) pulleys.

✅ Key Features of These HTD 5M Timing Belts

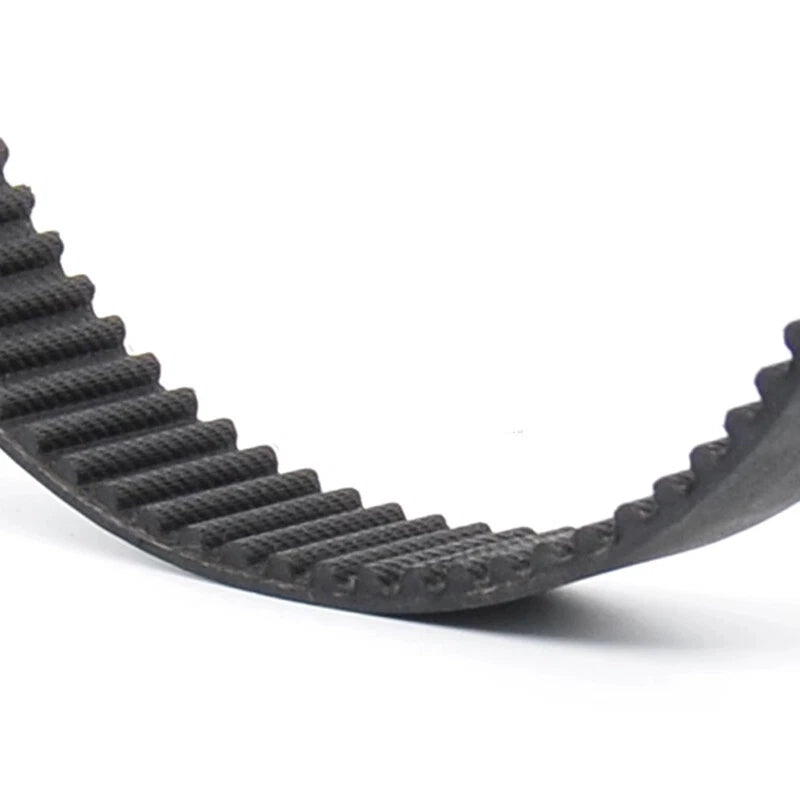

  • ⚙️5mm HTD Pitch, Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal belts, reducing tooth shear stress and improving torque transmission in CNC and robotics drive systems.
  • 📏Wide Size Selection — 162 to 198 Teeth, 5 Widths — With circumference options from 810mm to 990mm and widths from 10mm to 30mm, you can match the exact belt size your machine calls for without cutting or splicing.

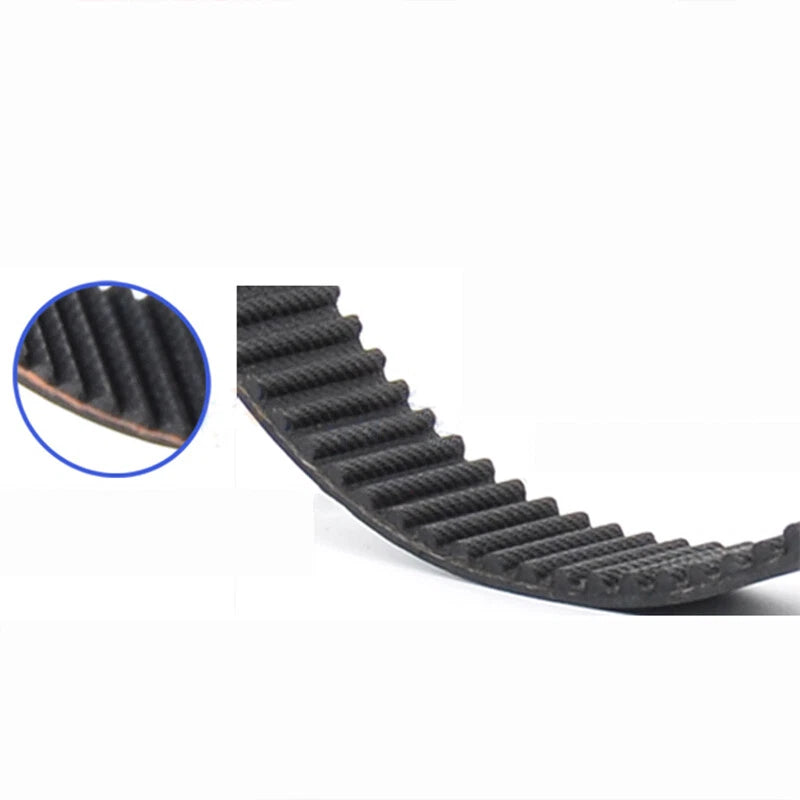

  • 🧱Neoprene Body with Fiberglass Tensile Cords — The neoprene rubber compound resists mild oils and moderate temperature swings, while the embedded fiberglass cords maintain belt length under tension — critical for repeatable positioning in CNC router and 3D printer motion systems.
  • 🔄Closed-Loop Construction, No Splicing Required — Each belt is manufactured as a continuous loop, eliminating the weak point of a mechanical splice and ensuring consistent tooth spacing around the full circumference for synchronous drive applications.
  • 🤖Suited for Robotics and Automation Drives — The synchronous tooth engagement prevents slippage under dynamic loads, making these belts a dependable choice for robotic arm joints, linear actuators, and automated indexing tables where positional accuracy matters.
  • 🚀Drop-In Replacement for Standard HTD 5M Applications — These belts conform to the HTD 5M standard, so they serve as direct replacements in existing machines without pulley modifications — simply match the tooth count and width to your current belt.

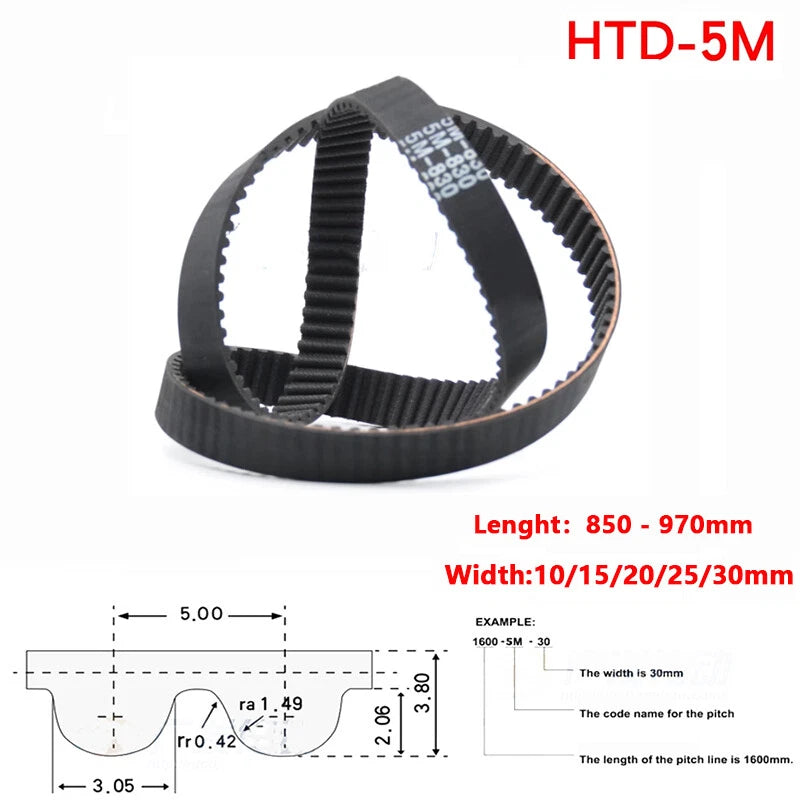

📐 Technical Specifications — HTD 5M Timing Belt

Belt Standard HTD 5M (High Torque Drive, 5mm pitch)
Tooth Pitch 5mm (0.197")
Tooth Profile HTD curvilinear (rounded)
Tooth Height Typically 2.06mm (standard HTD 5M)
Belt Circumference Range 810mm (≈31.9") — 990mm (≈39.0")
Tooth Count Range 162 teeth — 198 teeth
Available Widths 10mm, 15mm, 20mm, 25mm, 30mm
Belt Body Material Neoprene rubber
Tensile Cord Material Fiberglass (standard HTD construction)
Operating Temperature Typically –20°C to +80°C (–4°F to +176°F)
Loop Type Closed loop (endless)
Compatible Pulley Profile HTD 5M only
Typical Applications CNC routers, 3D printers, robotics, automation drives
Color See variant options
Country of Origin Contact us to confirm
⚠️ Before ordering: Verify your pulley's tooth profile is HTD 5M. GT2/GT3 and trapezoidal pulleys are not compatible. If you are unsure of your current belt's tooth count, measure the belt circumference in mm and divide by 5.

❓ Frequently Asked Questions

How do I choose the correct belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. For HTD 5M belts, the tooth count equals the belt circumference in mm divided by 5. For example, an 850mm belt has 170 teeth (850 ÷ 5 = 170). When in doubt, size up — a slightly longer belt is easier to tension correctly than one that is too short.

Quick inch reference: 850mm ≈ 33.5" | 900mm ≈ 35.4" | 950mm ≈ 37.4" | 990mm ≈ 39.0"

What load or torque can these HTD 5M belts handle?

HTD 5M belts are generally rated for moderate power transmission. Wider belts carry proportionally higher loads — a 30mm-wide belt typically handles roughly 3× the torque of a 10mm-wide belt of the same length. For precise load ratings specific to your drive system, contact us to confirm suitability before ordering for high-load industrial applications.

Can these timing belts be used outdoors or in wet environments?

The neoprene rubber body generally provides good resistance to moisture, mild oils, and moderate temperatures (typically –20°C to +80°C / –4°F to +176°F). These belts are not rated for prolonged submersion or exposure to harsh solvents and chemicals. For outdoor installations, shielding the belt from direct UV exposure will help extend service life.

Are these belts compatible with standard HTD 5M pulleys?

Yes. These belts conform to the HTD 5M standard: 5mm pitch, approximately 2.06mm tooth height, and a rounded curvilinear tooth profile. They are compatible with any HTD 5M pulley of matching width. Confirm your pulley's bore width matches the belt width you select (10, 15, 20, 25, or 30mm). They are not interchangeable with GT2, GT3, or trapezoidal (MXL/XL/L) pulleys.

How do I decide between 10mm, 15mm, 20mm, 25mm, and 30mm widths?

Width selection depends on the torque and lateral stability your application requires:

  • 10–15mm — Common in 3D printers (X/Y axes) and light CNC builds.
  • 20–25mm — Suited for mid-range CNC router axes and automation linear drives.
  • 30mm — Typically used in heavier-duty robotics, industrial conveyors, or high-torque drive systems.

Always match the belt width to your pulley's flange width for proper tracking.

What is the difference between HTD and GT2/GT3 timing belts?

HTD (High Torque Drive) belts use a rounded curvilinear tooth profile optimized for higher torque with reduced backlash compared to older trapezoidal belts. GT2/GT3 belts use a modified curvilinear profile with tighter tooth engagement, commonly found in precision 3D printers. HTD 5M and GT profiles are not interchangeable — always match belt and pulley profiles before ordering.

How do I tension an HTD 5M timing belt correctly?

A properly tensioned HTD belt should deflect approximately 1.5–2mm per 100mm of free span under light finger pressure. Too loose causes tooth skipping and positioning errors; too tight accelerates bearing and belt wear. Adjust center-to-center distance or use an idler pulley to set tension. Re-check tension after the first few hours of operation, as new belts typically seat in slightly.

🛒 Select your length and width above, then add to cart — ships from our US warehouse.
