HTD-5M Closed Loop Timing Belt — Reliable Power Transmission for CNC and Drive Systems

When a slipping or mismatched belt causes positioning errors in your CNC router, laser cutter, or automated drive system, the entire project stalls. Machinists, makers, and engineers who rely on precise motion control need a synchronous belt that holds tooth engagement under load without stretching or skipping. This HTD-5M closed loop timing belt delivers consistent, slip-free power transmission for demanding applications.

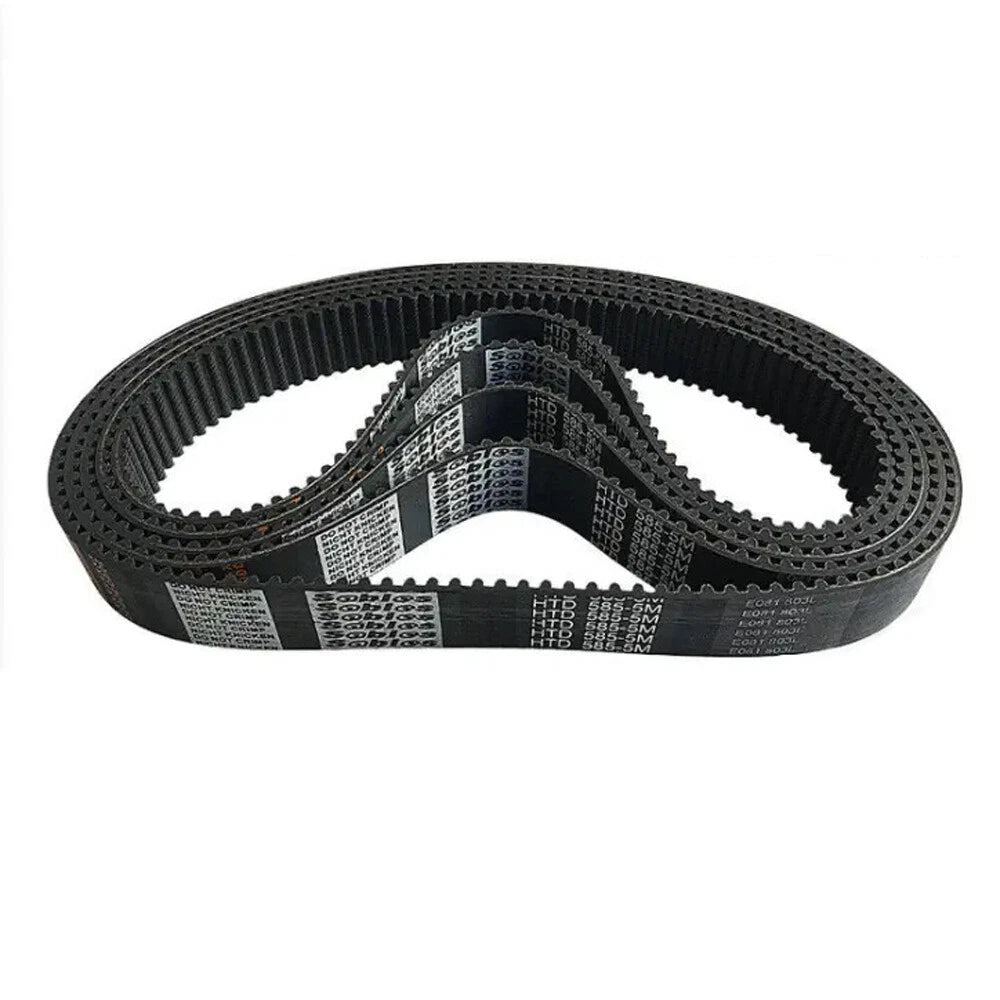

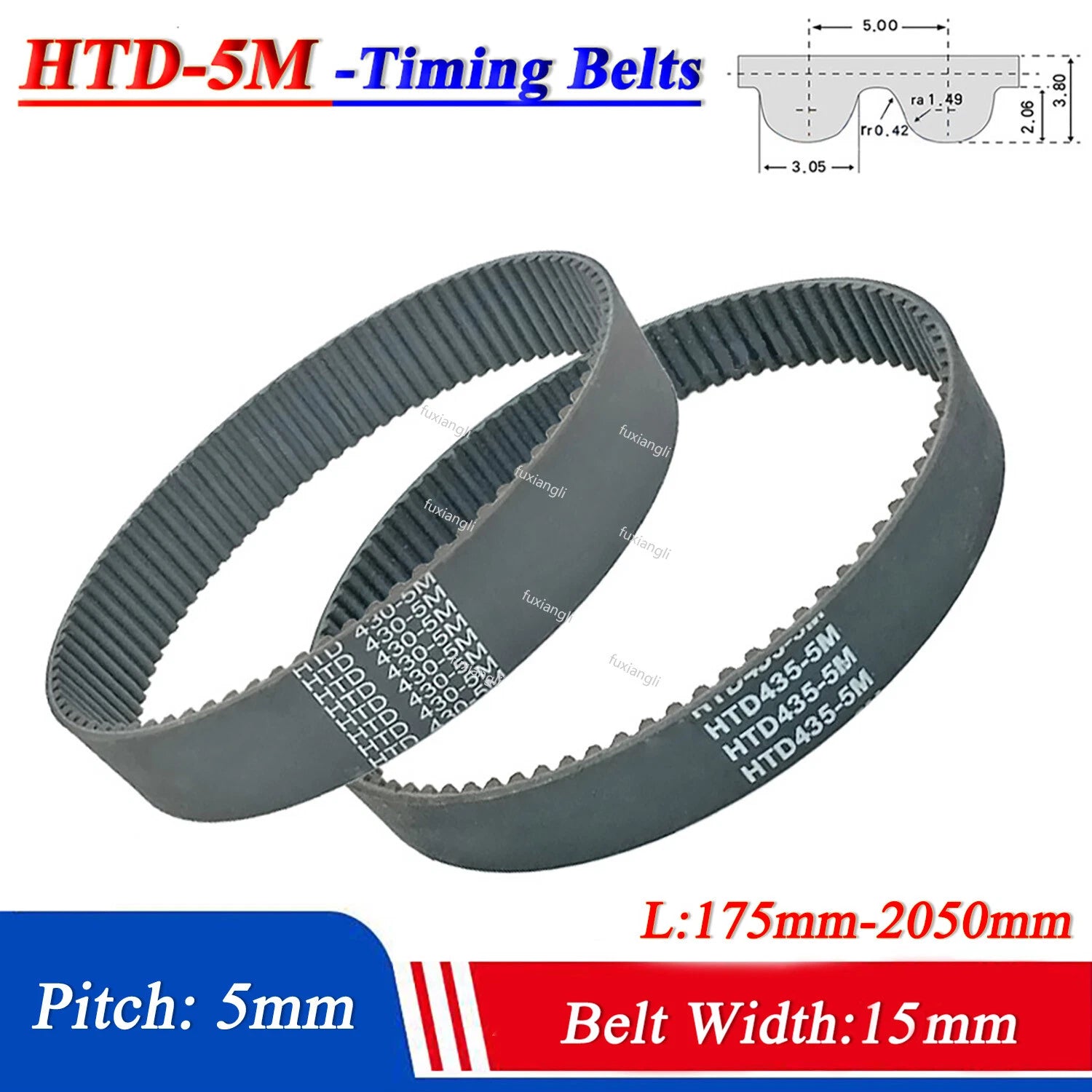

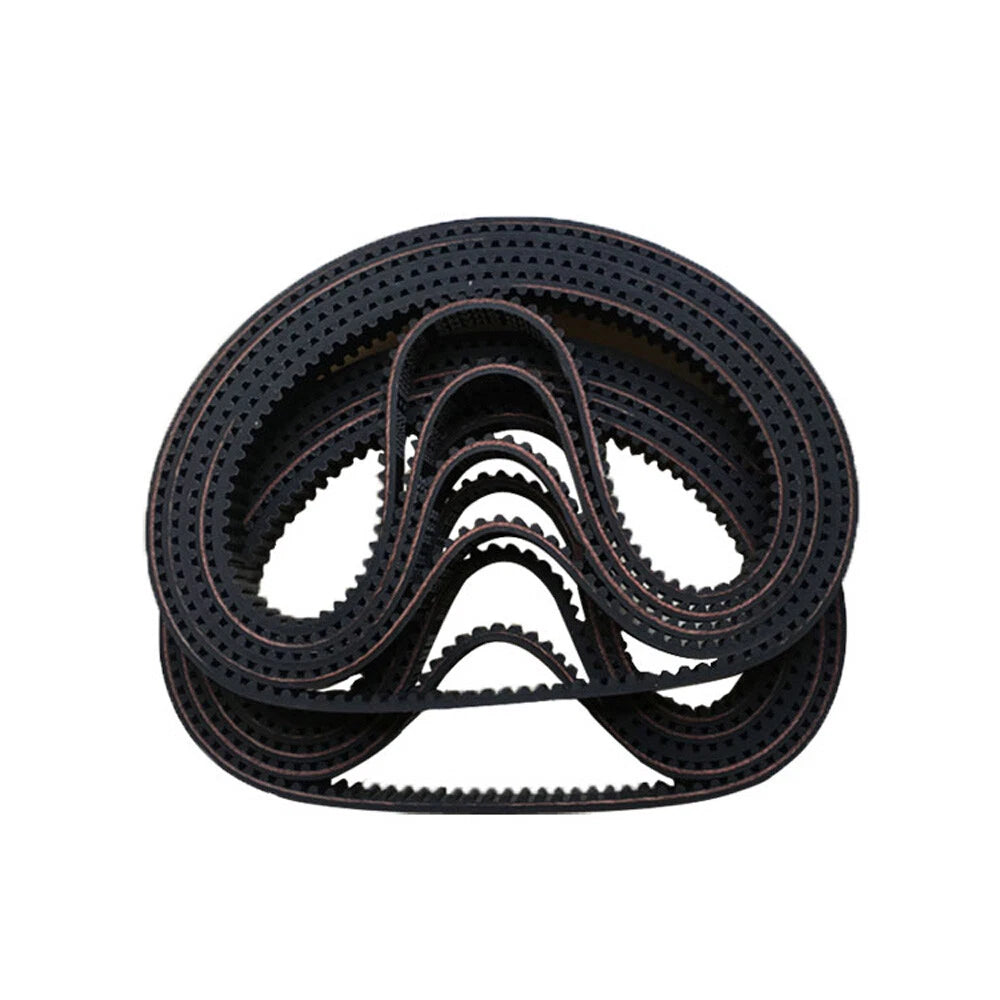

Each belt is a single closed-loop unit with an HTD-5M tooth profile — 5mm pitch (distance between tooth centers), 15mm (≈0.59") belt width, and a rubber body reinforced with a tensile cord. Available circumference lengths range from 175mm (≈6.9") to 2050mm (≈80.7"), sold individually (1 piece per order). The rounded HTD tooth form distributes load across a broader contact area compared to trapezoidal profiles.

Typical use cases include CNC router axis drives, laser engraver gantry systems, conveyor indexing mechanisms, and custom power transmission builds where an HTD-5M closed loop synchronous belt is specified. The 15mm width suits medium-duty drive configurations that require more lateral stability than narrower 9mm or 10mm belts.

ℹ️ Compatibility Notice: This belt fits HTD-5M profile pulleys only (5mm pitch, rounded tooth). It is not compatible with GT2, MXL, T5, or XL pulleys. Confirm your pulley is labeled HTD-5M before ordering.
⚠️ Size Tip: Belt sizes are listed as circumference (e.g., "500-5M" = 500mm loop). Measure your existing belt's outer circumference or calculate from your pulley center distance before selecting a variant.

✅ Key Features of These HTD-5M Closed Loop Timing Belts

  • ⚙️HTD-5M Tooth Profile — The rounded HTD tooth form generally reduces stress concentration at tooth roots, making it a common choice for CNC router drives and indexing applications where tooth jump must be avoided.
  • 🔁Closed-Loop Construction — Seamless loop design eliminates the splice point weakness found in cut-to-length belts, providing uniform tension distribution around the full circumference.
  • 📏Wide Size Range (175mm–2050mm) — Over 240 circumference options in 5mm increments cover a broad range of drive configurations without requiring custom fabrication.
  • ↔️15mm Belt Width — Wider than standard 9mm or 10mm HTD-5M belts, the 15mm width provides additional lateral stability and is suited for medium-duty synchronous drive systems.

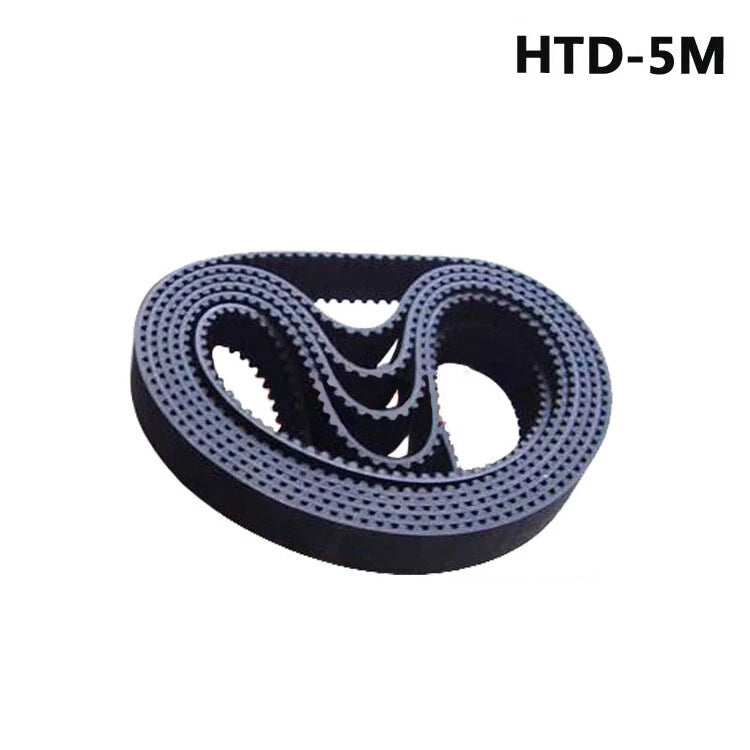

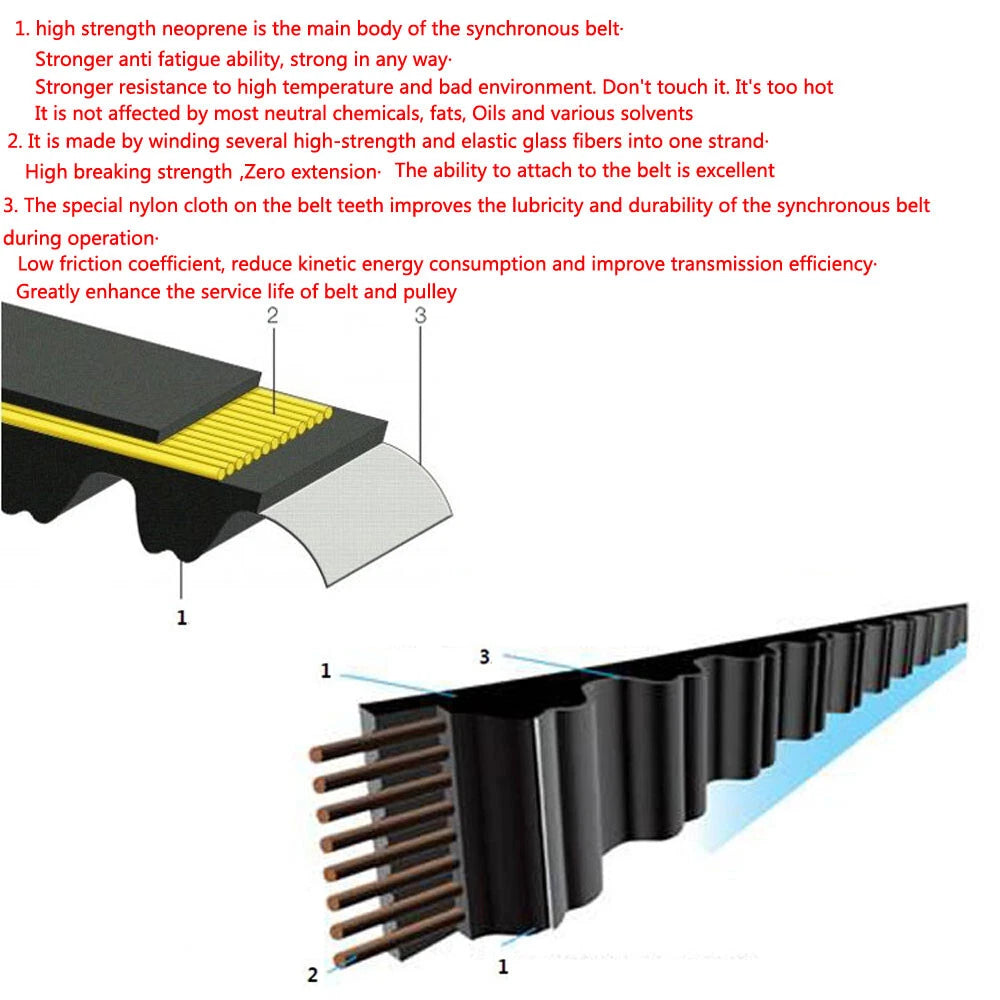

  • 🧲Tensile Cord Reinforcement — Internal cord construction resists elongation under cyclic loading, helping maintain consistent tooth pitch engagement over time in repetitive motion applications.
  • 🏭Broad Application Fit — Compatible with CNC routers, laser cutters, conveyor systems, and custom automation builds that specify an HTD-5M 15mm synchronous belt in their drive design.

📐 Technical Specifications — HTD-5M Closed Loop Synchronous Belt

Belt Profile HTD-5M (High Torque Drive, 5mm pitch)
Tooth Pitch 5mm (0.197")
Belt Width 15mm (≈0.59")
Belt Type Closed loop (endless)
Circumference Range 175mm (≈6.9") to 2050mm (≈80.7")
Tooth Form Rounded HTD profile
Body Material Rubber compound (see variant options for exact spec)
Tensile Member See variant options
Compatible Pulley HTD-5M profile, 15mm width or wider
Quantity per Order 1 piece
Application CNC routers, laser cutters, conveyor drives, automation

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2. For example, a 500mm belt (≈19.7" circumference) is typically used with pulley center distances around 200–220mm. When in doubt, size up — a slightly longer belt is easier to tension than one that's too short.

What is the tooth pitch on this belt and why does it matter?

This belt uses the HTD-5M profile with a 5mm pitch (distance between tooth centers). The HTD (High Torque Drive) tooth profile is rounded, which generally provides better load distribution and reduced tooth jump compared to trapezoidal profiles. The pitch must match your pulley exactly — a 5M belt will not mesh correctly with a GT2 or T5 pulley.

What tensile strength or load capacity can I expect?

HTD-5M belts at 15mm width typically handle moderate power transmission loads. Tensile strength depends on the core material — fiberglass-reinforced cores are generally rated higher than standard rubber cores. For precise load ratings, consult your drive system's engineering specs and match the belt to a compatible HTD-5M pulley. Contact us to confirm specific tensile ratings for your application.

Can this belt be used outdoors or in wet/oily environments?

HTD-5M rubber timing belts are generally resistant to light moisture and dust, making them suitable for semi-protected environments. However, prolonged exposure to UV, oils, or standing water can degrade the rubber compound over time. For outdoor or harsh-environment applications, inspect the belt periodically and replace as needed. Contact us if you need a belt rated for specific chemical or temperature exposure.

What pulleys are compatible with this belt?

This belt is compatible with HTD-5M profile pulleys (5mm pitch, rounded tooth form). It is NOT interchangeable with GT2, MXL, T5, or XL profile pulleys. Confirm your pulley is labeled HTD-5M and that the pulley width is 15mm or wider to match this belt's width.

Is this belt suitable for 3D printers and CNC routers?

Yes — HTD-5M belts are commonly used in CNC routers, laser cutters, and some larger-format 3D printers that use 5mm-pitch drive systems. Verify your machine's belt specification before ordering. Many desktop 3D printers (e.g., Ender 3, Prusa) use GT2 (2mm pitch) belts instead, which are a different profile and not compatible with HTD-5M pulleys.

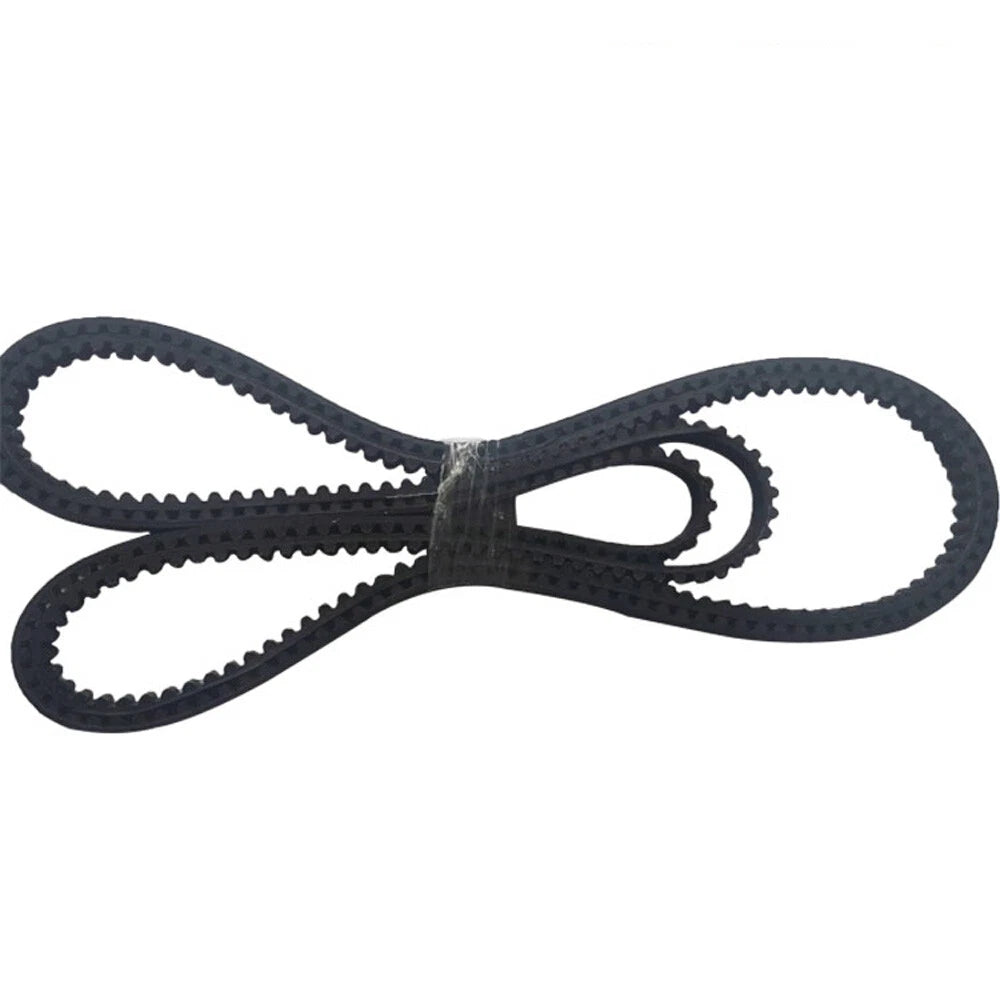

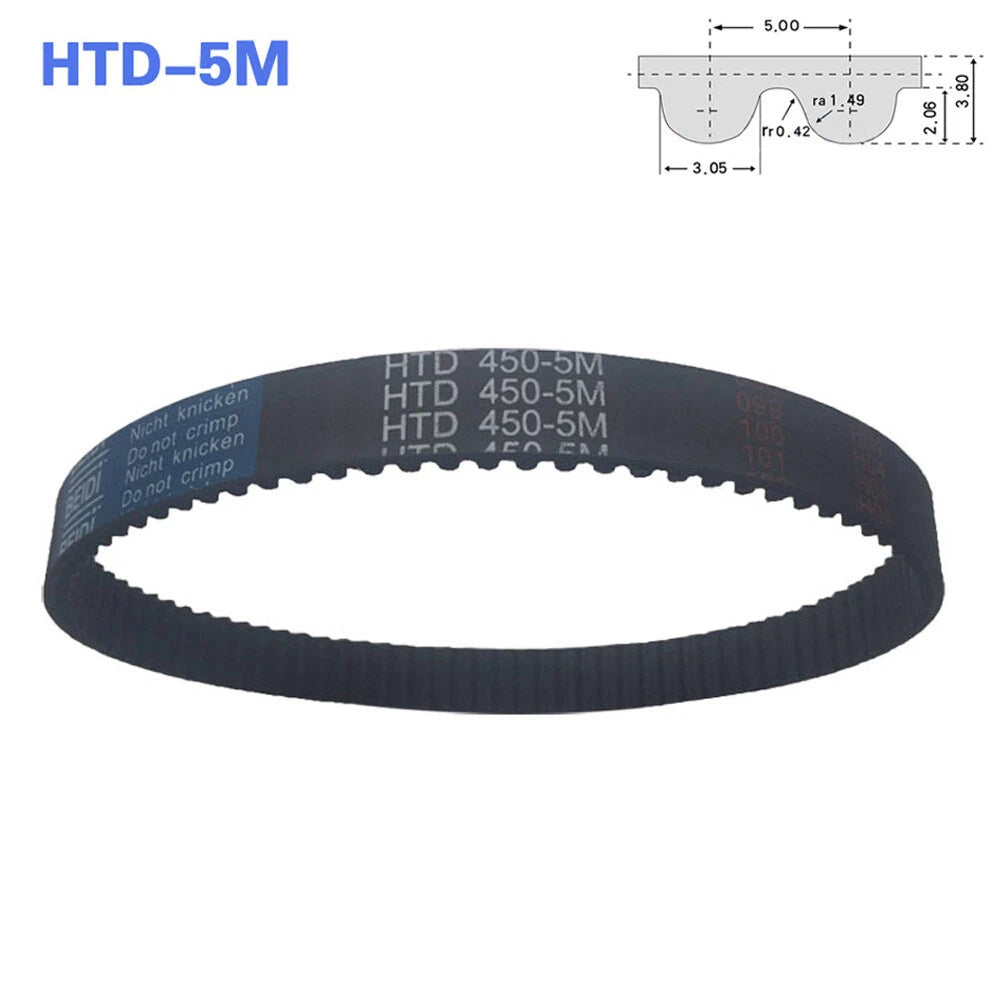

How do I read the size options like "500-5M"?

The format is [Belt Circumference in mm]-[Pitch Profile]. So "500-5M" means a 500mm closed-loop belt with HTD-5M (5mm pitch) tooth profile. The width is 15mm for all variants on this listing. To convert to inches: divide mm by 25.4 (e.g., 500mm ÷ 25.4 ≈ 19.7").

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
