HTD 5M Timing Belt Idler Pulley — Precise Tension Control for DIY Automation

When your timing belt slips or loses tension mid-project, the entire motion system suffers — missed steps, vibration, and failed prints. Whether you're building a 3D printer, CNC router, or custom conveyor, the right idler pulley keeps your HTD 5M belt running taut and true. These HTD 5M timing belt idler pulleys are engineered for makers, hobbyists, and small-workshop builders who need reliable belt management without overengineering the solution.

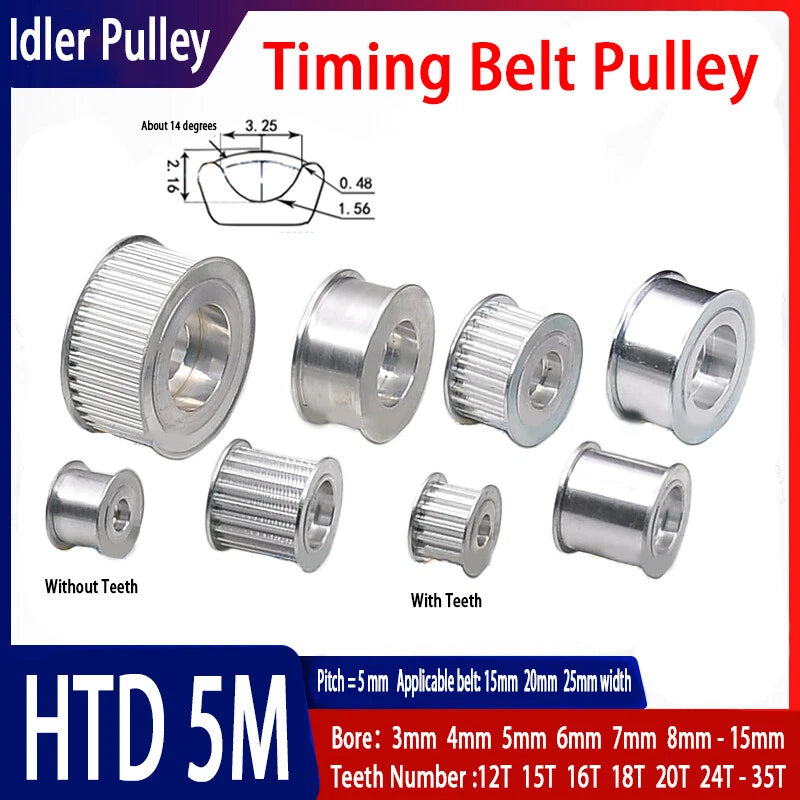

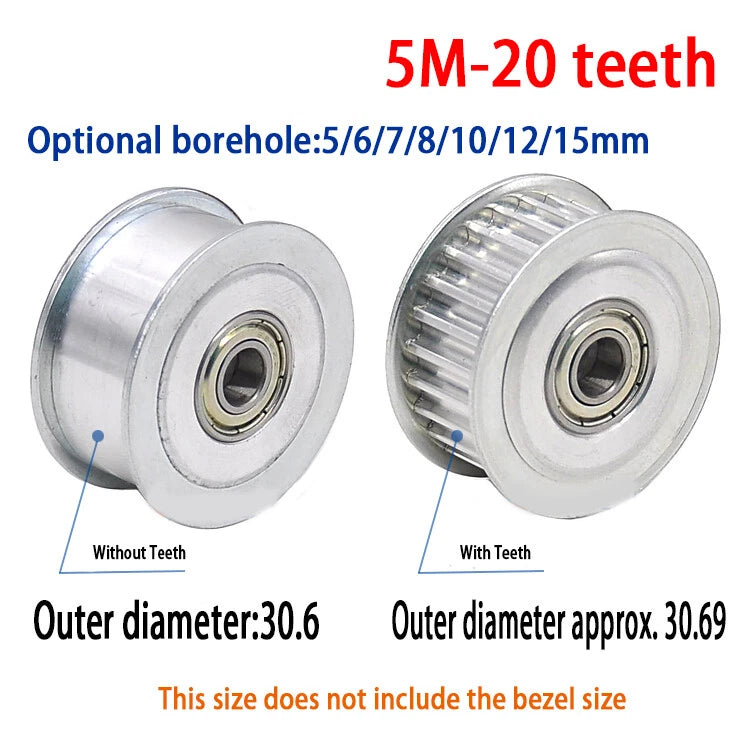

Each pulley is machined to accept HTD 5M pitch belts and is available in two styles — With Teeth (for positive engagement and reduced slip) and Without Teeth (smooth idler for tension-only applications). Bore diameters range from 3 mm (~0.12 in) to 15 mm (~0.59 in), and applicable belt widths span 15 mm to 25 mm. Tooth counts run from 12T to 35T, covering a wide range of pulley diameters to suit your drive geometry.

Typical use cases include HTD 5M belt tensioning on CoreXY 3D printers, belt-driven CNC axis systems requiring a fixed idler, and DIY linear actuator builds where a toothless idler pulley for 5M belt is needed to redirect belt path without engagement.

✅ Compatible with HTD 5M pitch timing belts — belt widths 15 mm, 20 mm, and 25 mm depending on variant selected.

✅ Key Features of These HTD 5M Timing Belt Idler Pulleys

⚙️
Two Style Options

Choose With Teeth for positive belt engagement or Without Teeth for smooth tensioning — both machined to HTD 5M profile.

📐
Wide Bore Range

Bore diameters from 3 mm to 15 mm (~0.12–0.59 in) accommodate a broad range of shaft sizes common in DIY and light industrial builds.

🔩

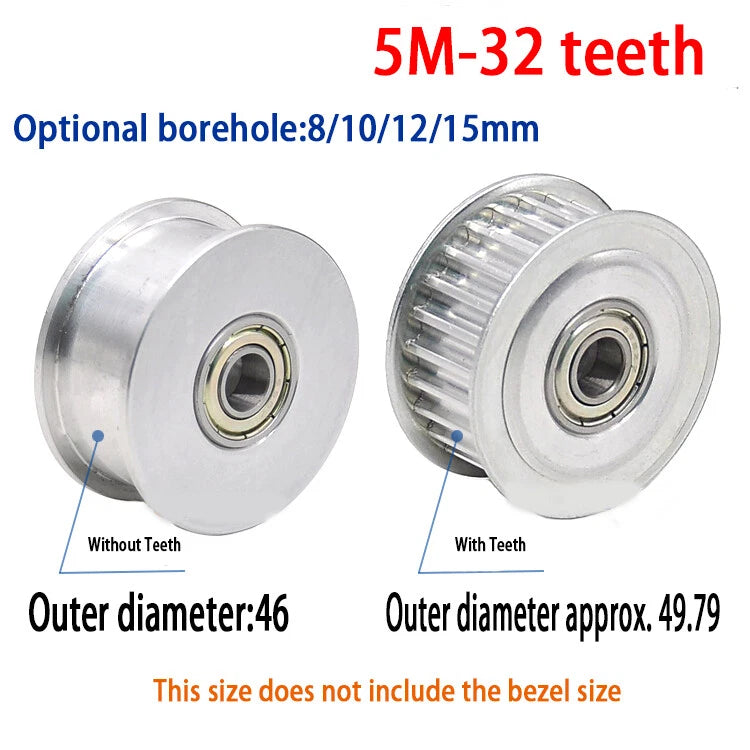

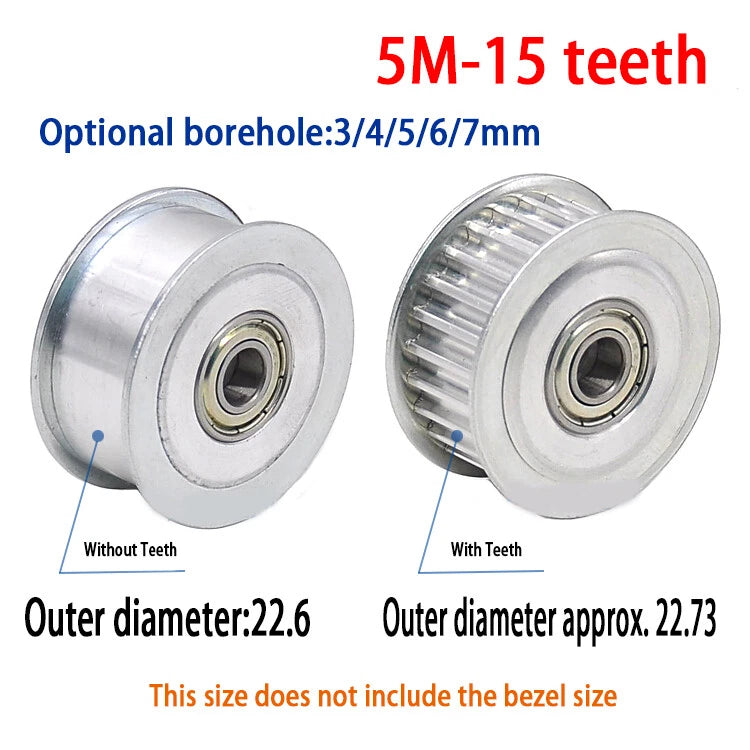

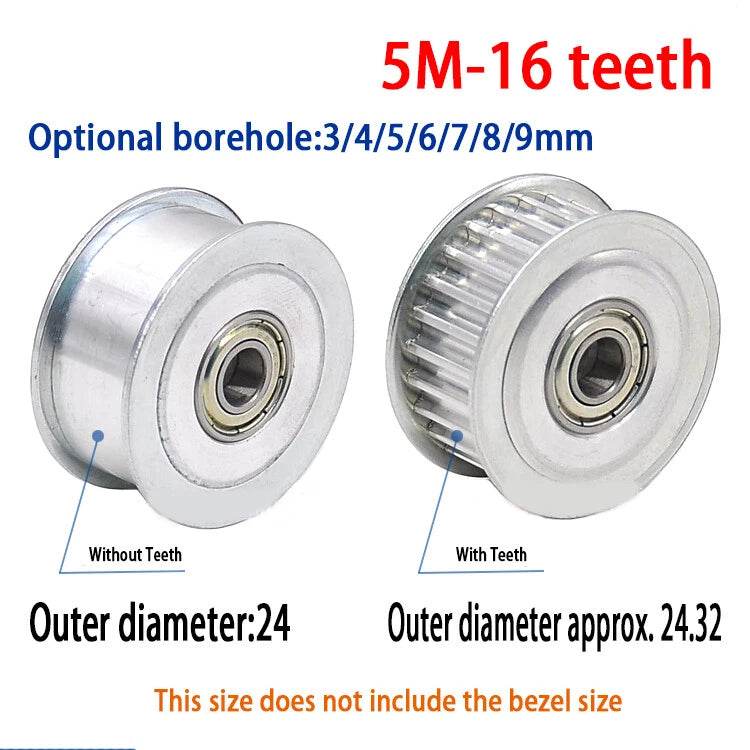

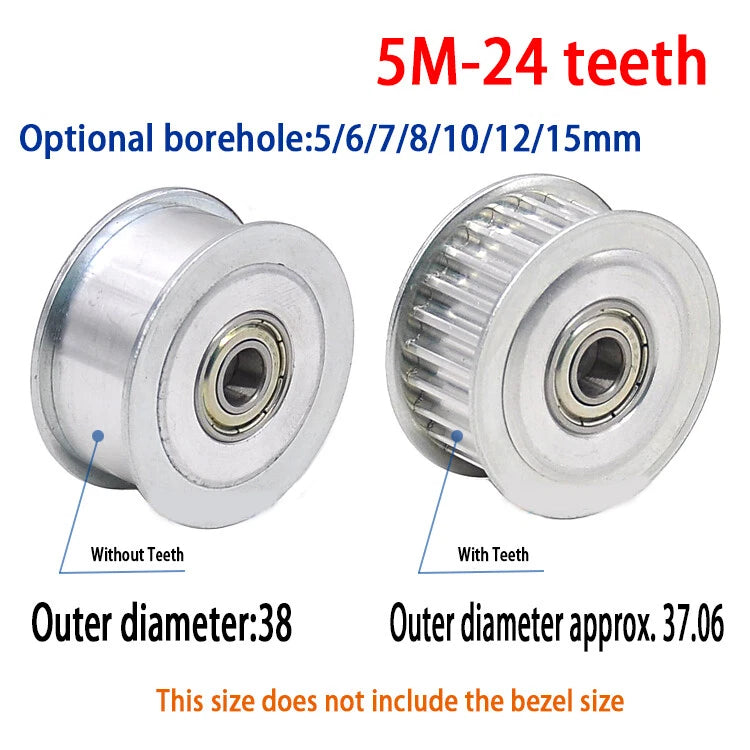

Multiple Tooth Counts

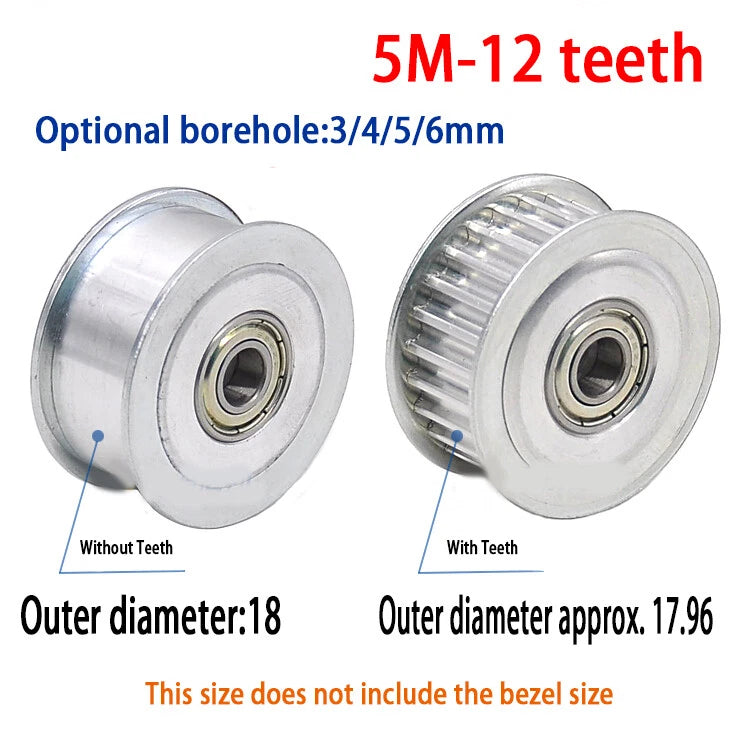

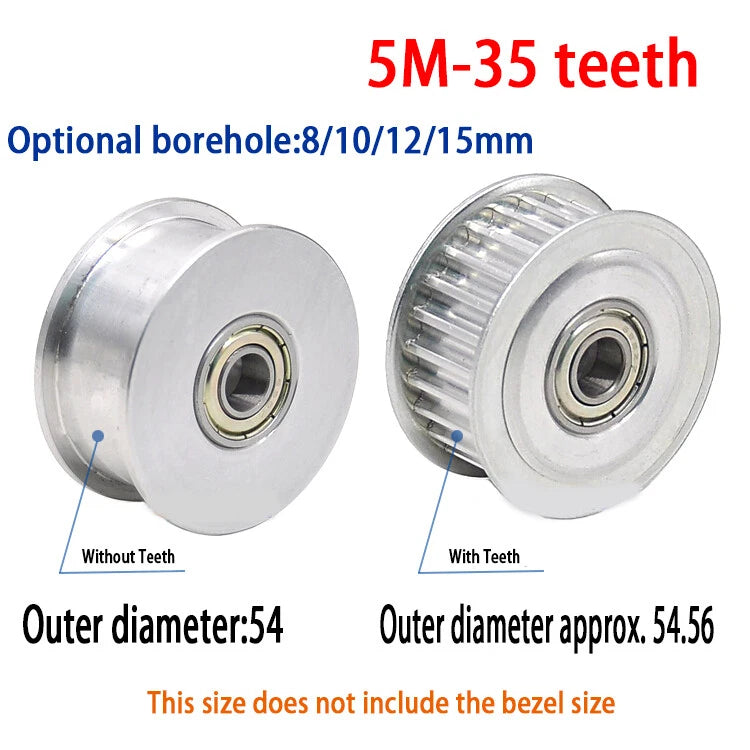

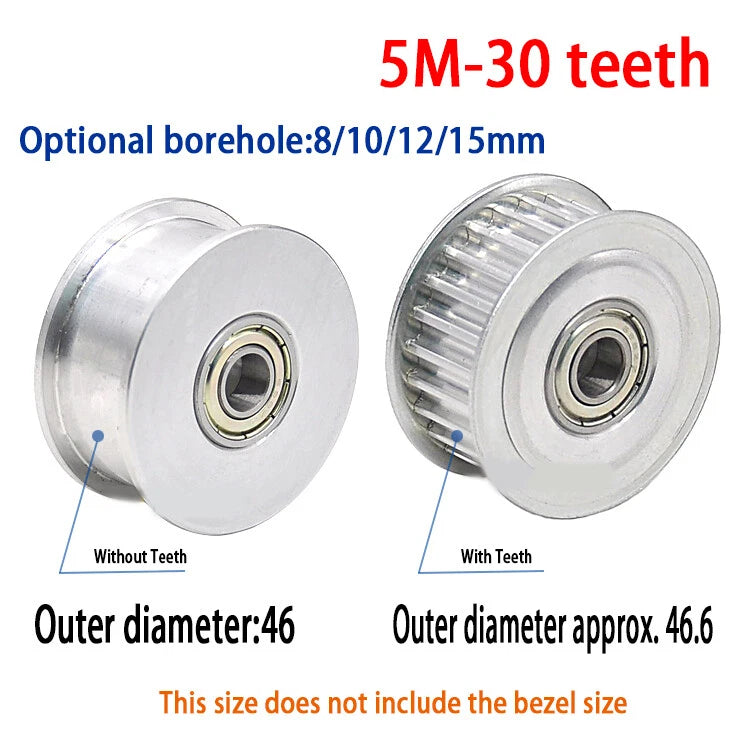

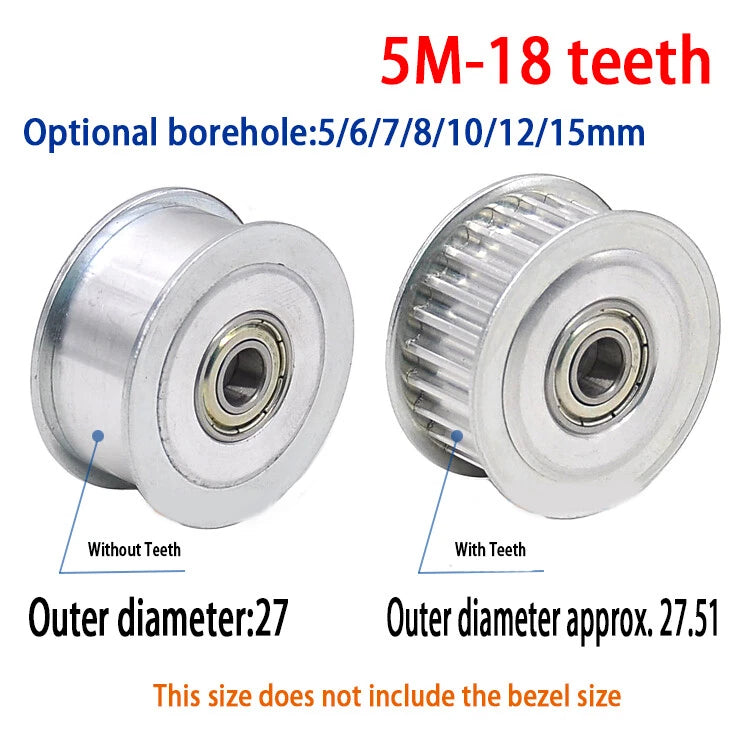

Available in 12T, 15T, 16T, 18T, 20T, 24T, 25T, 30T, 32T, and 35T — select the pitch diameter that fits your belt path geometry.

📏

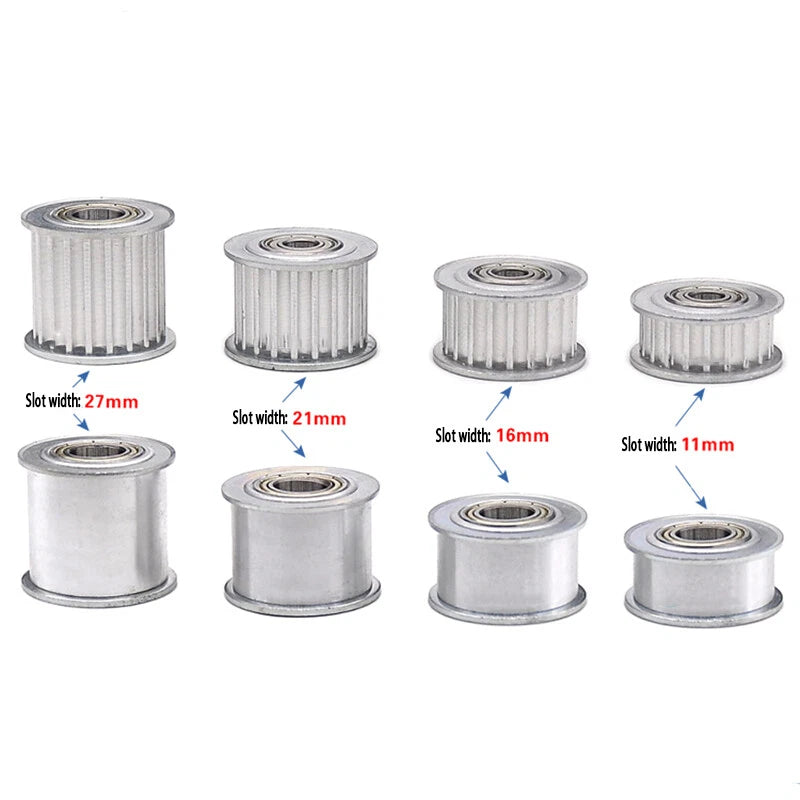

Belt Width Compatibility

Variants support 15 mm, 20 mm, and 25 mm wide HTD 5M belts — check the "Bore Diameter & Applicable Belt Width" option before ordering.

🏭

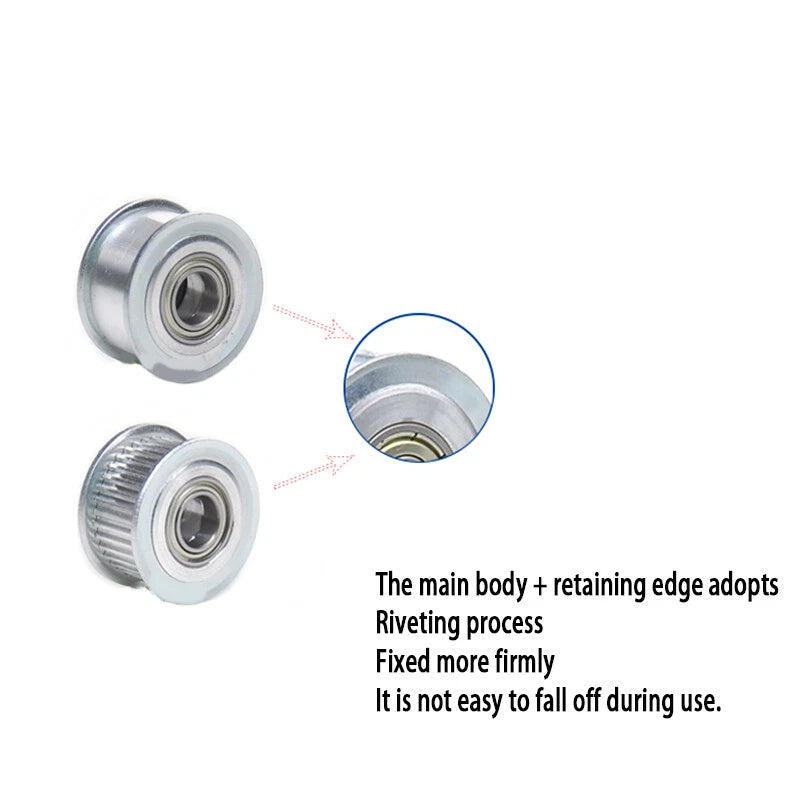

Machined Construction

Manufactured to consistent dimensional tolerances for repeatable fit on standard shafts — suitable for 3D printers, CNC machines, and automation rigs.

🔄
Drop-In Replacement Ready

Standard HTD 5M profile ensures compatibility with off-the-shelf 5M belts — no custom machining required for most maker and workshop applications.

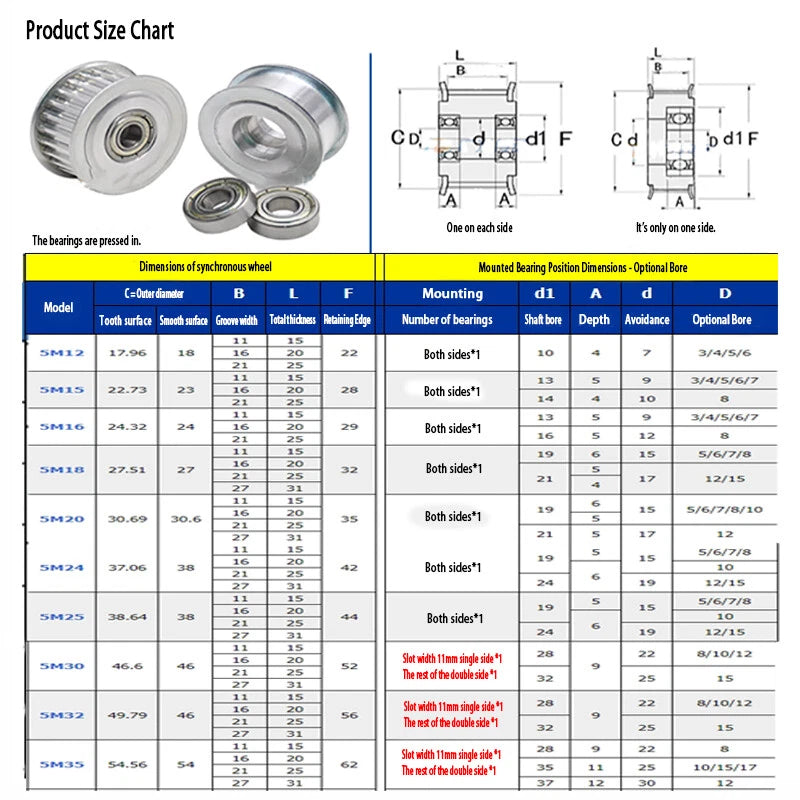

📐 Technical Specifications — HTD 5M Idler Pulley

Belt Profile HTD 5M (5 mm pitch)
Style With Teeth / Without Teeth (see variant options)
Tooth Count 12T, 15T, 16T, 18T, 20T, 24T, 25T, 30T, 32T, 35T (see variant options)
Bore Diameter 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 12 mm, 15 mm (see variant options)
Applicable Belt Width 15 mm / 20 mm / 25 mm (see variant options)
Pitch Diameter Range Approx. 19.1 mm (12T) to 55.7 mm (35T)
Material See variant options
Finish See variant options
Weight See variant options

❓ Frequently Asked Questions

What is the difference between "With Teeth" and "Without Teeth" styles?

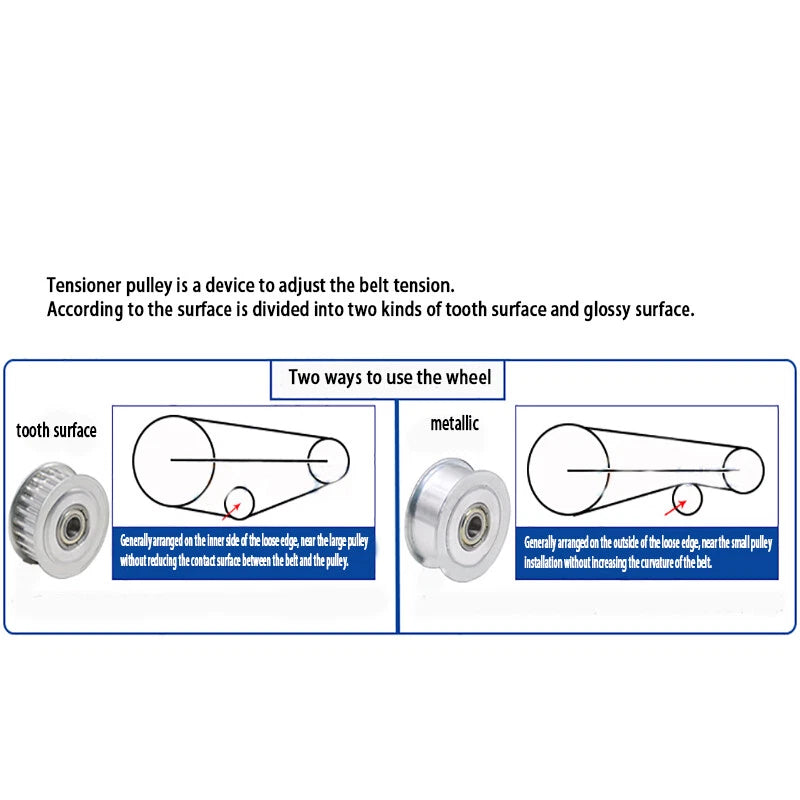

The With Teeth style engages the belt's inner profile for positive drive — useful when you need the idler to also transmit motion or prevent belt skipping. The Without Teeth (smooth) style acts as a pure tensioner or belt guide, redirecting the belt path without engagement. For most tensioning applications, the toothless version is preferred.

How do I choose the right bore diameter?

Match the bore diameter to your shaft or axle OD. Common shaft sizes in 3D printers and CNC builds are 3 mm, 5 mm, and 8 mm. If you're using a flanged bearing insert, measure the bearing's inner race diameter. The bore must be equal to or slightly larger than the shaft for a proper fit — do not select a bore smaller than your shaft.

Which belt width should I select?

The "Bore Diameter & Applicable Belt Width" option specifies both the bore size and the maximum belt width the pulley face is designed for. For example, "5 mm & 15mm" means a 5 mm bore with a 15 mm wide belt face. Match this to the width of your HTD 5M belt — using a wider belt on a narrower pulley face will cause edge wear and tracking issues.

Are these pulleys compatible with standard HTD 5M belts from other brands?

Yes. HTD 5M is a standardized belt profile (5 mm pitch, 2.06 mm tooth height, 3.6 mm tooth radius). These pulleys are machined to that standard, so they are compatible with any HTD 5M belt regardless of brand, as long as the belt width matches the pulley face width selected.

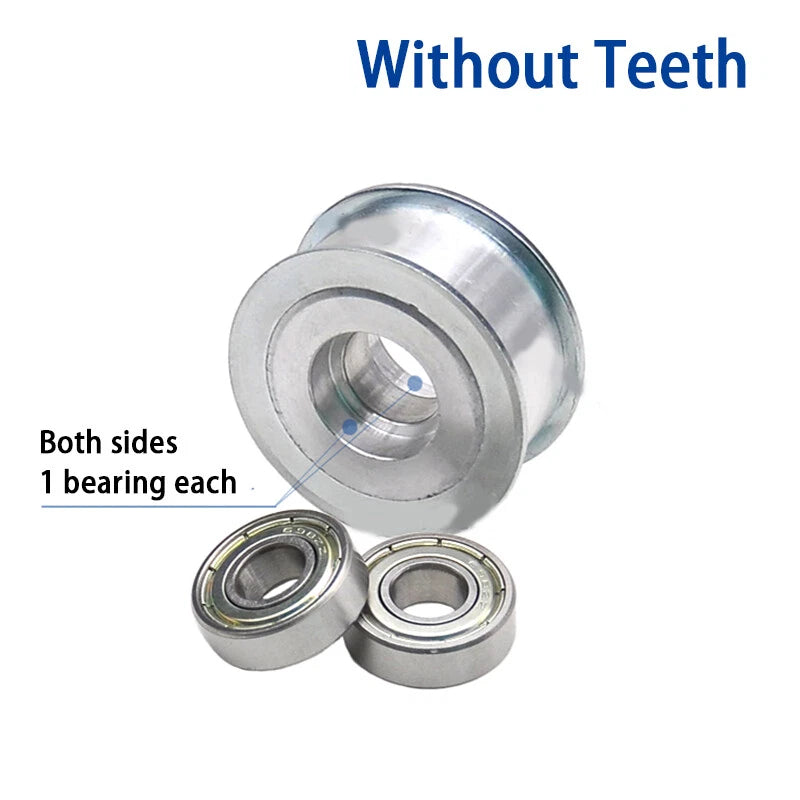

Can I use a toothless idler pulley on a toothed belt without damaging it?

Yes — toothless (smooth) idler pulleys are specifically designed to run on the flat back side of a toothed belt. This is standard practice in belt-driven systems like CoreXY 3D printers. The smooth face contacts the belt's outer surface without engaging the teeth, providing tension and path redirection without wear to the tooth profile.

What tooth count should I choose for my build?

Tooth count determines the pulley's pitch diameter. Smaller tooth counts (e.g., 12T–16T) produce smaller diameter pulleys suitable for tight belt paths and compact builds. Larger counts (e.g., 30T–35T) give larger diameters, which reduce belt bending stress and are better for high-speed or high-load applications. For most 3D printer and CNC idler applications, 12T–20T is typical.

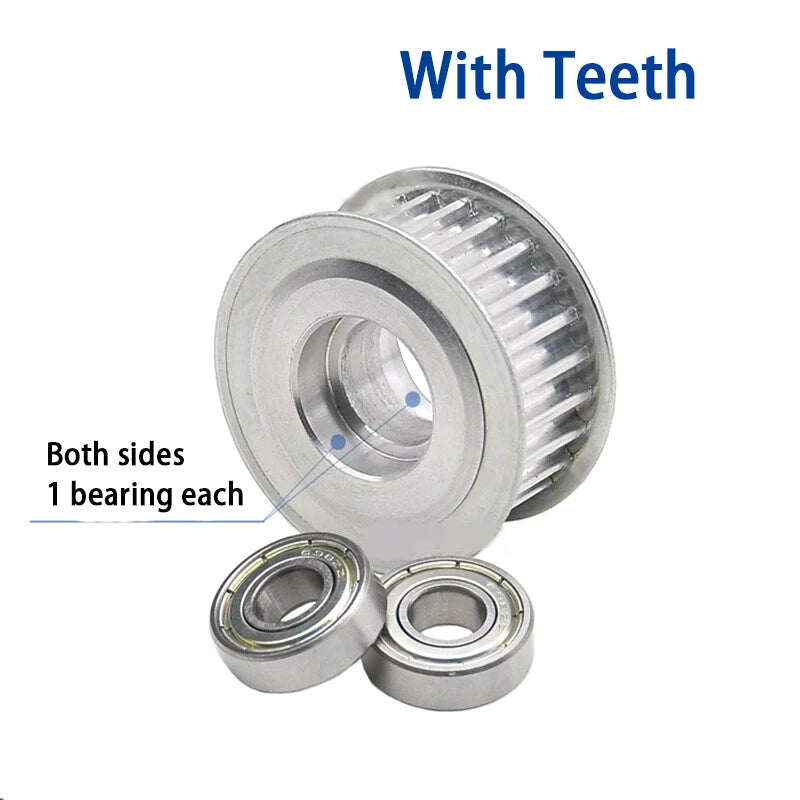

Do these pulleys include a bearing or set screw?

Bearing and hardware inclusion varies by variant. If your application requires a flanged bearing press-fit or a set screw for shaft locking, please contact us to confirm the specific variant's configuration before ordering.

🛒 Select your Style, Number of Gear Teeth, and Bore Diameter & Applicable Belt Width above, then add to cart.
