HTD-5M Timing Belt Idler Pulleys — Toothed Tensioner for Precise Belt Drive Control

When a loose or misaligned timing belt causes skipped steps, vibration, or premature wear in your motion system, the fix starts with the right idler pulley. HTD-5M timing belt idler pulleys are designed for engineers, CNC builders, robotics integrators, and 3D printer enthusiasts who need reliable belt tension management without sacrificing positional accuracy.

Each HTD-5M idler pulley features a toothed profile matching the 5mm pitch HTD belt standard, with a 27mm belt-contact width (approximately 1.06 in). The tooth count ranges from 15T to 40T, and bore options span 3mm to 30mm (approximately 0.12 in to 1.18 in), covering the most common shaft diameters used in DIY and industrial motion systems. Bodies are typically machined from aluminum alloy with an anodized or natural finish for corrosion resistance.

Typical use cases include tensioning the X/Y drive belts on CNC routers and laser cutters, maintaining consistent belt wrap on 3D printer CoreXY and Cartesian systems, and managing belt routing in conveyor or pick-and-place automation where an HTD-5M toothed idler pulley for belt tensioning is required. The toothed contact surface prevents belt slippage under load, making these pulleys suitable for closed-loop servo and stepper-driven axes.

⚙️ Compatible with HTD-5M timing belts — 5mm pitch, 27mm width. Verify bore diameter matches your shaft before ordering.

✅ Key Features of These HTD-5M Toothed Idler Pulleys

🦷 Toothed Profile

Matches HTD-5M belt geometry to prevent slippage and maintain accurate belt engagement under dynamic loads.

📐 Wide Size Range

Available in 15T through 40T tooth counts with bore sizes from 3mm to 30mm — covers most CNC, robotics, and automation shaft diameters.

🔩 27mm Belt Width

Full-width contact across standard 27mm HTD-5M belts ensures even load distribution and reduces edge wear.

🛡️ Corrosion-Resistant Construction

Aluminum alloy body with anodized finish resists oxidation in workshop and light industrial environments.

⚡ Drop-In Tensioner Fit

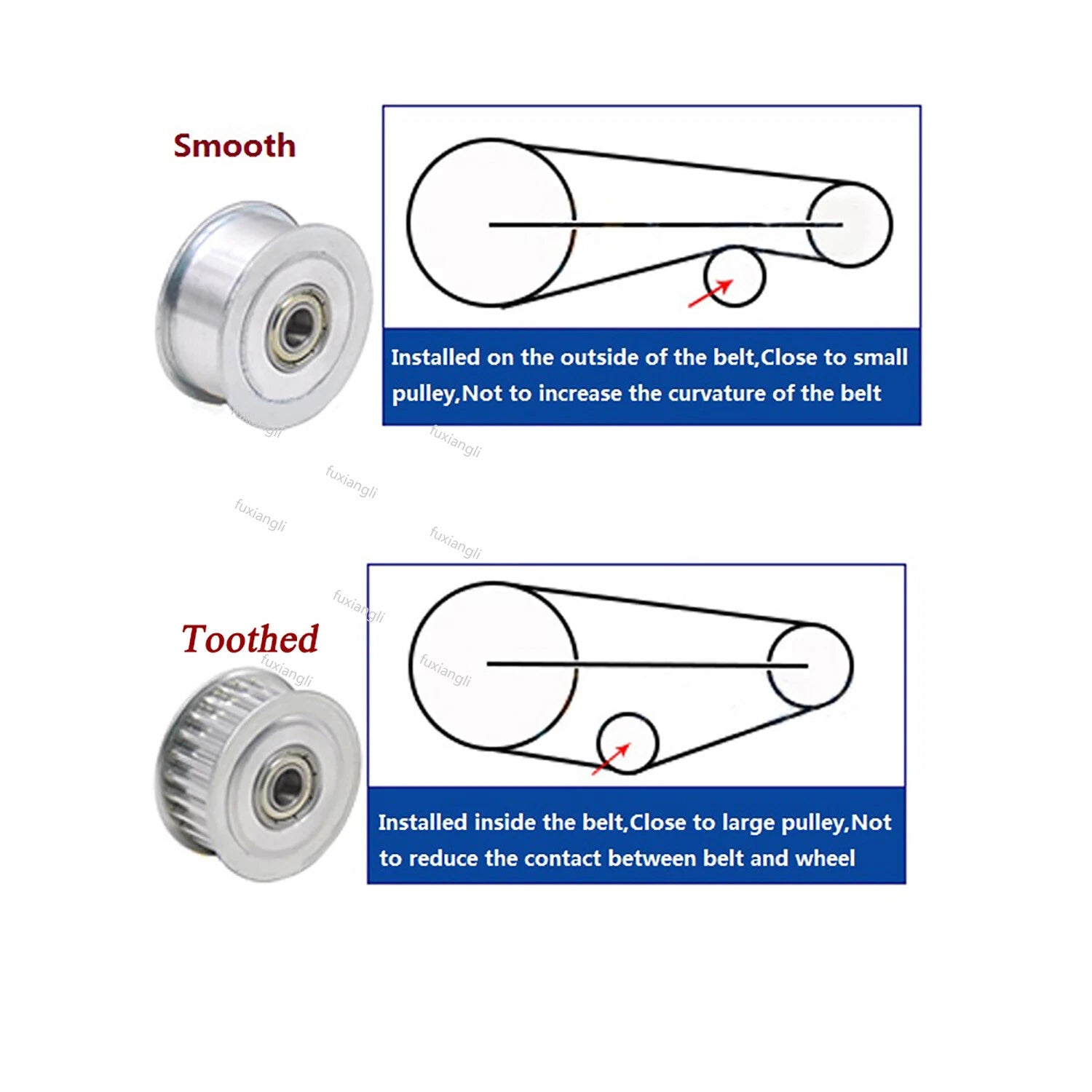

Designed as a direct tensioner idler — mount on a fixed or adjustable bracket to set belt tension without modifying your drive pulleys.

🔄 Broad Compatibility

Works with CNC routers, laser engravers, 3D printers (CoreXY, Cartesian), conveyor systems, and custom automation builds using HTD-5M belt drives.

📐 Technical Specifications — HTD-5M Idler Pulley

Belt Standard HTD-5M
Pitch 5mm (0.197 in)
Belt Width 27mm (1.06 in)
Tooth Count 15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 40T
Bore Diameter 3mm – 30mm (0.12 in – 1.18 in); see variant options
Material Aluminum alloy
Finish See variant options
Pulley Type Toothed idler / tensioner
Outer Diameter See variant options
Hub Width See variant options
Quantity per Order 1 piece

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines the pulley's pitch diameter. A higher tooth count means a larger diameter, which affects belt wrap angle and the overall geometry of your drive system. For tensioner idlers, match the tooth count to the space available in your belt path — smaller pulleys (15T–20T) suit tight routing, while larger ones (24T–40T) provide more belt wrap and smoother operation at higher speeds.

What bore size should I select?

Measure your idler shaft or bearing outer diameter precisely with calipers. The bore must match your shaft for a secure fit. Available bores range from 3mm to 30mm. If you plan to use a bearing insert, select the bore that matches the bearing's outer diameter.

Are these pulleys compatible with standard HTD-5M timing belts?

Yes. These pulleys are designed specifically for HTD-5M belts with a 5mm pitch and 27mm width. They will not correctly mesh with GT2, T5, or other belt profiles. Always verify your belt's pitch and width before ordering.

How strong are these pulleys under load?

The aluminum alloy construction provides a good strength-to-weight ratio suitable for CNC, 3D printing, and light industrial automation loads. For heavy-duty industrial applications with sustained high tension, contact us to confirm suitability for your specific load requirements.

Will these pulleys corrode in a workshop environment?

The anodized aluminum finish provides solid resistance to oxidation and light moisture exposure typical of workshop environments. Avoid prolonged exposure to harsh chemicals or salt spray without additional protective measures.

Can I use these as both idler and drive pulleys?

These are designed primarily as toothed idler/tensioner pulleys. While the toothed profile can engage a belt as a drive pulley in low-load scenarios, they are optimized for tensioning duty. For primary drive pulleys under significant torque, use a pulley specifically rated for drive applications with a keyway or set-screw bore.

What machines are these commonly used in?

Common applications include CNC routers, laser cutters, laser engravers, FDM 3D printers (CoreXY and Cartesian), pick-and-place machines, conveyor systems, and custom robotics or automation builds that use HTD-5M belt drives for motion control.

🛒 Select your tooth count and bore size above, then add to cart.
