When your CNC router skips steps, your 3D printer loses position, or your conveyor belt slips under load, the culprit is often a worn or mismatched timing pulley. Engineers, makers, and machine builders who demand repeatable, slip-free power transmission need a pulley they can trust. These HTD-5M timing belt pulleys are designed for exactly that — delivering consistent, backlash-free drive performance across a wide range of mechanical applications.

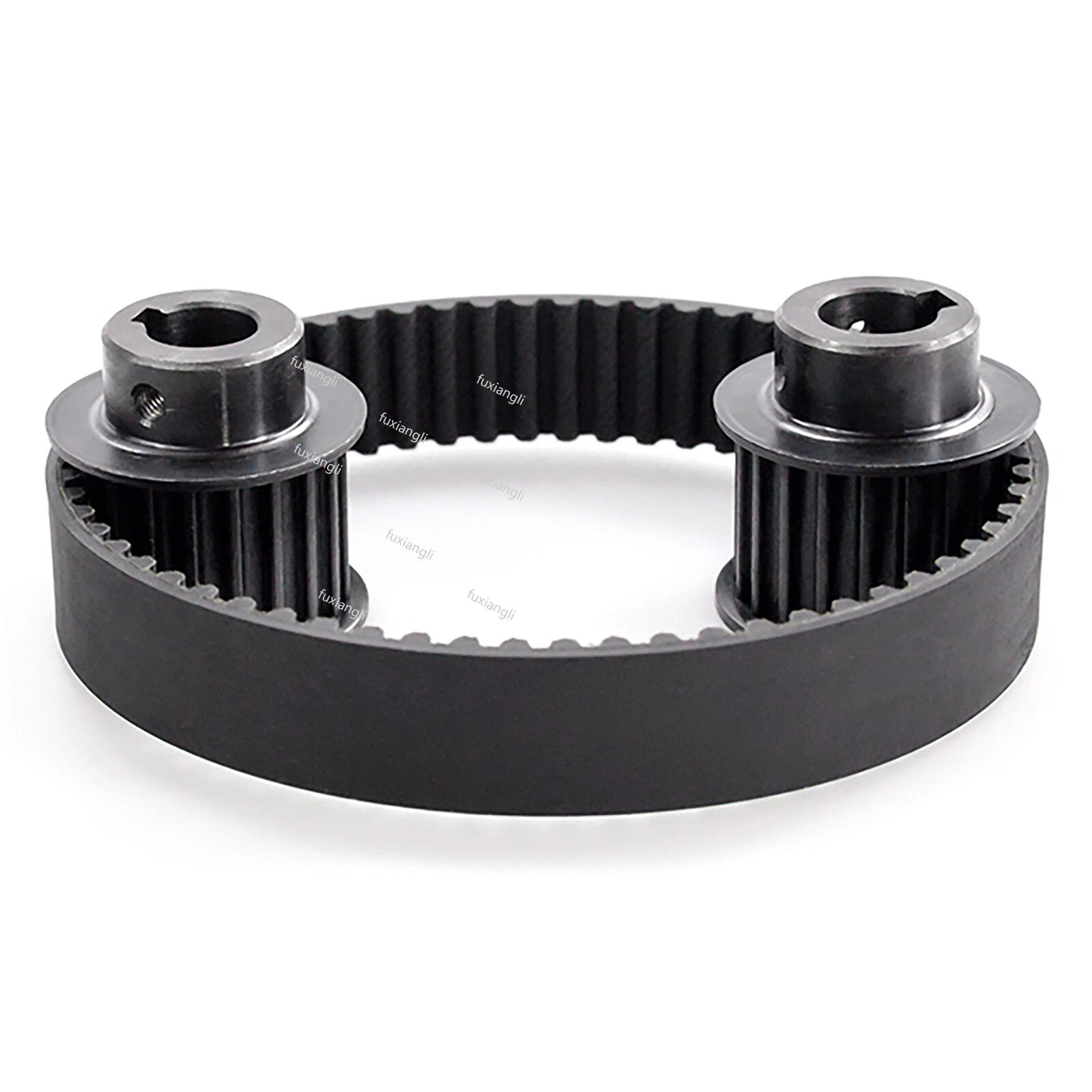

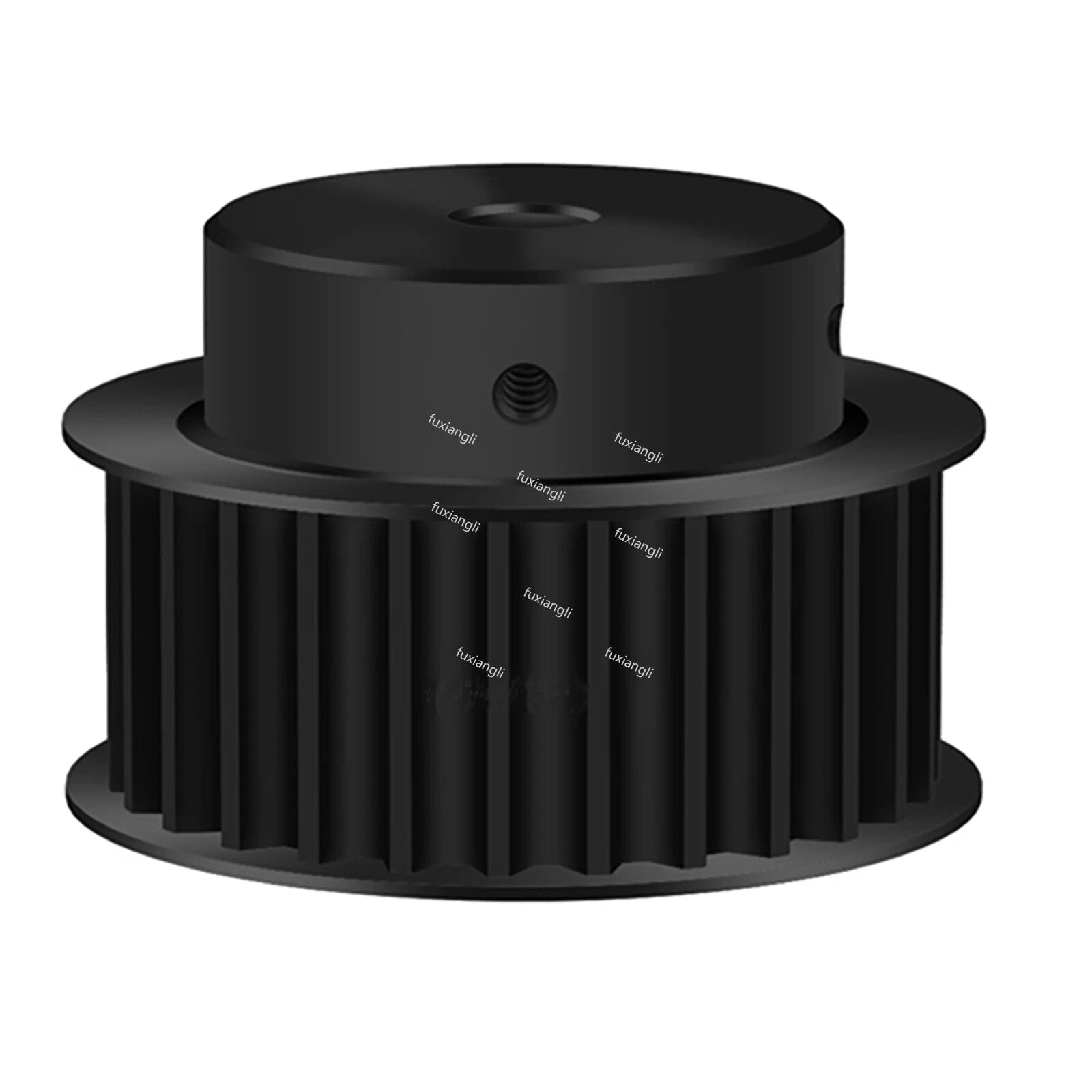

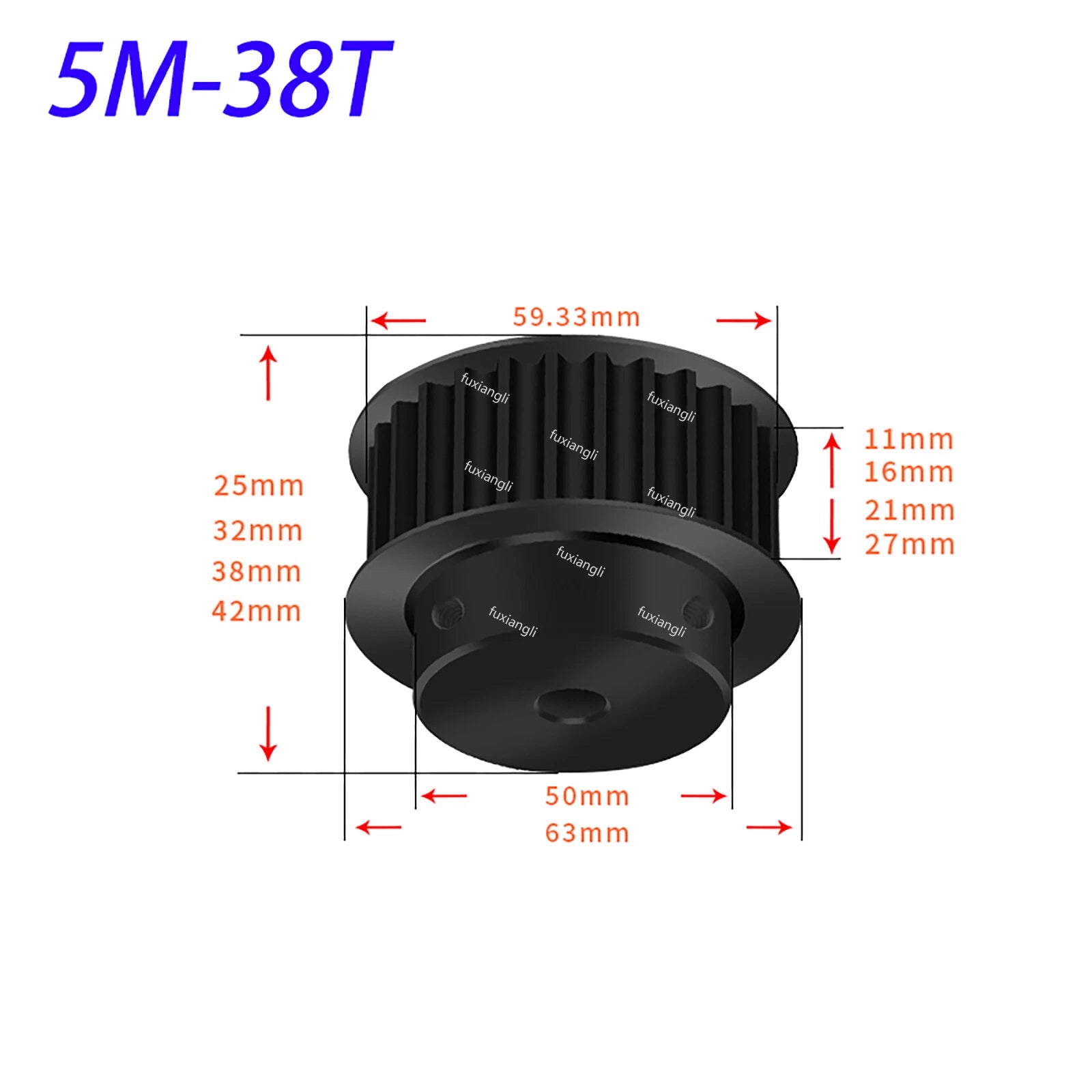

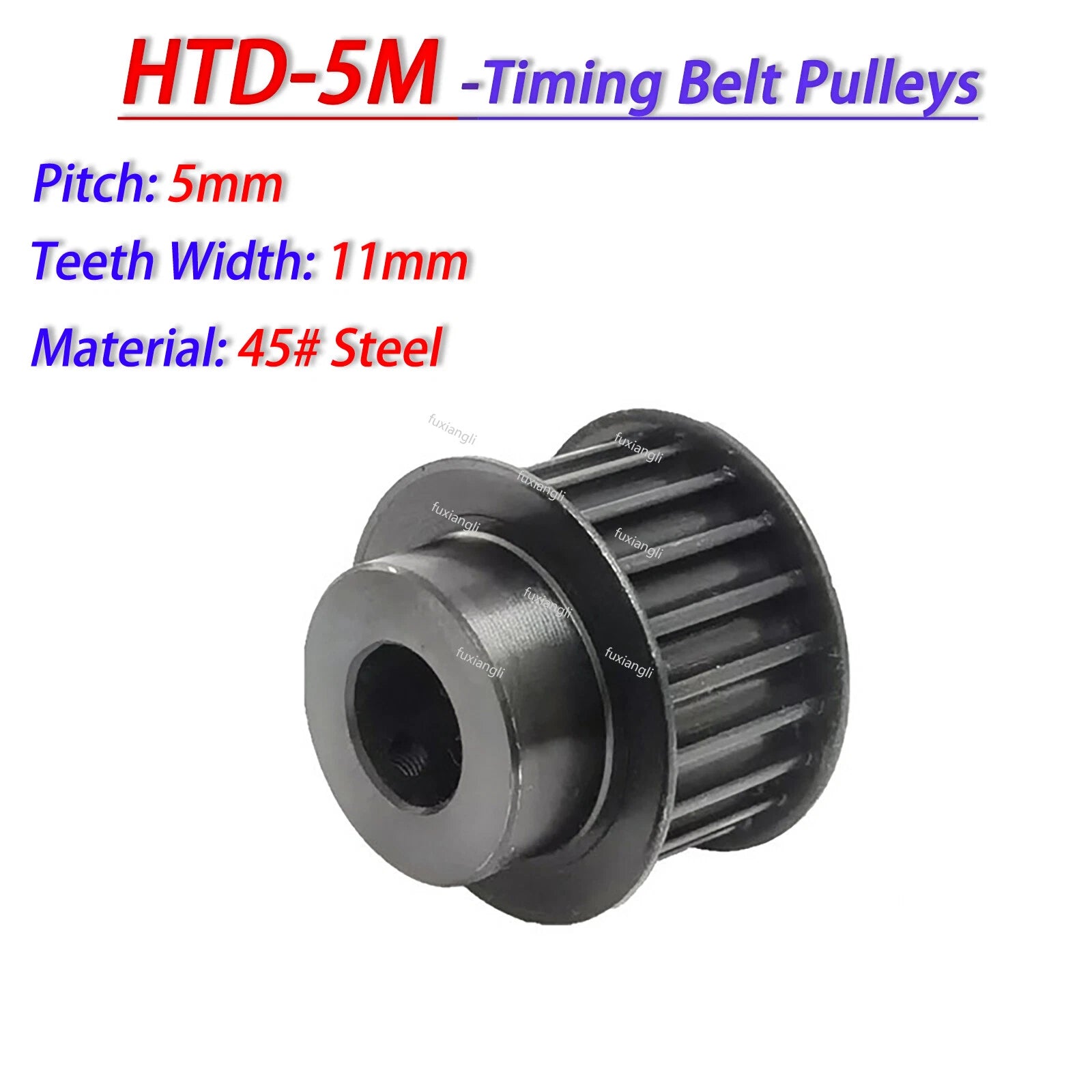

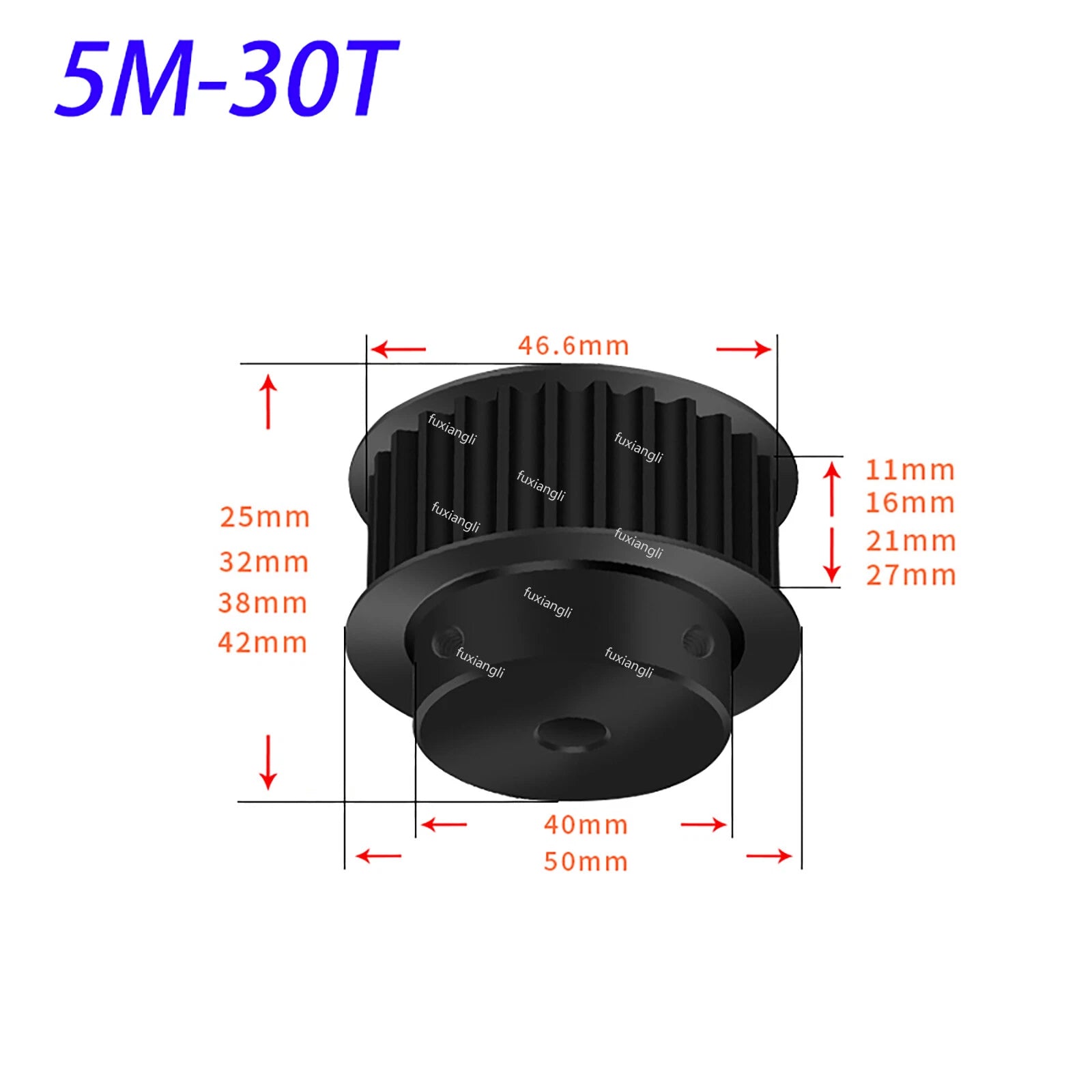

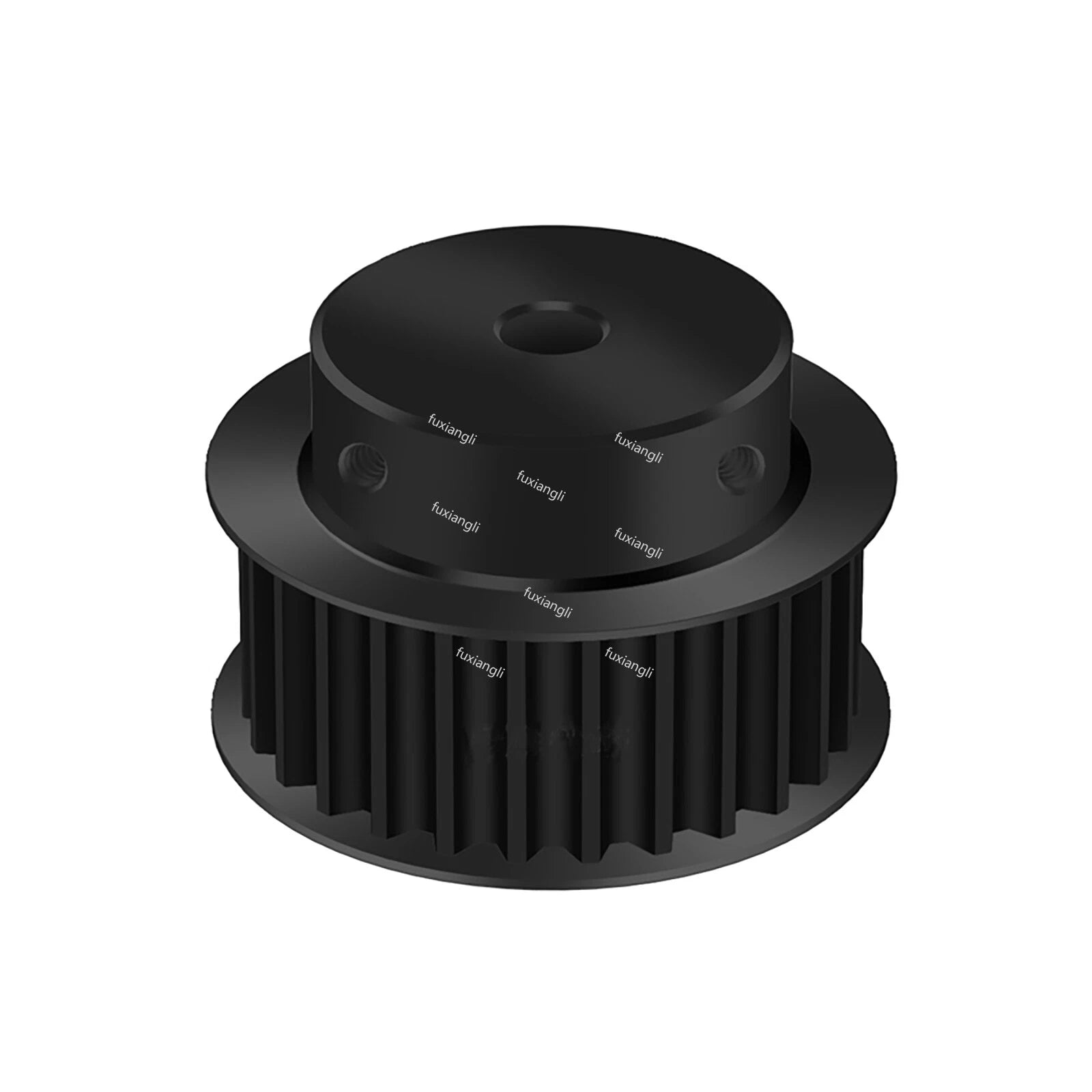

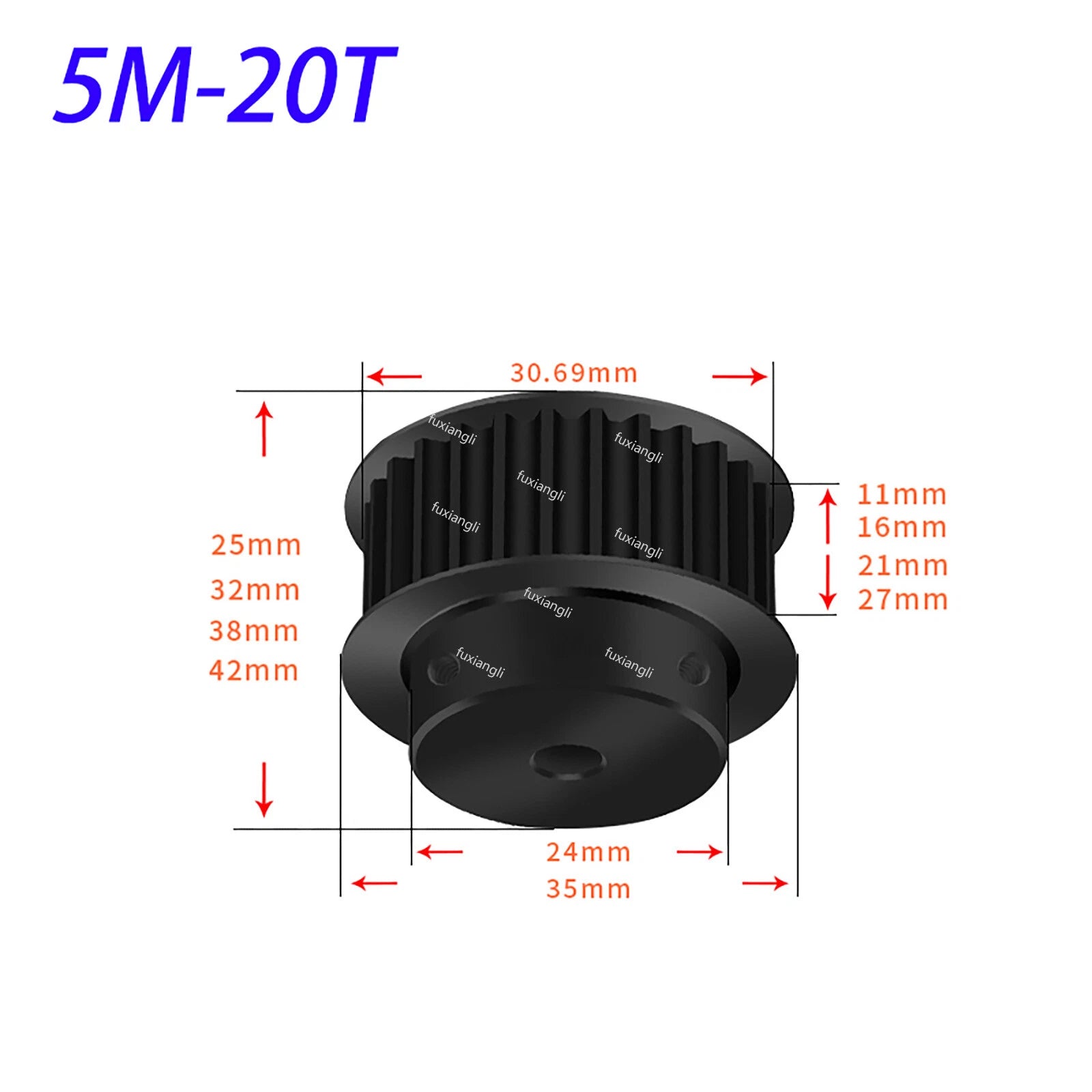

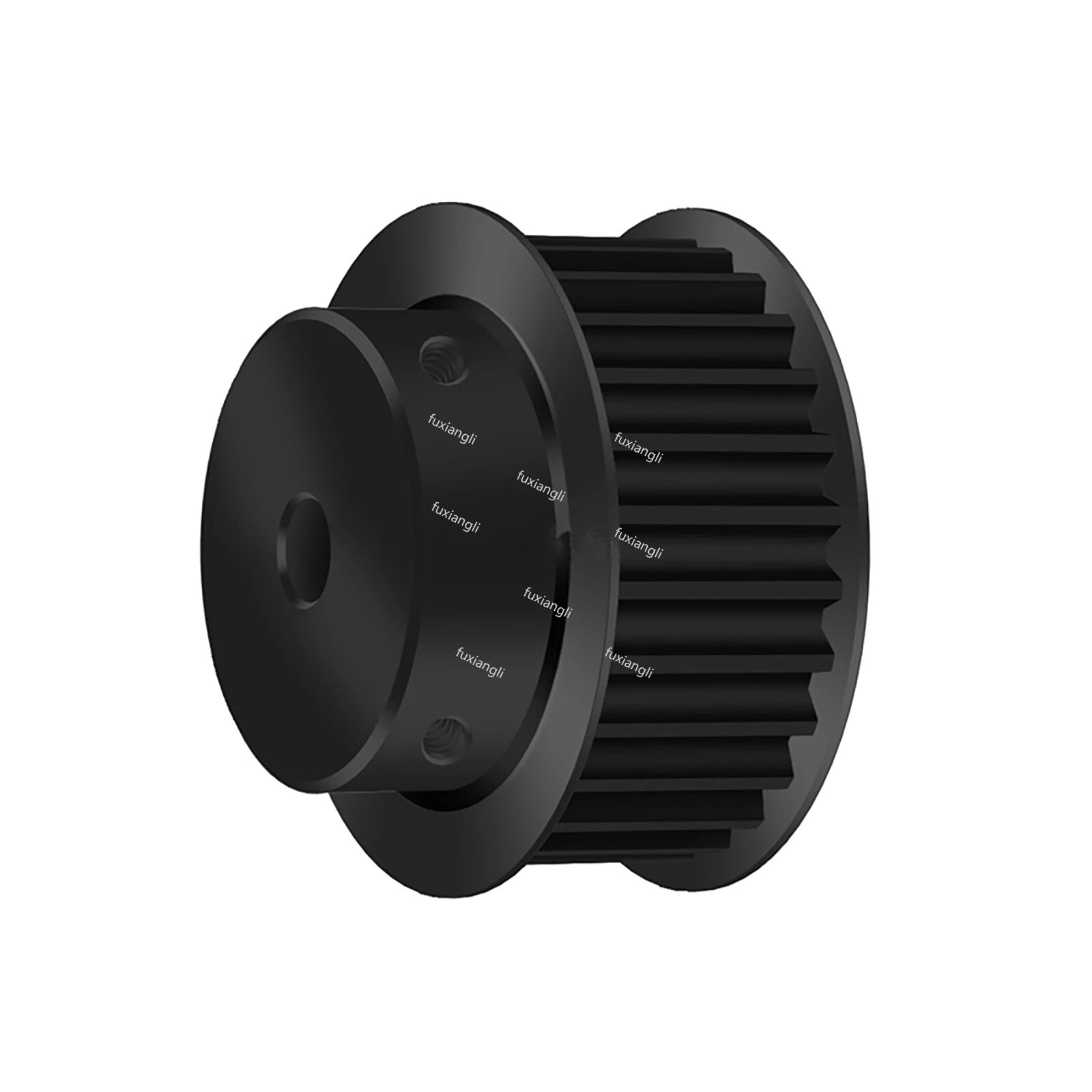

Each pulley is machined from 45# carbon steel and features the BF-type hub configuration, which includes both a keyway and a set screw for secure shaft mounting. The HTD-5M profile uses a 5mm pitch with a rounded tooth form that distributes belt load evenly, reducing tooth wear and extending belt life. Teeth width is 11mm, and bore sizes range from 5mm to 30mm (approximately 0.20" to 1.18"), with tooth counts spanning 14T to 60T to suit a broad range of gear ratios and shaft speeds.
These pulleys are well-suited for CNC machine drives and axis motion systems, 3D printer extruder and motion platforms, conveyor and indexing table drives, and robotics joint and actuator assemblies requiring precise angular positioning.
| Belt Profile | HTD-5M (Rounded tooth) |
|---|---|
| Pitch | 5mm (0.197") |
| Teeth Width | 11mm (0.43") |

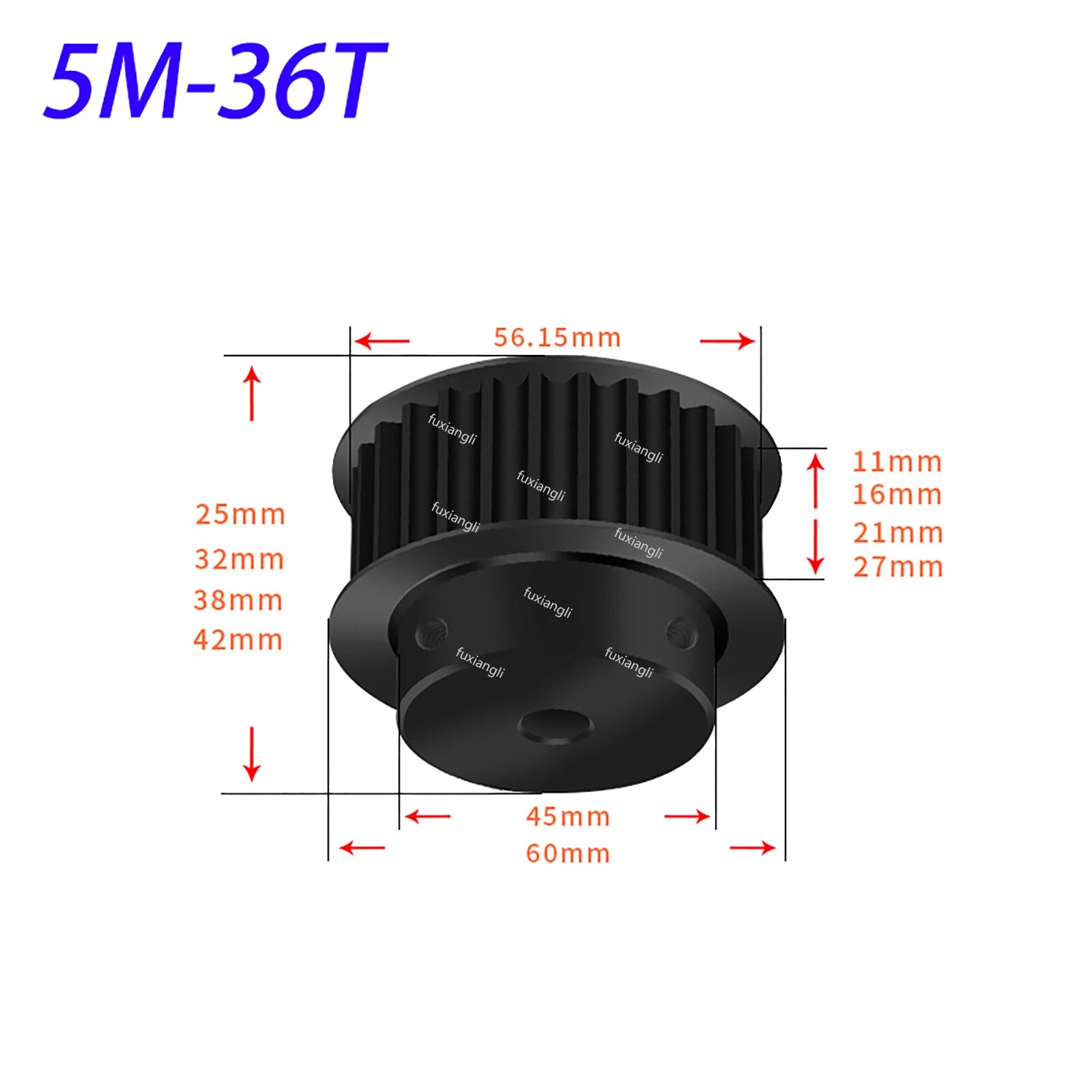

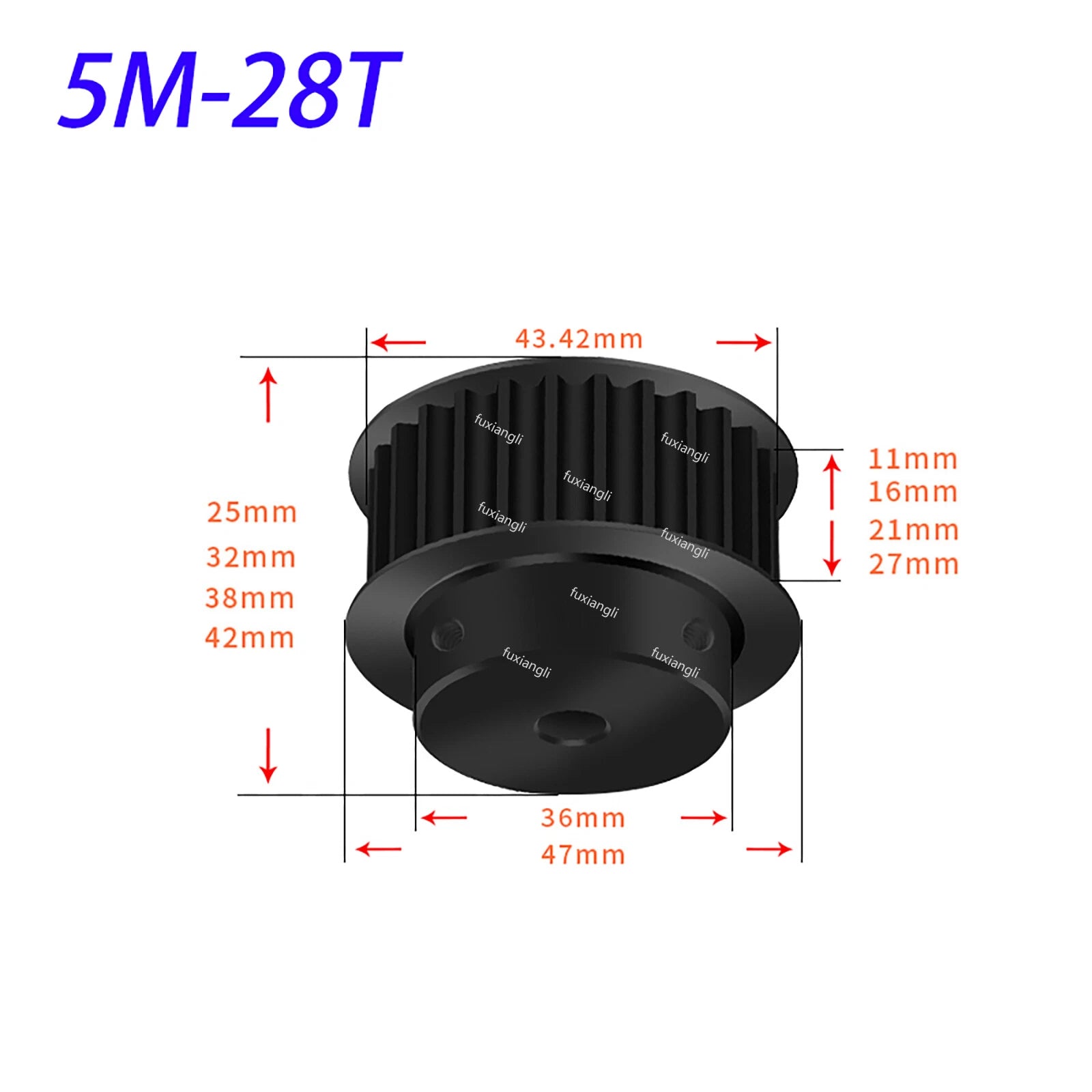

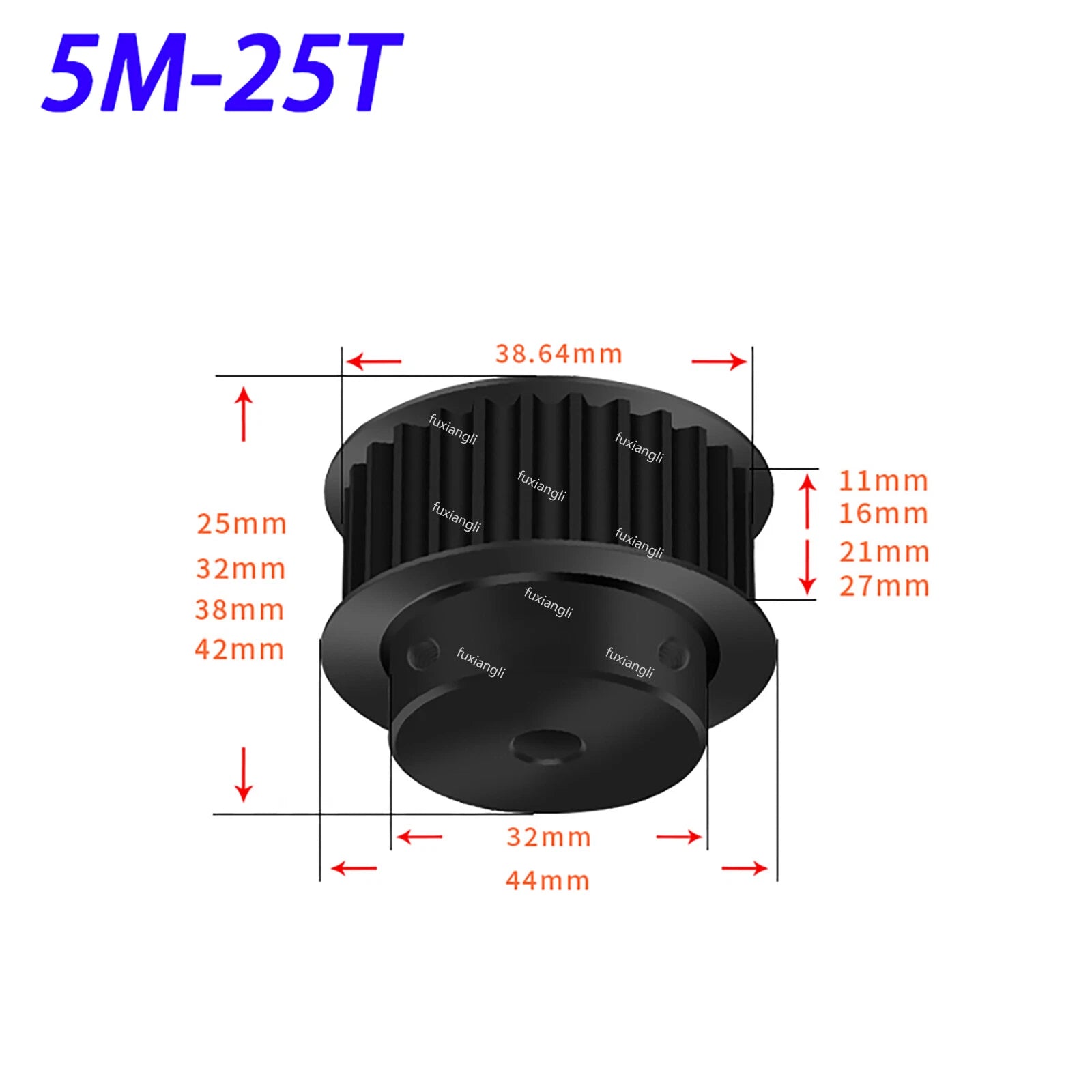

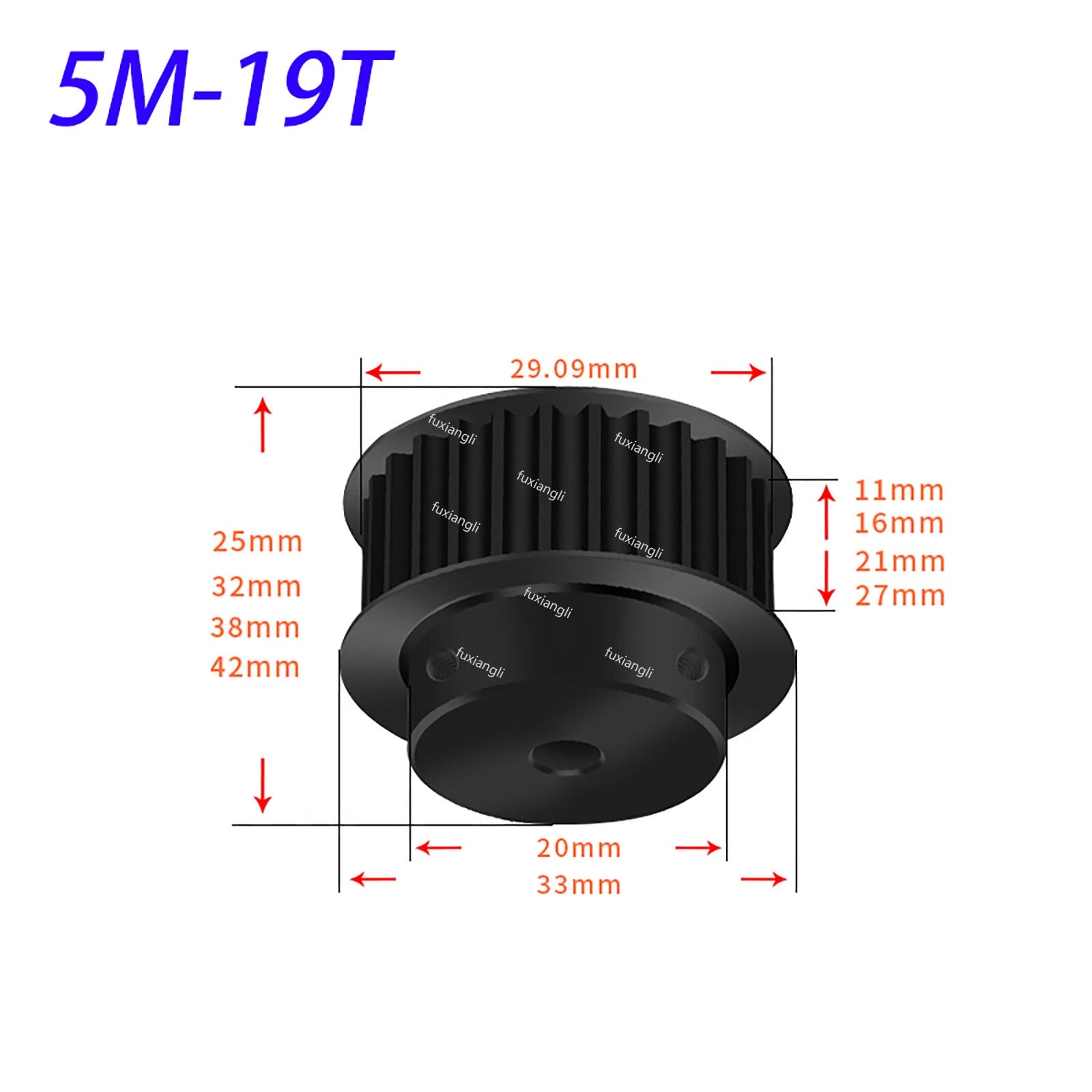

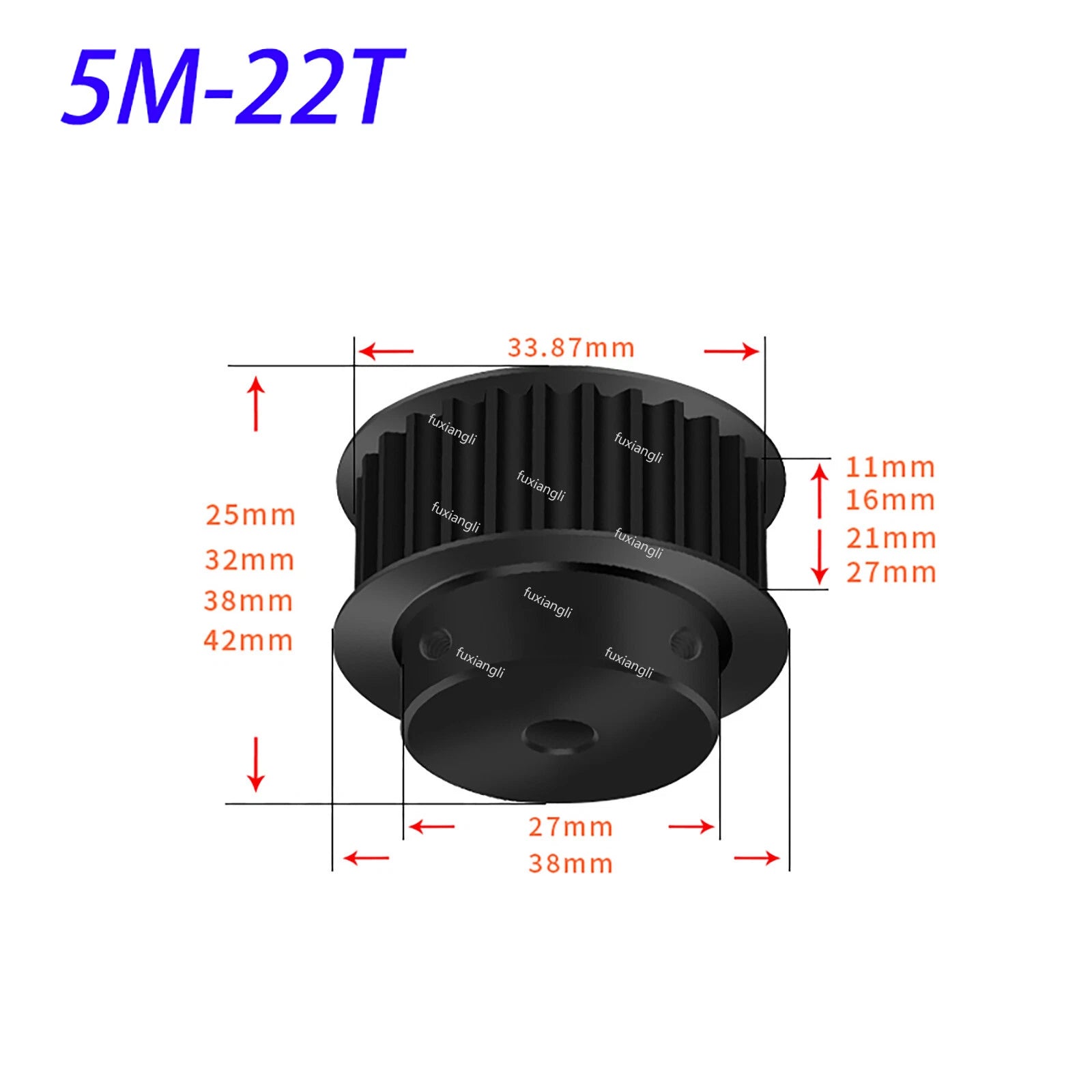

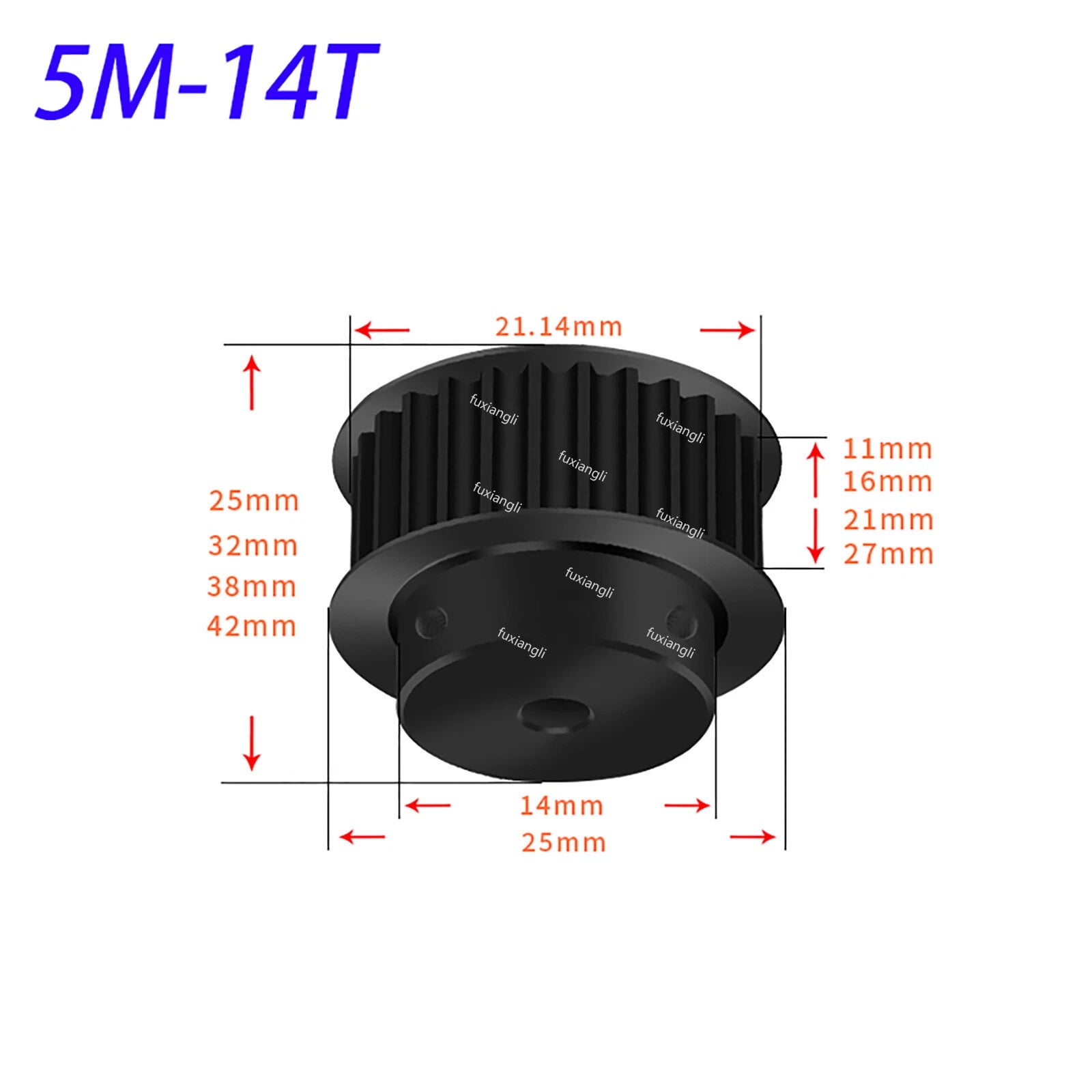

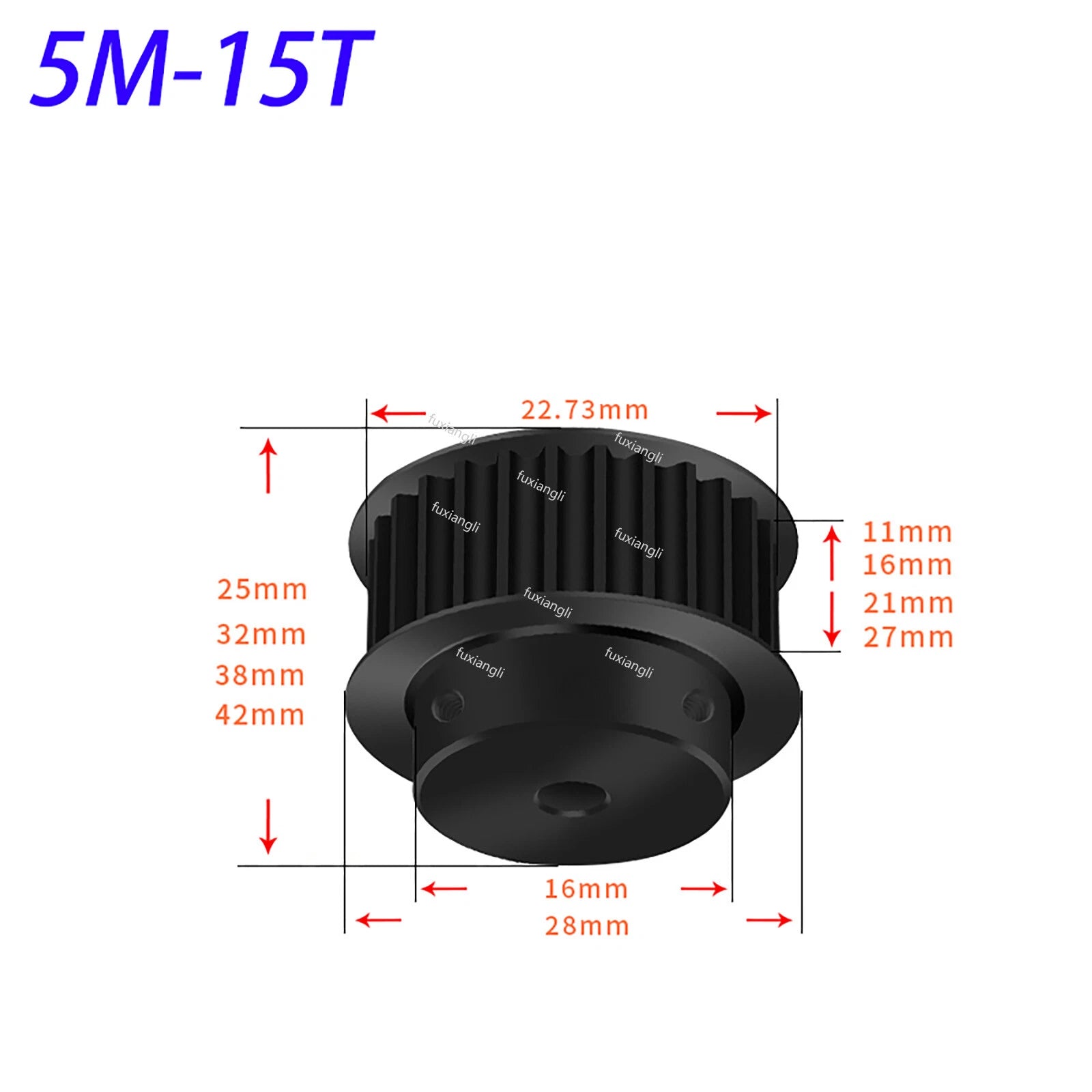

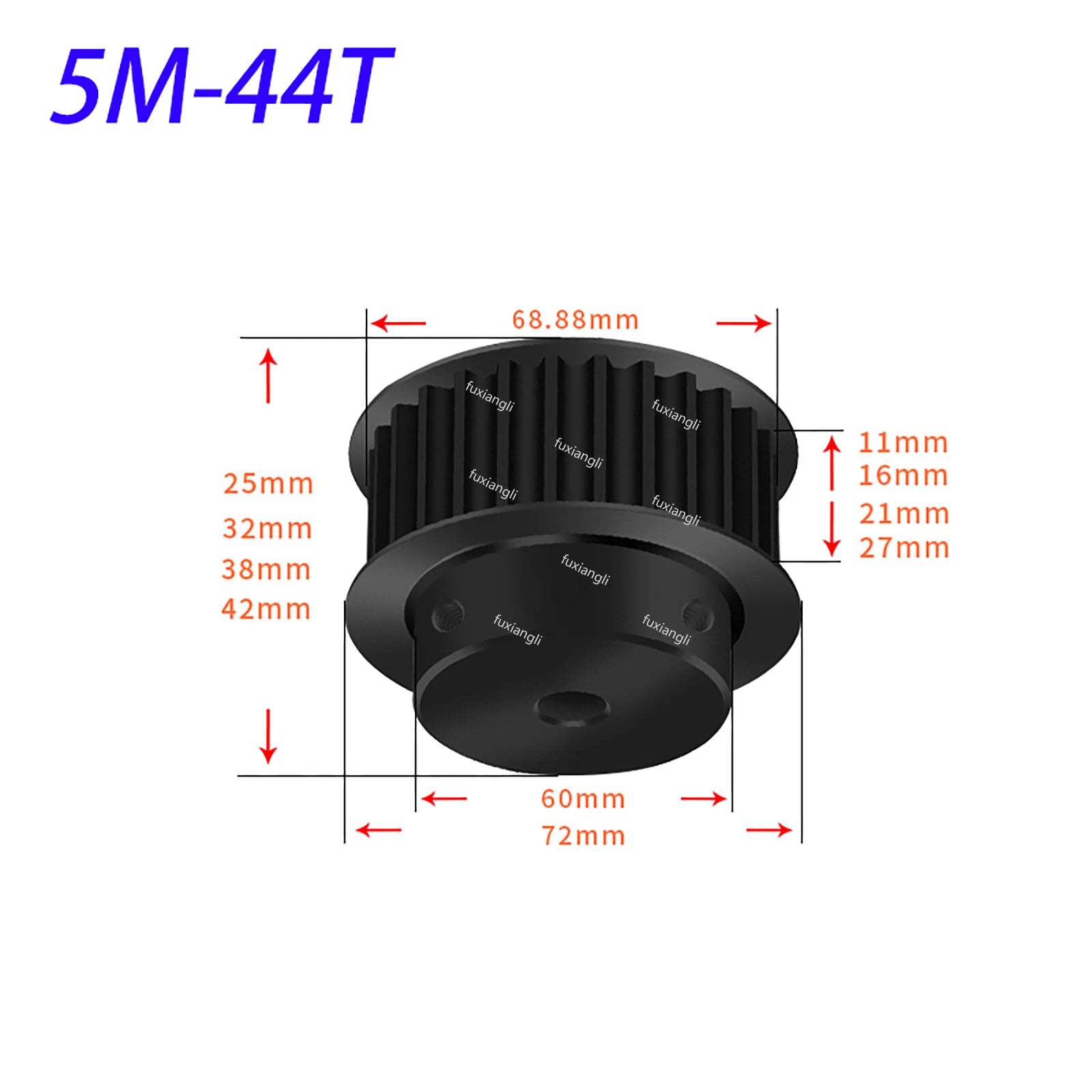

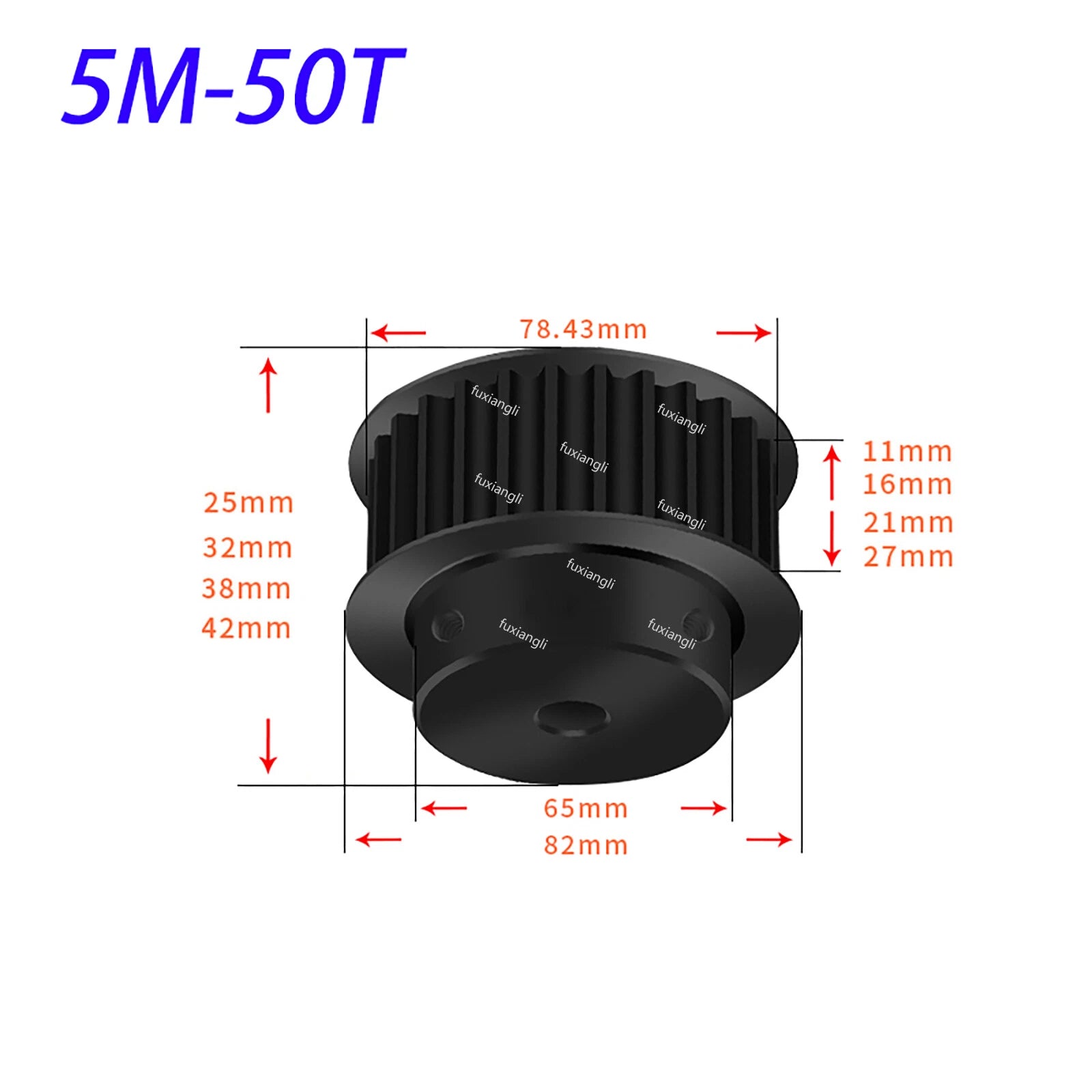

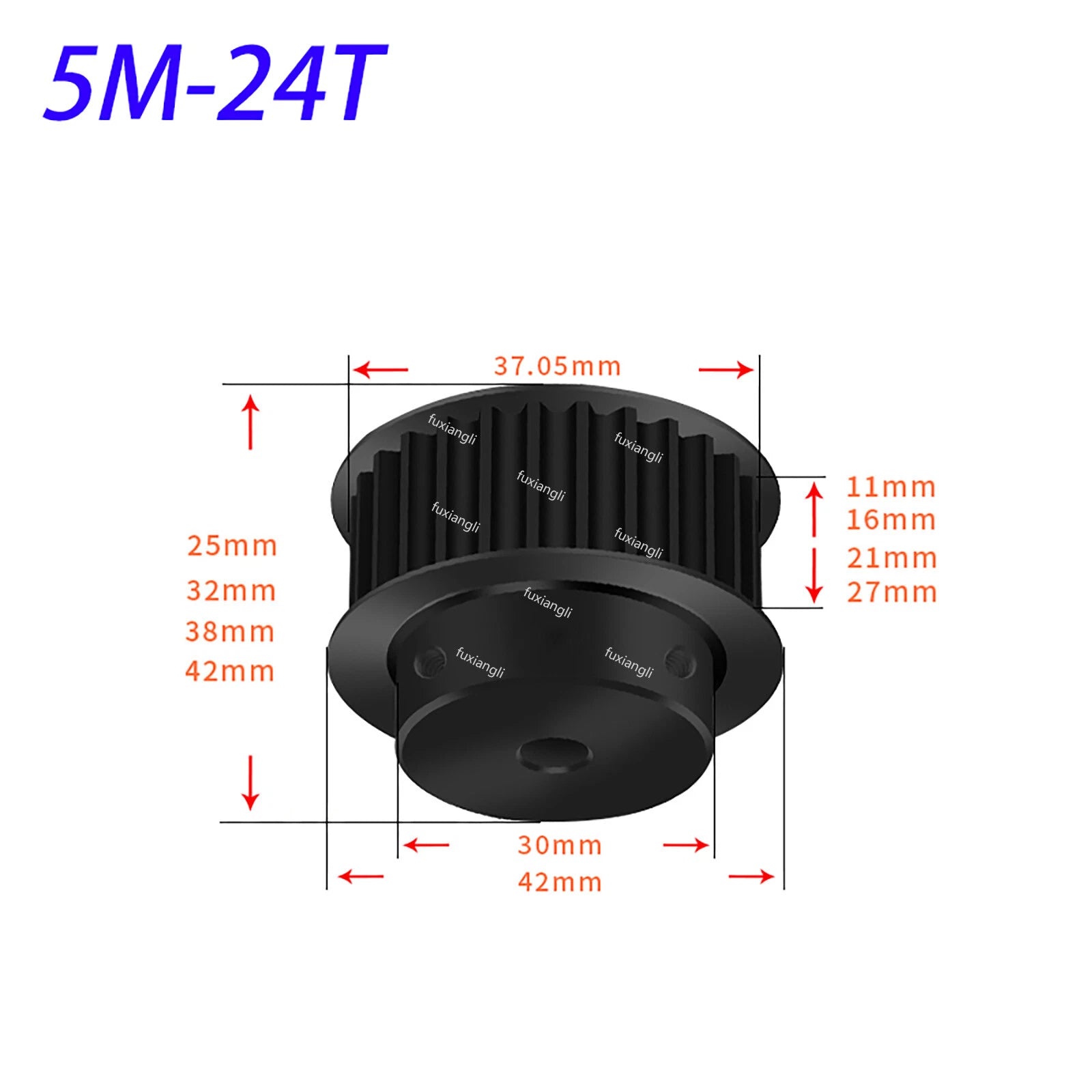

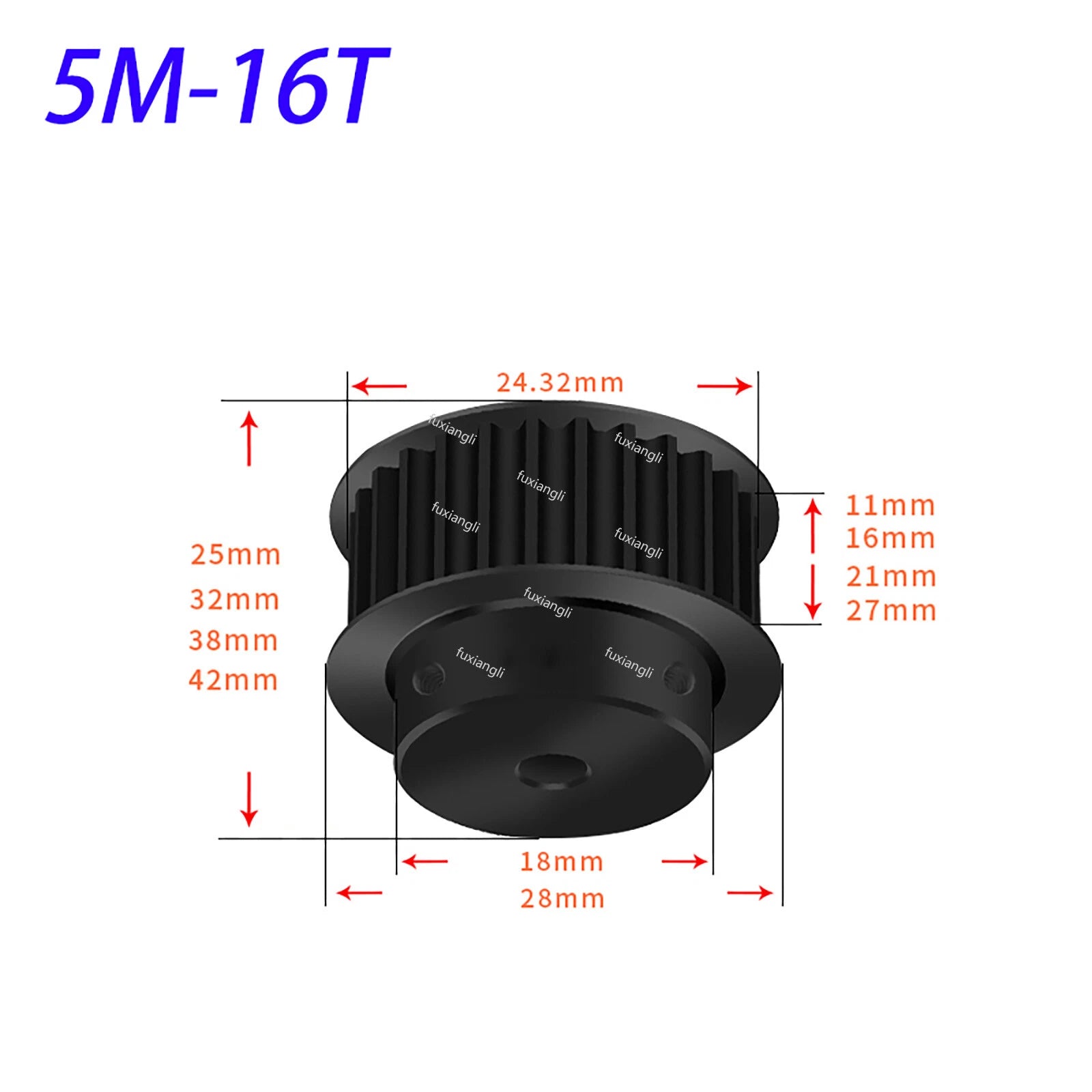

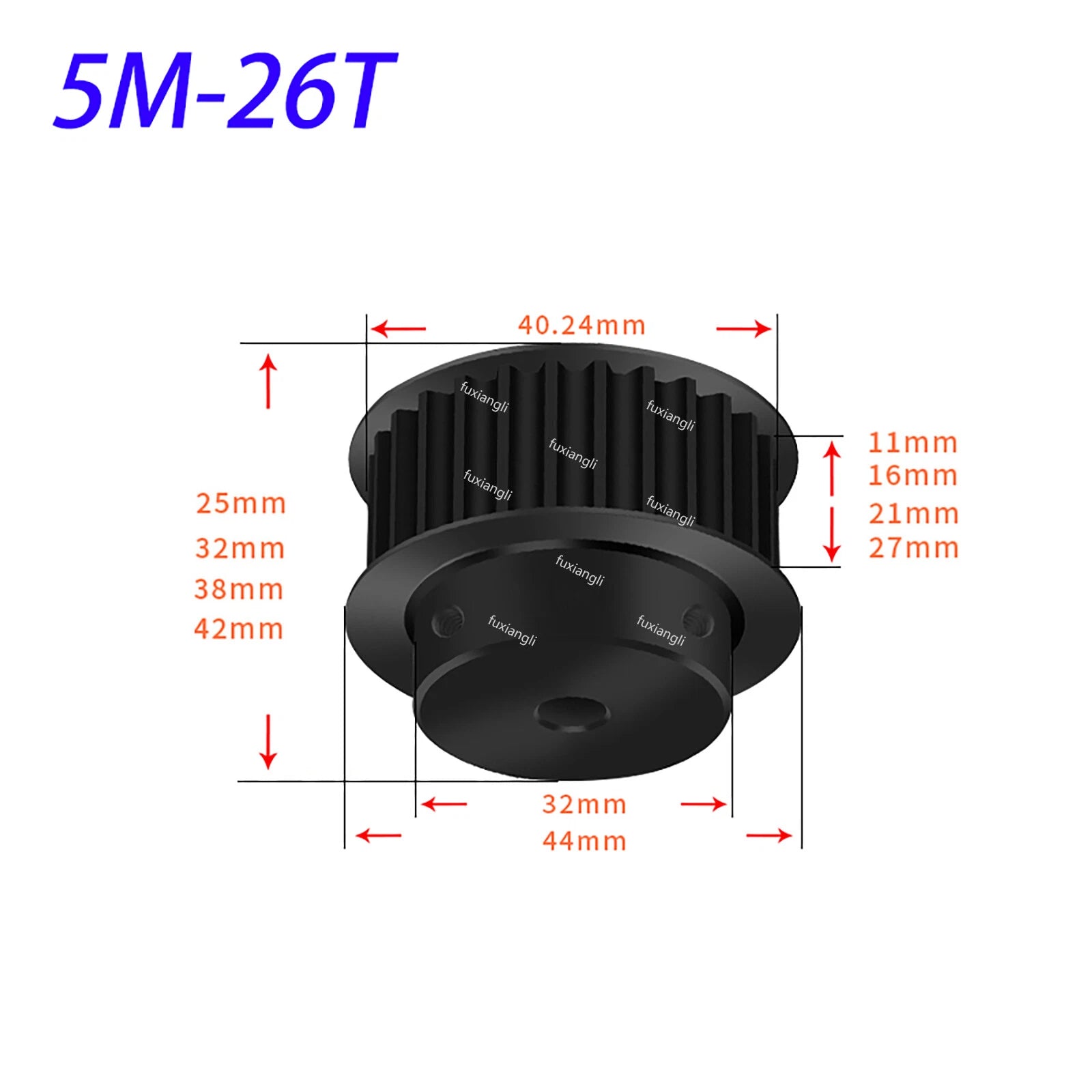

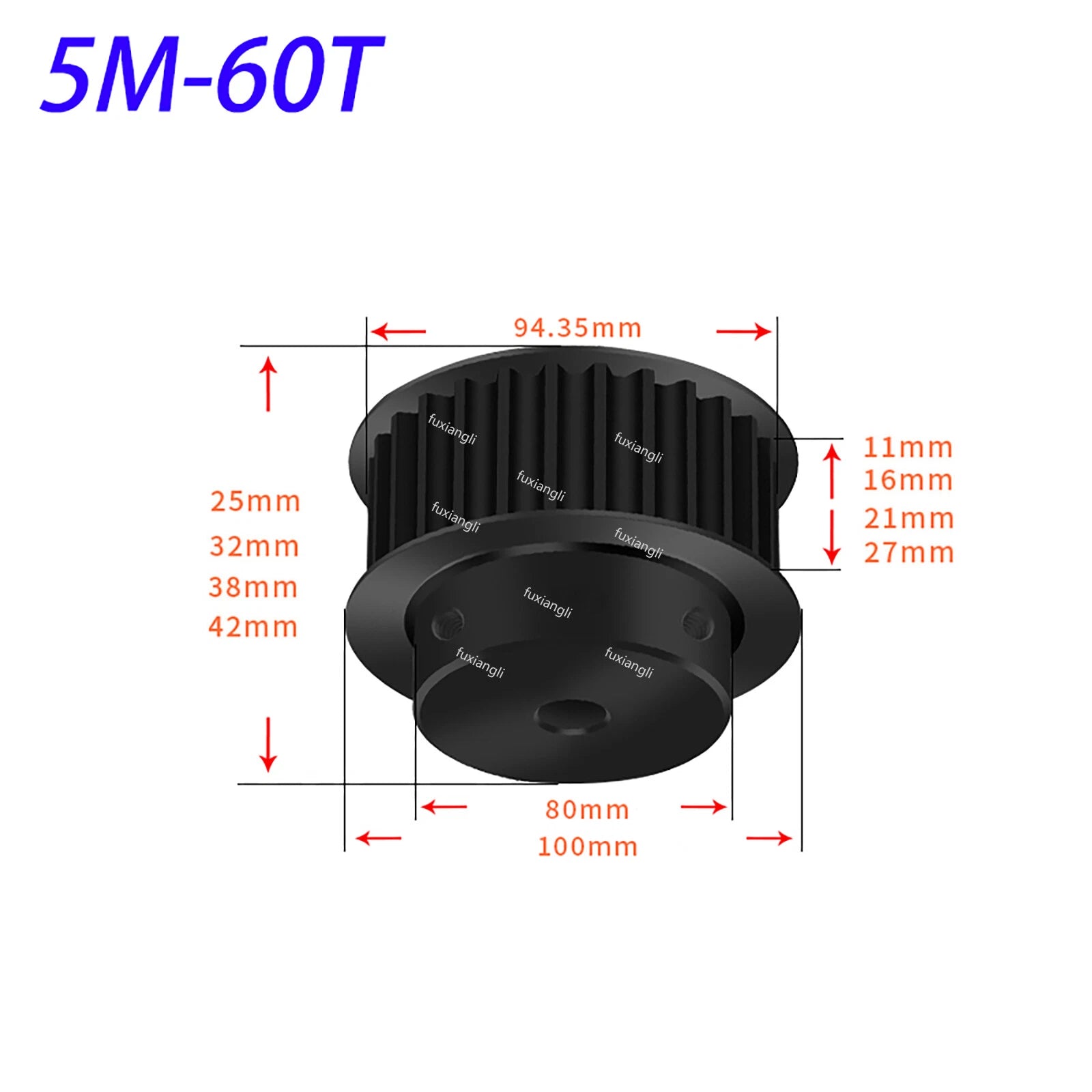

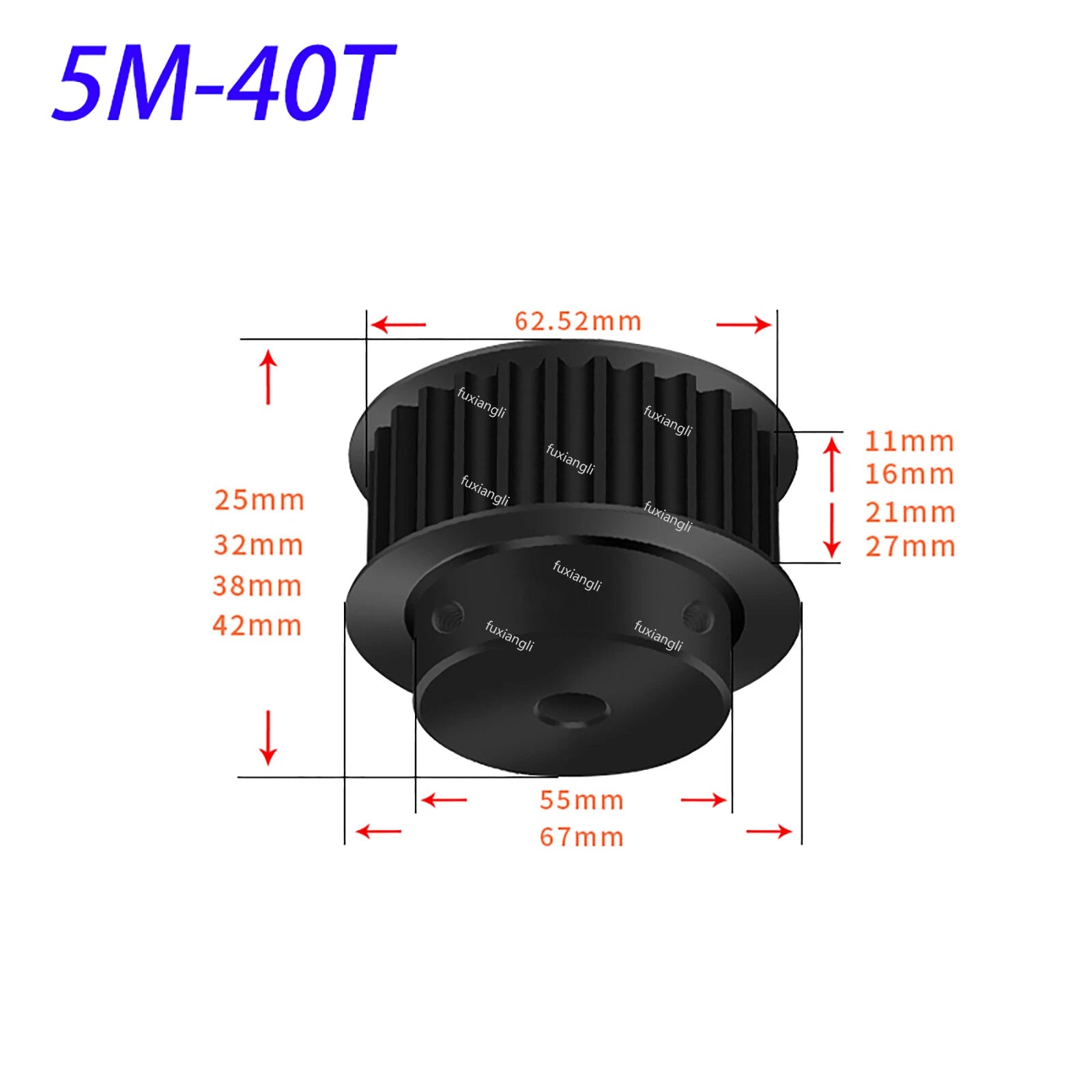

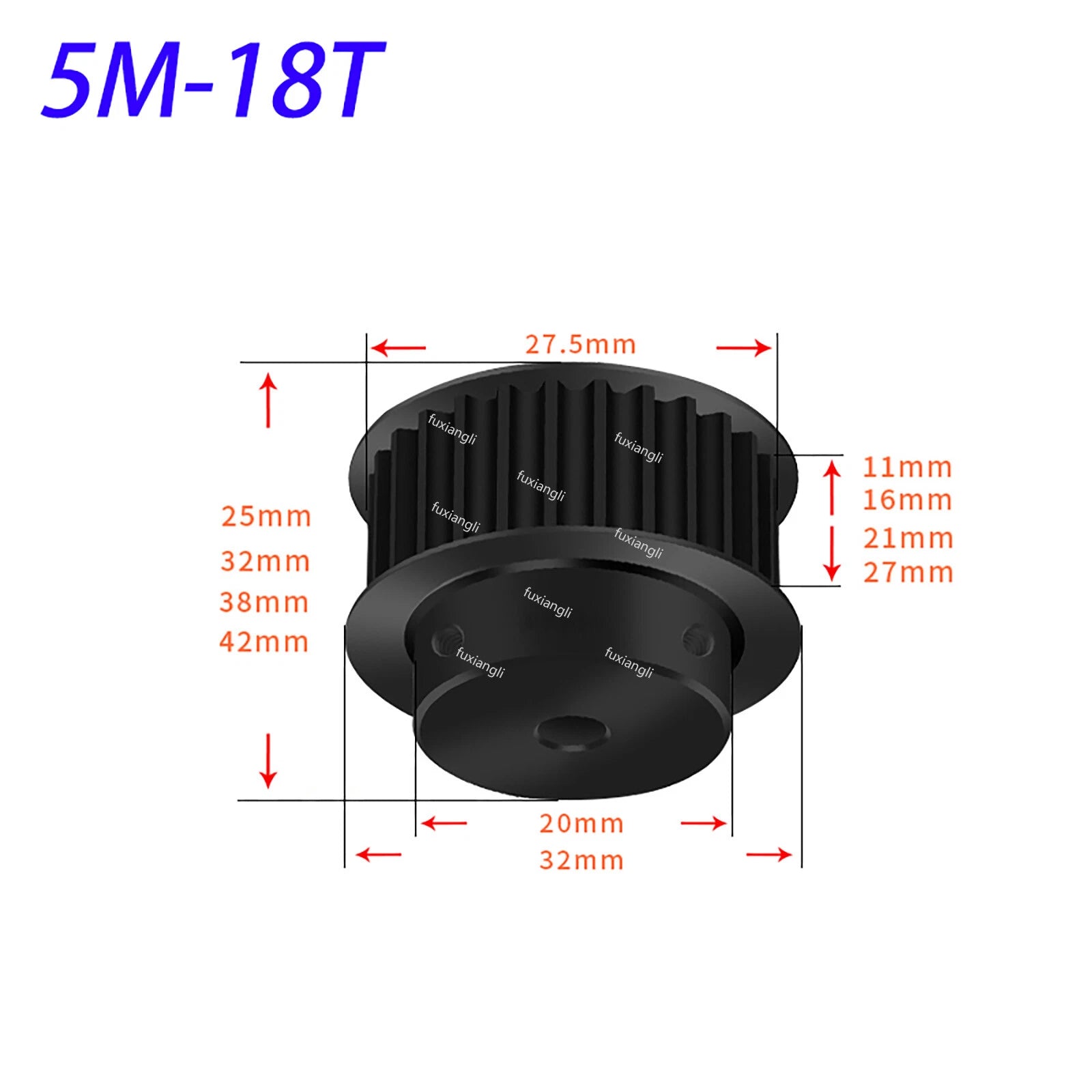

| Number of Teeth | 14T – 60T (see variant options) |
| Bore Diameter | 5mm – 30mm (see variant options) |
| Hub Type | BF-type (Keyway + Set Screw) |
| Material | 45# Carbon Steel |
| Surface Finish | See variant options |
| Flange | Flanged (both sides, typical for BF-type) |
| Quantity per Order | 1 piece |
The number of teeth determines your gear ratio and belt speed. Divide the driven pulley tooth count by the drive pulley tooth count to get the reduction ratio. For example, a 20T drive pulley paired with a 40T driven pulley gives a 2:1 reduction. Match your tooth counts to your required output RPM and torque. If you are replacing an existing pulley, match the tooth count exactly to maintain your current drive ratio.
Select the bore size that matches your motor or drive shaft diameter. Common motor shaft sizes include 5mm, 6mm, 8mm, 10mm, 12mm, and 14mm. Measure your shaft with a caliper before ordering. The BF-type hub includes a set screw, so a slight clearance fit (H7 tolerance) is typical — the set screw and keyway handle the retention.

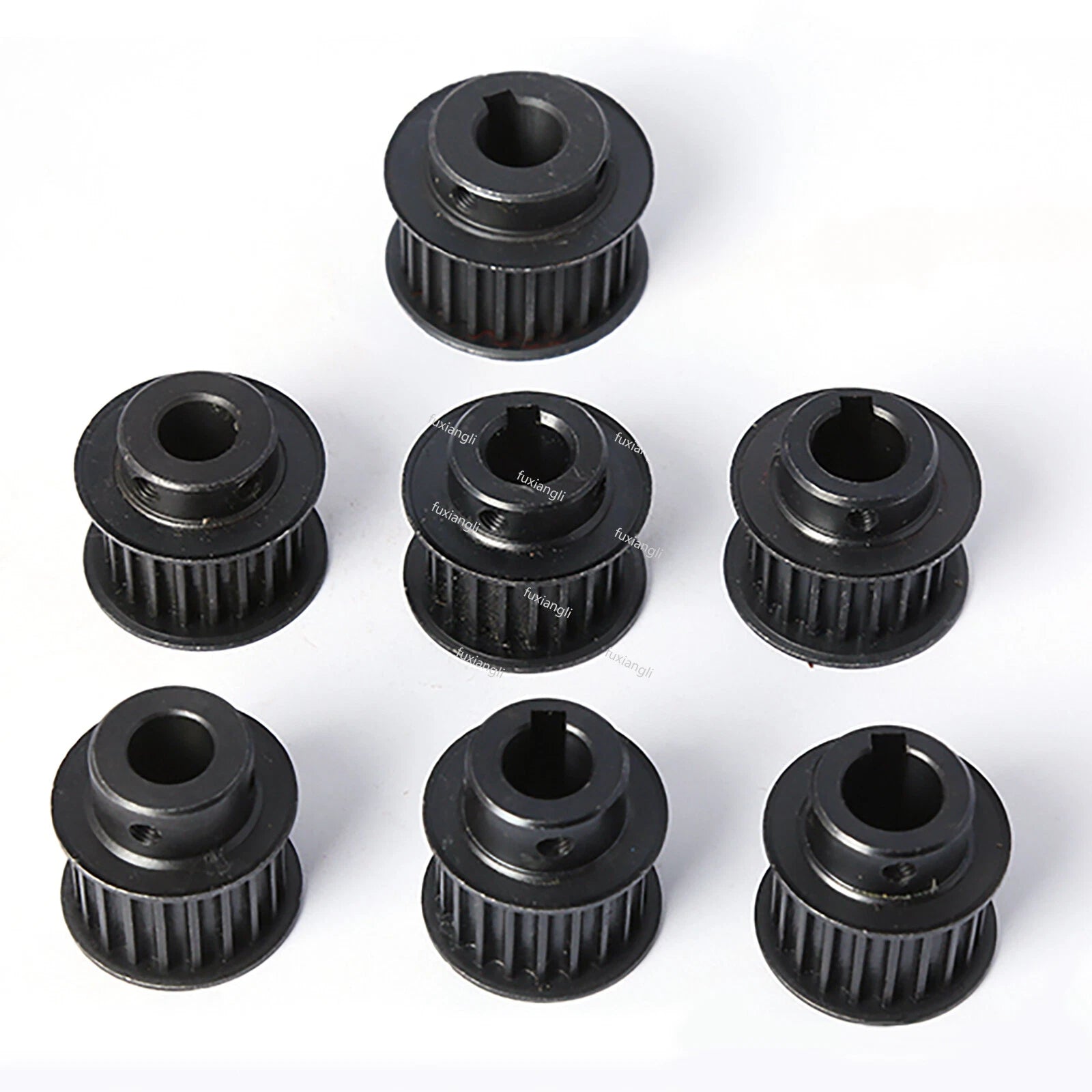

BF-type refers to a hub configuration that includes both a keyway slot and a set screw hole. The keyway transmits rotational torque from the shaft to the pulley, while the set screw locks the pulley axially to prevent it from sliding along the shaft. This dual-retention design is more secure than a set-screw-only (Type A) hub, making it suitable for higher-torque and higher-speed applications.
Yes. These pulleys are designed for use with HTD-5M timing belts, which have a 5mm pitch and a rounded (curvilinear) tooth profile. They are not compatible with T5 or GT2 belts, which use different tooth profiles. Always verify that your belt pitch and tooth profile match the pulley before assembly.
45# carbon steel (equivalent to AISI 1045) is a medium-carbon steel with a tensile strength of approximately 600–800 MPa in its normalized state. It offers a good balance of machinability, wear resistance, and structural strength for timing pulley applications. It is suitable for most industrial and maker-grade drive systems. For very high-speed or corrosive environments, consider whether a surface treatment or alternative material is needed for your specific use case.
45# carbon steel is susceptible to surface oxidation if exposed to moisture without a protective coating. For indoor, dry environments typical of CNC machines, 3D printers, and robotics, corrosion is generally not a concern during normal service life. If your application involves humidity, coolant exposure, or outdoor use, consider applying a light machine oil or selecting a stainless steel alternative for critical components.
Yes. HTD-5M pulleys are widely used in CNC routers, laser cutters, and larger-format 3D printers where higher torque capacity is needed compared to GT2 systems. Verify that your existing belt is HTD-5M profile and that the bore matches your stepper motor shaft (commonly 5mm or 6.35mm for NEMA 17/23 motors). The 11mm teeth width is compatible with standard 10mm-wide HTD-5M belts with slight overhang, or use with 15mm belts for full engagement.
