HTD 5M Rubber Timing Belt — Reliable Closed-Loop Drive for Precision Motion Systems

When a slipping or mismatched drive belt causes positioning errors in your CNC router, 3D printer, or conveyor system, the entire project stalls. Engineers, makers, and repair technicians who need a dependable synchronous drive solution will find this HTD 5M closed-loop timing belt a straightforward drop-in replacement or upgrade for standard HTD 5M pulley systems.

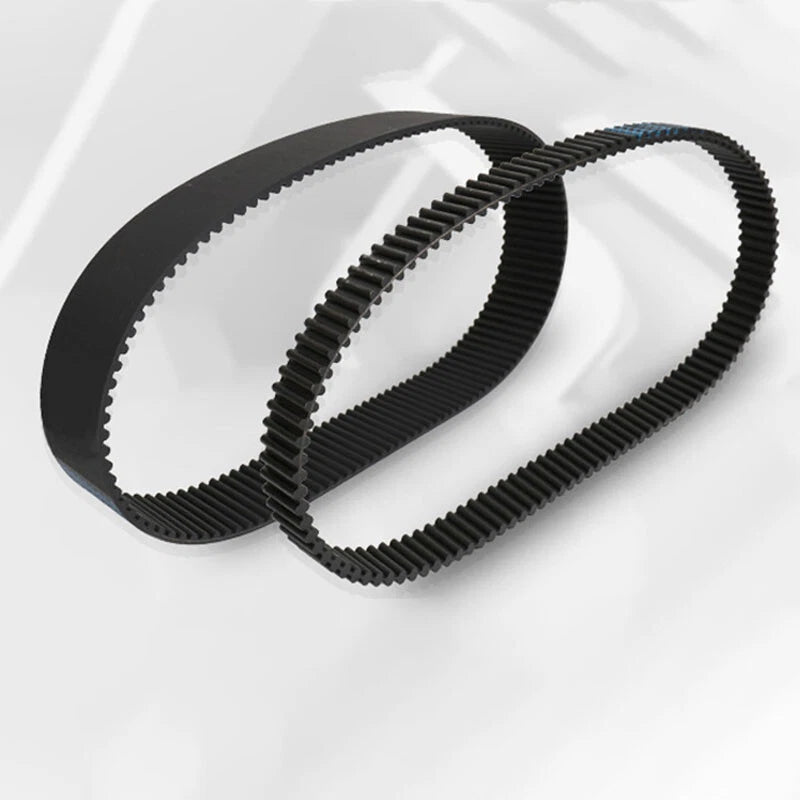

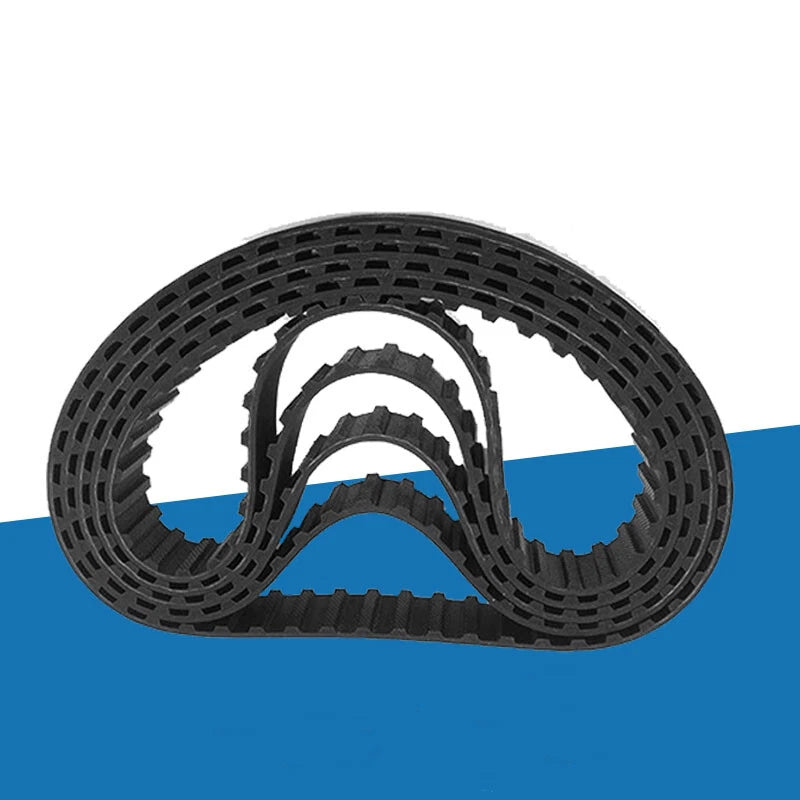

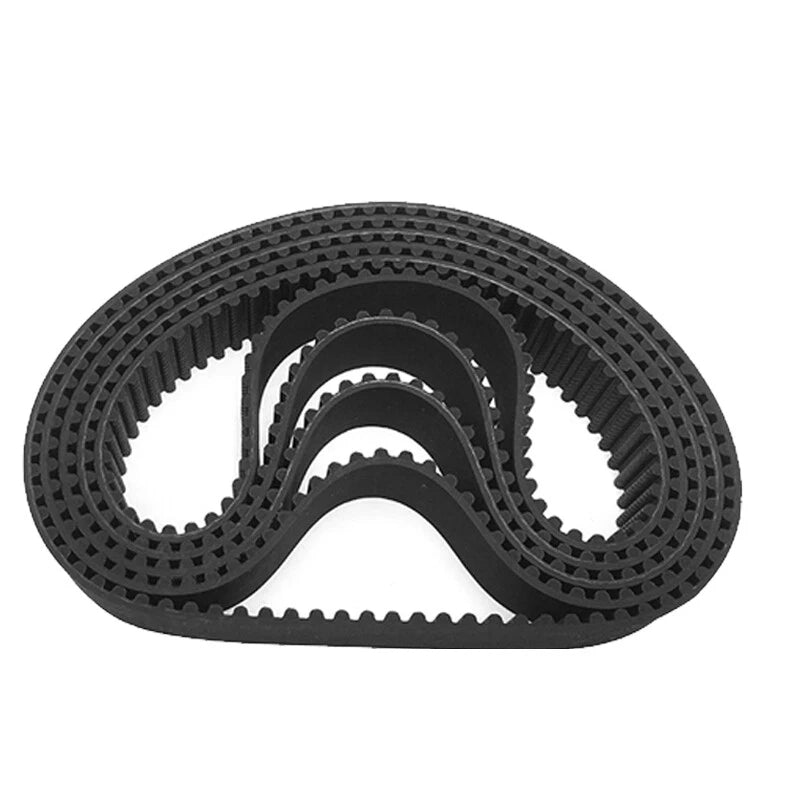

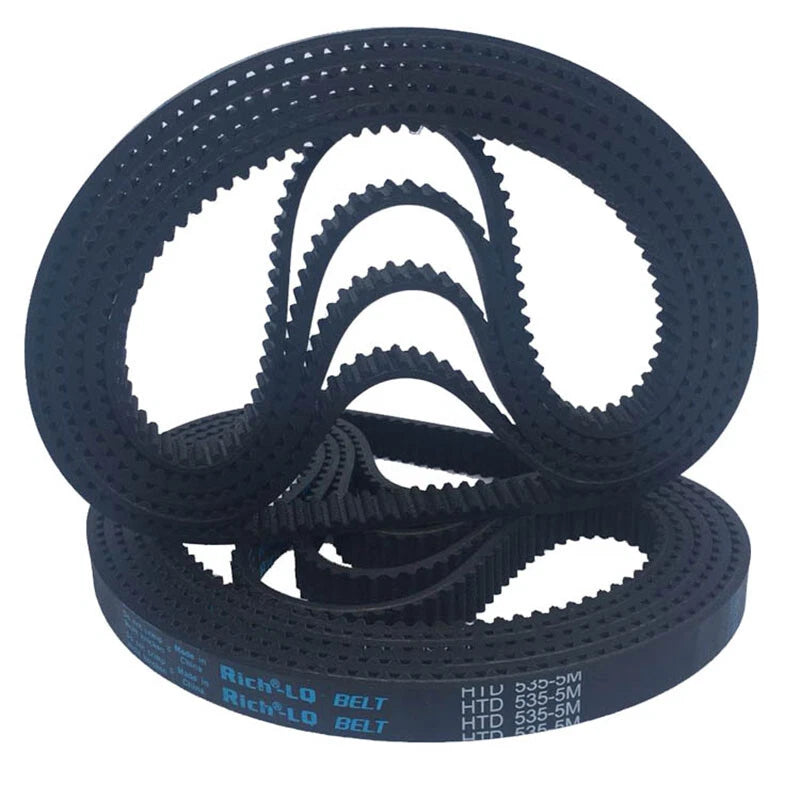

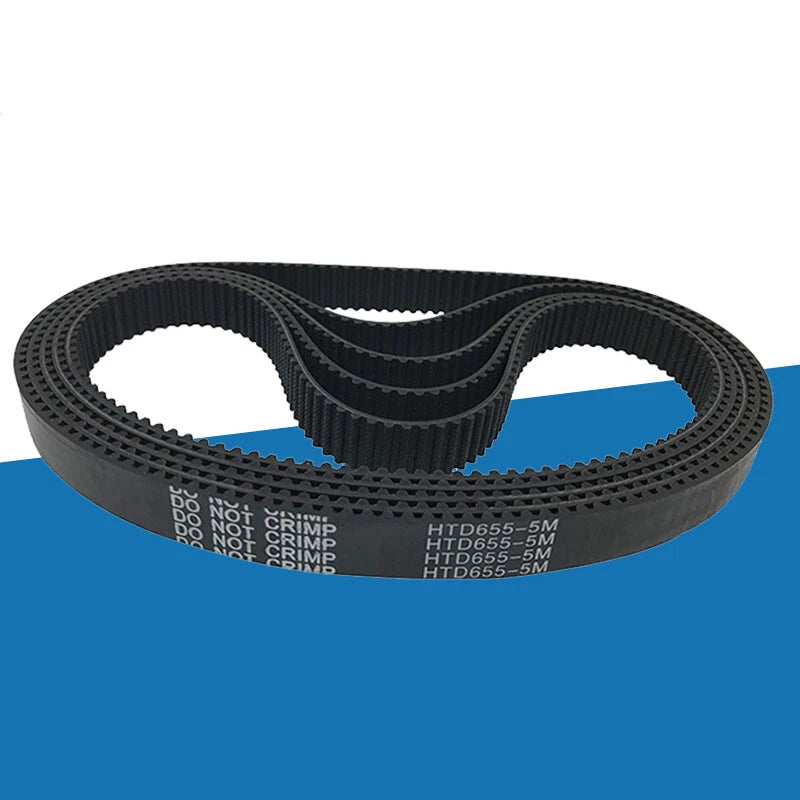

Each belt is a single closed-loop rubber timing belt with a curved HTD tooth profile and a 5.00mm pitch. The belt is 15mm (≈0.59") wide and is available in lengths from 180mm (≈7.1") to 550mm (≈21.7"), sold individually (1 piece per order). The rubber construction incorporates a tensile cord layer that helps maintain consistent belt length under load.

Typical use cases include replacement drive belts for desktop CNC machines and laser engravers, axis drive belts for larger-format 3D printers such as CoreXY and bed-slinger designs, and light-duty conveyor or indexing table drives where a synchronous HTD 5M closed-loop timing belt is specified.

🔗 Compatibility: Fits all standard HTD 5M pulleys (5.00mm pitch, curved tooth). Width: 15mm. Not compatible with trapezoidal (MXL, XL, L), GT2, or GT3 profiles. Confirm your pulley pitch and width before ordering.
⚠️ Size note: Belt length = outer circumference of the closed loop. Measure your drive path (center-to-center distance between pulleys) and calculate the required belt circumference before selecting a variant. See FAQ below for the calculation method.

✅ Key Features of These HTD 5M Closed-Loop Rubber Timing Belts

  • ⚙️HTD Curved Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth stress and generally allowing quieter operation in synchronous drive applications.
  • 📏Wide Length Selection — Available in lengths from 180mm (≈7.1") to 550mm (≈21.7") in 5mm increments, covering a broad range of center-to-center distances for CNC, 3D printer, and conveyor drive belt replacements.
  • 🔄Closed-Loop (Endless) Construction — Seamless loop design eliminates the weak point of a mechanical joint, providing consistent tension and synchronous motion throughout the full belt circumference.
  • 🧱Rubber Body with Tensile Cord Reinforcement — The rubber compound provides flexibility and grip on pulley teeth, while the internal tensile cord layer helps resist elongation under normal operating loads.
  • 📐15mm Working Width — A 15mm belt width offers a practical balance between compact drive system packaging and load-carrying capacity, suitable for mid-range HTD 5M timing belt drive applications.
  • 🔁Direct Replacement Fit — Manufactured to the HTD 5M standard (5.00mm pitch), this belt is a direct replacement for any OEM or aftermarket HTD 5M closed-loop drive belt of the same length and width.

📐 Technical Specifications — HTD 5M Rubber Timing Belt

Belt Standard HTD 5M (High Torque Drive)
Tooth Pitch 5.00mm
Tooth Profile Curved (HTD)
Belt Width 15mm (≈0.59")
Belt Length (Circumference) 180mm–550mm (≈7.1"–21.7"); see variant options
Belt Type Closed-loop (endless)
Body Material Rubber
Reinforcement Tensile cord (type: see variant options / contact us to confirm)
Quantity per Order 1 piece
Compatible Pulley Profile HTD 5M only (not GT2, GT3, MXL, XL, L)
Recommended Pulley Width 15mm or wider (flanged recommended)
Operating Temperature See variant options / contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the belt circumference using the standard formula: L = 2C + π(D+d)/2 + (D−d)²/(4C), where C = center distance, D = large pulley pitch diameter, d = small pulley pitch diameter.

Alternatively, wrap a flexible tape measure around both pulleys to approximate the required loop length. Available lengths run from 180mm (≈7.1") to 550mm (≈21.7") in 5mm steps. When in doubt, size up — a slightly longer belt is easier to tension correctly than one that is too short.

What pitch is the HTD 5M belt and what does it mean?

HTD 5M means the belt has a 5.00mm tooth pitch (center-to-center distance between adjacent teeth). The HTD (High Torque Drive) profile features a rounded, curved tooth that distributes load across a larger contact area compared to trapezoidal belts, generally resulting in quieter operation and better torque capacity at moderate speeds.

How much torque or load can this belt handle?

Exact load ratings depend on pulley diameter, operating speed, and the number of teeth in mesh. For a 15mm-wide HTD 5M belt, power capacity is typically in the range of 0.5–3 kW at moderate RPM under ideal conditions. For safety-critical or high-cycle applications, consult the belt manufacturer's published load tables or contact us to confirm suitability for your specific drive.

Can this belt be used outdoors or in wet/oily environments?

Rubber timing belts are generally not recommended for prolonged outdoor UV exposure or continuous immersion in water or petroleum-based oils. For occasional moisture exposure (light splash, high humidity), rubber belts typically perform adequately. For harsh outdoor, chemical, or oil-splash environments, a polyurethane (PU) belt variant is generally more suitable. Contact us to confirm if you have specific environmental requirements.

Will this belt fit my HTD 5M pulleys?

Yes — this belt is manufactured to the HTD 5M standard (5.00mm pitch, curved tooth profile) and is compatible with any HTD 5M pulley rated for 15mm belt width or wider. Ensure your pulleys have flanges or guides to keep a 15mm belt tracking correctly.

Important: The HTD 5M profile is not interchangeable with trapezoidal profiles (MXL, XL, L) or GT2/GT3 profiles, even if the pitch appears similar.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) timing belt — it forms a continuous loop with no seam or mechanical joint. This is the standard configuration for synchronous drive applications such as 3D printers, CNC machines, and conveyor indexing systems. It cannot be cut to a custom length like an open-ended belt roll.

How do I convert the belt length from mm to inches?

Divide the mm value by 25.4 to get inches. Quick reference examples:

  • 180mm ÷ 25.4 ≈ 7.1"
  • 250mm ÷ 25.4 ≈ 9.8"
  • 300mm ÷ 25.4 ≈ 11.8"
  • 400mm ÷ 25.4 ≈ 15.7"
  • 500mm ÷ 25.4 ≈ 19.7"
  • 550mm ÷ 25.4 ≈ 21.7"

All available lengths are listed in mm in the variant selector above.

What applications is this belt suitable for?

HTD 5M timing belts are commonly used in:

  • 3D printers (larger-format CoreXY, bed-slinger, and delta axis drives)
  • CNC routers and laser engravers (axis drive belt replacement)
  • Light-duty conveyor and indexing table drives
  • Robotics and automation systems requiring synchronous motion
  • General industrial power transmission where an HTD 5M closed-loop drive belt is specified

The 15mm width provides a practical balance of compactness and load capacity for mid-range synchronous drive applications.
