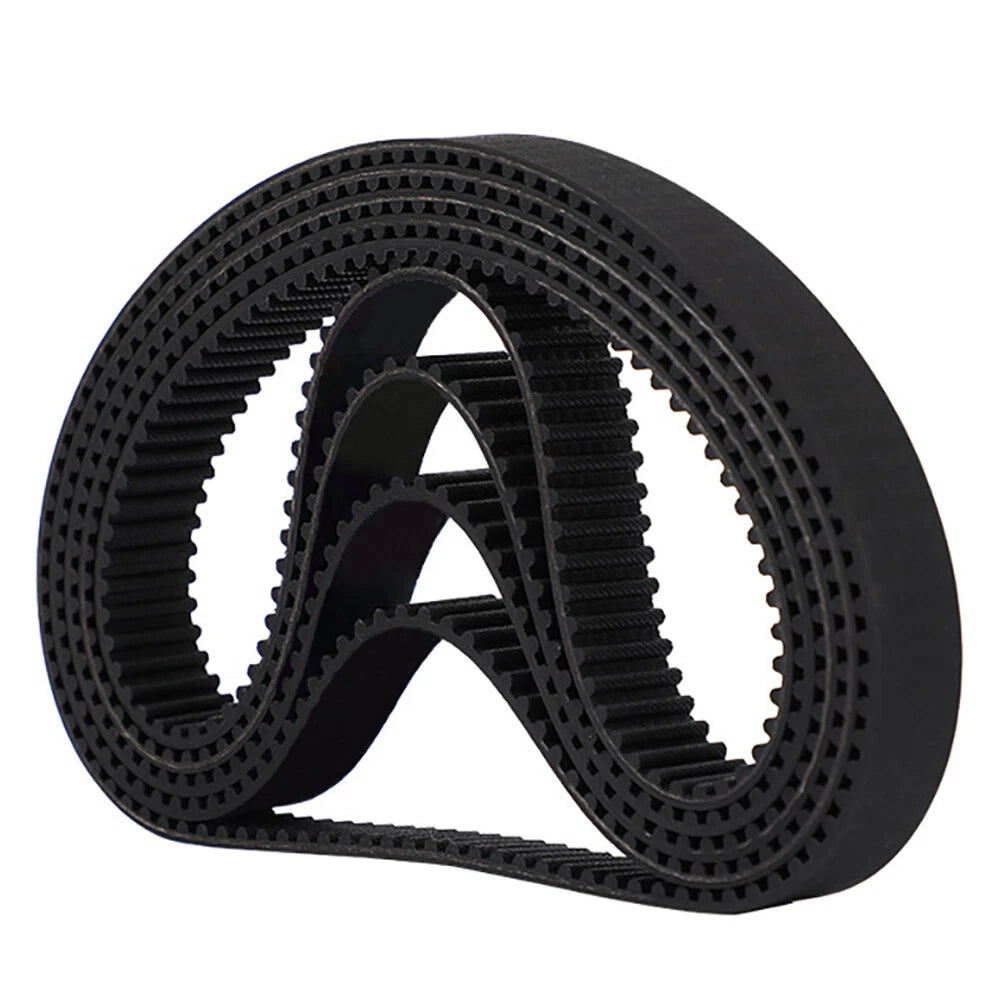

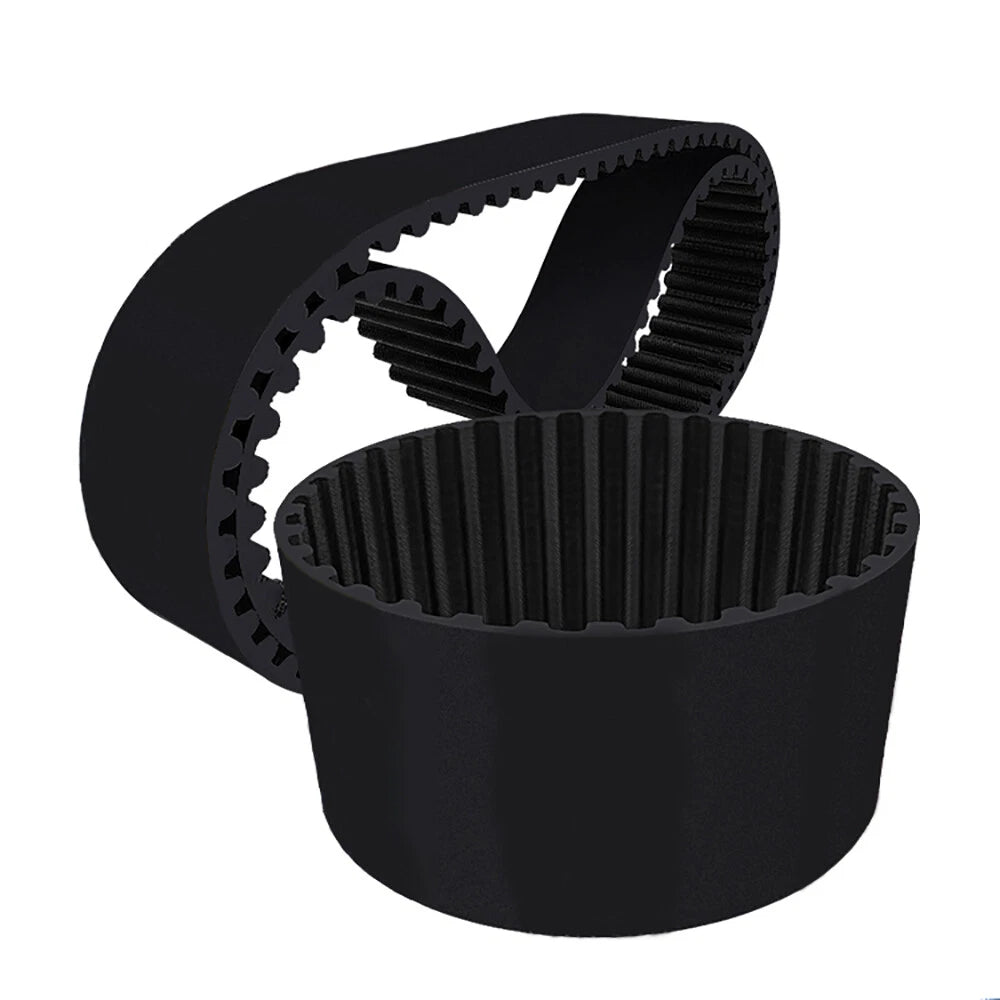

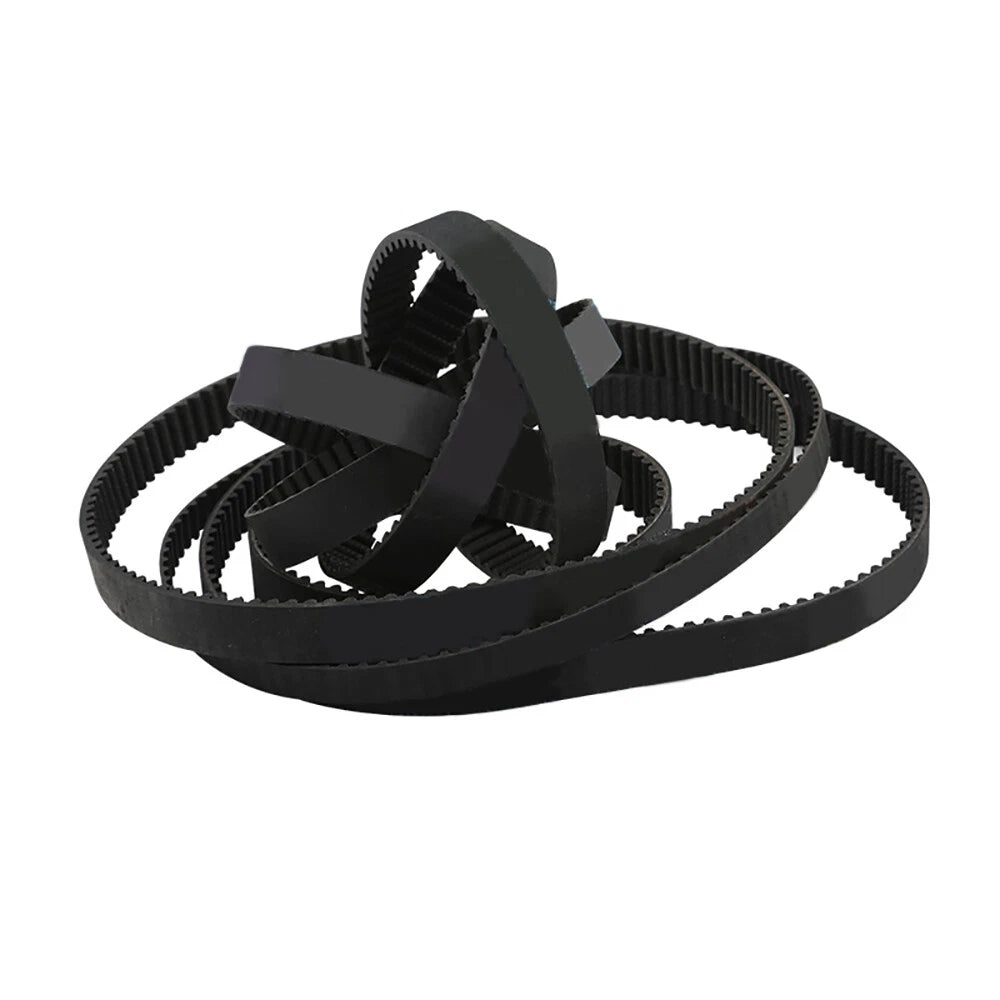

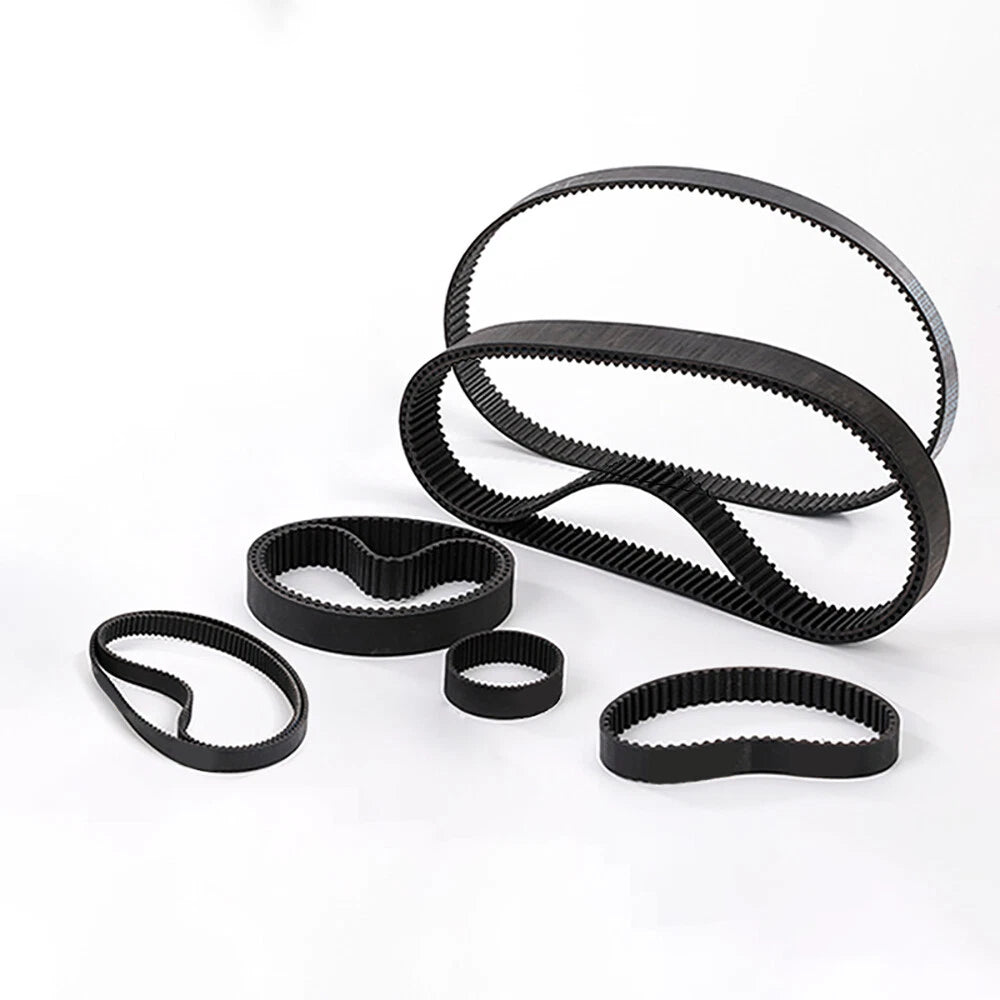

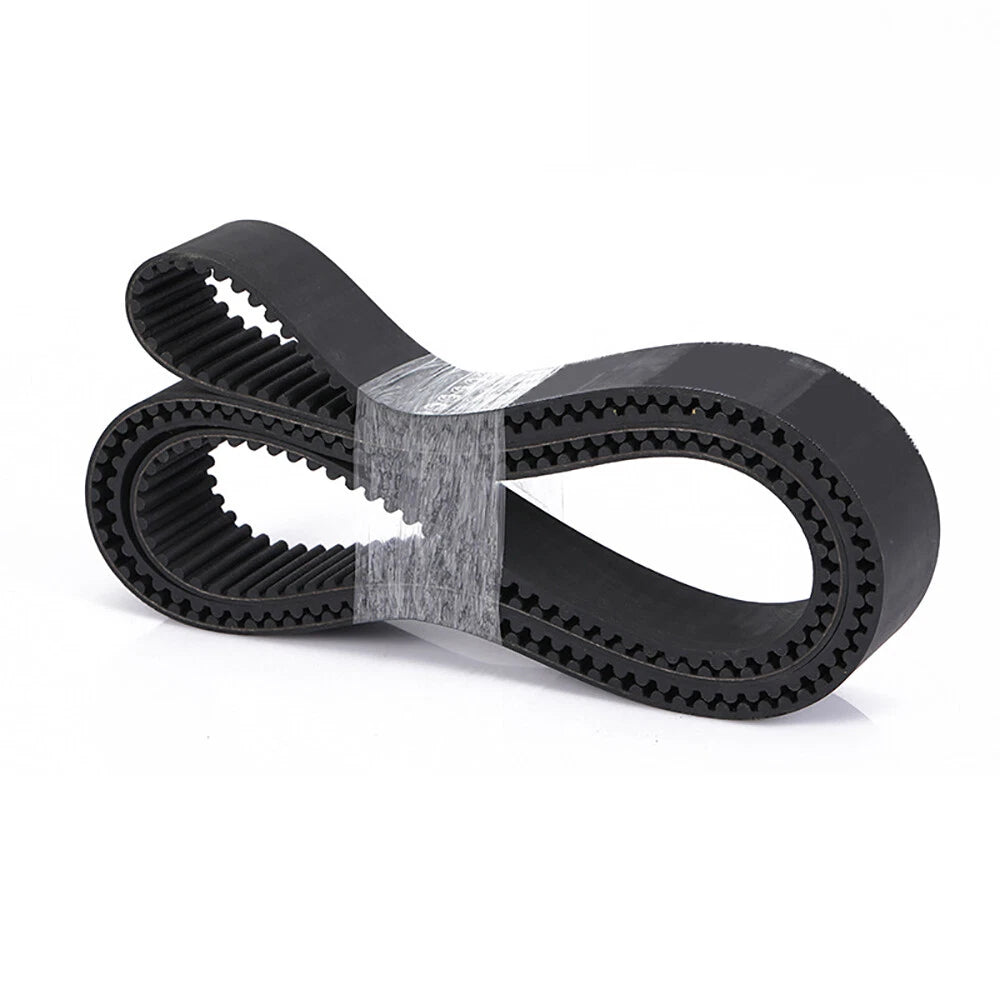

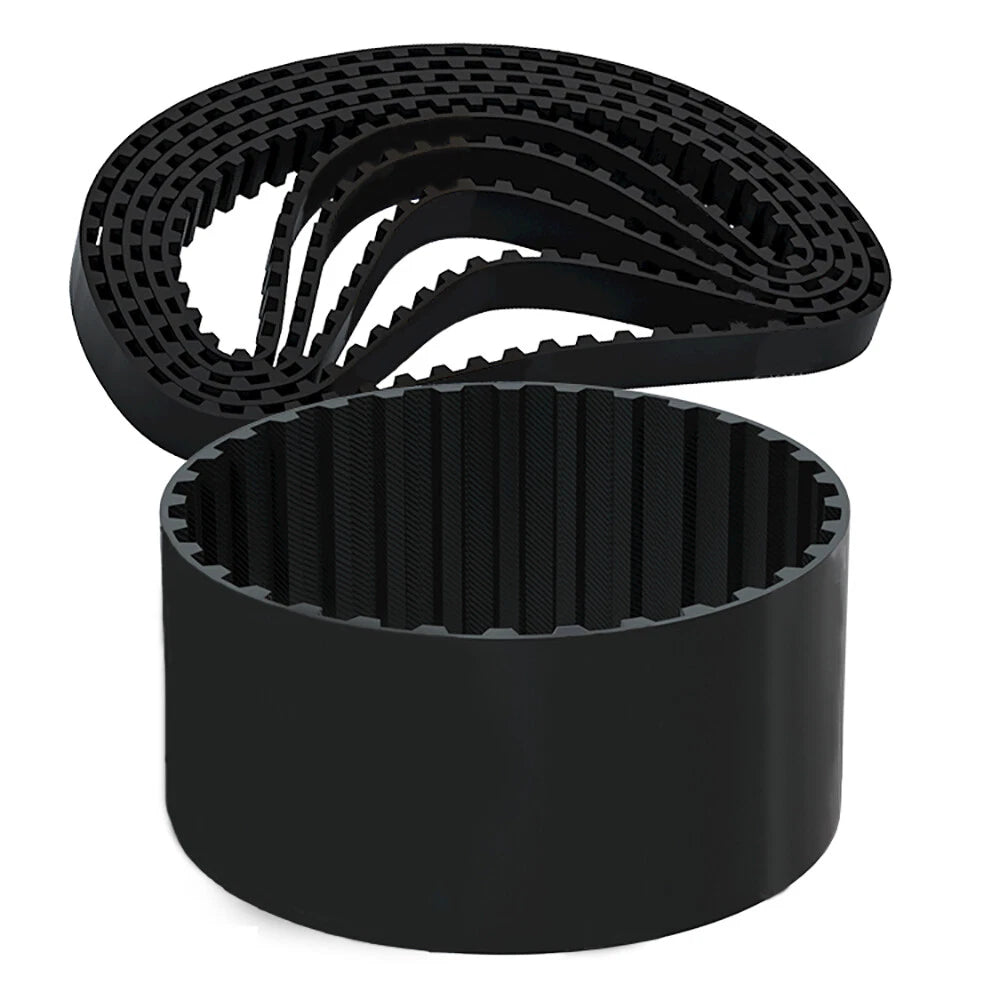

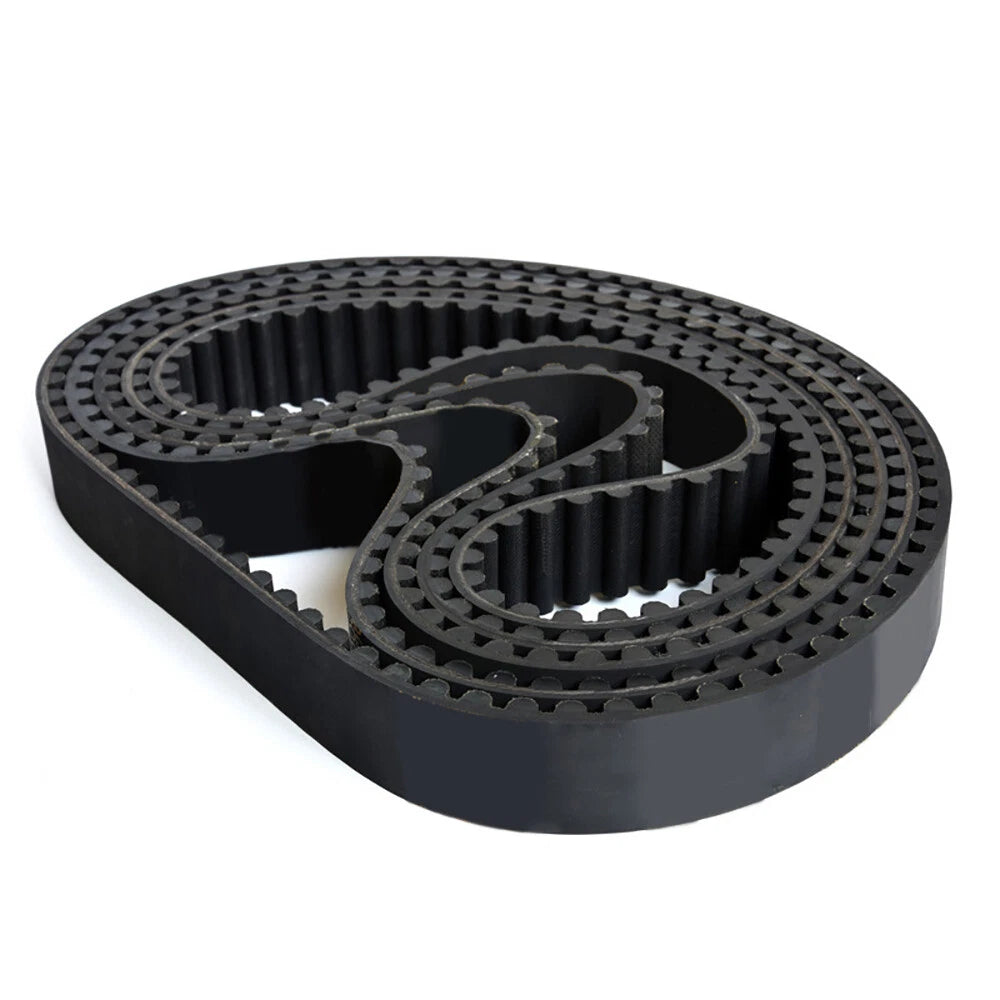

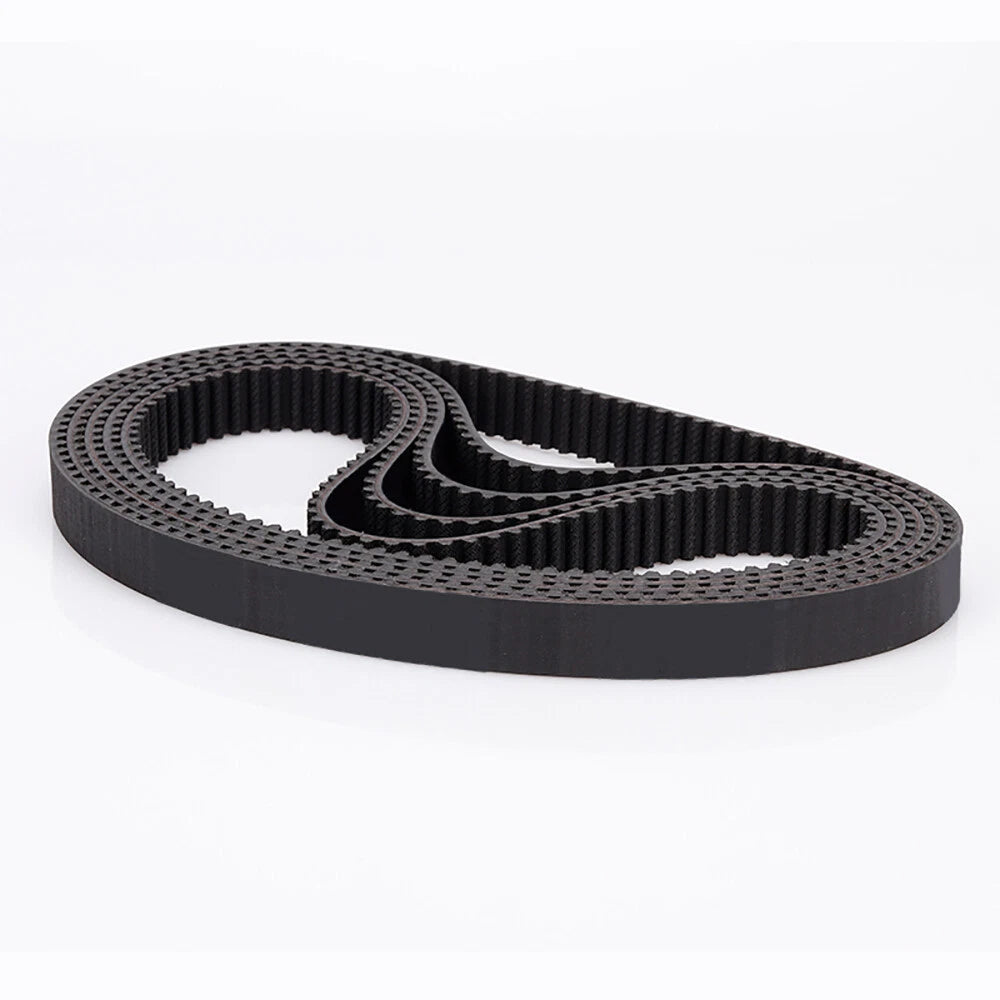

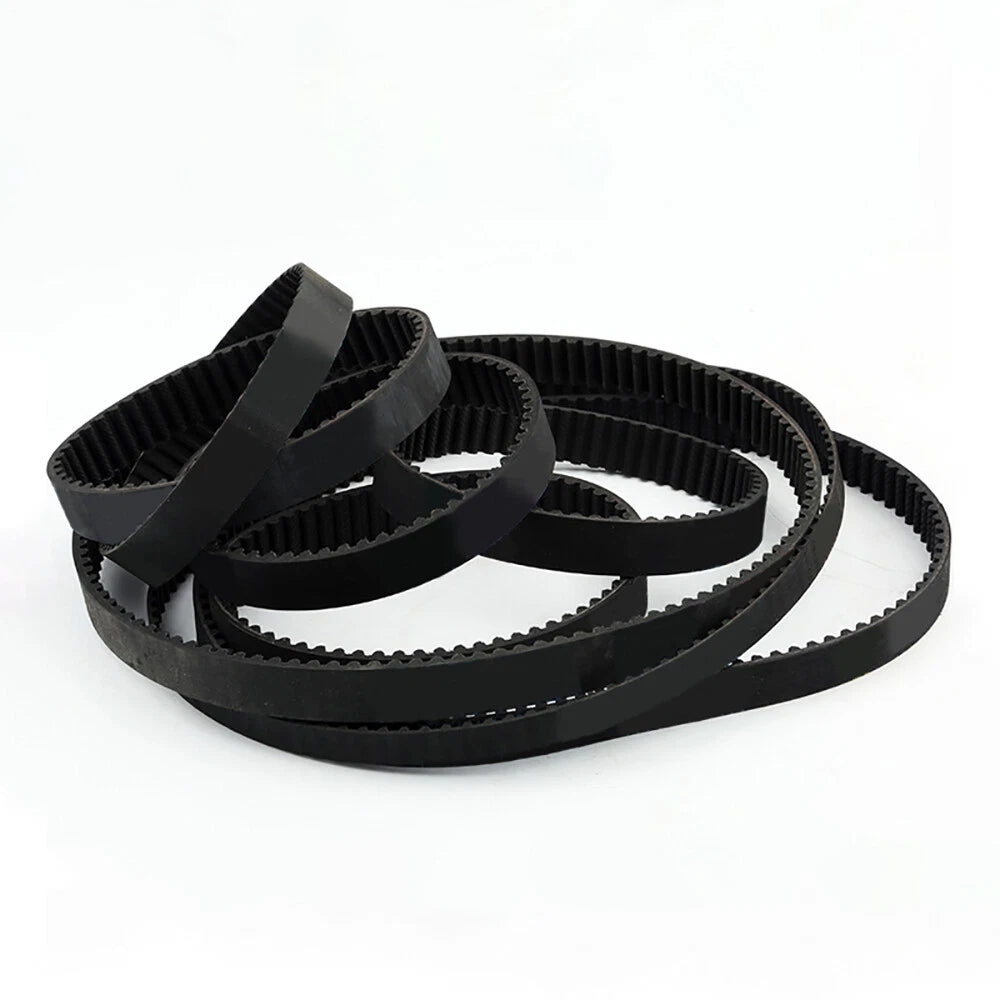

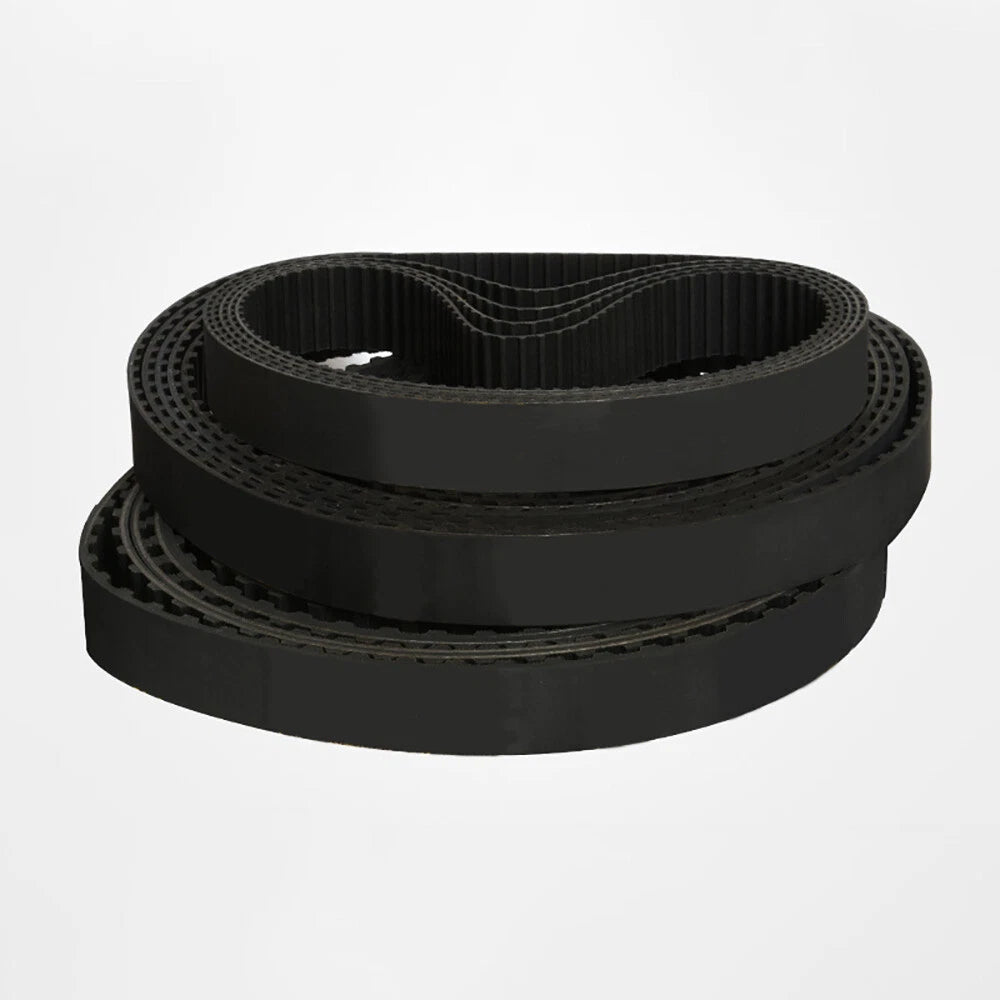

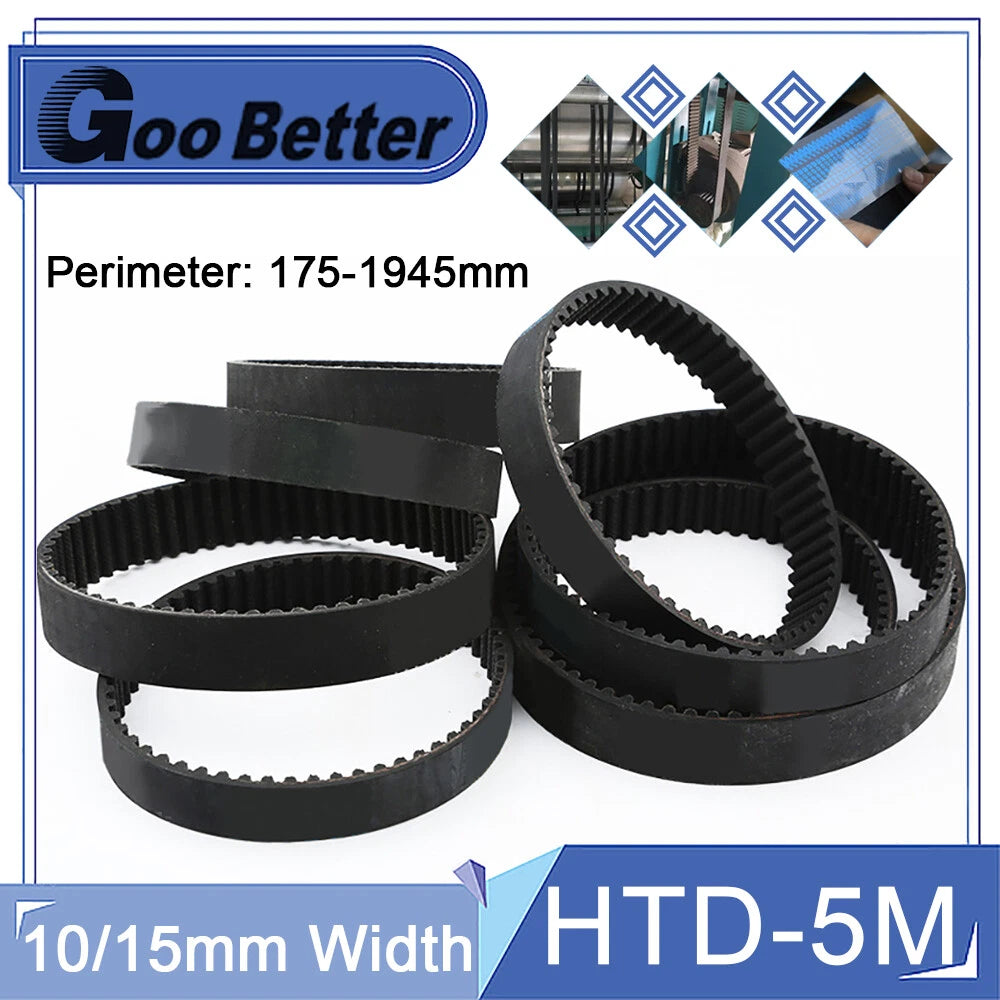

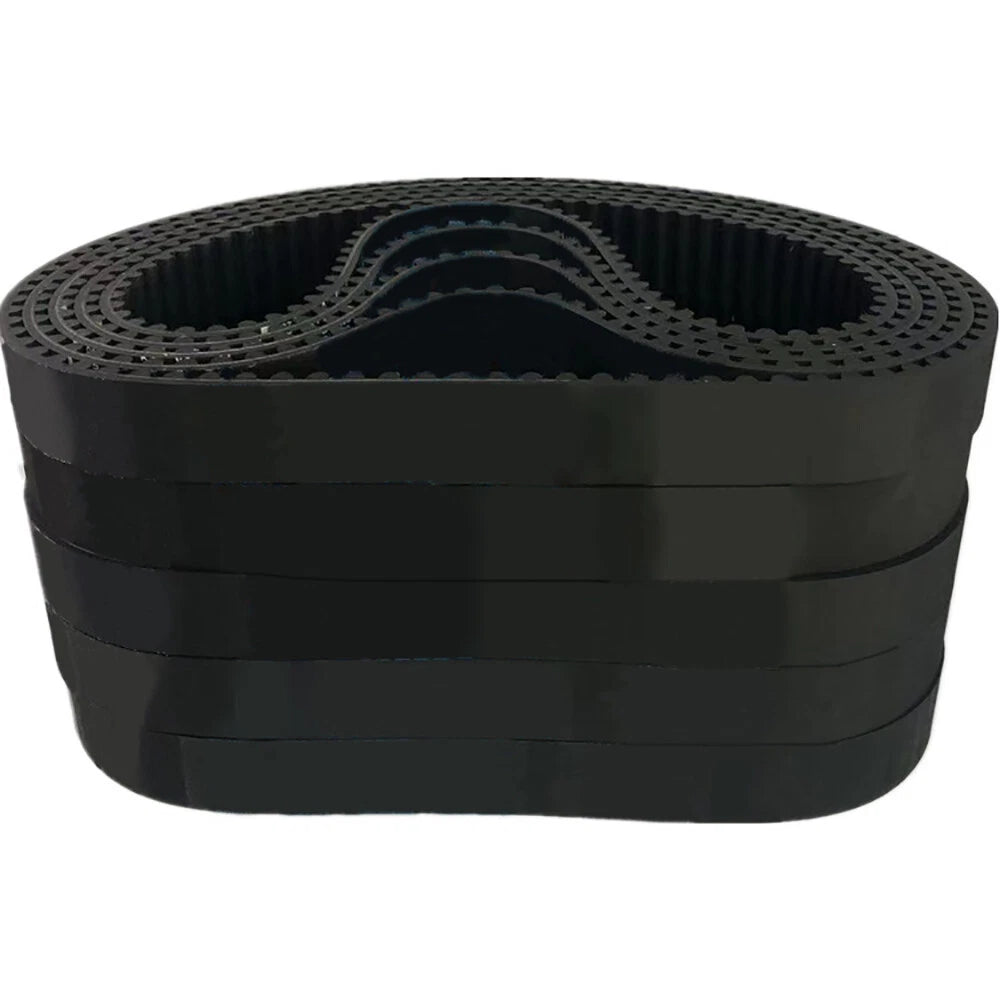

HTD 5M Timing Belt — Precise Synchronous Drive for CNC, 3D Printers & Industrial Equipment

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime, the fix starts with the right synchronous belt. Whether you're maintaining a CNC router, rebuilding a 3D printer motion system, or upgrading a conveyor drive, this HTD 5M timing belt delivers the tooth engagement and dimensional accuracy your application demands.

Each belt features an HTD (High Torque Drive) 5mm pitch tooth profile machined into a rubber body, typically reinforced with fiberglass or steel cord tensile members for dimensional stability under load. Available in two widths — 10mm and 15mm — and in perimeter sizes ranging from 175mm (≈6.9") to 1945mm (≈76.6"), with dozens of intermediate lengths to match your exact drive geometry.

Typical use cases include CNC machine tool drives where backlash-free motion is critical, 3D printer X/Y axis belt replacement, robotic arm joint actuation, and light industrial conveyor synchronization — all applications where an HTD 5M rubber synchronous belt is the standard specification.

ℹ️ Compatibility Notice: These belts use the HTD 5M tooth profile (5mm pitch, rounded tooth). They are not compatible with GT2, MXL, T5, or trapezoidal-tooth pulleys. Verify your pulley profile before ordering.
⚠️ Size Tip: Perimeter = total belt loop length. If you're replacing an existing belt, measure the old belt's outer circumference or count the teeth and multiply by 5mm. When in doubt, contact us to confirm your size.

✅ Key Features of These HTD 5M Rubber Synchronous Timing Belts

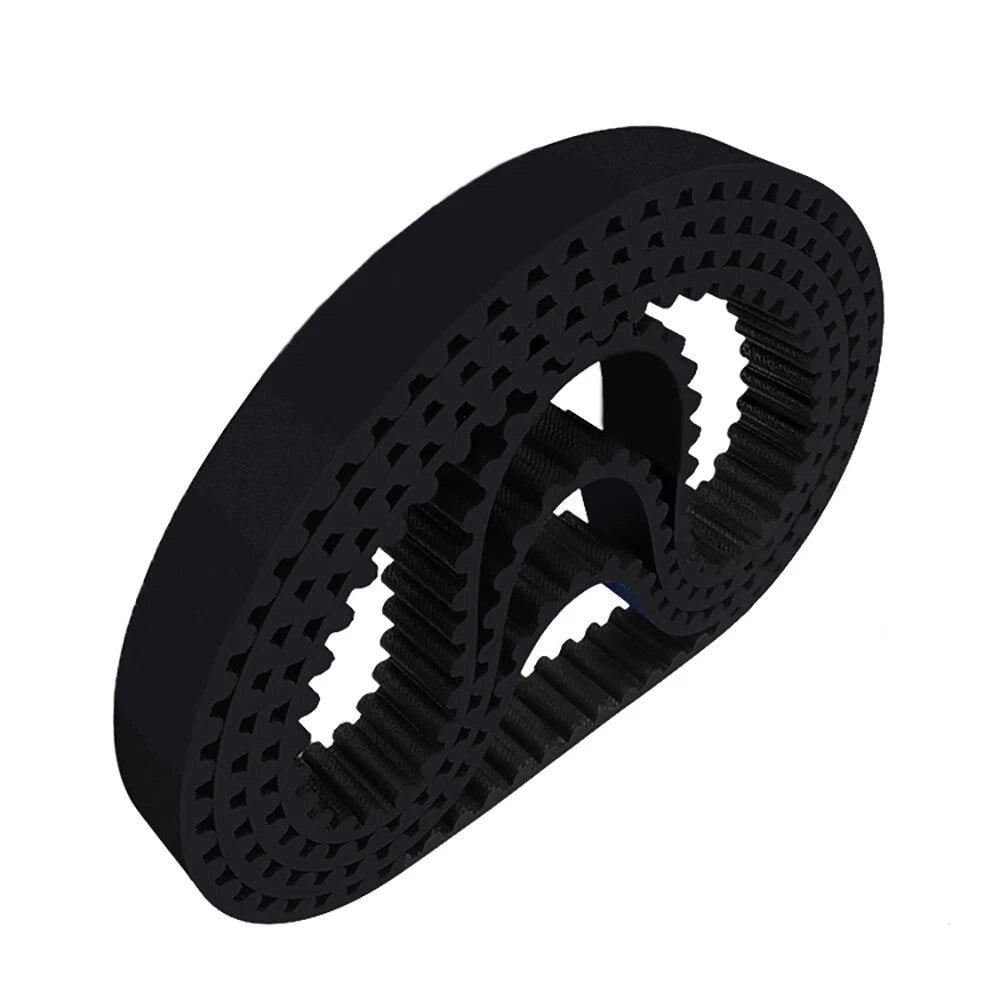

  • ⚙️HTD 5M Tooth Profile — The rounded 5mm-pitch HTD tooth form provides positive engagement with matching pulleys, reducing tooth jump risk under load compared to trapezoidal profiles in high-torque CNC and robotics drives.
  • 📏Wide Size Selection — Available in perimeters from 175mm (≈6.9") to 1945mm (≈76.6") and in 10mm or 15mm widths, covering the most common HTD 5M timing belt sizes used in DIY and light industrial equipment.

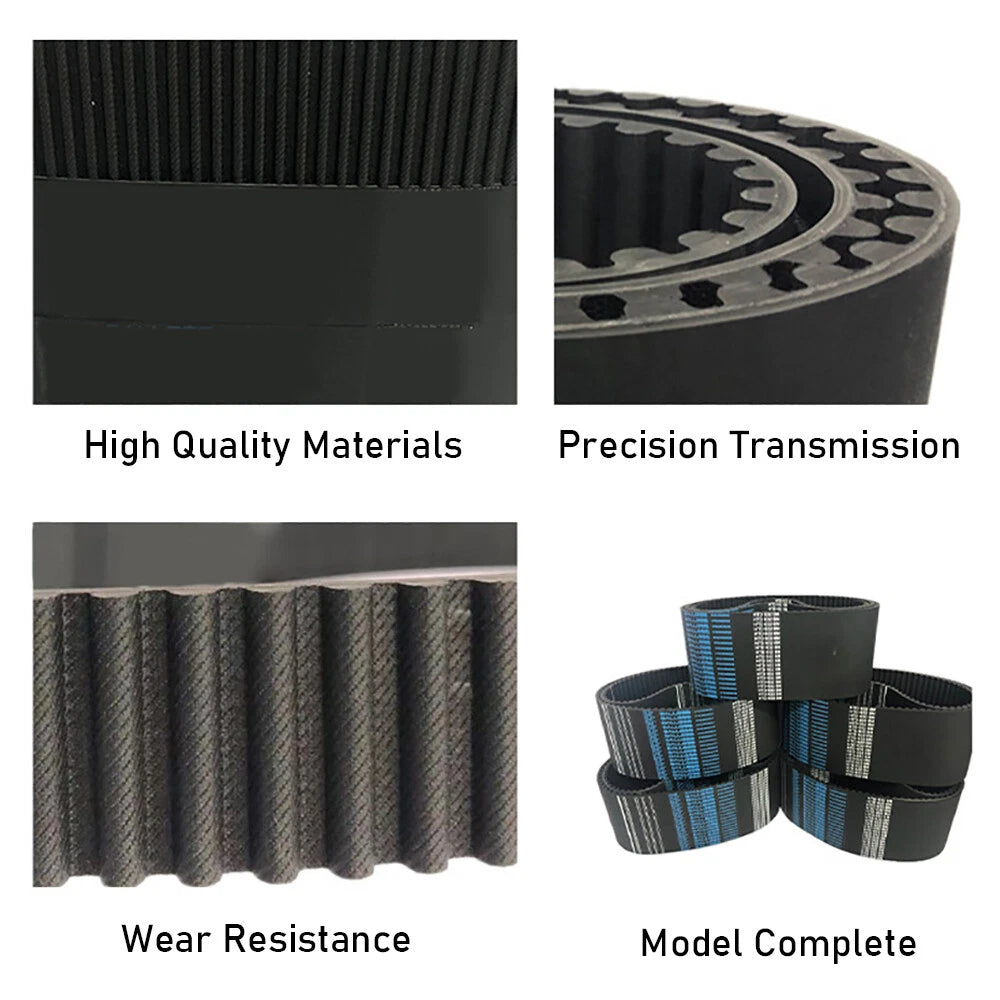

  • 🔩Fiber-Reinforced Rubber Construction — The rubber body with internal tensile cord reinforcement maintains consistent pitch length under tension, which is essential for accurate positioning in open-loop stepper motor drive systems.

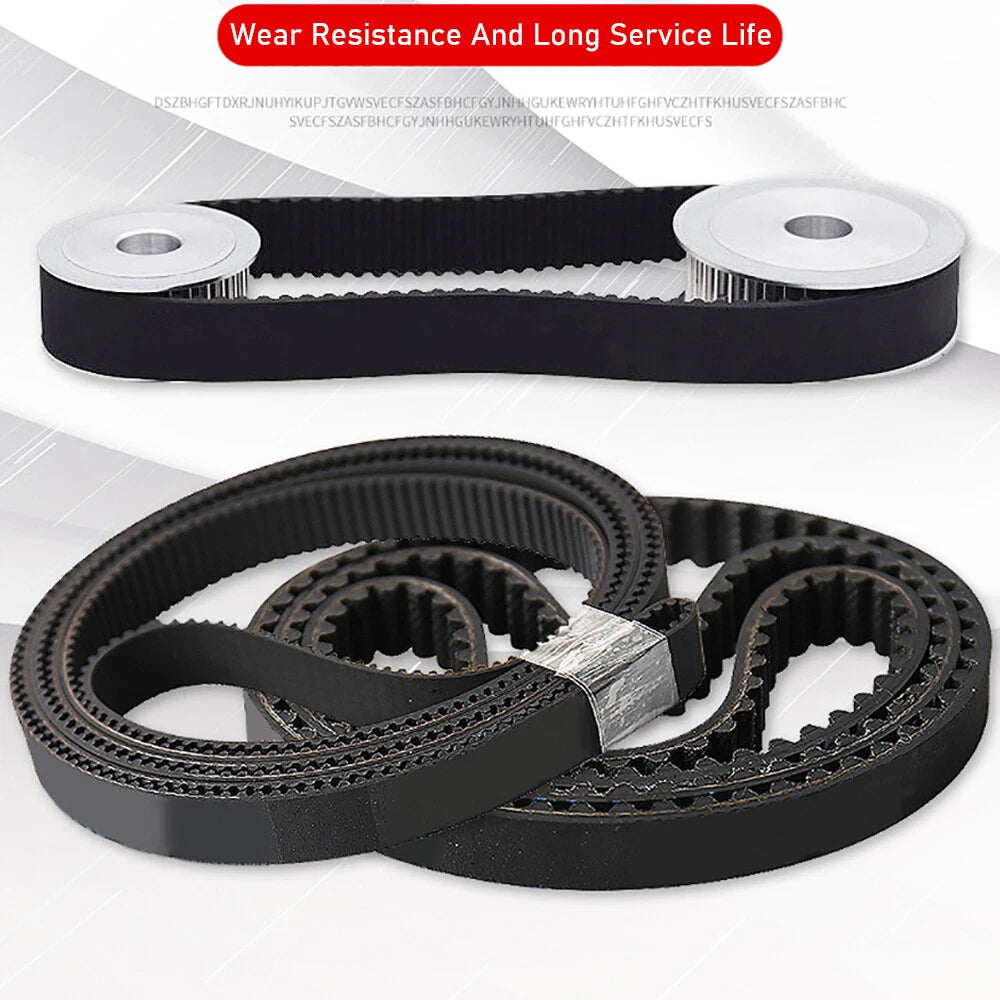

  • 🔄Synchronous Drive — Zero Slip — Unlike V-belts or flat belts, this synchronous rubber drive belt transmits motion without slip, making it suitable for applications where timing accuracy between input and output shafts is required.
  • 🏭Versatile Application Range — Fits CNC routers, laser cutters, 3D printer motion systems, conveyor drives, and general-purpose power transmission setups that specify an HTD 5M belt replacement.
  • 🚀Drop-In Replacement Sizing — Perimeter dimensions match standard HTD 5M belt specifications, so you can order by your existing belt's marked size (e.g., 500-5M-10 = 500mm perimeter, 5M pitch, 10mm wide) without custom fabrication.

📐 Technical Specifications — HTD 5M Rubber Timing Belt

Belt Type HTD (High Torque Drive) Synchronous Timing Belt
Tooth Pitch 5mm (HTD 5M profile)
Tooth Profile Rounded HTD — not compatible with GT2 or trapezoidal pulleys
Available Widths 10mm (≈3/8") and 15mm (≈19/32")
Perimeter Range 175mm (≈6.9") to 1945mm (≈76.6") — see variant options for full list
Body Material Rubber (typically neoprene or EPDM-based compound)
Tensile Member Fiberglass or steel cord reinforcement (see variant options)
Operating Temperature Contact us to confirm
Pulley Compatibility HTD 5M pulleys only (5mm pitch, rounded tooth)
Typical Applications CNC routers, 3D printers, robotics, conveyor drives, motor synchronization
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 5M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 500mm (≈19.7") belt typically suits a shaft spacing of roughly 200–220mm with standard pulleys. Always verify against your pulley tooth count and pitch diameter before ordering. If replacing an existing belt, the size is often marked on the belt itself (e.g., 500-5M-10).

What does HTD 5M mean?

HTD stands for High Torque Drive. The "5M" designates a 5mm tooth pitch (center-to-center distance between adjacent teeth). This rounded tooth profile is generally used in applications requiring higher torque transmission compared to standard trapezoidal belts, and is a common specification in CNC machines, 3D printers, and robotics.

How much load or torque can an HTD 5M timing belt handle?

Load capacity depends on belt width, operating speed, pulley diameter, and the number of teeth in mesh. Generally, a 15mm-wide HTD 5M belt can handle significantly more torque than a 10mm-wide belt under the same conditions. For precise load ratings specific to your drive system, consult your equipment's engineering specifications or contact us to confirm suitability.

Can this timing belt be used outdoors or in wet/dusty environments?

These belts are made from rubber with fiber reinforcement, which generally offers moderate resistance to moisture and mild chemicals. In most cases, they perform well in indoor industrial environments with occasional exposure to dust or light moisture. For continuous outdoor exposure, submerged use, or contact with oils and solvents, additional protection is typically recommended. Contact us to confirm suitability for your specific environment.

What pulleys are compatible with HTD 5M timing belts?

HTD 5M belts are compatible only with HTD 5M pulleys (5mm pitch, rounded tooth profile). They are not interchangeable with GT2 (2mm pitch), MXL, T5, or trapezoidal tooth pulleys. Always match the belt profile and pitch to your pulley specification. Using a mismatched pulley will cause poor engagement, accelerated wear, and potential tooth jump.

Which width should I choose — 10mm or 15mm?

Choose 10mm width for lighter-duty applications such as 3D printer X/Y axis drives, small CNC routers, and hobby robotics where torque requirements are modest. Choose 15mm width when higher torque or load capacity is needed — for example, in conveyor systems, larger CNC machines, laser cutters, or industrial automation equipment. When in doubt, 15mm provides a wider safety margin.

How do I convert the perimeter measurement from mm to inches?

Divide the mm value by 25.4 to get inches. Quick reference examples from our available sizes:

  • 175mm ÷ 25.4 ≈ 6.9"
  • 500mm ÷ 25.4 ≈ 19.7"
  • 1000mm ÷ 25.4 ≈ 39.4"
  • 1500mm ÷ 25.4 ≈ 59.1"
  • 1945mm ÷ 25.4 ≈ 76.6"

The full perimeter range available is 175mm (≈6.9") to 1945mm (≈76.6").
