HTD 5M Timing Belt 15mm Width — Reliable Motion Control for CNC & 3D Printers

When your CNC router skips steps or your 3D printer produces layer-shift artifacts, the culprit is often a worn or incorrectly sized drive belt. Makers, hobbyists, and small-shop machinists who demand repeatable positioning accuracy need a closed-loop HTD 5M timing belt that holds tension across hundreds of hours of operation.

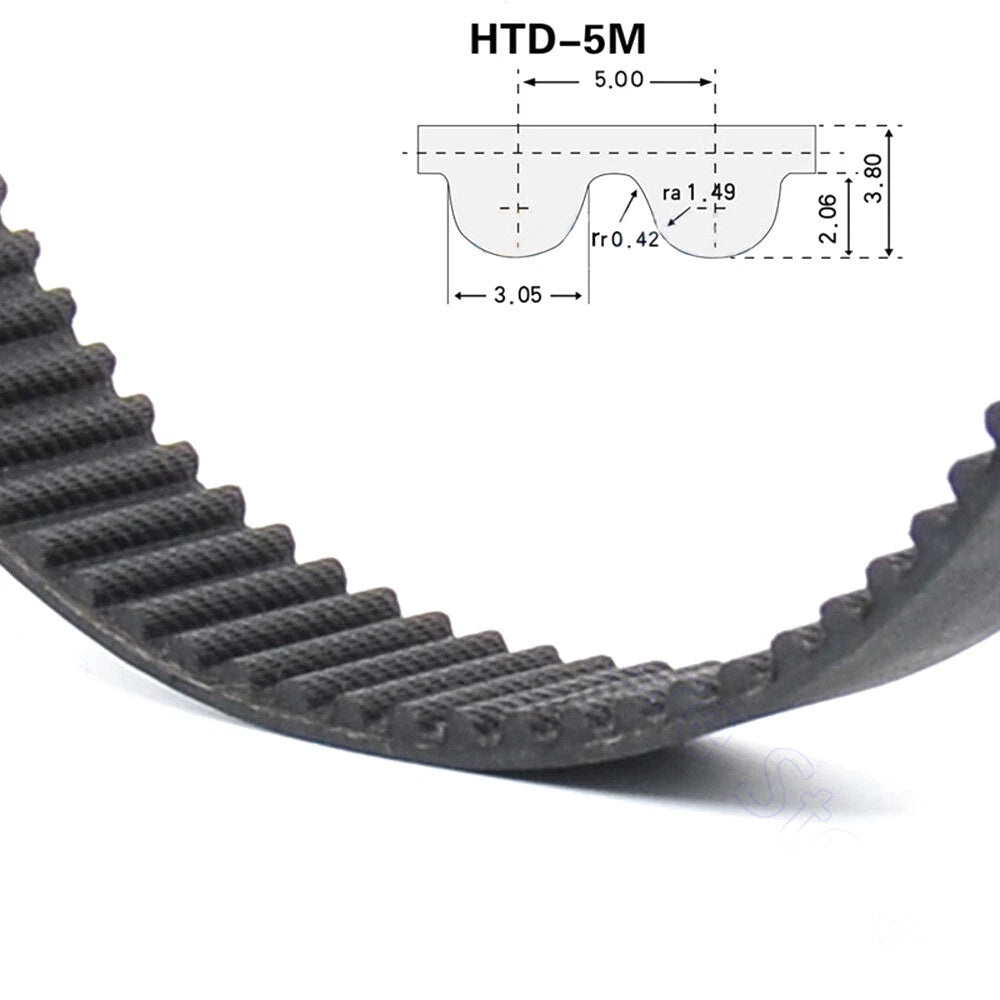

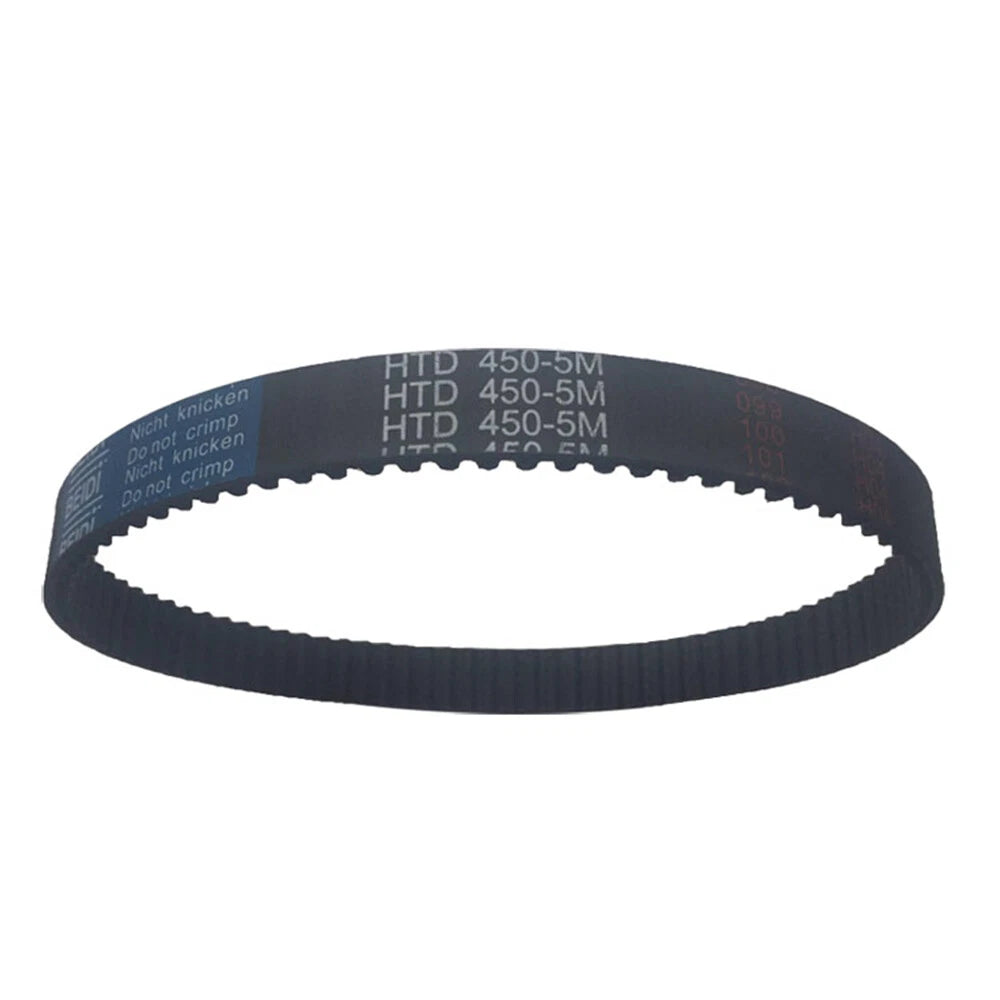

This HTD 5M timing belt features a 5 mm pitch (tooth-to-tooth distance) and a 15 mm belt width. The closed-loop construction eliminates splice points, and the reinforced rubber compound with fiberglass or steel cord tensile members keeps elongation minimal. Available lengths range from 175 mm to 1115 mm (approximately 6.9 in to 43.9 in), covering the most common drive configurations.

Typical use cases include Cartesian and delta-style 3D printers (Reprap, Rostock, Kossel), desktop CNC routers and laser engravers, and DIY automation rigs where a 5M HTD closed-loop timing belt replacement is needed to restore axis accuracy.

⚙️ Compatibility: Fits any drive system designed for HTD 5M profile pulleys with a 15 mm belt width — including Reprap Rostock, Kossel, and standard CNC gantry setups. Verify your pulley tooth profile (HTD) and belt width before ordering.

✅ Key Features of These HTD 5M Timing Belts

🔁
Closed-Loop Design

No splice, no weak point — the seamless loop maintains consistent tension and eliminates the backlash that open-ended belts can introduce at the join.

📐
5 mm HTD Pitch

The HTD (High Torque Drive) tooth profile provides deeper tooth engagement than trapezoidal MXL/XL profiles, reducing tooth jump under load on CNC and 3D-printer axes.

📏
15 mm Belt Width

Wider than the common 6 mm or 9 mm variants, the 15 mm width increases load capacity and lateral stability — useful for heavier gantries or dual-drive configurations.

🧵
Reinforced Tensile Cord

Internal fiberglass or steel cord tensile members resist stretch under dynamic loads, keeping axis calibration stable over extended print or cutting sessions.

🌡️
Rubber Compound Construction

The neoprene-based rubber body handles the temperature range typical of enclosed 3D-printer chambers and workshop environments without cracking or glazing.

📦

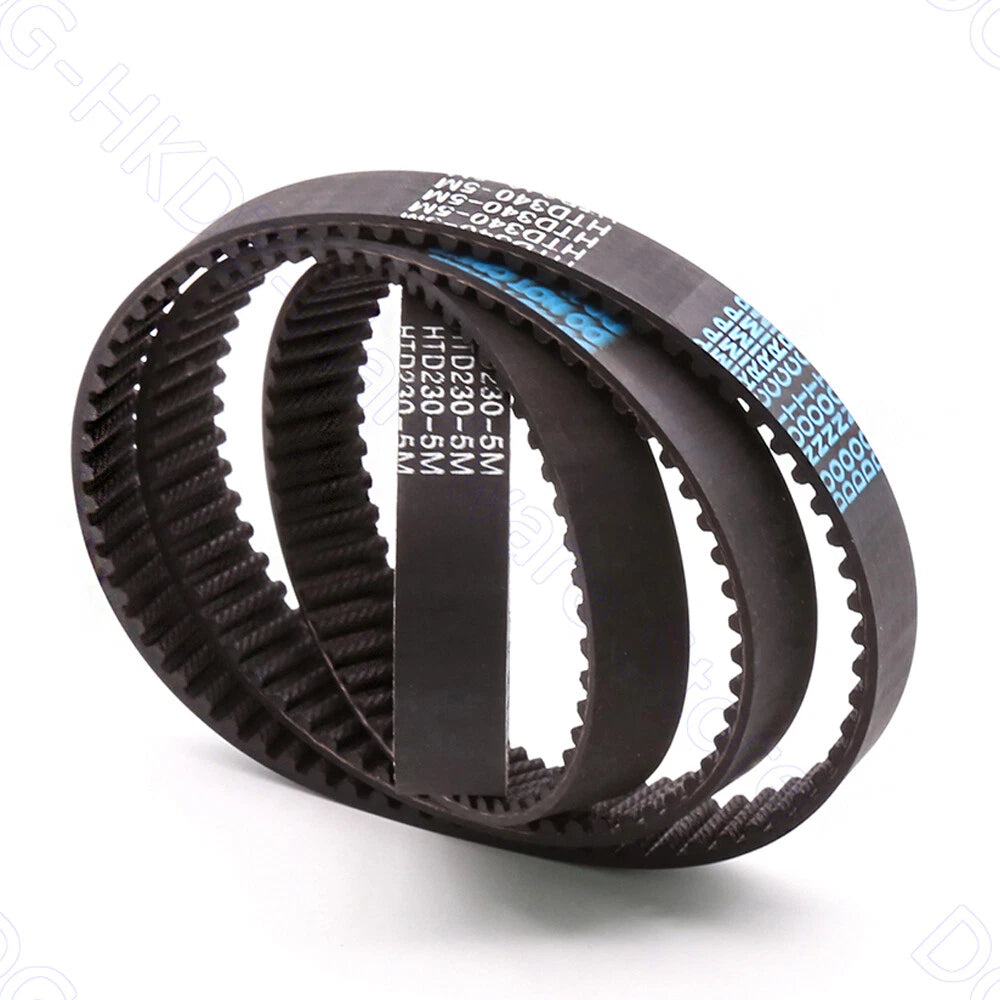

Wide Length Selection

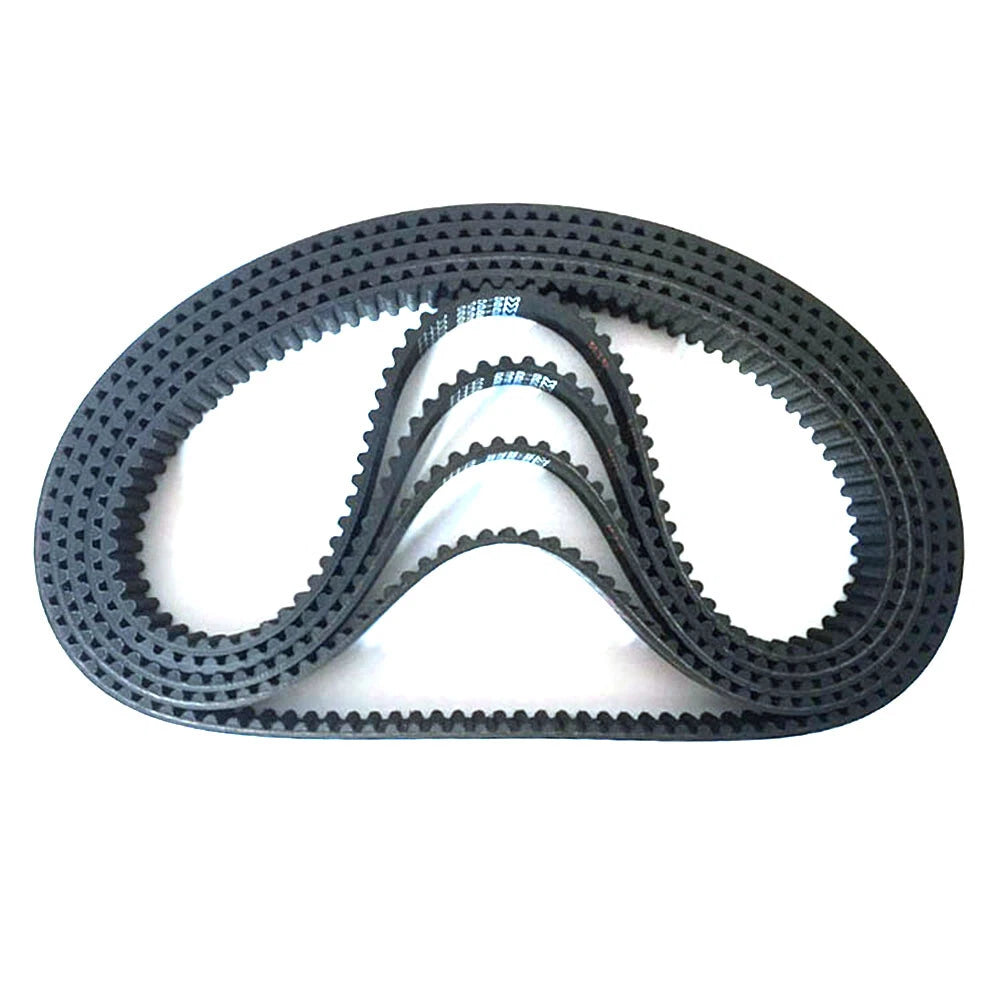

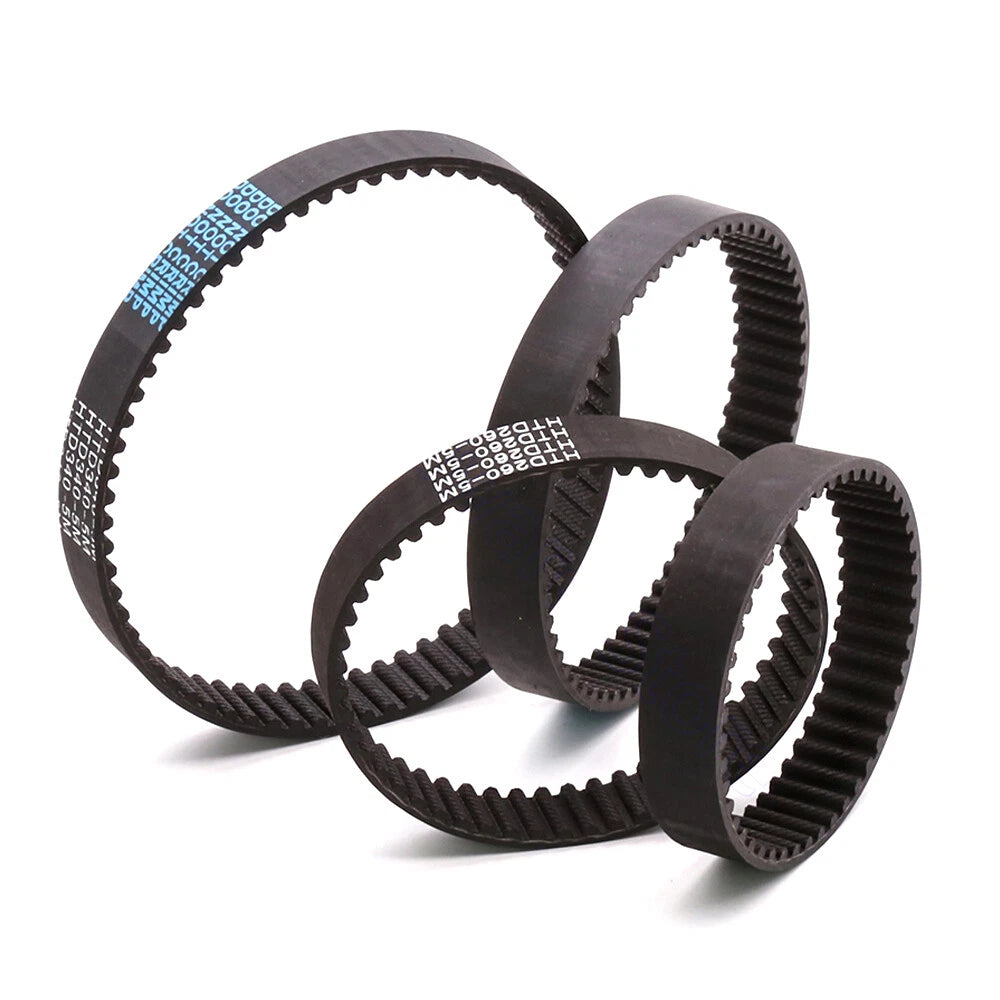

Available in increments from 175 mm to 1115 mm, so you can match the exact circumference required by your machine's drive geometry without cutting or splicing.

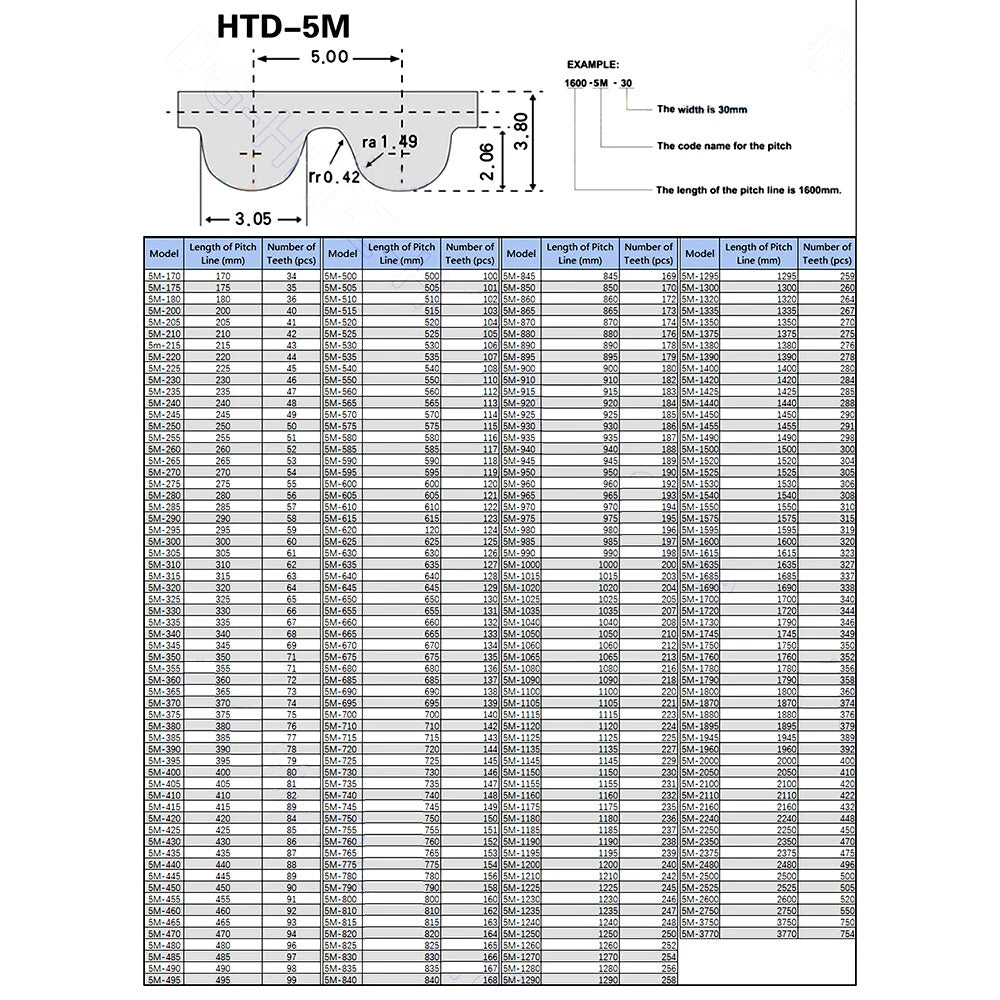

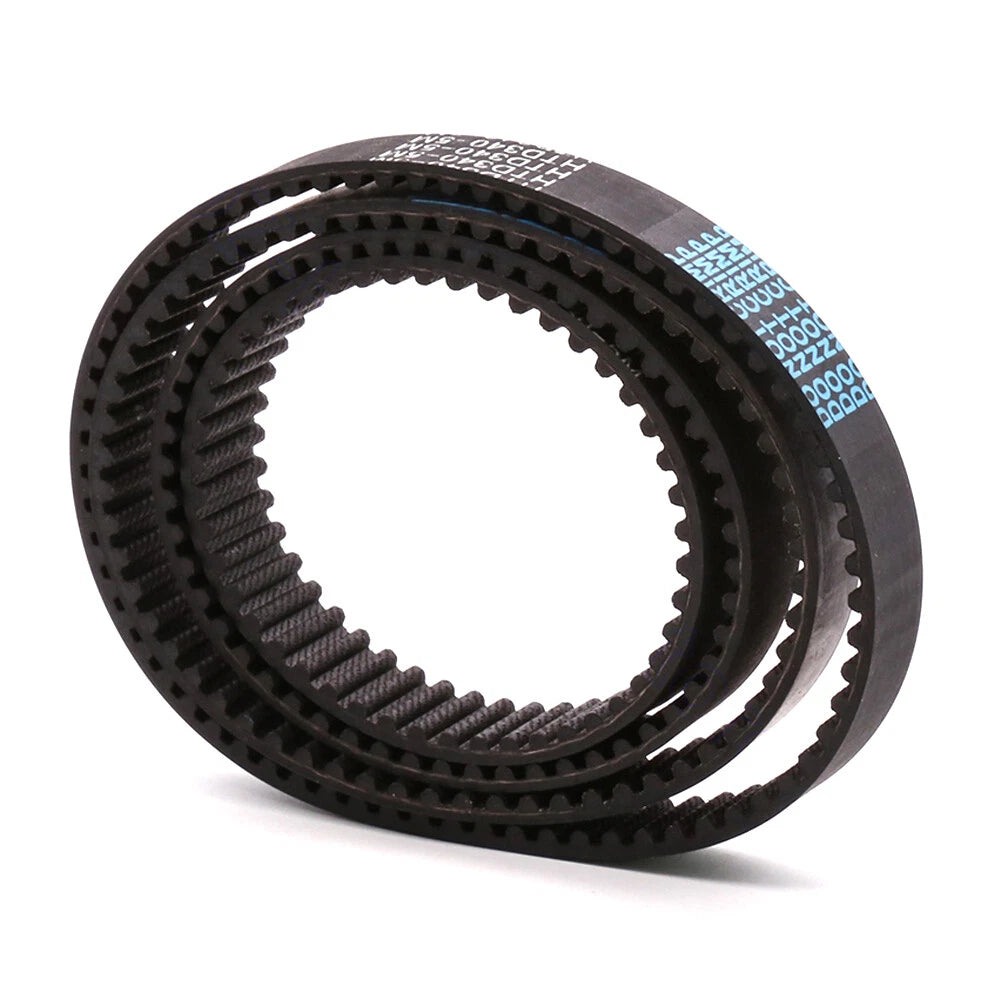

📐 Technical Specifications — HTD 5M Timing Belt

Belt Profile HTD 5M
Pitch 5 mm
Belt Width 15 mm
Loop Type Closed loop (endless)
Available Lengths 175 mm – 1115 mm (see variant options)
Tensile Member See variant options
Body Material Neoprene rubber
Tooth Facing Nylon fabric (typically)
Compatible Pulley Profile HTD 5M
Quantity per Order 1 PCS

❓ Frequently Asked Questions

How do I choose the correct belt length for my machine?

Measure the center-to-center distance between your drive and idler pulleys, then calculate the required belt circumference using the formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. Alternatively, remove the existing belt and measure its inner circumference directly. Select the closest available length from the variant dropdown above.

What is the difference between HTD 5M and GT2 or MXL belt profiles?

HTD (High Torque Drive) uses a curvilinear tooth profile designed for higher torque transmission and reduced tooth jump compared to the older trapezoidal MXL/XL profiles. GT2 is a Gates-originated curvilinear profile optimized for low backlash at lighter loads. HTD 5M and GT2 are not interchangeable — always match the belt profile to your pulley profile.

Can this belt handle the tension in a CoreXY or delta 3D printer?

Yes. The 15 mm width and reinforced tensile cord make this belt suitable for CoreXY, delta (Rostock/Kossel), and Cartesian printer architectures. Ensure your pulleys are rated for 15 mm belt width and that belt tension is set per your printer's documentation to avoid premature wear.

Is this belt resistant to heat and oil in a workshop environment?

The neoprene rubber compound offers moderate resistance to heat (typically rated up to 80–100 °C) and light oil exposure. For environments with heavy coolant or cutting fluid splash, consider a belt with a polyurethane body. For standard 3D-printer enclosures and dry CNC routing, neoprene performs reliably.

How do I know if my existing belt needs replacement?

Common signs include: visible cracking or glazing on the tooth face, layer shifts or missed steps that cannot be resolved by re-tensioning, audible slapping or skipping during rapid moves, and measurable elongation (belt feels loose even at maximum tensioner travel). Replace the belt if any of these symptoms appear.

Does the 15 mm width affect compatibility with standard HTD 5M pulleys?

Yes — your pulleys must be designed for 15 mm belt width. Many desktop 3D-printer pulleys are 6 mm or 9 mm wide. Verify the pulley flange width before ordering. Using a 15 mm belt on a narrower pulley will cause the belt to ride over the flanges and fail prematurely.

Can I use this belt for a linear actuator or conveyor application?

Closed-loop HTD 5M belts are well-suited for light-duty linear actuators, pick-and-place systems, and small conveyor drives where the required belt circumference matches one of the available lengths. For heavy industrial conveyor loads, consult a power transmission specialist for a rated industrial belt.
