HomeDIYer
No reviews

By HomeDIYer®

Price:
$44.59 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Bancontact BLIK Diners Club Discover EPS Google Pay iDEAL Wero JCB Maestro Mastercard Multibanco MobilePay PayPal Przelewy24 Shop Pay Twint Union Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Limited Offer — Spend More, Save More
Spend $55+
Save $5
Spend $100+
Save $10
Spend $200+
Save $25
✅ Discount applied automatically at checkout 🚚 Free shipping on orders over $89
HomeDIYer DIY Expert Support

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri  8:30 AM – 8:00 PM
WhatsApp
24-Hour Fast Ship
Arrives in 3–14 Days
Worldwide Shipping
30-Day Returns
1 tree planted with every purchase

Description

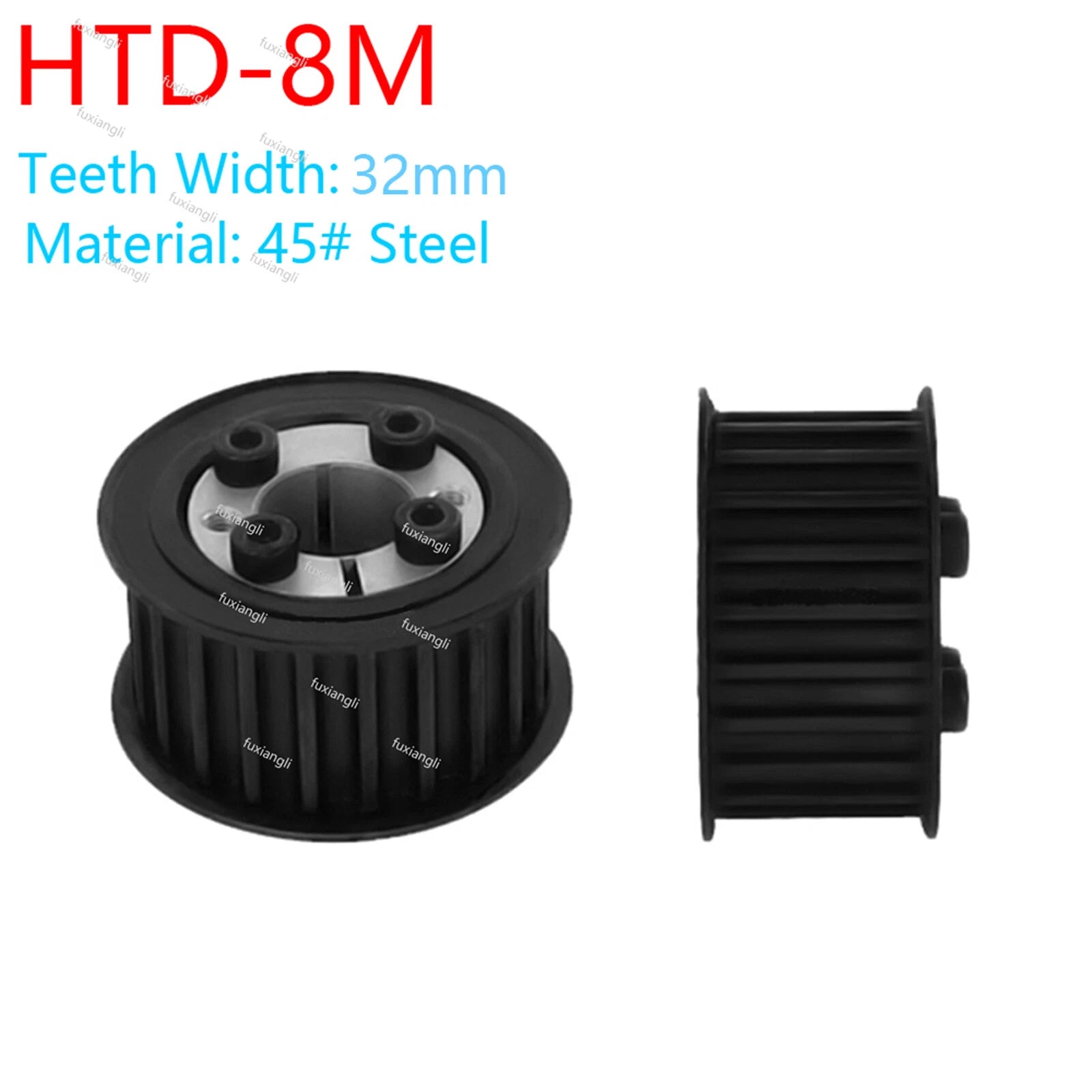

HTD-8M Timing Belt Pulleys with Expansion Sleeve — Precision Drive for Demanding Applications

When your motion system demands zero-slip synchronization and repeatable positioning, mismatched or undersized pulleys become the weakest link. Engineers and makers building CNC machines, robotics platforms, and industrial automation rigs need HTD-8M timing belt pulleys that hold tolerance under load — without the frustration of bore-size guesswork or shaft slippage.

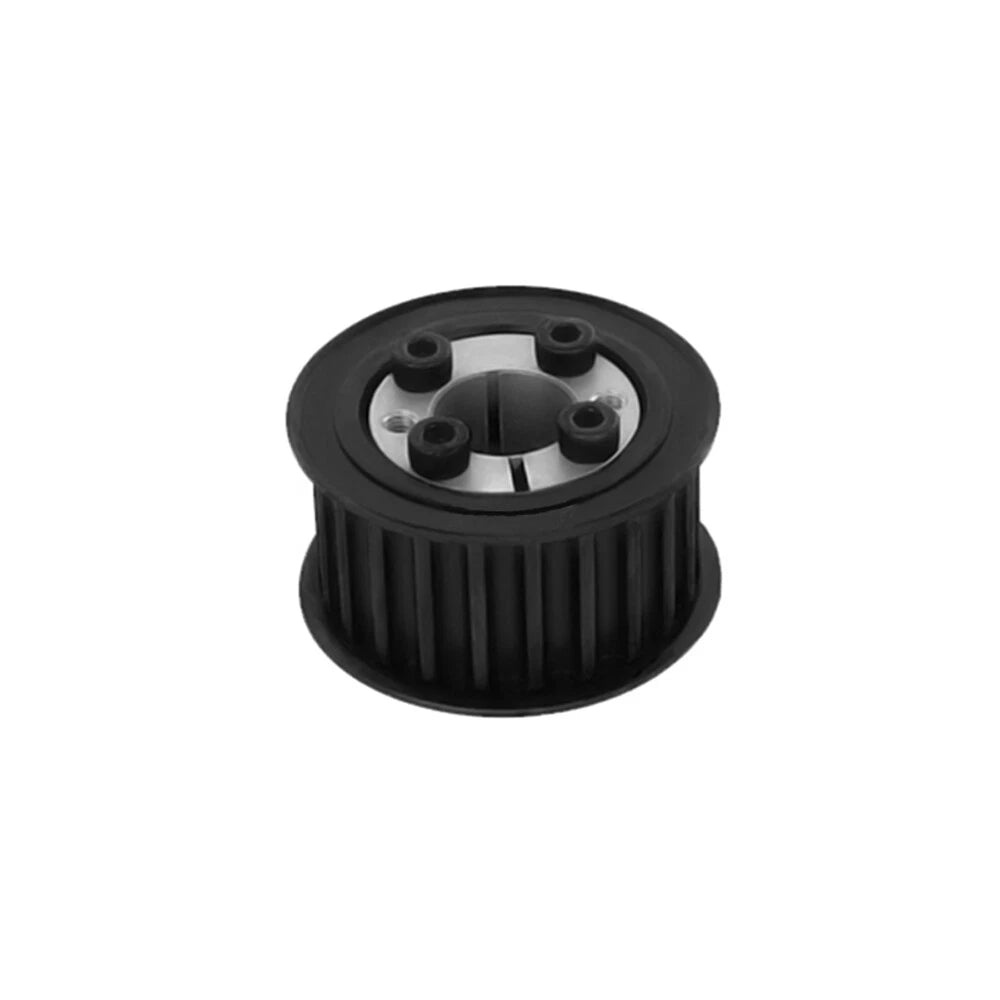

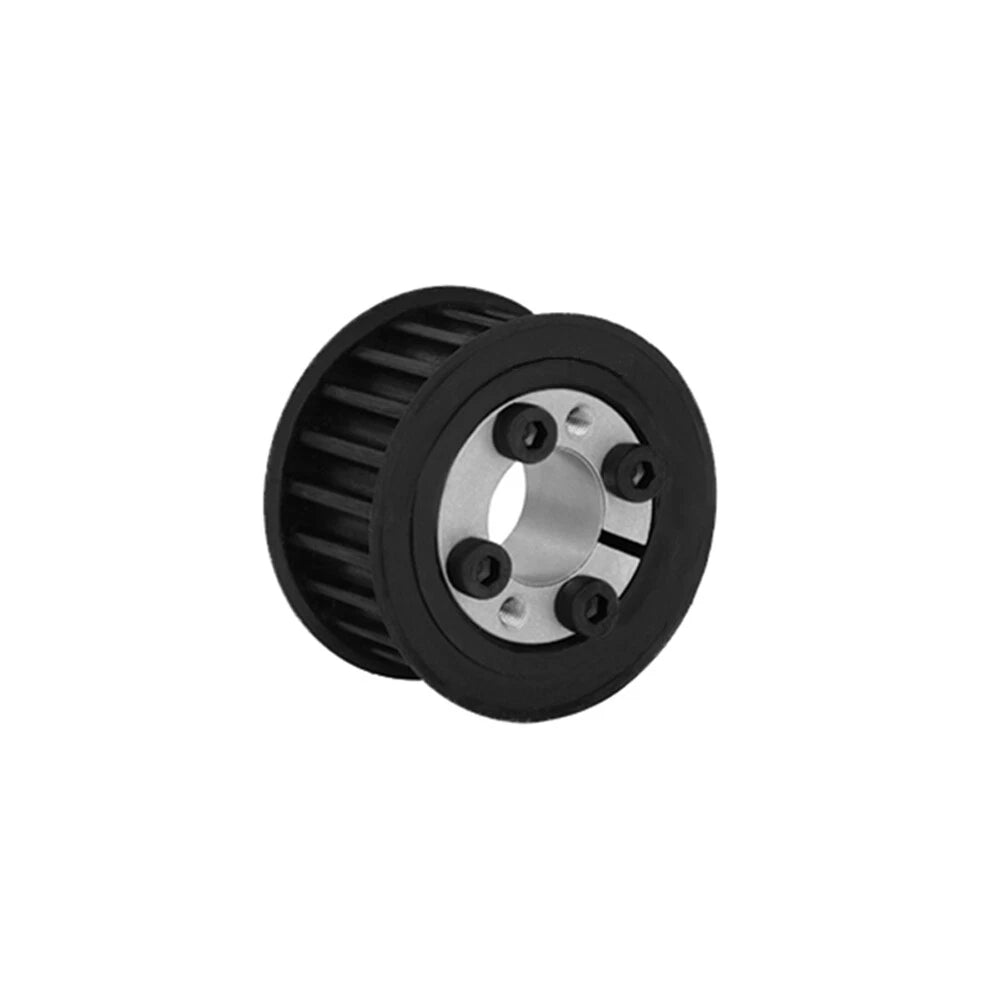

These HTD-8M timing belt pulleys are machined from 45# medium-carbon steel and feature an integrated expansion sleeve (taper-lock style) for secure, tool-adjustable shaft clamping. The pulley body spans 32mm (1.26 in) in belt width, with tooth counts ranging from 18T to 60T and sleeve bore options from 8mm to 50mm (0.31–1.97 in), covering a wide range of shaft diameters in a single product family.

Typical use cases include 8M synchronous belt drive systems for CNC router axes, 3D printer extruder and gantry drives requiring HTD-8M pulley replacements, and small-batch automation conveyor or indexing systems where precise tooth engagement and shaft retention are critical.

⚙️ Compatible with: HTD-8M synchronous timing belts, 32mm belt width. Verify shaft diameter against selected Sleeve Bore option before ordering.

✅ Key Features of These HTD-8M Timing Belt Pulleys

🔩 45# Steel Construction

Machined from medium-carbon 45# steel for reliable strength and wear resistance across continuous-duty drive applications.

📐 HTD-8M Tooth Profile

Curvilinear HTD tooth geometry provides full-face belt contact, reducing stress concentration and extending belt service life.

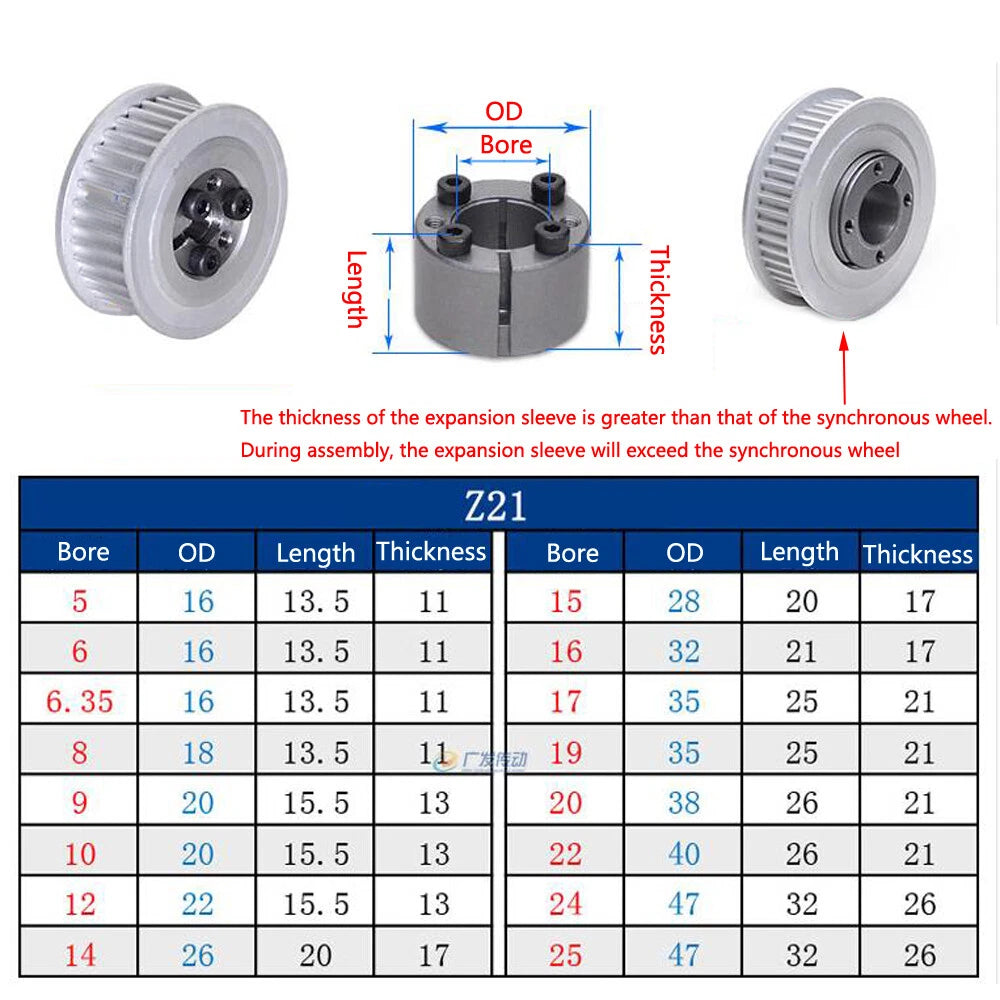

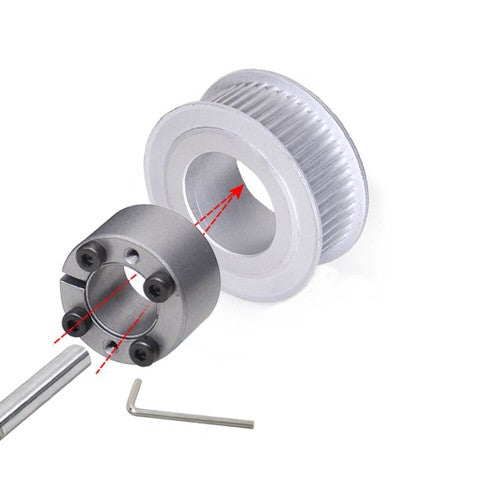

🔧 Expansion Sleeve Bore System

Integrated taper-style expansion sleeve allows secure, concentric shaft clamping across bore sizes from 8mm to 50mm without keyways on smaller shafts.

📏 32mm Belt Width

Designed for 32mm-wide HTD-8M belts, providing a wider contact patch for higher torque transmission compared to narrower 8M profiles.

⚡ Wide Tooth Count Range (18T–60T)

Select from 18 to 60 teeth to dial in your drive ratio, center distance, and belt speed for CNC, robotics, or conveyor applications.

🎯 Precision-Machined Bore

Sleeve bore options from 8mm to 50mm are machined to close tolerance for minimal runout and consistent belt tracking.

📐 Technical Specifications — HTD-8M Timing Belt Pulleys

Belt Pitch 8M (8mm pitch, HTD profile)
Belt Width Compatibility 32mm
Tooth Count Options 18T, 19T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 32T, 34T, 36T, 38T, 40T, 44T, 48T, 50T, 60T
Sleeve Bore Options 8mm, 9mm, 10mm, 11mm, 12mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm
Material 45# Medium-Carbon Steel
Bore Type Expansion sleeve (taper-lock style)
Pitch Diameter See variant options
Outside Diameter See variant options
Hub Style See variant options
Surface Finish See variant options
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines your drive ratio and pitch diameter. Divide the driven pulley teeth by the driver pulley teeth to get your speed reduction ratio. For example, an 18T driver paired with a 36T driven pulley gives a 2:1 reduction. Use a smaller tooth count for higher speed output and a larger count for more torque. Match your center distance and belt length requirements when selecting tooth counts.

How do I select the correct Sleeve Bore size?

Measure your shaft diameter precisely with calipers. Select the Sleeve Bore option that matches your shaft diameter. The expansion sleeve clamps concentrically onto the shaft when tightened, so the bore should match the shaft OD closely — do not select a bore significantly larger than your shaft diameter, as this reduces clamping effectiveness.

What belt must I use with these pulleys?

These pulleys are designed exclusively for HTD-8M synchronous timing belts with a 32mm width. The HTD (High Torque Drive) 8M profile has an 8mm pitch and a curvilinear tooth shape. Do not use with trapezoidal (MXL, XL, L, H) belts or other pitch HTD belts (3M, 5M, 14M), as tooth profiles are not interchangeable.

How strong is the expansion sleeve clamping force?

The expansion sleeve provides friction-based shaft retention through radial clamping force when the sleeve fasteners are torqued to specification. Clamping torque capacity depends on the bore size, sleeve engagement length, and fastener torque applied. For high-shock or reversing loads, verify the sleeve torque rating against your application requirements. Contact us to confirm specifications for your specific variant.

Are these pulleys corrosion resistant?

These pulleys are machined from 45# carbon steel, which provides good mechanical strength but has moderate corrosion resistance. For environments with moisture, chemicals, or outdoor exposure, consider applying a protective coating (paint, zinc plating, or oil film) after installation. For inherently corrosion-resistant applications, contact us to discuss material alternatives.

Can I use these pulleys in a CNC router or 3D printer build?

Yes. HTD-8M pulleys with expansion sleeves are well-suited for CNC router axis drives, large-format 3D printer gantry systems, and similar precision motion applications. The 32mm belt width supports higher torque loads than narrower 8M variants. Select the tooth count that matches your desired drive ratio and the bore size that fits your motor or idler shaft diameter.

What is the pitch diameter for a given tooth count?

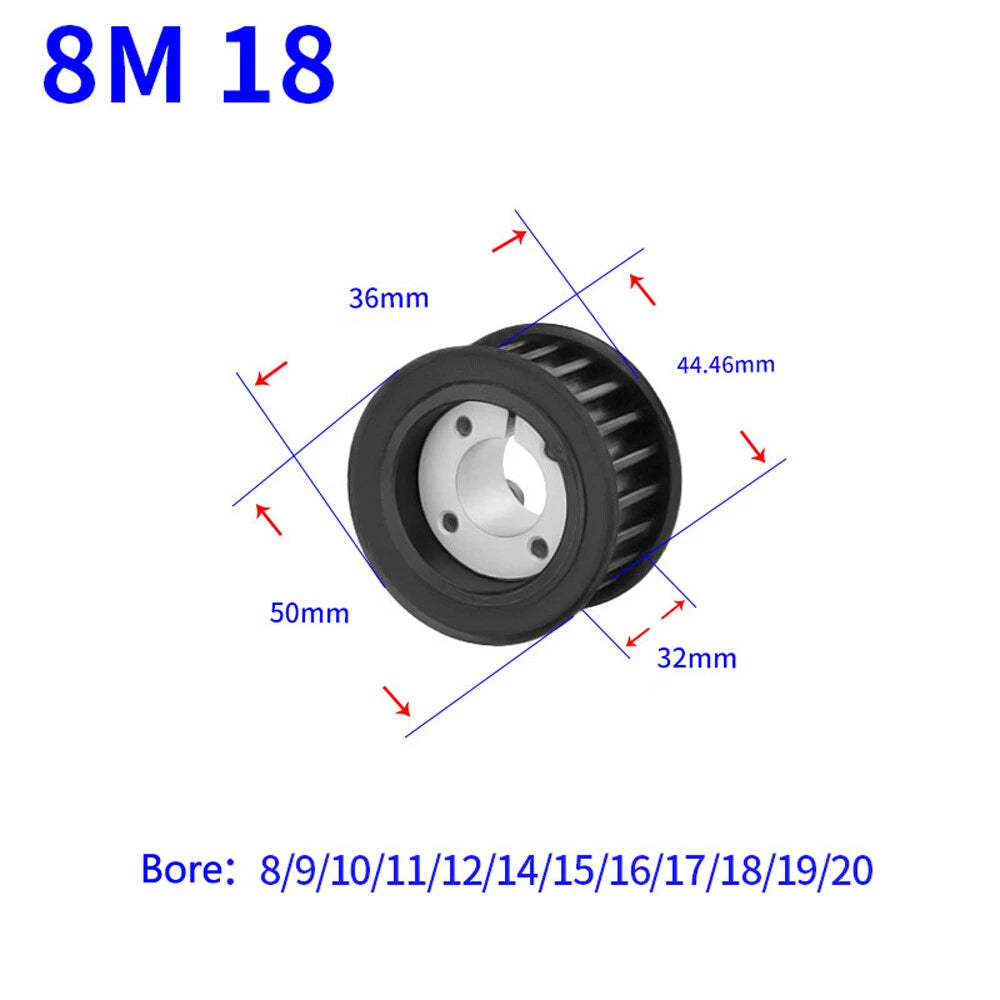

Pitch diameter (PD) for an HTD-8M pulley is calculated as: PD = (Teeth × Pitch) ÷ π = (T × 8) ÷ 3.1416. For example, an 18T pulley has a PD of approximately 45.84mm (1.81 in), and a 60T pulley has a PD of approximately 152.79mm (6.02 in). Outside diameter will be slightly larger than pitch diameter depending on tooth geometry.

🛒 Select your Number of Teeth and Sleeve Bore above, then add to cart.
