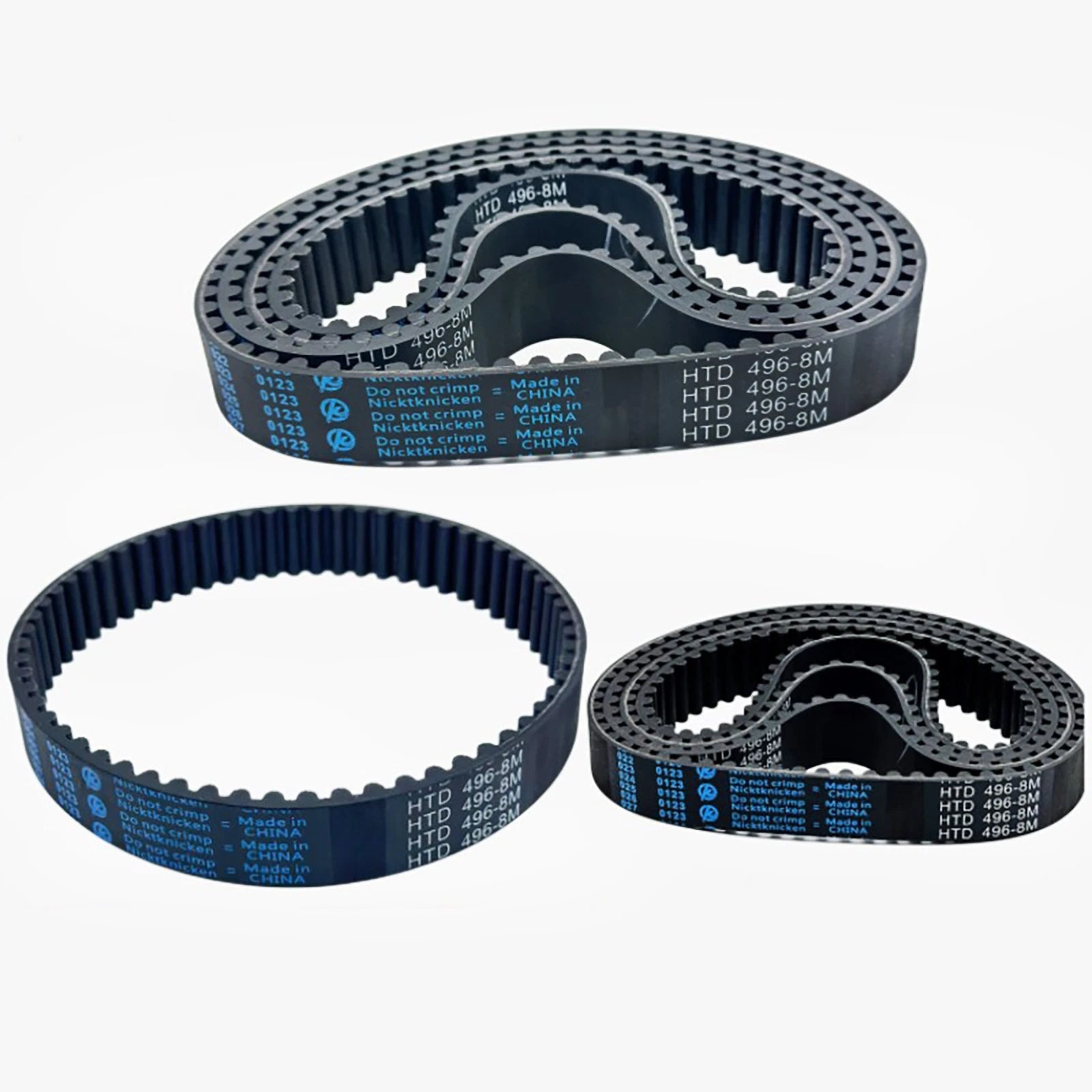

HTD 8M Open Timing Belt 20mm Wide — Precision Linear Drive for CNC & Motion Systems

When your CNC router, laser cutter, or 3D printer demands consistent, slip-free motion, the drive belt is the last place you want to compromise. Worn or incorrectly sized belts cause missed steps, positioning errors, and costly reprints or ruined workpieces. This HTD 8M open timing belt in 20mm width is designed for builders, machinists, and automation engineers who need a reliable, cut-to-length solution without ordering a full reel.

Each piece is an open-end (linear) HTD 8M timing belt, 20mm (≈0.79") wide, available in lengths from 264mm (≈10.4") to 2800mm (≈110.2"). The HTD curvilinear tooth profile engages HTD 8M pulleys with an 8mm pitch. The belt body is typically constructed from neoprene rubber with fiberglass or steel tension cord reinforcement — providing dimensional stability under load. Select your exact length from the variant dropdown above.

Typical applications include CNC gantry drives and rack-and-pinion replacements, belt-driven linear rails for 3D printers and laser engravers, and stepper or servo motor power transmission in robotics and automation rigs. The 20mm width suits medium-to-high torque open-loop and closed-loop motion control systems where a narrower belt would flex or skip under load.

ℹ️ Compatibility: Fits HTD 8M pulleys only (8mm pitch, curvilinear tooth profile). Not compatible with GT2, T5, T10, or trapezoidal-profile pulleys. Verify your pulley specification before ordering.

✅ Key Features of These HTD 8M Open Timing Belts

  • 📐Cut-to-Length Flexibility — Available in 247 length options from 264mm to 2800mm, so you get exactly what your build requires without cutting waste from a full reel.

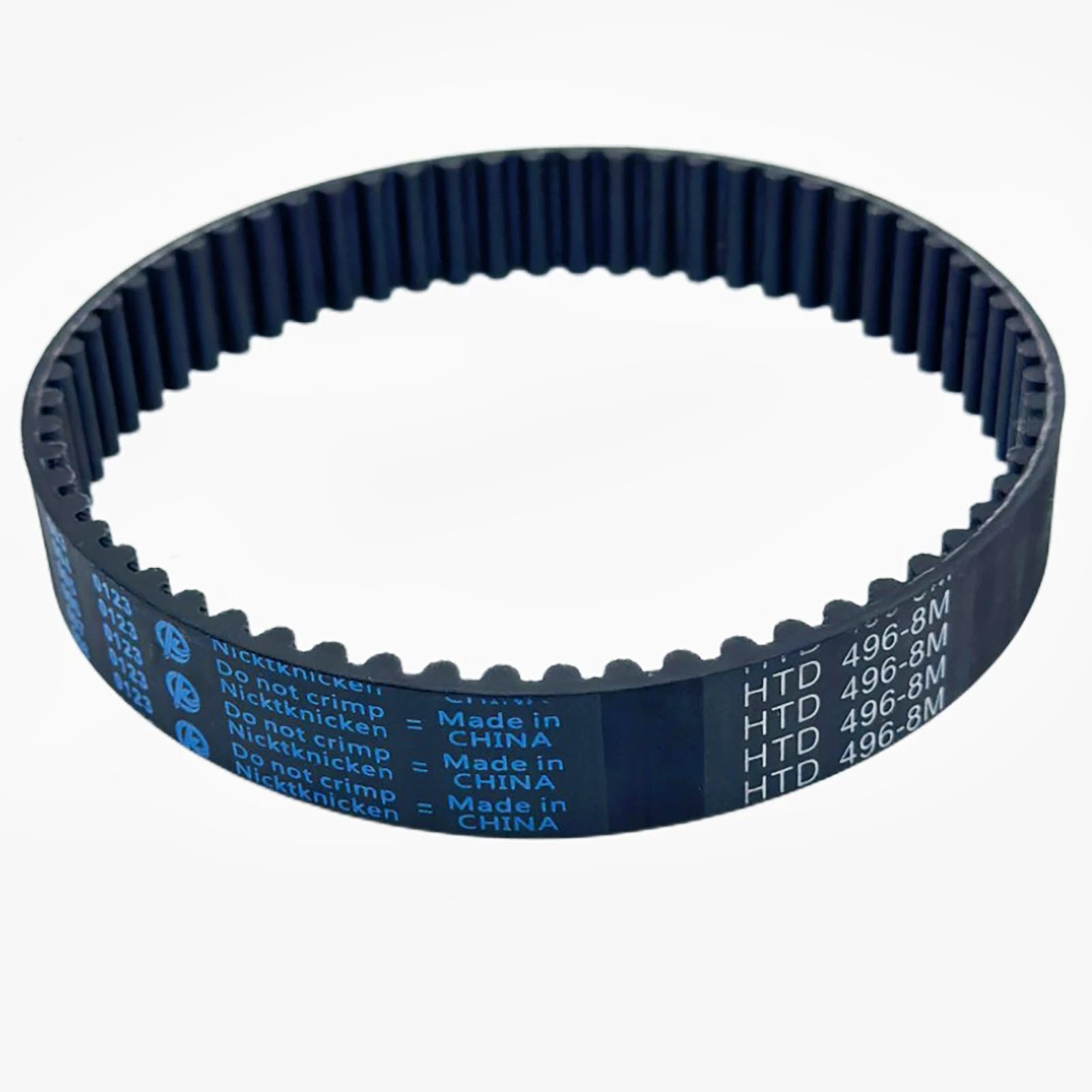

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in stepper motor CNC drive systems.
  • 📏20mm Belt Width — Wider than standard 15mm variants, this 20mm width increases tensile capacity and lateral stability, making it suitable for heavier gantry or dual-drive configurations.
  • 🔩8mm Pitch Spacing — The 8mm center-to-center tooth pitch is well-matched to medium-speed, higher-torque applications such as CNC routers and plasma table drives where GT2 belts are typically undersized.
  • 🏗️Open-End Linear Format — Sold as a straight open-end belt, ideal for linear motion systems where both ends are clamped or anchored — no need to size a closed loop or splice a longer belt.

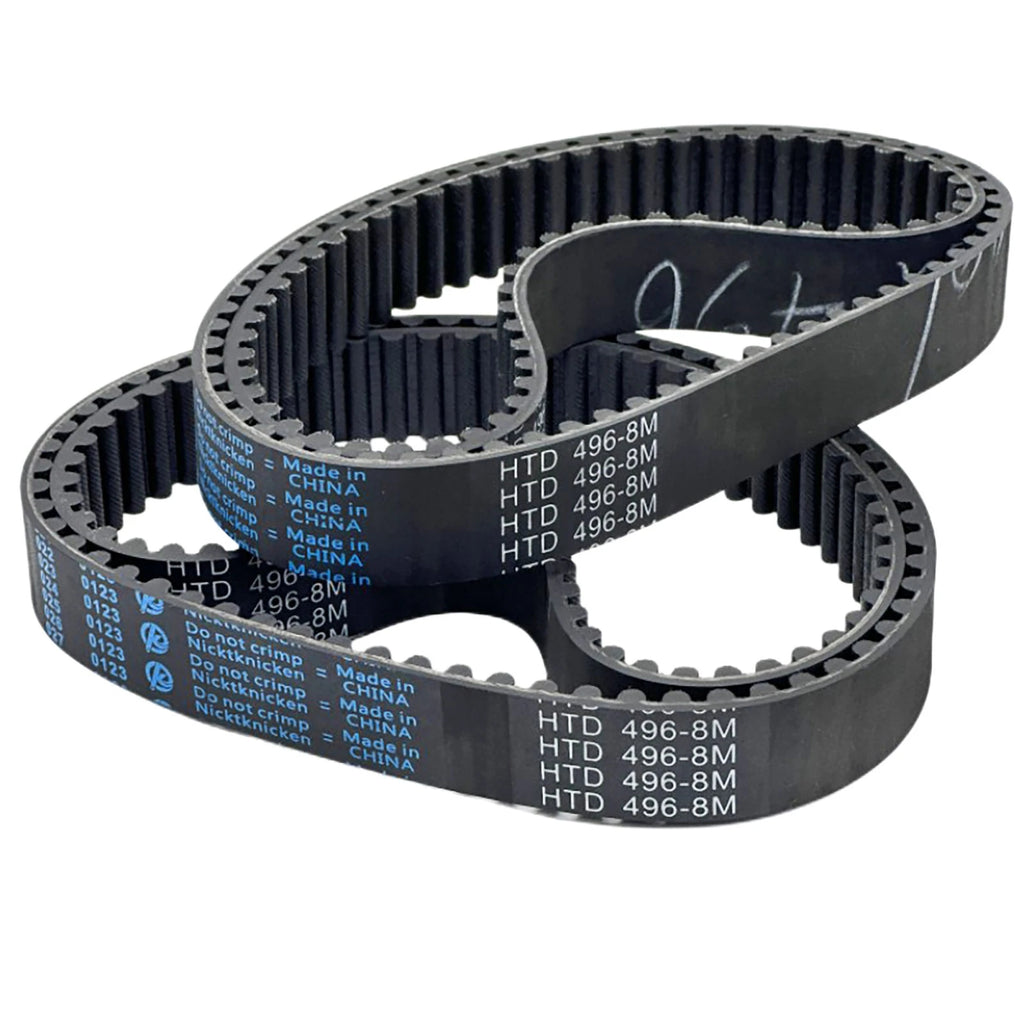

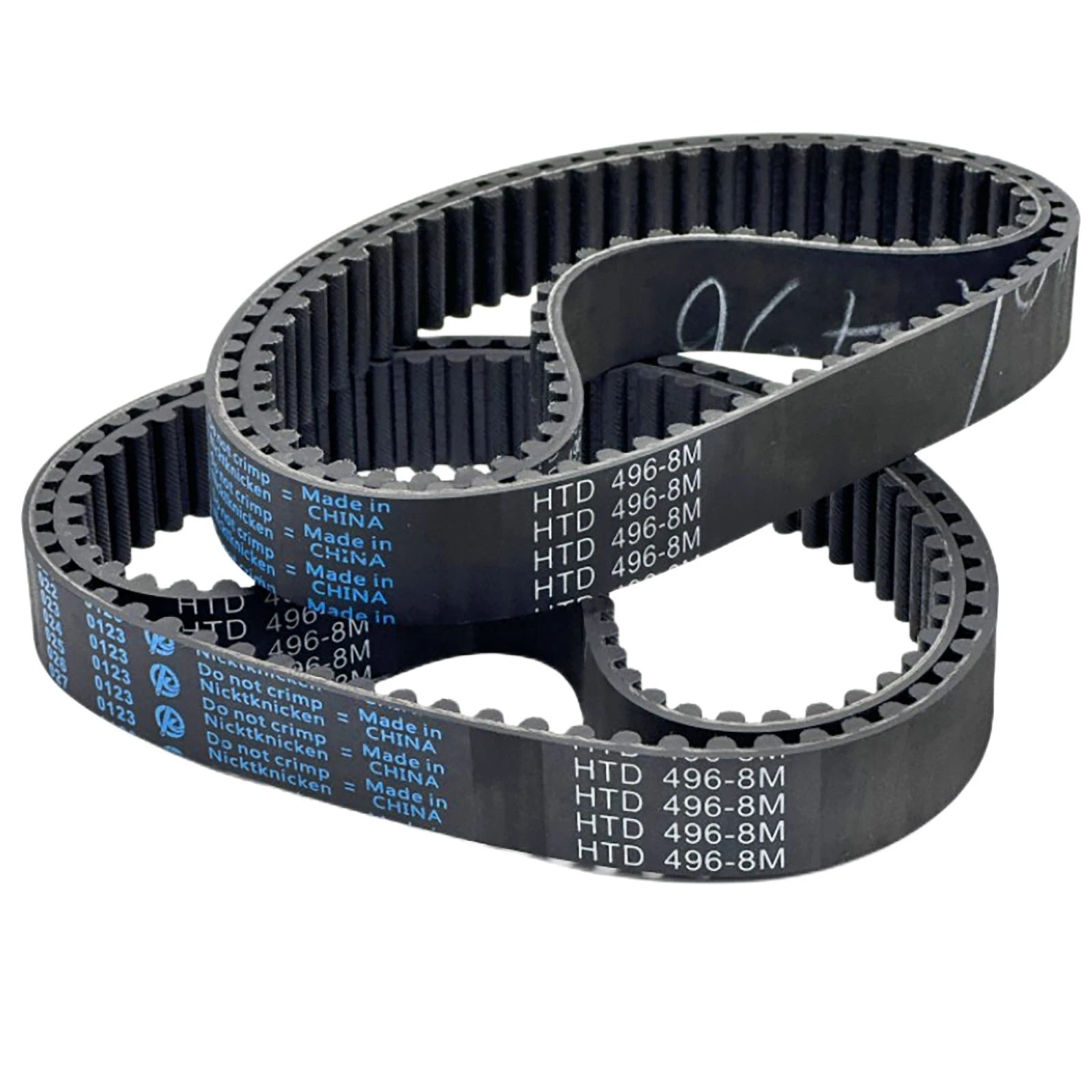

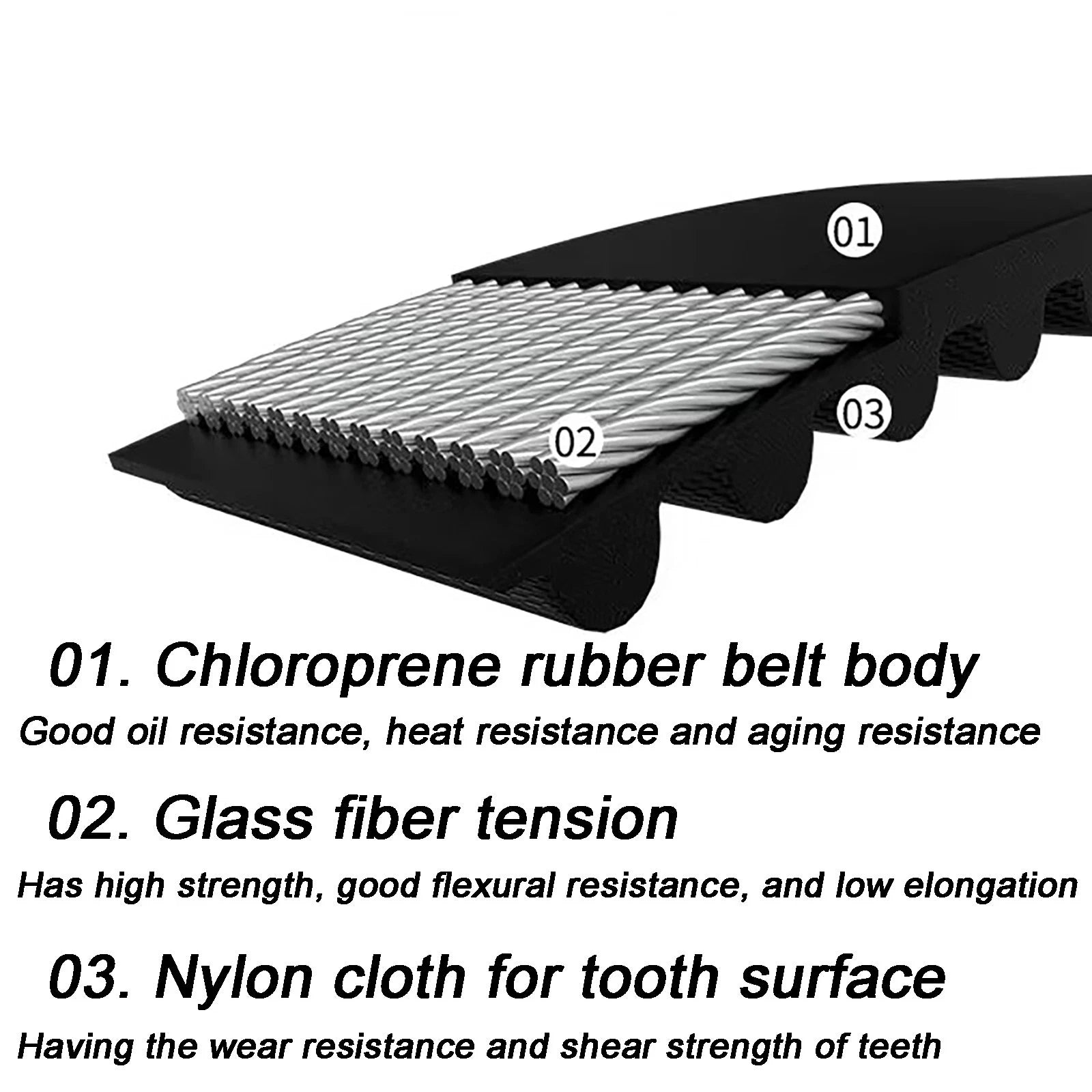

  • 🔄Reinforced Tension Core — Typically features fiberglass or steel cord reinforcement within the rubber body, maintaining consistent pitch length under tension and reducing elongation over time in open-loop CNC timing belt drives.

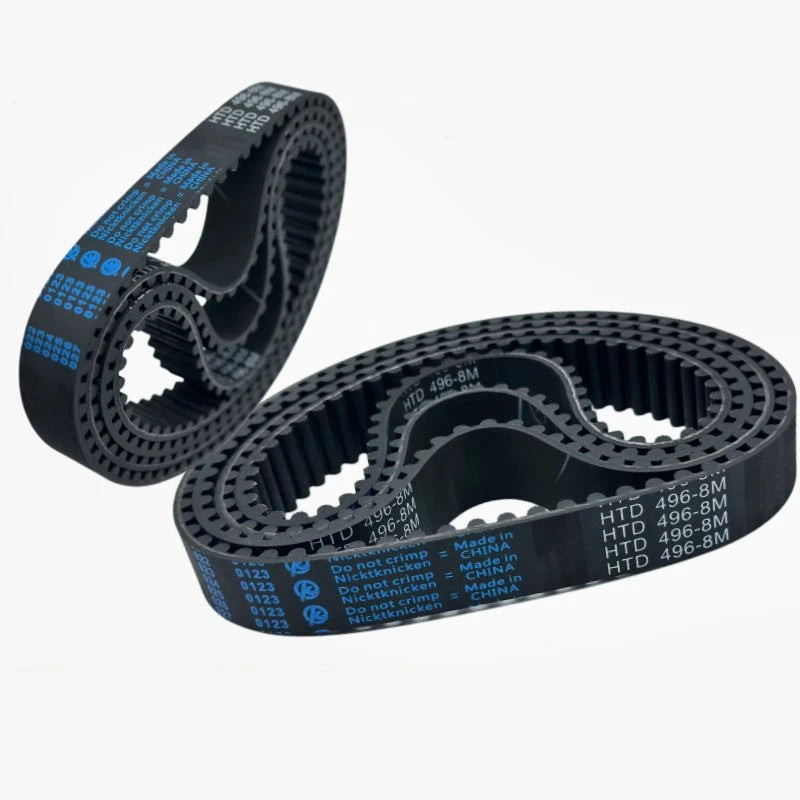

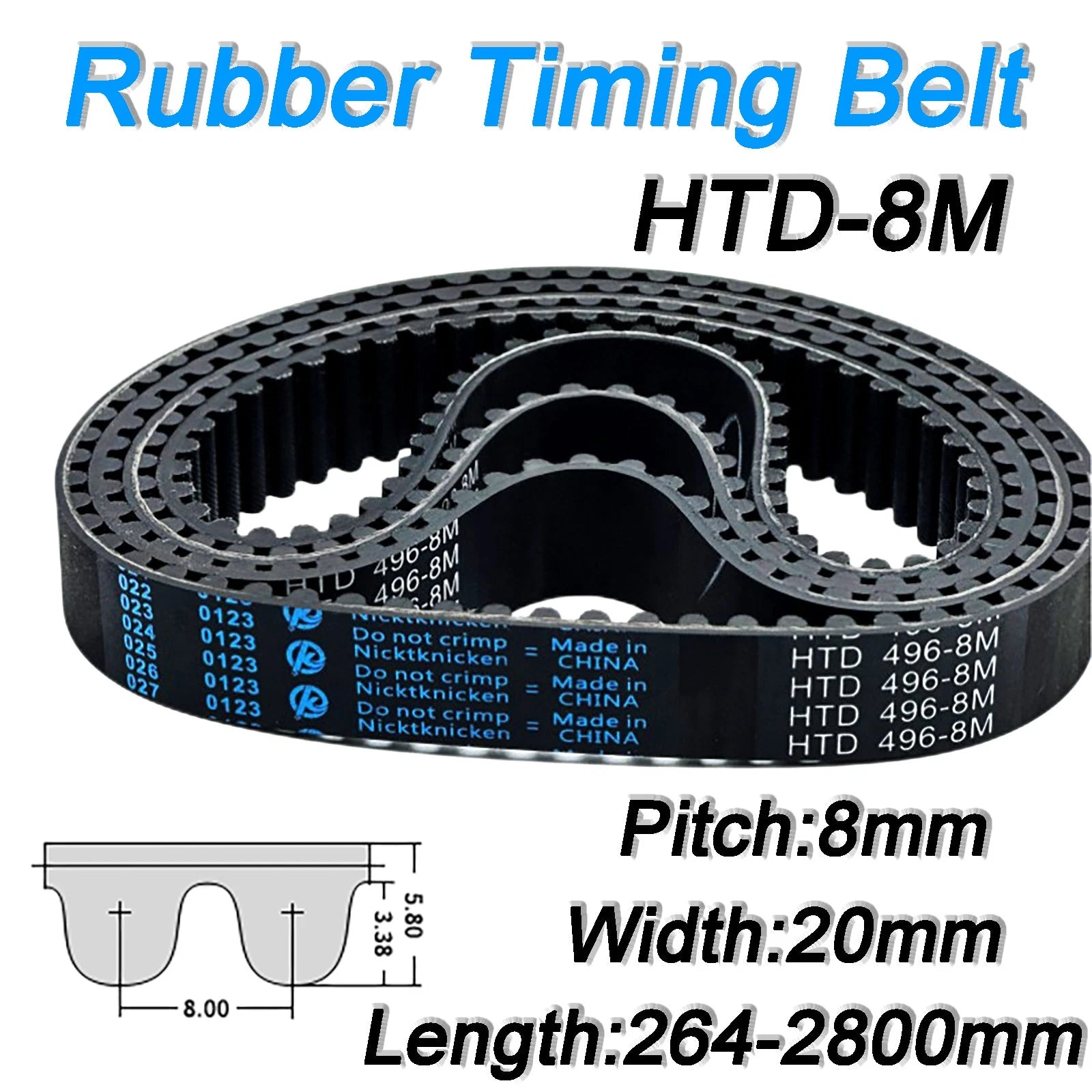

📐 Technical Specifications — HTD 8M Open Timing Belt

Belt Type Open-End (Linear) Timing Belt
Tooth Profile HTD (High Torque Drive) — Curvilinear
Pitch 8mm (center-to-center between teeth)
Belt Width 20mm (≈0.79")
Available Lengths 264mm (≈10.4") to 2800mm (≈110.2") — see variant options
Tooth Height See variant options
Body Material Neoprene rubber (typically)
Tension Member Fiberglass or steel cord (contact us to confirm)
Compatible Pulleys HTD 8M pulleys only
Sold As 1 piece per order at selected length
Typical Applications CNC routers, laser cutters, 3D printers, linear rails, robotics
Color Black
⚠️ Note: Tooth height and exact tensile rating vary by manufacturer batch. If your application has strict load or dimensional tolerances, contact us before ordering to confirm current stock specifications.

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

For a linear (open-end) belt, measure the straight run between your two anchor or clamp points, then add any extra length needed for tensioning or overlap. Lengths are listed in mm; to convert to inches, divide by 25.4 (e.g., 500mm ÷ 25.4 ≈ 19.7", 1000mm ≈ 39.4"). When in doubt, order slightly longer — you can trim an open-end belt, but you cannot add length.

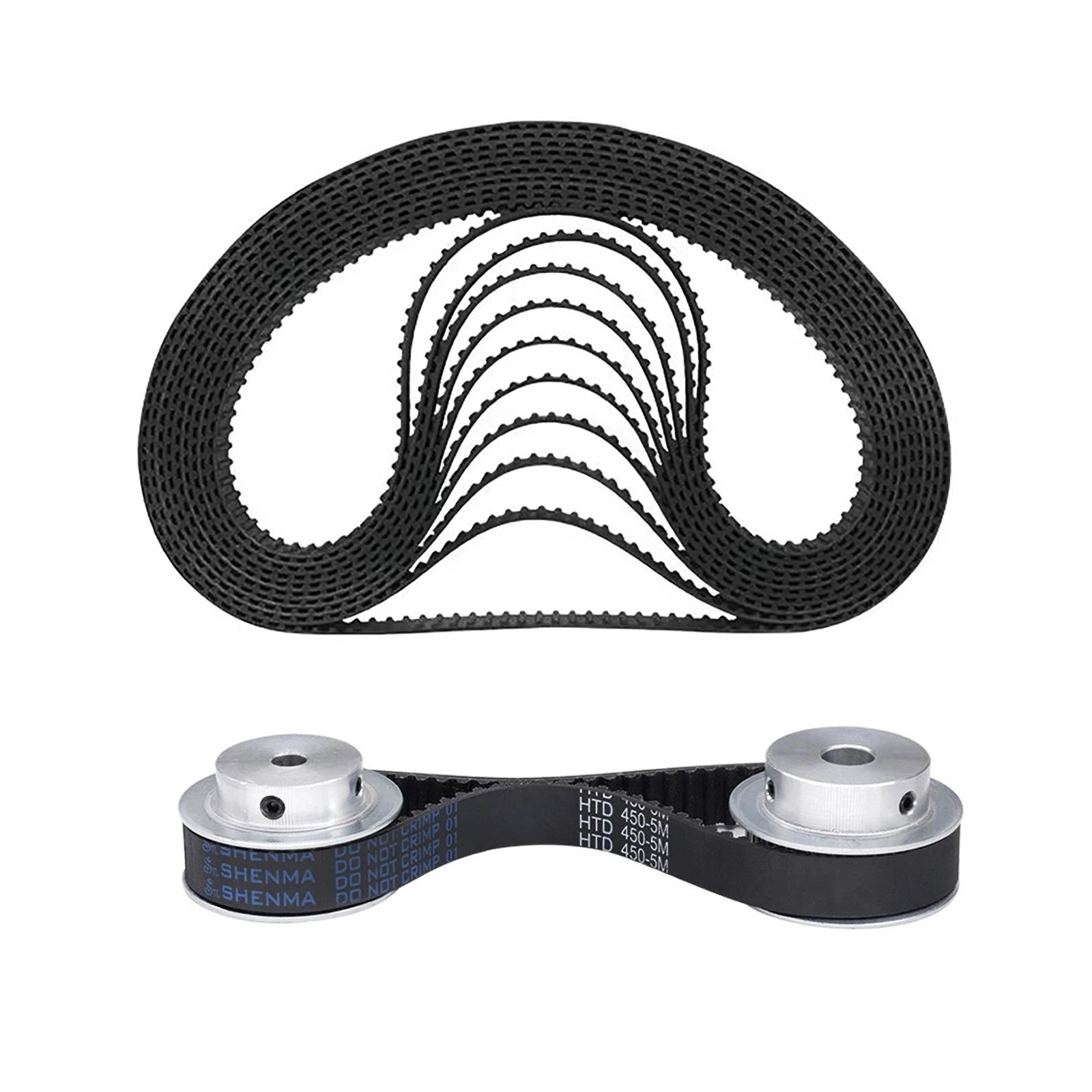

What pulleys are compatible with this belt?

This belt requires HTD 8M pulleys — those with an 8mm pitch and a curvilinear (rounded) tooth profile. It is not compatible with GT2, T5, T10, or any trapezoidal-profile pulley. HTD 8M pulleys are generally available in 20T to 60T tooth counts from most motion hardware suppliers.

How much load or torque can this belt handle?

HTD 8M belts in 20mm width are generally rated for moderate-to-high torque applications — typically higher than 15mm-wide variants of the same pitch. Exact tensile strength depends on the tension cord material (fiberglass vs. steel). For specific load ratings, contact us to confirm the current batch specification before ordering for critical applications.

Can I use this belt outdoors or in a dusty/wet shop environment?

Neoprene rubber timing belts are generally resistant to light moisture, oil mist, and moderate temperature ranges (typically –20°C to +80°C / –4°F to +176°F). They are not rated for continuous submersion or exposure to strong solvents. For dusty CNC environments, a belt cover or guard is recommended to extend service life.

Is this a closed-loop belt or an open-end belt?

This is an open-end (linear) timing belt — it is a straight piece, not a closed loop. Open-end belts are the correct choice for linear motion systems (CNC gantries, laser cutter axes, belt-driven linear rails) where both ends are clamped or anchored to a carriage and frame.

How do I terminate or join an open-end timing belt?

Open-end timing belts are most commonly terminated using belt clamp blocks that grip the belt teeth mechanically — no adhesive or heat required. They can also be joined into a closed loop using HTD 8M belt connector clips, though a factory-molded closed-loop belt is generally stronger for high-cycle or high-speed applications.

What does "HTD" mean and how is it different from GT2 or T-profile belts?

HTD stands for High Torque Drive. It uses a curvilinear (rounded) tooth profile that distributes load more evenly across the tooth root compared to older trapezoidal (T-profile) designs. GT2 is a further refinement of the curvilinear profile optimized for low backlash at smaller pitches (2mm, 3mm). HTD 8M is generally chosen for higher-torque, lower-speed drives where GT2 would be undersized.

🛒 Select your length above, then add to cart — ships from our US warehouse.
