HTD 8M Timing Belt 20mm Wide — Reliable Closed Loop Drive Belt for CNC, 3D Printers & Industrial Machines

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime, the fix starts with the right synchronous belt. Whether you're a CNC hobbyist, a machine builder, or a maintenance technician replacing a worn drive component, this HTD 8M closed loop rubber timing belt gives you a direct, no-guesswork replacement or upgrade.

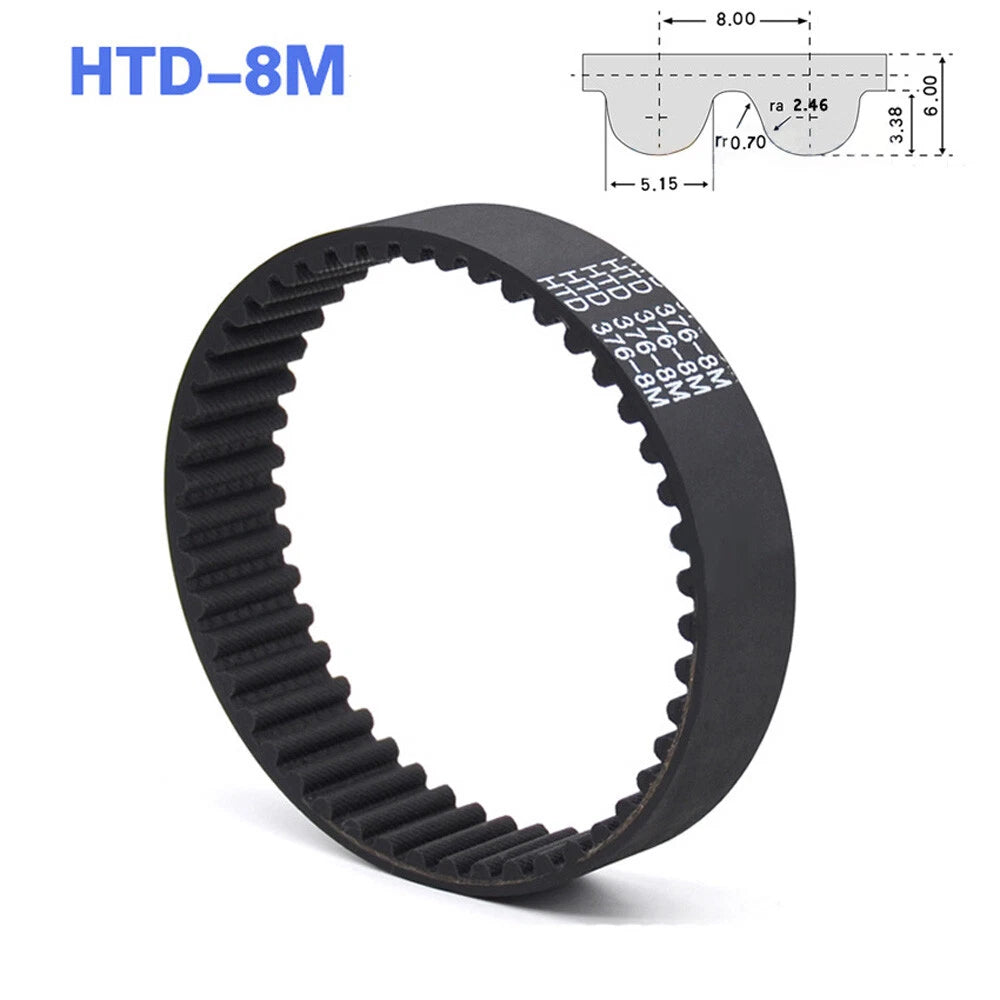

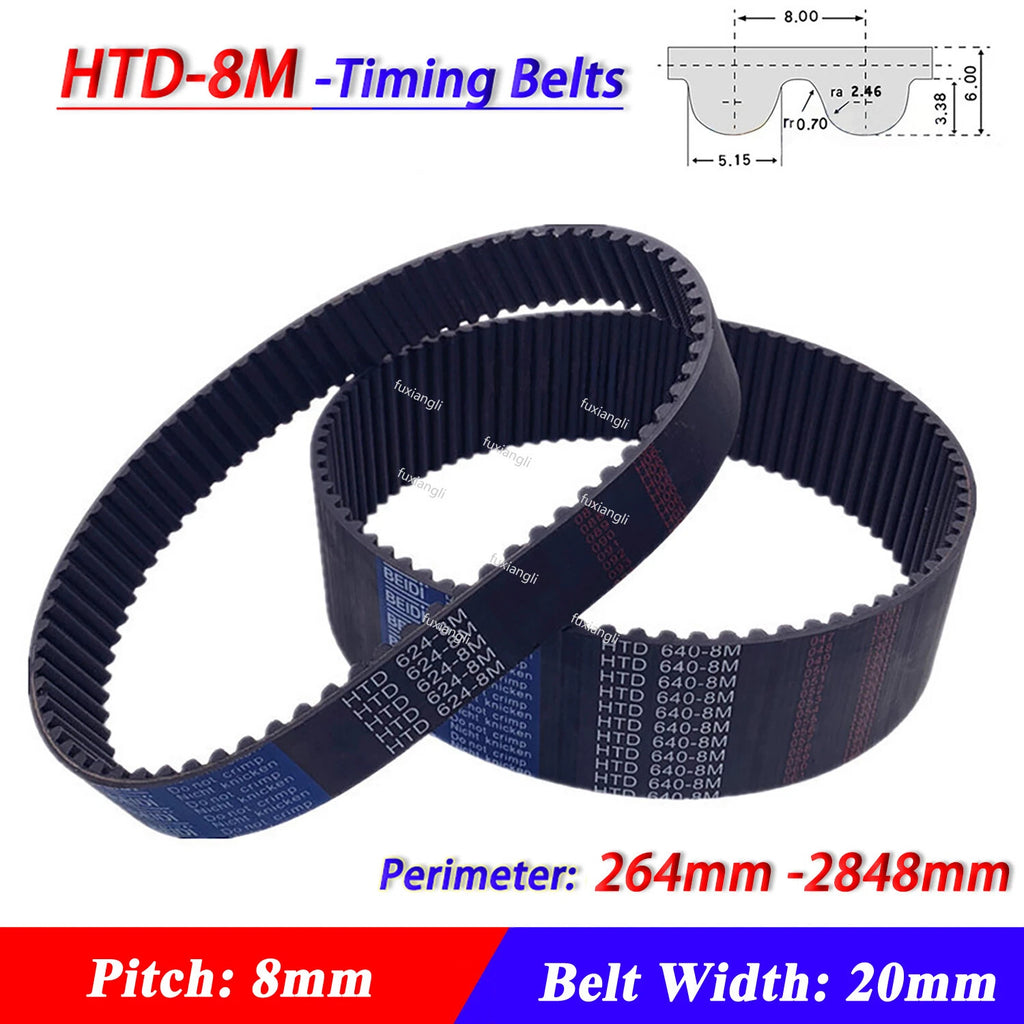

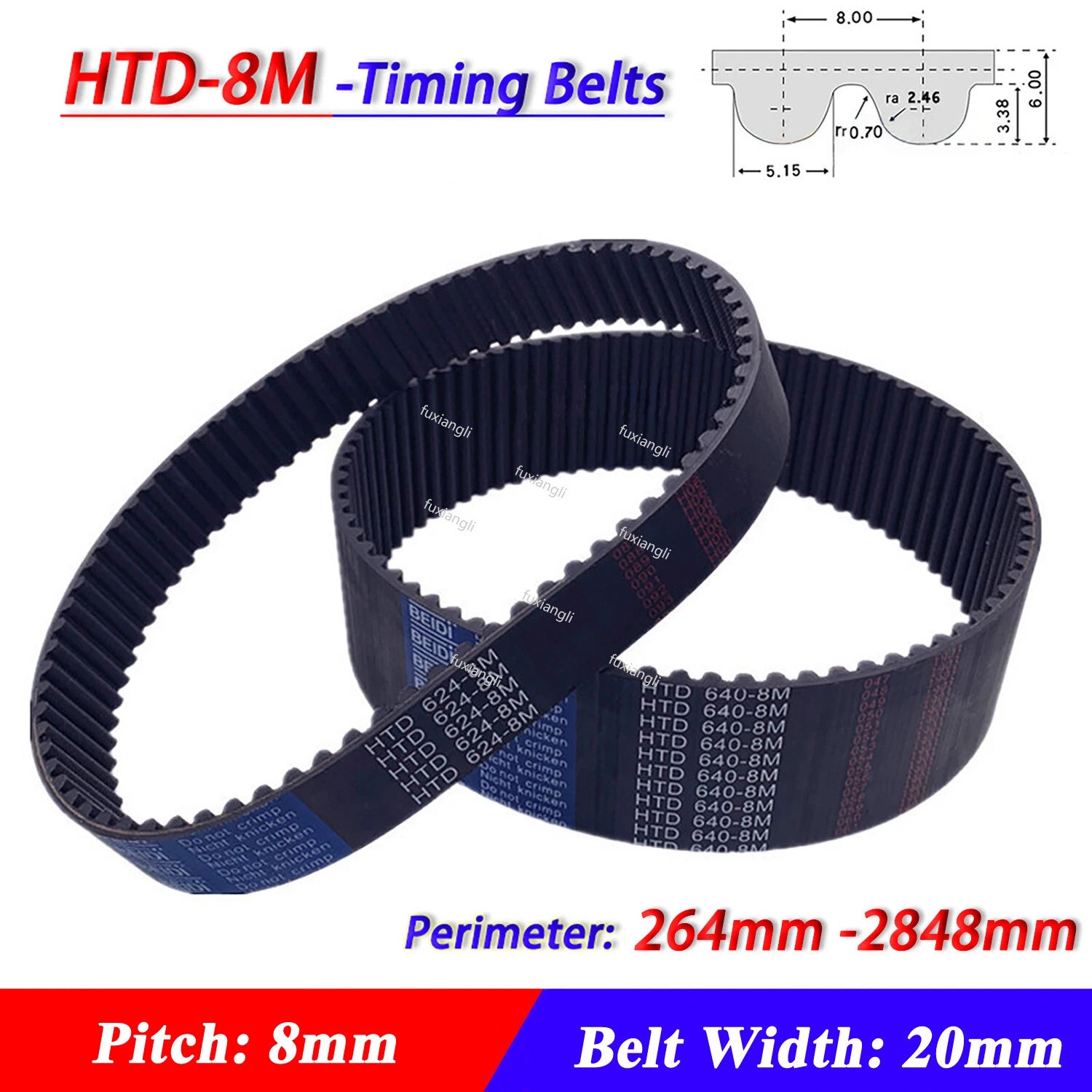

Each belt features an 8mm HTD tooth pitch, a 20mm (≈0.79") width, and a neoprene rubber body reinforced with fiberglass tension cord. Available circumferences range from 264mm (≈10.4") to 2848mm (≈112.1") — select your exact length from the variant dropdown. All belts are closed-loop (endless) construction with no splice or joint.

Typical applications include CNC router and laser cutter axis drives, 3D printer motion systems, conveyor and indexing drives, robotic arm actuators, and general-purpose synchronous power transmission where precise tooth engagement and repeatable positioning are required.

ℹ️ Compatibility: Designed for HTD 8M profile pulleys/sprockets only. Not compatible with GT2, T5, T10, or other tooth profiles. Confirm your pulley tooth profile before ordering.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

  • ⚙️HTD 8M Tooth Profile — The curved HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-to-high torque synchronous drive applications.
  • 📏Wide Size Selection (264–2848mm) — Over 240 circumference options in a single listing let you find the exact closed loop timing belt length for your CNC axis, conveyor, or custom drive without custom fabrication.
  • 🔩20mm Consistent Width — The uniform 20mm (≈0.79") belt width provides a stable, predictable contact footprint across all available lengths, simplifying pulley selection and tensioner setup.

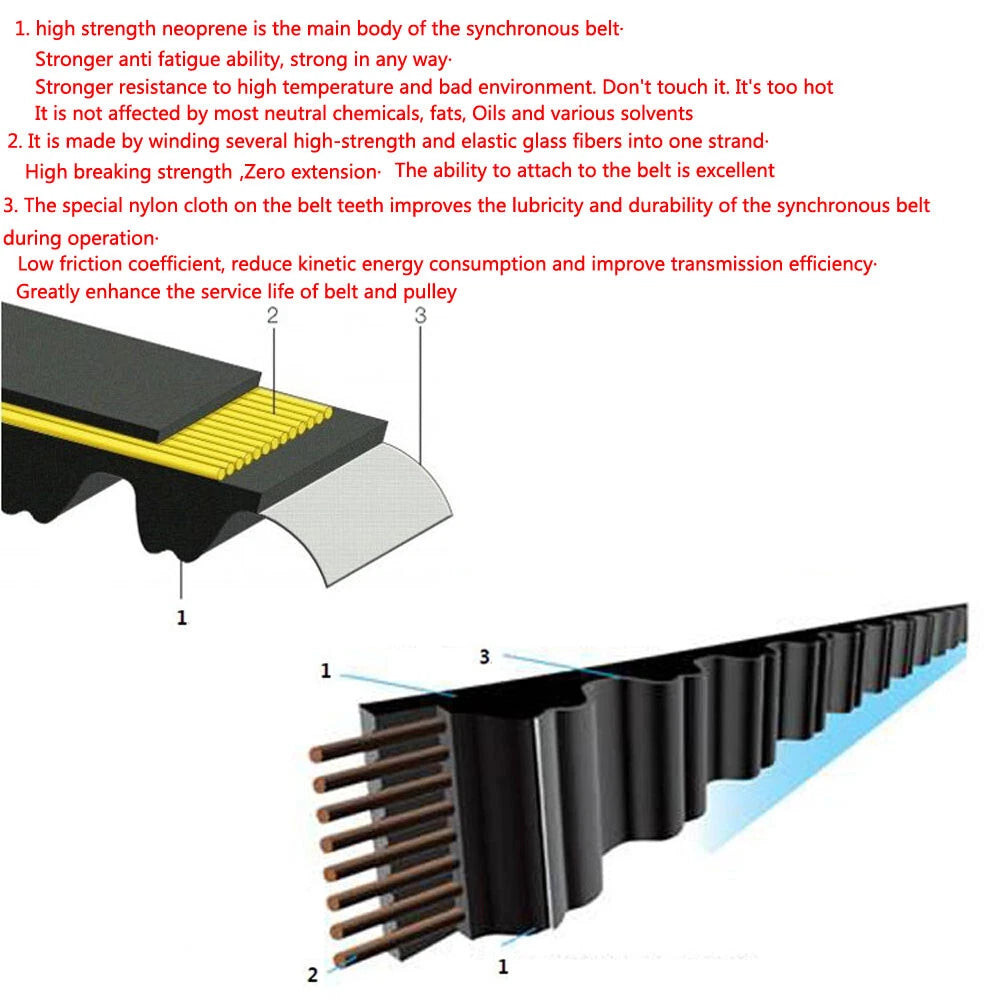

  • 🧱Neoprene Rubber Body — The neoprene construction offers resistance to oil mist, moderate moisture, and temperature variation, making it suitable for enclosed machine enclosures and light industrial environments.
  • 🪢Fiberglass Tension Cord — The embedded fiberglass cord resists elongation under load, maintaining consistent center-to-center distance and tooth engagement over the belt's service life.
  • 🔄Closed Loop (Endless) Construction — No splice, no joint, no weak point. The seamless loop design ensures uniform tension distribution and eliminates the vibration and wear associated with spliced or laced belts.

📐 Technical Specifications — HTD 8M Timing Belt

Belt Profile HTD 8M (High Torque Drive, 8mm pitch)
Pitch 8mm (≈0.315")
Belt Width 20mm (≈0.79")
Circumference Range 264mm (≈10.4") – 2848mm (≈112.1")
Belt Type Closed loop (endless)
Body Material Neoprene rubber
Tension Member Fiberglass cord
Tooth Face Nylon fabric facing (typically)
Operating Temperature Typically –30°C to +80°C (–22°F to +176°F)
Compatible Pulley Profile HTD 8M sprockets/pulleys only
Quantity per Order 1 piece (1Pcs)
Tooth Count See variant options (circumference ÷ 8mm)
⚠️ Before ordering: Verify your existing belt's circumference (printed on the belt or measured around the outside), width, and tooth profile. If unsure, contact us to confirm compatibility.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: L = 2C + π(D+d)/2. Belt lengths are listed in millimeters; to convert, divide by 25.4 for inches (e.g., 800mm ≈ 31.5"). If replacing an existing belt, the circumference is typically printed on the belt's inner surface.

What does the "8M" designation mean?

"8M" refers to the HTD (High Torque Drive) tooth profile with an 8mm pitch — the distance from one tooth center to the next. This is a metric standard widely used in CNC machines, 3D printers, robotics, and industrial drives. The HTD profile uses a curved (curvilinear) tooth shape rather than the older trapezoidal profile.

How much load can an HTD 8M belt handle?

HTD 8M belts are generally rated for moderate-to-high torque applications. The 20mm width typically supports higher load capacity than narrower 15mm or 10mm variants of the same profile. Actual load ratings depend on pulley diameter, operating speed, and the number of teeth in mesh — consult your drive system specifications or a belt drive design guide to confirm suitability for your application.

Can this belt be used outdoors or in wet environments?

The neoprene rubber body offers reasonable resistance to moisture, oil mist, and moderate temperature ranges (typically –30°C to +80°C / –22°F to +176°F). For prolonged outdoor UV exposure, chemical splash, or extreme temperatures, verify compatibility with your specific environment before installation. In most cases, enclosed machine applications present no issues.

What pulleys are compatible with HTD 8M belts?

These belts are designed for HTD 8M profile pulleys (also called 8M sprockets). They are not interchangeable with GT2, GT3, T5, T10, XL, or other tooth profiles — even if the pitch appears similar. Always match the belt tooth profile to the pulley tooth profile for proper meshing and to avoid premature wear or tooth jumping.

How do I read the variant names like "800-8M"?

The number before the dash is the belt's outer circumference in millimeters (e.g., 800mm ≈ 31.5"). The "8M" confirms the 8mm pitch HTD profile. All belts in this listing are 20mm wide. To find the tooth count, divide the circumference by the pitch: 800 ÷ 8 = 100 teeth.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) belt — it forms a continuous loop with no joint or splice. This design provides consistent tension distribution and is required for most synchronous drive applications. Open-ended belts (sold by the meter) are a separate product category.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
