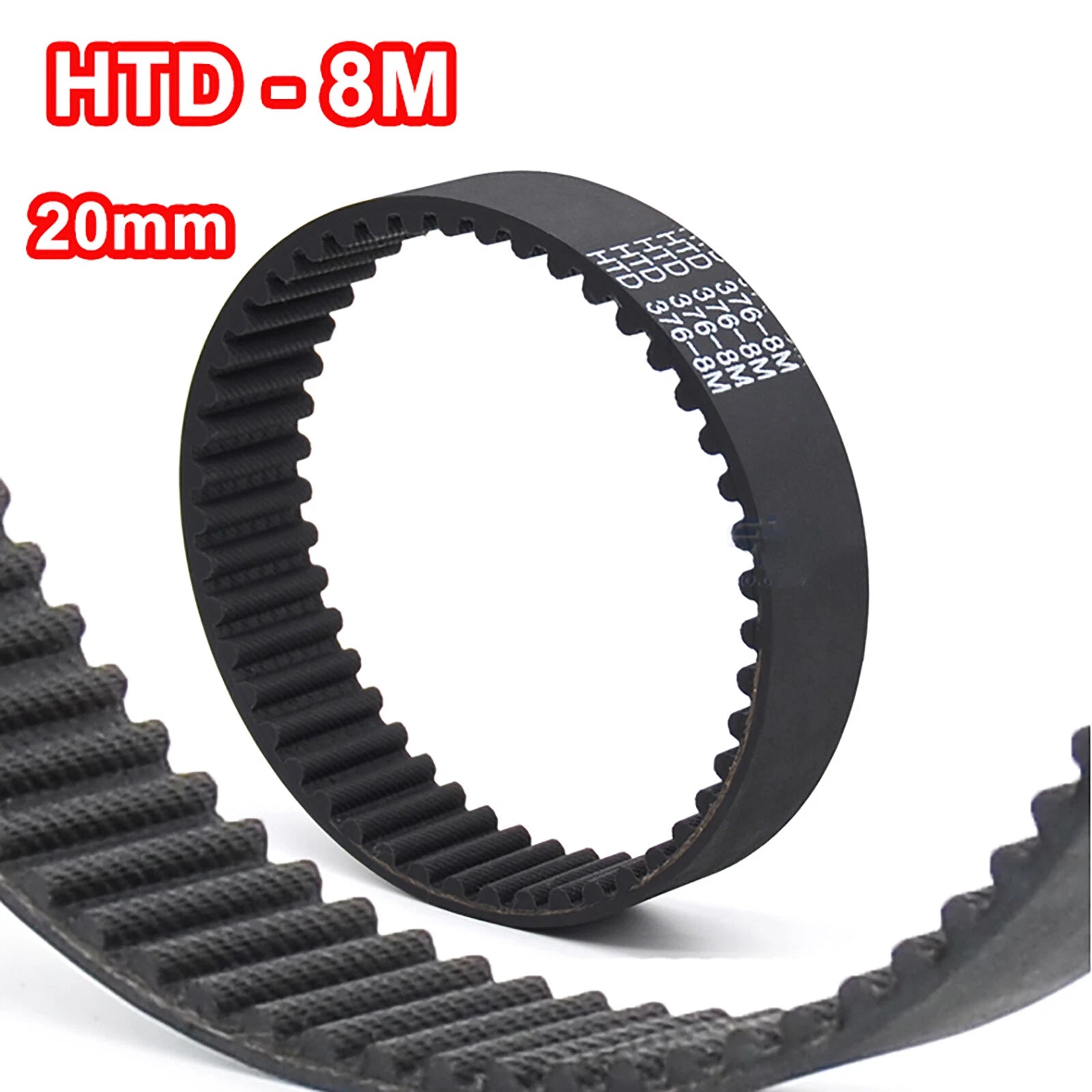

HTD 8M Timing Belt 20mm Wide — Reliable Closed Loop Drive for CNC, Robotics & Conveyor Systems

When a slipping or stretched drive belt causes positioning errors on your CNC router, missed steps on your 3D printer gantry, or uneven feed on your conveyor line, the root cause is almost always a belt that wasn't engineered for the load. Engineers, machine builders, and serious DIYers who need a synchronous drive solution with an 8mm pitch and 20mm working width will find this HTD 8M closed loop timing belt a direct, dependable replacement or upgrade component.

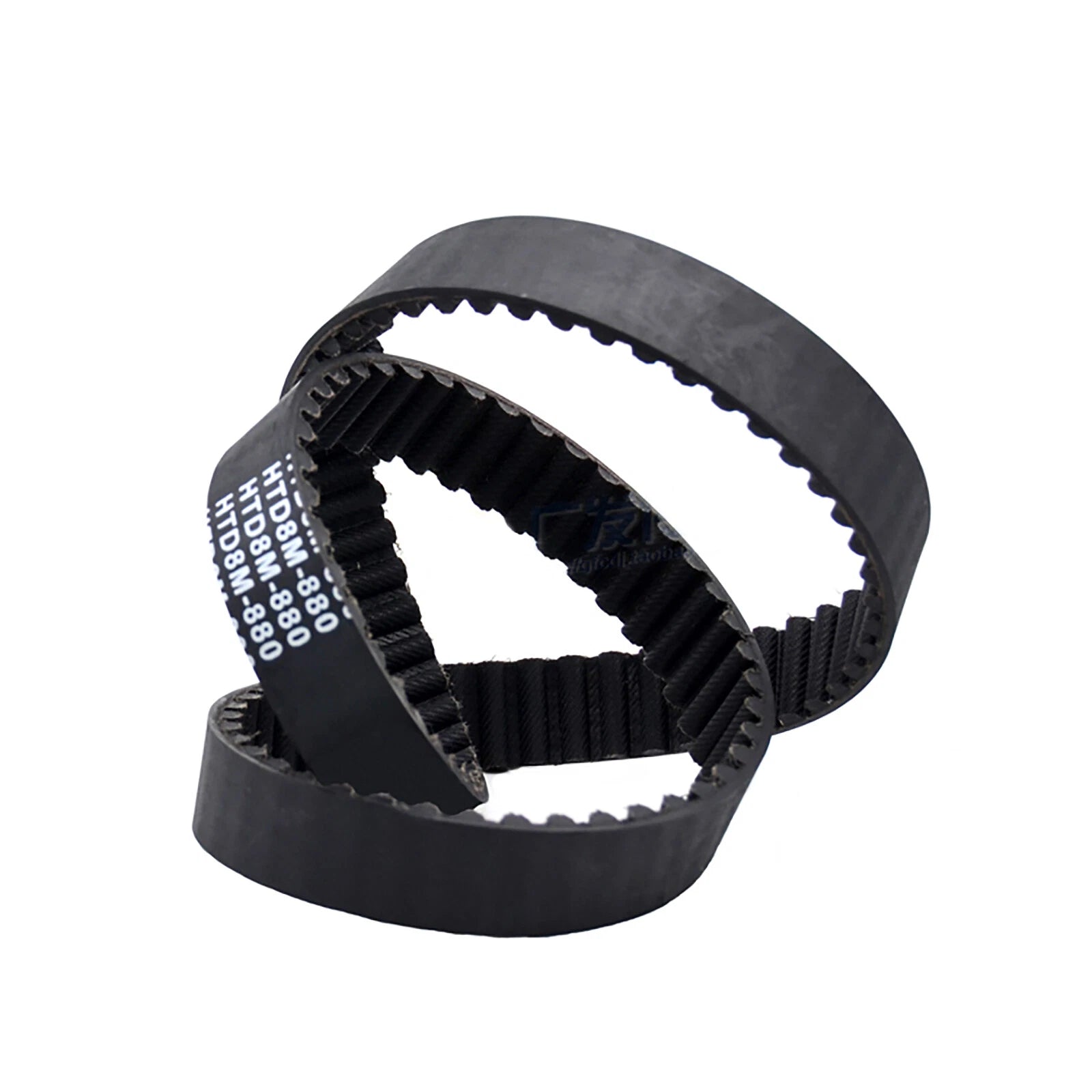

Each belt is a single closed-loop unit — no splices, no joints — constructed with a neoprene rubber body, reinforced tensile cord (typically fiberglass or steel), and a nylon tooth-facing fabric for reduced wear. The belt width is 20mm and the pitch is 8mm (HTD profile), with perimeter lengths available from 288mm (≈11.3") to 5432mm (≈213.9"), covering 114 size options so you can match your exact center-to-center distance without custom fabrication.

Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, conveyor belt synchronization, robotic arm joints, and automated packaging equipment — anywhere a synchronous HTD 8M closed loop rubber drive belt is required to maintain precise positional accuracy under moderate-to-high torque loads.

🔗 Compatibility: Designed for use with HTD 8M profile pulleys only. Not compatible with trapezoidal (XL, L, H), GT2, or GT3 pulleys. Verify your pulley tooth profile before ordering.
⚠️ Size confirmation: Belt length = number of teeth × 8mm. Double-check your required perimeter before selecting a variant. Closed-loop belts cannot be shortened after purchase.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

  • ⚙️ HTD 8mm Pitch Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque synchronous drive applications.
  • 📏 20mm Working Width — A 20mm belt width provides substantially more tensile capacity than narrower 10mm or 15mm variants, making it suitable for conveyor drives, gantry systems, and multi-axis CNC machines.
  • 🔄 Closed-Loop Construction — Endless, splice-free loop eliminates the weak point of joined belts, ensuring consistent tension and tooth engagement throughout the full rotation cycle.
  • 🧱 Reinforced Tensile Cord — Internal cord reinforcement (typically fiberglass or steel) resists elongation under dynamic loads, maintaining accurate positioning in closed-loop motion control systems.

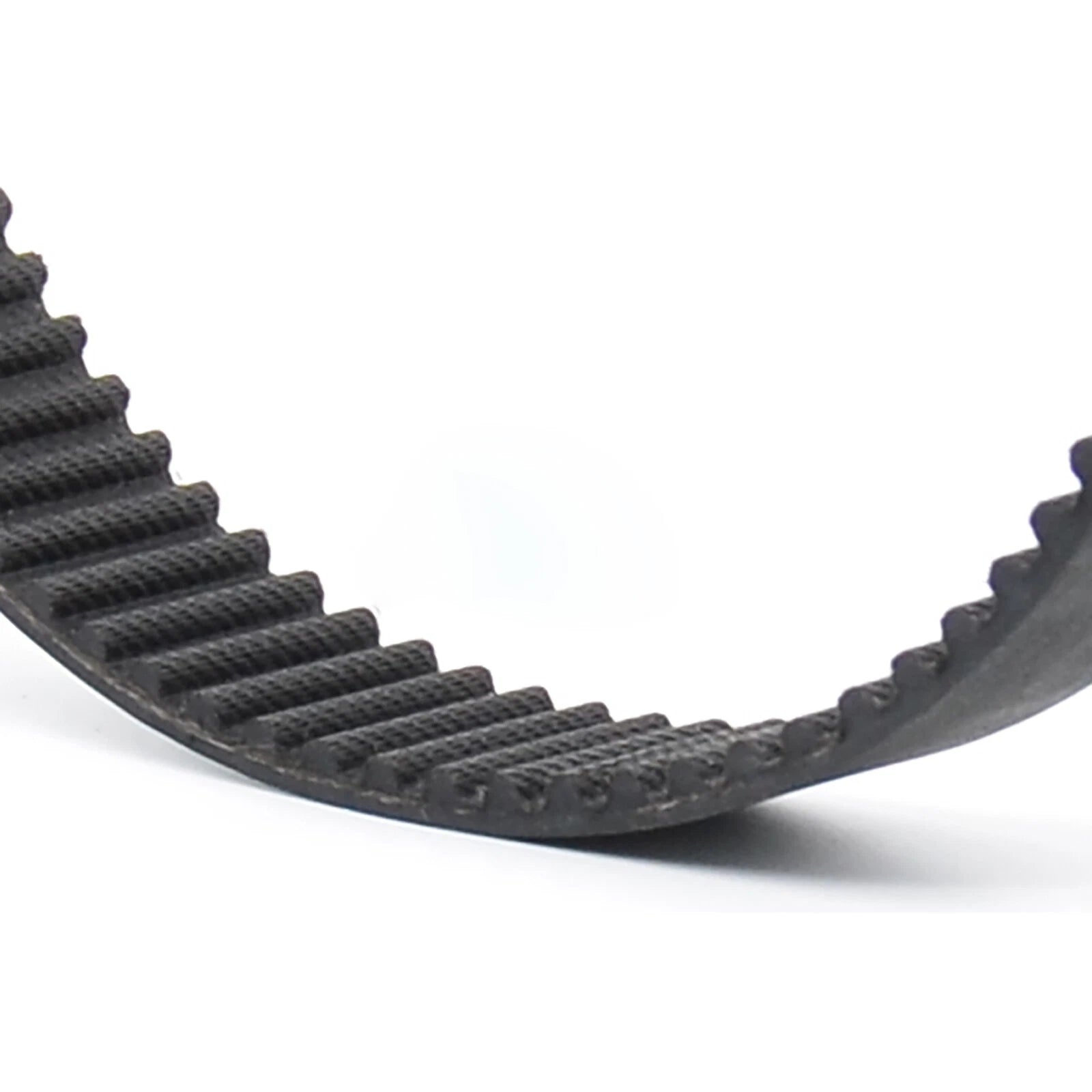

  • 🛡️ Nylon Tooth Facing — The nylon fabric layer on the tooth surface reduces friction against pulley flanges and extends service life in continuous-duty drive systems.
  • 📐 114 Length Options in One Listing — From 288mm (36 teeth) to 5432mm (679 teeth), you can find the exact perimeter for your drive without resorting to custom belt orders or open-ended belt splicing.

📐 Technical Specifications — HTD 8M Timing Belt

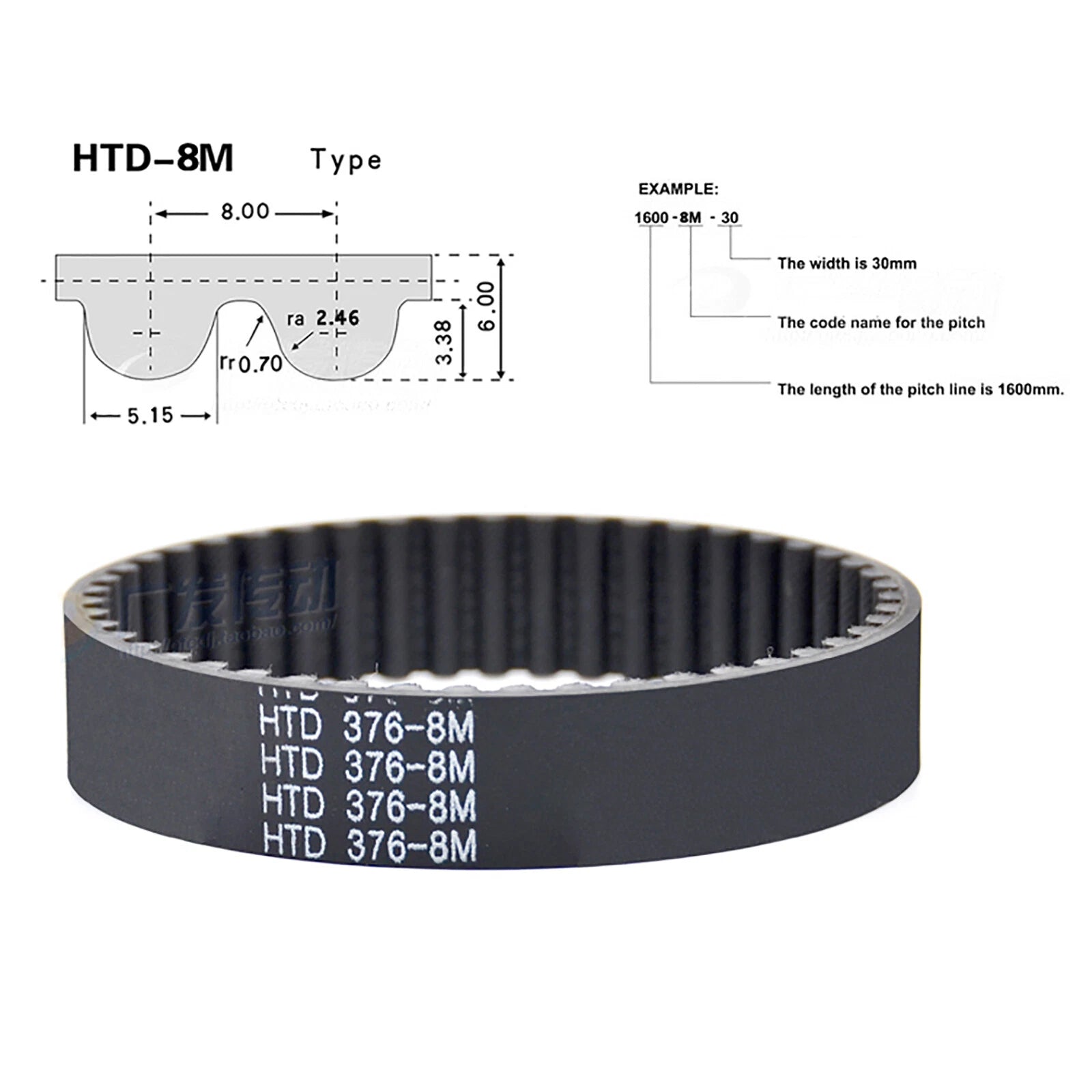

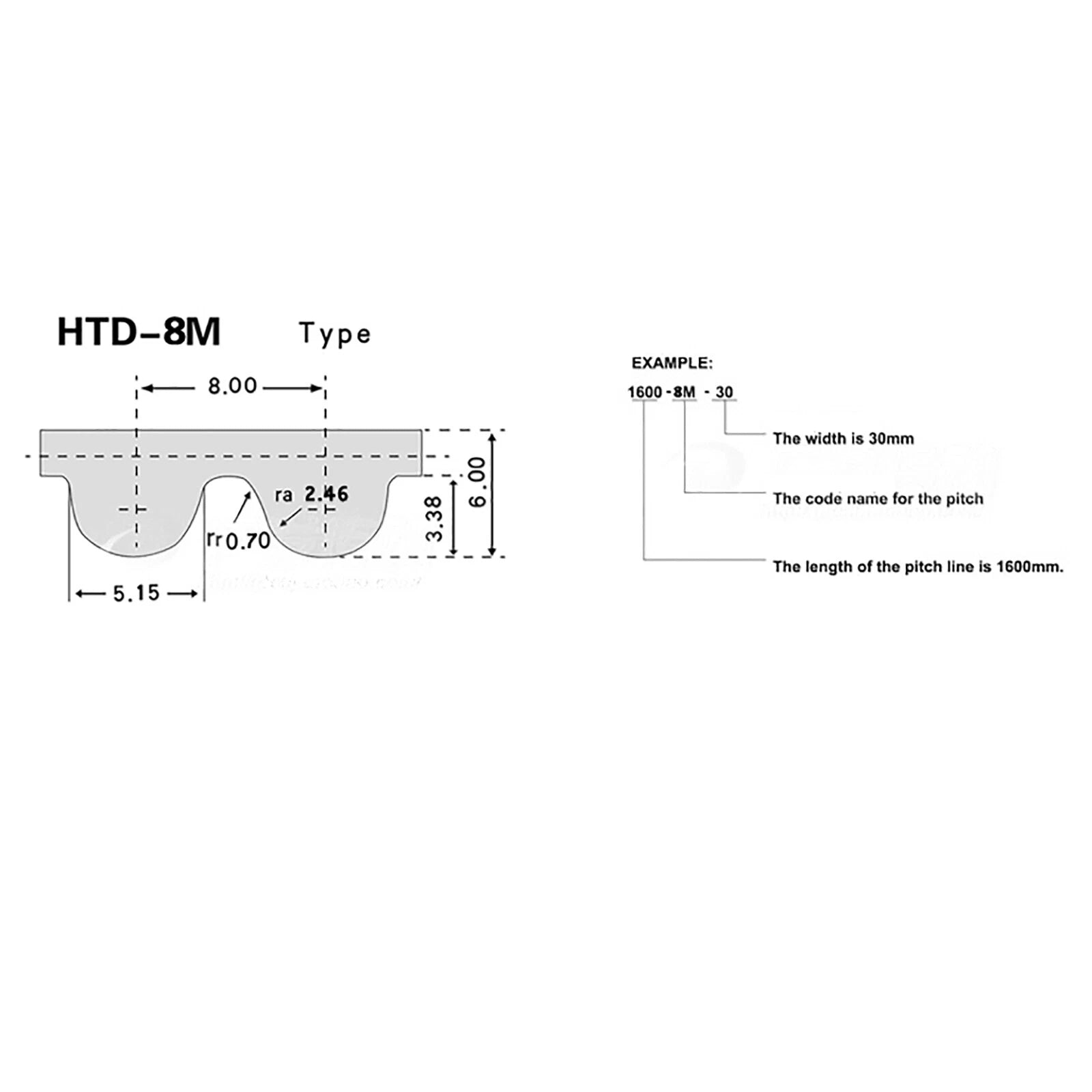

Belt Profile HTD (High Torque Drive)
Pitch 8mm
Belt Width 20mm (≈0.79")
Belt Type Closed loop (endless)
Available Lengths 288mm (≈11.3") to 5432mm (≈213.9") — see variant options
Tooth Count Range 36 teeth to 679 teeth — see variant options
Body Material Neoprene rubber
Reinforcement Fiberglass or steel tensile cord (typically)
Tooth Facing Nylon fabric
Compatible Pulley Profile HTD 8M only
Quantity per Order 1 belt
Operating Temperature Contact us to confirm
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length = 2 × C-to-C + (π × pulley pitch diameter). If you already know your tooth count, simply multiply by the pitch: for HTD 8M, Length (mm) = Teeth × 8. For example, 50 teeth × 8mm = 400mm belt (≈15.7"). When in doubt, size up — a slightly longer belt can be tensioned; a short belt cannot be installed.

What is the load capacity of this HTD 8M timing belt?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. The 8mm pitch profile handles higher torque than smaller pitches like 3M or 5M. For this 20mm-wide variant, typical tensile load ratings are in the range of several hundred Newtons, though actual capacity depends on pulley diameter, wrap angle, and operating speed. Consult your drive system's engineering specs to confirm suitability for your application.

Can this belt be used outdoors or in wet environments?

The neoprene rubber construction generally offers good resistance to moisture, mild oils, and moderate temperature variation, making these belts typically suitable for light outdoor or damp-environment use. Prolonged exposure to UV radiation, harsh chemicals, or extreme temperatures may reduce belt life. For demanding outdoor applications, contact us to confirm the specific material specification.

What pulley profile is compatible with HTD 8M belts?

HTD 8M belts are designed exclusively for HTD 8M profile pulleys. They are not interchangeable with trapezoidal (MXL, XL, L, H) pulleys or GT2/GT3 pulleys, even if the pitch number appears similar. Always match belt profile to pulley tooth profile. HTD 8M pulleys are widely available in aluminum and steel for shaft diameters typically ranging from 6mm to 30mm+.

How do I decide between HTD 8M and other pitches like 5M or 14M?

Choose your pitch based on torque and speed requirements. HTD 5M suits lighter-duty or higher-speed applications such as 3D printer axes and small CNC machines. HTD 8M handles higher torque — ideal for conveyor drives, robotics, and mid-size CNC routers. HTD 14M is reserved for heavy industrial drives. If your existing pulleys are HTD 8M, this belt is the correct match.

Is this a closed-loop belt or open-ended?

This is a closed-loop (endless) timing belt — it forms a continuous loop with no joint or splice. Closed-loop belts provide consistent tension and are required for most synchronous drive applications. Installation requires sliding the belt over pulleys before mounting shafts, or using a split/removable pulley design. Open-ended belts are a separate product category.

What materials are used in this timing belt?

HTD 8M timing belts of this type are typically constructed with a neoprene rubber body, fiberglass or steel tensile cord reinforcement, and a nylon tooth-facing fabric. This combination provides flexibility, dimensional stability under load, and reduced tooth wear. Contact us to confirm the exact cord material for your specific length variant.

🛒 Select your length and tooth count above, then add to cart — ships from our US warehouse.
