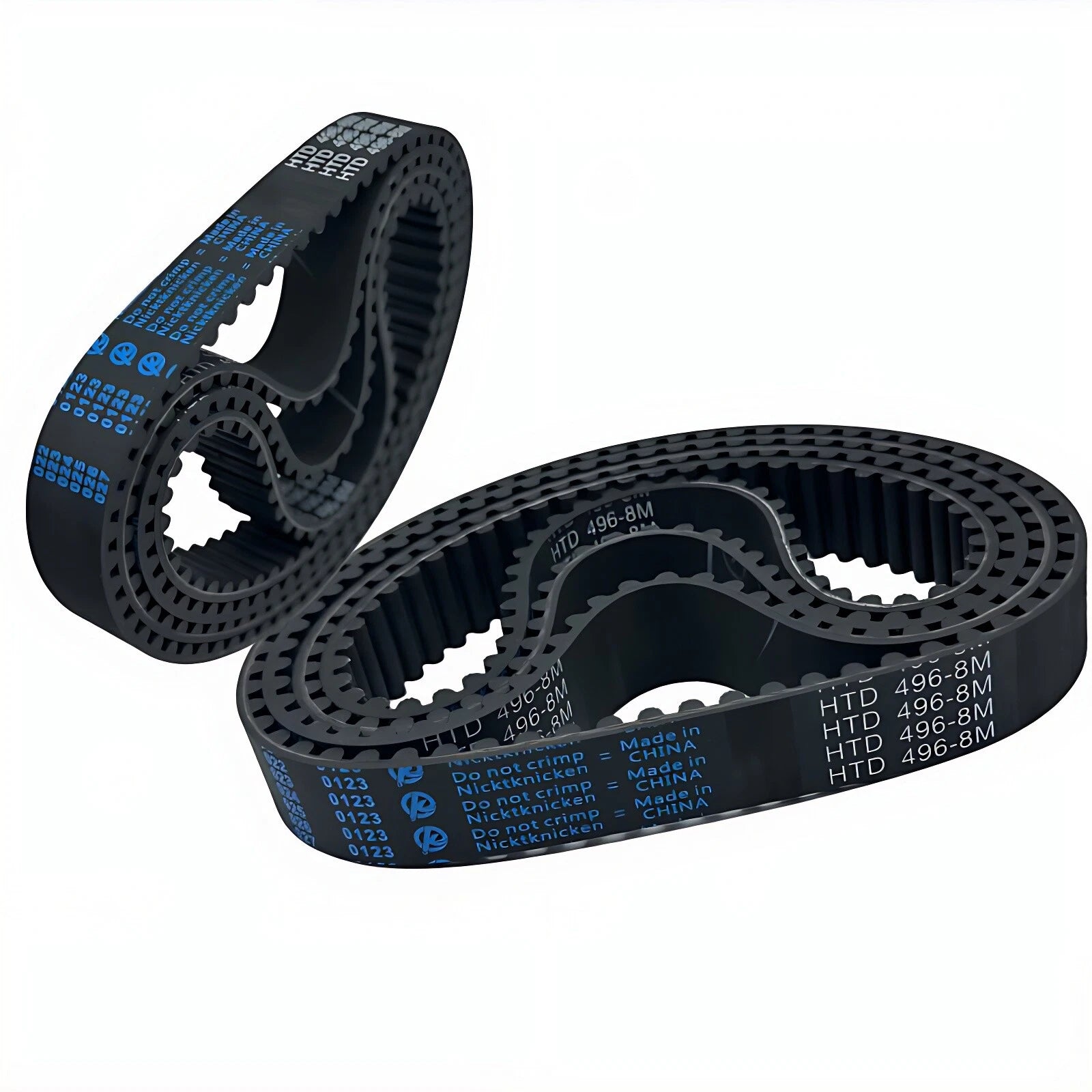

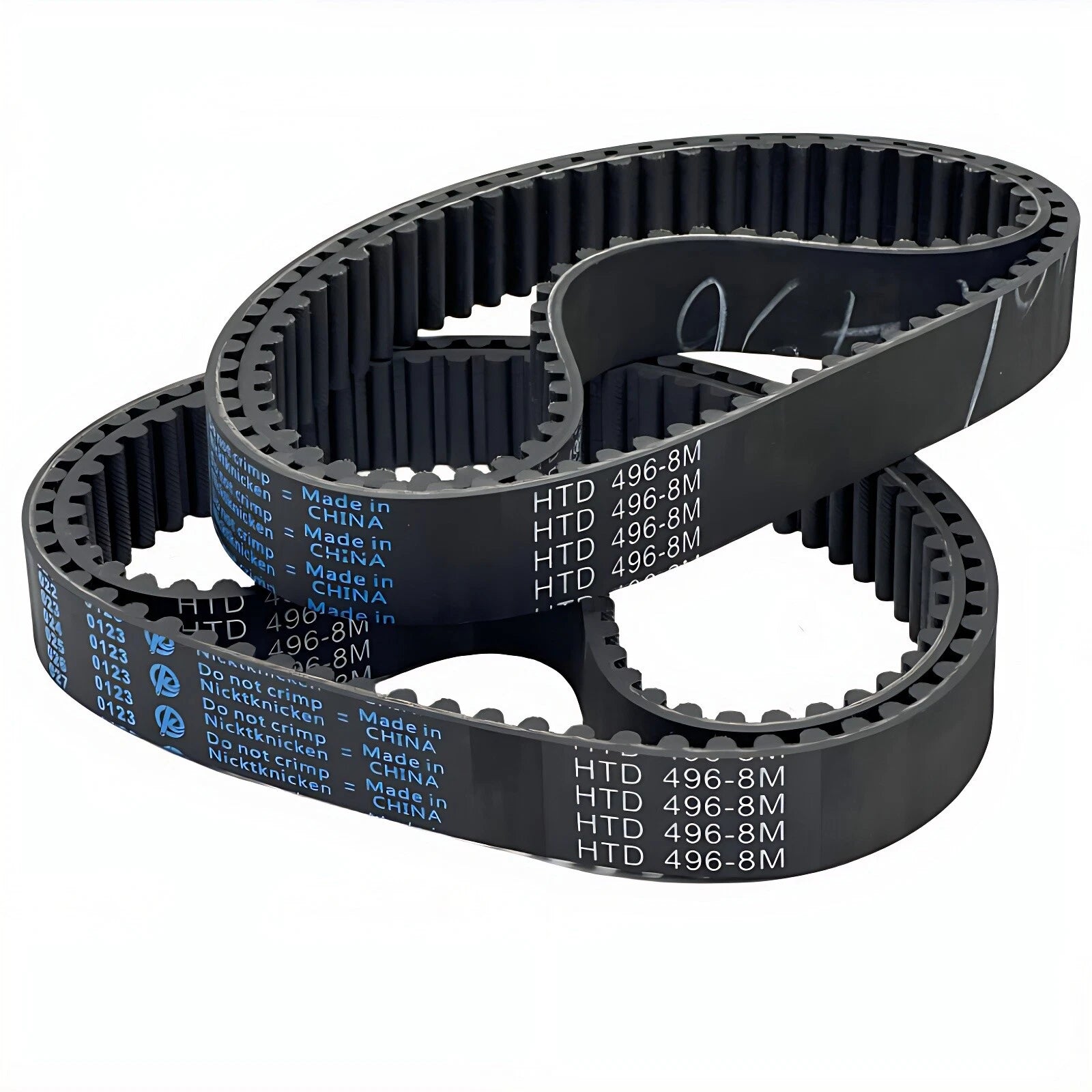

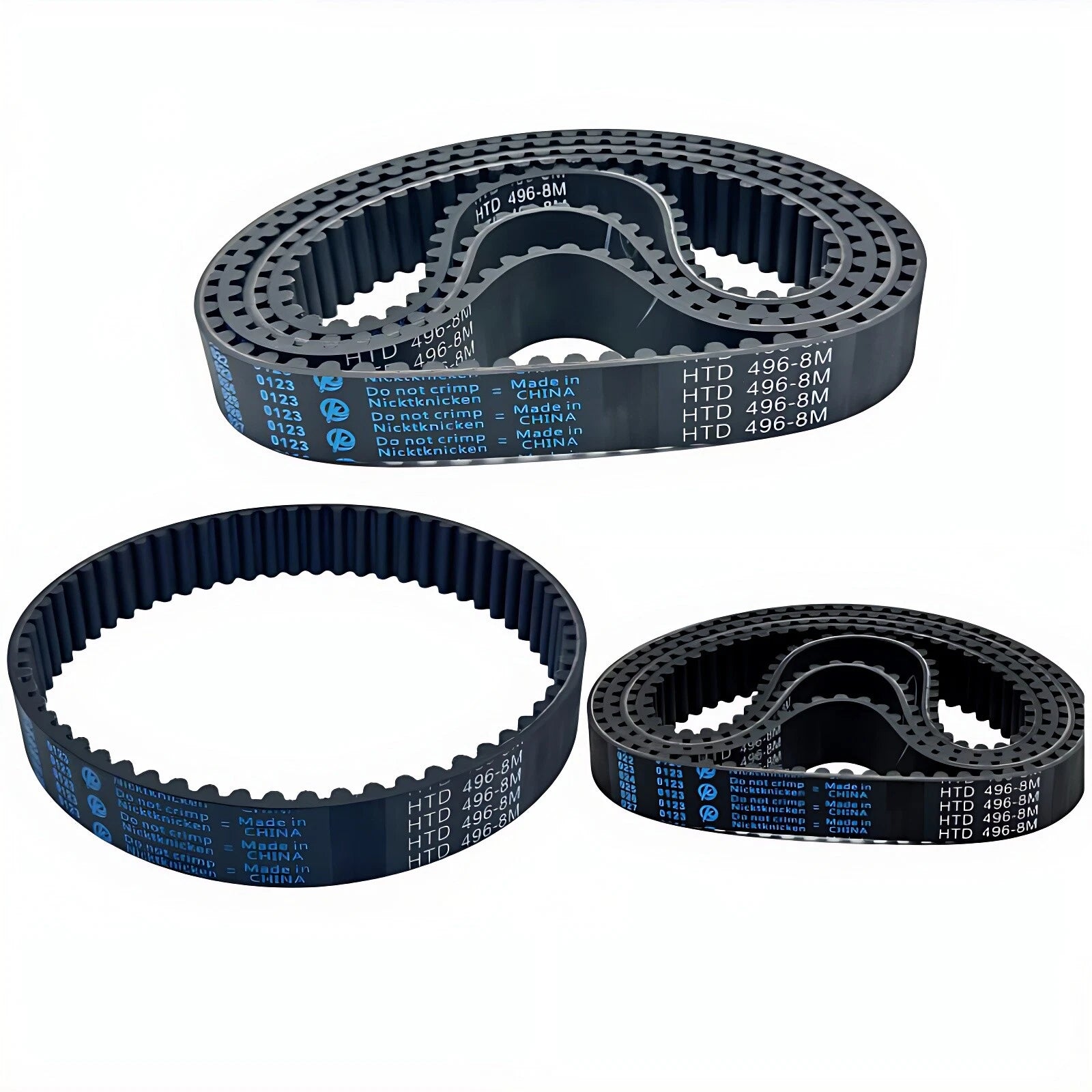

HTD 8M Closed-Loop Timing Belt — 25mm Wide Synchronous Drive Belt for CNC and Automation

When a slipping or mismatched drive belt brings your CNC router, laser cutter, or automation system to a halt, every minute of downtime costs you. Engineers, makers, and machine builders who rely on precise, repeatable motion need a synchronous belt that holds its pitch under load — without stretching, skipping, or wearing out prematurely. This HTD 8M closed-loop timing belt is built for exactly those demands.

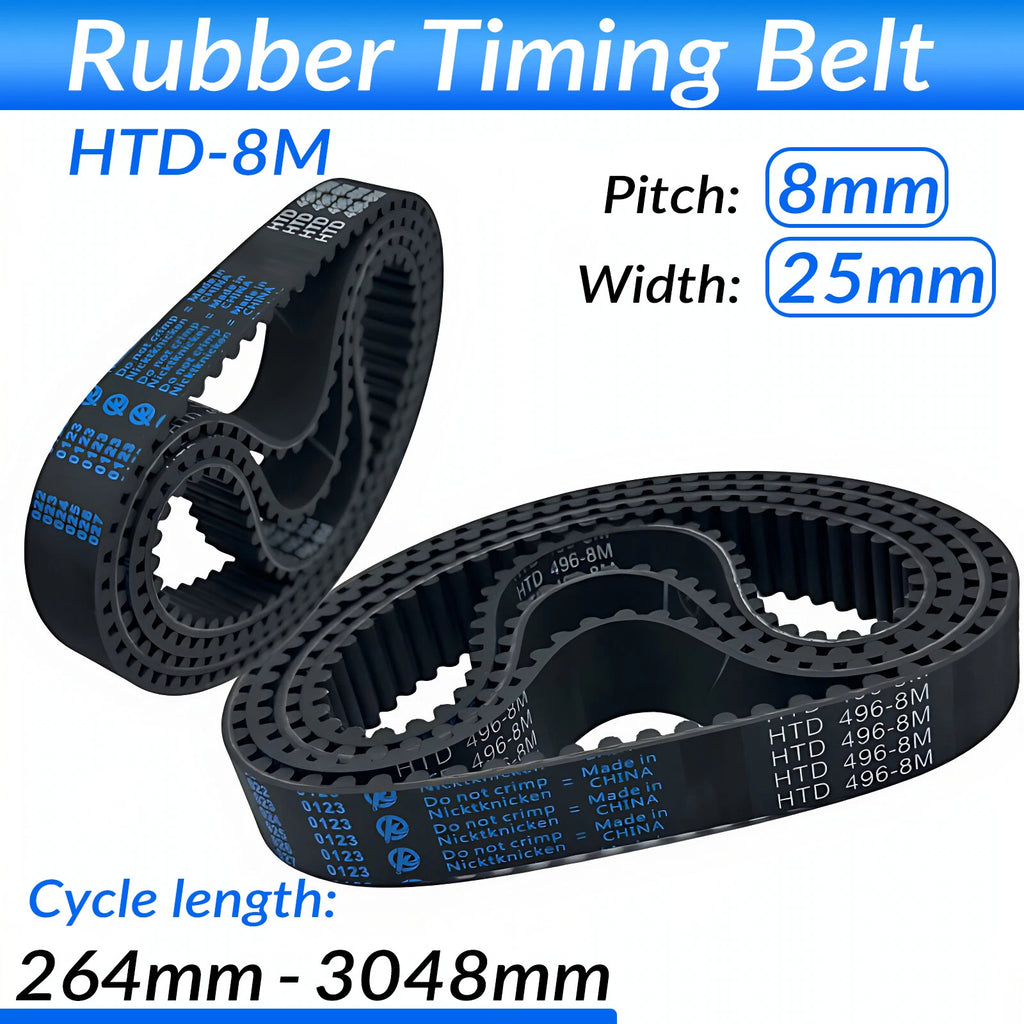

Each belt features an 8mm HTD tooth pitch and a 25mm (approx 0.98") width, with available circumference lengths ranging from 264mm (approx 10.4") up to 3048mm (approx 120.0"). The body is constructed from neoprene or EPDM rubber with a fiberglass or steel-cord tensile layer — the standard construction for HTD-profile synchronous belts. Select your exact loop length from the variant dropdown above.

Typical applications include CNC router X/Y axis drives, laser engraver gantry systems, plasma cutting tables, large-format 3D printer motion systems, and industrial conveyor or indexing drives where an HTD 8M closed-loop synchronous belt is specified.

🔗 Compatibility Notice: These belts use the HTD 8M curvilinear tooth profile. They are compatible only with HTD 8M pulleys/sprockets. They are not interchangeable with GT2, GT3, T8, or trapezoidal (MXL/XL/L) profiles. Confirm your pulley tooth profile before ordering.

✅ Key Features of These HTD 8M Closed-Loop Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque CNC synchronous belt applications.
  • 📏8mm Pitch, 25mm Width — Standardized 8mm pitch spacing ensures drop-in compatibility with any HTD 8M pulley. The 25mm width provides a solid balance between load capacity and compact drive design.
  • 🔄Closed-Loop Construction — Seamless closed-loop design eliminates the splice point weakness found in cut-to-length belts, delivering consistent tension and tooth engagement around the full circumference.

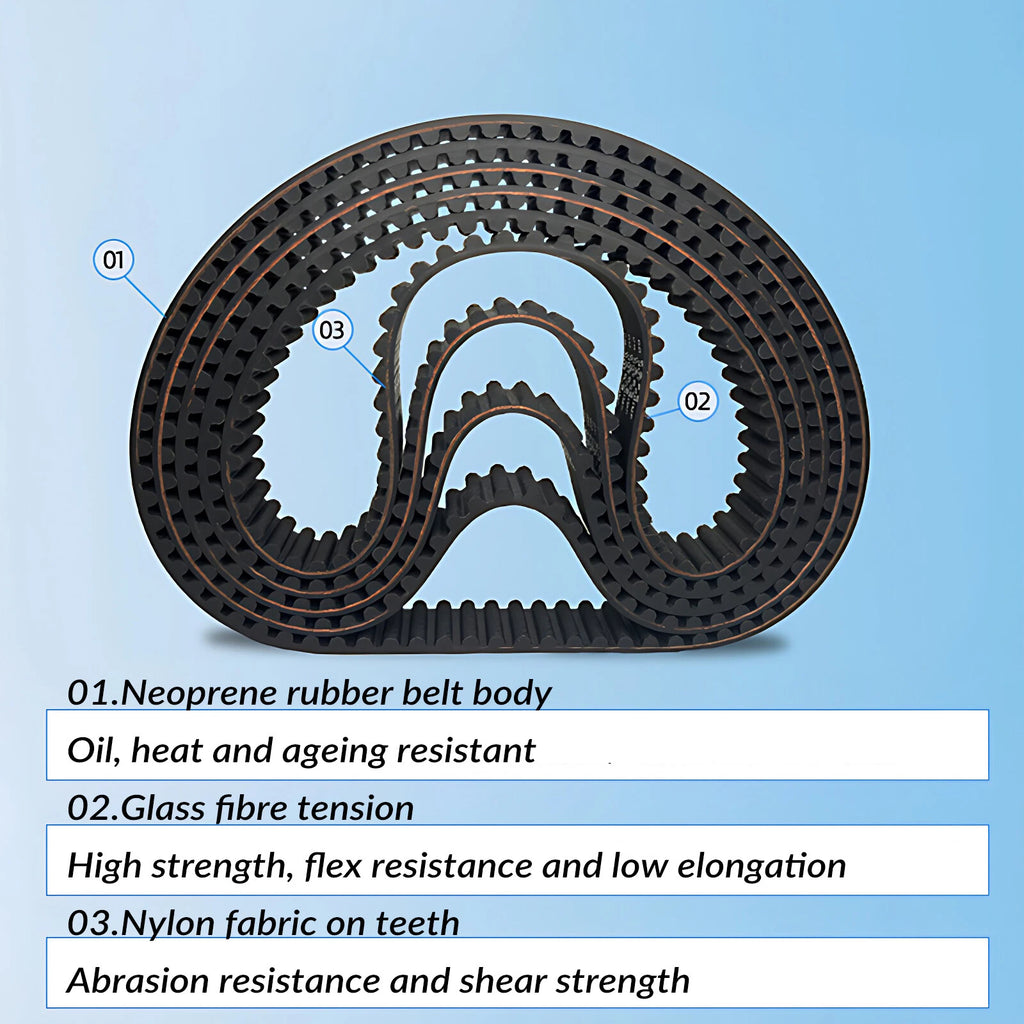

  • 🧱Reinforced Tensile Core — Fiberglass or steel-cord reinforcement resists elongation under dynamic loads, maintaining accurate positioning in closed-loop motion control systems.
  • 🌡️Rubber Body with Oil and Moisture Resistance — Neoprene/EPDM construction handles typical workshop environments including oil mist, coolant splash, and moderate temperature variation without cracking or swelling.

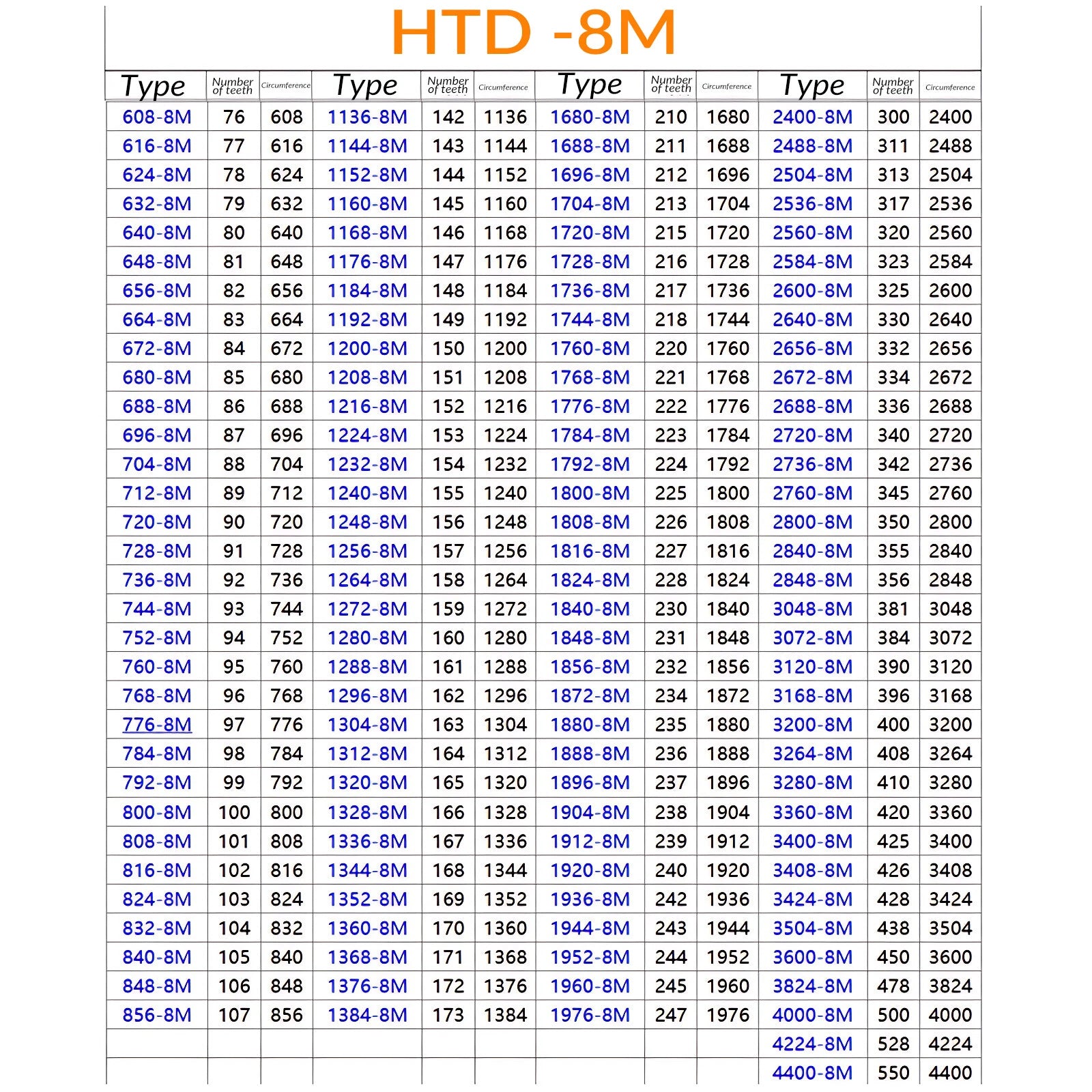

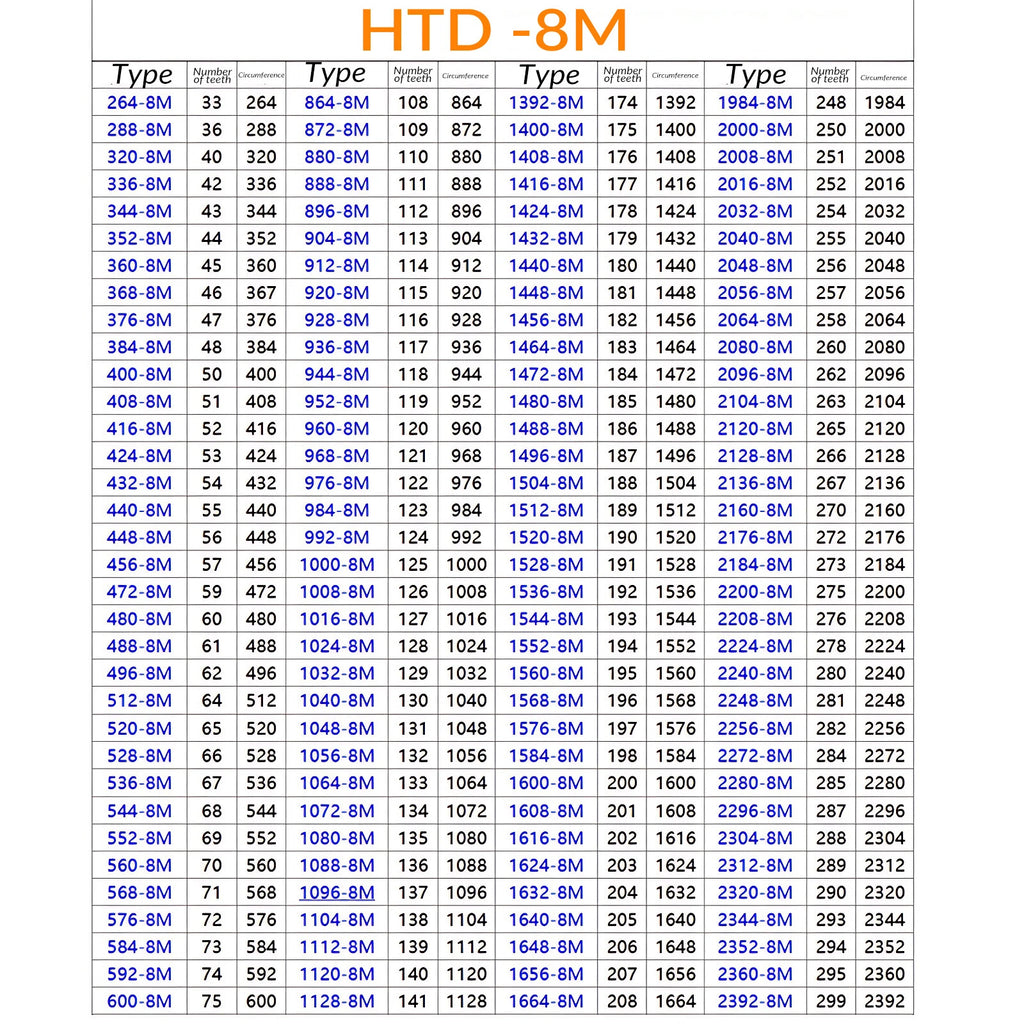

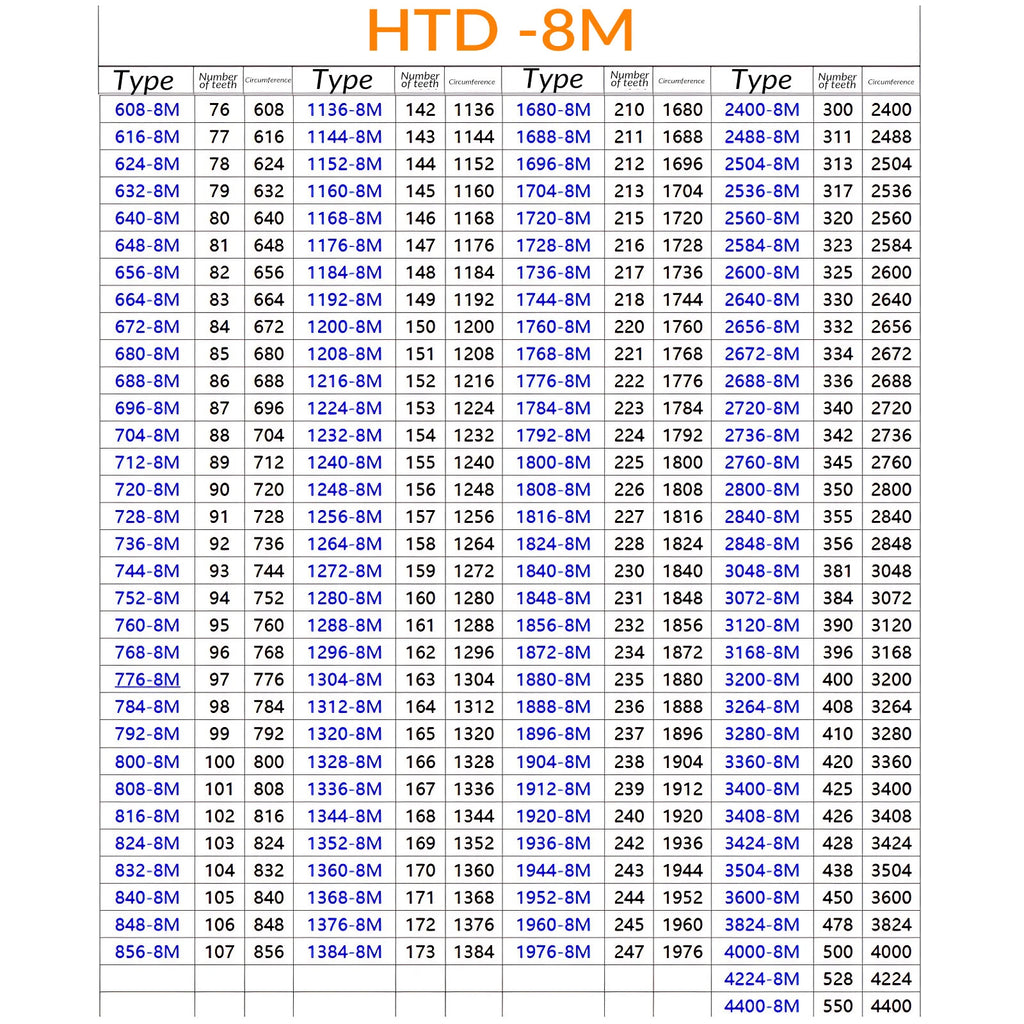

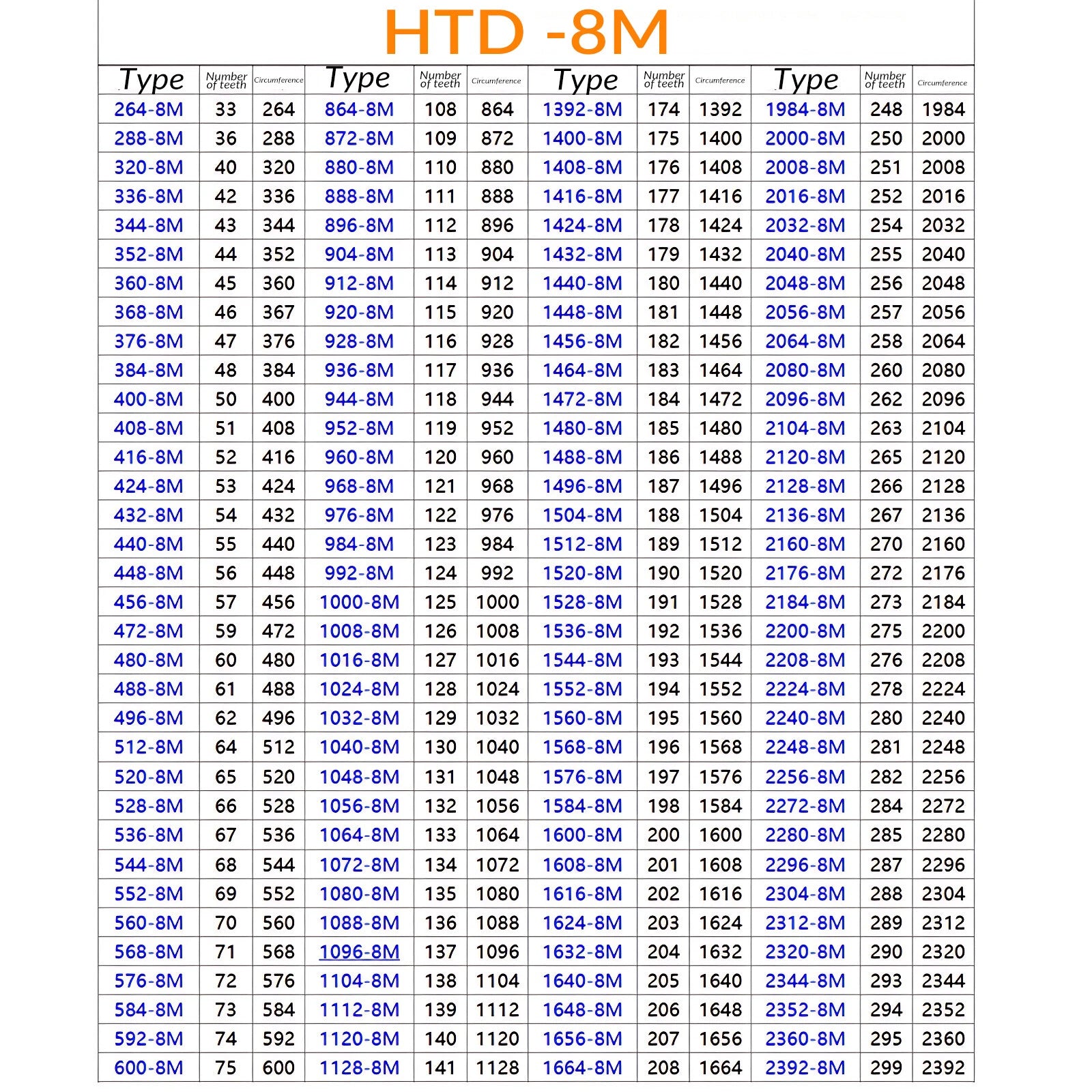

  • 📦250+ Length Options in One Listing — From 264mm (approx 10.4") to 3048mm (approx 120.0"), select your exact circumference from the variant dropdown — no custom cutting or splicing required for your HTD 8M drive system.

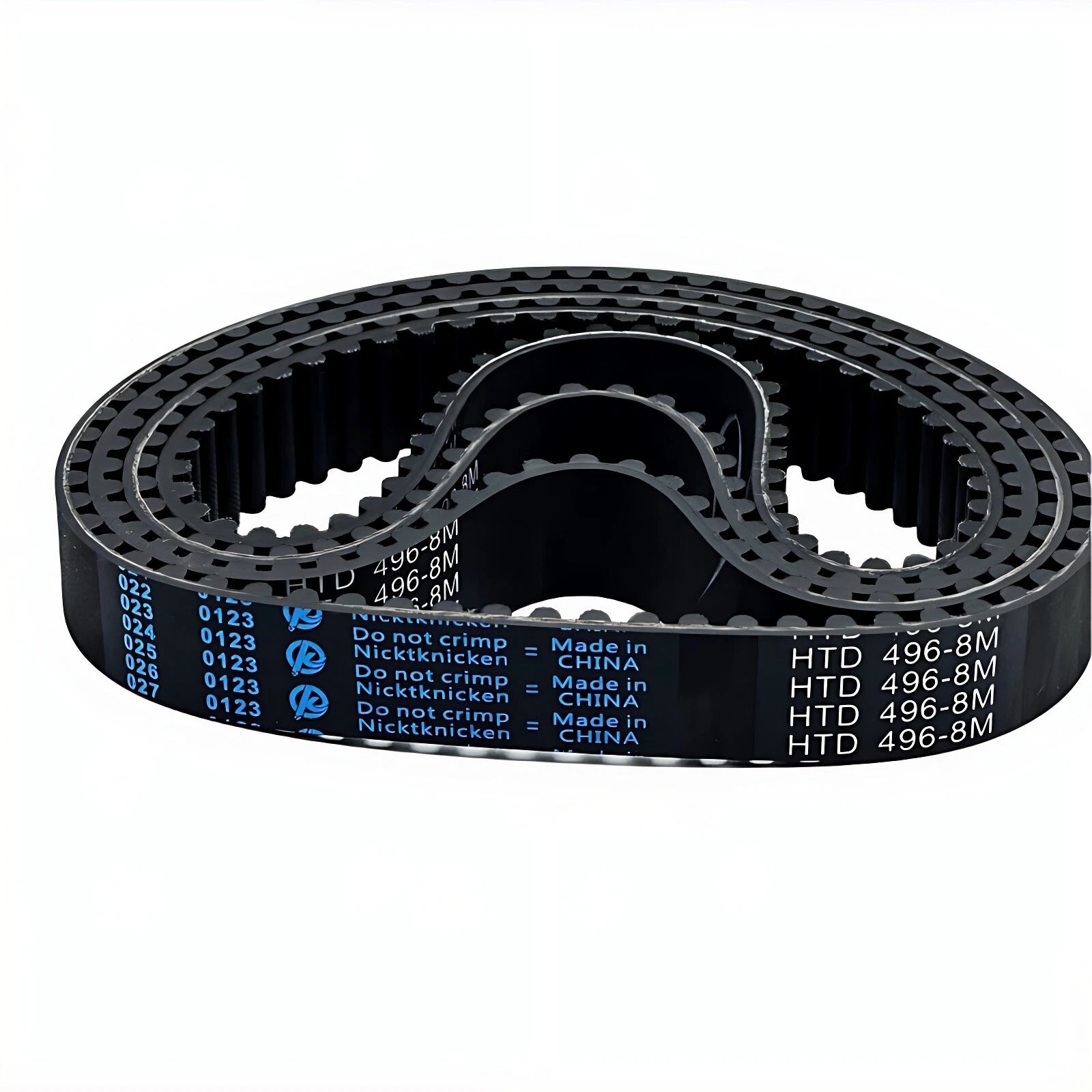

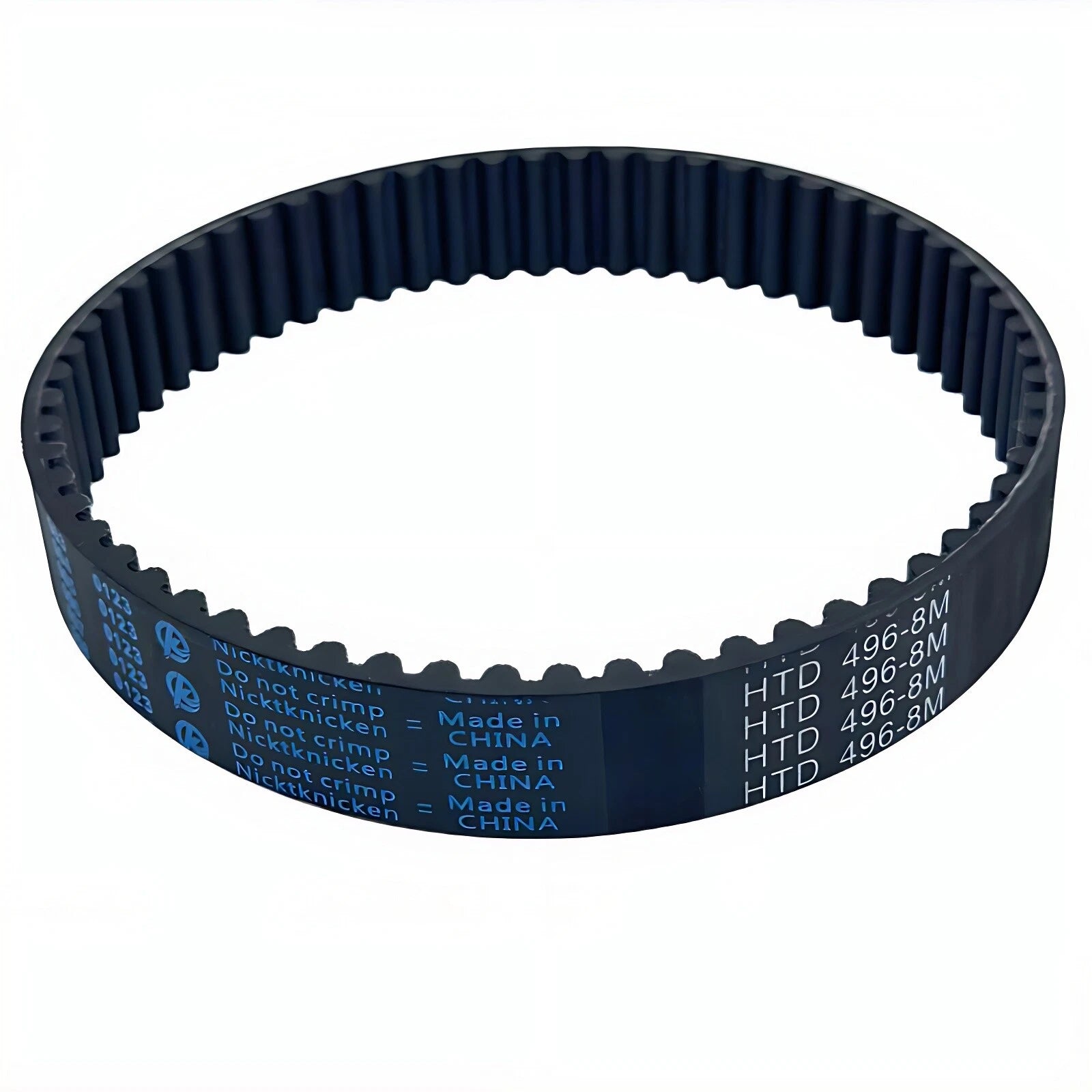

⚠️ Spec Confirmation Tip: Belt circumference is the total loop length, not the center-to-center distance. If you are replacing an existing belt, check the part number printed on the belt body (e.g., "800-8M-25" = 800mm circumference, 8mm pitch, 25mm wide). Contact us to confirm if you are unsure.

📐 Technical Specifications — HTD 8M Synchronous Timing Belt

Belt Profile HTD (High Torque Drive) — Curvilinear tooth
Pitch 8mm
Belt Width 25mm (approx 0.98")
Circumference Range 264mm (approx 10.4") to 3048mm (approx 120.0")
Tooth Height Typically 3.4mm (standard HTD 8M)
Belt Body Material Neoprene or EPDM rubber
Tensile Layer Fiberglass cord or steel cord
Tooth Facing Nylon fabric (standard HTD construction)
Loop Type Closed loop (endless)
Compatible Pulley Profile HTD 8M only
Quantity per Order 1 piece (select quantity in cart)
Color Black
Operating Temperature Contact us to confirm
Max Tensile Load See variant options / Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length = 2 x C + pi x (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 500mm belt is approximately 19.7 inches. Always verify against your machine spec sheet or the markings on your existing belt before ordering. The variant name format is [circumference mm]-8M-25MM.

What load or torque can an HTD 8M 25mm belt handle?

HTD 8M belts with a 25mm width are generally rated for moderate-to-heavy power transmission. Typical tensile strength is in the range of 1,500–3,000 N depending on core reinforcement material. For your specific application, apply an appropriate service factor based on shock load, speed, and duty cycle. Contact us if you need to confirm load ratings for a specific length.

Can this belt be used outdoors or in wet or oily environments?

HTD timing belts are typically made from neoprene or EPDM rubber, which offers moderate resistance to moisture, oil mist, and mild chemicals — making them suitable for most workshop and light industrial environments. For prolonged outdoor UV exposure or fully submerged use, verify the specific material grade. Avoid contact with strong solvents, fuels, or concentrated acids.

What pulley or sprocket is compatible with this belt?

These belts require HTD 8M profile pulleys with a matching or wider face width (25mm or greater). The HTD 8M tooth profile is a standardized curvilinear design — it is not compatible with GT2, GT3, T8, T10, MXL, XL, or L trapezoidal pulleys. Always confirm the tooth profile marked on your existing pulley before ordering.

How do I convert the belt length from mm to inches?

Divide the millimeter value by 25.4. Quick reference: 264mm = approx 10.4", 500mm = approx 19.7", 800mm = approx 31.5", 1000mm = approx 39.4", 1500mm = approx 59.1", 2000mm = approx 78.7", 3048mm = approx 120.0". All variant names in this listing display the belt circumference in millimeters.

Is this belt suitable for 3D printers and CNC routers?

Yes. HTD 8M closed-loop timing belts are commonly used in CNC routers, laser engravers, plasma cutting tables, and large-format 3D printers where higher torque transmission is needed compared to smaller GT2 or T5 belts. Confirm your machine pulley tooth count, pitch diameter, and center-to-center distance before selecting a belt length.

What is the difference between HTD and GT belt profiles, and are they interchangeable?

HTD (High Torque Drive) uses a rounded curvilinear tooth profile optimized for high-torque, moderate-speed applications. GT profiles — including GT2 and GT3 — offer improved backlash control and are often preferred for precision positioning in smaller CNC and 3D printing systems. They are not interchangeable — always match belt and pulley profiles exactly. An HTD 8M belt will not seat correctly on a GT2 or GT3 pulley of the same pitch.

🛒 Select your belt length above, then add to cart — ships from our US warehouse.
