HTD 8M Timing Belt 25mm Wide — Reliable Closed Loop Drive Belt for Power Transmission

When a slipping or mismatched drive belt brings your machine to a halt — whether it's a CNC router, conveyor, or custom automation rig — the downtime costs more than the part. Engineers, makers, and maintenance technicians who need a dependable HTD 8M timing belt that fits standard pulleys without guesswork will find exactly what they need here.

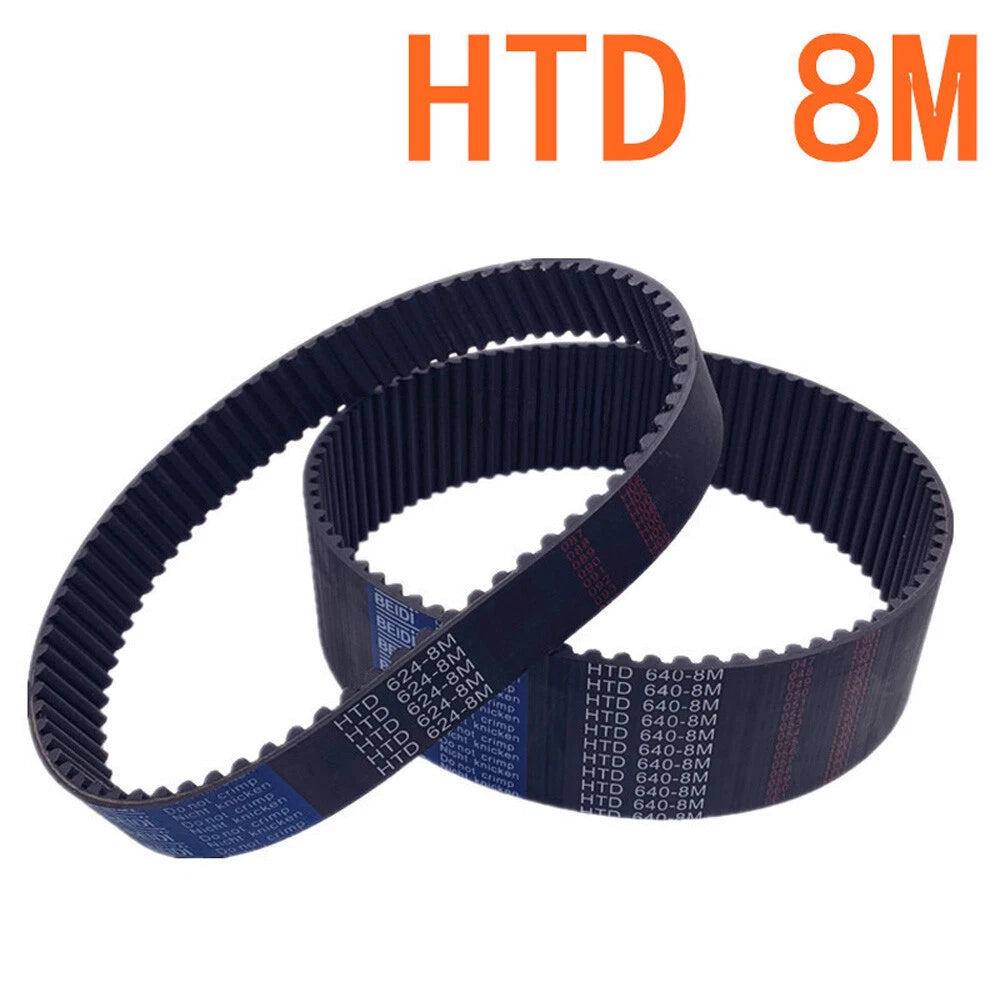

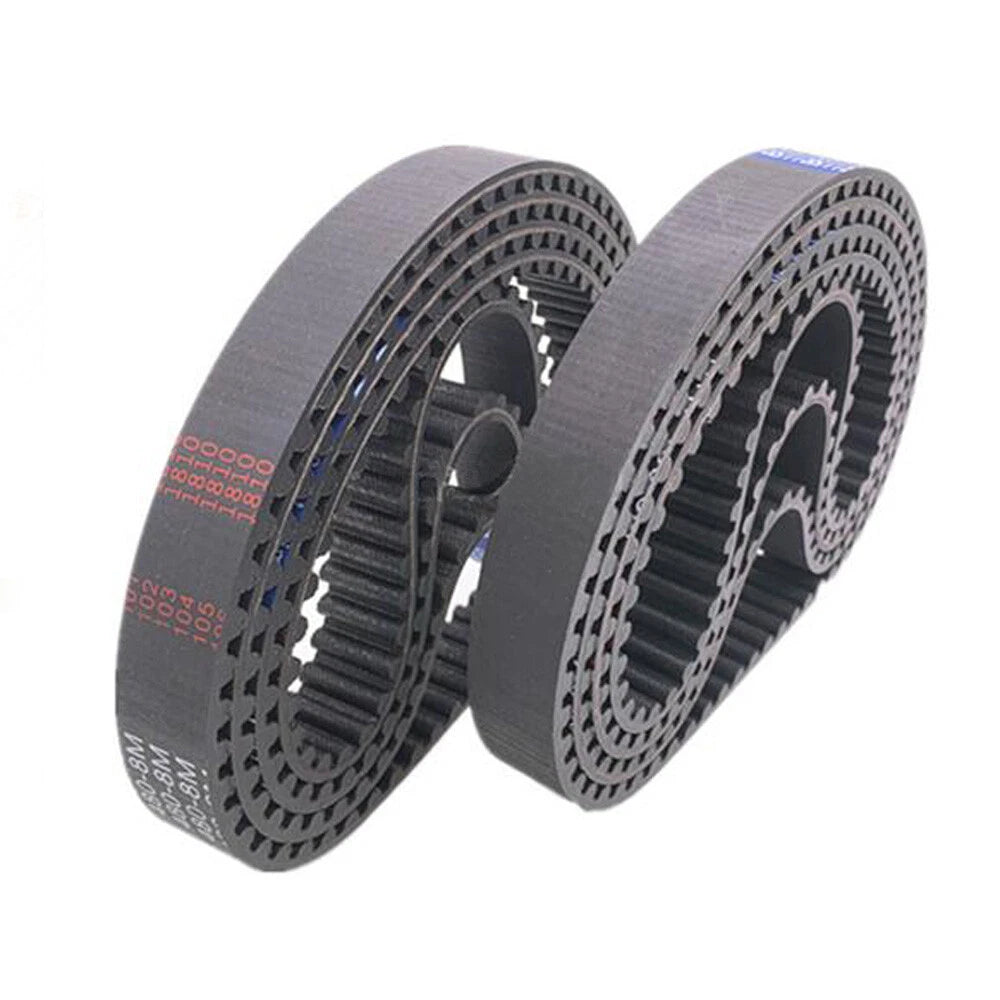

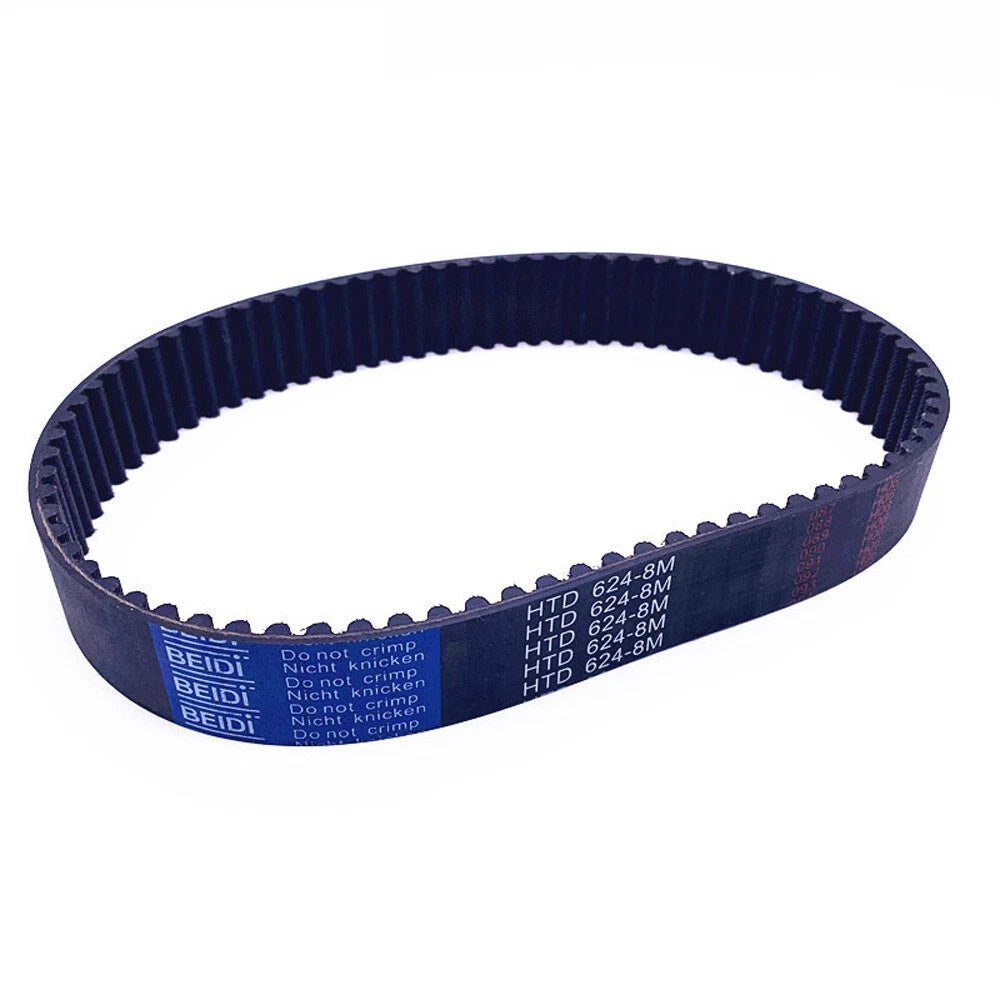

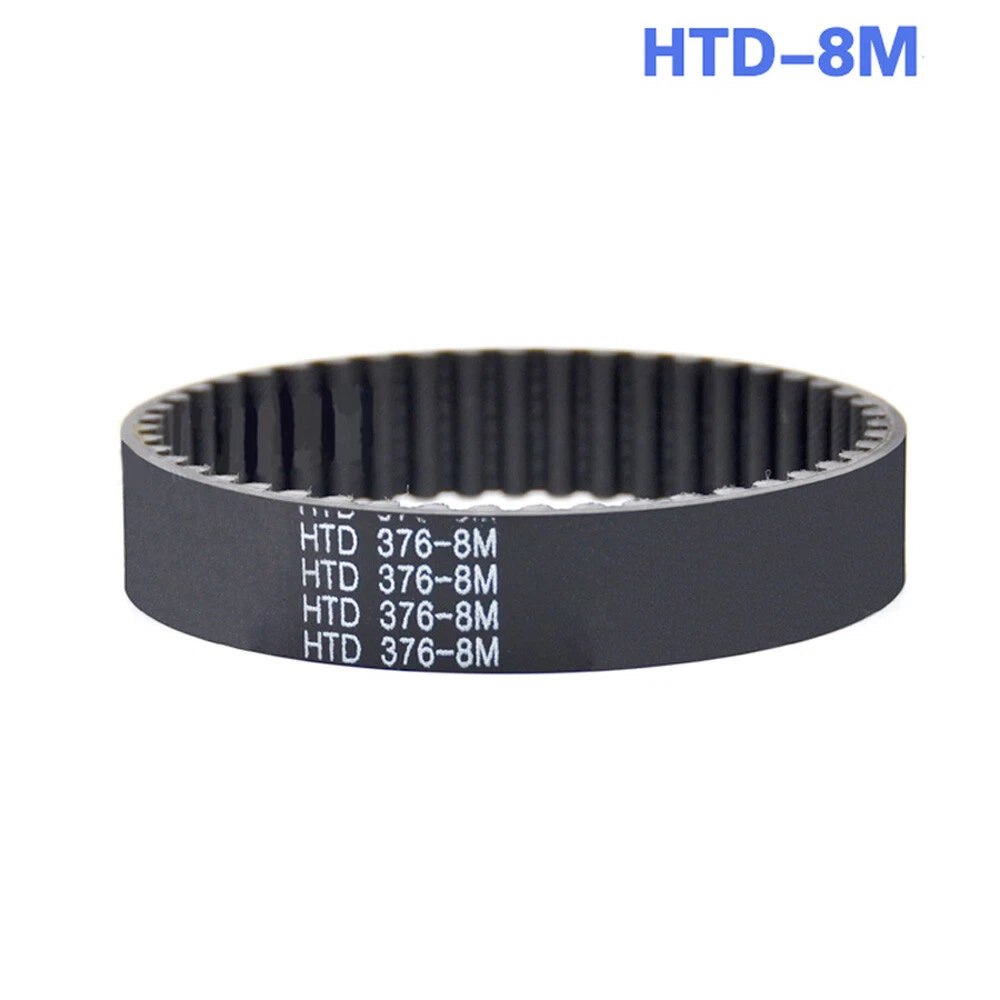

Each belt is a single closed-loop rubber drive belt with an 8mm pitch (HTD 8M profile), 25mm (≈1") width, and available in circumference lengths from 264mm (≈10.4") to 2848mm (≈112.1"). The rubber construction incorporates a fiberglass or steel cord tensile layer (typically) for dimensional stability under load. Select your exact length from the variant dropdown above.

Typical use cases include DIY CNC machine drives, 3D printer Z-axis or Y-axis belt loops, light industrial conveyor systems, and custom robotics power transmission — anywhere a closed-loop HTD 8M timing belt with 25mm width is specified.

✅ Compatibility: Fits standard HTD 8M pulleys and sprockets with a groove width of 25mm or wider. Pitch: 8mm. Profile: HTD (rounded tooth). Confirm your pulley's pitch and groove width before ordering.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

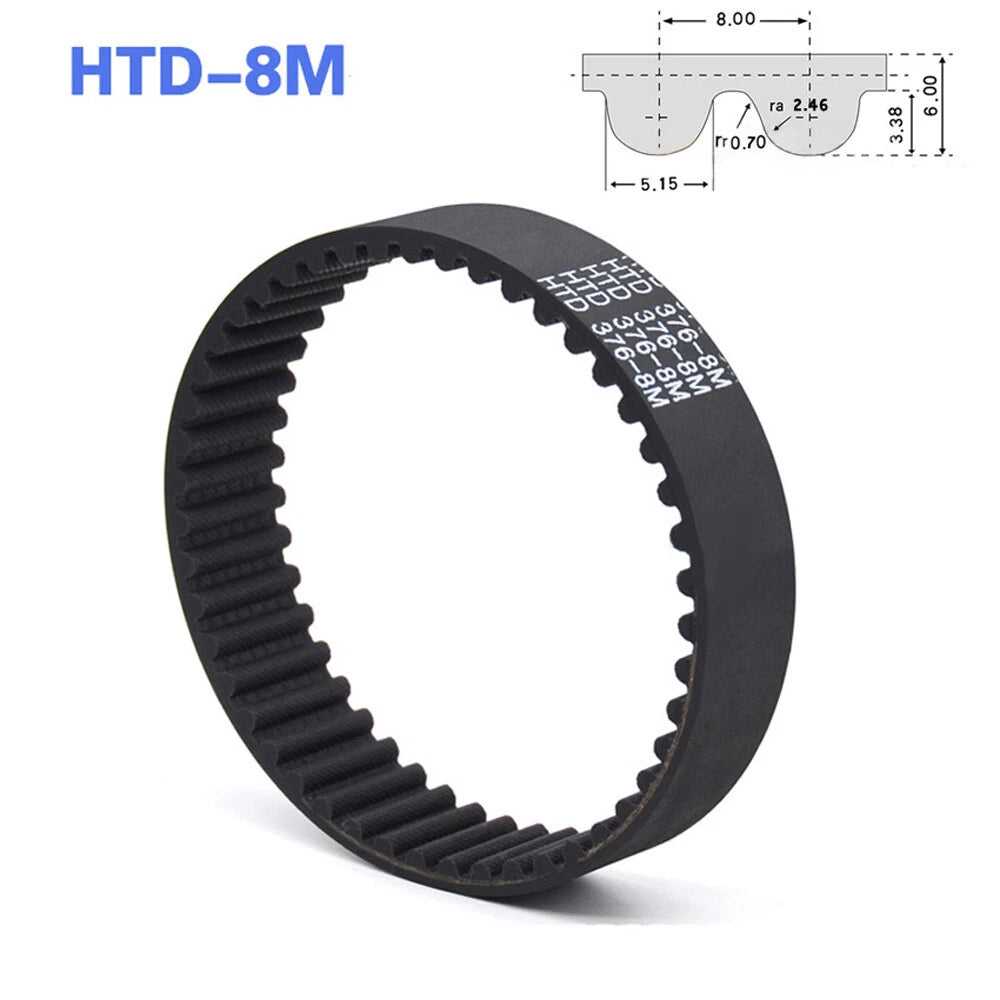

  • ⚙️HTD 8M Tooth Profile — The rounded HTD tooth geometry provides positive engagement with 8mm pitch pulleys, reducing tooth jump under load compared to trapezoidal profiles in high-torque applications.
  • 📏Wide Length Selection — Available in circumference lengths from 264mm (≈10.4") to 2848mm (≈112.1"), covering a broad range of center-to-center distances for CNC drives, conveyor loops, and custom machine builds.
  • 📐25mm Consistent Width — The 25mm (≈1") belt width delivers a larger contact area across the pulley face, supporting higher torque transmission compared to narrower 15mm or 20mm HTD belts.
  • 🔄Closed-Loop Construction — Seamless closed-loop design eliminates splice points that can cause vibration or failure, ensuring smooth, consistent rotation throughout the drive cycle.

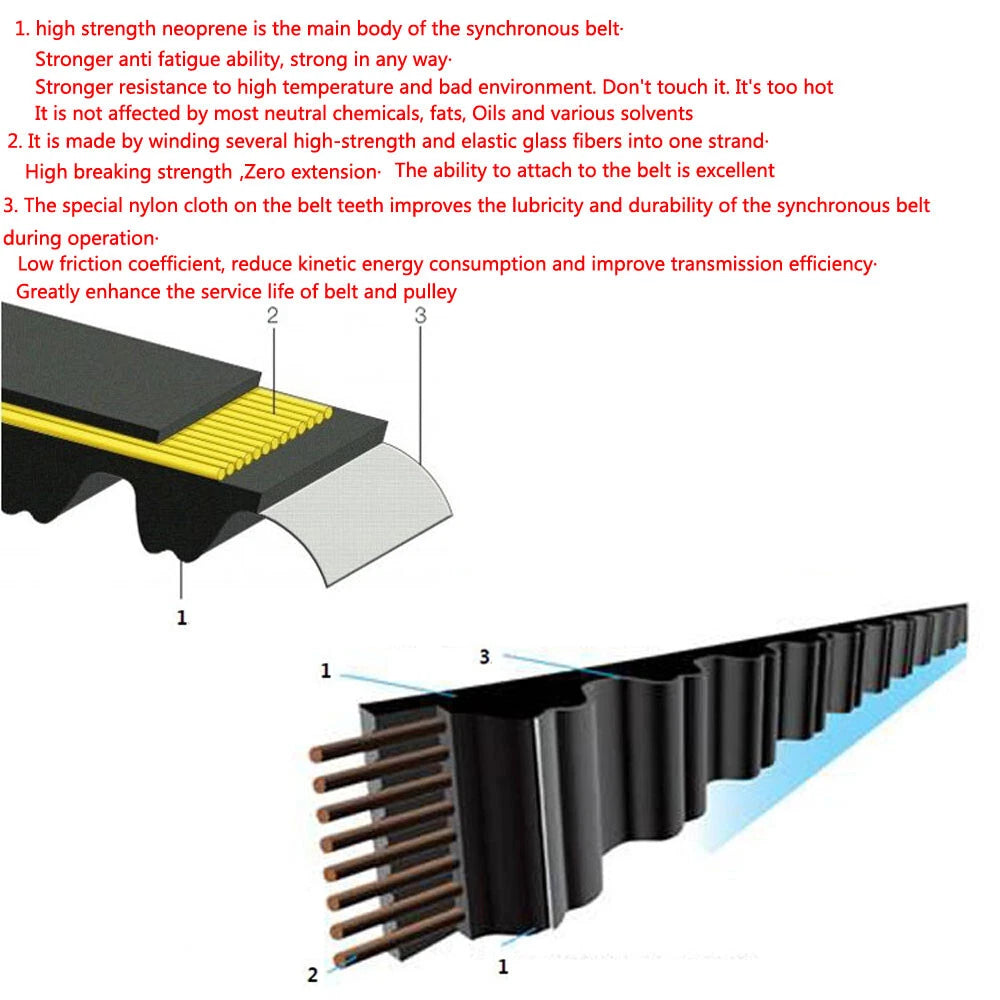

  • 🧱Rubber with Reinforced Cord Layer — The rubber body is reinforced with a tensile cord layer (typically fiberglass or steel) that resists elongation under tension, maintaining accurate pitch spacing over time.
  • 🔧Drop-In Replacement Fit — Manufactured to standard HTD 8M dimensional tolerances, making these belts a direct replacement for OEM and aftermarket HTD 8M × 25mm drive belts in most machines.
⚠️ Sizing Note: Belt length refers to the total outer circumference of the closed loop. Verify your required belt circumference using your pulley center-to-center distance before selecting a variant. If you are unsure, contact us to confirm.

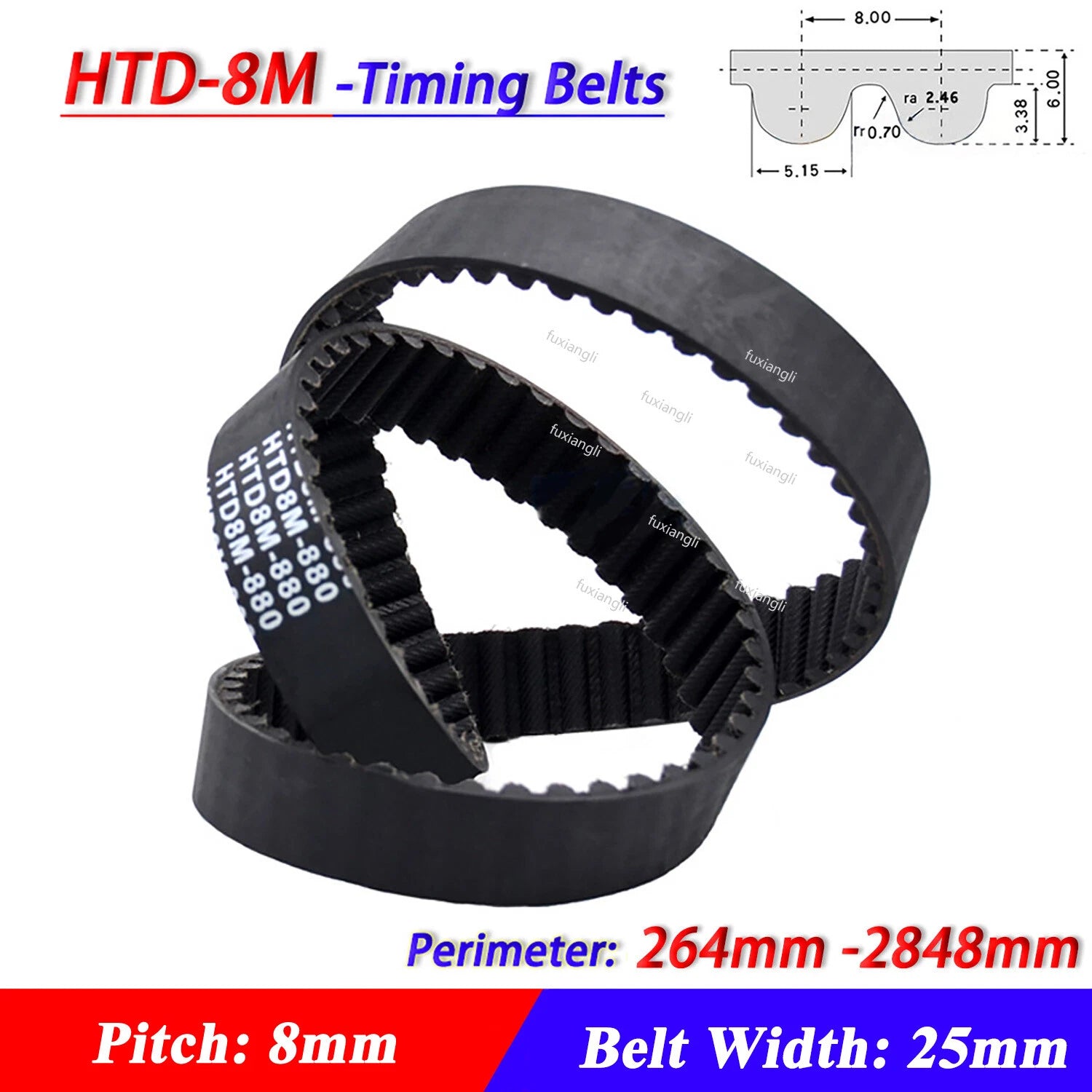

📐 Technical Specifications — HTD 8M Closed Loop Rubber Timing Belt

Belt Profile HTD 8M (High Torque Drive, 8mm pitch)
Pitch 8mm (distance between tooth centers)
Belt Width 25mm (≈1")
Belt Length (Circumference) 264mm (≈10.4") to 2848mm (≈112.1") — see variant options
Belt Type Closed loop (seamless)
Material Rubber with reinforced tensile cord layer
Tooth Profile HTD (rounded curvilinear)
Compatible Pulleys HTD 8M pulleys/sprockets, groove width ≥ 25mm
Quantity per Order 1 piece (1Pcs)
Typical Applications CNC machines, 3D printers, conveyors, robotics, industrial drives
Operating Temperature Contact us to confirm
Color/Finish See variant options

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length = 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 600mm belt (≈23.6") typically suits a mid-range drive with pulleys roughly 80–100mm apart. Always verify against your specific pulley specs before ordering.

What pitch is this timing belt and which pulleys does it fit?

This belt uses the HTD 8M profile with an 8mm pitch. It is compatible with any standard HTD 8M pulley or sprocket. The 25mm width requires a pulley groove width of at least 25mm. Confirm your pulley's pitch designation (HTD 8M) and groove width before purchasing.

How much load or torque can this belt handle?

HTD 8M belts are generally designed for moderate-to-heavy power transmission. The 25mm width provides a larger contact area than narrower variants, supporting higher torque loads. Exact capacity depends on belt length, pulley diameter, speed, and operating conditions. For most DIY CNC, 3D printer, and light industrial applications, this belt is typically sufficient. Contact us to confirm for specific load requirements.

Can I use this belt outdoors or in wet/dusty environments?

The rubber construction is generally resistant to light moisture and dust. However, prolonged exposure to oils, solvents, UV radiation, or standing water may degrade the belt over time. For outdoor or harsh-environment applications, inspect the belt periodically and replace as needed. In most cases, a protective enclosure is recommended for extended outdoor use.

What is the difference between HTD 8M and GT2/GT3 belts?

HTD (High Torque Drive) belts use a rounded tooth profile optimized for high-torque, lower-speed power transmission. GT2/GT3 belts use a modified curvilinear profile with tighter positional accuracy, commonly preferred in precision CNC and 3D printing applications. For high-torque drives where positional accuracy is secondary to power capacity, HTD 8M is generally the preferred choice.

How do I convert the belt length from mm to inches?

Divide the millimeter value by 25.4. Quick reference examples: 264mm ≈ 10.4", 600mm ≈ 23.6", 1000mm ≈ 39.4", 1500mm ≈ 59.1", 2000mm ≈ 78.7", 2848mm ≈ 112.1". Use the variant dropdown above to select your exact required length.

Is this a direct replacement for my existing HTD 8M × 25mm belt?

In most cases, yes. These belts are manufactured to standard HTD 8M dimensional tolerances and are generally a direct drop-in replacement for OEM and aftermarket HTD 8M × 25mm closed-loop drive belts. Verify the circumference length matches your existing belt before ordering. If you are unsure, contact us with your machine model or belt part number.

🛒 Select your length above, then add to cart — ships from our US warehouse.
