HTD 8M Timing Belt — Closed Loop Synchronous Drive Belt for Precision Power Transmission

When a slipping or mismatched drive belt causes positioning errors, unexpected downtime, or premature pulley wear, the fix starts with the right closed loop synchronous belt. This HTD 8M timing belt is designed for engineers, machine builders, and serious DIYers who need reliable, slip-free power transmission in CNC routers, conveyor systems, industrial automation, and other precision drive applications.

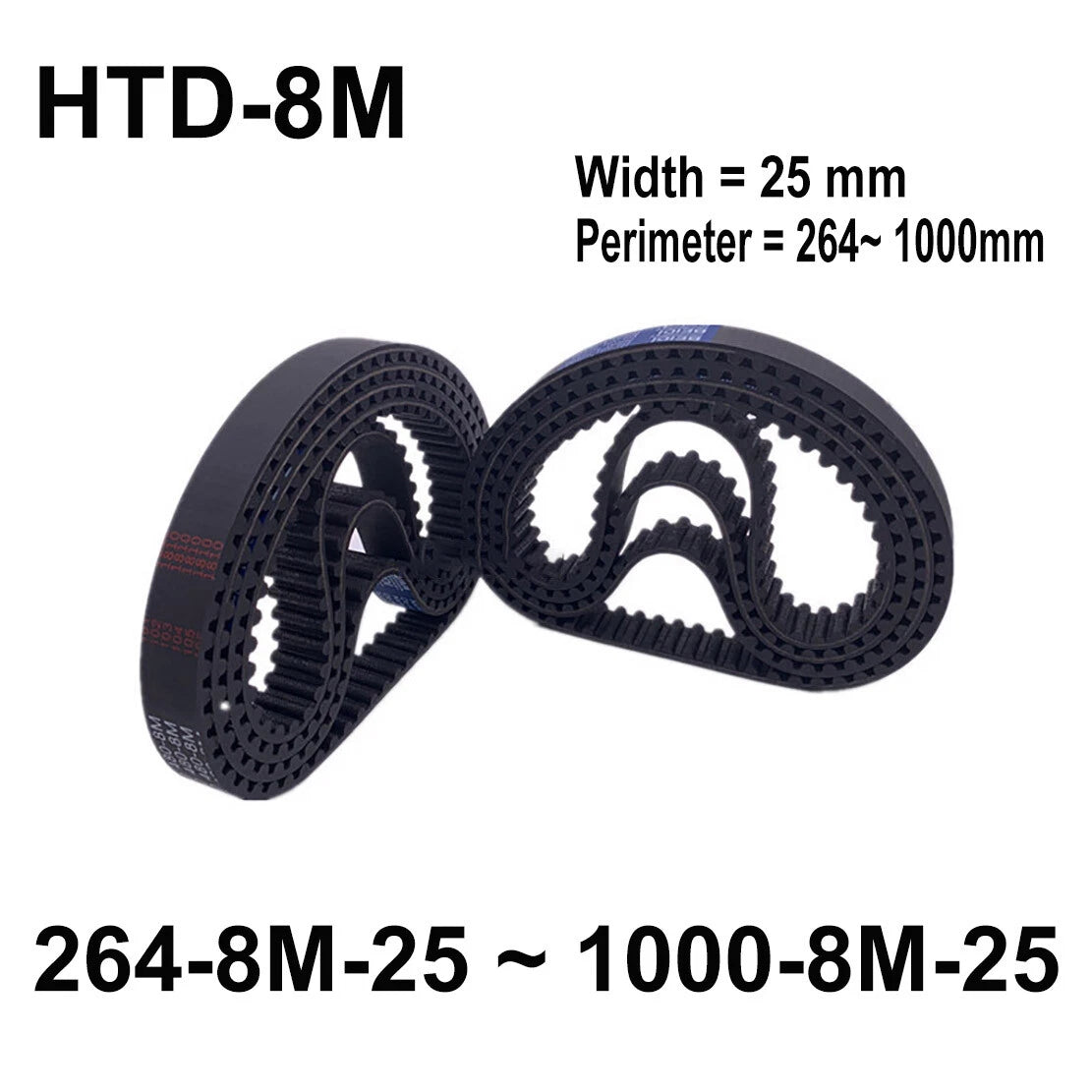

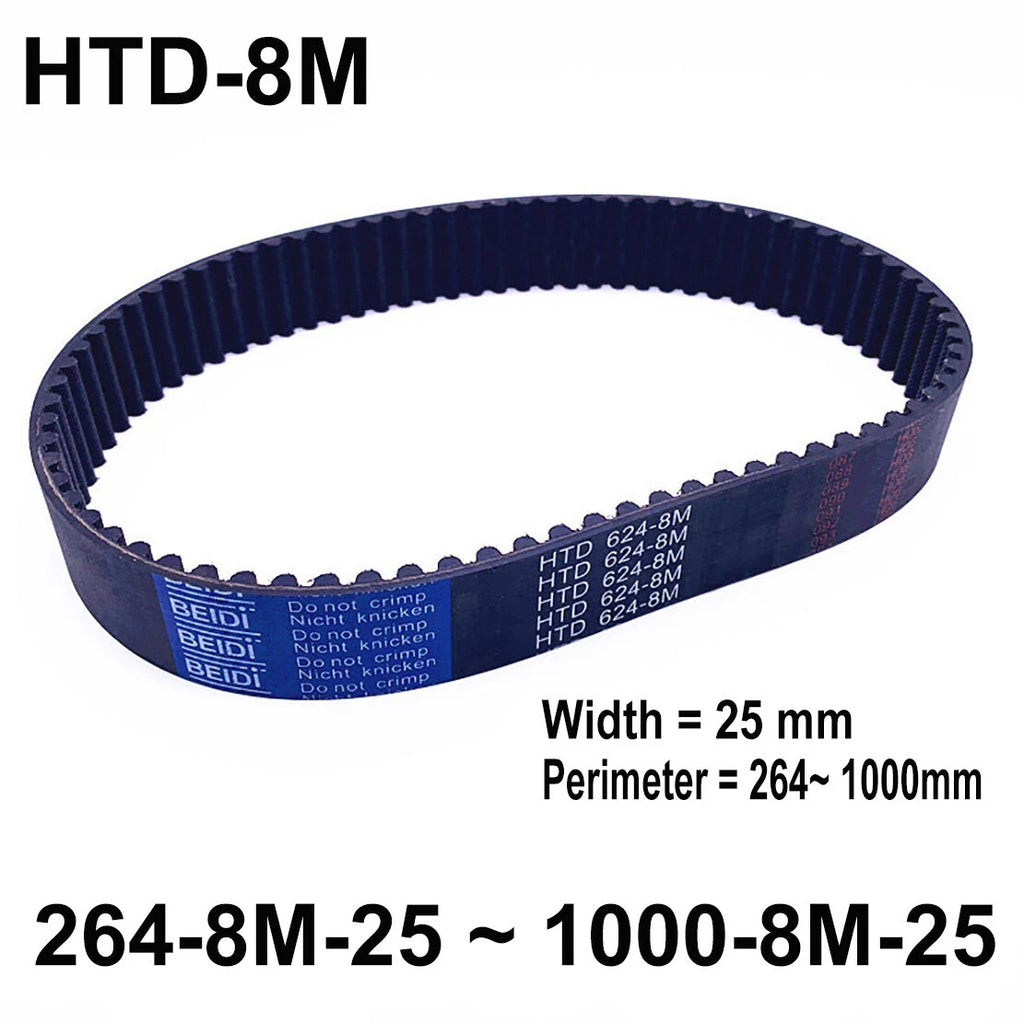

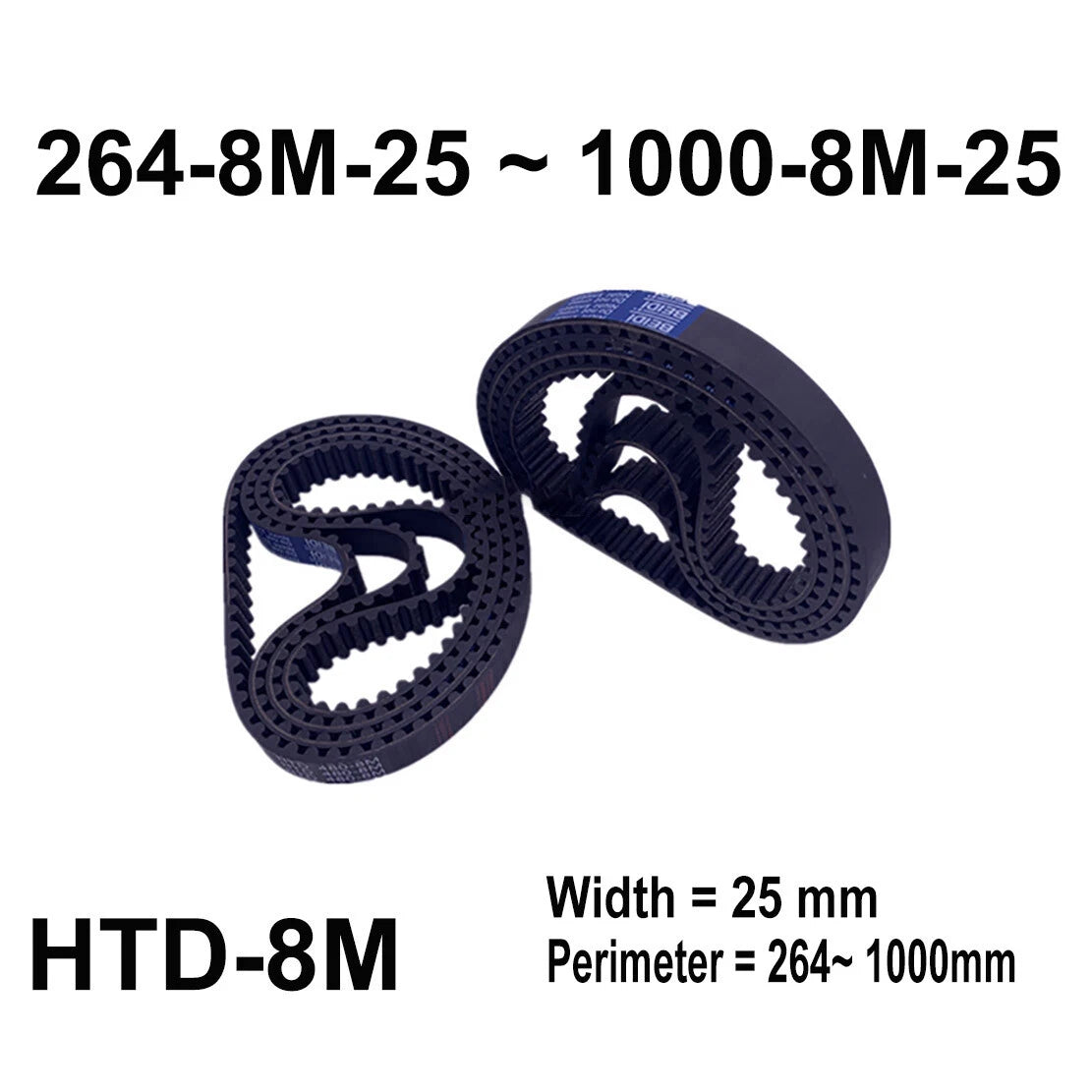

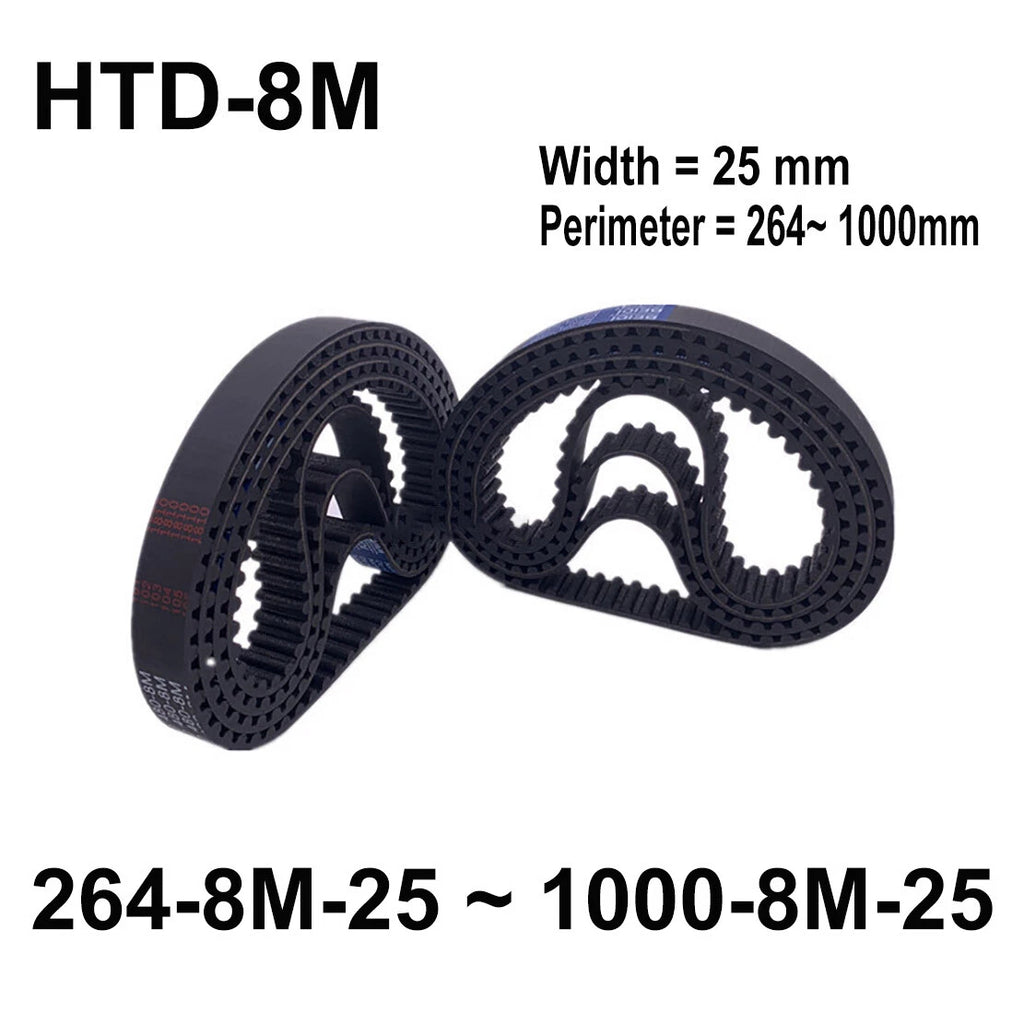

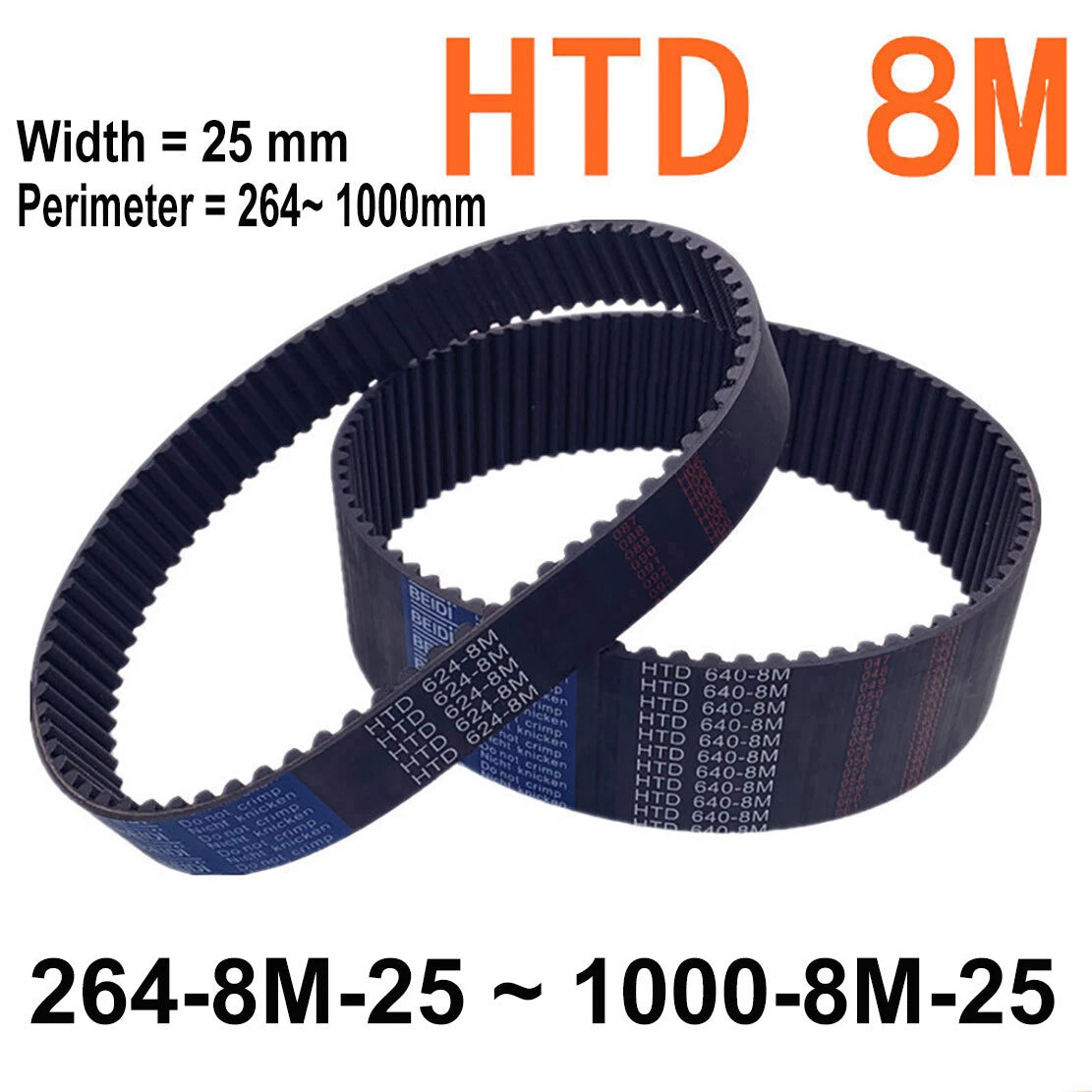

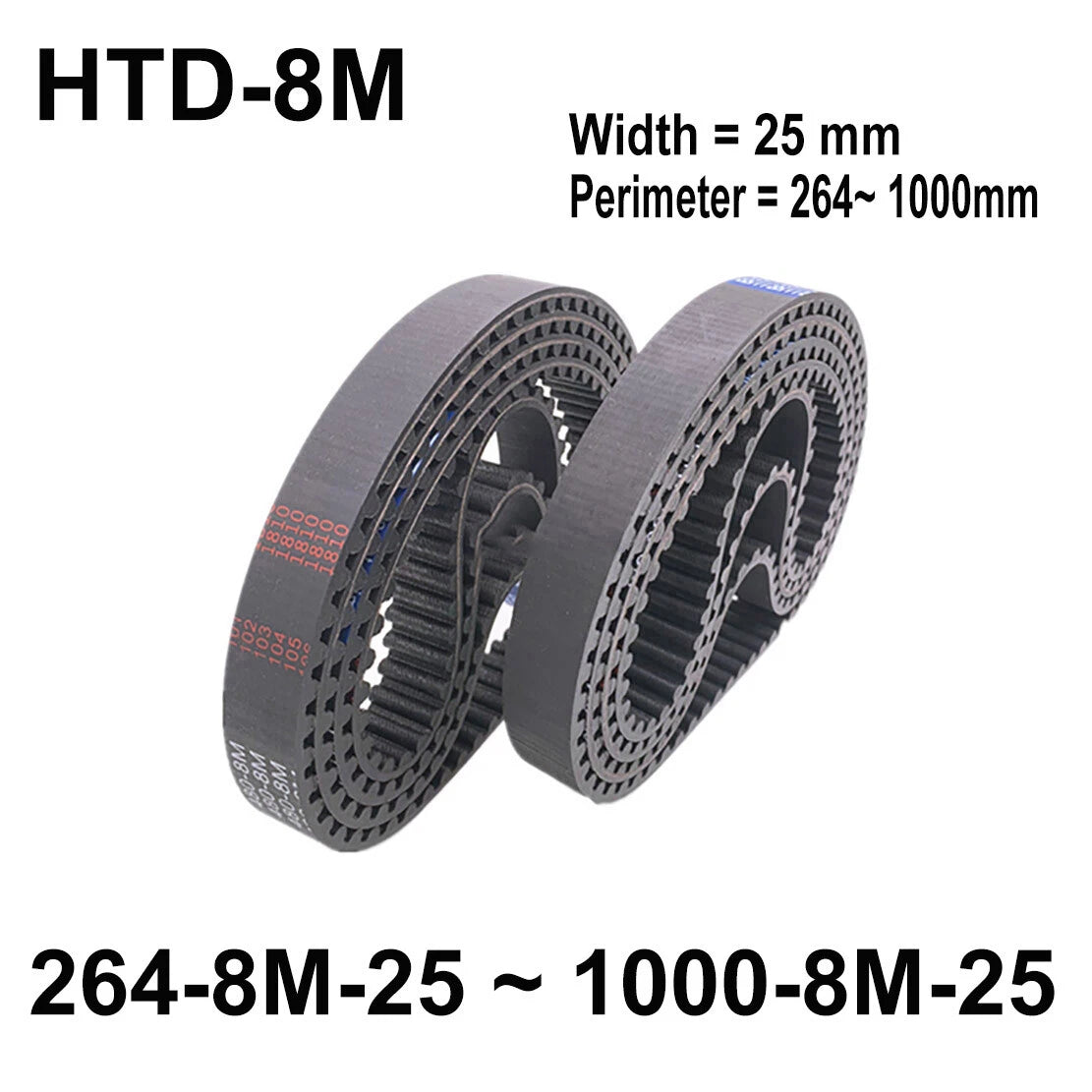

Each belt is a single closed-loop synchronous belt with an 8M pitch (8mm tooth spacing) and a curvilinear HTD tooth profile. The width is 25mm (≈1"), and perimeter options range from 264mm (≈10.4") to 1000mm (≈39.4") — select your required perimeter from the variant dropdown. Construction is typically neoprene rubber body with fiberglass or steel tension cord reinforcement, providing dimensional stability under load.

Typical use cases include CNC router axis drives requiring an HTD 8M synchronous belt, industrial conveyor timing belt replacements, and servo motor coupling in automation equipment where a closed loop drive belt with consistent tooth engagement is required.

ℹ️ Compatibility: Fits standard HTD 8M pulleys and sprockets only. Not compatible with trapezoidal (XL, L, H), GT2, or GT3 profile belts of the same pitch. Verify your pulley profile before ordering.
⚠️ Size selection: The size label format is Perimeter-Pitch (e.g., "264-8M" = 264mm perimeter, 8M pitch). Measure your existing belt or calculate from your pulley center distance before selecting a variant.

✅ Key Features of These HTD 8M Closed Loop Synchronous Timing Belts

  • 🔁Closed Loop Construction — Seamless endless loop design eliminates splice failure points, ensuring consistent tension and tooth engagement throughout the drive cycle.
  • ⚙️HTD Curvilinear Tooth Profile — The rounded 8M tooth form distributes load across the full tooth root, reducing stress concentration compared to trapezoidal profiles — a key advantage in high-torque CNC timing belt applications.
  • 📏Wide Perimeter Range — Available from 264mm (≈10.4") to 1000mm (≈39.4") in a single 25mm width, covering a broad range of center distances for industrial synchronous belt drive systems.
  • 🧲Reinforced Tension Cord — Fiberglass or steel cord reinforcement typically used in this belt class resists elongation under cyclic loading, maintaining accurate tooth pitch over time.
  • 🔇Low-Noise Operation — The HTD tooth geometry and rubber body dampen vibration, making this closed loop drive belt suitable for noise-sensitive machine environments.
  • 🏭Broad Application Fit — Suitable for servo motor drives, conveyor timing systems, rotary indexing tables, and other precision synchronous belt drive setups where slip-free motion is required.

📐 Technical Specifications — HTD 8M Synchronous Timing Belt

Belt Type Closed Loop Synchronous Timing Belt
Tooth Profile HTD (High Torque Drive) — Curvilinear
Pitch 8M (8mm tooth spacing)
Width 25mm (≈1")
Perimeter Range 264mm (≈10.4") to 1000mm (≈39.4")
Number of Teeth 33 teeth (264mm) to 125 teeth (1000mm) — calculated as Perimeter ÷ 8
Body Material Typically neoprene rubber — See variant options to confirm
Reinforcement Typically fiberglass or steel tension cord — Contact us to confirm
Compatible Pulleys HTD 8M pulleys / sprockets only
Quantity per Order 1 piece (single belt)
Operating Temperature Contact us to confirm
Color See variant options

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula:

Belt Length ≈ 2 × C + π × (D1 + D2) / 2

where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 500mm (≈19.7") perimeter belt is typically used with a ~150mm center distance on standard 8M pulley pairs. Always round up to the nearest available size. This product covers 264mm (≈10.4") to 1000mm (≈39.4").

What pulleys are compatible with this HTD 8M synchronous belt?

This belt is compatible with HTD 8M pulleys and sprockets only. The HTD curvilinear tooth profile is not interchangeable with trapezoidal profiles (MXL, XL, L, H) or GT2/GT3 belts, even if the pitch number appears similar. Always verify your pulley is labeled HTD 8M before ordering.

What load or torque can this 25mm wide HTD 8M belt handle?

HTD 8M belts at 25mm width are generally suitable for moderate-to-heavy power transmission, typically in the range of 1–5 kW at moderate RPM, depending on pulley diameter, number of teeth in mesh, and operating conditions. For precise load ratings, consult your drive system's engineering specifications or contact us with your application details.

Can this timing belt be used outdoors or in wet/oily environments?

Neoprene-body HTD belts generally offer good resistance to oil splash, moderate heat, and humidity. They are not typically rated for continuous outdoor UV exposure or full submersion. For harsh chemical or outdoor environments, contact us to confirm material suitability for your specific conditions.

How do I count the number of teeth on a specific belt size?

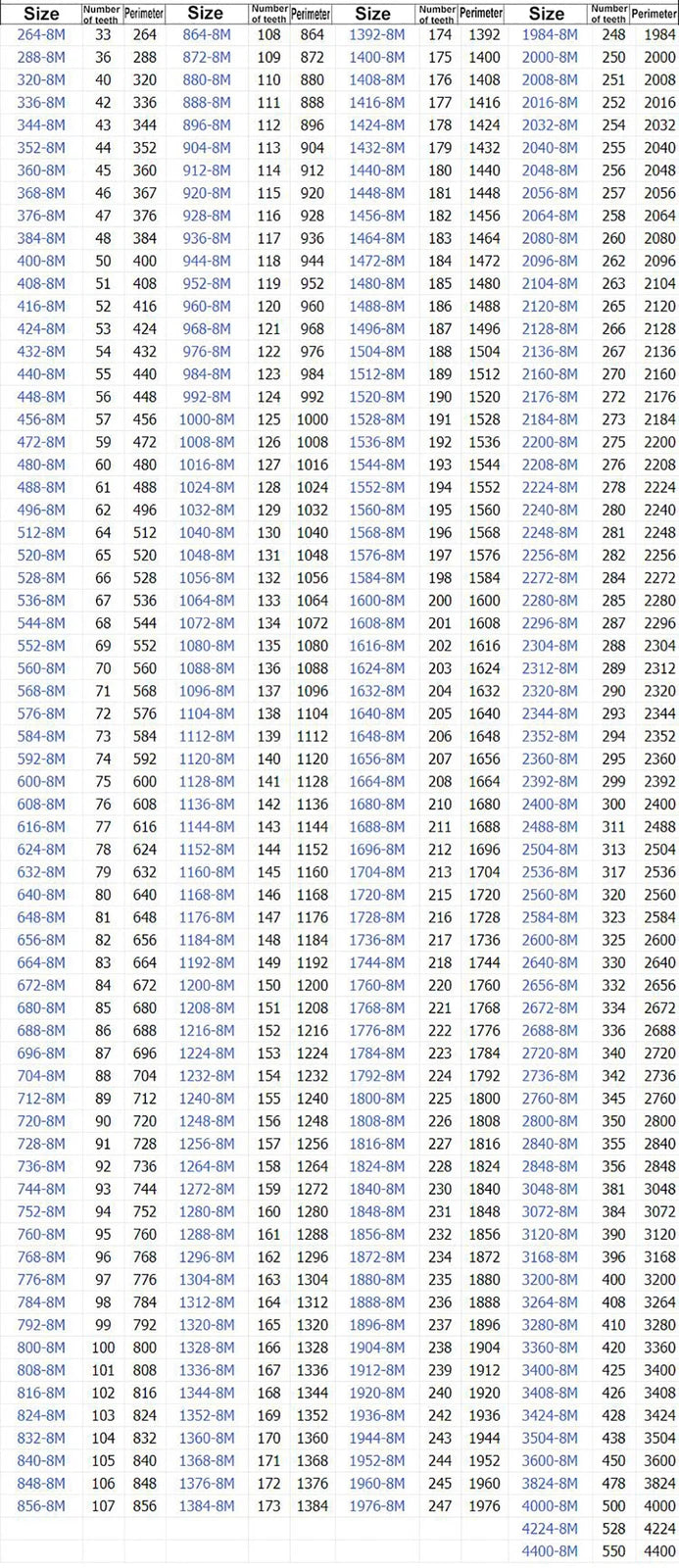

For 8M pitch belts, the tooth count is simply: Teeth = Perimeter (mm) ÷ 8. Examples:

  • 264mm belt → 33 teeth
  • 400mm belt → 50 teeth
  • 800mm belt → 100 teeth
  • 1000mm belt → 125 teeth

The size label format (e.g., "264-8M") follows the convention: Perimeter-Pitch.

Is this belt suitable for CNC routers, 3D printers, or laser cutters?

HTD 8M belts are generally used in higher-torque applications such as CNC routers, laser cutters, conveyor systems, and industrial automation drives. Desktop 3D printers typically use lighter 2GT or 3GT belts. If your machine's specification calls for an 8M belt at 25mm width, this is the correct type. Always verify your machine's belt specification before ordering.

Why does the HTD tooth profile perform better than trapezoidal belts in high-torque drives?

The HTD (High Torque Drive) curvilinear tooth profile distributes the load across the full tooth root rather than concentrating it at the tooth tip, as occurs with trapezoidal profiles. This in most cases results in lower stress at the tooth base, reduced noise, and longer belt life under cyclic high-torque loading — which is why HTD 8M is a common choice for industrial synchronous belt drive systems.
