Description

HTD-8M Closed-Loop Rubber Timing Belt 30mm Wide — Precise Drive for CNC, Robotics & Industrial Machines

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime, the root cause is often an undersized or wrong-pitch belt. Engineers, makers, and machine builders who need reliable synchronous power transmission rely on HTD-8M timing belts for their deep tooth engagement and consistent torque delivery across a wide range of speeds and loads.

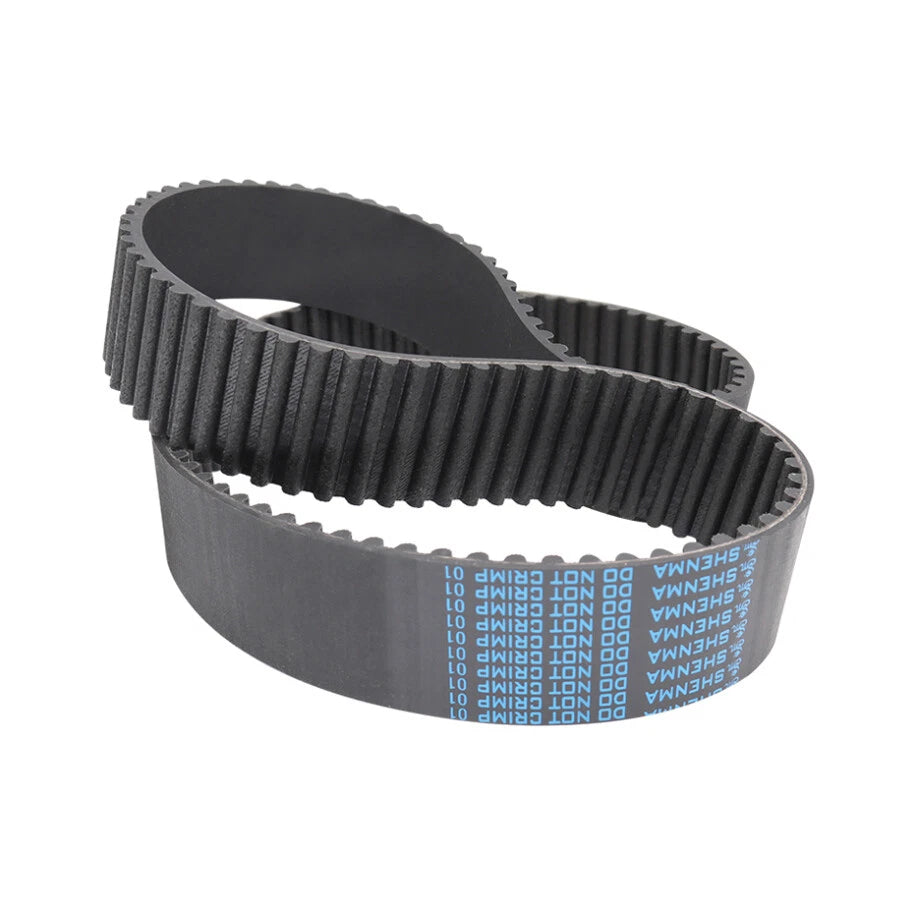

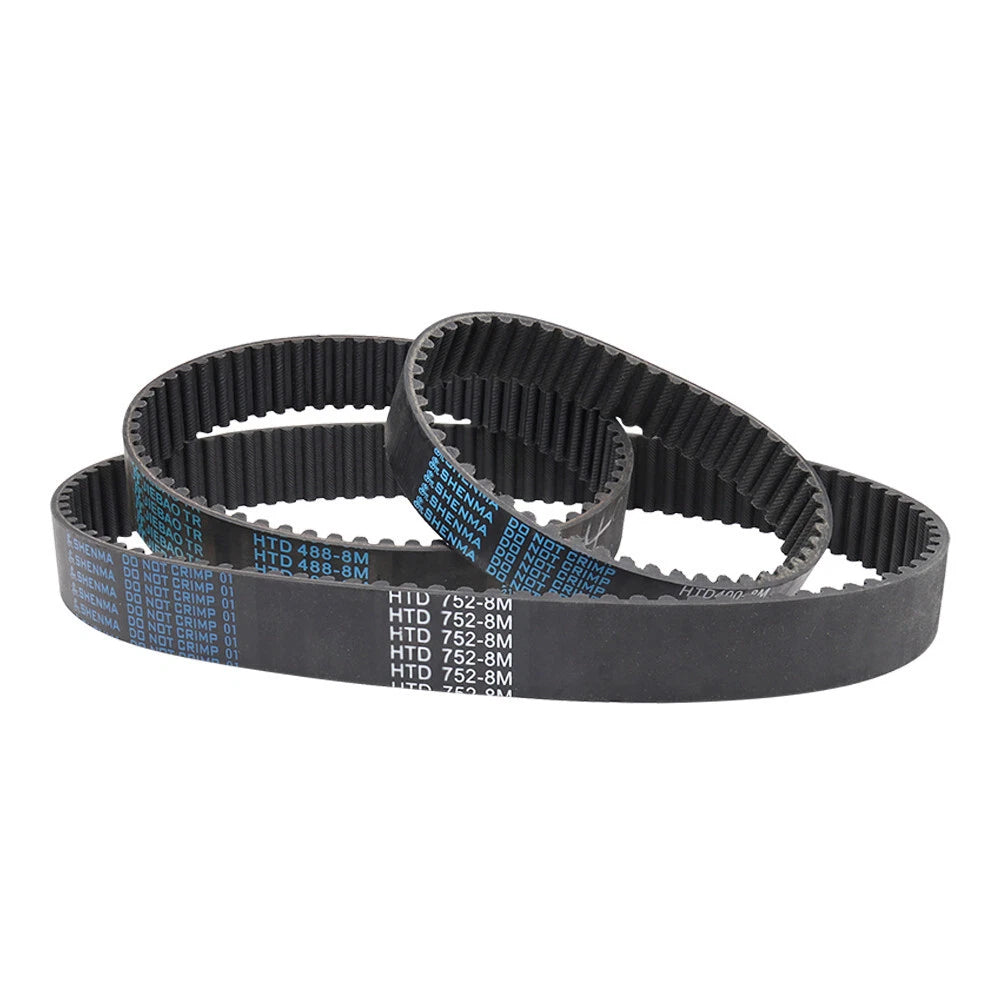

Each belt is a single closed-loop unit — no joining hardware required. The belt is 30mm (1-3/16") wide with an 8mm pitch (tooth-to-tooth spacing), constructed from rubber with internal fiber cord reinforcement for dimensional stability under tension. Loop circumferences range from 288mm (≈11.3") up to 3424mm (≈134.8"), with tooth counts from 36T to 428T, covering a broad range of drive configurations. Select your exact circumference and tooth count from the variant options above.

Typical applications include CNC router X/Y axes requiring an HTD-8M closed-loop belt replacement, large-format 3D printer drive systems, robotic arm actuators, conveyor indexing drives, and laser cutter gantry systems where a 30mm wide 8M timing belt provides the torque margin needed for reliable operation.

🔗 Compatibility: Designed for standard HTD 8M pulleys with 8mm pitch. Not compatible with GT2, MXL, XL, T5, or other pitch profiles. Match belt width (30mm) to your pulley flange width.
⚠️ Before ordering: Confirm your required loop circumference by measuring your existing belt or calculating from your pulley center distance. See FAQ below for the calculation method.

✅ Key Features of These HTD-8M Closed-Loop Timing Belts

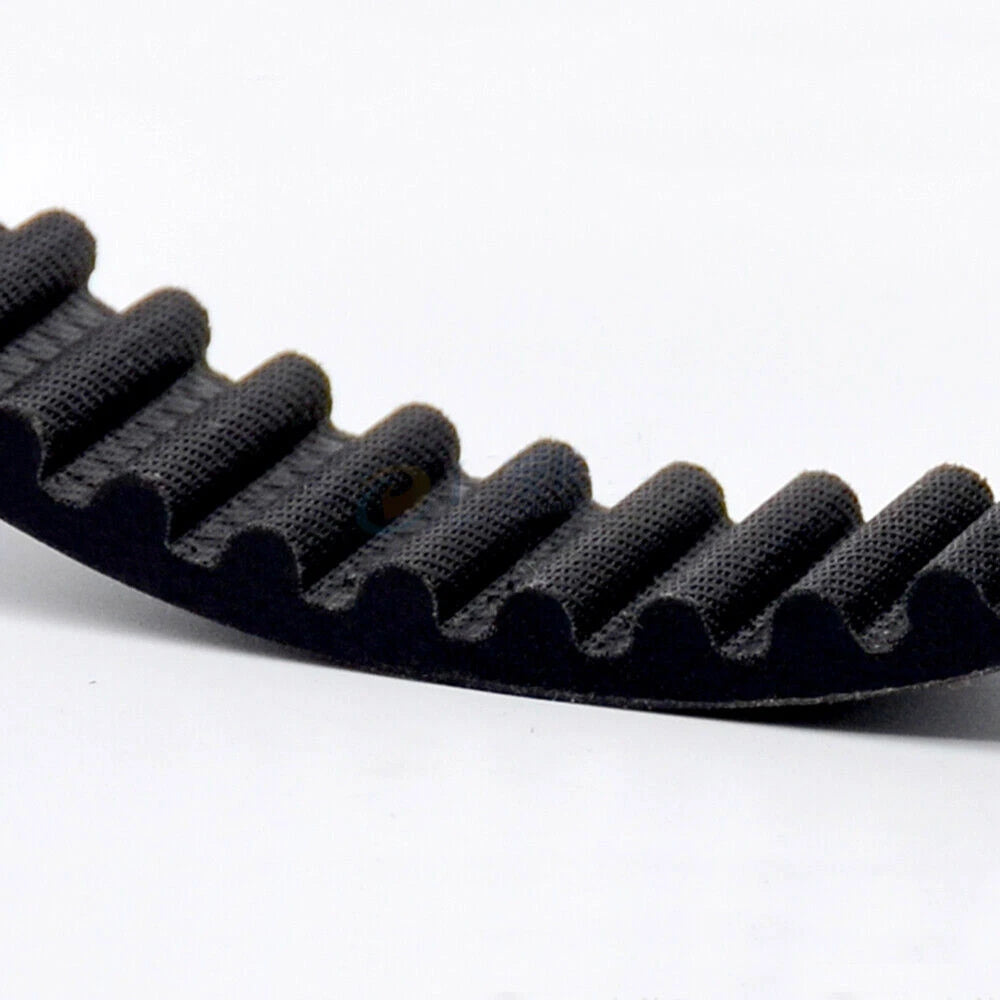

  • ⚙️8mm HTD Tooth Profile — The rounded curvilinear tooth design distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque synchronous drive applications.
  • 📏Wide Size Selection — Available in circumferences from 288mm (≈11.3") to 3424mm (≈134.8") with matching tooth counts, covering compact desktop CNC machines up to large industrial conveyor drives without custom fabrication.
  • 🔩30mm Belt Width — Wider than standard 15mm or 20mm variants, the 30mm (1-3/16") width increases the load-bearing cross-section, making it suitable for heavier gantry systems and dual-motor drive configurations.
  • 🔄Closed-Loop Construction — Factory-formed endless loop eliminates the weak point of mechanical belt joints, maintaining consistent tension and tooth pitch throughout the full circumference for accurate positioning.
  • 🧵Fiber Cord Reinforcement — Internal tensile cords resist elongation under load, helping maintain center-distance accuracy in CNC axes and robotic actuators where belt stretch causes cumulative positioning error.

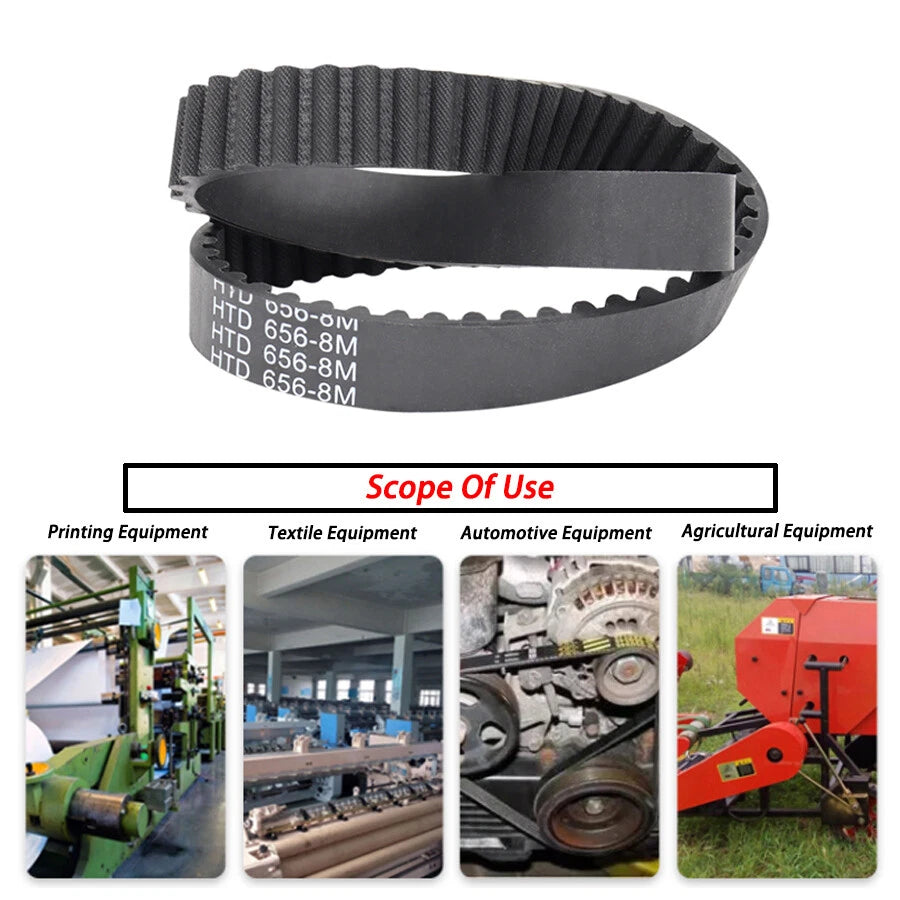

  • 🏭Broad Application Range — Used in CNC routers, laser cutters, 3D printer drive systems, conveyor indexing, and robotic arm drives — anywhere a 30mm wide HTD-8M synchronous belt replacement is needed.

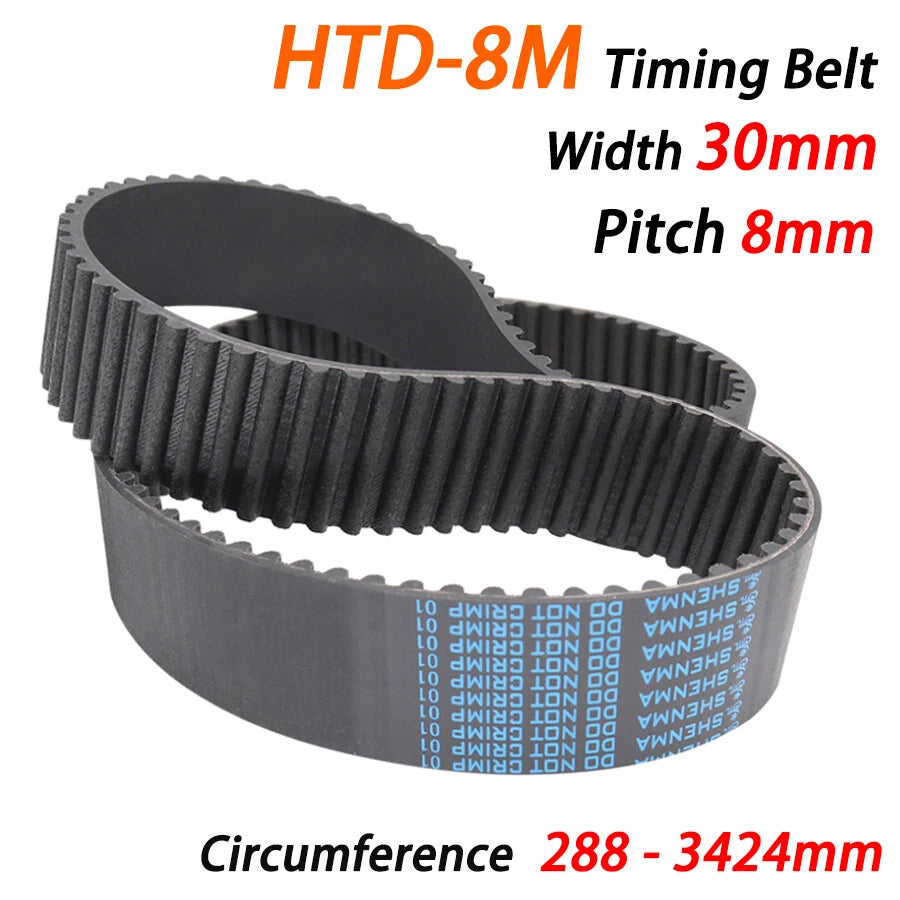

📐 Technical Specifications — HTD-8M Timing Belt

Belt Type HTD (High Torque Drive) Synchronous / Timing Belt
Pitch 8mm (HTD-8M)
Belt Width 30mm (≈1-3/16")
Loop Circumference 288mm (≈11.3") to 3424mm (≈134.8") — see variant options
Tooth Count 36T to 428T — listed with each circumference variant

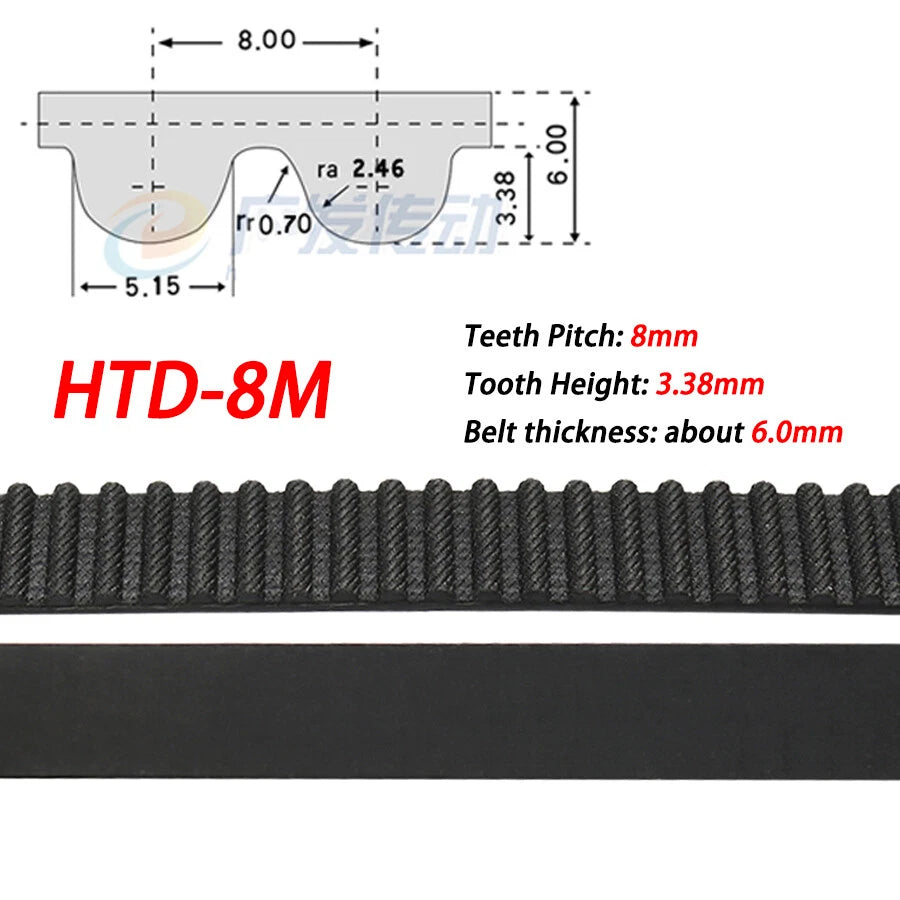

Tooth Profile HTD curvilinear (rounded) — not compatible with trapezoidal profiles
Construction Rubber body with internal fiber cord reinforcement
Loop Type Closed loop (endless) — no mechanical joint
Compatible Pulleys HTD 8M pulleys, 30mm width or wider with flanges
Typical Applications CNC routers, laser cutters, 3D printers, robotics, conveyors
Operating Temperature See variant options to confirm
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right loop circumference for my machine?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pitch diameters of your pulleys.

For example, a 800mm circumference belt (≈31.5") is typically used with pulleys roughly 350–380mm apart, depending on pulley size. Always round up to the nearest available size listed in the variants and verify the tooth count matches your pulley.

What load capacity can this HTD-8M timing belt handle?

HTD-8M belts generally handle higher torque loads than smaller-pitch belts (3M, 5M) due to the deeper 8mm tooth profile. The 30mm width provides additional load capacity compared to narrower versions of the same pitch. Actual torque ratings depend on pulley diameter, speed, and installation tension — consult your drive system's engineering specifications for exact values.

Can this belt be used outdoors or in damp environments?

HTD-8M rubber timing belts are generally resistant to moisture and moderate temperature ranges, making them suitable for light outdoor or damp indoor environments. Prolonged UV exposure or contact with oils and aggressive chemicals may degrade the rubber over time. For harsh outdoor installations, confirm the specific material composition before use.

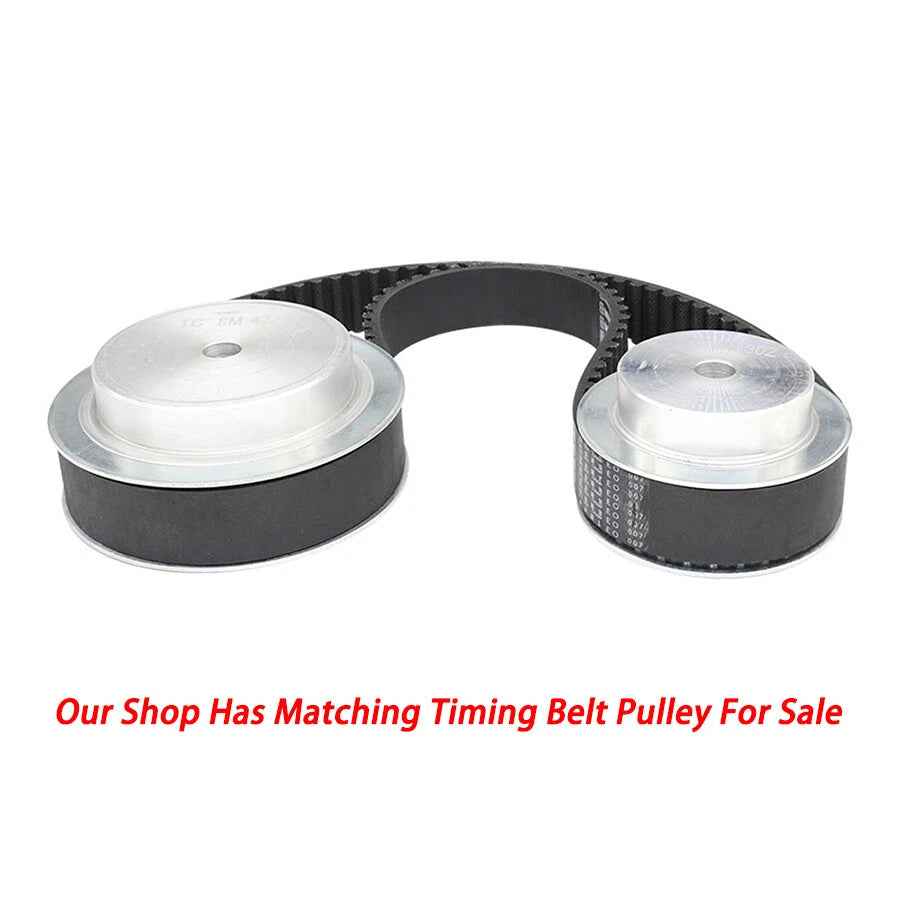

What pulley standard is compatible with HTD-8M belts?

These belts are designed exclusively for HTD 8M pulleys with an 8mm pitch and a rounded (curvilinear) tooth profile. They are not interchangeable with GT2, MXL, XL, T5, or other pitch standards. Always match the belt pitch (8M) and width (30mm) to your pulley specifications before ordering.

How do I read the circumference and tooth count in the variant names?

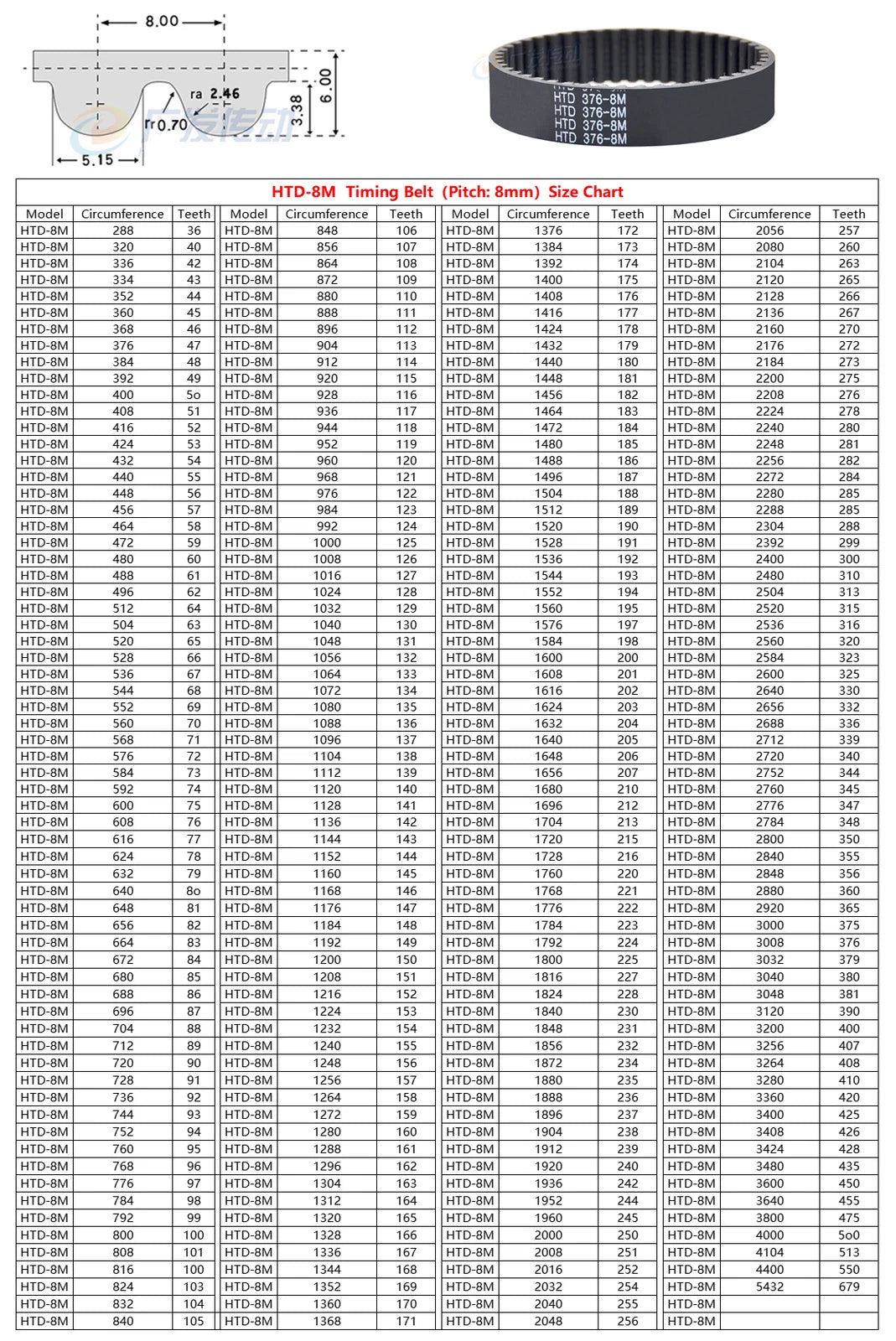

Each variant is listed as [circumference]mm & [tooth count]T — for example, "800mm & 100T" means the belt loop is 800mm (≈31.5") in total circumference and has 100 teeth. To convert to inches, divide the mm value by 25.4. Select the variant that matches your required belt length and tooth count.

Is this belt suitable for CNC routers and 3D printers?

Yes. HTD-8M belts are commonly used in CNC routing machines, laser cutters, and larger-format 3D printers where higher torque and precise positioning are required. The 30mm width provides additional load capacity compared to narrower belts, making it well-suited for heavier gantry systems, dual-drive setups, or any application where a standard 8M belt replacement is needed.

What is the difference between HTD-8M and other timing belt pitches like GT2 or 5M?

The pitch number indicates the distance between tooth centers: GT2 = 2mm, 5M = 5mm, 8M = 8mm. A larger pitch generally means higher torque capacity but lower positioning resolution per tooth. HTD-8M is typically chosen for heavy-duty drives where torque matters more than ultra-fine resolution — such as industrial CNC axes, conveyor systems, or robotic actuators with significant inertial loads.

🛒 Select your loop circumference and tooth count above, then add to cart — ships from our US warehouse.
