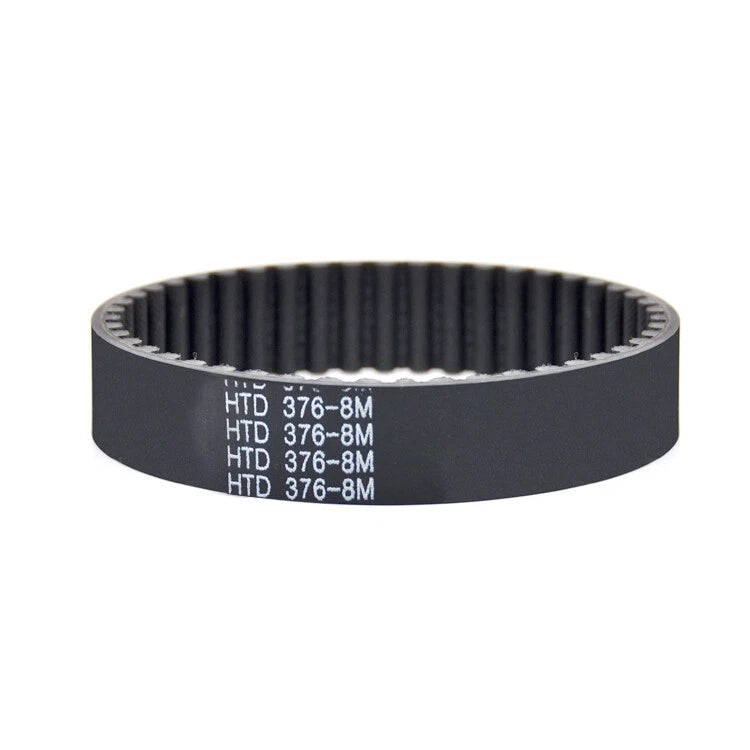

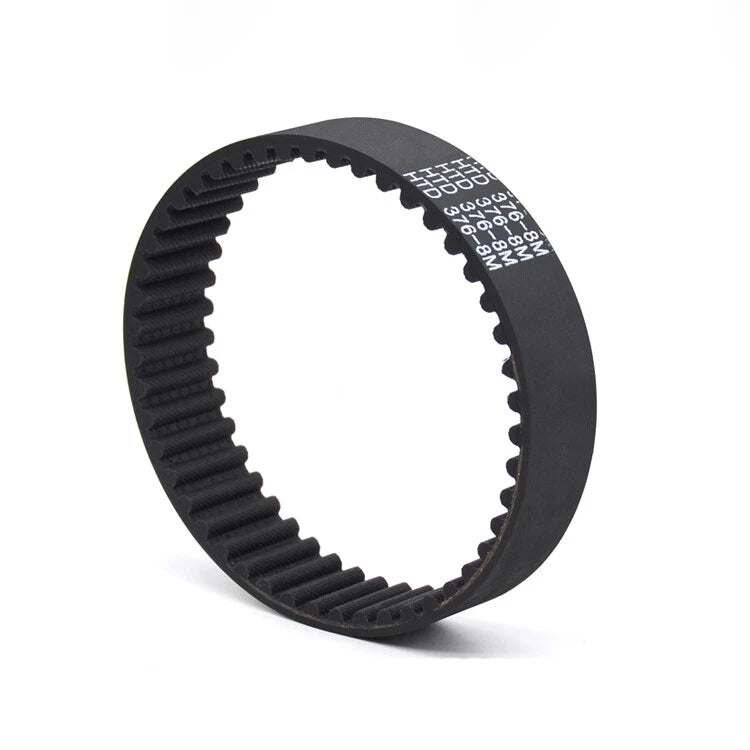

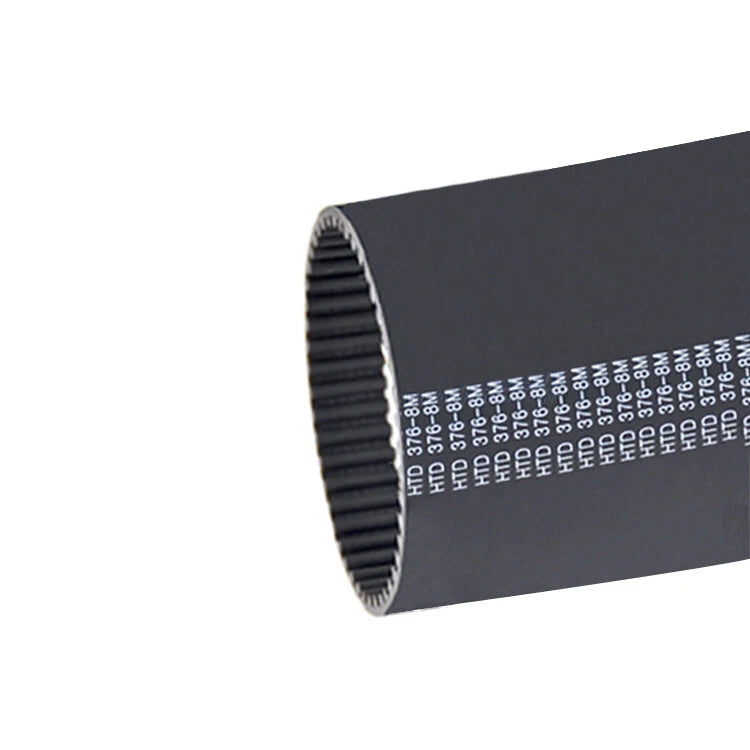

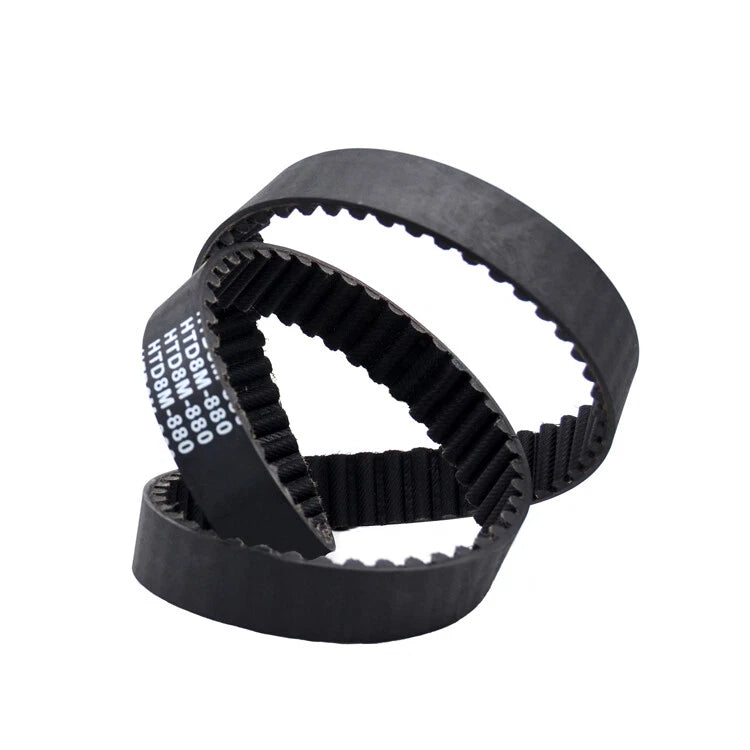

HTD 8M Timing Belt 30mm Wide — Reliable 8mm Pitch Drive for CNC, Robotics & Industrial Systems

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime, the fix starts with the right belt. This HTD 8M timing belt is built for engineers, makers, and machine builders who need a dependable closed-loop drive solution — whether you're running a CNC router, a robotic arm, a conveyor, or a custom automation rig.

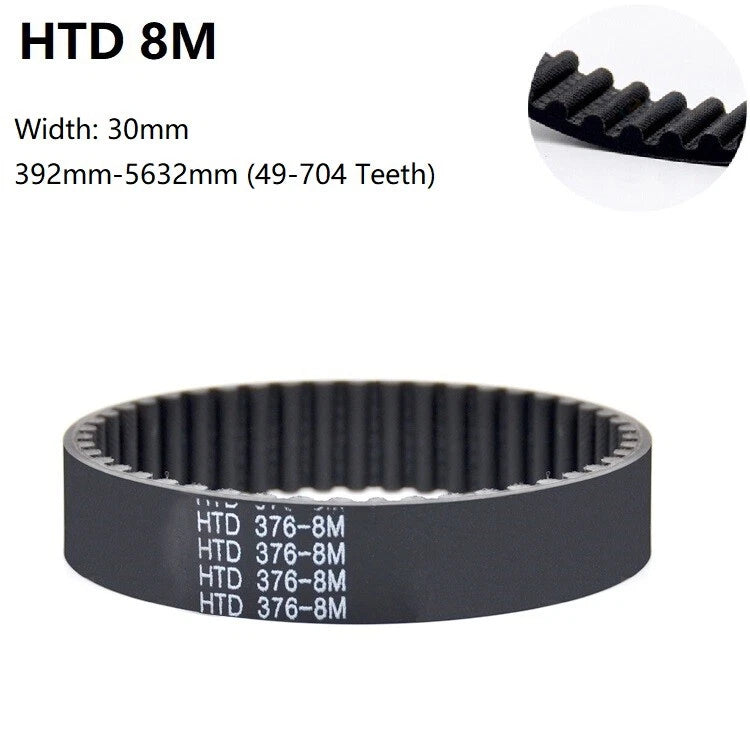

Each belt features an 8mm tooth pitch (HTD 8M profile) and a 30mm belt width. The closed-loop perimeter is available in multiple sizes ranging from 392mm (≈15.4") to 5632mm (≈221.7"), so you can match your exact drive geometry. The belt body is typically constructed from neoprene rubber with fiberglass or steel tension cord reinforcement — select your size from the variant dropdown above.

Typical applications include CNC machine axis drives, robotic joint actuators, 3D printer gantry systems requiring higher torque, conveyor and indexing systems, and custom automation equipment where a synchronous HTD 8M timing belt drive is specified.

ℹ️ Compatibility: Designed for use with standard HTD 8M pulleys. Requires pulleys with a usable groove width of ≥30mm. Verify pulley flange clearance before ordering.
⚠️ Size selection tip: The perimeter listed is the total closed-loop belt length. Measure your drive geometry carefully before selecting a size. If you are unsure, contact us to confirm the correct variant.

✅ Key Features of These HTD 8M Timing Belts

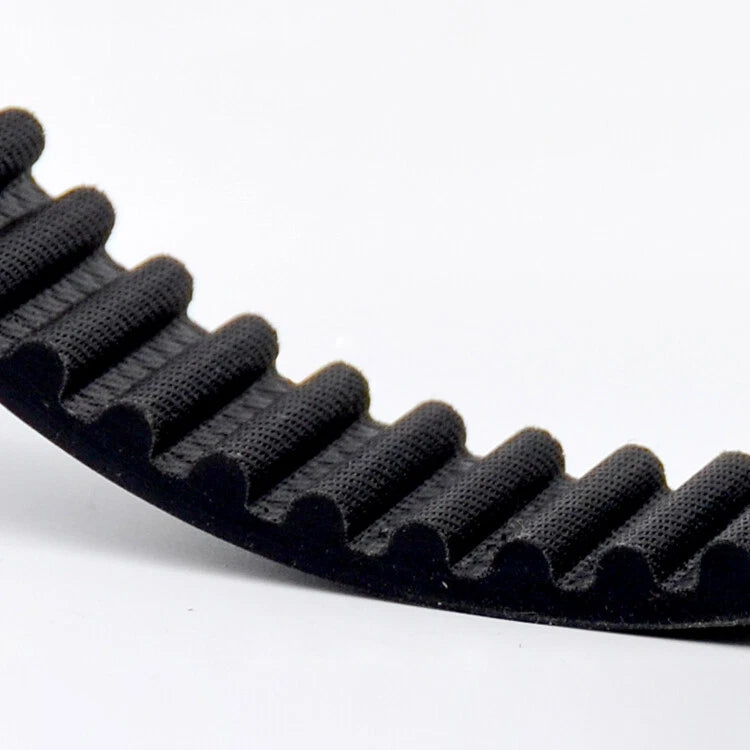

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth stress and supporting higher torque transmission in CNC and robotics drives.
  • 📏8mm Pitch, 30mm Width — The 8M pitch (8mm center-to-center tooth spacing) and 30mm belt width make this a widely used size for medium-to-high torque synchronous drive applications.
  • 🔩Wide Size Range — Available in perimeter sizes from 392mm (≈15.4") to 5632mm (≈221.7"), covering a broad range of drive configurations without custom fabrication.
  • 🛡️Reinforced Construction — Typically built with fiberglass or steel tension cord embedded in neoprene rubber, providing dimensional stability and resistance to stretch under load in industrial timing belt applications.
  • 🔄Synchronous Drive — No Slip — As a toothed synchronous belt, the HTD 8M maintains a fixed speed ratio between driver and driven pulleys, making it suitable for positioning and indexing applications where slip is not acceptable.
  • 🏭Standard HTD 8M Interchangeability — Conforms to the HTD 8M tooth profile standard, allowing direct replacement or use with any compatible HTD 8M pulley from major suppliers.

📐 Technical Specifications — HTD 8M Timing Belt

Belt Profile HTD 8M (High Torque Drive, curvilinear tooth)
Tooth Pitch 8mm (0.315")
Belt Width 30mm (≈1.18")
Perimeter Range 392mm (≈15.4") to 5632mm (≈221.7") — see variant options

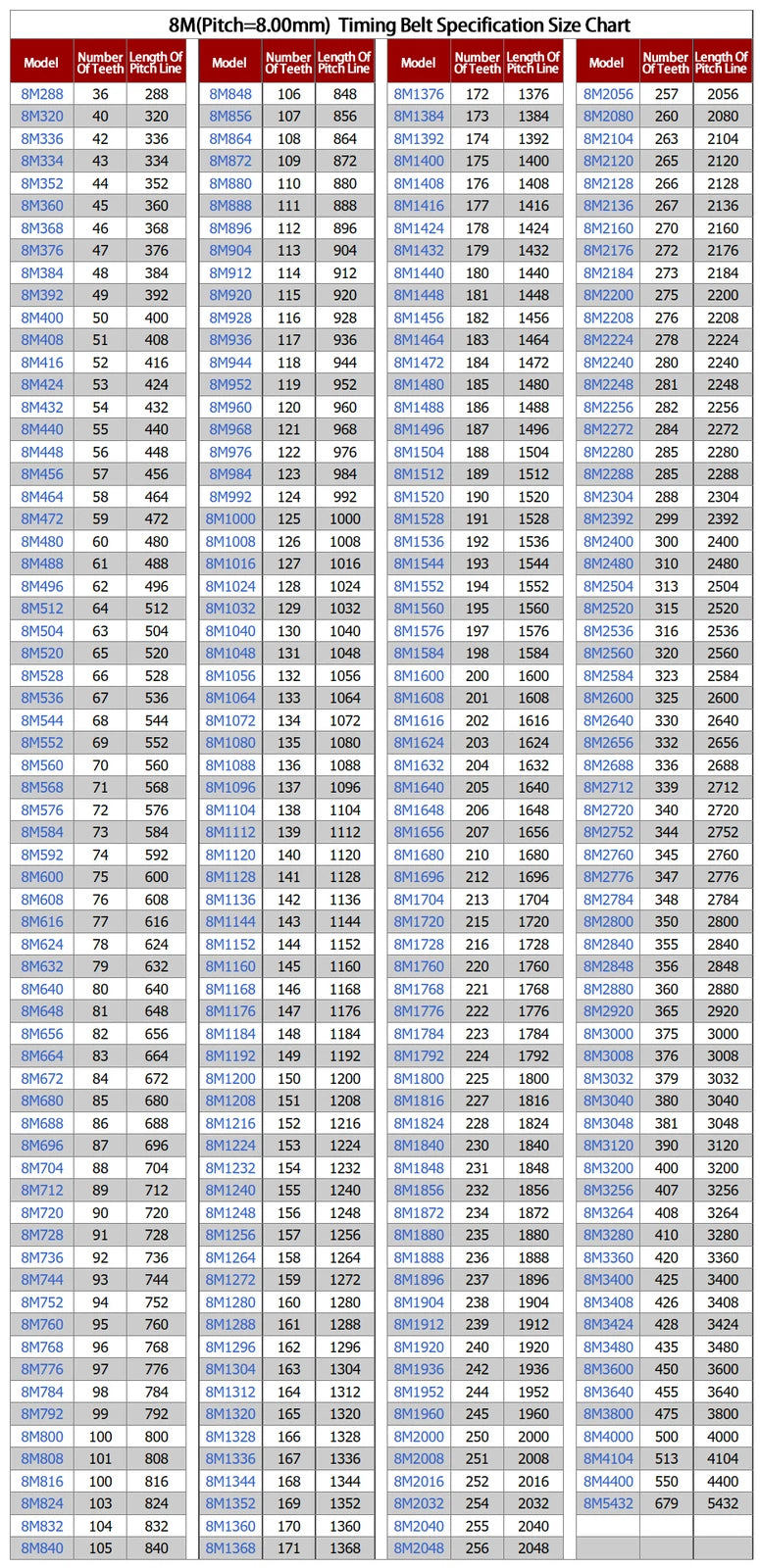

Number of Teeth 49 to 704 — varies by perimeter (see variant options)
Belt Material Neoprene rubber with fiberglass or steel tension cord (typical)
Tooth Face Material Nylon fabric facing (typical)
Compatible Pulley Profile HTD 8M
Minimum Pulley Width Required ≥30mm usable groove width
Drive Type Synchronous (positive, no-slip)
Typical Operating Temperature Contact us to confirm
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right HTD 8M belt size for my application?

Measure the center-to-center distance between your pulleys, then calculate the required belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pitch diameters of your pulleys. The perimeter listed in each variant is the total closed-loop belt length. For example, 392mm ≈ 15.4", 800mm ≈ 31.5", and 1600mm ≈ 63.0". When in doubt, size up — a slightly longer belt can be tensioned; one that is too short cannot be installed.

What does "8M" mean in an HTD 8M timing belt?

"8M" refers to the tooth pitch — the distance from one tooth center to the next, which is 8mm. HTD (High Torque Drive) profiles use a curvilinear (rounded) tooth shape rather than the older trapezoidal profile. This generally allows for higher torque transmission and reduced tooth stress, making HTD 8M a common choice for CNC routers, robotics, and industrial automation drives.

What load or torque can this HTD 8M 30mm belt handle?

Torque capacity depends on the number of teeth in mesh, pulley pitch diameter, and operating speed. Generally, HTD 8M belts in 30mm width are suited for moderate-to-high torque synchronous drive applications. For precise load ratings specific to your setup, consult your pulley manufacturer's data or contact us to confirm suitability before ordering.

Can this belt be used outdoors or in wet/oily environments?

HTD timing belts are typically constructed from neoprene rubber, which provides reasonable resistance to moisture and moderate temperature ranges. They are generally not recommended for prolonged submersion, direct contact with oils or solvents, or extreme UV exposure. For outdoor or chemically demanding environments, contact us before ordering to confirm material suitability.

Is this belt compatible with standard HTD 8M pulleys from other brands?

Yes. This belt conforms to the HTD 8M tooth profile standard and is designed to mesh with any HTD 8M-compatible pulley. The 30mm belt width requires pulleys with a usable groove width of at least 30mm. Always verify pulley flange clearance and alignment before installation to ensure proper tracking.

What is the difference between HTD and GT2/GT3 belt profiles?

HTD (High Torque Drive) uses a curvilinear tooth profile optimized for torque transmission. GT2 and GT3 profiles are modified curvilinear designs that typically offer improved positional accuracy and reduced backlash, making them popular in 3D printers and precision CNC. HTD 8M is generally preferred for higher-torque industrial and robotics drives where power transmission capacity is prioritized over absolute positional precision.

How do I convert the belt perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples: 392mm ÷ 25.4 ≈ 15.4"; 800mm ÷ 25.4 ≈ 31.5"; 1600mm ÷ 25.4 ≈ 63.0"; 3200mm ÷ 25.4 ≈ 126.0"; 5632mm ÷ 25.4 ≈ 221.7". All variant sizes are listed in mm in the size dropdown above.

🛒 Select your model and size (perimeter) above, then add to cart — ships from our US warehouse.
