HTD 8M Timing Belt 30mm Wide — Precision Drive for CNC & Stepper Motor Systems

When a slipping or worn drive belt causes positioning errors on your CNC router, laser cutter, or 3D printer, every job suffers. Builders, machine retrofitters, and repair technicians who need a reliable HTD 8M timing belt in an exact length — without waiting weeks for a custom order — will find this listing covers the full practical range from 264mm to 2800mm in a single place.

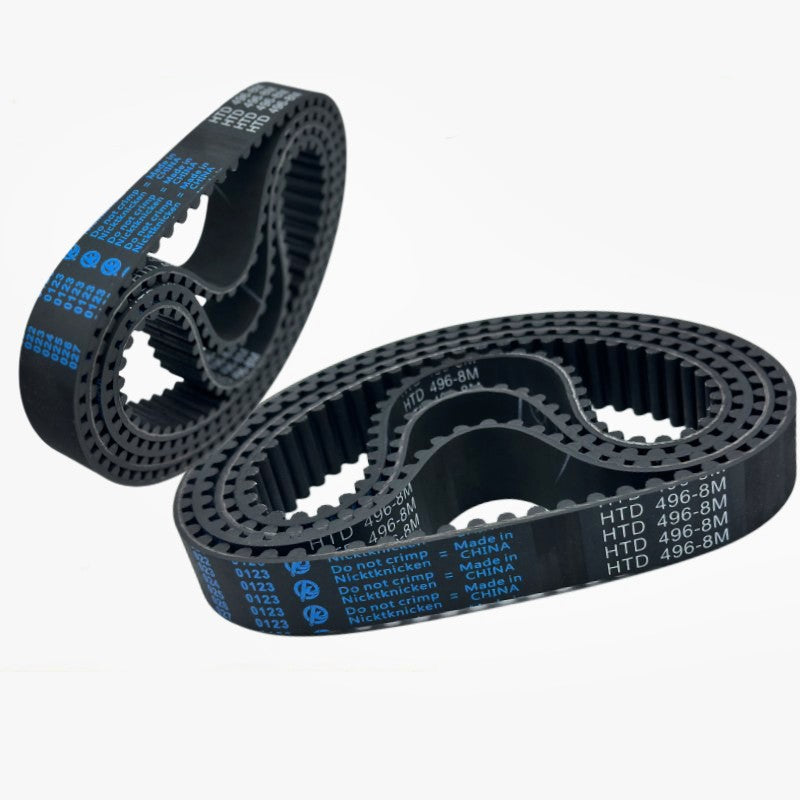

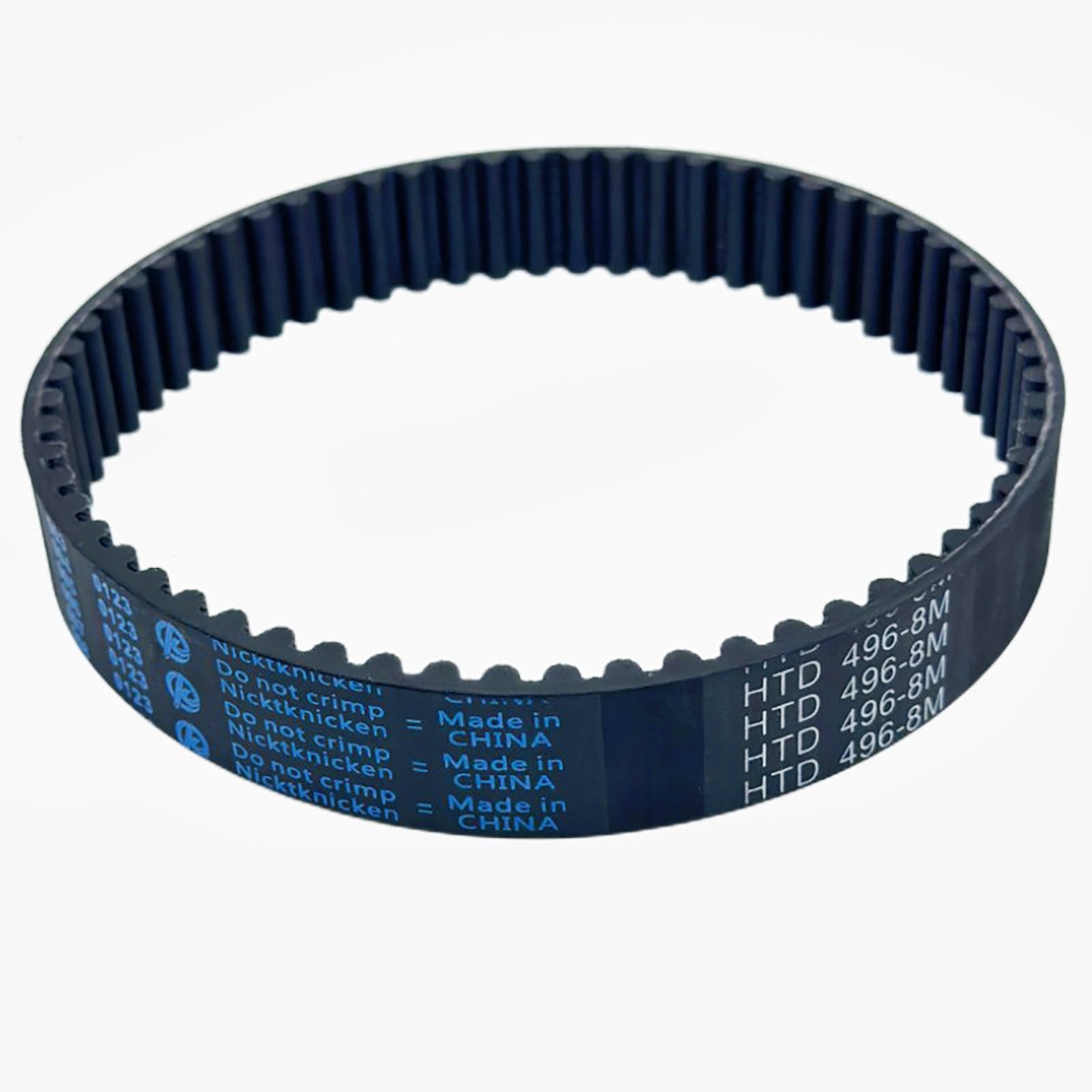

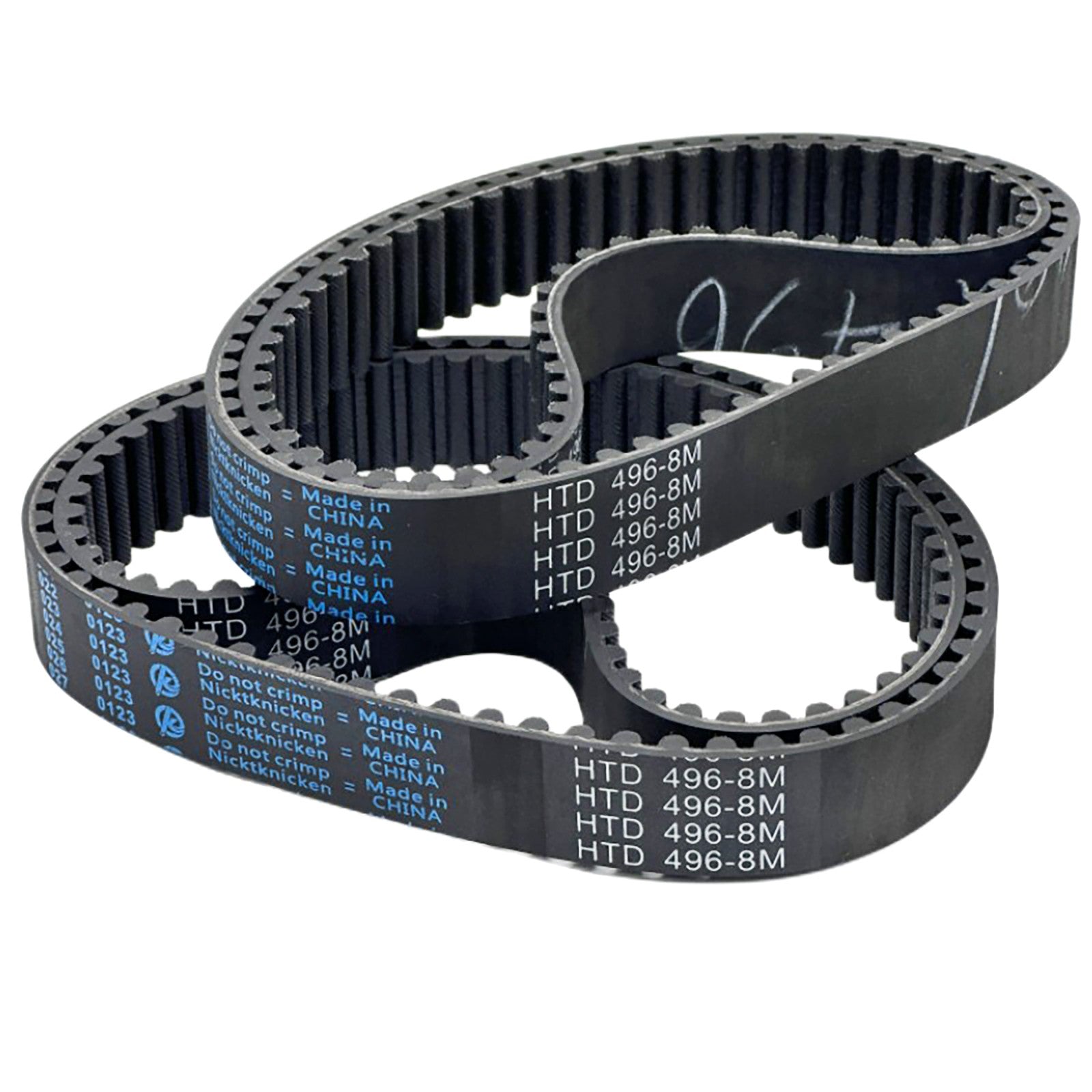

Each belt in this listing is a closed-loop HTD 8M timing belt, 30mm wide with an 8mm pitch (tooth-to-tooth spacing). The HTD (High Torque Drive) tooth profile features a rounded, curvilinear shape that distributes load across a larger contact area compared to trapezoidal profiles. Available lengths run from 264mm (≈10.4") to 2800mm (≈110.2"), sold individually (1 Pcs per order). Select your required length from the variant dropdown above.

Typical applications include CNC router X/Y axis drives, laser engraver gantry systems, stepper motor power transmission on plasma tables, and industrial automation conveyor drives where an HTD 8M open-loop or replacement belt is required. The 30mm width makes this belt well-suited for higher-torque stepper motor drive setups where narrower belts would be undersized.

ℹ️ Compatibility: Fits any standard HTD 8M pulley with a 30mm belt groove. Verify your pulley's pitch (8mm) and groove width (30mm) before ordering. Not compatible with GT2, T5, T10, or trapezoidal-profile pulleys.
⚠️ Length Selection: Belt length refers to the total outer circumference of the closed loop. Measure your existing belt or calculate using your pulley center distance before selecting a variant. If unsure, contact us to confirm.

✅ Key Features of These HTD 8M Timing Belts

  • 🦷HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry increases the contact area between belt and pulley, reducing tooth shear stress and improving torque transmission compared to older trapezoidal profiles used in standard T-series belts.

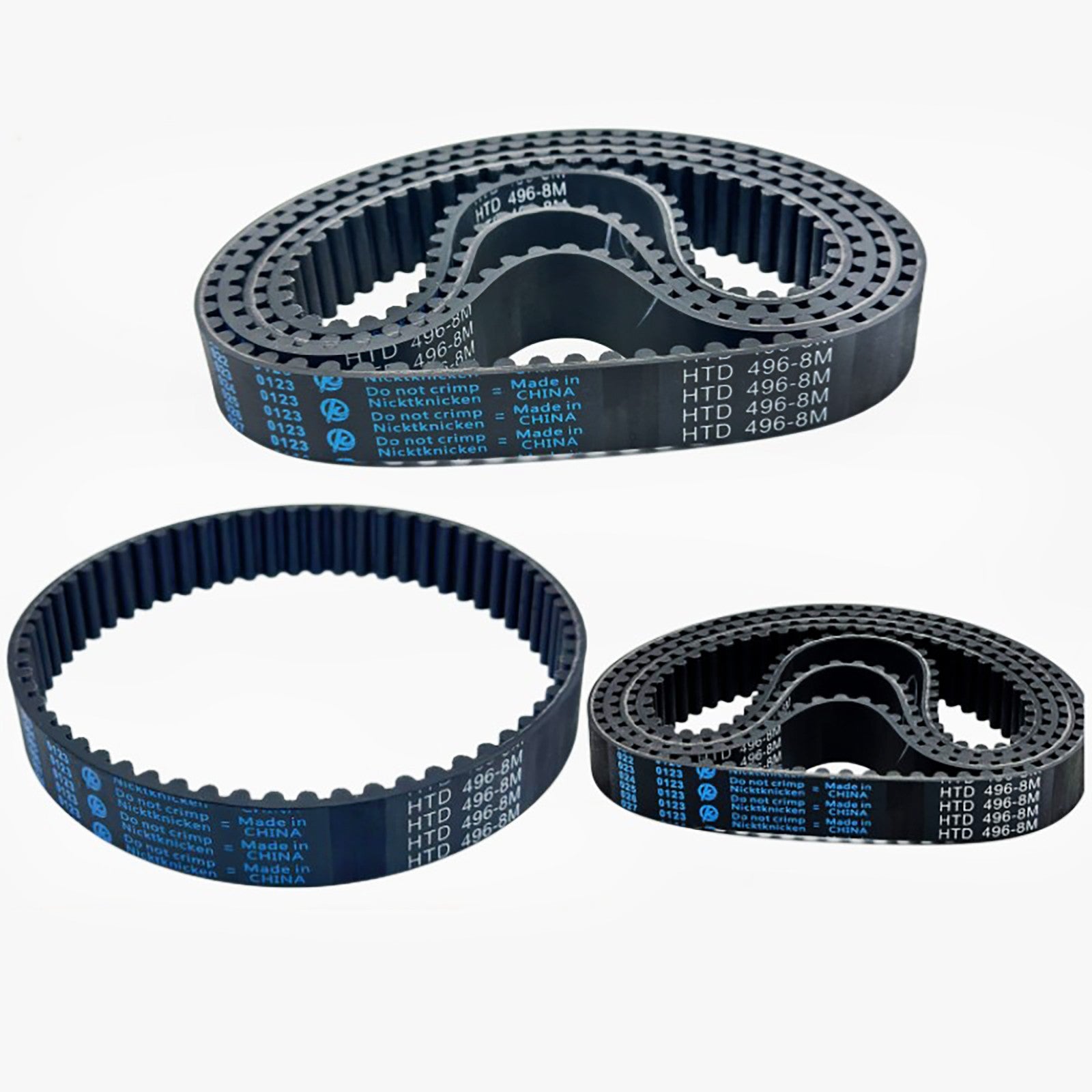

  • 📏Wide Length Selection (264mm–2800mm) — Over 240 length options in a single listing cover the majority of CNC router, laser cutter, and stepper motor drive belt replacement needs without requiring a custom order.
  • ↔️30mm Belt Width for Higher Torque — The 30mm width provides greater tooth engagement surface area than 15mm or 20mm variants of the same pitch, making this belt appropriate for heavier-duty CNC axis drives and industrial stepper motor applications.

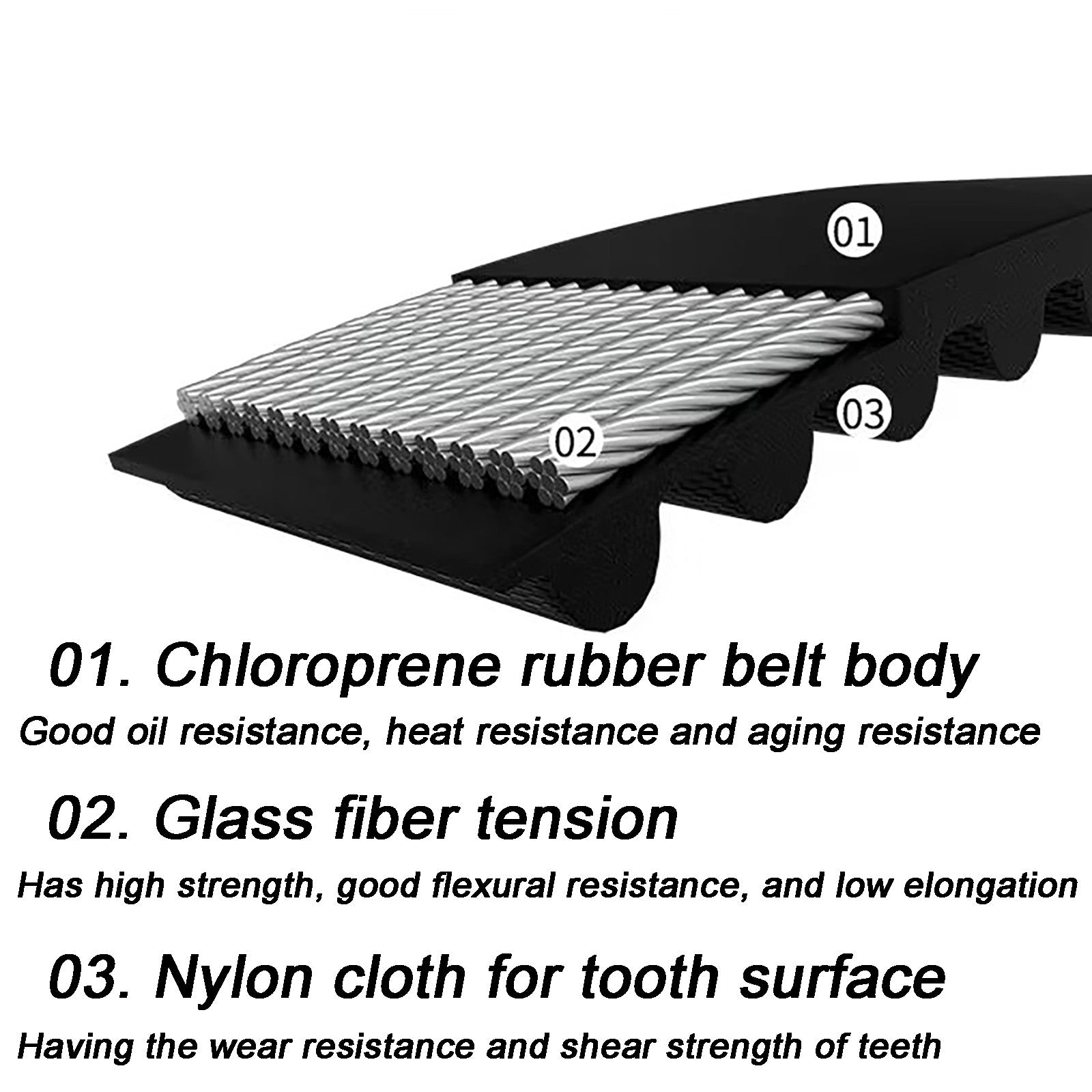

  • 🔩Reinforced Tension Cord Construction — HTD 8M belts are generally built with fiberglass or steel tension cords embedded in the rubber body, providing dimensional stability and resistance to elongation under sustained load — critical for maintaining positional accuracy in CNC systems.
  • 🔄Closed-Loop (Endless) Design — No splices, no joints, no weak points. The seamless loop construction ensures consistent tooth pitch around the full circumference, which is essential for repeatable positioning in CNC and stepper motor drive applications.
  • 🏭Standard HTD 8M Profile Compatibility — Conforms to the HTD 8M industry standard, ensuring drop-in compatibility with any brand of HTD 8M pulley. No proprietary fittings or adapters required for most CNC router and laser engraver drive systems.

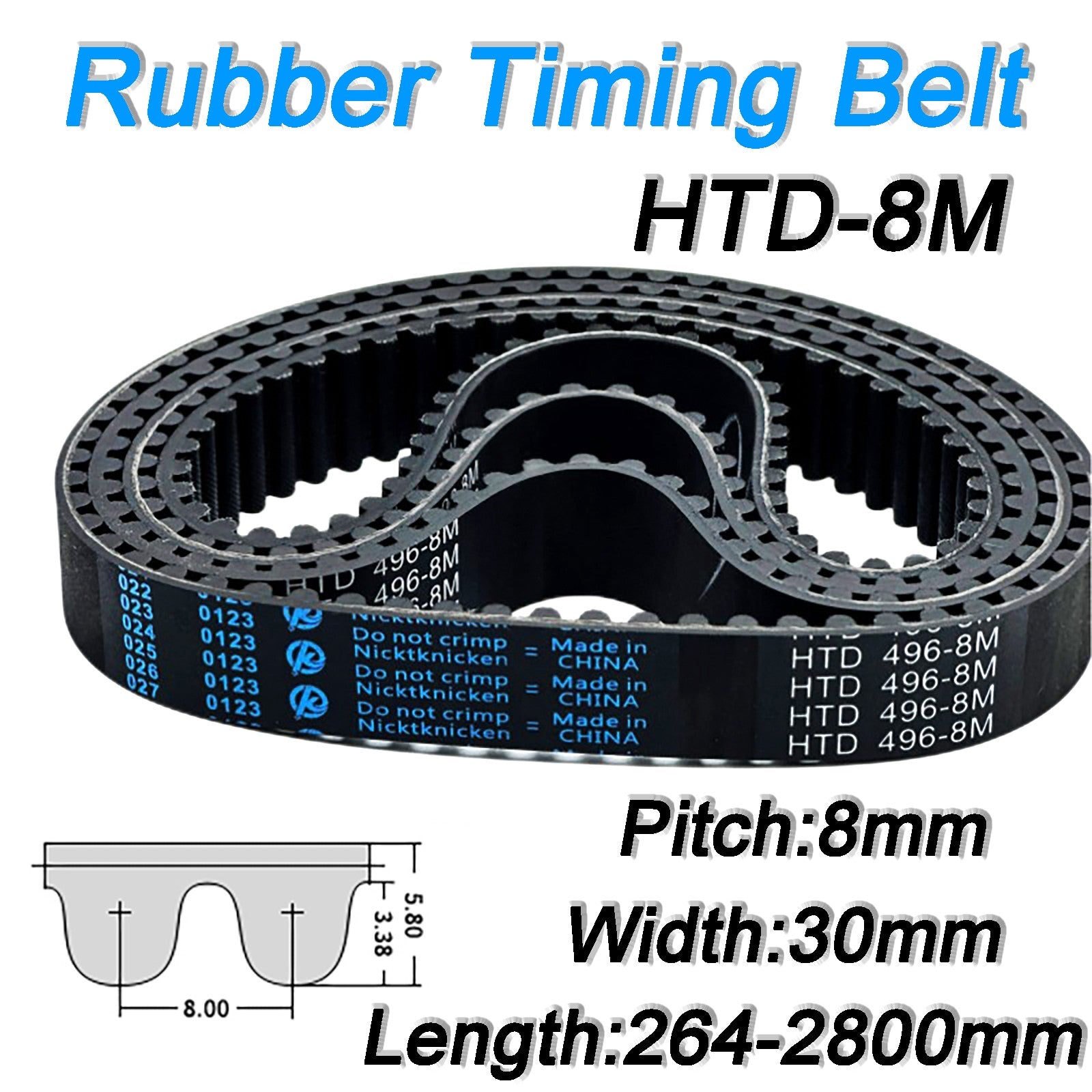

📐 Technical Specifications — HTD 8M Timing Belt

Belt Profile HTD (High Torque Drive) — Curvilinear / Rounded Tooth
Pitch 8mm (tooth-to-tooth spacing)
Belt Width 30mm (≈1.18")
Available Lengths 264mm (≈10.4") to 2800mm (≈110.2") — see variant options
Tooth Height Typically 3.4mm for HTD 8M profile
Body Material Neoprene or EPDM rubber (contact us to confirm specific compound)
Tension Member Fiberglass or steel cord (see variant options for confirmation)
Tooth Facing Nylon fabric (typically)
Loop Type Closed-loop (endless) — not open-ended
Quantity per Order 1 Pcs
Compatible Pulley Standard HTD 8M, 30mm groove width
Typical Applications CNC router axis drives, laser engravers, stepper motor power transmission, industrial automation

❓ Frequently Asked Questions

How do I choose the right belt length for my CNC machine?

Measure the center-to-center distance between your drive and driven pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For example, a 500mm center distance with two equal pulleys typically requires a belt in the 1000–1100mm range. Always verify against your pulley tooth count. For reference: 1 inch = 25.4mm, so 400mm ≈ 15.75", 1000mm ≈ 39.4".

What load or torque can this belt handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. A 30mm-wide HTD 8M belt can typically handle higher torque loads than narrower 15mm or 20mm versions of the same pitch. Exact load ratings depend on pulley diameter, operating speed, and tension. Contact us with your application details to confirm suitability.

Can this belt be used outdoors or in dusty/wet environments?

HTD rubber timing belts are generally resistant to light moisture and dust, making them suitable for semi-protected workshop environments. Prolonged exposure to standing water, oils, solvents, or direct UV radiation can degrade the rubber compound over time. For outdoor or harsh-environment use, inspect the belt periodically and replace as needed.

Is this belt compatible with my existing HTD 8M pulleys?

Yes — this belt follows the HTD 8M profile standard (8mm pitch, rounded tooth) and is compatible with any standard HTD 8M pulley regardless of brand. The critical check is that your pulley's belt groove width matches 30mm. If your pulleys have a narrower groove (e.g., 15mm or 20mm), you will need a narrower belt width instead.

How do I decide between HTD 8M and other pitches like 5M or 3M?

Pitch selection depends on torque and speed requirements. HTD 3M and 5M are typically used for lighter-duty, higher-speed applications such as small desktop 3D printers. HTD 8M is suited for heavier-duty CNC routers, laser cutters, and industrial stepper motor drives where higher torque transmission is needed. If your machine originally used an 8M belt, this is the correct replacement pitch.

What materials is this timing belt made from?

HTD 8M timing belts are generally constructed with a neoprene or EPDM rubber body reinforced with fiberglass or steel tension cords, and a nylon tooth facing for reduced friction and wear. This construction provides dimensional stability and resistance to stretching under sustained load. Contact us to confirm the specific compound for this product.

Can I cut this belt to a shorter custom length?

No — timing belts are closed-loop (endless) and cannot be cut and rejoined without specialized vulcanizing equipment. We offer over 240 length options from 264mm to 2800mm in this listing. If you need a specific length not listed, contact us to check availability.

How many belts do I receive per order?

Each order includes 1 Pcs (one belt) of the selected length. If you need multiple belts for a multi-axis machine, simply increase the quantity at checkout or place separate orders for different lengths.

🛒 Select your length above, then add to cart — ships from our US warehouse.
