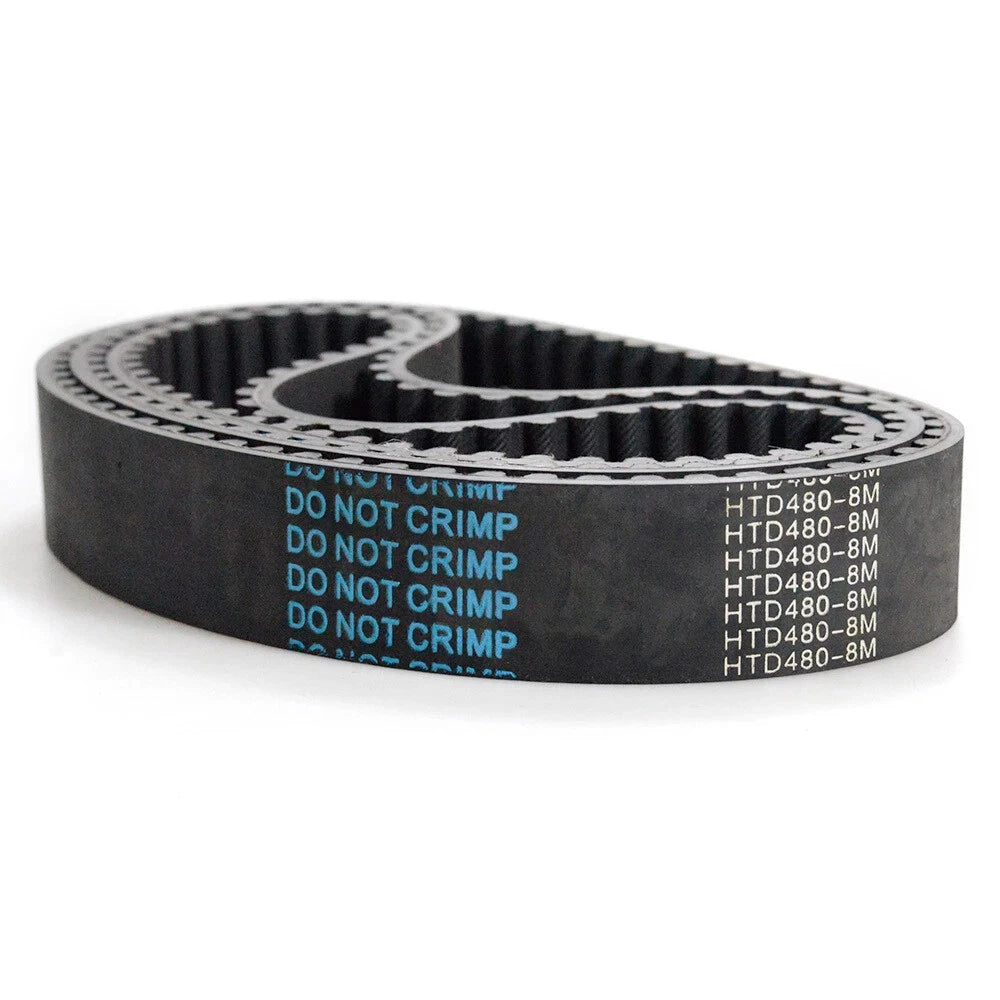

HTD 8M Closed Loop Timing Belt — Reliable 8mm Pitch Drive for CNC, Robotics & Industrial Machines

When a slipping or mismatched drive belt causes positioning errors on your CNC router, robotic arm, or conveyor system, the entire project stalls. Engineers, makers, and machine builders who need a dependable closed loop timing belt for high-torque power transmission rely on the HTD 8M profile to keep their drives running accurately and consistently.

This HTD 8M closed loop timing belt features an 8mm pitch (tooth-to-tooth spacing) and a 20mm (≈0.79") belt width. Available in a wide range of tooth counts from 264 teeth (2112mm / ≈83.1" circumference) up to 1728 teeth (13824mm / ≈544.3" circumference), each belt is sold individually (1 PCS per order). The belt body is typically constructed from neoprene rubber with fiberglass or steel cord tensile reinforcement for dimensional stability under load.

Typical use cases include CNC router axis drives requiring precise closed loop motion control, robotic arm joint drives where repeatable positioning is critical, and industrial conveyor or automation systems that demand consistent torque transmission over long belt runs.

🔗 Compatibility: Designed for HTD 8M pulleys with 8mm pitch profile only. Not compatible with GT2, T5, T8, T10, or MXL pulleys. Verify your pulley tooth count and center distance before ordering.
⚠️ Size Selection: Belt circumference = tooth count × 8mm. Select your variant by tooth count above. If you are unsure, measure your existing belt or calculate from pulley center distance. Contact us to confirm before ordering.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

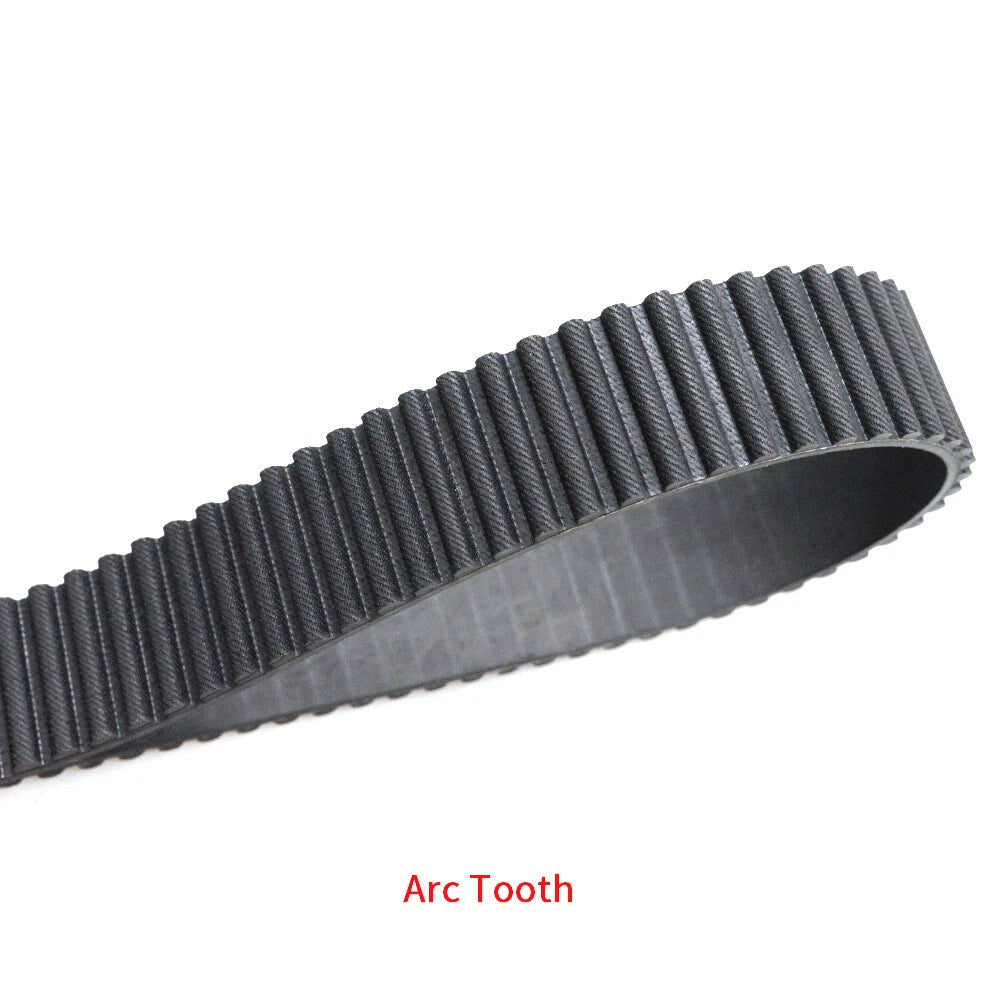

  • ⚙️HTD 8M Tooth Profile — The rounded HTD tooth geometry provides full tooth engagement with matching HTD 8M pulleys, reducing tooth jump risk under high-torque loads in CNC and robotic drive systems.
  • 📏Wide Size Range — Available from 264 to 1728 teeth (2112mm to 13824mm circumference), covering a broad range of machine configurations without custom fabrication.
  • 🔩20mm Belt Width — The 20mm (≈0.79") width delivers greater lateral stability and higher torque capacity compared to narrower 8M variants, suited for demanding axis drives.
  • 🧱Reinforced Construction — Typically built with a neoprene rubber body and fiberglass or steel cord tensile layer, providing dimensional stability and resistance to stretch under sustained load.
  • 🔄Closed Loop Design — Seamless closed loop construction eliminates splice points, ensuring uniform tension distribution and consistent motion throughout the belt's full circumference.
  • 🏭Broad Application Fit — Suitable for CNC routers, laser cutters, 3D printers, robotic joints, conveyor drives, and other precision motion control applications requiring an 8mm pitch closed loop drive belt.

📐 Technical Specifications — HTD 8M Closed Loop Timing Belt

Belt Type HTD Closed Loop Timing Belt
Pitch 8mm (HTD 8M)
Belt Width 20mm (≈0.79")
Tooth Count Range 264 – 1728 teeth (see variant options)
Belt Circumference Range 2112mm (≈83.1") – 13824mm (≈544.3")
Tooth Profile HTD (High Torque Drive), rounded
Belt Material Neoprene rubber with fiberglass/steel cord reinforcement (typically)
Compatible Pulley HTD 8M pulleys only
Quantity per Order 1 PCS
Application CNC routers, robotics, 3D printers, conveyor drives, industrial automation
Color/Finish See variant options
Country of Origin Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length = 2 × C + π × (D1 + D2) / 2. For HTD 8M belts, each tooth equals 8mm of pitch length, so divide the required belt circumference (in mm) by 8 to get the tooth count. For example, a 640mm circumference belt = 640 ÷ 8 = 80 teeth. Always round to the nearest available size and confirm with a test fit before final installation.

What load capacity can an HTD 8M timing belt handle?

HTD 8M belts are generally rated for moderate-to-heavy power transmission. The 20mm width variant typically handles higher torque loads than narrower widths of the same pitch. Actual capacity depends on pulley diameter, operating speed, and tension. Consult your drive system's engineering specifications for precise load ratings, as these vary by application.

Can this timing belt be used outdoors or in wet environments?

HTD 8M timing belts are typically made from neoprene rubber, which generally offers good resistance to oil and moderate moisture exposure. However, prolonged UV exposure, standing water, or contact with harsh chemicals may reduce belt service life. For outdoor or wet-environment applications, verify the specific material composition and consider adding a protective enclosure or cover.

What pulley standard is compatible with HTD 8M belts?

HTD 8M belts are designed exclusively for HTD (High Torque Drive) pulleys with an 8mm pitch tooth profile. They are not interchangeable with GT2, T5, T8, T10, MXL, or other belt profiles. Always match the belt pitch and tooth profile to your pulley specification to ensure proper engagement and avoid premature wear.

How do I convert belt length from mm to inches?

Divide the belt circumference in mm by 25.4 to convert to inches. For example, a 640mm belt ≈ 25.2" (640 ÷ 25.4). The tooth count × 8mm gives you the exact belt circumference in millimeters. Use this to cross-reference with inch-based pulley center distance calculations when working with mixed-unit machine drawings.

Is this belt suitable for 3D printers and CNC routers?

Yes. HTD 8M closed loop timing belts are commonly used in CNC routers, laser cutters, and larger-format 3D printers where precise, repeatable motion is required. The 20mm width provides additional lateral stability compared to narrower belts, making it well-suited for high-torque axis drives. Confirm your machine's pulley pitch and center distance before selecting a tooth count.

What is the difference between HTD 8M and GT2 or T8 belts?

HTD 8M uses a rounded tooth profile optimized for high-torque, moderate-speed applications. GT2 belts use a modified curvilinear tooth profile designed for smoother, more precise motion at higher speeds (common in desktop 3D printers). T8 uses a trapezoidal tooth profile. These profiles are not interchangeable — always match belt and pulley tooth profiles to avoid slippage and premature wear.

🛒 Select your tooth count above, then add to cart — ships from our US warehouse.
