HTD 8M Timing Belt — Precise, Slip-Free Power Transmission for Demanding Drives

When a slipping or mismatched drive belt causes positioning errors in your CNC router, stalls your 3D printer mid-print, or introduces backlash into your robotics build, the entire project suffers. Engineers, makers, and machine builders who need a reliable HTD 8M timing belt with consistent tooth engagement and zero-slip performance will find this closed loop belt a dependable solution across a wide range of drive configurations.

Each belt in this listing is a closed loop (endless) HTD 8M profile belt with an 8mm pitch and 25mm width. Available in 250 size options ranging from 36 teeth / 288mm (≈11.3") up to 679 teeth / 5432mm (≈213.9"), the belt circumference equals the tooth count multiplied by 8mm. The HTD tooth profile features a rounded, curvilinear cross-section designed to distribute load across a larger contact area compared to trapezoidal profiles.

Typical use cases include CNC router and laser cutter axis drives where positional accuracy is critical, high-torque 3D printer motion systems requiring consistent belt tension, industrial conveyor and indexing drives, and robotics joint actuators where backlash-free motion is essential. The 25mm width makes this belt well-suited for medium-to-heavy duty closed loop timing belt drive applications.

ℹ️ Compatibility Notice: These belts are designed exclusively for HTD 8M profile pulleys (8mm pitch, curvilinear tooth form). They are not compatible with GT2, T5, T8, T10, or trapezoidal-profile pulleys. Always verify your pulley profile and pitch before ordering.
⚠️ Size Selection: Belt circumference (mm) = Tooth Count × 8. For example, the 50-tooth variant has a 400mm (≈15.7") loop circumference. Measure your drive geometry carefully and select the tooth count that matches your required belt length.

✅ Key Features of These HTD 8M Closed Loop Timing Belts

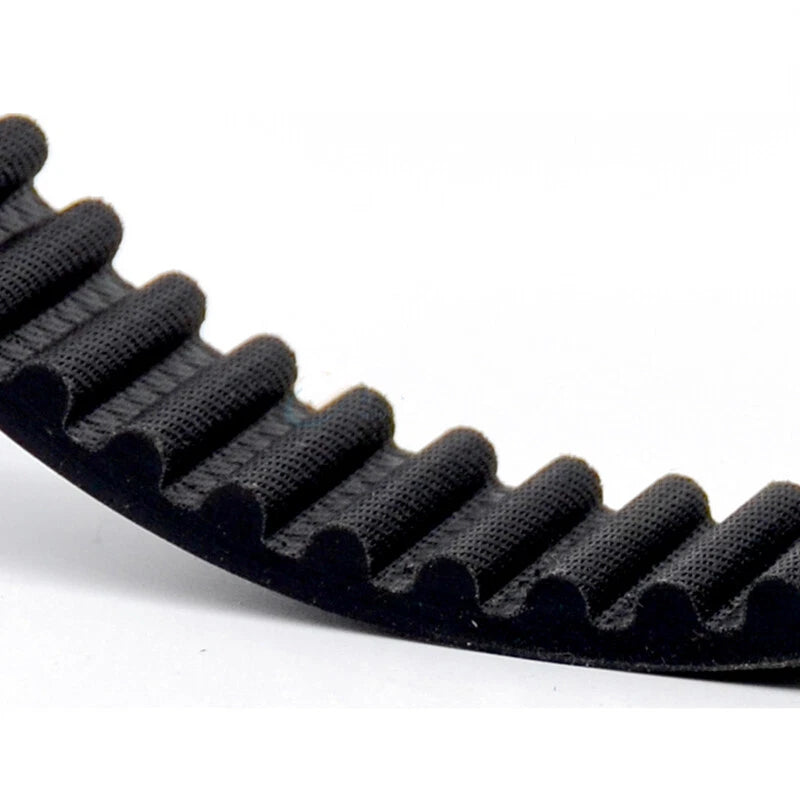

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque closed loop timing belt drives.
  • 📏8mm Pitch, 25mm Width — The 8mm center-to-center tooth spacing and 25mm belt width make this configuration suitable for medium-to-heavy duty CNC, robotics, and industrial conveyor applications requiring substantial torque capacity.
  • 🔄Closed Loop (Endless) Construction — Pre-formed as a continuous loop with no splice or joint, eliminating the weak point and vibration that open-ended belts introduce when joined in the field.
  • 🧵Reinforced Tension Cord — Internal fiberglass or steel tension cord reinforcement (typical for HTD belts) resists elongation under load, maintaining consistent center-to-center distance and positional accuracy over time.
  • 📐250 Size Options in One Listing — From 36 teeth (288mm) to 679 teeth (5432mm), this listing covers an exceptionally wide range of drive geometries, reducing the need to source belts from multiple suppliers for different machine builds.
  • 🏭Broad Application Range — Suited for 3D printer motion systems, CNC router axis drives, laser cutter gantries, indexing conveyors, and robotics actuators where slip-free synchronous power transmission is required.

📐 Technical Specifications — HTD 8M Closed Loop Timing Belt

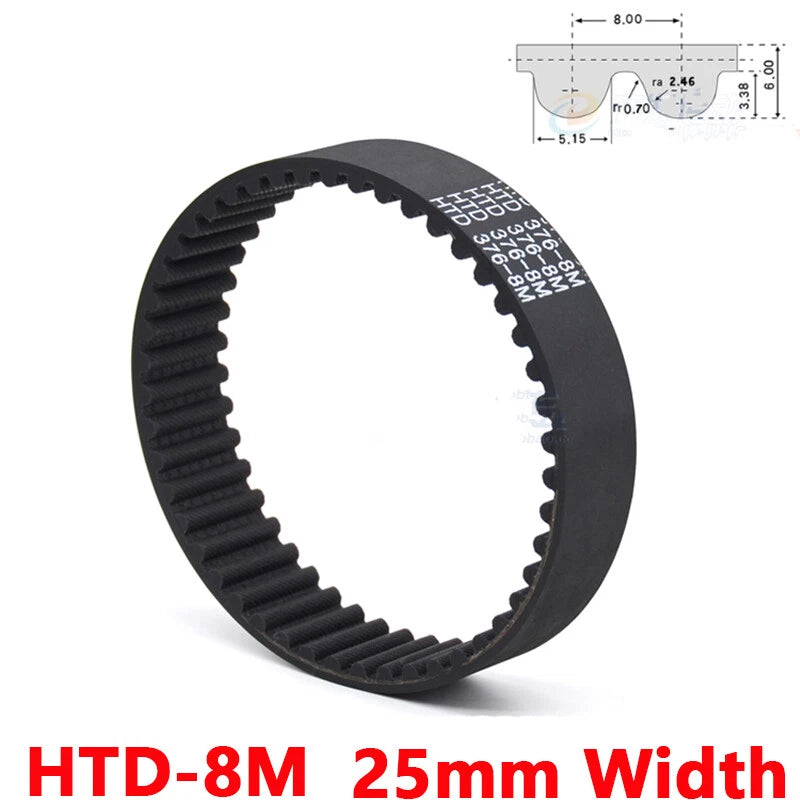

Belt Profile HTD (High Torque Drive) — 8M
Pitch 8mm (0.315")
Belt Width 25mm (≈0.98")
Tooth Form Curvilinear (rounded HTD profile)
Belt Type Closed Loop (Endless)
Available Tooth Count 36T to 679T (see variant options)
Belt Circumference Range 288mm (≈11.3") to 5432mm (≈213.9")
Circumference Formula Teeth × 8mm = Belt Length (mm)
Belt Material Contact us to confirm
Tension Cord Contact us to confirm
Tooth Facing Contact us to confirm
Compatible Pulley Profile HTD 8M only (not GT2, T5, T10)
Typical Applications CNC routers, 3D printers, robotics, industrial conveyors, indexing drives
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right belt length (number of teeth)?

For HTD 8M belts, belt circumference (mm) = number of teeth × 8. For example, a 50-tooth belt is 400mm (≈15.7") in circumference. To find the right size, calculate the required belt loop length based on your pulley center-to-center distance and pulley diameters, then select the closest available tooth count. When in doubt, size up slightly to allow for tensioner adjustment. A common formula: Belt Length ≈ 2C + π(D₁+D₂)/2, where C is center distance and D₁/D₂ are pulley pitch diameters.

What load or torque can an HTD 8M belt typically handle?

HTD 8M belts are generally rated for moderate-to-high torque applications. At 25mm width, they can typically transmit significantly more torque than narrower 8M variants. Exact load ratings depend on pulley diameter, belt speed, number of teeth in mesh, and operating temperature. In most cases, consult your drive system's engineering specifications or a belt drive design guide to confirm suitability for your specific load requirements.

Can this belt be used outdoors or in wet/oily environments?

HTD timing belts are generally constructed from neoprene or polyurethane, which provides reasonable resistance to moisture and mild chemicals. However, prolonged exposure to UV radiation, petroleum-based oils, or aggressive solvents can degrade belt material over time. For outdoor or chemically exposed environments, we recommend confirming the specific belt material composition with us before ordering, and considering a protective belt guard where feasible.

What pulleys are compatible with HTD 8M belts?

These belts require HTD 8M profile pulleys with an 8mm pitch and curvilinear tooth form. They are not interchangeable with GT2, GT3, T5, T8, T10, or trapezoidal (MXL, XL, L) profile pulleys. Using a mismatched pulley profile will cause the belt to skip under load and wear prematurely. Always verify both the pitch and tooth profile of your existing pulleys before selecting a replacement belt.

How do I decide between a 25mm wide belt and a narrower option?

Belt width directly affects torque capacity and lateral stability. A 25mm wide HTD 8M belt is generally suited for medium-to-heavy duty drives — such as CNC router gantries, industrial indexing conveyors, and high-load robotics joints. For lighter applications like compact 3D printers or hobby-grade CNC machines, a narrower belt (typically 15mm or 20mm) may be sufficient and more cost-effective. Always match the belt width to your pulley flange width to prevent the belt from riding off the pulley.

What materials are HTD 8M timing belts typically made from?

HTD timing belts are typically constructed from neoprene rubber or polyurethane with fiberglass or steel tension cord reinforcement. The tooth surface is generally faced with a nylon fabric layer to reduce friction and extend tooth life. Contact us to confirm the specific material composition for this listing before placing an order for critical applications.

Is this a closed loop (endless) belt or an open-ended belt?

All variants in this listing are closed loop (endless) belts — pre-formed continuous loops with no splice, joint, or cut end. They cannot be shortened or extended in the field. Select the tooth count that corresponds to your required belt circumference (Teeth × 8mm = circumference in mm).
