HTD 8M Timing Belt — Closed-Loop Rubber Drive Belt for Precise Power Transmission

When a slipping or stretched drive belt causes positioning errors in your CNC router, 3D printer, or robotic system, the entire project suffers. Engineers, makers, and machine builders who depend on repeatable, slip-free motion need an HTD 8M timing belt they can trust to maintain tooth engagement under load — without stretching out of spec after a few hundred hours of use.

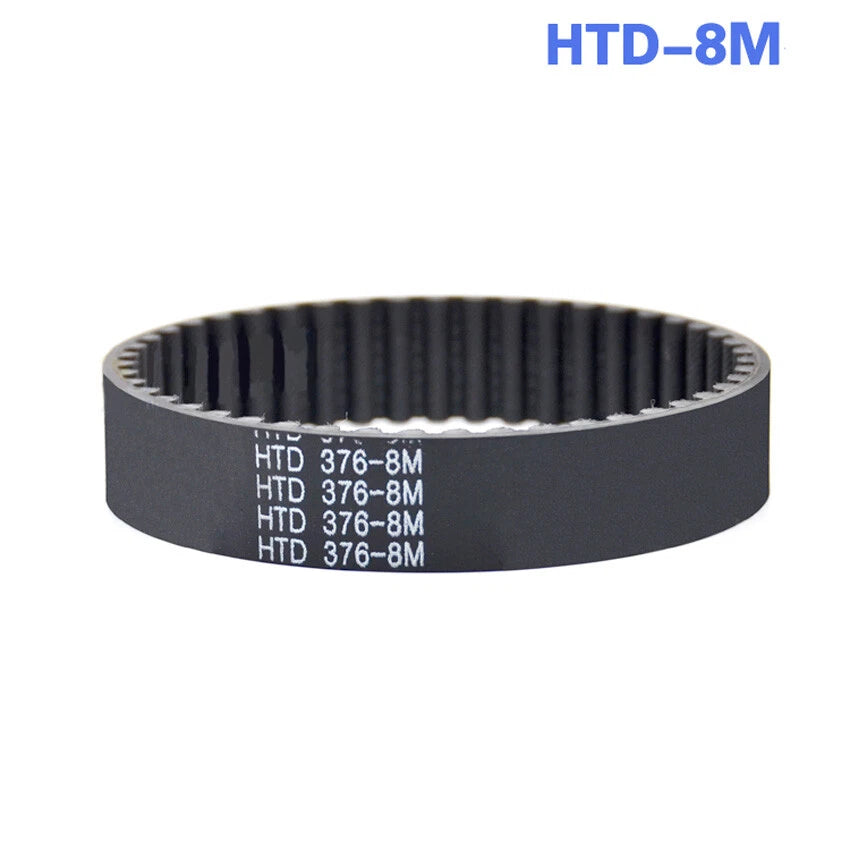

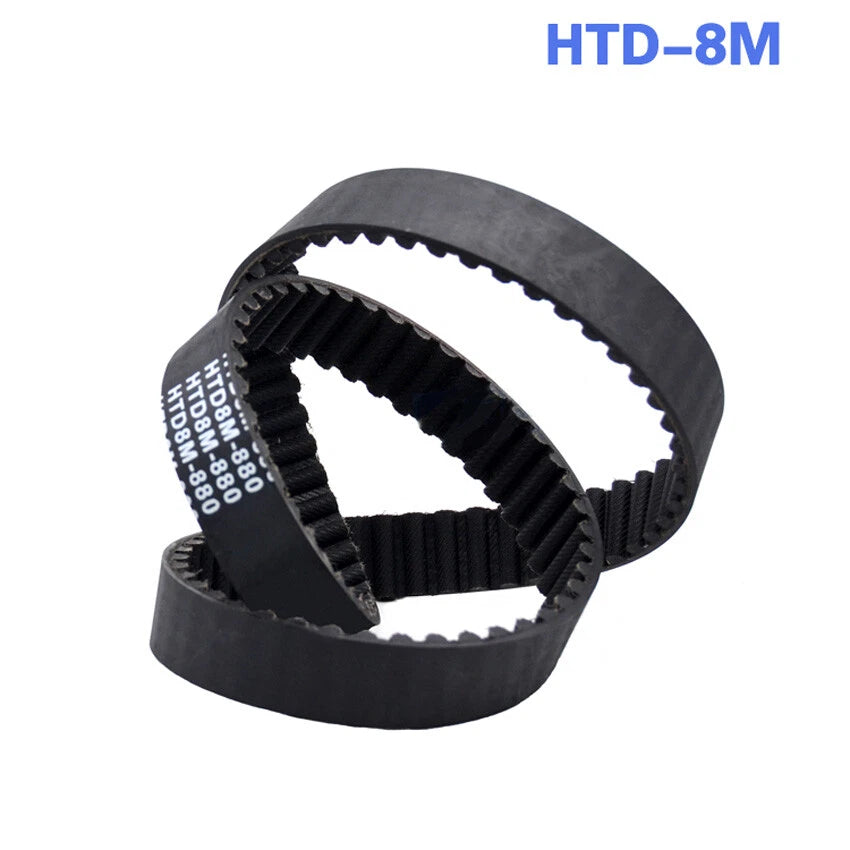

Each belt in this listing is a single closed-loop HTD 8M rubber timing belt with an 8mm pitch curvilinear tooth profile. Perimeter options range from 824mm (≈32.4") to 1464mm (≈57.6"), with teeth counts from 103 to 183. Belt widths are available in 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18"), and 40mm (≈1.57"). The rubber body is reinforced with embedded tension cords for dimensional stability under dynamic loads.

Typical use cases include closed-loop axis drives on desktop CNC routers, Z-axis and extruder drives on FDM 3D printers, servo-driven conveyor systems, and robotic joint actuators where the HTD 8M closed-loop belt profile provides the tooth shear resistance needed for consistent torque transfer.

ℹ️ Compatibility: Designed for standard HTD 8M pulleys. Match belt width to your pulley groove width (20 / 25 / 30 / 40mm). Verify perimeter and tooth count against your drive geometry before ordering.
⚠️ Sizing note: Perimeter is the total outer loop length. If you are unsure of your required perimeter, measure your existing belt or calculate from pulley center distance. See FAQ below for guidance.

✅ Key Features of These HTD 8M Closed-Loop Timing Belts

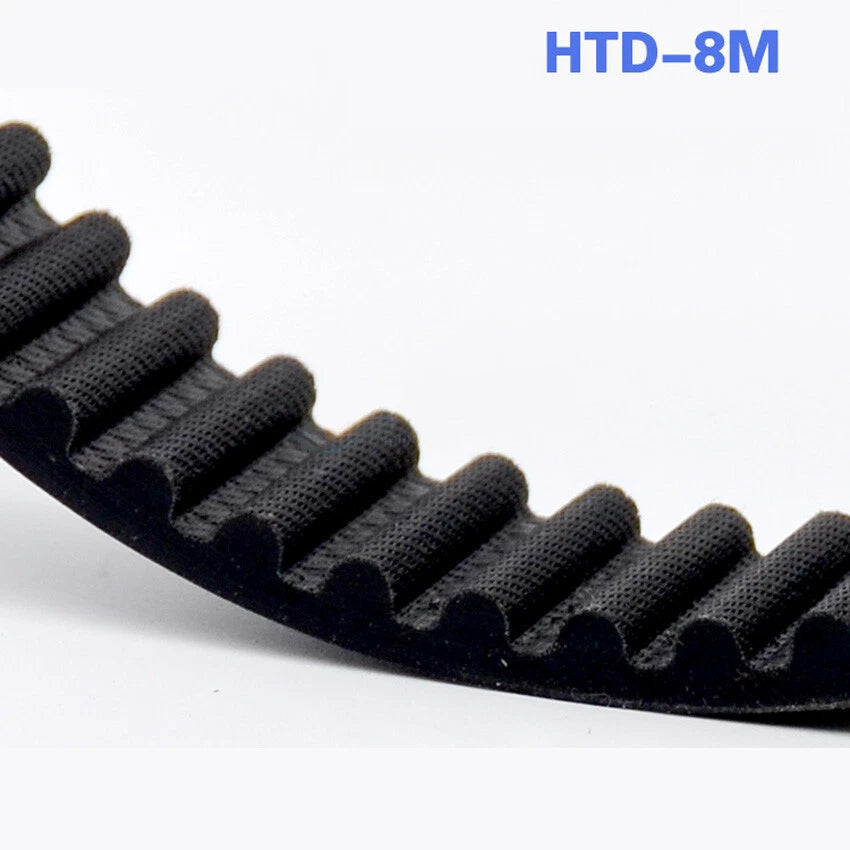

  • ⚙️HTD 8M Curvilinear Tooth Profile — The rounded tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque HTD 8M drive applications.
  • 📏Wide Perimeter Selection — Available from 824mm (≈32.4") to 1464mm (≈57.6") in 8mm increments, covering a broad range of center distances for CNC, robotics, and conveyor timing belt replacements.
  • ↔️Four Belt Widths — Choose 20mm, 25mm, 30mm, or 40mm to match your pulley groove and scale load capacity to your application, from light-duty 3D printer drives to heavier industrial power transmission.
  • 🔩Reinforced Tension Cord Construction — Embedded tension cords in the rubber body resist elongation under dynamic loads, helping maintain consistent pitch length and tooth registration over time.
  • 🔄Closed-Loop Design — Seamless closed-loop construction eliminates the splice point found in cut-to-length belts, providing uniform stiffness and load distribution around the full belt perimeter.
  • 🏭Broad Application Compatibility — Fits standard HTD 8M pulleys used in 3D printers, laser cutters, CNC routers, robotic arms, and general industrial timing belt drive systems.

📐 Technical Specifications — HTD 8M Closed-Loop Rubber Timing Belt

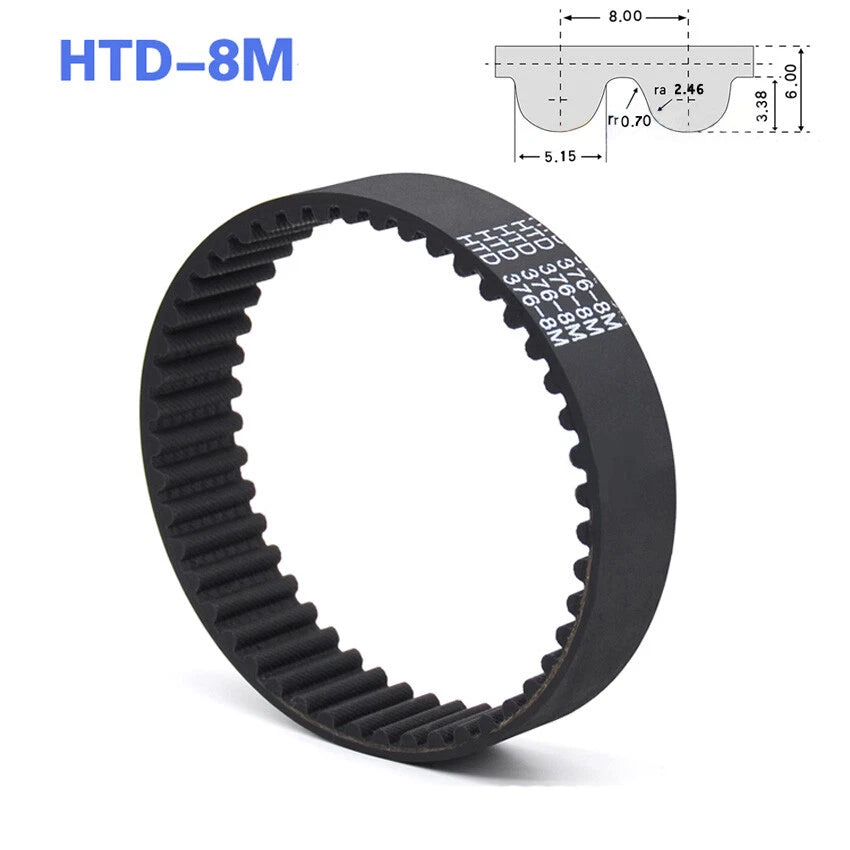

Belt Profile HTD 8M (High Torque Drive, curvilinear tooth)
Pitch 8mm (0.315")
Perimeter Range 824mm (≈32.4") – 1464mm (≈57.6")
Teeth Count Range 103 – 183 teeth
Available Widths 20mm / 25mm / 30mm / 40mm
Belt Type Closed loop (seamless)
Body Material Rubber compound (typically neoprene or EPDM-based)
Tension Member Embedded tension cords (typically steel or fiberglass)
Tooth Face Nylon fabric facing (typically)
Tensile Capacity See variant options — varies by width
Operating Temperature Contact us to confirm
Compatible Pulleys Standard HTD 8M pulleys, matching groove width

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 8M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the required belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 1000mm (≈39.4") belt typically suits a center distance of roughly 400–450mm with standard HTD 8M pulleys. Always verify against your specific pulley tooth count and center distance before ordering.

What belt width should I select — 20mm, 25mm, 30mm, or 40mm?

Width determines load capacity and must match your pulley groove width. Generally: 20mm suits light-duty applications like 3D printers and small laser engravers; 25–30mm handles medium loads in robotics and conveyor drives; 40mm is suited for heavier industrial power transmission. Always match belt width to your pulley groove width for proper tracking and tooth engagement.

What is the tensile strength of this HTD 8M timing belt?

HTD 8M belts typically feature steel or fiberglass tension cords embedded in the rubber body. Tensile load capacity generally increases with belt width — wider belts carry higher loads. For precise tensile ratings for your selected width, please contact us to confirm specifications before use in safety-critical applications.

Can this timing belt be used outdoors or in wet environments?

HTD 8M rubber timing belts are generally resistant to moderate moisture and humidity. However, prolonged exposure to standing water, petroleum-based oils, or direct UV radiation can degrade the rubber compound over time. For outdoor or harsh-environment applications, periodic inspection and scheduled replacement are recommended. Contact us if you need confirmation of chemical resistance for your specific environment.

Is this belt compatible with standard HTD 8M pulleys?

Yes. These belts conform to the HTD (High Torque Drive) 8M profile standard — 8mm pitch with a curvilinear tooth geometry. They are compatible with any standard HTD 8M pulley of matching groove width. Verify that your pulley groove width matches the belt width you select (20 / 25 / 30 / 40mm) to ensure proper tracking and load distribution.

How do I read the model number, for example HTD8M-1000?

The model number encodes the belt profile and perimeter: HTD = High Torque Drive profile; 8M = 8mm pitch; the trailing number (e.g. 1000) = belt perimeter in millimeters (1000mm ≈ 39.4"). The teeth count equals perimeter ÷ pitch, so HTD8M-1000 has 125 teeth. Use this to cross-reference with your existing belt or pulley documentation.

What applications are these HTD 8M belts commonly used in?

HTD 8M closed-loop timing belts are widely used in: FDM 3D printers (axis and extruder drives), desktop CNC routers and laser engravers, robotic arm joints and actuators, conveyor and indexing systems, and general industrial power transmission where precise, slip-free motion is required. The 8mm pitch provides a good balance of tooth strength and flexibility for medium-to-large drive systems.

🛒 Select your model (perimeter) and belt width above, then add to cart — ships from our US warehouse.
