When your CNC router, 3D printer, or industrial automation rig demands repeatable, slip-free power transmission, a worn or mismatched pulley becomes the weakest link in the entire drivetrain. Engineers, makers, and machine builders who need a drop-in HTD-8M timing belt pulley that holds tight tolerances across long production runs will find exactly what they need here.

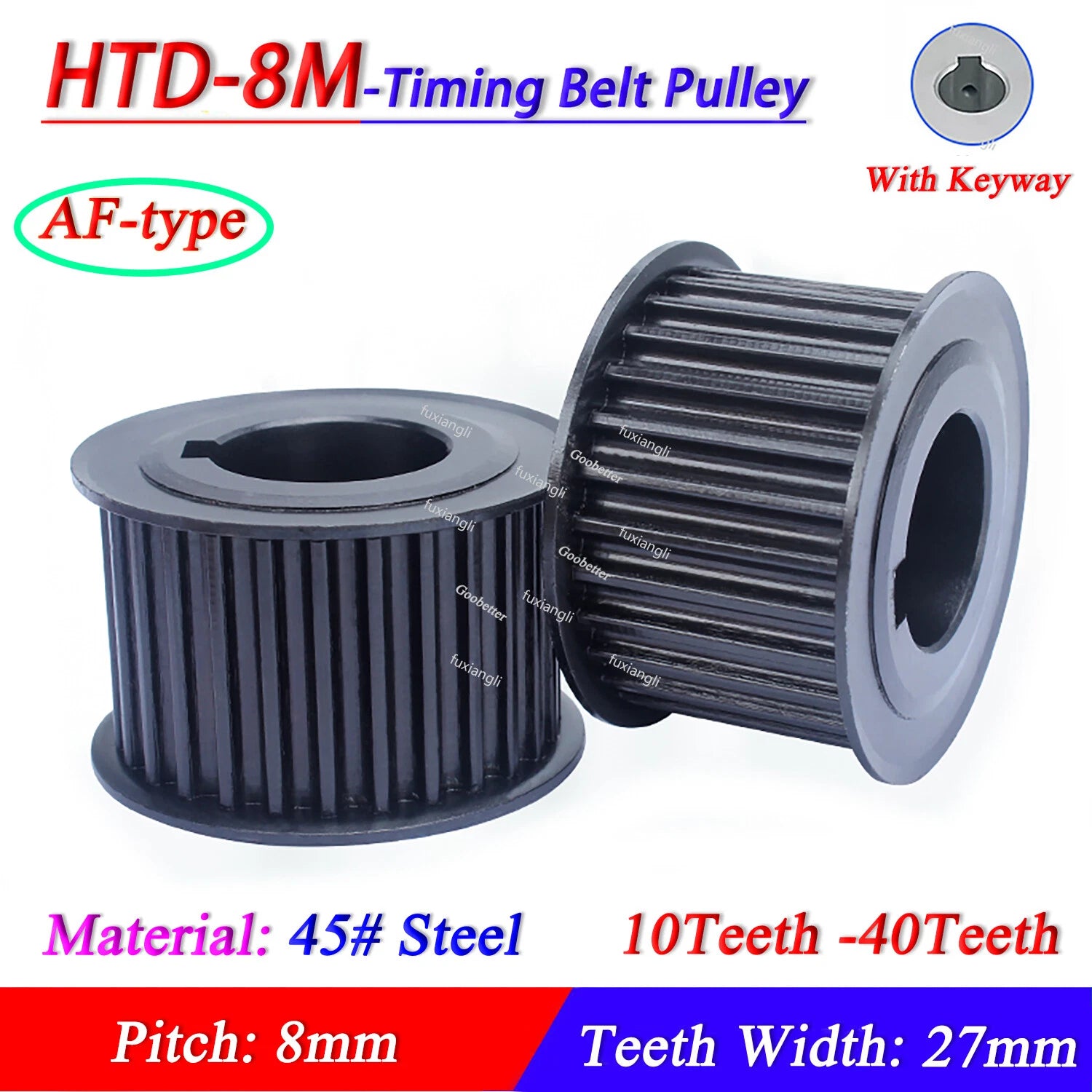

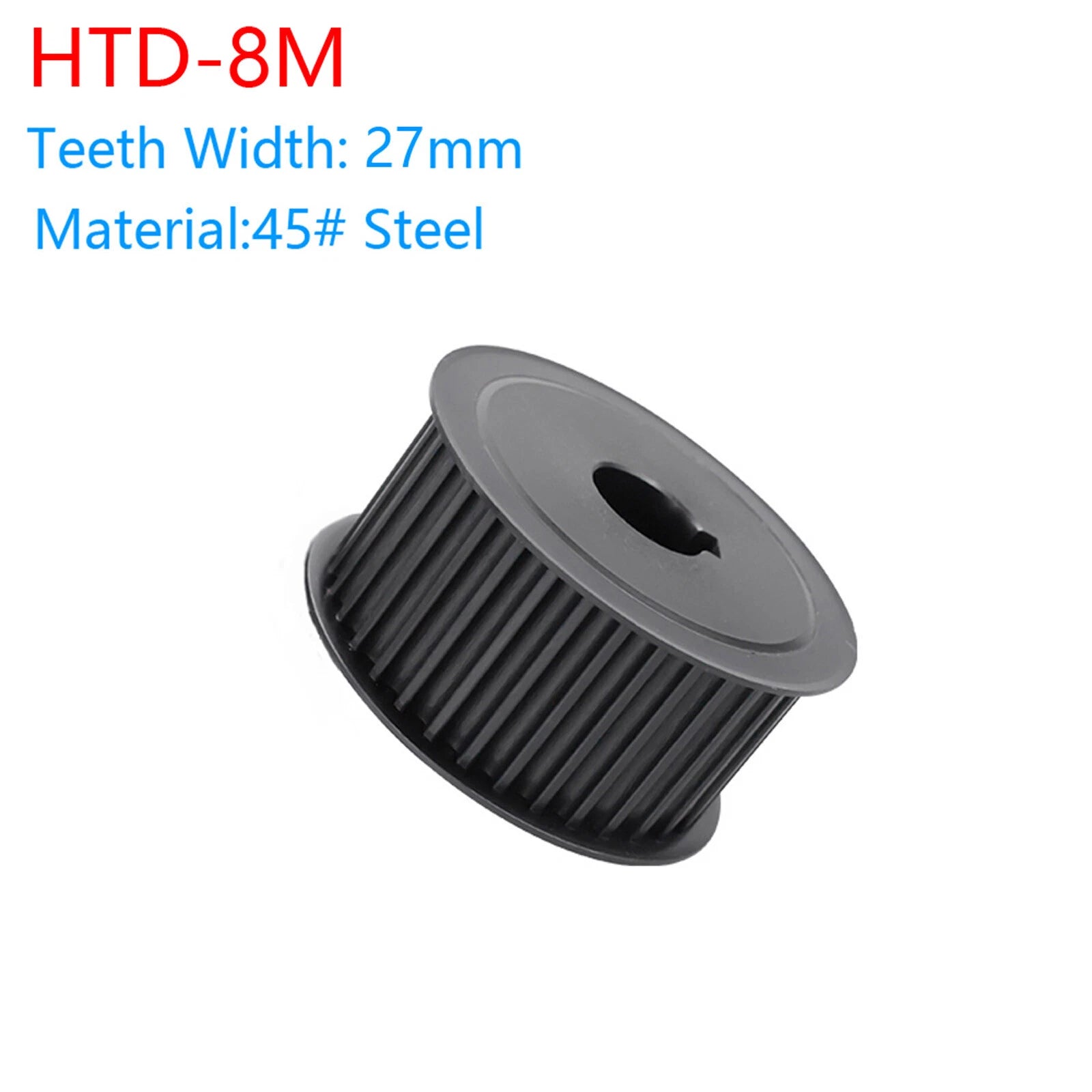

Each pulley is machined from 45# carbon steel — a medium-carbon alloy known for its balance of hardness and machinability — and features a 27 mm (≈1.06 in) belt-contact width. Tooth count ranges from 12 T to 40 T, and bore options span 8 mm to 28 mm (≈0.31–1.10 in), with a precision-cut keyway and matching set-screw flat for secure shaft engagement. The HTD-8M tooth profile (8 mm pitch, curvilinear groove) provides positive engagement with standard 8M synchronous belts.
Typical use cases include CNC gantry axis drives requiring low backlash, servo and stepper motor output shafts on laser cutters and plasma tables, and conveyor or indexing systems where synchronous timing is critical. The wide 27 mm face also suits dual-belt or wide-belt configurations common in heavy-duty 3D printer extruder drives and pick-and-place machines.

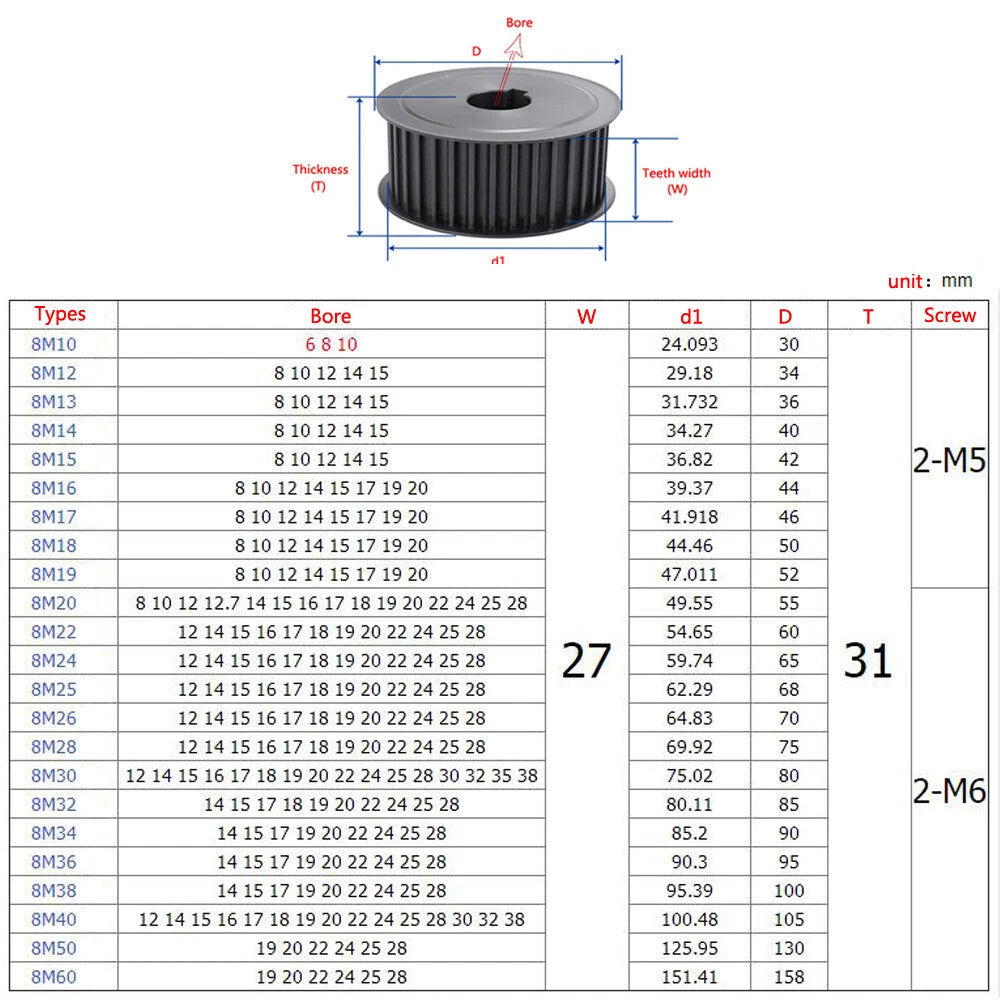

| Belt Pitch | 8 mm (HTD-8M) |
|---|---|
| Tooth Profile | HTD curvilinear |
| Number of Teeth | 12 T – 40 T (see variant options) |
| Belt Width (Face Width) | 27 mm (≈1.06 in) |
| Bore Diameter | 8 – 28 mm / 12.7 mm (½ in) (see variant options) |
| Keyway Dimensions | 3×1.4 mm / 4×1.8 mm / 5×2.3 mm / 6×2.8 mm / 8×3.3 mm (see variant options) |
| Material | 45# Carbon Steel |
| Finish | Natural machined (uncoated) |
| Pitch Diameter Range | See variant options |
| Outer Diameter Range | See variant options |
| Weight | See variant options |
| Quantity per Order | 1 piece |
The tooth count determines the pitch diameter and, combined with your motor pulley, sets the drive ratio. A smaller pulley (e.g., 12 T) on the motor paired with a larger pulley (e.g., 24 T) on the driven shaft gives a 2:1 reduction. Use the formula: Pitch Diameter = (Teeth × Pitch) ÷ π. For CNC axes, 16–20 T on the motor is a common starting point for 8M systems.

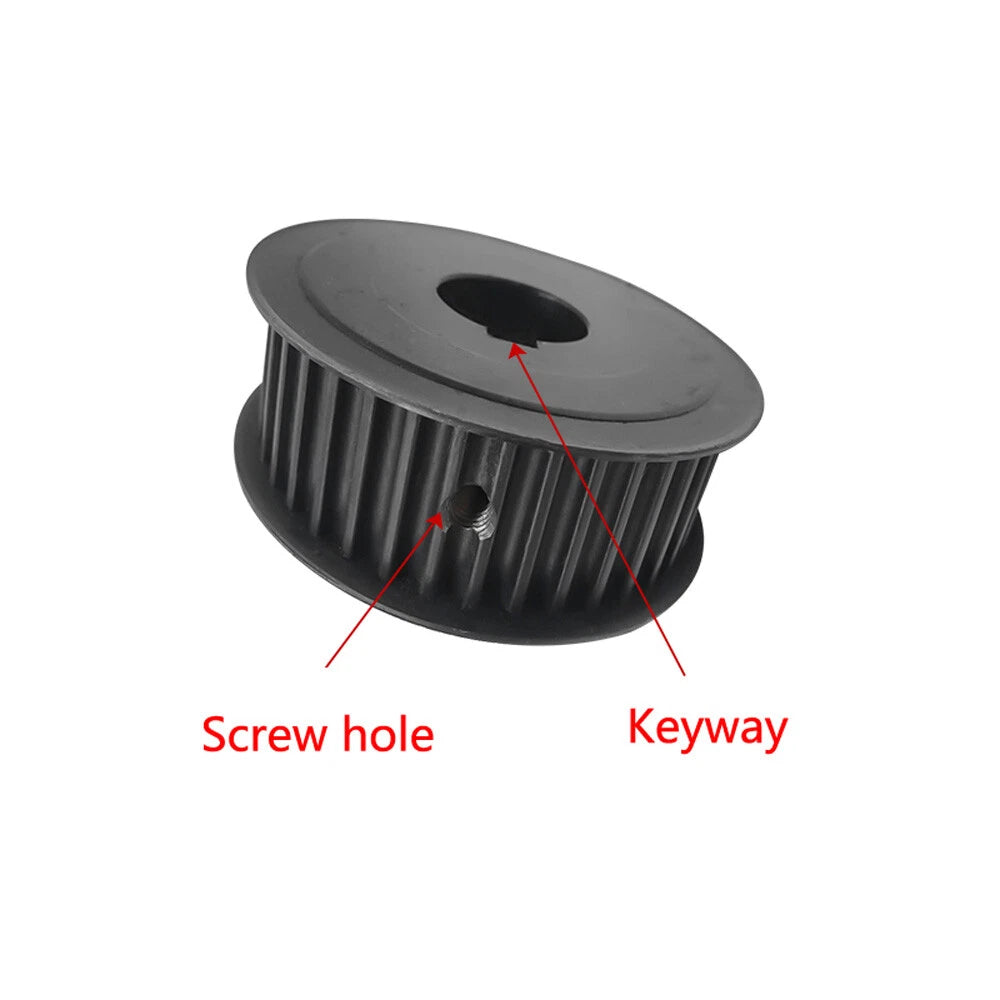

Measure your shaft diameter with a vernier caliper. The bore should match your shaft exactly — a 10 mm bore fits a 10 mm shaft. The keyway and set-screw flat then lock the pulley angularly and axially. If your shaft is imperial (e.g., ½ in / 12.7 mm), select the 12.7 mm bore variant.
45# carbon steel (equivalent to C45 / SAE 1045) has a tensile strength of approximately 600–800 MPa in the normalised condition, making it well-suited for timing pulley applications in CNC routers, 3D printers, laser cutters, and light-to-medium industrial conveyors. For very high-torque or corrosive environments, consider whether a surface treatment or alternative material is needed.
45# carbon steel is not inherently corrosion-resistant. In dry indoor environments (typical for CNC and 3D printing setups) surface oxidation is minimal. If your application involves moisture, coolant mist, or outdoor exposure, applying a light machine oil or considering a zinc-plated or stainless alternative is advisable.
This pulley is designed for standard HTD-8M synchronous timing belts with an 8 mm pitch and curvilinear tooth profile. The 27 mm face width is compatible with belts up to 25–30 mm wide. Ensure the belt width does not exceed the pulley face width to avoid edge wear. HTD-8M belts are widely available in open-ended and closed-loop configurations.
Yes. The keyway and set-screw flat design is specifically suited for motor output shafts. Select the bore that matches your motor shaft diameter (common sizes: 8 mm, 10 mm, 12 mm, 14 mm for NEMA 23/34 steppers and servo motors). Tighten the set screw against the flat to prevent rotational slip under load.
Slide the pulley onto the shaft, aligning the keyway slot in the pulley with the keyway slot in the shaft. Insert the matching key (sold separately — standard DIN 6885 parallel key). Slide the pulley to the desired axial position, then tighten the set screw firmly against the shaft flat. Verify the pulley runs true with a dial indicator if precision alignment is critical.
